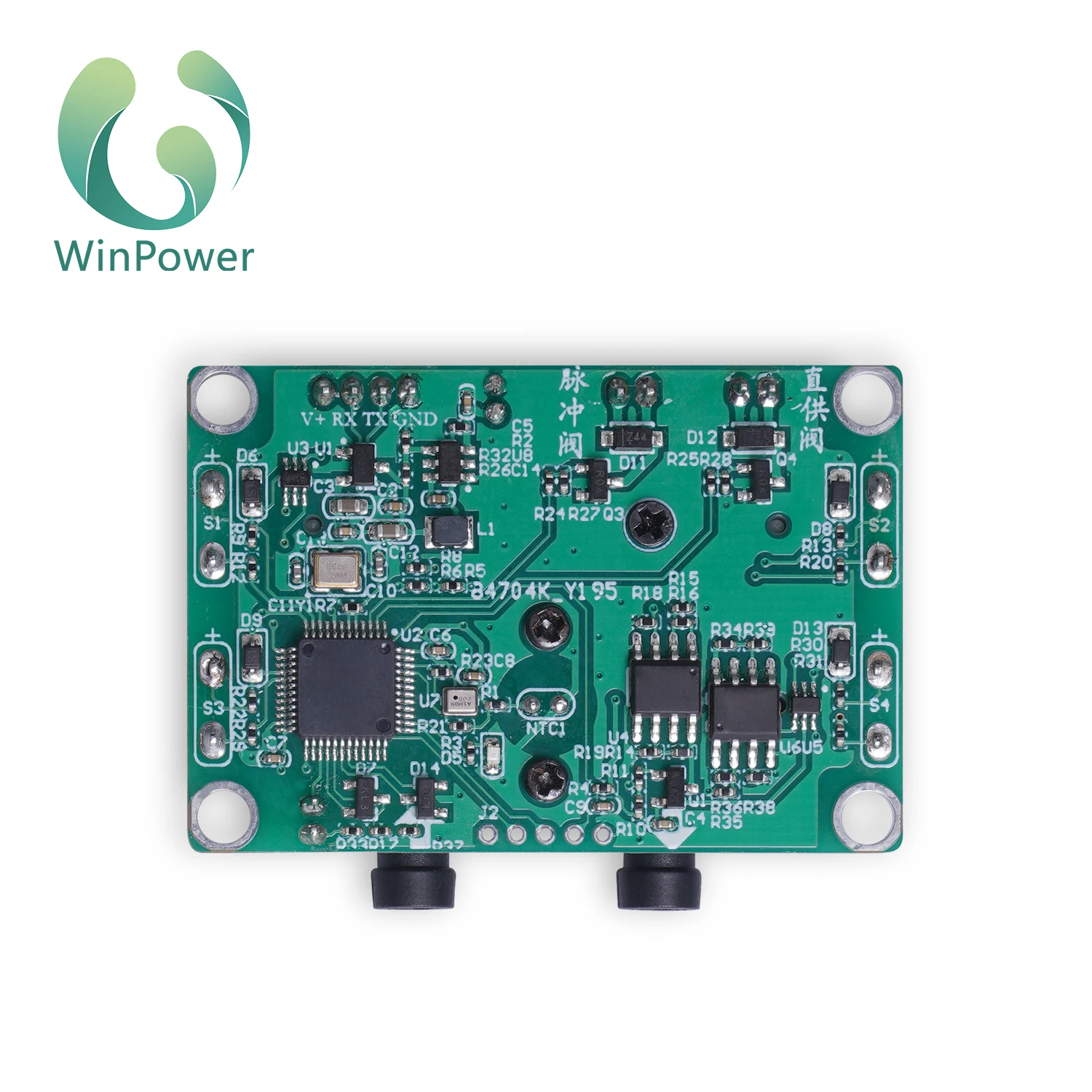

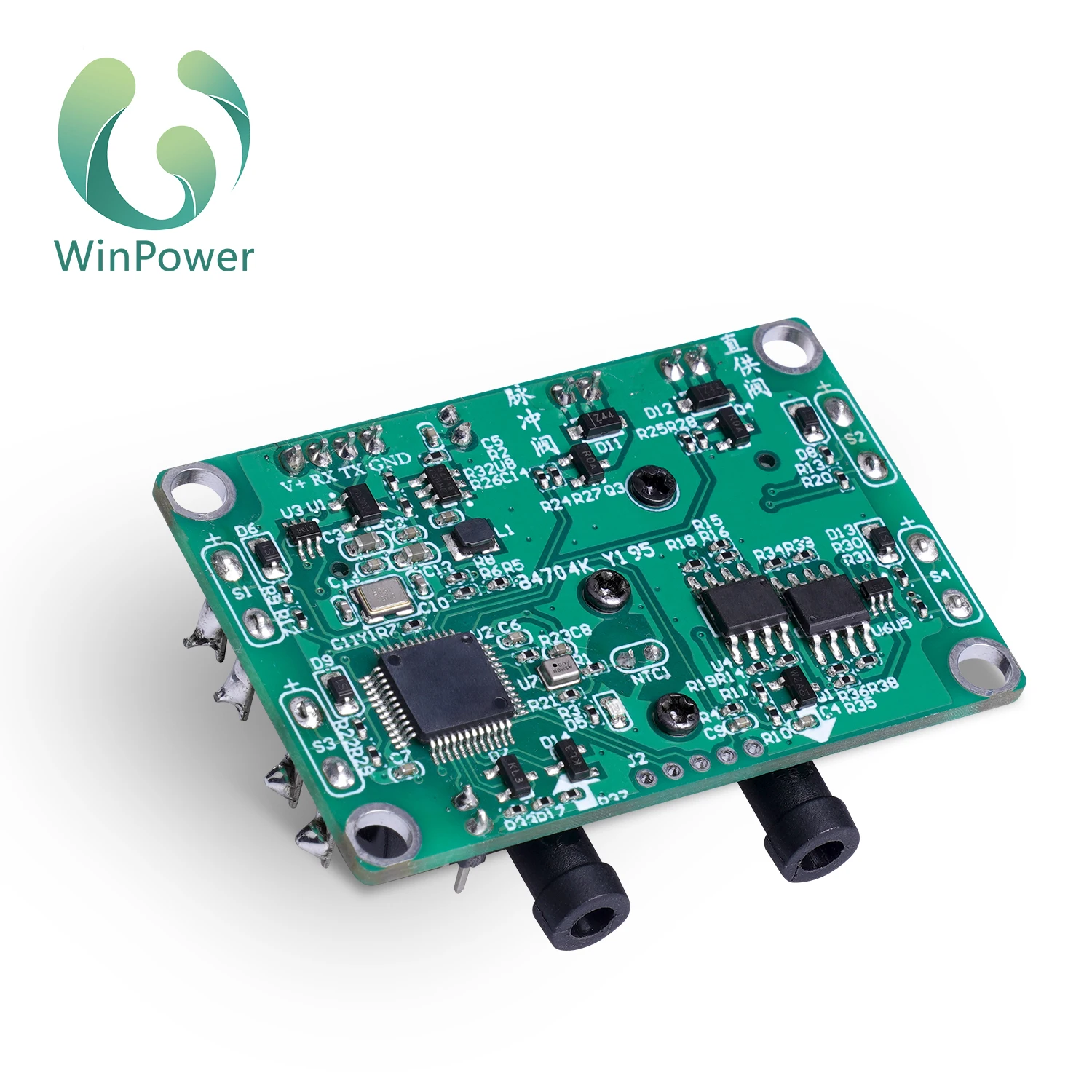

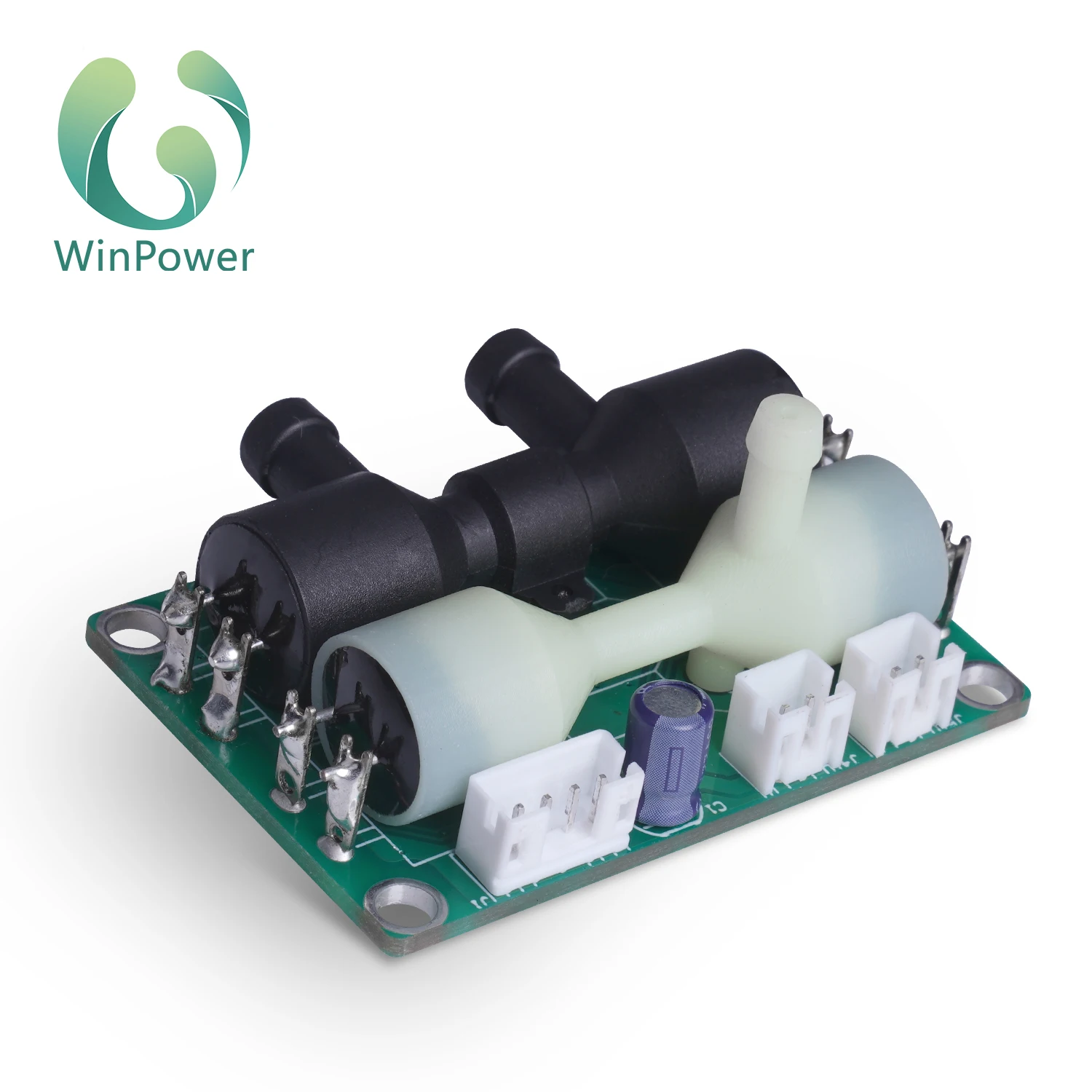

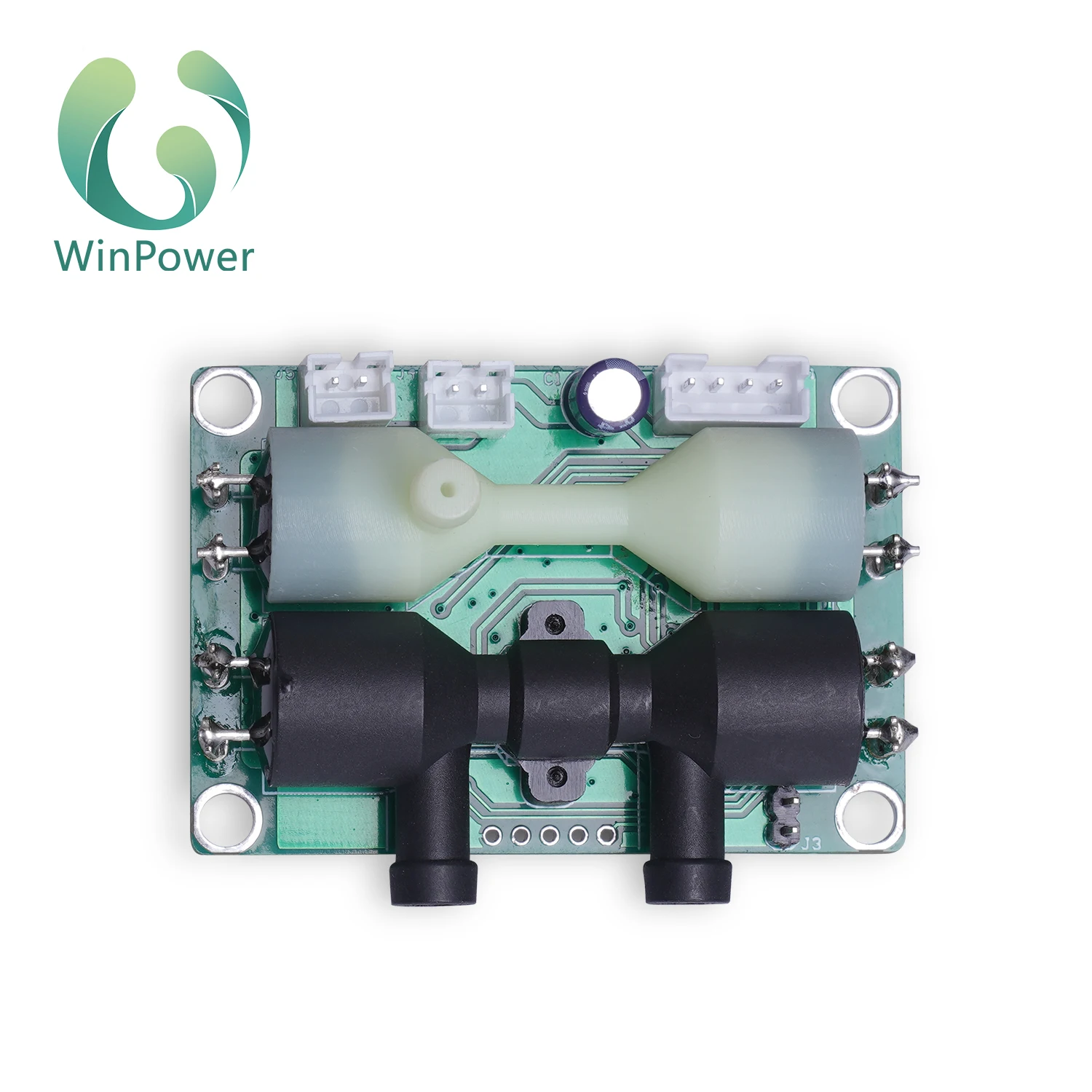

Ultrasonic oxygen sensor for detecting human respirationOCS 3FS
- Category: >>>
- Supplier: Winpower Technology Co. Ltd.
Share on (1600609189140):
Product Overview
Description
Range of Concentration | 21%-95.6% |
Resolution | 0.1% |
Accuracy | ±2%FS@(5~55℃) |
Range of Flow | 0-15L/min |
Resolution | 0.1L/min |
Accuracy | ±0.2L/min or 5% reading |
Dimensions | 50x 38 x 25(mm) |
Digital Output | UART(115200bps) 5V / 3.3V ( TTL Level) |
Power supply | 8-15±0.5VDC |
Boot waiting time | 5s |
UART data reporting interval | 500ms or response immediately upon receipt of instructions |
Working temperature | 5~55℃ |
Storage temperature | -5~65℃ |
