AMPCOM MPO/MTP to MPO/MTP Type B Fiber Patch Cord OS1/2 OM3 OM4 OM5 8/12/24 Cores Trunk Cable for 10G QSFP 100G QSFP28

About Our Products

AMPCOM's MPO Cable is a factory pre-terminated 9/125( Singlemode) or 50/125( Multimode) MPO trunk cable, offering the user the advantage of consistent quality, much faster installation, and simpler cable management. The MPO fiber optic trunk cable is manufactured with multiple, 8, 12, 24-strand Senko MPO female connectors and 8,12,24 cores laser-optimized fiber optic cables (Corning ClearCurve® Fiber). This MPO trunk cable conforms to Type B (Cross-Connect) polarity, and the MTP® connector is available upon request. This MPO fiber trunk cable is suitable for use in 1G SFP SR4, 10G SFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ eSR4, and 100G QSFP28 SR4 transceiver optics connection.



AMPCOM's MTP / MPO series of trunk cable solutions provide an efficient way to install a large amount of cables quickly, yet provide high flexibility on unplug and re-use. It is especially suitable for the areas that require high density, rapid deployment and high performance.

AMPCOM 1Gb 9/125 Singlemode OS1/OS2 MPO Fiber Optic Trunk Cable ( 8,12,24 Fiber, MPO to MPO Female, Type B, LSZH, UPC, Yellow)

OS1/OS2:

Fiber Type: 9/125µm

Insertion Loss: ≤0.3dB

Return Loss:≥55dB

Color: Yellow

Wavelength: 1310/1550nm

AMPCOM 10Gb 50/125 Multimode OM3 MPO Fiber Optic Trunk Cable ( 8,12,24 Fiber, MPO to MPO Female, Type B, LSZH, UPC, Aqua)

OM3:

Fiber Type: 50/125µm

Insertion Loss: ≤0.3dB

Return Loss:≥30dB

Color: Aqua

Wavelength: 850/1300nm

1G Ethernet Distance: 400m at 850nm

10G Ethernet Distance: 150m at 850nm

AMPCOM 40GB 50/125 Multimode OM4 MPO Fiber Optic Trunk Cable ( 8,12,24 Fiber, MPO to MPO Female, Type B, LSZH, UPC, Magenta)

Fiber Type: 50/125µm

Insertion Loss: ≤0.3dB

Return Loss:≥30dB

Color: Magenta

10G Ethernet Distance: 400m at 850nm

40/100G Ethernet Distance: 150m at 850nm

AMPCOM 40GB 50/125 Multimode OM4 MPO Fiber Optic Trunk Cable ( 8,12,24 Fiber, MPO to MPO Female, Type B, UPC, Lime Green)

Fiber Type: 50/125µm

Insertion Loss: ≤0.3dB

Return Loss:≥30dB

Color: Lime Green

40G Ethernet Distance: 440m at 850nm

100G Ethernet Distance: 150m at 850nm

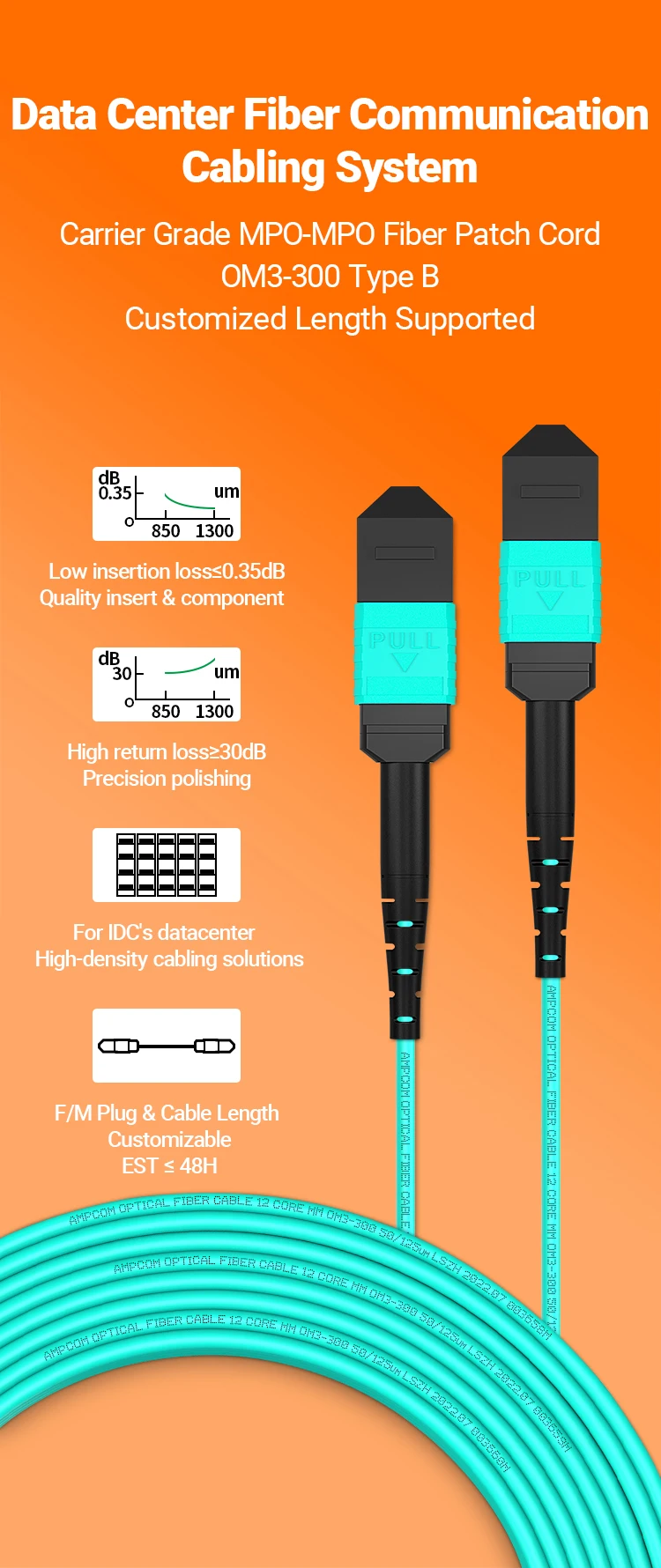

Data Center Optic Cabling System

Telecom level MPO-MPO Trunk Cable

OM3-300 Type B

Customized Length

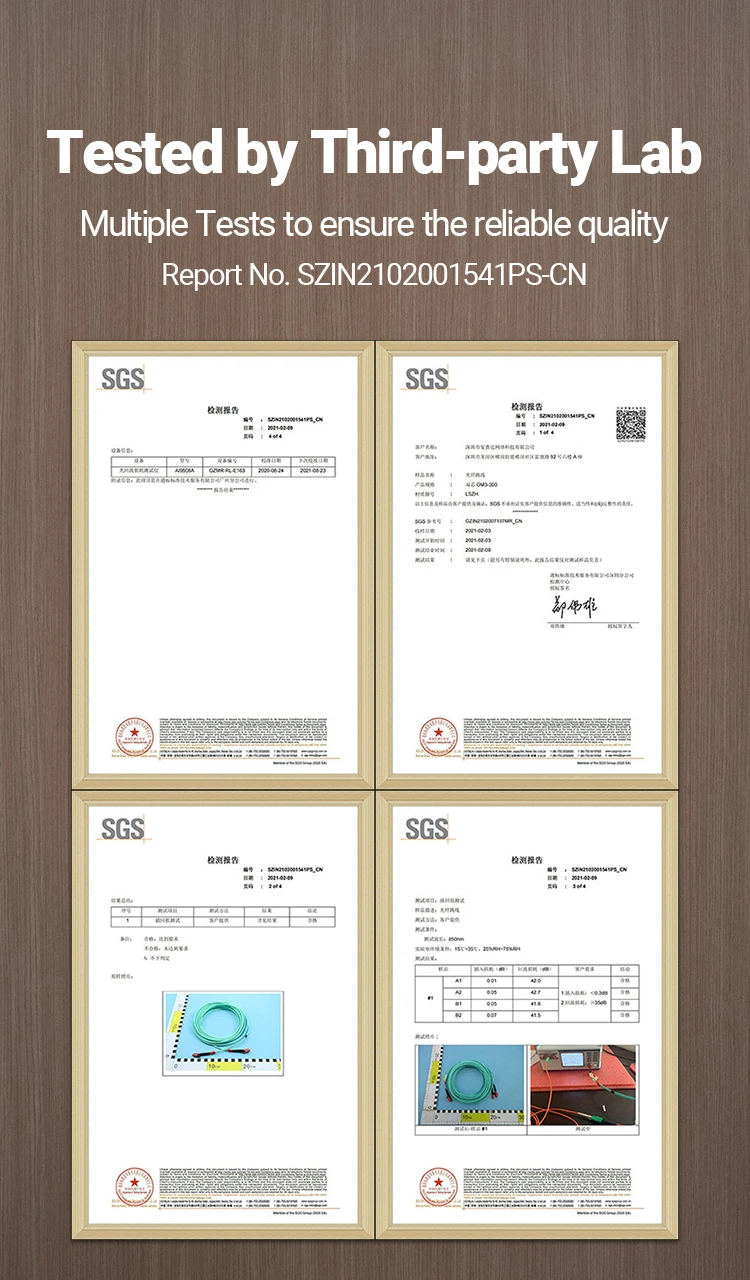

Tested by Third-party LAB

Passing tests to provide more stable quality

Report No. SZIN2102001541PS-CN

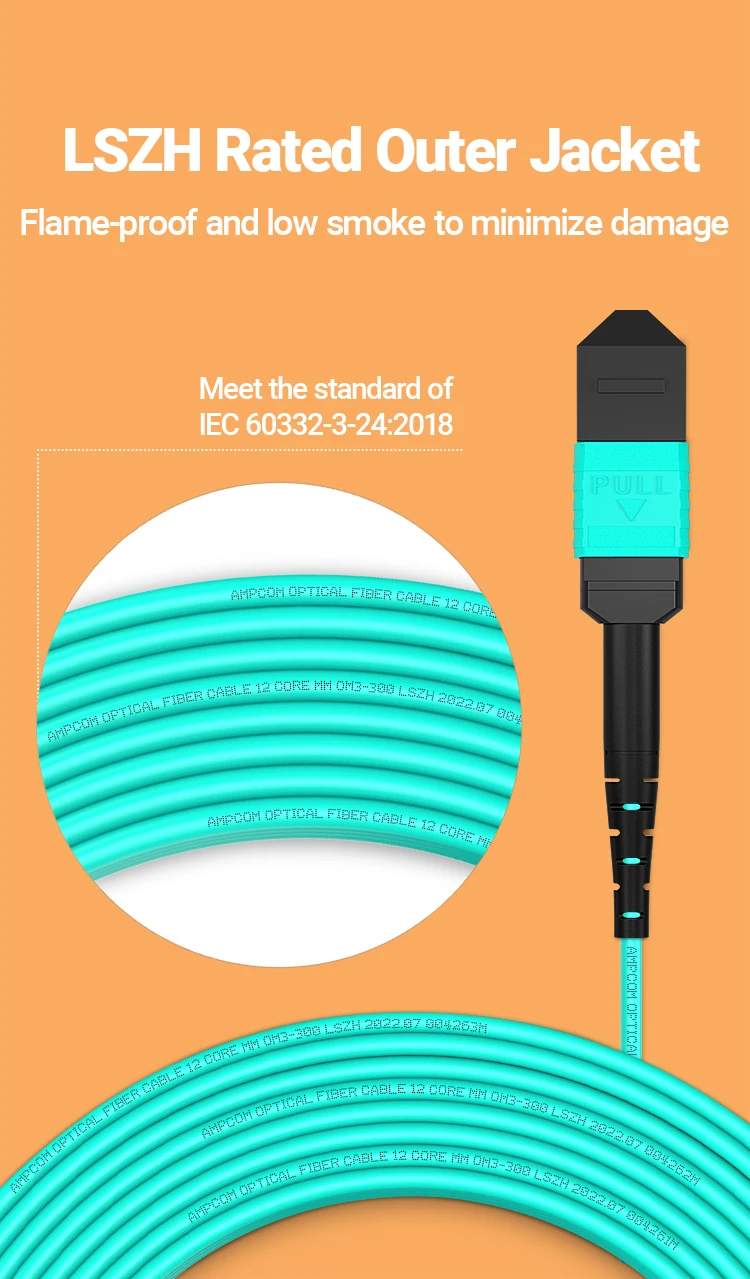

LSZH Rated Outer Jacket

Fire resistance and low smoke to minimize damage.

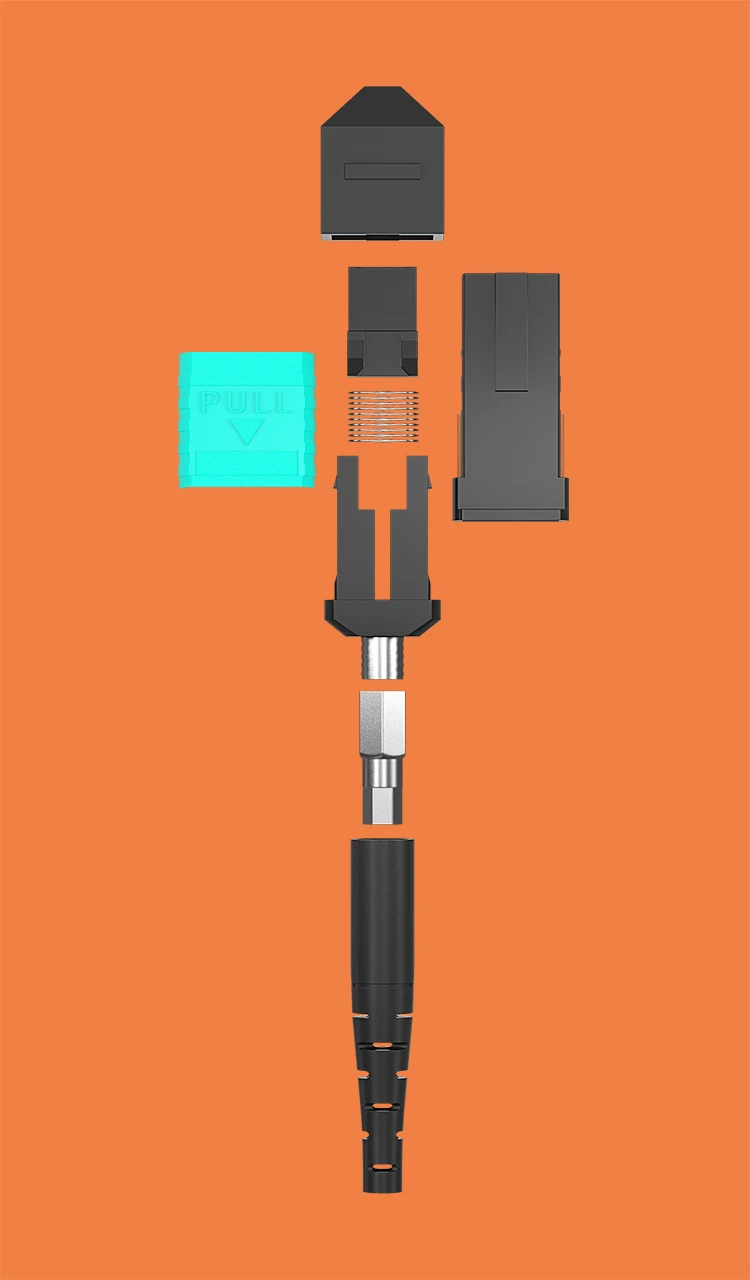

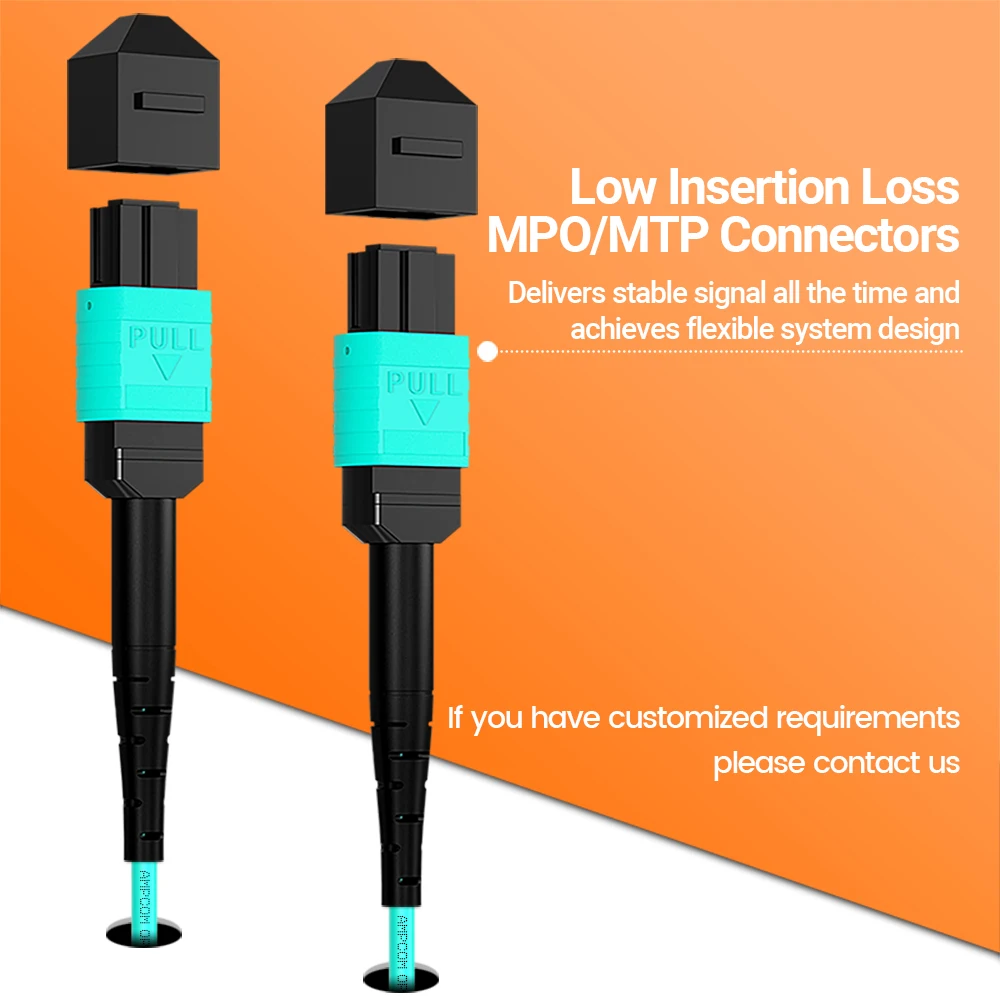

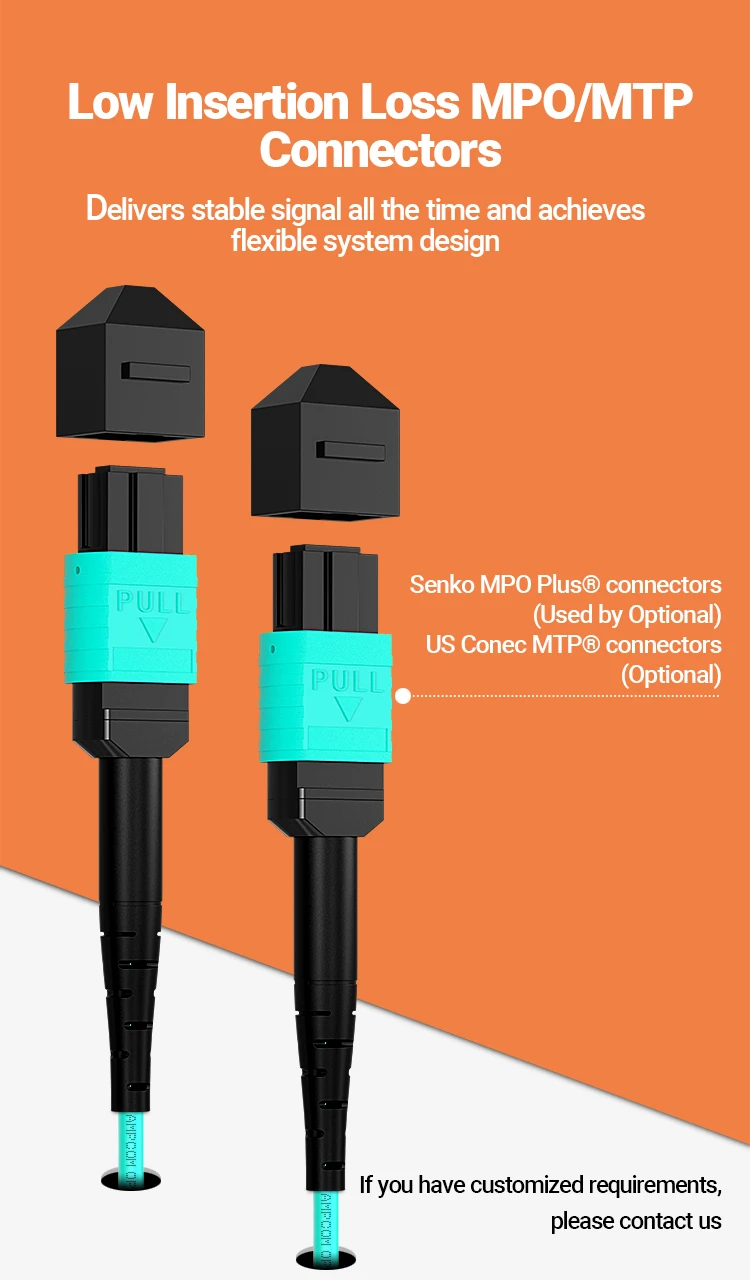

Low Insertion Loss MPO/MTP Connectors

Delivers stable signal all the time and achieves flexible system design.

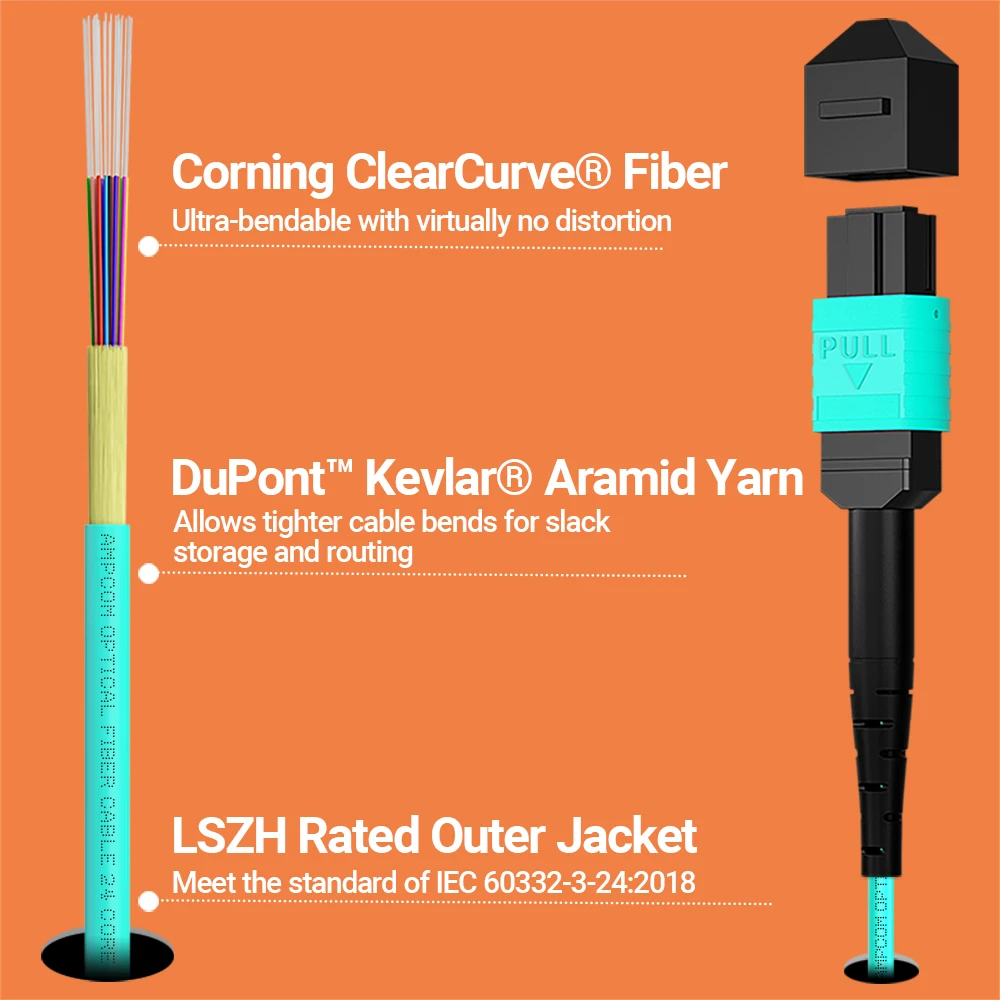

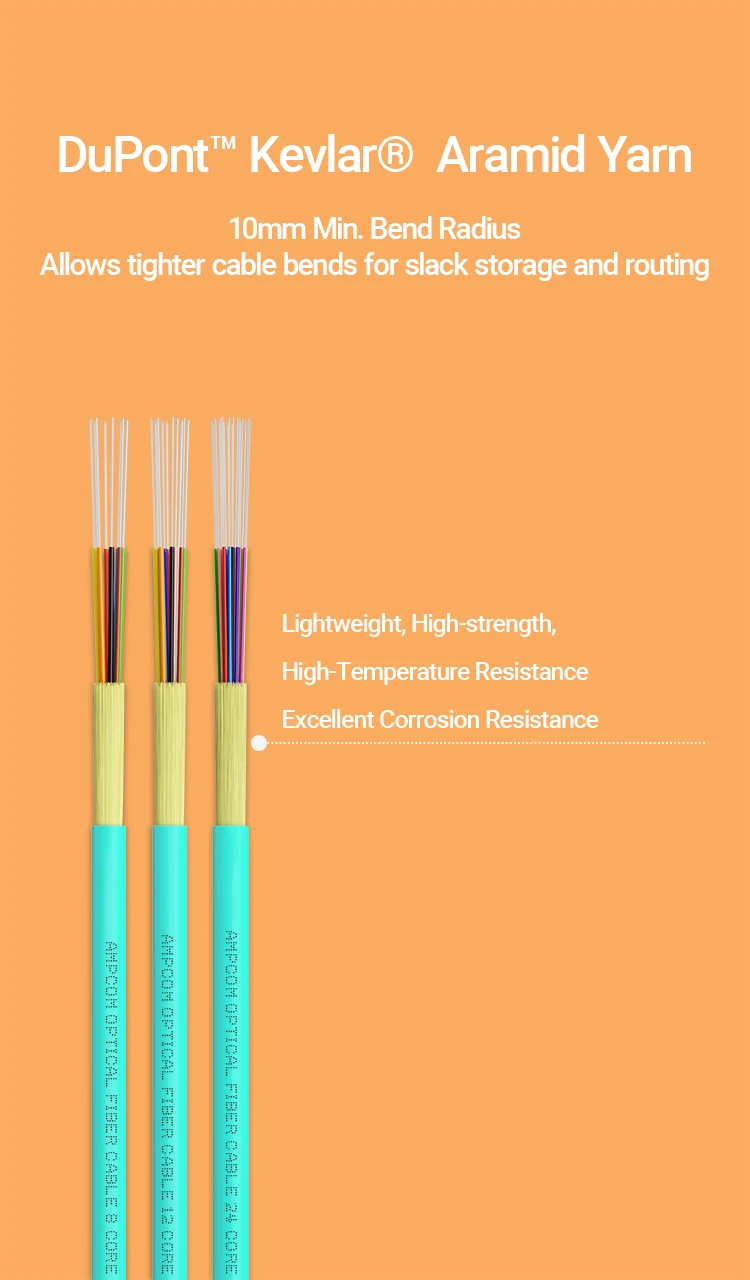

DUPONT KEVLAR® Aramid Fiber

10mm Min. Bend Radius

Allows tighter cable bends for slack storage and routing

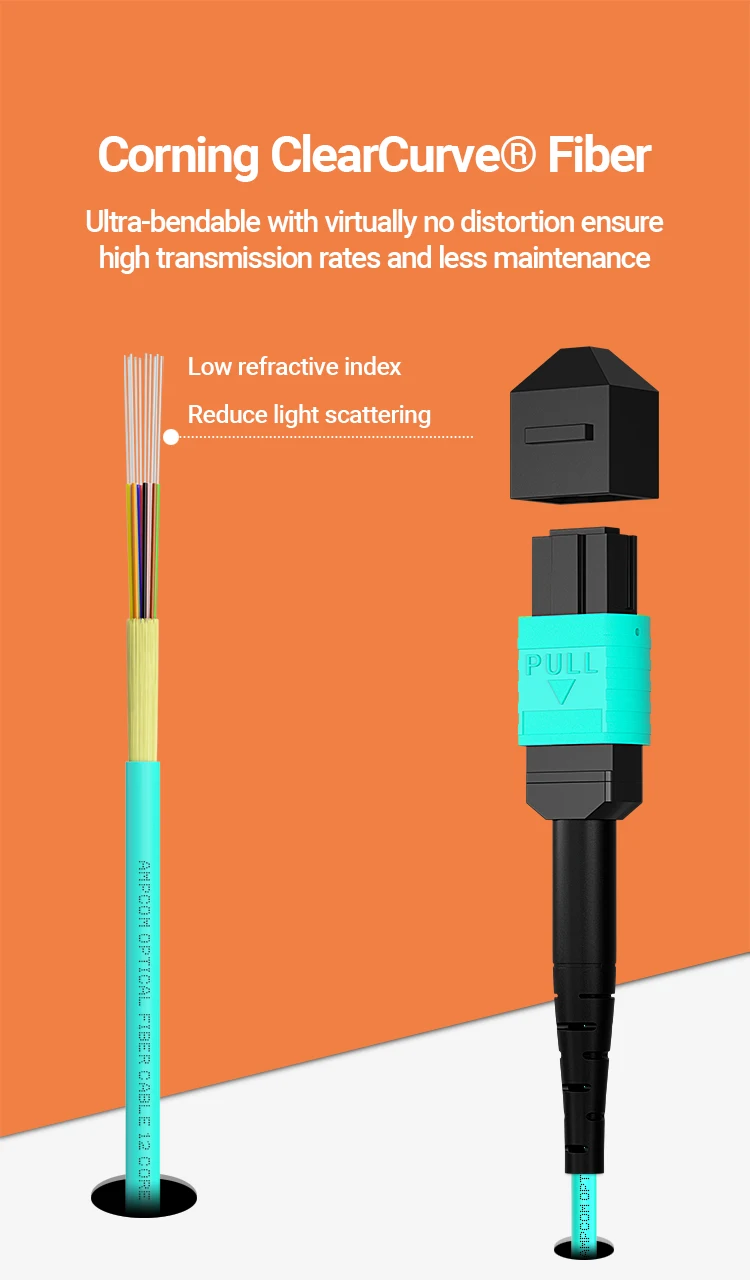

Corning ClearCurve® Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling.

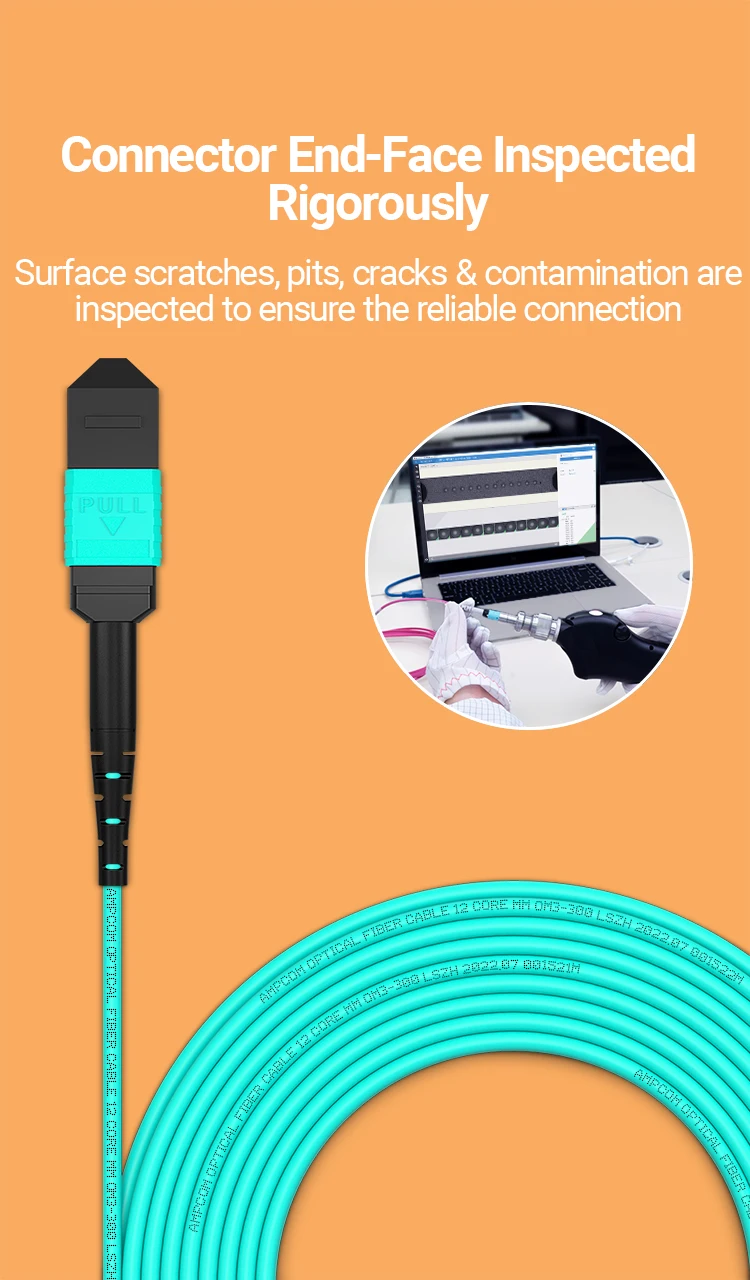

Rigorous Connector End-face Inspection

Inspect connector end faces for scratches, defects and contamination to

ensure reliable fiber optic connections

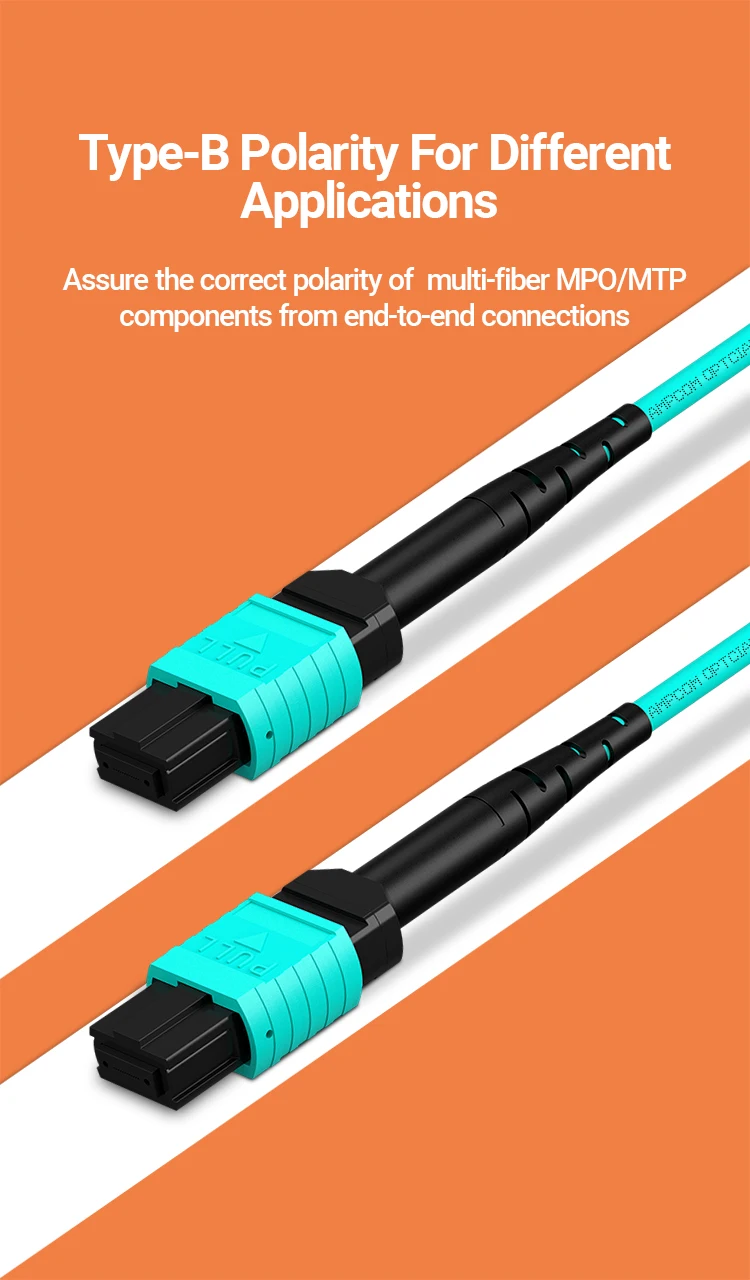

Polarity Type B

Meet the needs of different applications, ensure correct end-to-end polarity

of fiber optic components

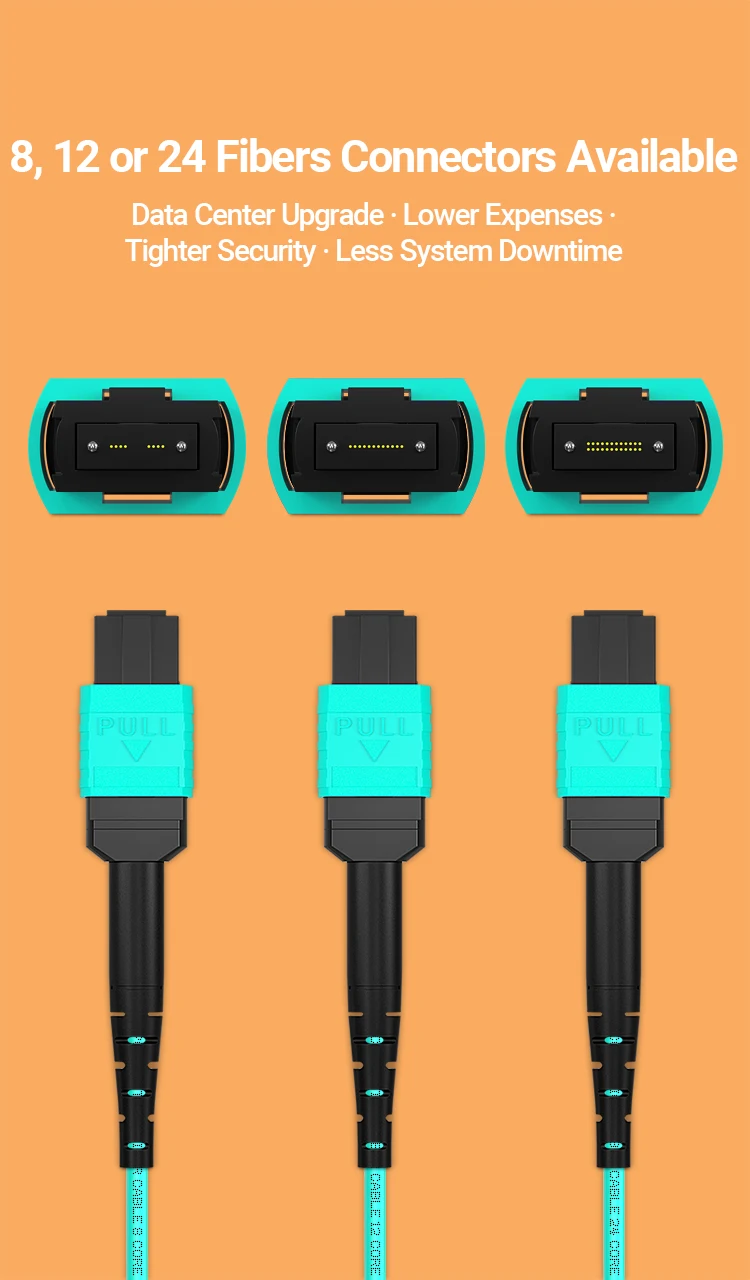

8, 12 or 24 Fibers Connectors Available

Facilitates more flexibility for data center managers to control costs

during network upgrades

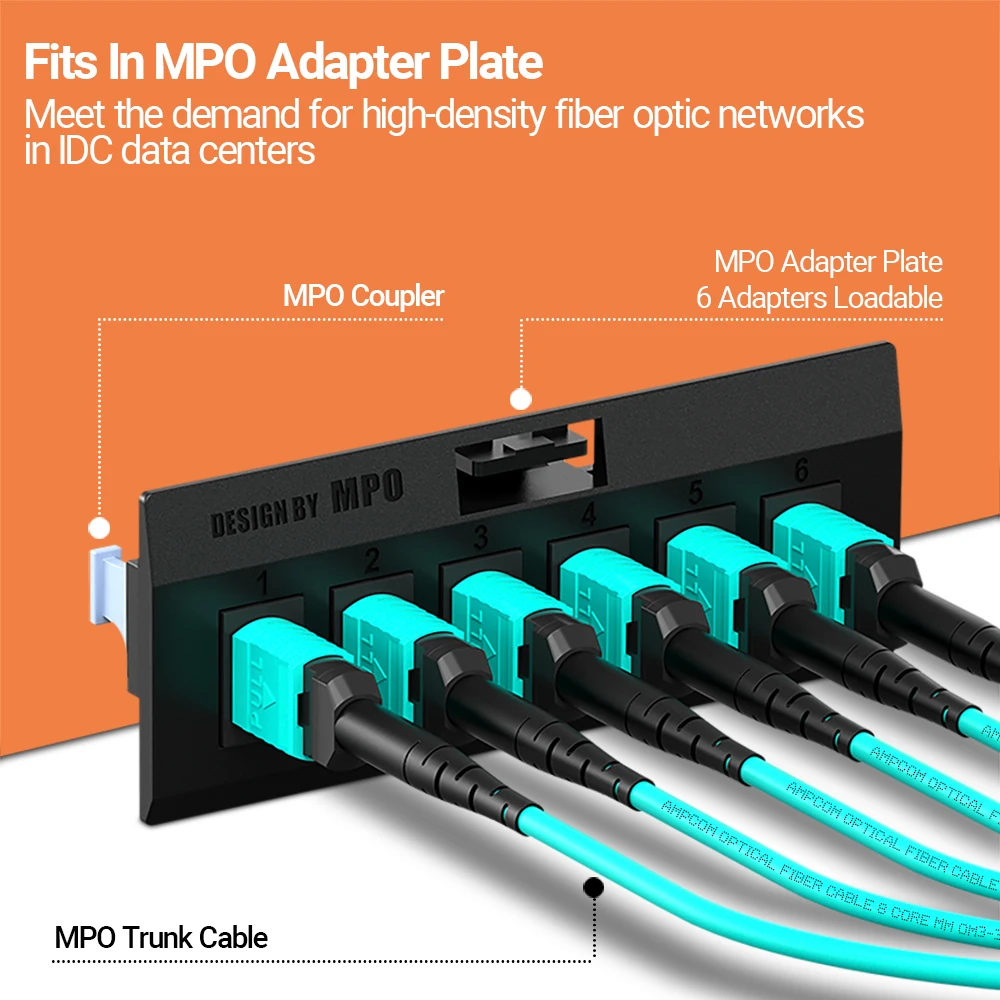

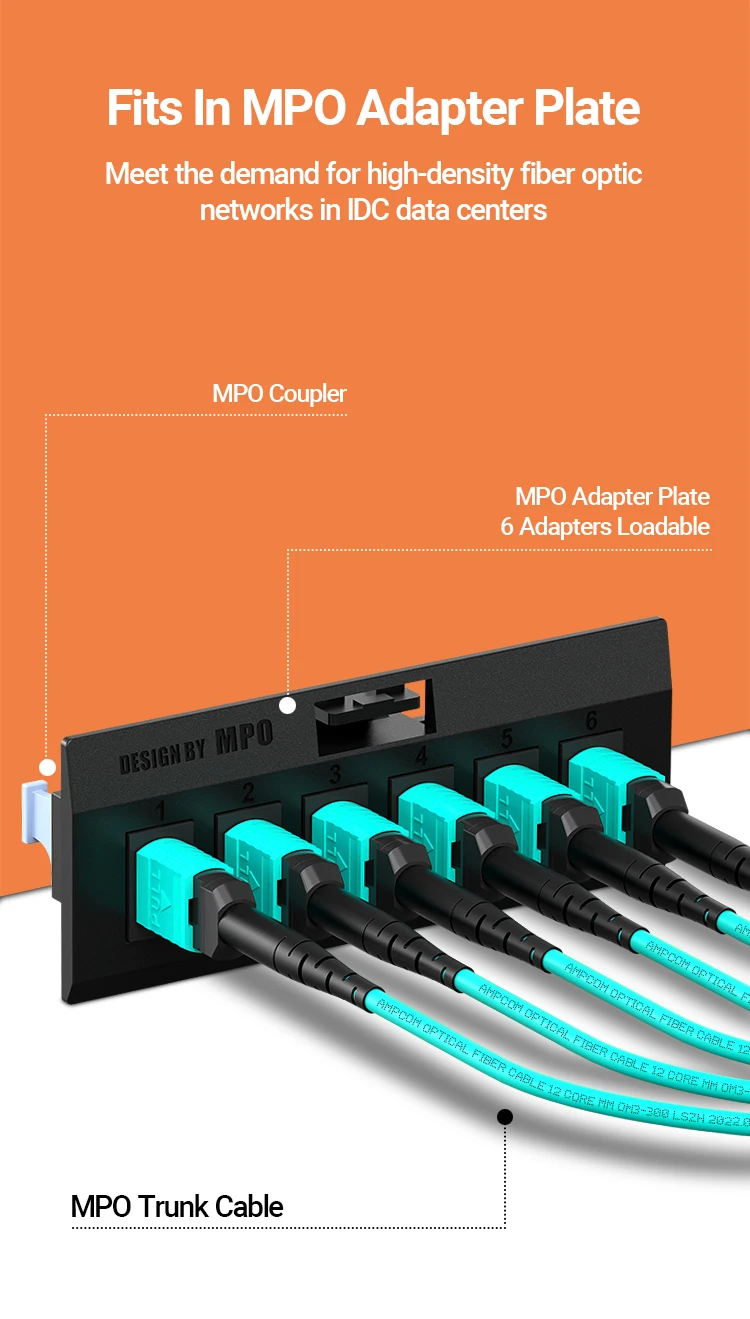

Fits for MPO Coupler

Meet the demand for high-density fiber optic networks in IDC data centers

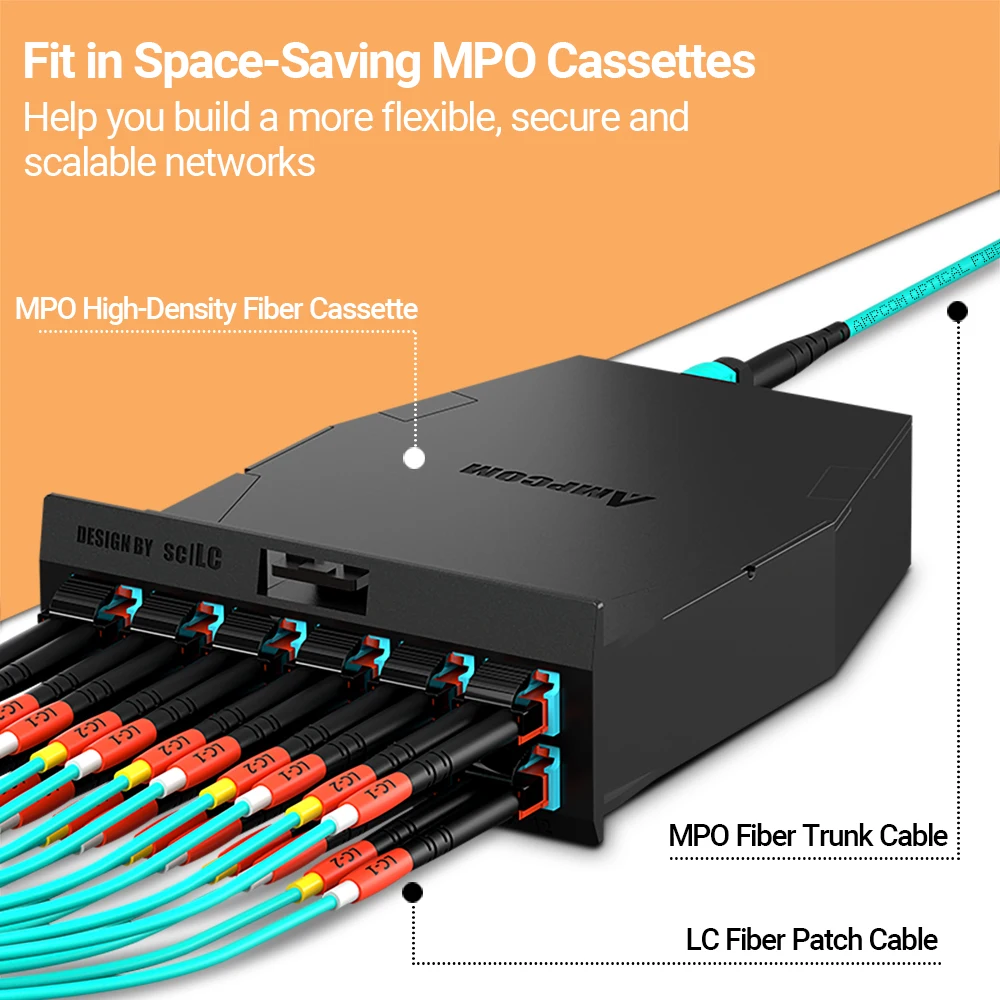

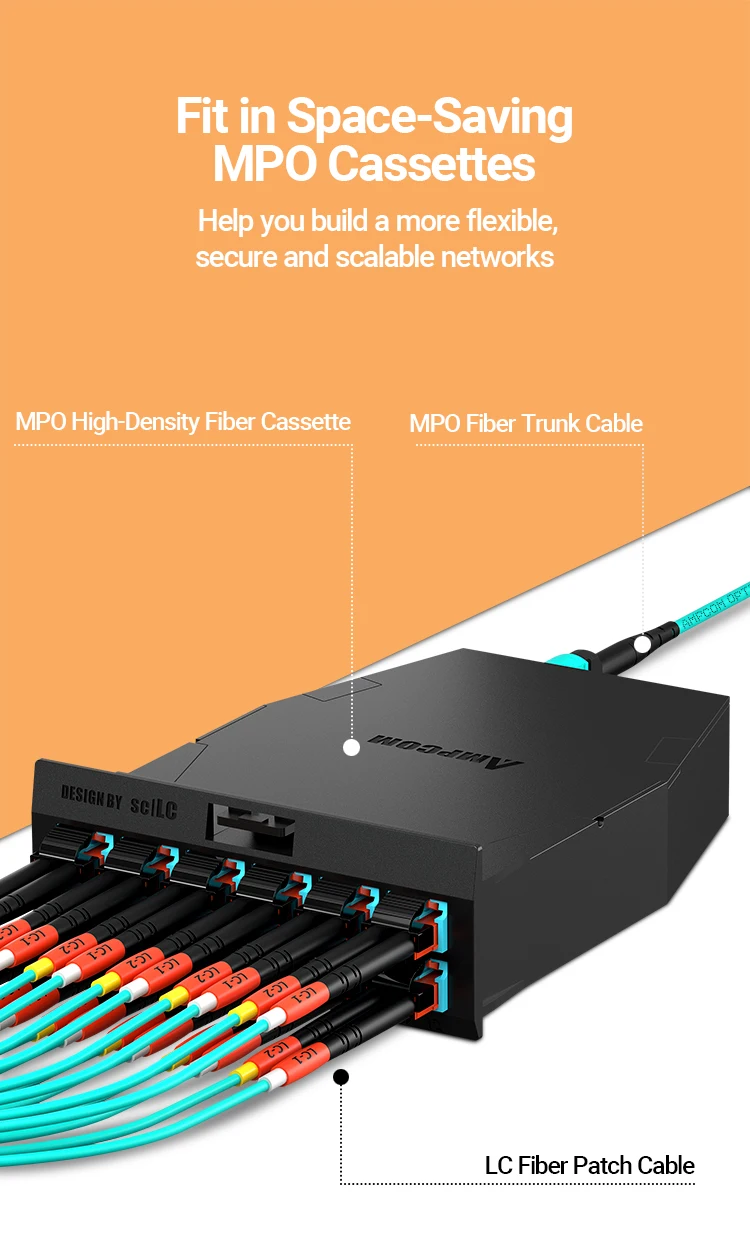

Matching MPO-24 Cassette

More flexible, more reliable, and more scalable data center networking solutions

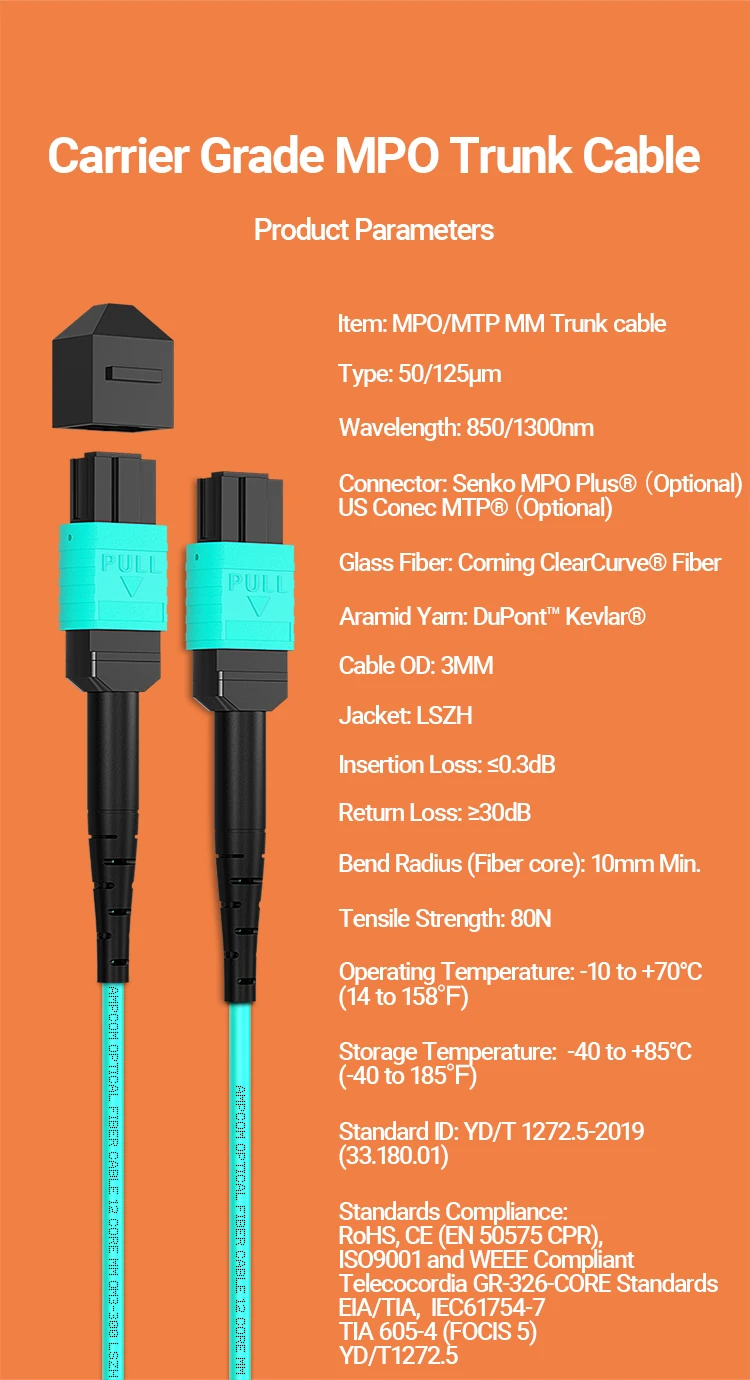

Product Parameters

Item: MPO/MTP MM Trunk cable

Type: 50/125μm

Wavelength: 850/1300nm

Connector: "Senko MPO Plus®（Optional) / US Conec MTP® （Optional)"

Glass Fiber: Corning ClearCurve® Fiber

Aramid Yarn: DuPont™ Kevlar®

Cable OD: 3MM

Jacket: LSZH

Insertion Loss: ≤0.3dB

Return Loss: ≥30dB

Bend Radius (Fiber core): 10mm Min.

Tensile Strength: 80N

Operating Temperature: -10 to +70°C (14 to 158℉)

Storage Temperature: -40 to +85°C (-40 to 185℉)

Standard ID: "YD/T 1272.5-2019

(33.180.01)"

Compliance:

RoHS, CE (EN 50575 CPR), ISO9001, WEEE

EIA/TIA, Telecocordia GR-326-CORE Standards

TIA 605-4 (FOCIS 5)

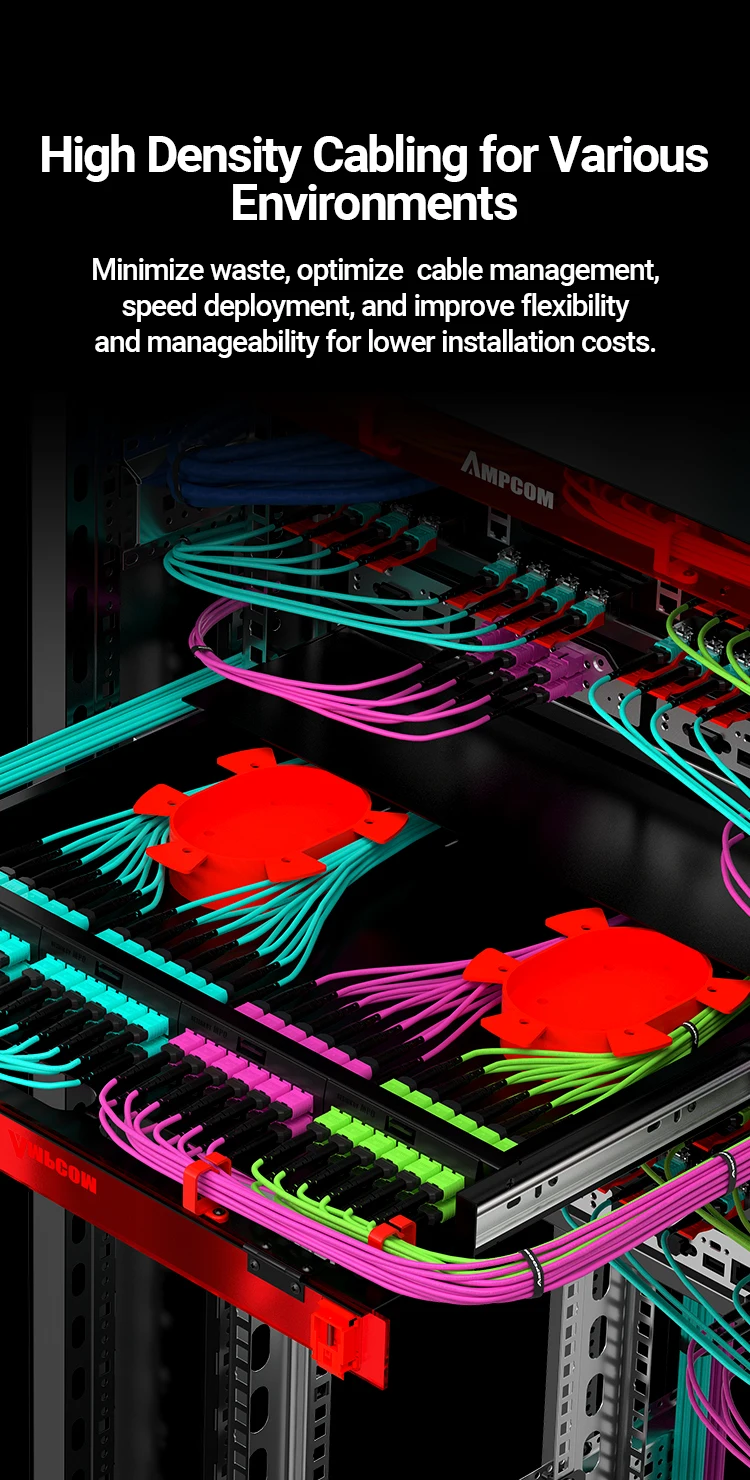

High Density Cabling for Various Environments

Minimize waste, optimize cable management, speed deployment, and improve flexibility

and manageability for lower installation costs.

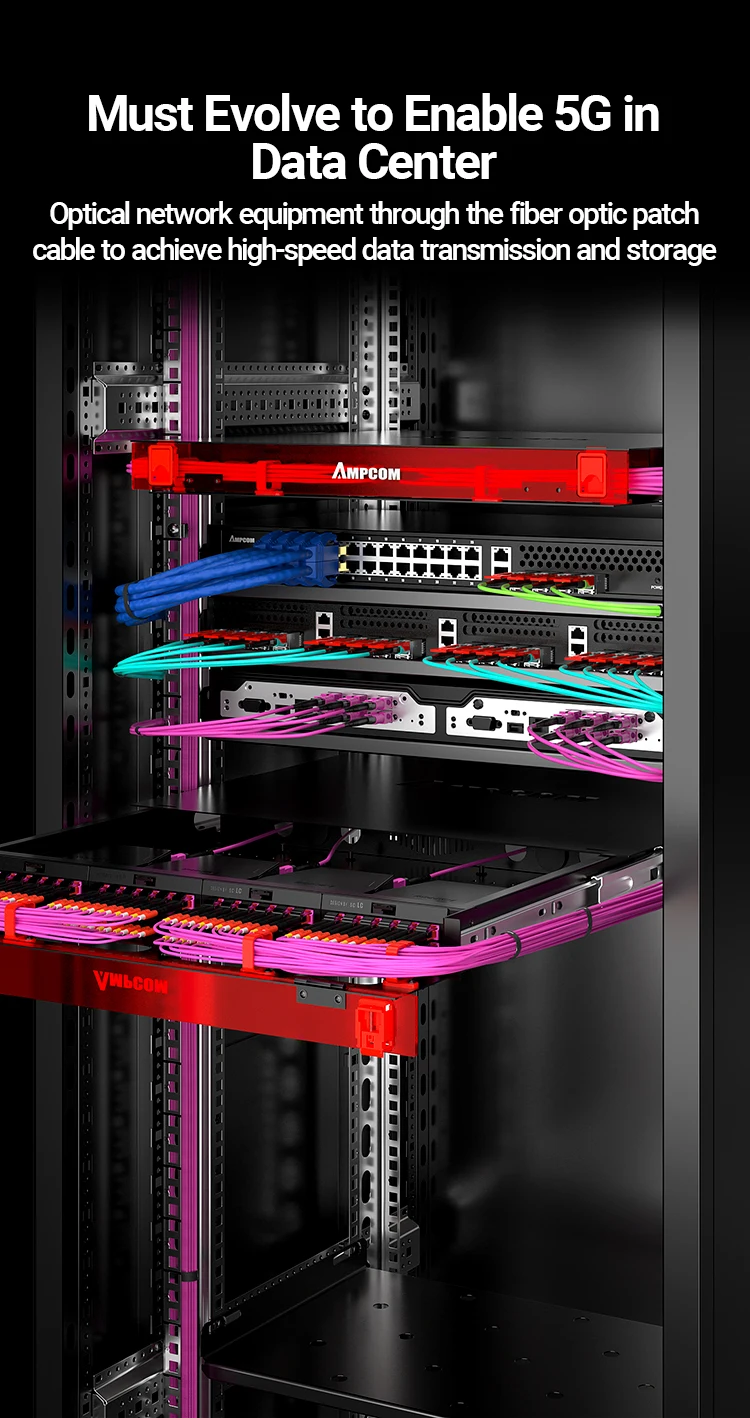

Must Evolve to Enable 5G in Data Center

Optical network equipment through the fiber optic patch cable to achieve high-speed

data transmission and storage

5G Data Center Build

The requirements for data center infrastructures are increasing as the rapid growth in worldwide IT usage continues. As an experienced and innovative fiber optic patch cable manufacturer, AMPCOM supplies complete MPO trunk fiber optic cabling solutions for high-density optical connectivity in the modern data center. Compared with the traditional fiber optic cabling solutions, this high-density fiber optic solution offers higher flexibility and space-saving while supporting very high data rates, such as 1-Gigabit, 10-Gigabit, 40-Gigabit Ethernet and 100-Gigabit Ethernet.

Key Facts AMPCOM MPO

Fully supports all optical fiber applications within the Ethernet family

Modular solution with reusable modules and cables

High-density cabling saves pathway space and gives improved airflow compared to traditional cable bundles

Cables are pre-terminated in the factory to the correct length with high density connectivity

Features

• Factory-terminated provide consistent quality, high performance and reduce installation time

• 100% tested for low insertion loss performance and high back reflection

• Fiber Count: 8, 12, 24 fiber trunk cable

• Laser-Optimized

• Type B polarity use in 1G SFP SR4, 10G SFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ eSR4, and 100G QSFP28 SR4 transceiver optics

• Optimized performance – available in elite MTP and discrete premium connector upon request

• Standards Compliance: RoHS, CE (EN 50575 CPR), ISO9001, WEEE Compliant EIA/TIA, Telecocordia GR-326-CORE Standards, IEC61754-7, TIA 605-4 (FOCIS 5), YD/T1272.5"

• LSZH Jacket by Default
