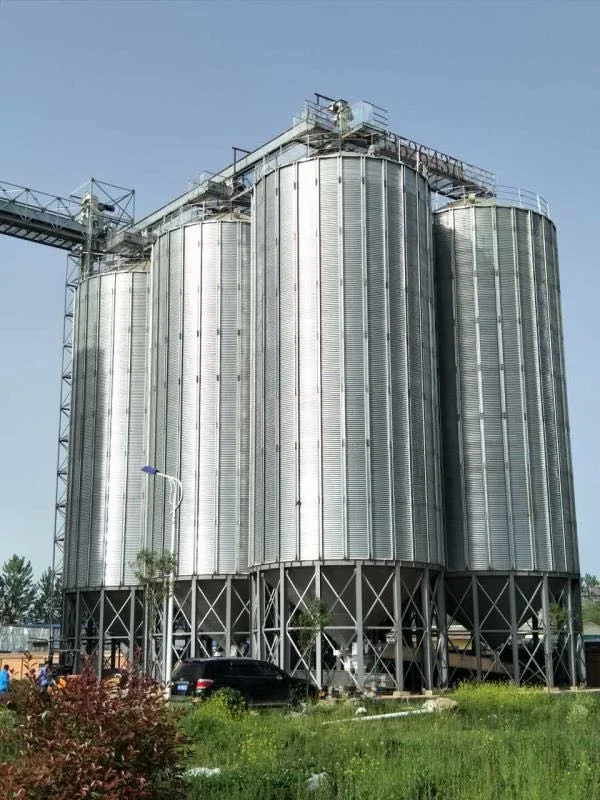

Small Grain Silos 10 Ton Capacity 20t 30t 40t 50t Steel Silos Cos
Features Of YunShan Fabricated grain steel silos
1, Both hot dip galvanized coil steel plate and flat steel plate can be used, and electric galvanized steel plate can also be used, which is more convenient to take materials.
2,All parts and components are standard components, which are replaceable. In case of damage or corrosion, users can easily replace damaged parts and extend service life
3,It can be modified and dismantled, especially for the users who rent the site
4,It can realize the form of outer column, which is more favorable to the mobility of grain in the silos
5,After the use of silica gel filler, the air tightness requirements can be achieved
6,Double layer insulation can be conveniently realized with little cost increase
7,The standardization, serialization and specialization of our silos have reached the international advanced technical level.
Silo Size | Model | Diameter(m) | Eave Height(m) | Silo Bottom |
5m3 | S5 | 1.8 | 3.9 | Steel Structure Base |
6m3 | S6 | 1.8 | 4.4 | Steel Structure Base |
8m3 | S8 | 1.8 | 5 | Steel Structure Base |
9m3 | S9 | 1.8 | 9 | Steel Structure Base |
12m3 | S12 | 1.8 | 12 | Steel Structure Base |
15m3 | S15 | 2.75 | 5.5 | Steel Structure Base |
20m3 | S20 | 2.75 | 6 | Steel Structure Base |
25m3 | S25 | 2.75 | 7 | Steel Structure Base |
30m3 | S30 | 2.75 | 7.5 | Steel Structure Base |
38m3 | S38 | 3.67 | 7 | Steel Structure Base |
50m3 | S50 | 3.67 | 8 | Steel Structure Base |
