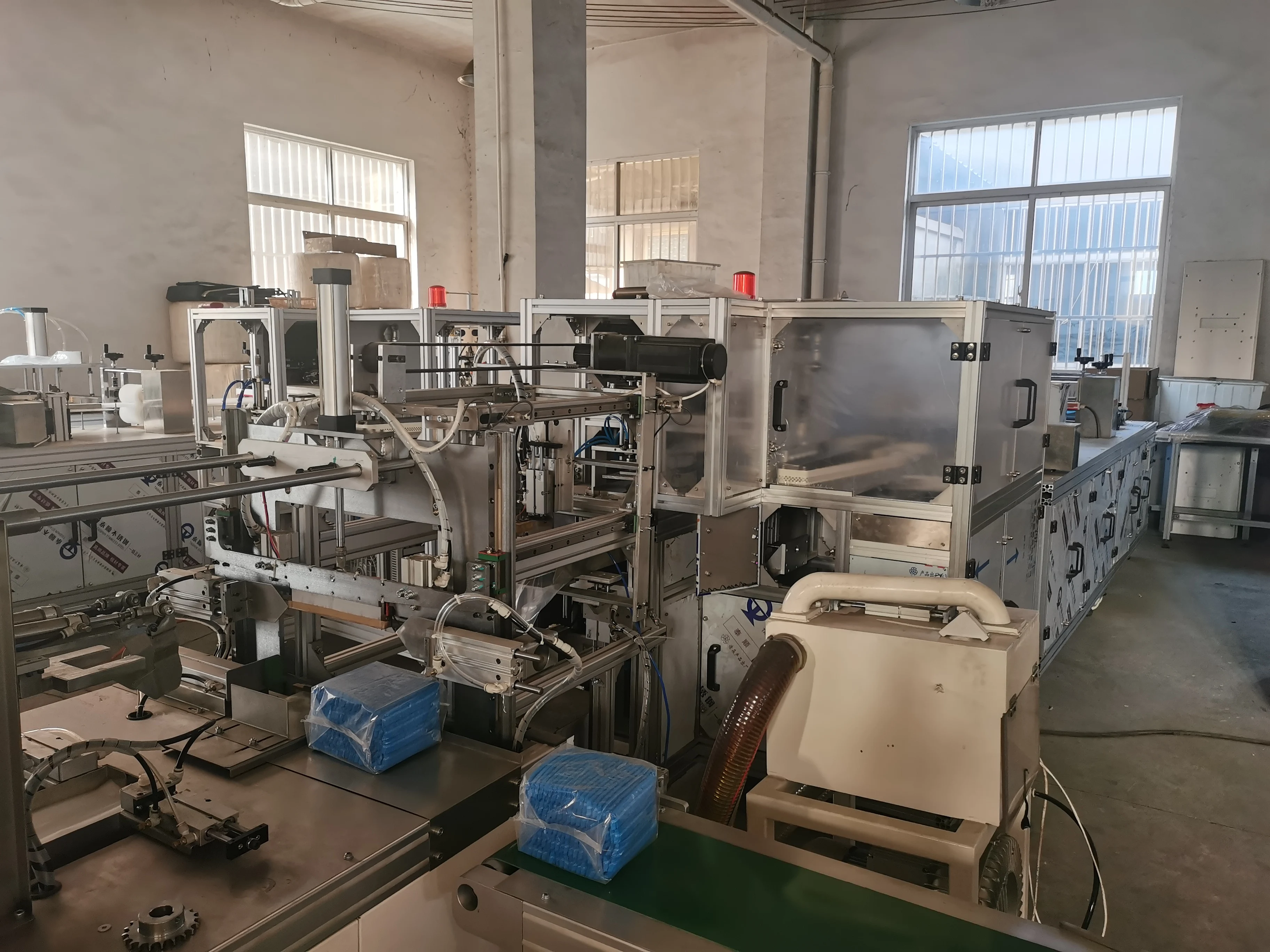

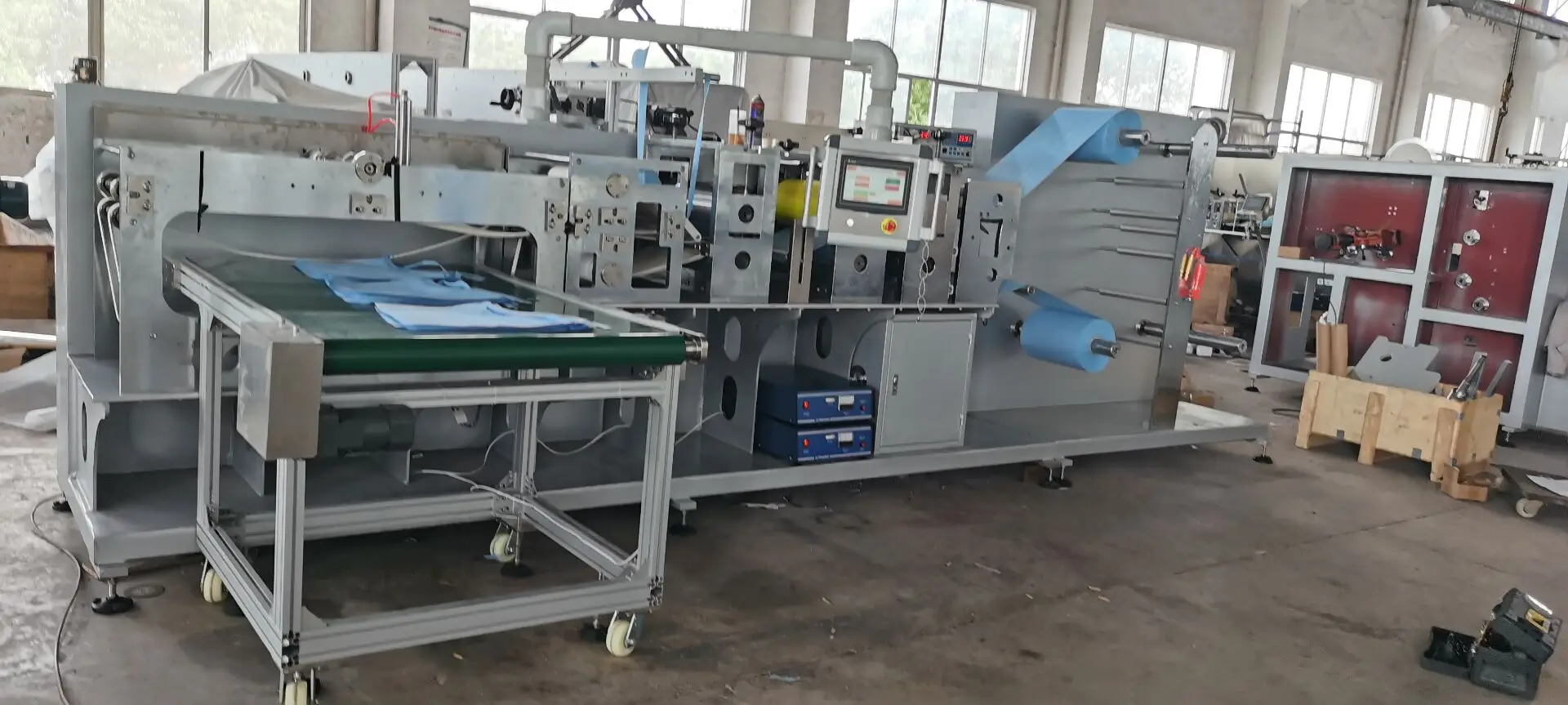

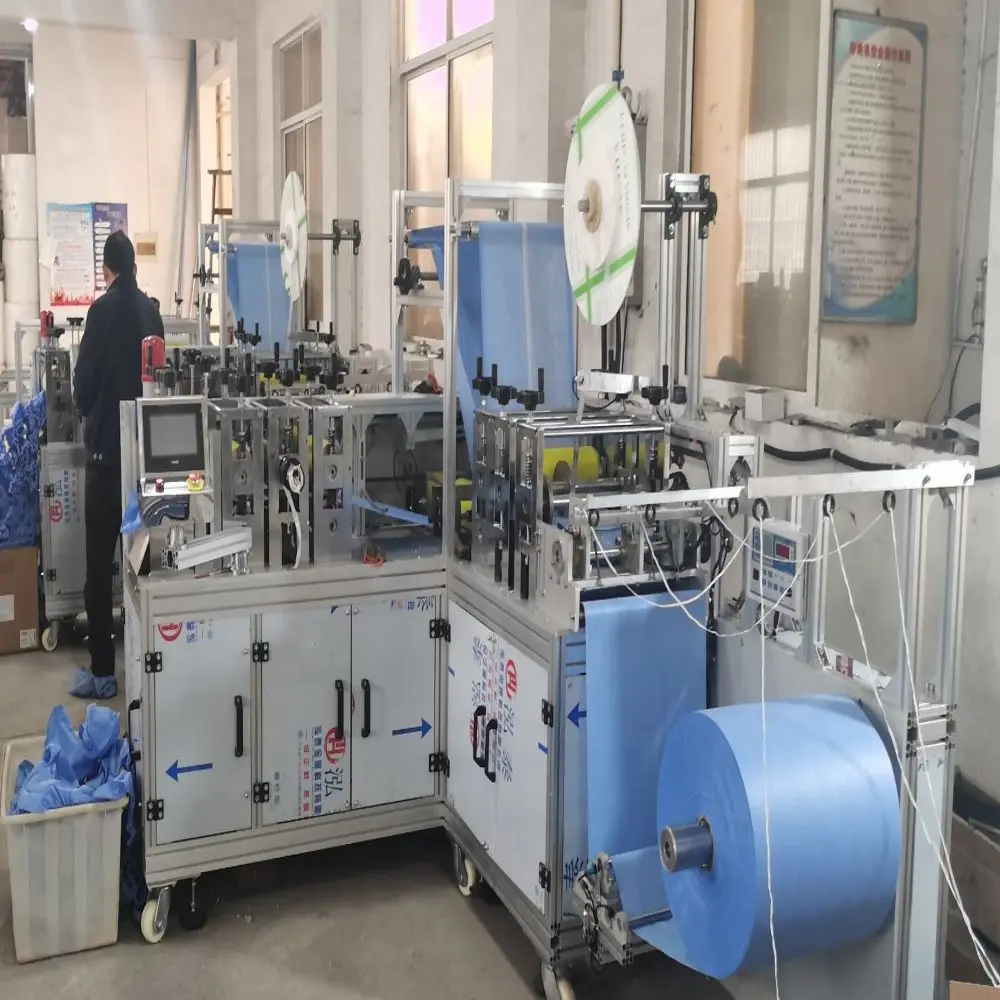

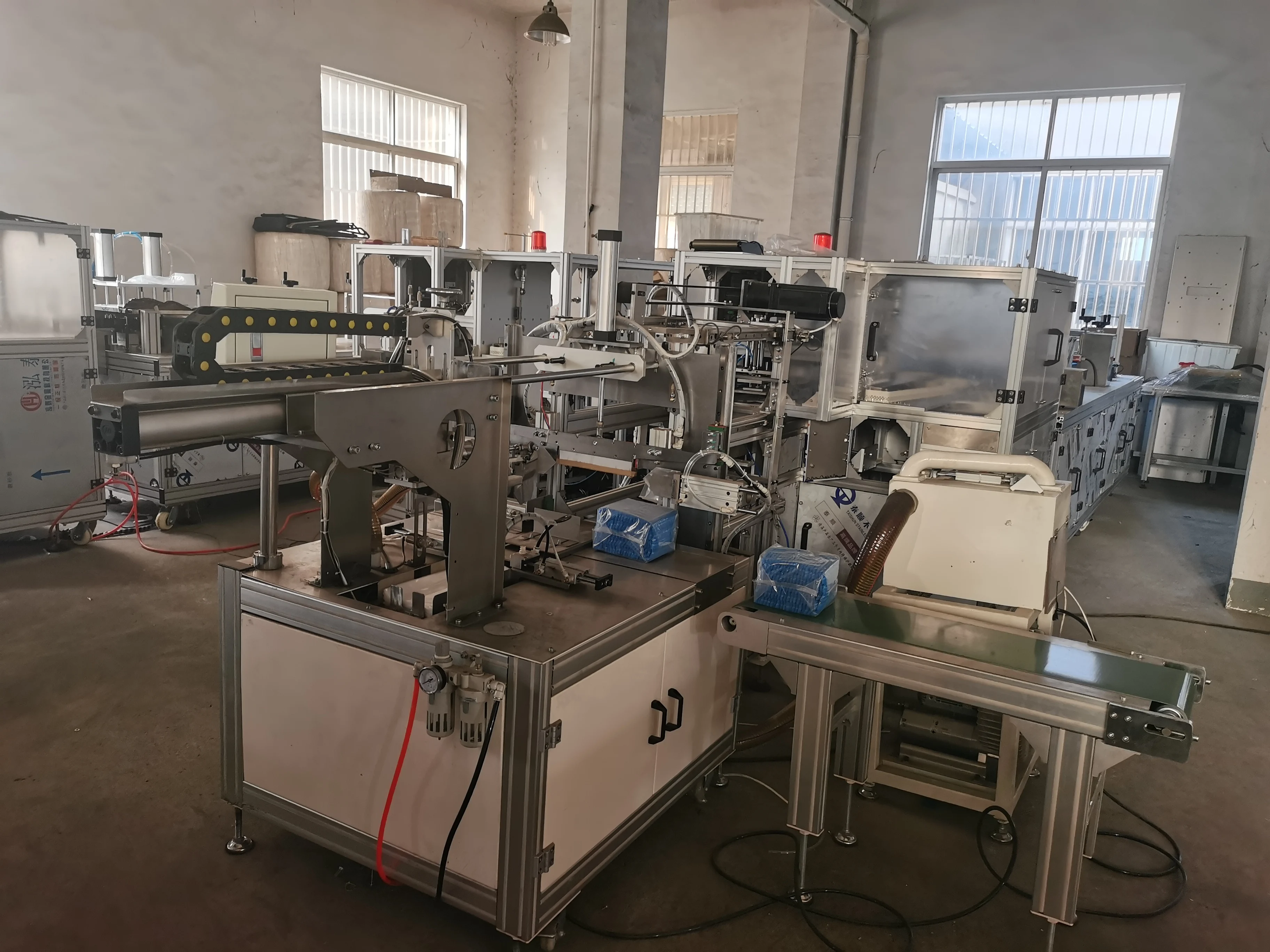

Машина для изготовления крышек
- Category: Nonwoven Machines >>>
- Supplier: Zhangjiagang City Alt Machinery Co. Ltd.
Share on (1600609656255):
Product Overview
Description
Product Overview
A Process Description :
Elastic, non-woven fabric feeding——Edge Folding——shaping——Welding
——cutting------packing
Double elastic
Material: non-woven fabric 12g,material roll width： 48cm
elastic: double elastic packing: plastic bag, 100pcs/bag
B Technical Parameter ：
Supply Power: AC380V 50HZ
Power : 11kw
Speed : 0-100pcs/minute
Dimensions : 5650*1600*1750mm（L*W*H)
Net Weight：1500kg
C Operating Program
1.Adjust the non-woven fabric plate and tension equipment.
2.Pull the non-woven fabrics into folding and welding manually.
3. Elastic feeding and pull into the Ultrasonic welding.
4.Open the main machine slowly, then start to welding and cutting.
1. main parts:
2. Ultrasonic : 3sets
3. Touch screen: TaiWan “Delta”
3.PLC: 1pcs (delta)
4.servo motor: 8 sets(delta)
5. servo reducer:8 sets
6.Cylinder: Airtac
7. The electromagnetic valve: Airtac
8. conveyor belt:1 pcs
9.Automatic constant tension: 1
10.Optoelectronics (stop for lack of material): 3
11.Discharge air shaft: 1
Elastic, non-woven fabric feeding——Edge Folding——shaping——Welding
——cutting------packing
Double elastic
Material: non-woven fabric 12g,material roll width： 48cm
elastic: double elastic packing: plastic bag, 100pcs/bag
B Technical Parameter ：
Supply Power: AC380V 50HZ
Power : 11kw
Speed : 0-100pcs/minute
Dimensions : 5650*1600*1750mm（L*W*H)
Net Weight：1500kg
C Operating Program
1.Adjust the non-woven fabric plate and tension equipment.
2.Pull the non-woven fabrics into folding and welding manually.
3. Elastic feeding and pull into the Ultrasonic welding.
4.Open the main machine slowly, then start to welding and cutting.
1. main parts:
2. Ultrasonic : 3sets
3. Touch screen: TaiWan “Delta”
3.PLC: 1pcs (delta)
4.servo motor: 8 sets(delta)
5. servo reducer:8 sets
6.Cylinder: Airtac
7. The electromagnetic valve: Airtac
8. conveyor belt:1 pcs
9.Automatic constant tension: 1
10.Optoelectronics (stop for lack of material): 3
11.Discharge air shaft: 1
