MOLEX 5051 2.50mm Pitch KK Wire to Board Connector

Product Overview

Description

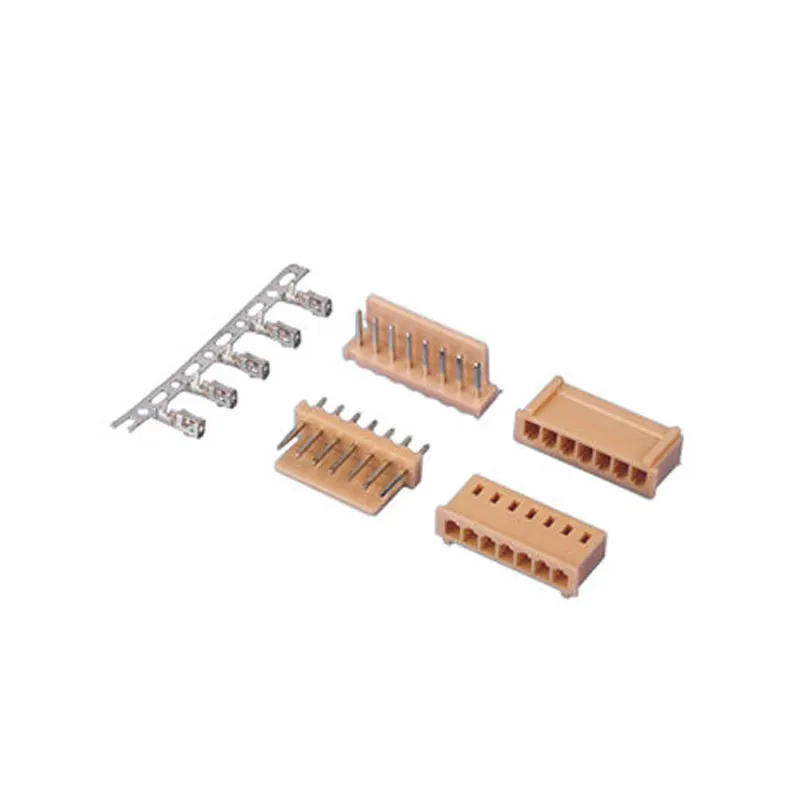

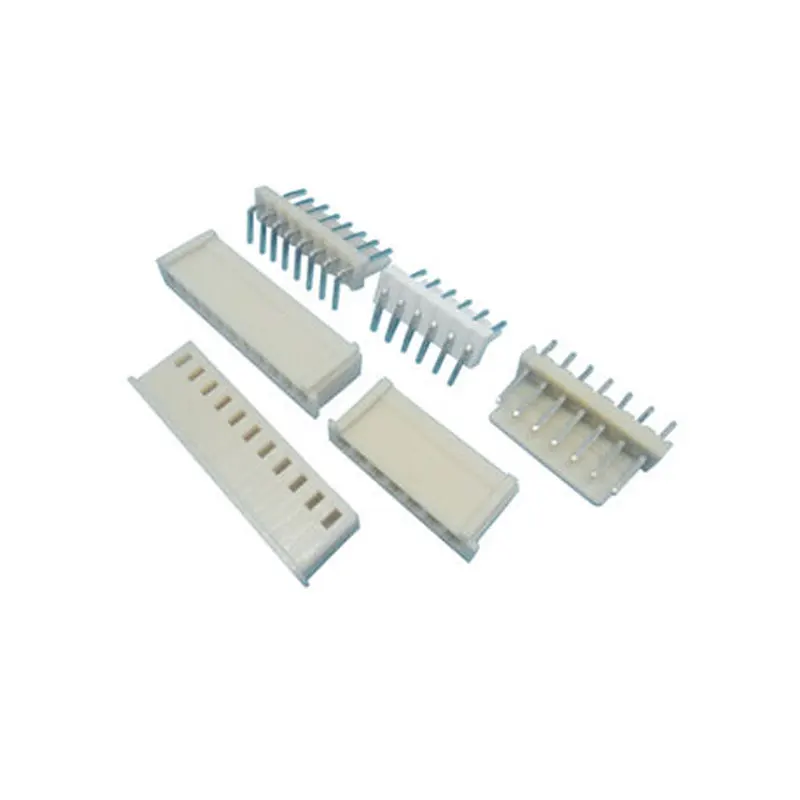

MOLEX 5051 2.50mm Pitch KK Wire-to-Board Connector

 Technical data for this Molex 2.5mm Connector:

Current rating: .3A AC/DC
Voltage rating: 250V AC/DC
Temperature range: -25C~+85C
Contact resistance: 10mΩ Max
Insulation resistance: 1000mΩ Min
Withstanding voltage: 800V AC/minute

Wire range: AWG#22-28

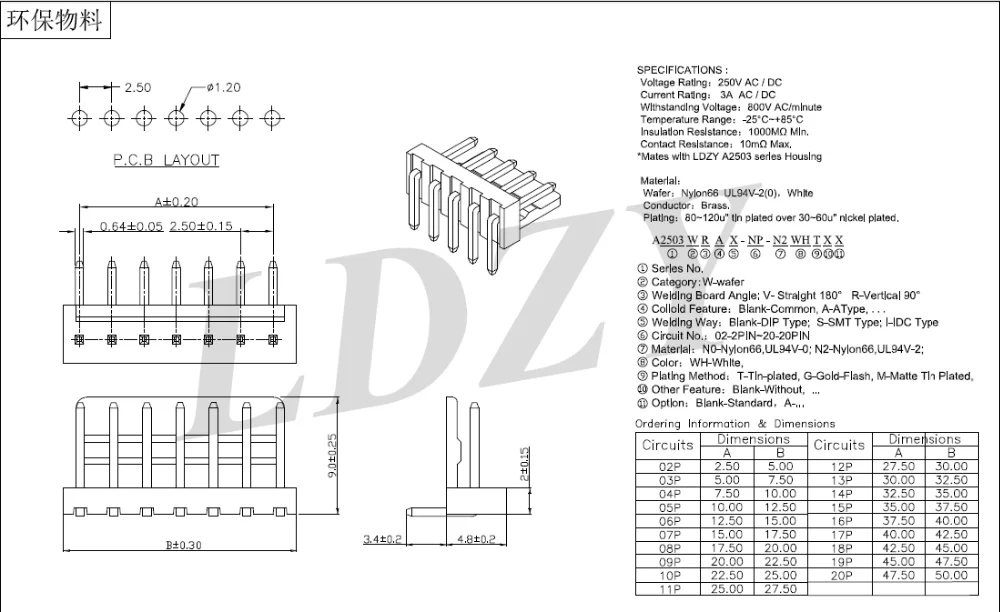

Item	Part No.	Material	Poles	QTY
Wafer	A2503WV/WR-NP	Nylon66 UL94V-0	02~20	1000PCS / REEL

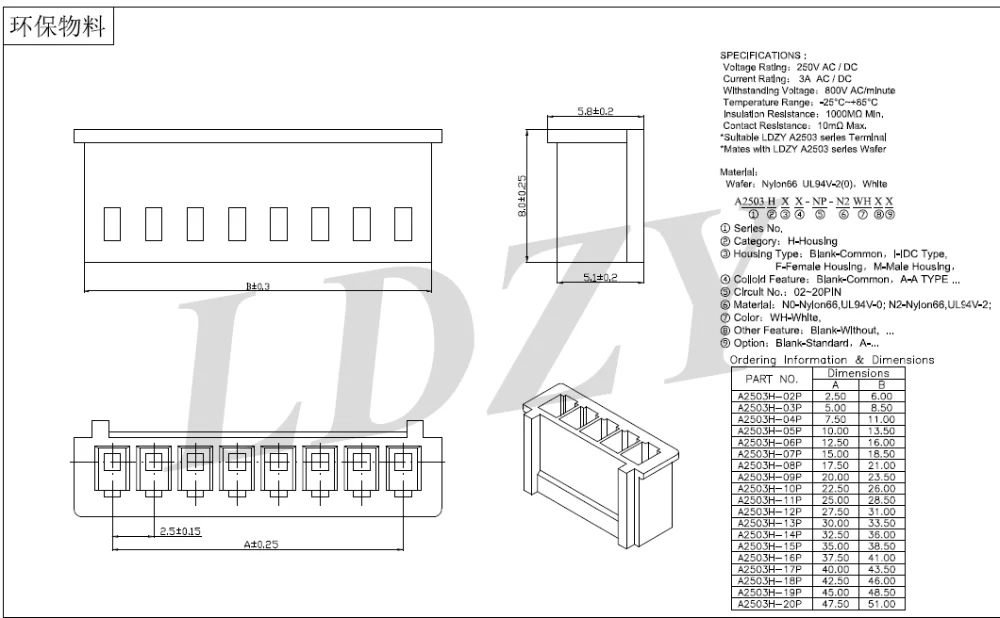

Housing	A2503H-NP	Nylon66 UL94V-0	02~20	1000 PCS / Bag

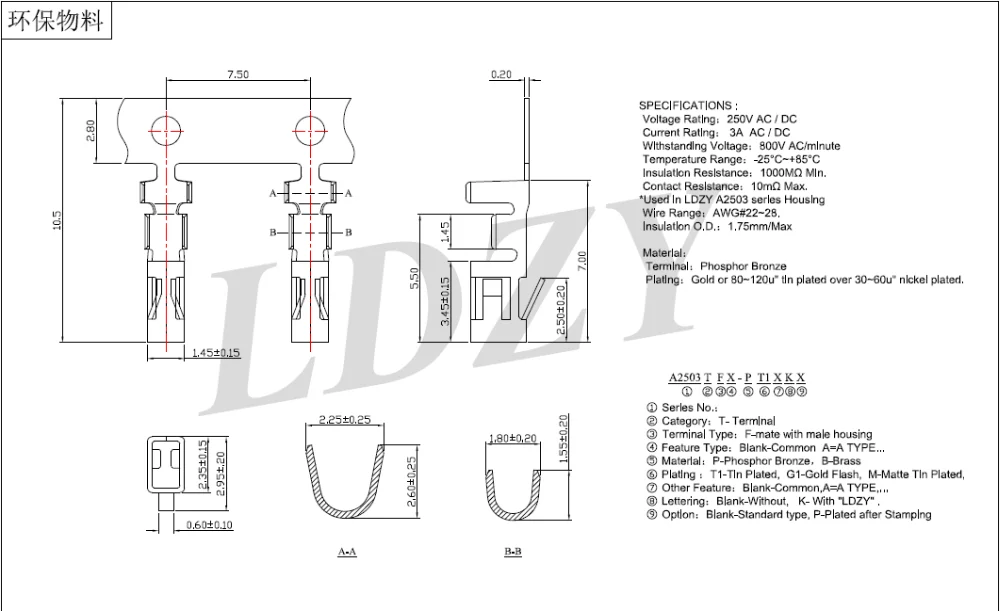

Terminal	A2503TF-P	Phosphor Bronze		8000PCS / Reel

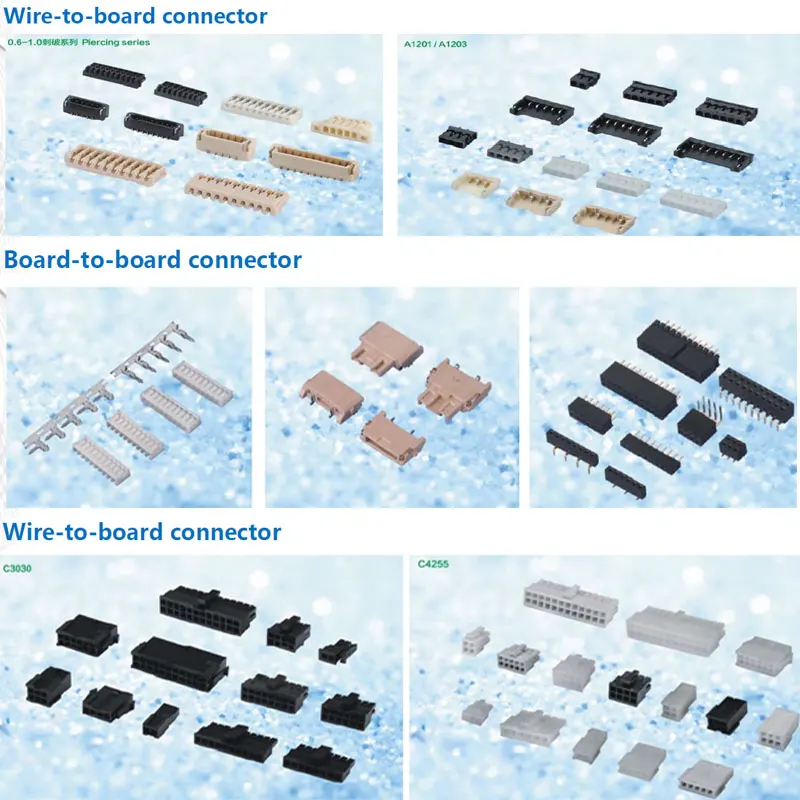

Besides of this Molex 2.5MM Connector, we also have other kinds of Electronics Connector as like below photos:



Package for this Molex 1.2MM Connector:

PE bag for housing and wafer
reel for terminal

Shipping: delivery by air, by international express or by sea







We are a manufacturer of electronic connectors. Products include wire to board connectors, wire to wire connectors, board to board connectors, male & female headers, FPC connectors, cable/wire harnesses. They are widely used in medical equipments, automobile, household appliances, digital products, security products, office equipment, laptop, electric toys and some other fields.



Our company's R&D personnel with over 10 year's experience, we provide one-stop service from R&D and mold design to mass production.







Testing, Stamping, Injection & assembly workshop information:



We have advanced production equipments and 150 experienced workers. Include injection molding machine to manufacture connector housing, automatic pin insertion machine for connector assembly, stamping machine for production of PIN and terminal. And perfected testing equipments to ensure the quality of products. Products are UL, RoHS, TUV certified. We strictly adhere to ISO9001, ISO14001 & IATF16949 quality management system.





1. We are a direct factory which manufacturing of electronics connectors, more than 15 years experience of electronics connector field and cable assembly filed.



2. 90% automatic production makes our daily production capacity reach 1 millions PCS. This enables us fo finish customers's order in a short time.



3. Support low MOQ, support OEM/ODM services and free samples within 3-10 working days.



4. Products pass the third inspection company like TUV/UL/RoHS, and always a pre-production sample before mass production and 100% QC inspection Before Shippment.





Our company's products have been recognized by UL, RoHS and the third-party high-quality testing technology service institutions, and obtained a number of utility model and invention patents, and obtained "ISO 9001:2015, ISO14001, IATF 16949 quality management system", "National high and new technology enterprise".













In order better to learn about the different market and different customers' needs,we have attent the Germany Munich Electronics Fair, HK Electonics Fair, India Electronics Fair, Munich (Shanghai) Electronics Fair.

We have Presentation of many new and popular products during above exhibition. In particular the 1.0/1.27/1.5mm pitch connector, 2.0/2.5/2.54mm pitch connector, 3.0mm pitch connector, 4.2mm pitch connector, which all is a nice reference in the world of electronics connector.

The above exhibition was an ideal opportunity to forge a close links with companies which from EU, Middle East, India and Asia market.





Based on our rich experience of the electronics connector, we have cooperated with Flex, Foxconn, Siemens, Assmann, Plexus for many years, they're pleased of our product quality and company.





Q1: Are you a manufacturer ?

A: Yes, we are the professional manufacturer of electronics connectors & hardness.



Q2: Do you provide the customized product ?

A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings.



Q3: What is the delivery time ?

A: Generally, it will take 3-5 days for small order or the stock goods; 7 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q4: How about the certificates ?

A: Factory has pass the ISO 9001 & ISO14001, Products has pass the UL, RoHS, REACH etc.



Q5: How about the sample ?

A: We can provide 5-10pcs Free samples. While the shipping fee for the sample will be paid by you (We're located in Dongguan city of China).



Q6: How about the payment terms ?

A: Generally we use the T/T payment in advance. If the amount is more than 3000USD,
we can do 30% T/T deposit , 70% T/T before shipment or against the copy of B/L. Further we also can accept the L/C, Western Union , paypal payment, etc.



Further information about our company or price, please don't hesitake to contact us !
