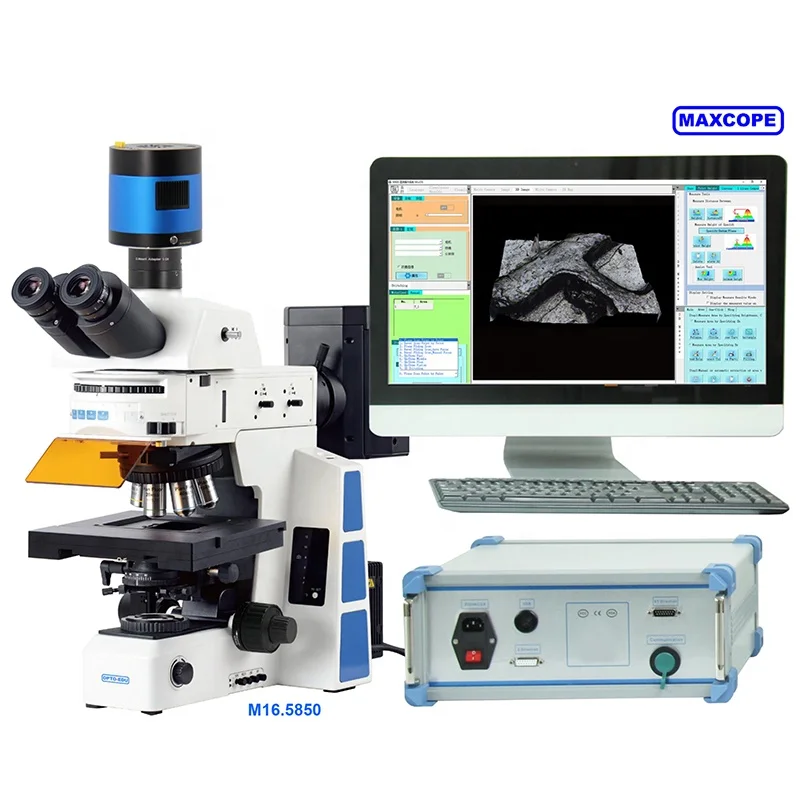

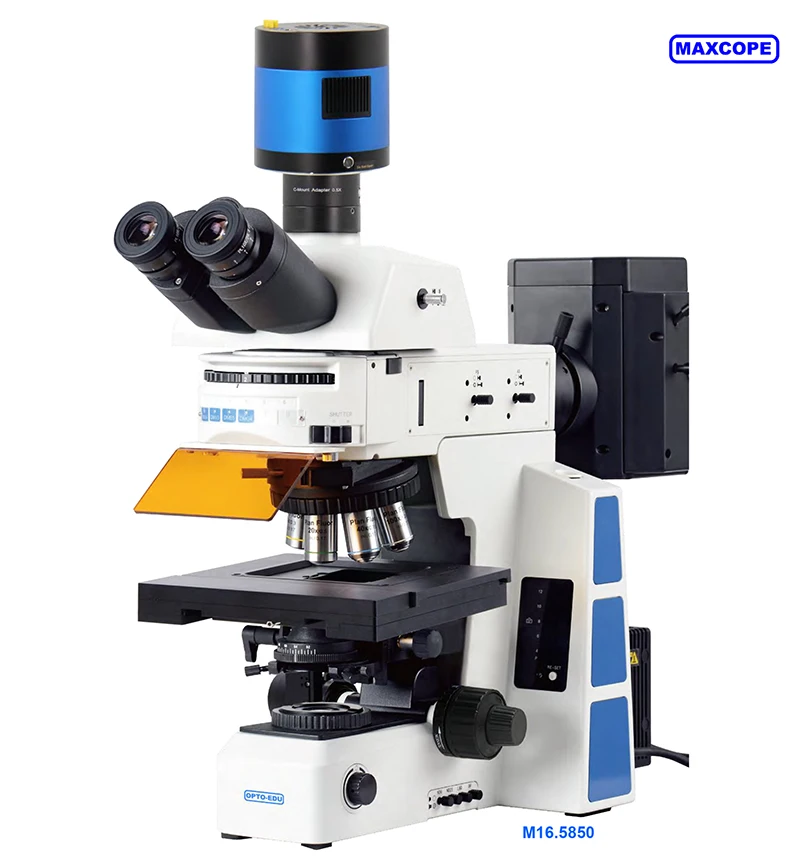

MAXCOPE M12.5850 Trinocular Biological XYZ Stage Motorized 3d Microscope

Optical System

Infinity Optical System, BF Bright Field

●

●

Semi-APO, Semi Apochromatic

●

●

APO, Apochromatic

○

○

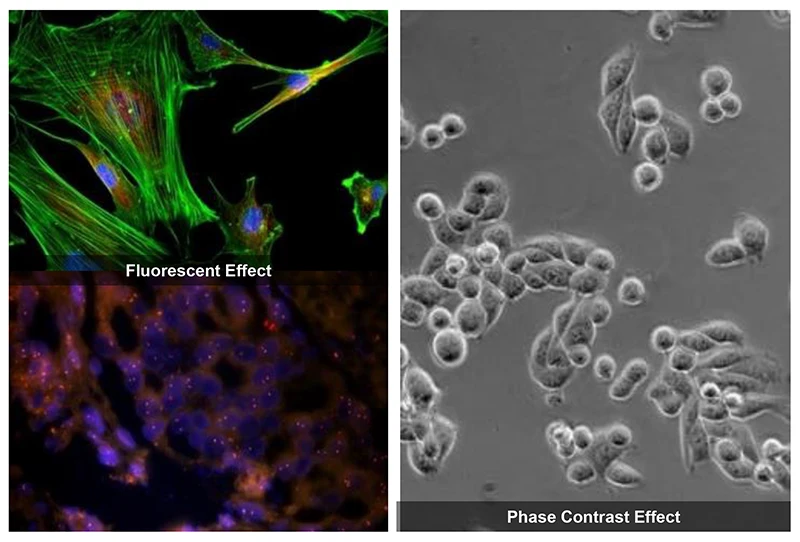

DF, Dark Field

○

○

PL, Polarizing

○

○

PH, Phase Contrast

○

○

DIC, Different Interference Contrast

○

○

FL, Fluorescent

○

○

Head

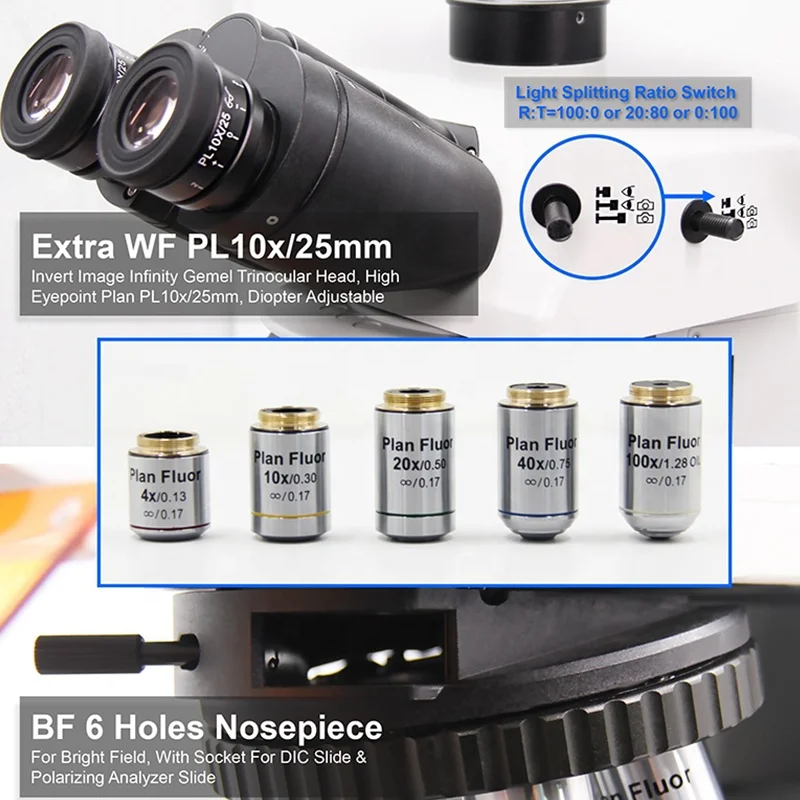

30° Inclined Erect Image Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm, Light Splitting Ratio Switch
E100:P0/E0:P100,

○

○

A53.0913-T30E

30° Inclined, Invert Image Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm; Light Splitting Ratio Switch R:T=100:0
or 20:80 or 0:100

●

●

A53.0913-T30

5-35° Tiltable, Inverted Image, Infinity Gemel Trinocular Head, Interpupillary Distance 50~76mm; Light Splitting Ratio 50:50 or
100:0 or 0:100

○

○

A53.0913-T535

Adapter

0.5x C-Mount, For 1/2"CCD, Focus Adjustable

●

●

A55.0930-05

0.35x C-Mount, For 1/2"CCD, Focus Adjustable

○

○

A55.0930-35

0.65x C-Mount, For 1/2"CCD, Focus Adjustable

○

○

A55.0930-65

1.0x C-Mount, For 1"CCD, Focus Adjustable

○

○

A55.0930-10

Digital Camera

7.0M USB3.0 CMOS Cooling GS Shutter Digital Camera, For Fluorescent Imaging,, 1.1” CMOS, FPS 12@3200x2200, 33@1600x1100,
Semi-Conductor Cooling Range -42°C, Anti-Frog, One Hour Exposure, G Sensitivity Dark Signal 2058mv with 1/30s

●

●

A59.2225-7MPA

Eyepiece

High Eyepoint Plan PL10x/25mm, Diopter Adjustable

●●

●●

A51.0904-1025T

High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable

○

○

A51.0904-10265T

High Eyepoint Plan PL10x/25mm, Diopter Adjustable, With Reticle

○

○

A51.0905-1025T

High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable, With Reticle

○

○

A51.0905-10265T

Nosepiece

BF 6 Holes, With Socket For DIC Slide & Polarizing Analyzer Slide, Coded & Motorized Control by Software

●

●

A54.0930-R6

Objective

Infinity Plan Semi-APO Fluorescent Objective

Semi-APO Fluorescent 4x/0.13, W.D.=16.43mm

●

●

A5F.0950-4

Semi-APO Fluorescent 10x/0.3, W.D.=8.13mm

●

●

A5F.0950-10

Semi-APO Fluorescent 20x/0.5, W.D.=2.03mm

●

●

A5F.0950-20

Semi-APO Fluorescent 40x/0.75, W.D.=0.74mm

●

●

A5F.095040

Semi-APO Fluorescent 100x/1.3, W.D.=0.18mm

●

●

A5F.0950-100

Infinity Plan APO Fluorscent Objective

APO Fluorescent 2x/0.08, WD=6.2mm

○

○

A5F.0951-2

APO Fluorescent 4x/0.13, WD=16.6mm

○

○

A5F.0951-4

APO Fluorescent 10x/0.40, WD=2.1mm

○

○

A5F.0951-10

APO Fluorescent 20x/0.75, WD=0.6mm

○

○

A5F.0951-20

APO Fluorescent 40x/0.95, WD=0.15mm

○

○

A5F.0951-40

APO Fluorescent 60x/0.90, WD=0.26mm

○

○

A5F.0951-60

APO Fluorescent 100x/1.35, WD=0.13mm

○

○

A5F.0951-100

Centering Objective For Fluorescent

○

●

A5F.0930-1

Focusing

Low-Position Coaxial Coarse & Fine Adjustment, Coarse Adjustment Distance: 25mm; Fine Precision: 0.001Mm. With Coarse Adjustment
Stop And Tightness Adjustment.

●

●

Main Body

Transmitted Biological Main Body,

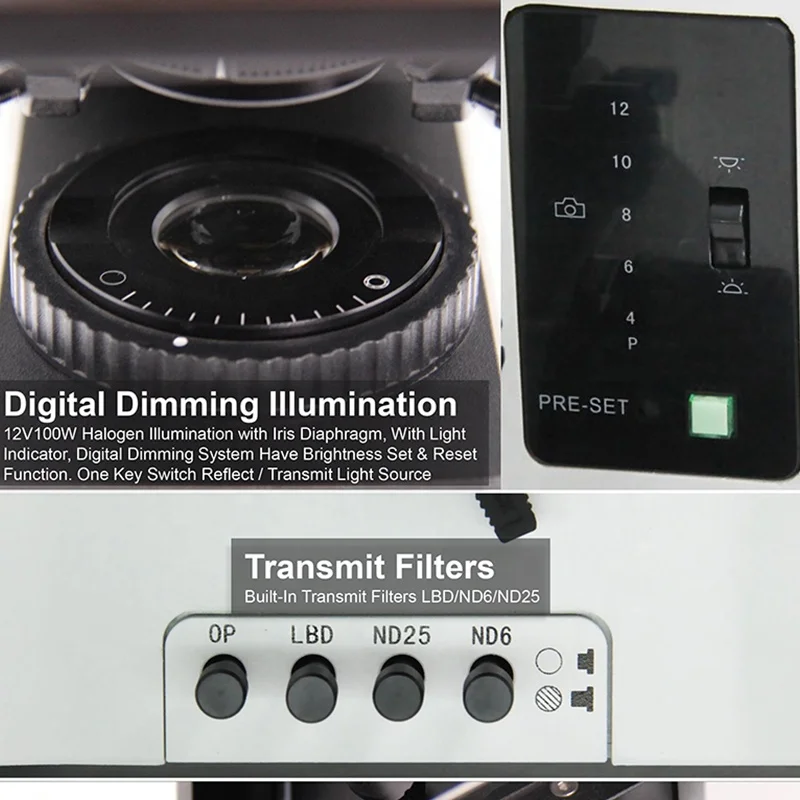

Digital Dimming System With Light Indicator, Brightness Set & Reset Function, With ECO Function

●

Reflected &Transmitted Fluorescent Main Body,
Digital Dimming System With Light Indicator, Brightness Set & Reset Function, With ECO Function

●

Transmit
Light

12V100W Halogen Lamp House, Pre-Centered

●

●

A56.0915-LH

12V100W Halogen Bulb (Philps 7724)

●

●

A56.0923-12100

Swing-out Type Achromatic Condenser, N.A.0.9/0.25

●

●

A56.0934-R

Built-In Transmit Filters LBD/ND6/ND25

●

●

Reflect Epi
Fluorescent Light

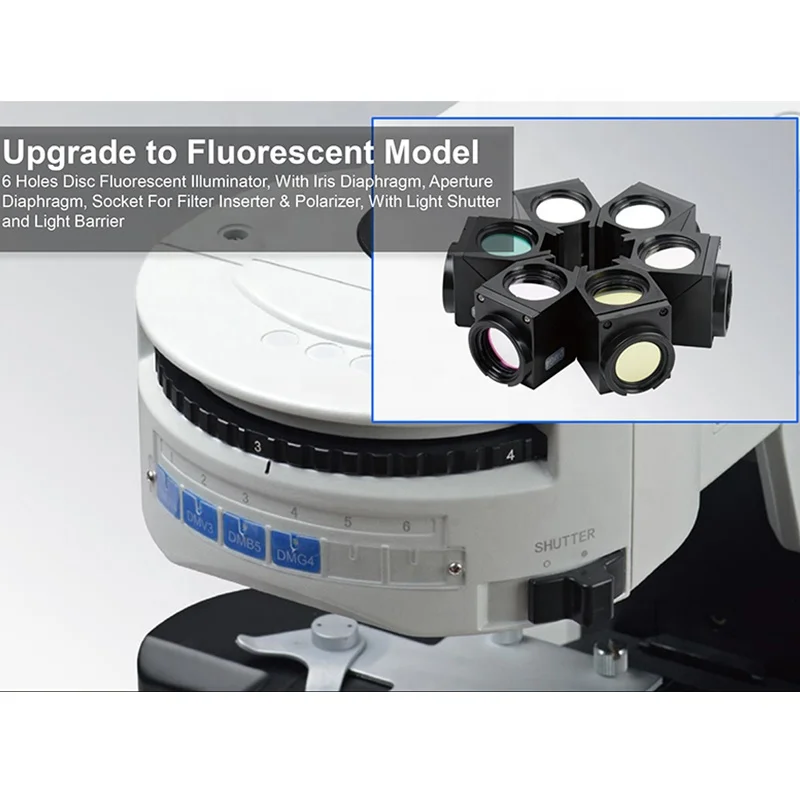

Full Set, 6 Holes Reflect Epi-Fluorescent Illumination, With Iris Diaphragm, With Aperture Diaphragm, With Filter Slot, With
Polarizing Analyzer Slot, With Protect Barrier, With Fluorescent Shutter
--100W Mercury Light Box, Center Adjustable
--Digital Power Supply 90~240V
--HBO 100W Mercury Bulb OSRAM
--Attenuation Filter ND50
--Fluorescent Filter B,G,UV

●

A5F.0906

--Fluorescent Filter V

A5F.0906-V

Power

Built-In 100-240V Wide Voltage Transformer

●

●

Other

Allen Key M4

●

●

Universal Condenser

Universal Condenser, Disc With 8 Holes For Function DF, PL, PH, DIC
--3 Small Holes For Phase Contrast Rings A5C.0960, PH Objectives A5C.0961
--3 Big Holes Only For DIC Rings A5M.0960
--2 Big Holes Center Adjustable, For Dark Field Ring A5D.0960 or DIC Ring A5M.0960
--Polarizer Lens Included In Socket Under Universal Condenser
--Need to Select N.A.0.9 Condenser Lens As Standard

○

○

A56.0960

N.A.0.9 Condenser Lens, Standard Selection, For Objective 10x20x40x60x100x
Screw On Universal Condenser Disc

○

○

A56.0960-09

N.A.0.2 Condenser Lens, Optional Selection, For Objective 4x
Screw On Universal Condenser Disc

○

○

A56.0960-02

N.A.1.4 Condenser Lens, Optional Selection, For Objective 20x40x60x100x
Screw On Universal Condenser Disc

○

○

A56.0960-14

Dark Field

Dark Field Ring, Dry Type N.A.0.9, For Objective 10x,20x

○

○

A5D.0960-D

Dark Field Ring, Immersion Oil Type N.A.1.4, For Objective 40x,60x

○

○

A5D.0960-I

DIC

Transmission DIC Slide, Insert To DIC Socket On Nosepiece

○

○

A5M.0960

Transmission DIC Ring 10x

○

○

A5M.0960-10

Transmission DIC Ring 20x

○

○

A5M.0960-20

Transmission DIC Ring 40x/60x

○

○

A5M.0960-4060

Phase Contrast
APO Objective

Infinity Plan Apochromatic Positive Phase Contrast Objective

○

○

APO PH 4x/0.16, WD=12.8m

○

○

A5C.0950-4

APO PH 10x/0.40, WD=2.5mm

○

○

A5C.0950-10

APO PH 20x/0.75, WD=0.6mm

○

○

A5C.0950-20

APO PH 40x/0.95, WD=0.15m

○

○

A5C.0950-40

APO PH 60x/0.90, WD=0.26mm

○

○

A5C.0950-60

APO PH 100x/1.35, WD=0.13mm

○

○

A5C.0950-100

Polarizing

Polarizer Lens Included In Plug-in Socket Under Universal Condenser

○

○

Analyzer Slide, Insert To Analyzer Socket On Nosepiece

○

○

A5P.0960

Metallurgical

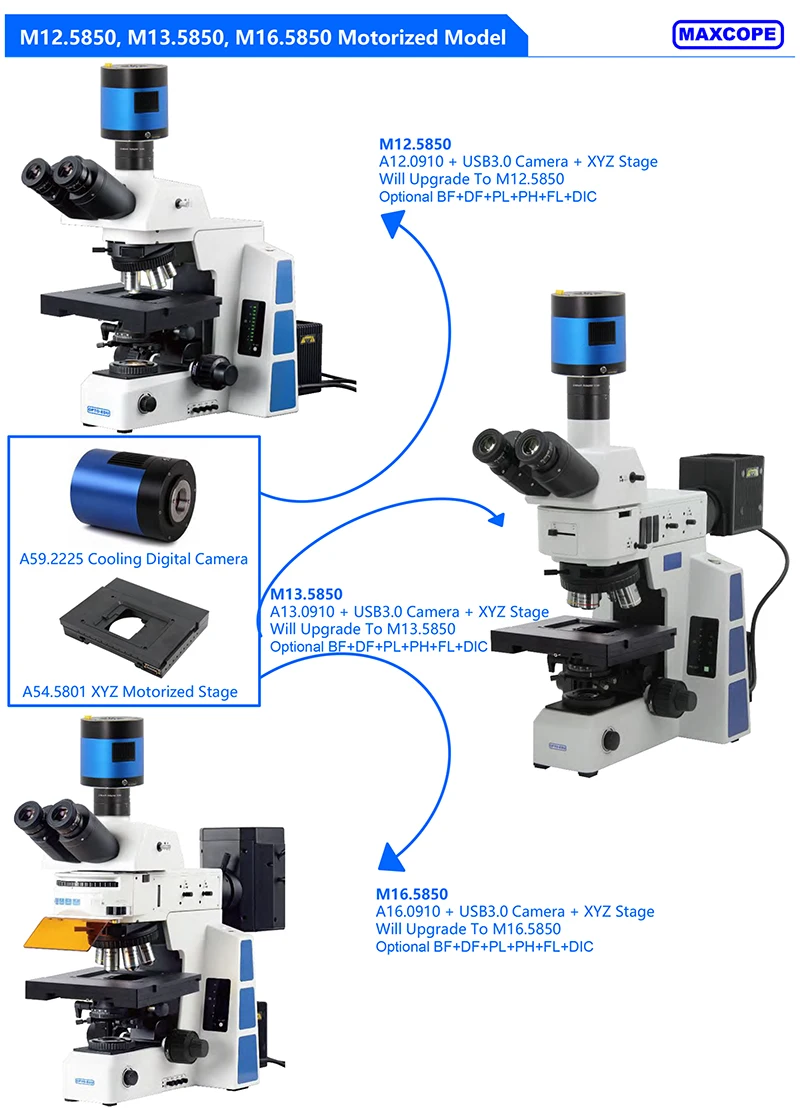

Upgrade to M13.5850 3D Full Auto SDF DIC Metallurgical Microscope, APO

M13.5850

Remark: '●' Means Standard Outfit, '○' Means Optional

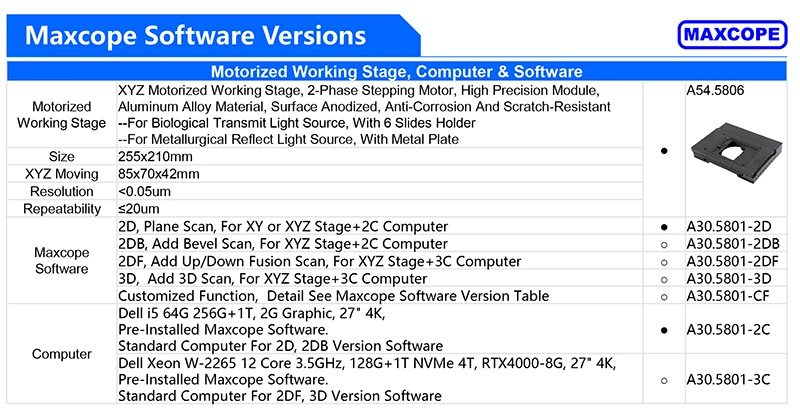

XY Motorized Control

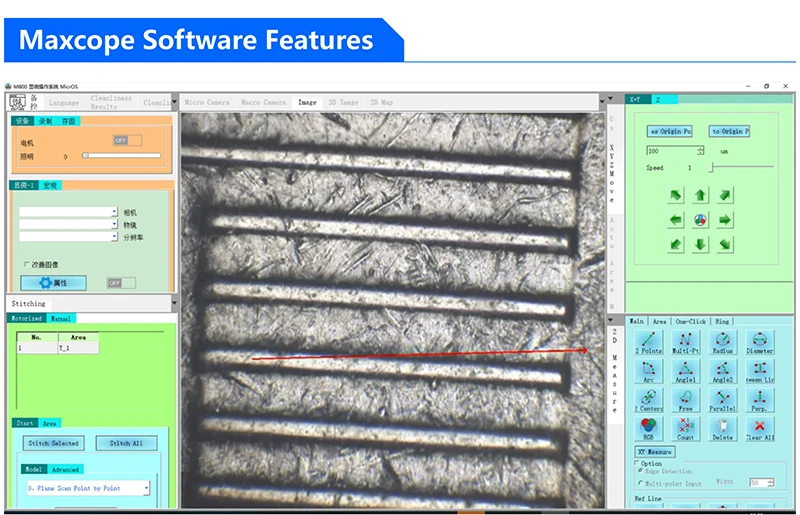

Control the motorized stage through software, support one-click set/return to origin point, three ways control methods:
• Click the 8-direction arrow with the mouse to manually control the stage movement, and the step distance and move speed can be
freely adjusted
• Long press the mouse and drag in the camera preview window, to move the working stage to the corresponding direction
• Double-click the mouse at any point in the preview window, the point will be set as center of the window, the stage will move
accordingly

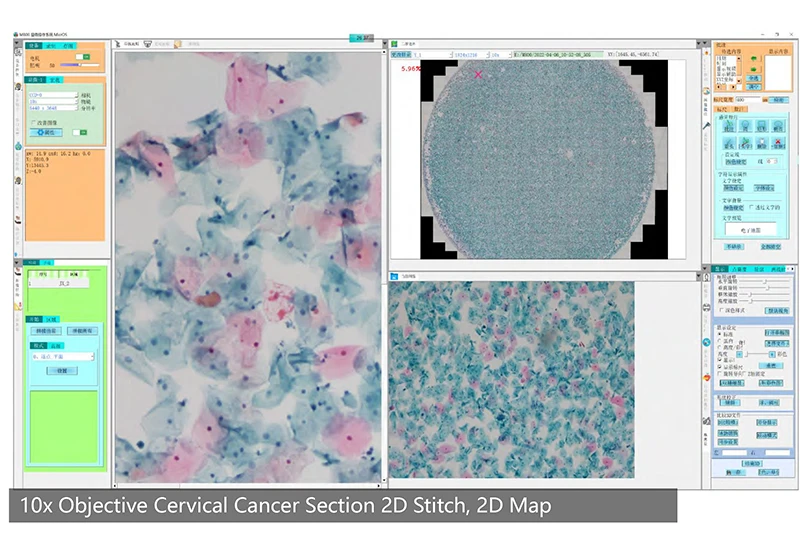

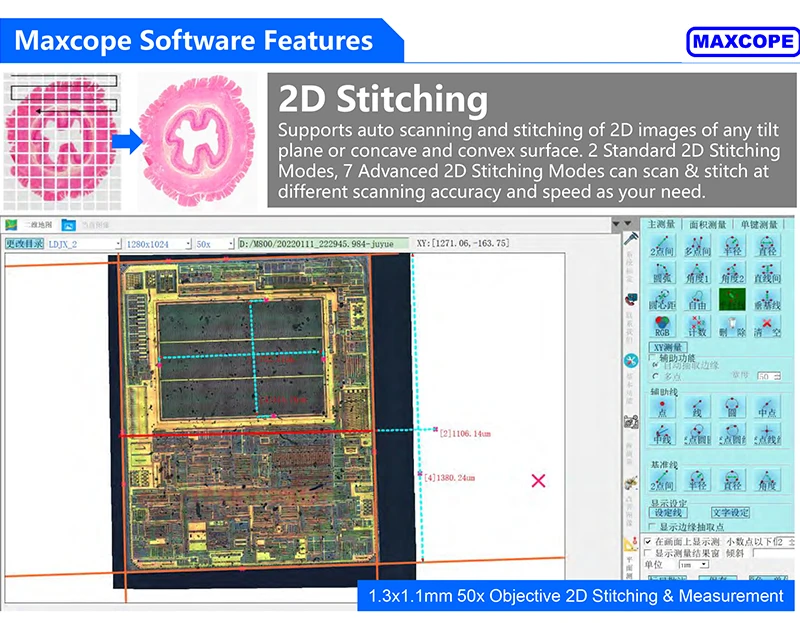

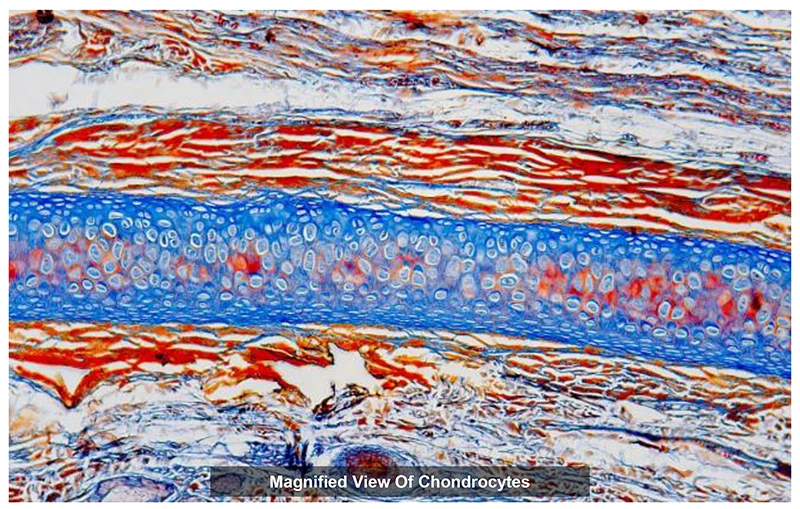

2D Plane Scan

2 kinds plane scan modes, no need auto or manual focus during stitching, for plane smooth surface or low magnification view, XY
stage will direct scan single focal plane and stitch the 2D image
• Plane PXP Scan, point by point, high precision, slow speed
• Plane Fly Scan, line by line, low precision, high speed
Supports automatic scanning and stitching of 2D images at any magnification, with optional scanning accuracy and speed.

Free Stitching Area

Provides 6 stitching area modes, which can quickly set stitching areas of any shape: Polygon, 2-point rectangle, 3-point circle,
4-point ring, outline, free curve.
• Outline mode can automatically detect the edge contour of the object as the stitching area.
• Free curve mode can freely draw any shape as the stitching area.

2D Stitching Optimize

The built-in advanced algorithm can intelligently optimize and correct the grid phenomenon and shadow phenomenon caused by lens
aberration, uneven lighting and other factors when scanning and stitching, so that the stitched image will be one high-definition,
no offset, no grid, no shadow.

Calibration

It can do the necessary calibration before measurement, for different camera & objective lenses, user can add, delete, and manage
the calibration list at any time

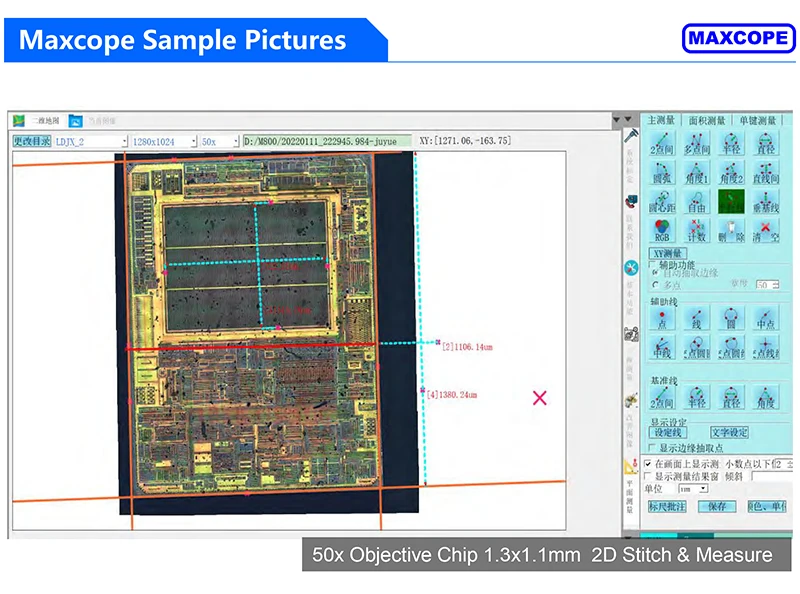

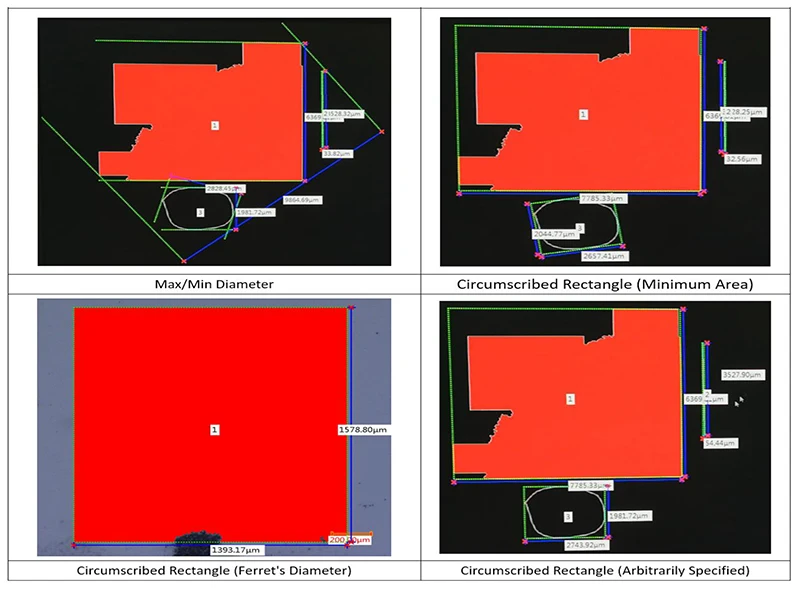

2D Measurement

2D plane measurement 10+ functions, including length, angle, radius, diameter, free curve length, parallel line distance,
point-line distance, 2-point distance, multi-point distance, radius, diameter, arc length, RGB measurement, counting, etc. and a
variety of auxiliary lines and reference line tools are provided. Combined with these tools, various complex measurements can be
achieved, and various measurable information of planar images can be obtained more efficiently.

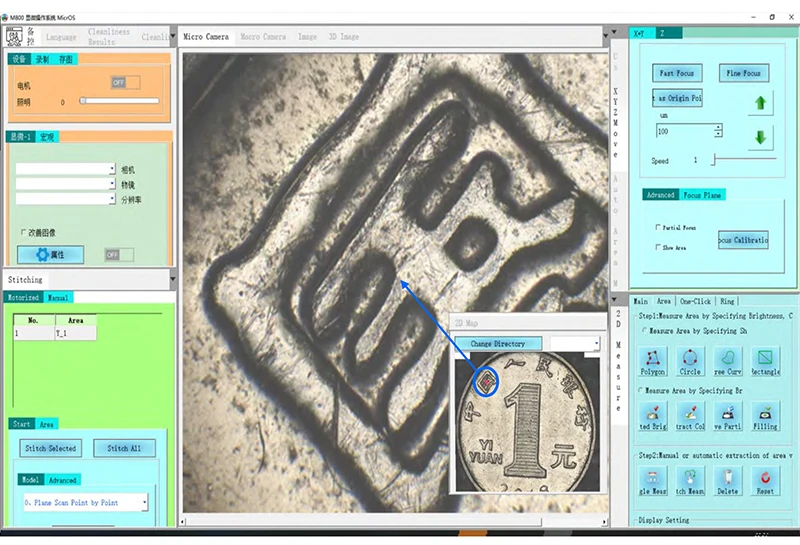

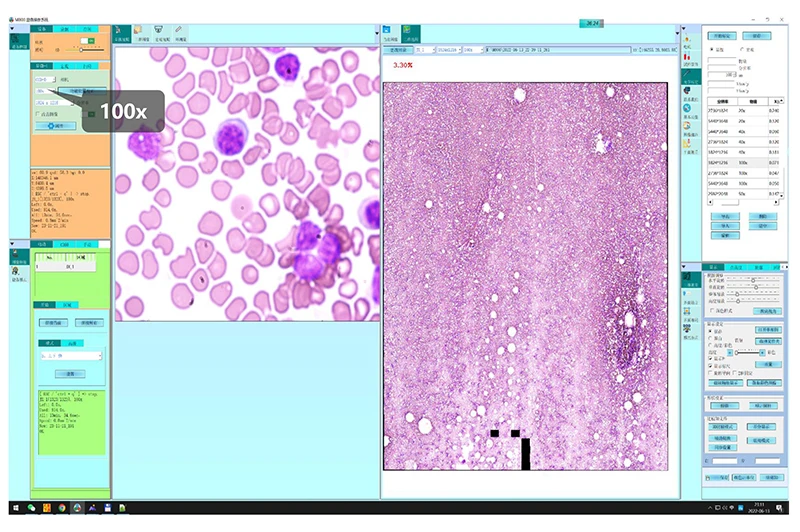

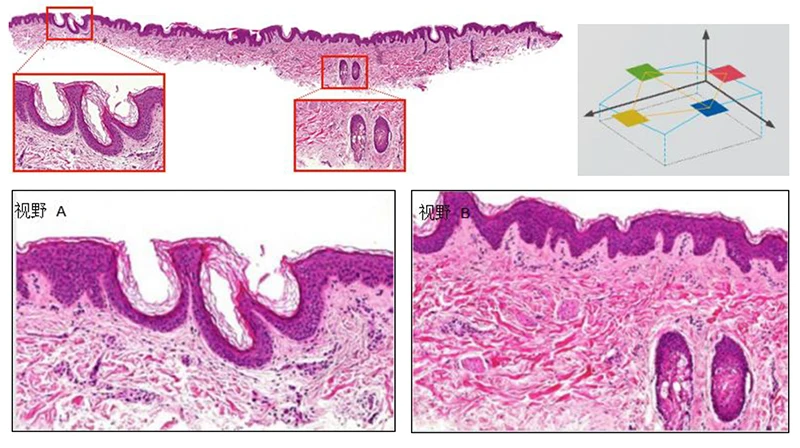

2D Map Guide

After scanning and stitching to generate a panoramic image, it can be used as an electronic 2D map for navigation. Click the 2D
map to control the motorized stage to quickly locate the specified position for high-magnification observation, avoiding the
confusion of difficult positioning in traditional high-magnification observation.

Point of Interest

Click the mouse to freely set and save multiple points of interest on the image, you can select and quickly return to the point
of interest at any time for repeated focus observation

Marco Camera Guide

The model with optional macro camera, the panoramic image previewed in real time can be used as an electronic 2D map for
navigation function, one click can reach the point of interest for high-power observation

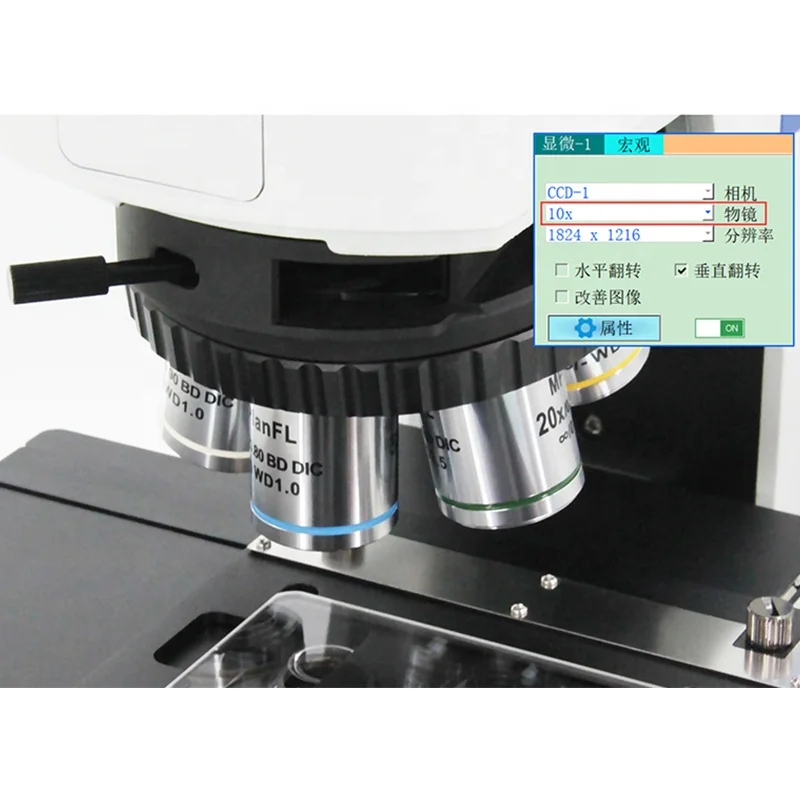

Motorized Nosepiece

Optional motorized nose wheel models, you can select different objective lenses in the software, and switch the magnification
with one click

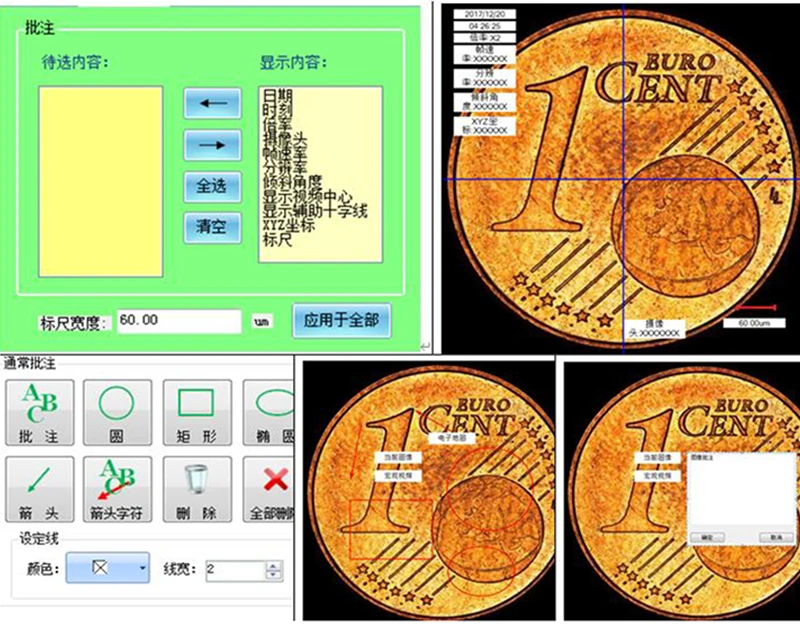

Full Parameter Record

While taking pictures and videos, software can automatically records comprehensive information such as shooting date, objective
lens, magnification, stage position, etc., which is convenient for outputting to experimental reports or for reproducing
observation results later.

Extra Long Video Record

The longest 1 hour, the fastest 50PFS video recording, can comprehensively record the experimental detection process, or the
long-term change process of the observed object, subtle movements and other information. The video results can be fast-forwarded
or played frame by frame, and still images can be extracted and saved.

Customized Report

Freely set Word and Excel report templates, including images and comprehensive shooting parameters, which is convenient for
quickly outputting a complete inspection report in the later stage

Free Interface

The software interface and each submenu can be freely settled by dragging and dropping with the mouse, and can be saved,
exported, and imported into the customized interface layout, and the default simple interface can also be restored easily by hot
key Ctrl + G.

Multi Language

The software supports Simplify Chinese, Traditional Chinese, English, Russian, Korean, Japanese, Iranian, Dutch, French, German,
Italian, and other language versions can be customrized.

Z Motorized Control

The software controls the Z-axis motorized lift, support professional functions such as manual focus/auto focus/super depth of
field fusion
• Click the up and down arrows with the mouse to manually control the Z-axis lift and focus
• One-click autofocus, focusing speed & accuracy can be selected

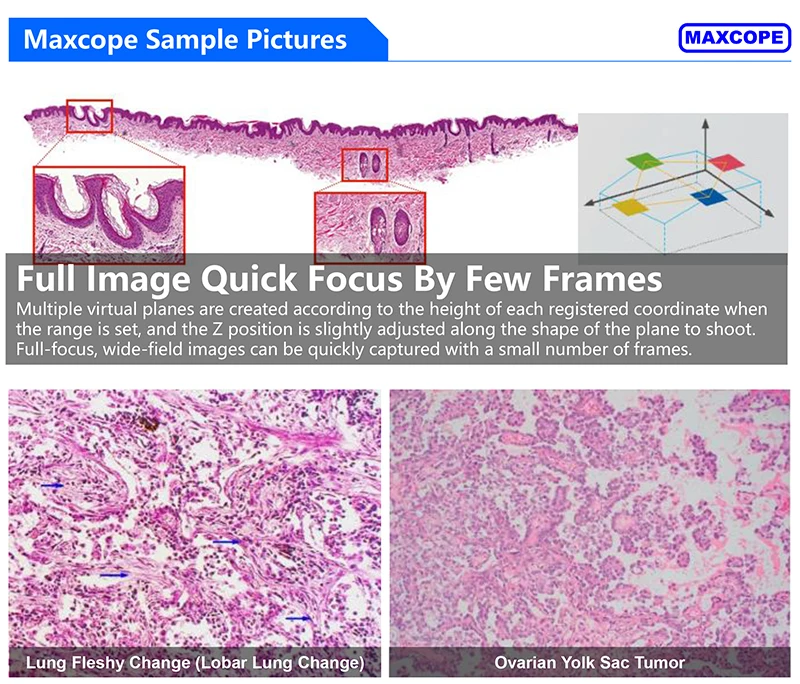

2D Bevel Scan

3 kinds Bevel Scan modes, can auto acquisition height of multi-focal planes, after modeling, scan and stitch 2d image, especially
suitable for bevel smooth surface,
• Bevel PXP Scan, Point by Point
• Bevel Fly Scan. Manual Focus
• Bevel Fly Scan Auto Focus

Auto Focus

One click autofocus, as quick as 0.3-2 seconds for each focus, focusing accuracy and speed are optional

2D Fusion Scan

4 kinds of auto focus stitching modes up and down, with Z-axis motorized, you can focus on the inclined plane and the
concave-convex surface layer by layer along the Z axis to find the correct focal plane, or after the depth of field fusion of
multi-layer images, then scan and stitch into a clear full frame 2D images, especially suitable for complex industrial inspection,
special slice observation and other fields
• Up/Down Scan, Fast
• Up/Down Scan, Middle
• Up/Down Scan, Fine
• Up/Down Scan, Fusion

Depth Fusion

The innovative design of high-quality depth synthesis can easily do 200~500 layers of super depth of field superposition and
fusion in a short period of time. The software makes intelligent judgment on abnormal high and low points, scans with full
coverage, and obtains full-frame clear focus pictures

Auto Edge Selection

When the measurement point manually selected by the mouse is deviated on the screen, the software can automatically detect the
edge of the target and automatically correct the measurement point to the edge to eliminate human error and improve the efficiency
of measurement range selection

3D Scan

3D stitching mode, which can automatically focus on uneven objects, take pictures at different heights, obtain a full-frame clear
2D image composed of all clearly focused images, and stitch all focused image together to form a 3D image, and retain all the 3D
measurement data of the observed object.
• 3D Stitching

3D Image View

The saved 3D image can be opened at any time, controlled by the mouse to rotate freely, zoom in and out, open the ruler, color
identification and other auxiliary tools, which is convenient to visually observe the 2D surface shape and 3D structure of the
object from any angle, and thoroughly and clearly understand the observed object

3D Measurement

The 3D image also saves all the three-dimensional measurement data of the observed object, and supports any measurement of the
observed object later, including the height, depth, length, roughness, convex area, concave area, convex volume, concave volume,
etc.

3D Image Comparision

Two 3D images can be opened at the same time, synchronously rotated, zoomed in and out, compared and analyzed, and the comparison
results such as height difference and shape difference can be automatically displayed through color identification

3D Manual Stitching

Support manual stage models, only need to manually lift the stage, the software automatically scans and takes pictures and
stitches to form 3D images, upgrade manual stage model to do semi-automatic 3D scanning and stitching work.

Multi Files Comparison

Multiple files can be opened at once for cross-section, volume, area, flatness, roughness measurements, and more. Even if there
are multiple evaluation samples, analysis can be performed instantaneously under the same conditions. It is possible to see at a
glance where and what differences exist, such as changes in shape due to prototypes with different manufacturing conditions or
wear. Not only can measurement work be significantly reduced, but evaluation errors caused by deviations in measurement conditions
can also be prevented.。

HDR

Acquires multiple ultra-clear images using a single wavelength of light and images with different shutter speeds, and turns them
into 1 image with high grayscale data. Achieved unprecedented high-definition, high-contrast observation

DIC

The automatic turret of the six-hole objective lens, combined with the adjustment of the DIC prism, can make the height
difference of the objective lens surface produce obvious relief effect, greatly improve the contrast of the image, and facilitate
the user to analyze efficiently and accurately.
Combined with polarized light observation, DIC can reflect the smallest surface morphology differences as brightness differences,
and can display perfect images even for low-contrast, multi-phase samples and reflective materials.

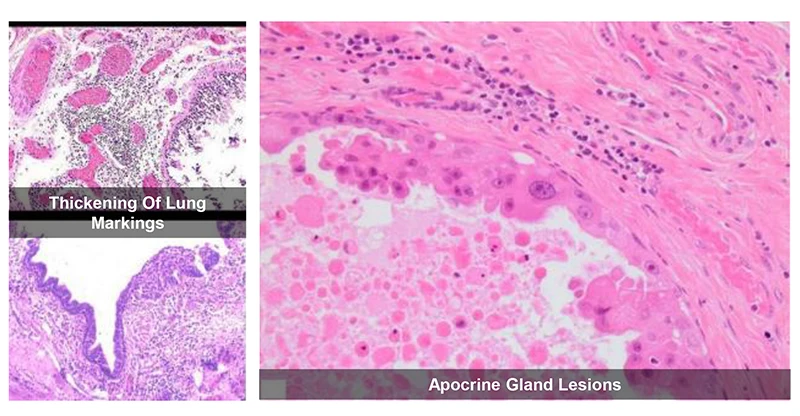

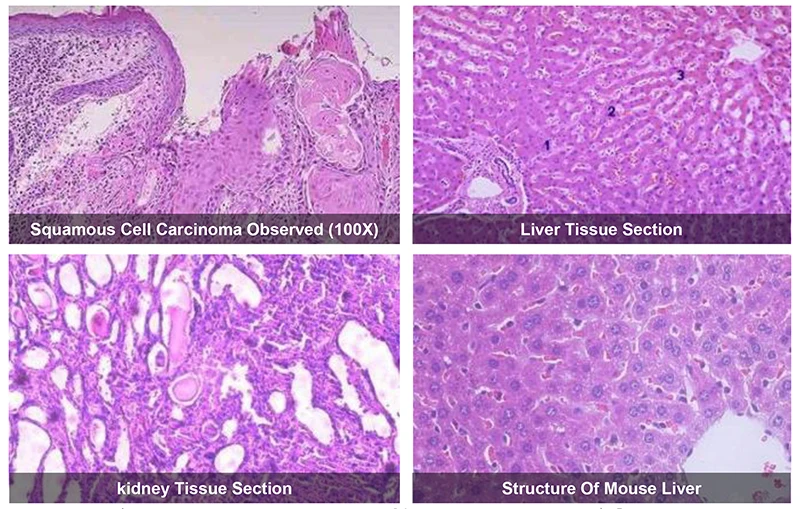

Cell Count & Analysis

Through the automatic focusing acquisition method, high-definition scanning and splicing images of multiple areas are
simultaneously obtained, and the number, concentration, diameter, and area of cells are statistically analyzed. The speed is fast
and the identification is accurate.

Metallurgical Analysis

Using automatic image stitching, the image is analyzed through image enhancement, contrast adjustment, scratch processing, image
correction, multi-region image segmentation, morphological processing, image annotation, and layer merging processing methods. It
is easy to use and concise, and the measurement is accurate and reliable.

Cleanliness Analysis

Cleanliness analysis can be performed according to standards such as ISO Standard 16232, VDA 19.1-2015, ISO 16232, ISO4406 and
ISO 4407. At the same time, it supports user-defined rating standard rules. Divide a large area into multiple areas to shoot and
analyze them individually, and you can deal with a wide range of cleanliness analysis. The number of particles extracted and the
cleanliness class can be displayed for each largest diameter class (B to K). Also provides height information for selected
particles.

Vickers/Knoo Hardness Test Auto Analysis

Efficient and fast panorama scanning, diversified path planning, automatic continuous loading, focusing, and measurement are
convenient for users to obtain accurate measurement results and greatly improve work efficiency.

Brinell Hardness Tester Analysis

One-Click automatic identification function is significantly ahead of the existing mainstream Brinell hardness tester software
products.

Porosity Measurement

The system complies with VW50097, VW50093, VDG_P202 standards, and the whole image is obtained by panoramic stitching for
analysis, so that the porosity measurement can obtain more reliable results in the entire analysis area.

Grain Size Analysis

According to JIS standard G0551 or ASTM standard E1382, the measurement line can select [vertical line], [horizontal line],
[diagonal line], [multiple circles] to measure the crystals on test line.

One Click Auto Measurement

Multiple measurement items can be saved as templates, the software intelligently matches similar shapes, removes redundant
targets or separates overlapping targets, and automatically performs unified measurement, counting and analysis for multiple
targets with one click

Max Area
Measurement

Just use the mouse to specify the measurement range, the software automatically detects the edge of the object and selects the
measurement area, you can add or delete measurement areas at will, and measure the largest area of any complex shape by automatic
edge recognition instead of manual precise positioning
