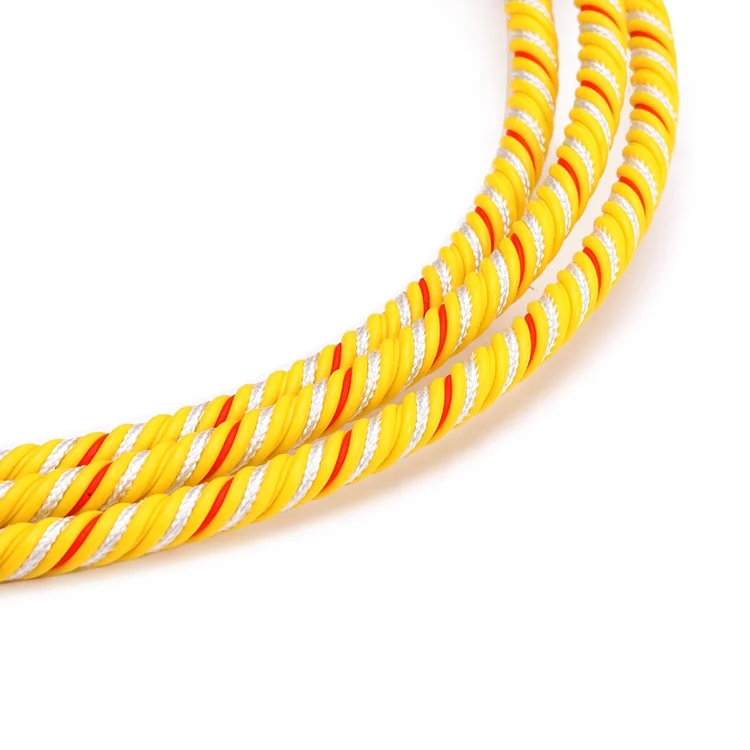

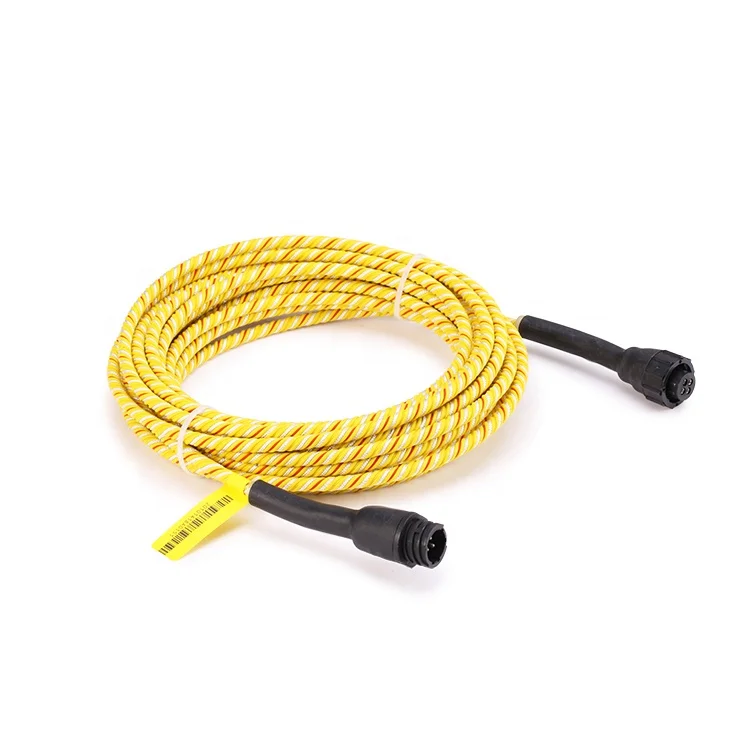

Расположение 6,0 мм Диаметр обнаружения утечек трос системы утечки воды зондирования кабель
- Category: Security >>>
- Supplier: Shenzhen Xiangwei Measurement And Control Technology Co. Ltd.
Share on (1600609800549):
Product Overview
Description
Specification
Technical Data
Cable diameter | 6.0mm |
Material | Fluoropolymer |
External resistance of cable conductor | 13Ω/m |
Cable weight | 34g/m±1 g/m |
Cable color(Central axis) | Yellow |
Sensing cable | 2*30AWG with conductive fluoropolymer protective cover |
Operating temperature | -20ºC~75ºC |
Fire resistance | V0 |
Wire core quantity | 4 pin |
Abrasion performance | > 65 cycles |
Tensile | ≤90kg |
Alarm leakage (tap water) | Any position along the leakage sensing cable: maximum 30mm |
Product Selection
Part number | Description | |

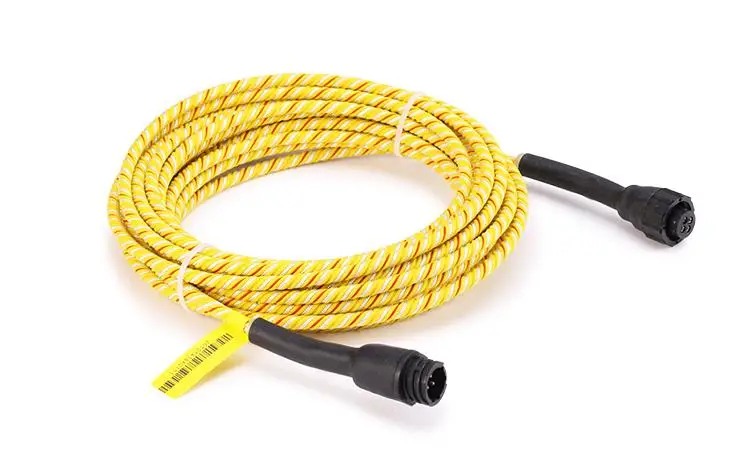

XW1000-3M | 3 meter locating leak sensing cable | |
XW1000-7.5M | 7.5 meter locating leak sensing cable | |
XW1000-15m | 15 meter locating leak sensing cable | |
XW1000-30m | 30 meter locating leak sensing cable | |
Note: Length can be customized according to the requirements | ||
Product Description
XW1000B
High temperature resistant water sensing cable
Feature
1. Flexible for installation in complex and bending pipelines.
2. Sense wire core of sensing cable is designed with a braided sheath, which can effectively prevent false alarms caused by electrostatic interference and dust.
3. Can operate safely and stably at a temperature of 100°C, it is the world's first ultra-high temperature resistant leak
detection sensing cable.
4. The resistance is uniform and the error is within 1%. With high stability and accuracy of detection and locating for the
leakage detection system which takes resistance as an important parameter.
5. Waterproof structure of the plastic plug, convenient cascade and expand detection range. Variety of length meet the needs of detection ranges.
6. Spiral structure not only reduce the environmental electromagnetic interference and false alarm, but also greatly improve the strength and service life.
2. Sense wire core of sensing cable is designed with a braided sheath, which can effectively prevent false alarms caused by electrostatic interference and dust.
3. Can operate safely and stably at a temperature of 100°C, it is the world's first ultra-high temperature resistant leak
detection sensing cable.
4. The resistance is uniform and the error is within 1%. With high stability and accuracy of detection and locating for the
leakage detection system which takes resistance as an important parameter.
5. Waterproof structure of the plastic plug, convenient cascade and expand detection range. Variety of length meet the needs of detection ranges.
6. Spiral structure not only reduce the environmental electromagnetic interference and false alarm, but also greatly improve the strength and service life.

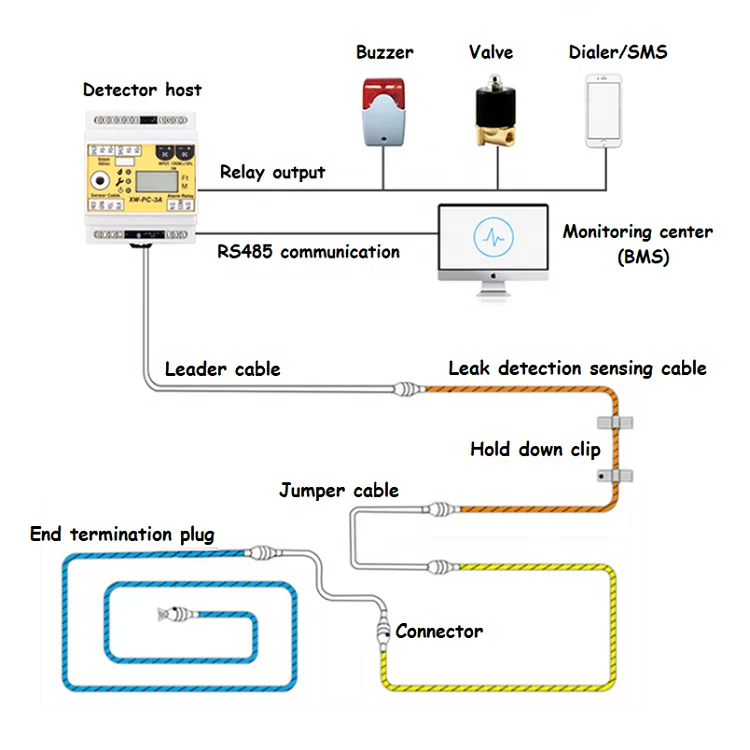

Applications
Details Images

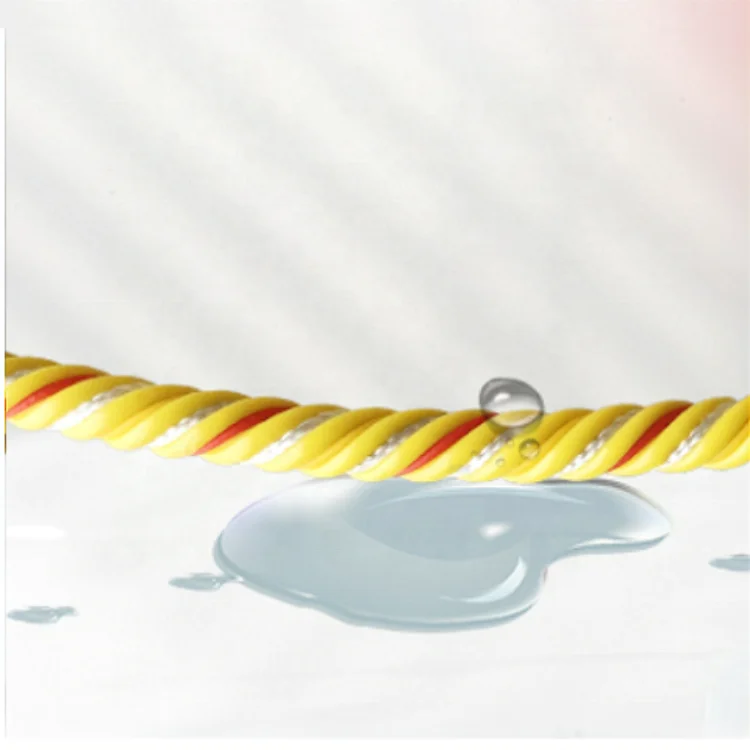

High sensitivity：Alarm once detect water

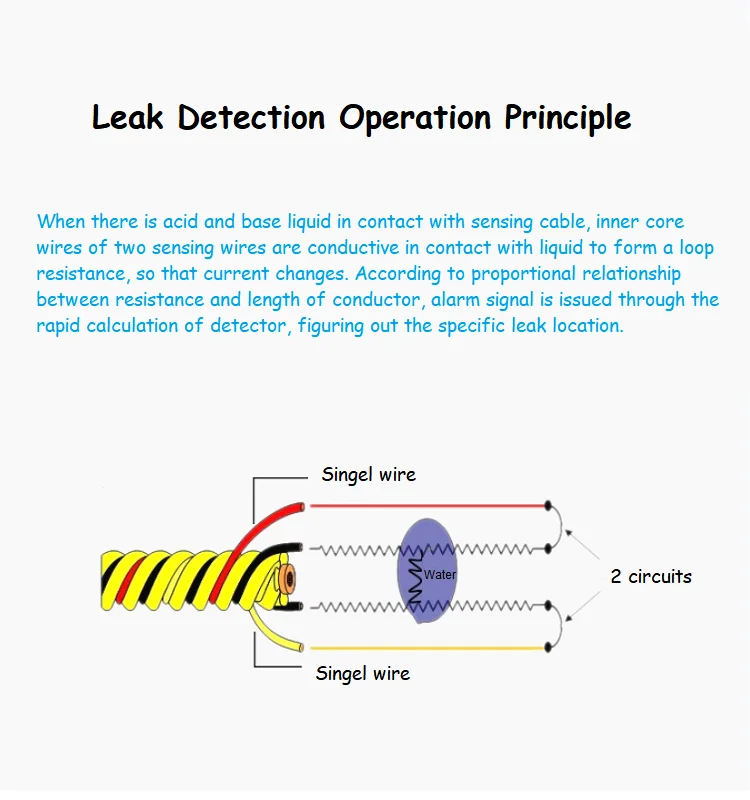

Based on the detection principle of water conduction, the water leak can be quickly detected once there is water anywhere along the cable.

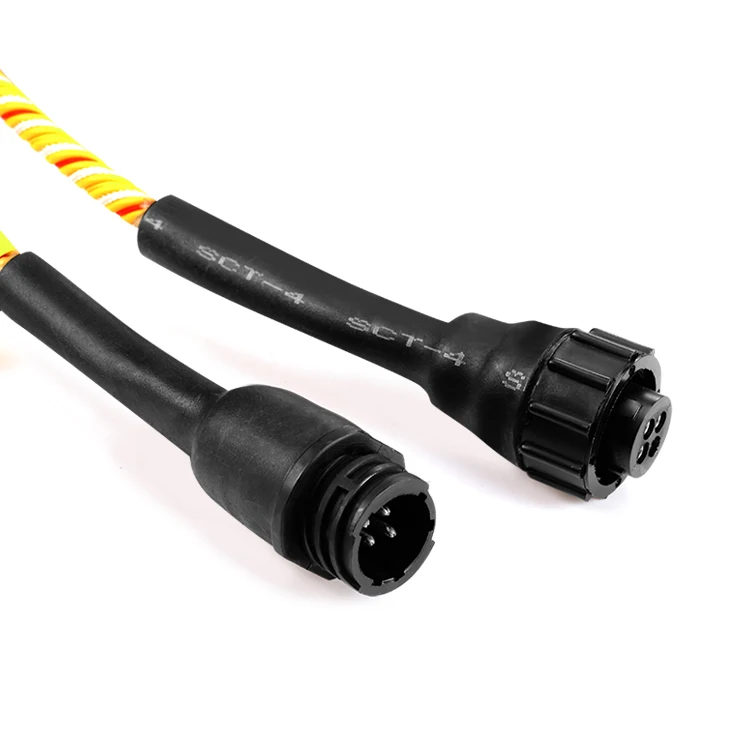

1. The connector of cable is made of high quality and co-friendly PVC material. The integrated waterproof structure has the characteristics of high flame retardant, high temperature resistance, earthquake resistance and fall resistance, which can be extended in cascade.
2. Can operate safely and stably at a temperature of 100°C, it is the world's first ultra-high temperature resistant leak
detection sensing cable.
detection sensing cable.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
A leading manufacturer of Liquid Leak Detection Systems for commercial and industrial applications
Xiangwei mainly focus on Water Leak Detection and Oil Leak Detection (Fuel leak detection). Company now has controller, sensor cable, modules, sensors and other products, products can be widely used in various industries, including data centers, communications room, pharmaceutical, mechanical and electrical equipment, intelligent buildings, semiconductor plant, elevator equipment, heating and cooling plumbing, home and so on.
Certifications
FAQ
How long is the lead time?
Sample order: Within 3 working days. Bulk order: 5-15 working days
What is your MOQ?
Accept small order and trial order for standard products, the MOQ for customizable products should be negotiable.
What’s the warranty?
Warranty is 12 months.
I want to customize the appearance, parameters and model of the product according to my needs. Is it possible?
If you have a specific project and a certain amount of demand, our company is willing to customize the required products according to your needs, and can provide a series of services such as OEM, ODM.
Can the acid leakage sense cable be matched with Xiangwei's detector?
The performance of Xiangwei controller is stable and reliable, and it can be compatible with the same type of sense cable of various brands, and of course it can also be used in conjunction with the acid leak sense cable.
