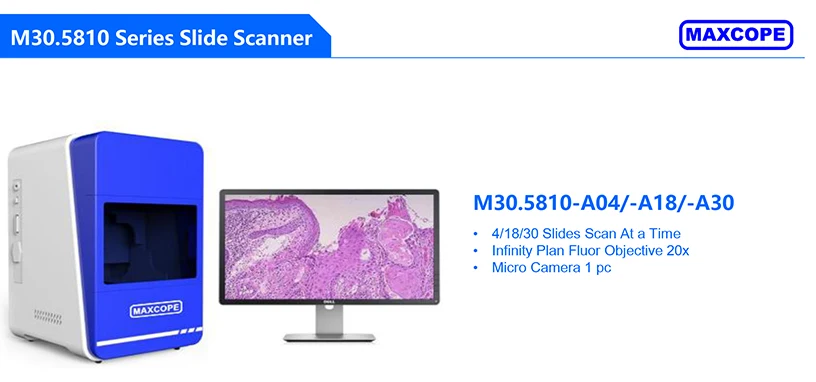

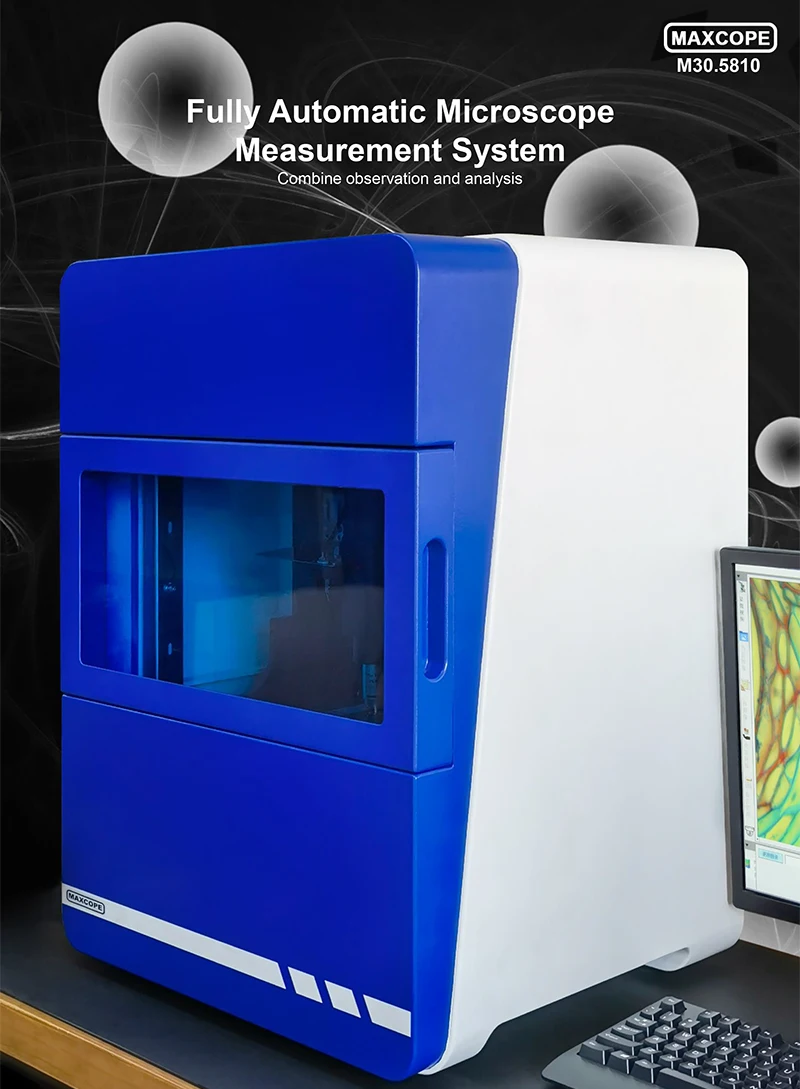

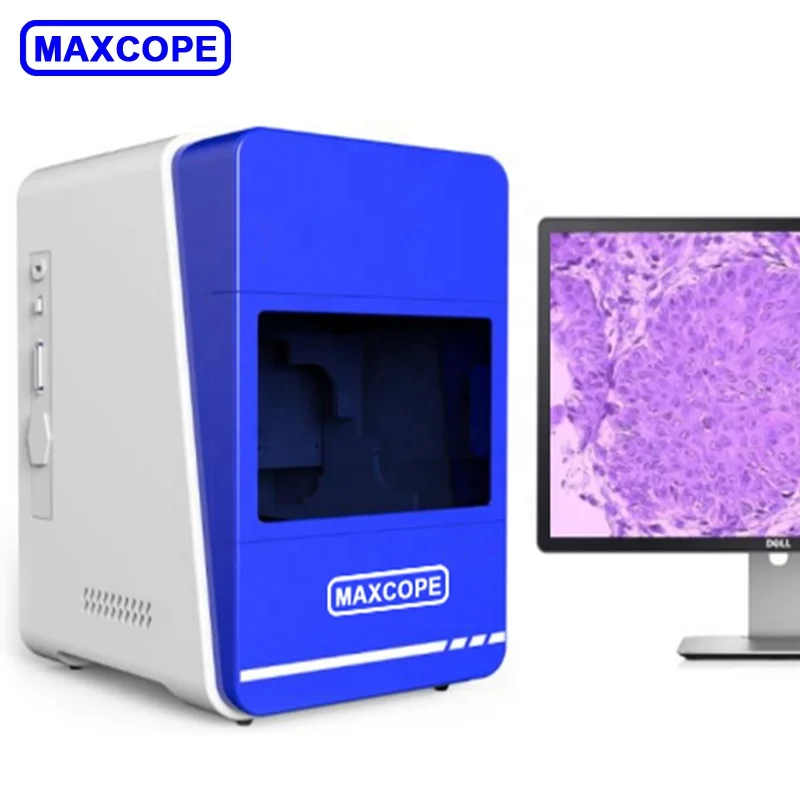

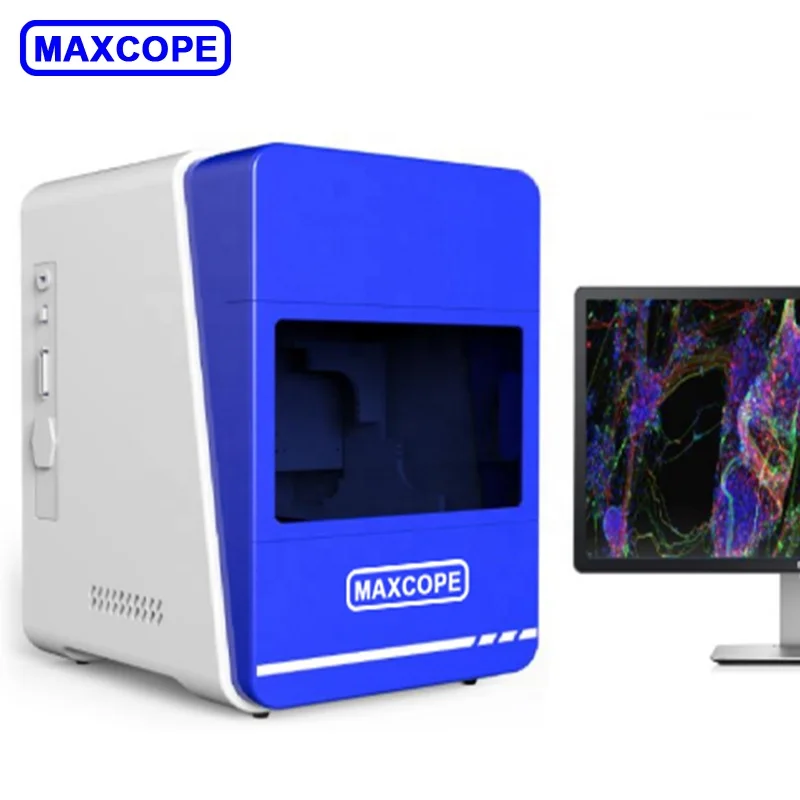

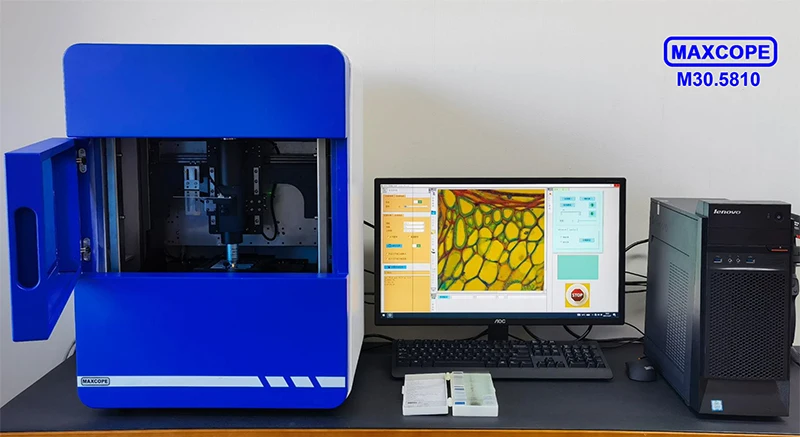

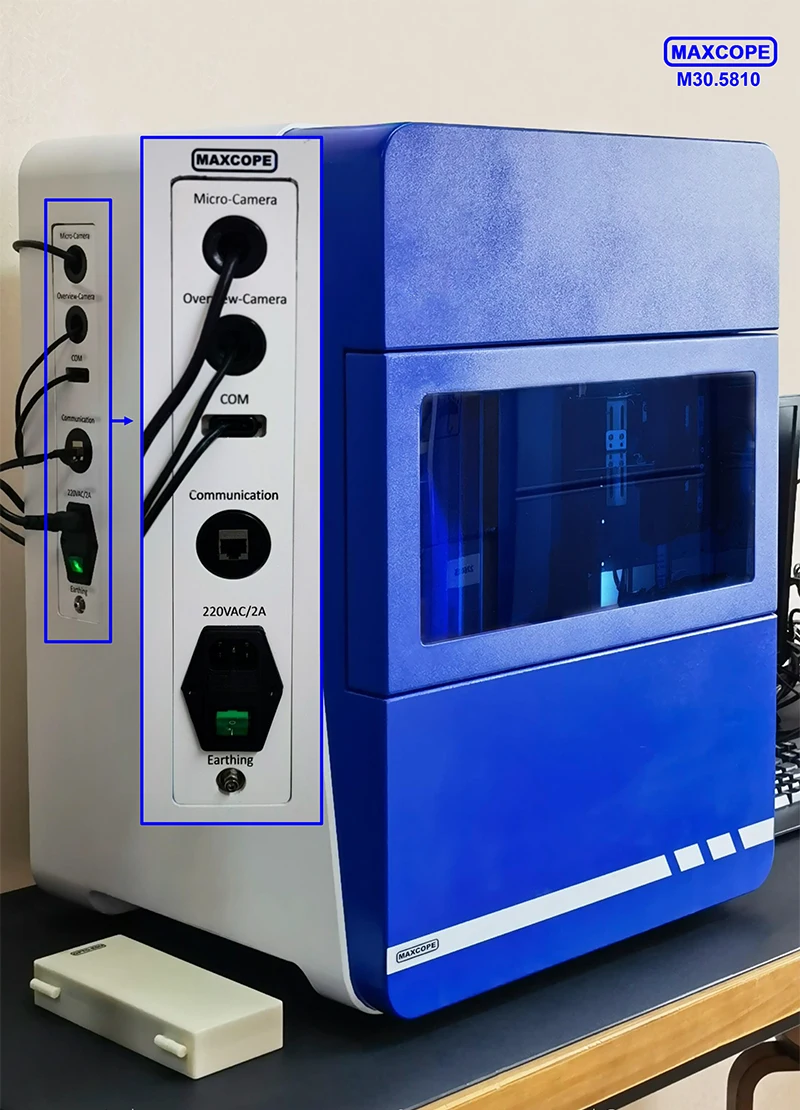

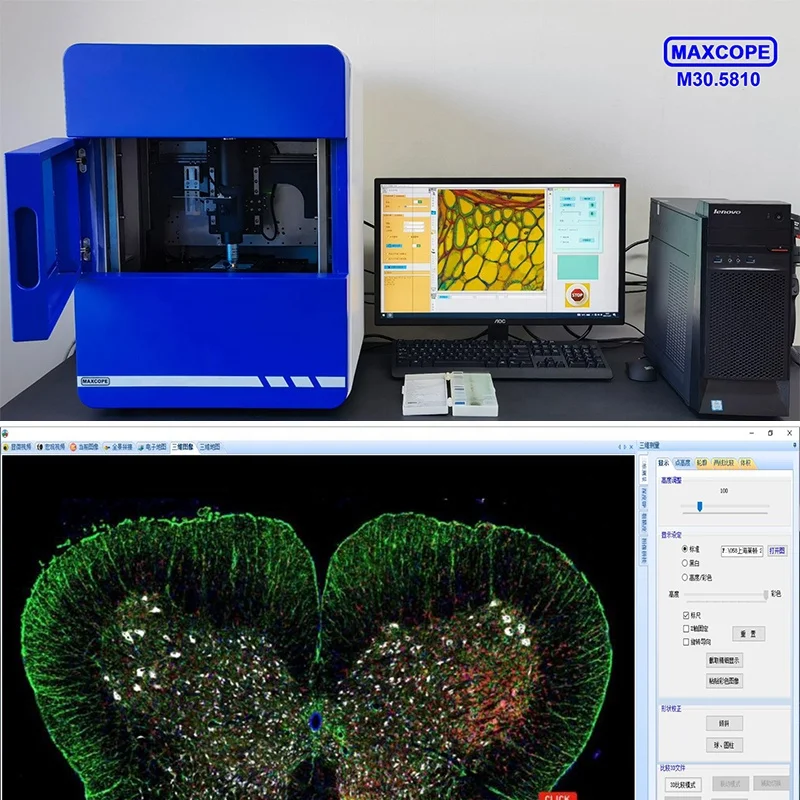

MAXCOPE M30.5810 A18 Auto Condenser Motorized Stage Full Auto Microscope Slide Scanner

Optical System

Infinity Optical System

●

●

●

●

BF, Bright Field

●

●

●

●

FL, Fluorescent (F06, F360, F1080 Inluded)

-

○

○

○

Working Stage

XYZ Motorized Working Stage, Resolution 0.2um, Precision Repeat 0.1~5um

●

●

●

●

Focusing

Z Motorized Up/Down, Auto Focus, Focusing Time 0.5~3s

●

●

●

●

Nosepiece

Auto Nosepiece 6 Holes, Motorized Controlled By Software

-

●

●

●

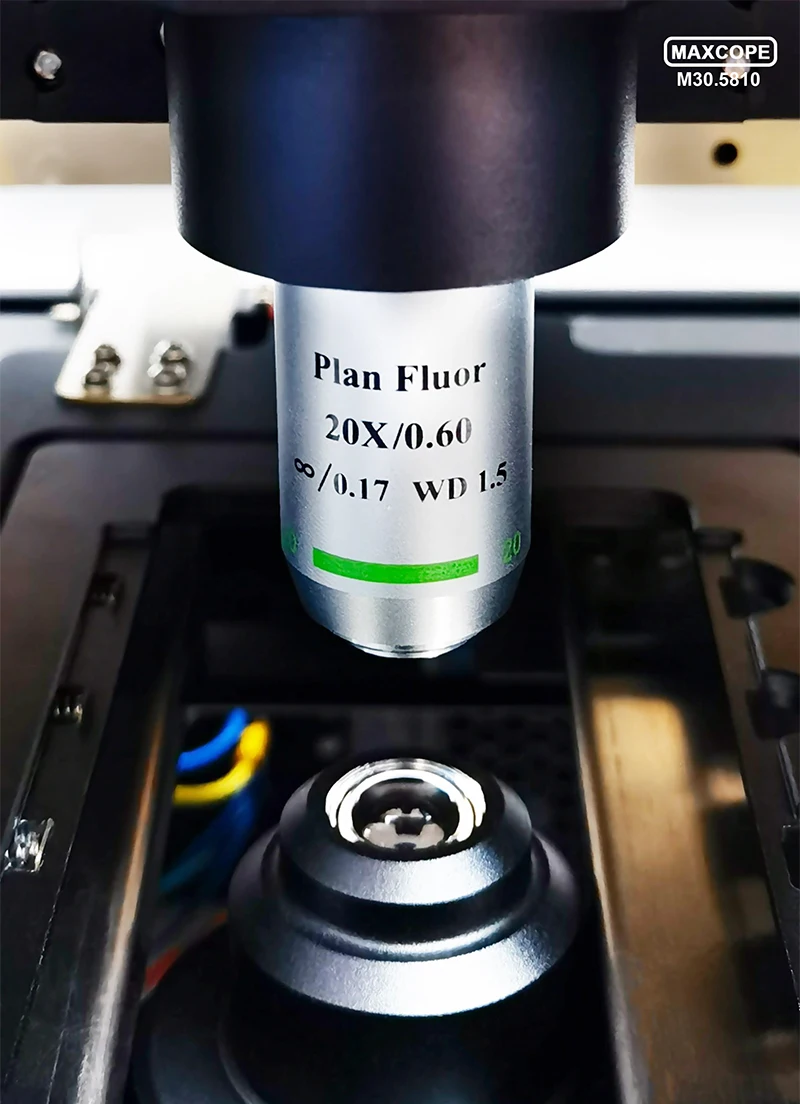

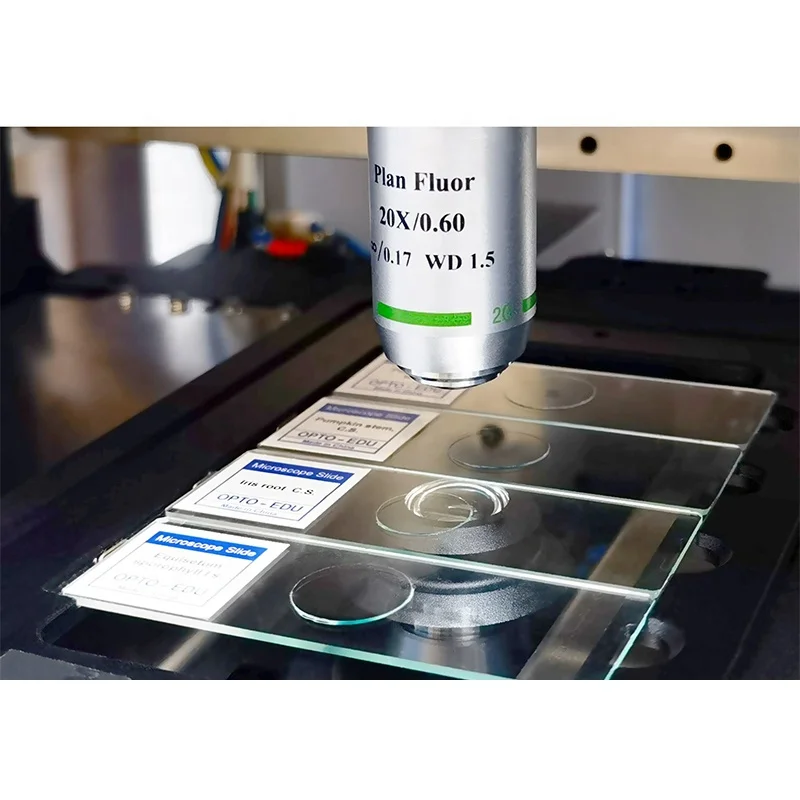

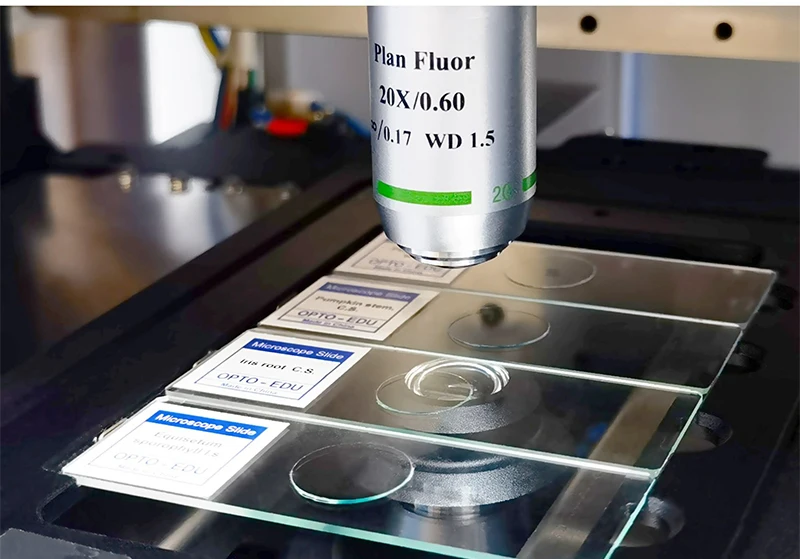

Infinity Plan Fluor Semi-APO Objective

Infinity Plan Fluorescent Objective 2x, N.A.0.10

-

○

○

○

Infinity Plan Fluorescent Objective 4x, N.A.0.10

-

●

●

●

Infinity Plan Fluorescent Objective 10x, N.A.0.25

-

●

●

●

Infinity Plan Fluorescent Objective 20x, N.A.0.60

●

●

●

●

Infinity Plan Fluorescent Objective 40x, N.A.0.95

-

●

●

●

Infinity Plan Fluorescent Objective 60x(Oil, Spring), N.A.1.35

-

●

●

●

Infinity Plan Fluorescent Objective 100x(Oil, Spring), N.A.1.40

-

●

●

●

Auto Oil Drop

Auto Drop Oil Immersion For 100x (Oil) Objective Best View Effect

-

●

●

●

Illumination

Auto Condenser, Built-in LED Transmit Light, Controlled By Software

-

●

●

●

Fluorescence

Motorized Fluorescent Filter Disc, Auto Controlled By Software

-

●

●

●

B,G,U,UV Fluorescent Filters

5W LED Fluorescent Light Source

Standard Outfit For (F06, F360, F1080)

Slide Size

Glass Slide Width 25-26mm, Length 75-76mm, Thickness 0.8-1.4mmm

●

●

●

●

Cover Slip Thickness 0.12-0.17mm

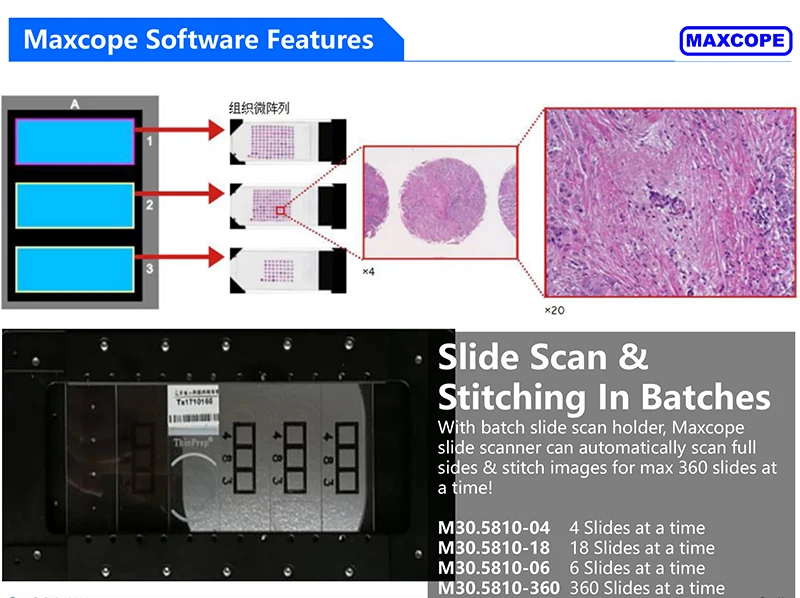

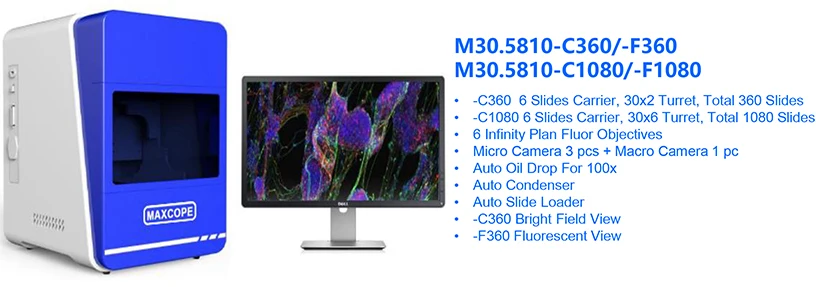

Scan Slides

4/18/30 Slides Scan One Time

●

-

-

-

6 Slides Carrier

-

●

-

-

6 Slides Carrier, 30x2 Turret, Total 360 Slides

-

-

●

-

6 Slides Carrier, 30x6 Turret, Total 1080 Slides

-

-

-

●

Auto Slide Loader

Automatically Upload or Remove Prepared Sides, Each Time 6 Slides

-

●

●

●

Scan Area

Width 26mm x Length 64mm

●

●

●

●

Scan Resolution

20x (NA 0.75): 0.33um/pixel

●

●

●

●

40x (NA 0.95): 0.17um/pixel

60x Oil (NA 1.35): 0.11um/pixel

100x Oil (NA 1.4): 0.07um/pixel

Scan Speed

2 Minutes, Under 20x Objective Bright Field View, Scan Area 15x15mm,

●

●

●

●

4 Minutes, For Single Layer Scan Including Auto Focus Time

Scan Function

Auto Slide Scan, Zoom In/Out in Scanning, Free Remark On Picture, Super Depth of Field Fusion Up to 200~500 Layers, 2D Image
Stitching, 3D Image Stitching (Optional)

●

●

●

●

Picture Format

VSI .JPEG. TIFF

●

●

●

●

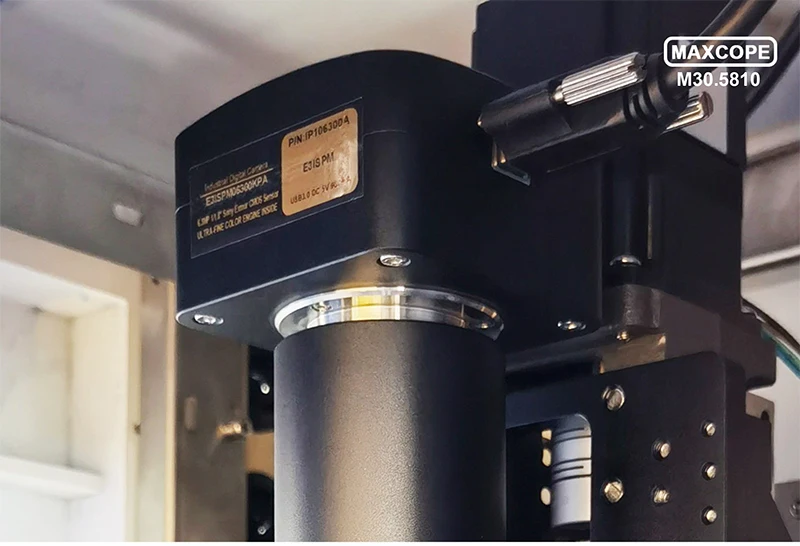

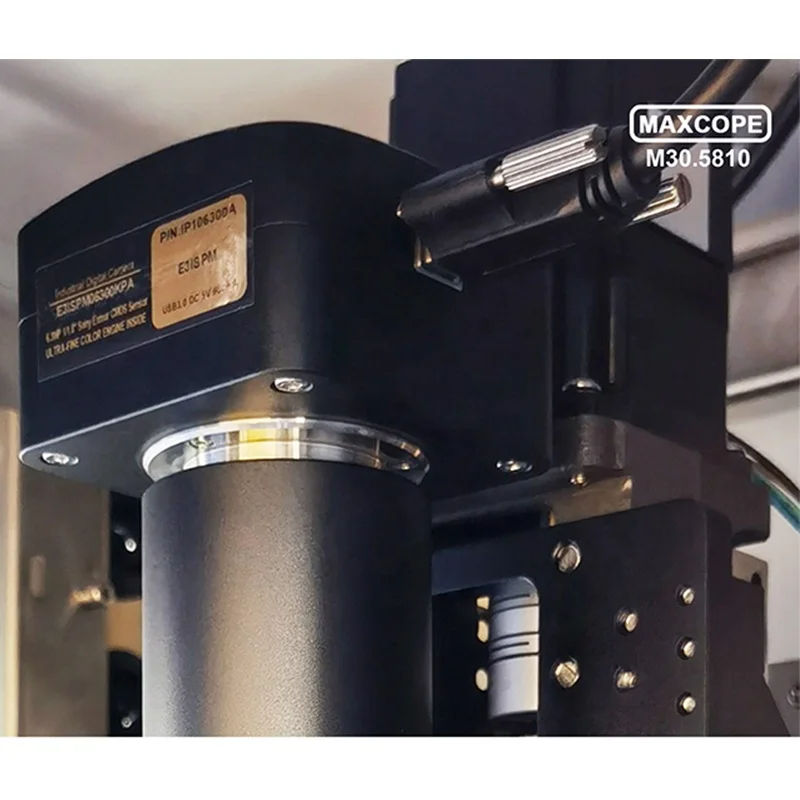

1 Micro Digital Camera 5.0M USB 3.0

●

-

-

-

Camera

3 Micro Digital Cameras ,

-

●

●

●

--5.0M USB 3.0, For Bright Field View

--5.0M USB 3.0, For Fluorescent View

--5.0M USB 3.0 Monochrome Digital Camera

Marco Digital Camera, Support Panoramic Image Previewed In Real Time, Extra Large View Field Up to 70x90mm, Resolution 0.2mm

-

●

●

●

Working Condition

Temperature 15~28°C, Humidity 30%~80% No Condensation

●

●

●

●

Power Supply

Wide Voltage 100V-240V

●

●

●

●

Note:"●"In Table Is Standard outfits, "○“ Is Optional Accessories

Computer

i5 16G 256G+1T, 1G Graphic Card, 24“ Monitor

●

Maxcope Software

2D, XY Motorized Control, Standard 2D Stitching

○

A30.5801-2D

2D Pro, XYZ Motorized Control, Advance 2D Stitching, Auto Focus

●

A30.5801-2D+

3D, XYZ Motorized Control, 2D+3D Stitching, Auto Focus

○

A30.5801-3D

Customized Function, Detail See Maxcope Software Version Table

○

A30.5801

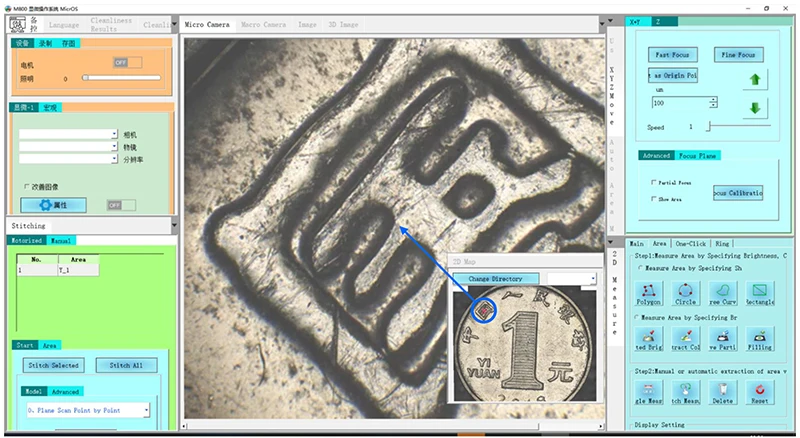

XY Motorized Control

Control the motorized stage through software, support one-click set/return to origin point, three control methods:

• Click the 8-direction arrow with the mouse to manually control the stage movement, and the step distance and move speed can be
freely stetted

• Long press the mouse and drag in the camera preview window to control the electric platform to move in the corresponding
direction

• Double-click the mouse at any point in the preview window, you can control the electric platform to move the double-click point
to the center of the window for display

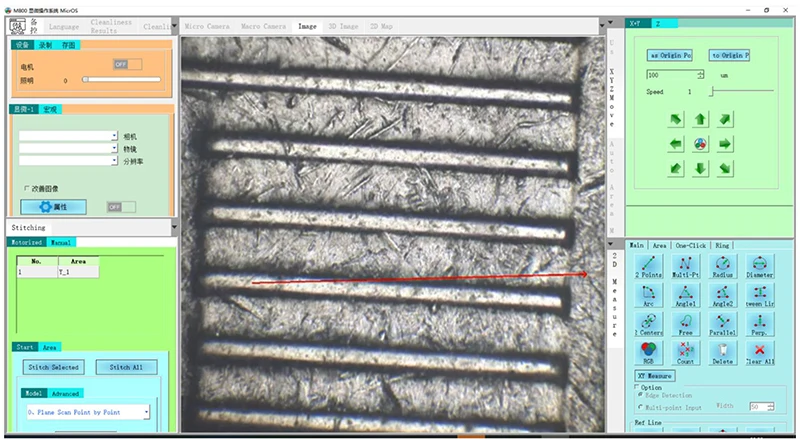

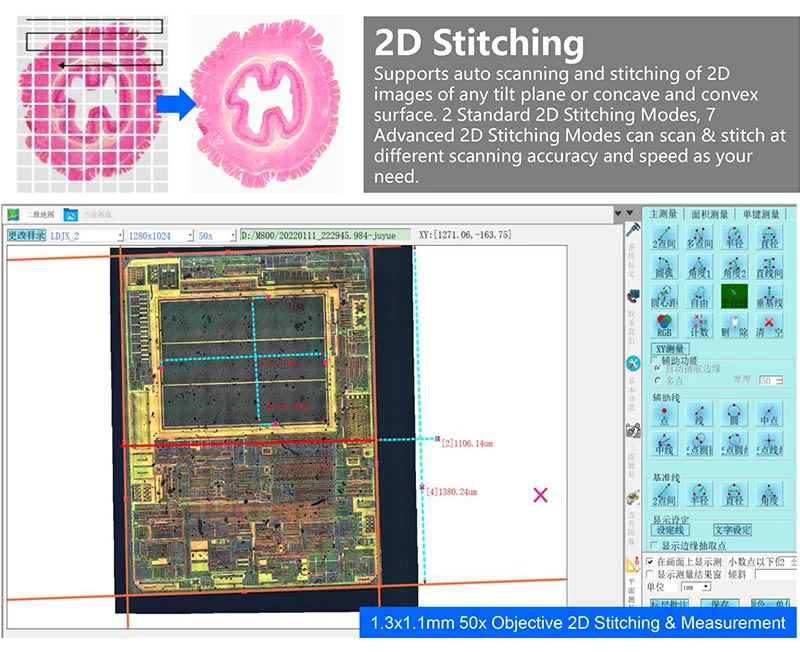

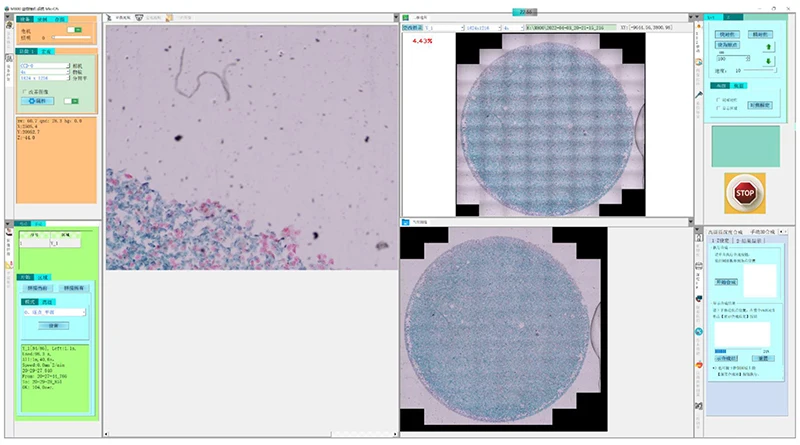

2D Stitching

2 Standard 2D Stitching Modes:

• Plane Scan Point by Point, high precision, slow speed

• Plane Flying Scan, low precision, high speed

Supports automatic scanning and stitching of 2D images at any magnification, with optional scanning accuracy and speed.

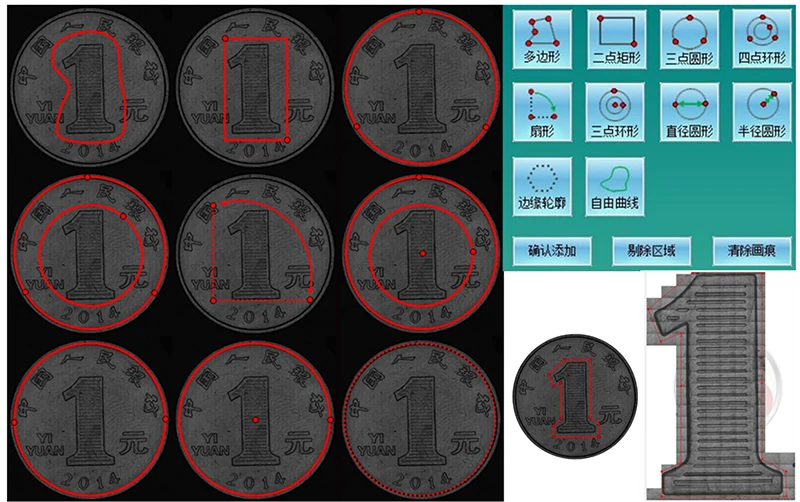

Free Stitching Area

Provides 6 stitching area modes, which can quickly set stitching areas of any shape: Polygon, 2-point rectangle, 3-point circle,
4-point ring, outline, free curve.

• Outline mode can automatically detect the edge contour of the object as the stitching area.

• Free curve mode can freely draw any shape as the stitching area.

2D Stitching Optimize

The built-in advanced algorithm can intelligently optimize and correct the grid phenomenon and shadow phenomenon caused by lens
aberration, uneven lighting and other factors when scanning and stitching, so that the stitched image will be one high-definition,
no offset, no grid, no shadow.

Calibration

It can do the necessary calibration before measurement, for different camera & objective lenses, user can add, delete, and manage
the calibration list at any time

2D Measurement

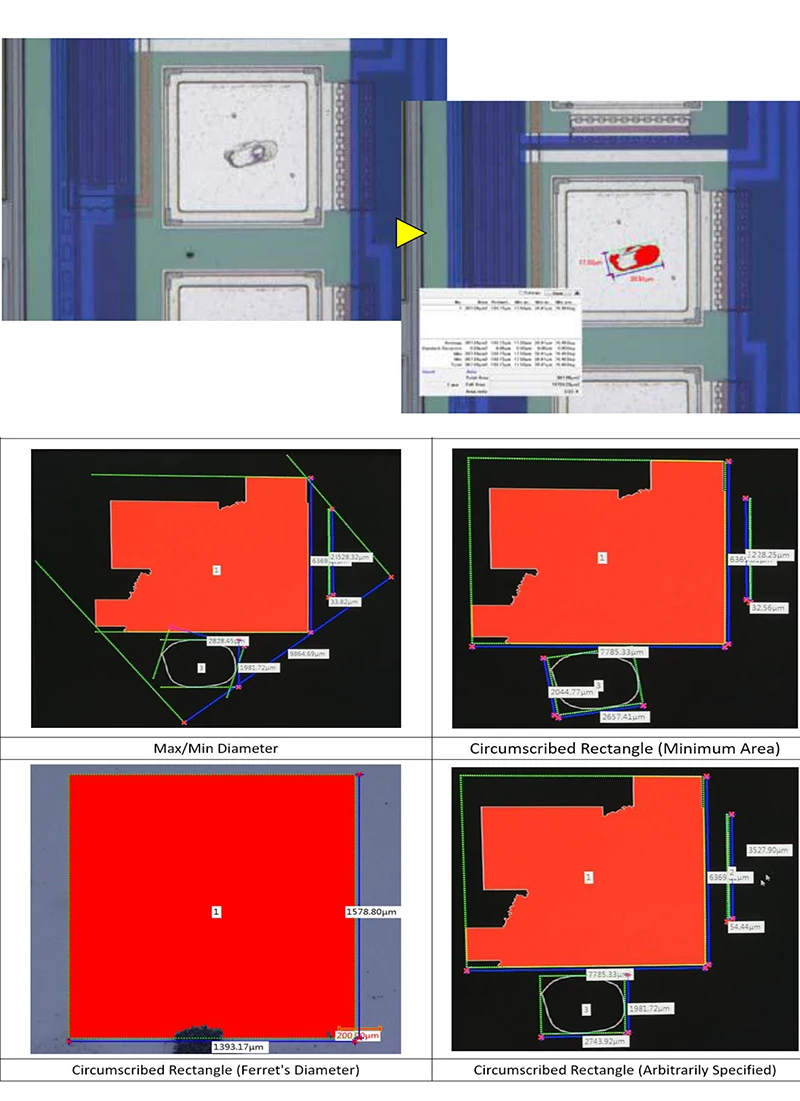

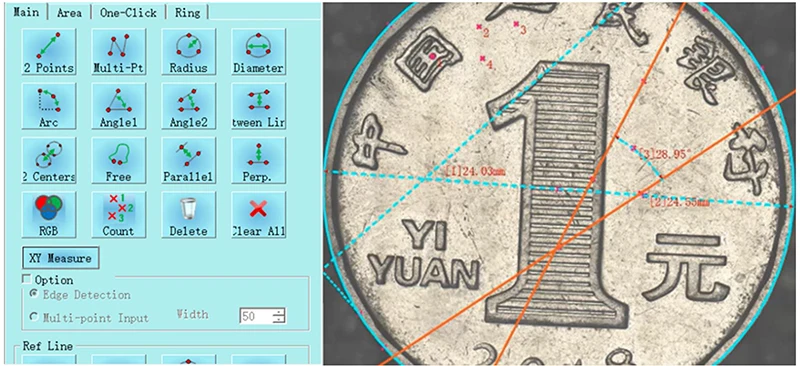

2D plane measurement 10+ functions, including length, angle, radius, diameter, free curve length, parallel line distance,
point-line distance, 2-point distance, multi-point distance, radius, diameter, arc length, RGB measurement, counting, etc.，and a
variety of auxiliary lines and reference line tools are provided. Combined with these tools, various complex measurements can be
achieved, and various measurable information of planar images can be obtained more efficiently.

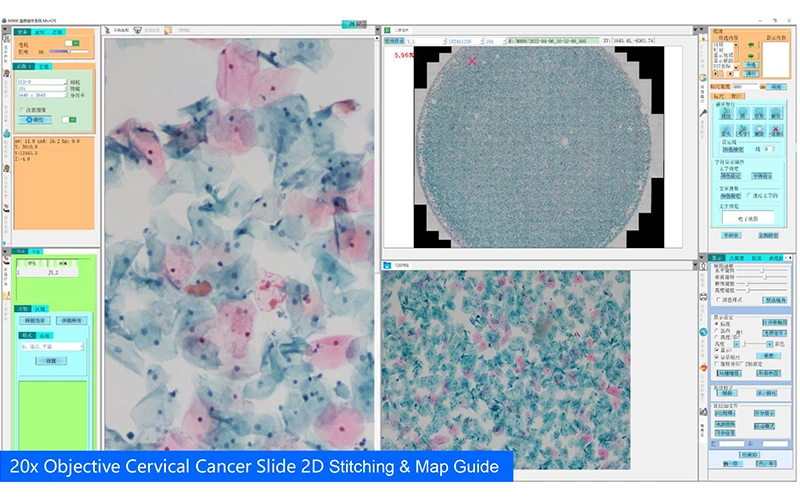

2D Map Guide

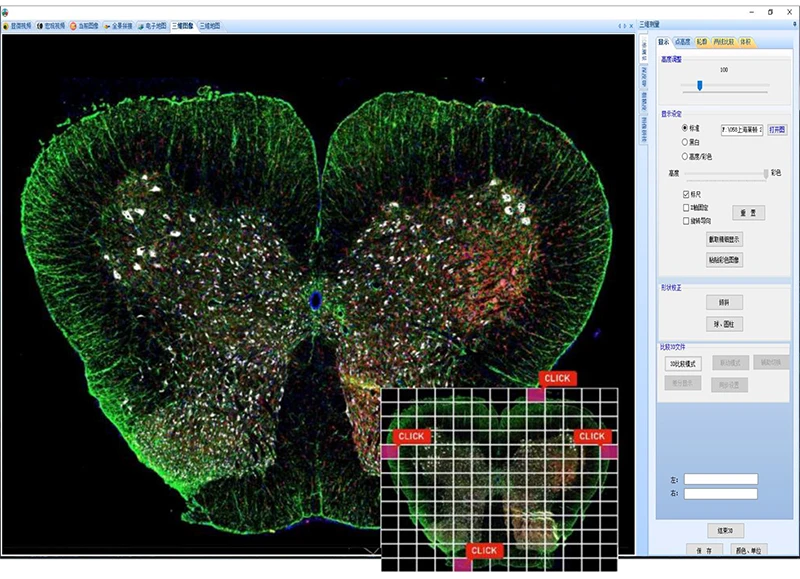

After scanning and stitching to generate a panoramic image, it can be used as an electronic 2D map for navigation. Click the 2D
map to control the motorized stage to quickly locate the specified position for high-magnification observation, avoiding the
confusion of difficult positioning in traditional high-magnification observation.

Point of Interest

Click the mouse to freely set and save multiple points of interest on the image, you can select and quickly return to the point of
interest at any time for repeated focus observation

Marco Camera Guide

The model with optional macro camera, the panoramic image previewed in real time can be used as an electronic 2D map for
navigation function, one click can reach the point of interest for high-power observation

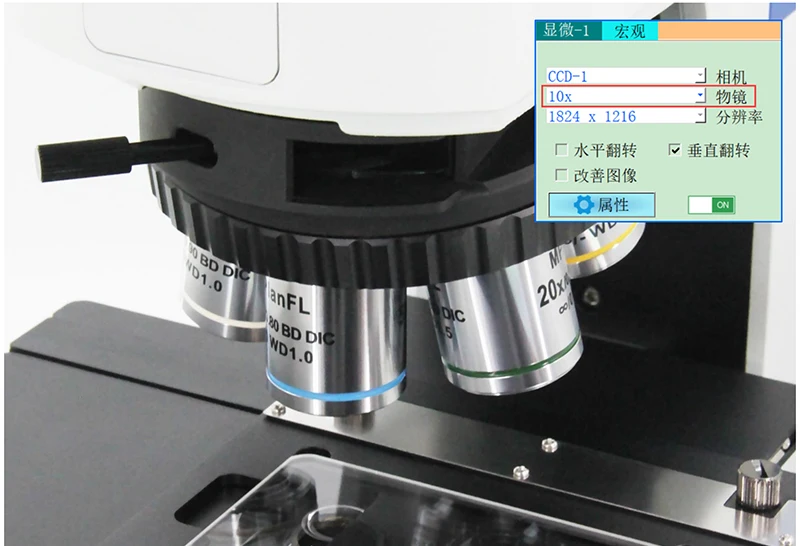

Motorized Nosepiece

Optional motorized nose wheel models, you can select different objective lenses in the software, and switch the magnification with
one click

Motorized Illumination

The model with optional illumination control, can be manually adjust light brightness in the software, or use the automatic
lighting function to easily get the best lighting effect,

Screen Split

2 split windows can be set to observe and compare multiple images at the same time

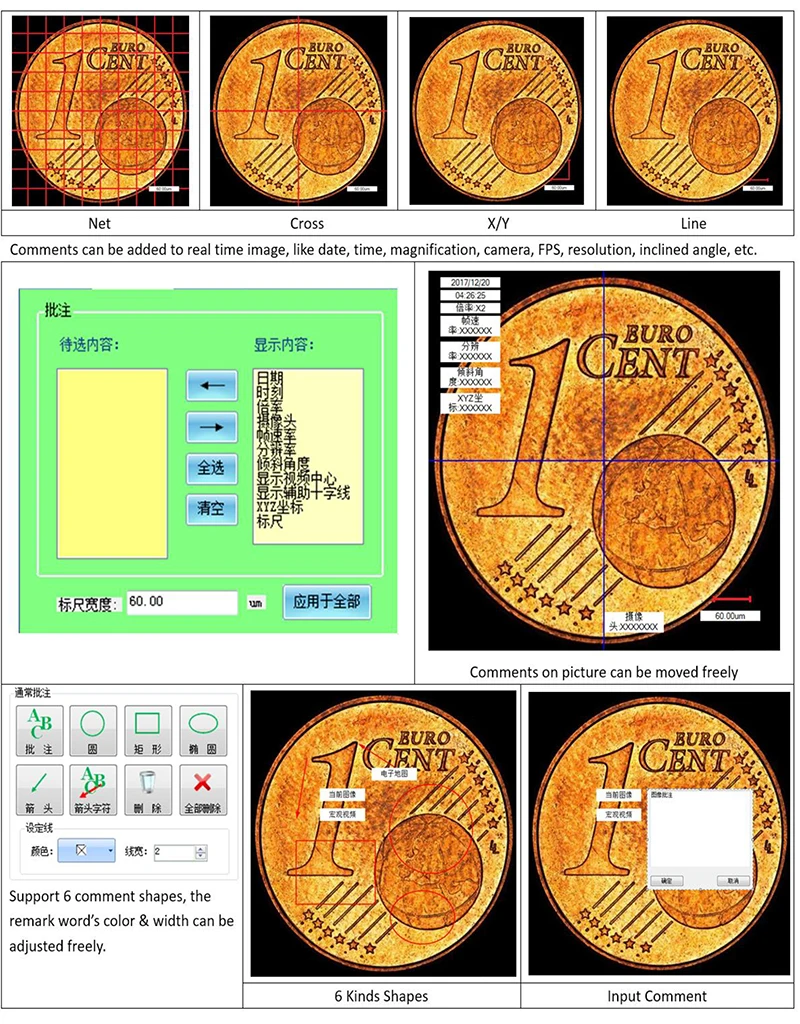

Free Comments

The comment information can be freely inserted and displayed in the microscope camera window and 2D map window. The annotation
content, ruler, color, line, etc. can be freely set, and output to the experimental report with the image

Full Parameter Record

While taking pictures and videos, software can automatically records comprehensive information such as shooting date, objective
lens, magnification, stage position, etc., which is convenient for outputting to experimental reports or for reproducing
observation results later.

Extra Long Video Record

The longest 1 hour, the fastest 50PFS video recording, can comprehensively record the experimental detection process, or the
long-term change process of the observed object, subtle movements and other information. The video results can be fast-forwarded
or played frame by frame, and still images can be extracted and saved.

Customrize Report

Freely set Word and Excel report templates, including images and comprehensive shooting parameters, which is convenient for
quickly outputting a complete inspection report in the later stage

Free Interface

The software interface and each submenu can be freely settled by dragging and dropping with the mouse, and can be saved, exported,
and imported into the customized interface layout, and the default simple interface can also be restored easily by hot key Ctrl +
G.

Multi Language

The software supports Simplify Chinese, Traditional Chinese, English, Russian, Korean, Japanese, Iranian, Dutch, French, German,
Italian, and other language versions can be customrized.

Z Motorized Control

The software controls the Z-axis motorized lift, support professional functions such as manual focus/auto focus/super depth of
field fusion

• Click the up and down arrows with the mouse to manually control the Z-axis lift and focus

• One-click autofocus, focusing speed & accuracy can be selected

2D Advanced Stitching

7 Advanced 2D stitching modes, combined with Z-axis motorized, can perform auto-focusing with various speeds and precisions on
inclined planes and concave-convex surfaces to scan and stitch into a full-frame clear 2D images, especially suitable for complex
industrial inspection, special slice observation, etc.

• Bevel Scan Point by Point

• Bevel Flying Scan Manual Focus

• Bevel Flying Scan Auto Focus

• Up/Down Fast

• Up/Down Middle

• Up/Down Fine

• Up/Down Fusion

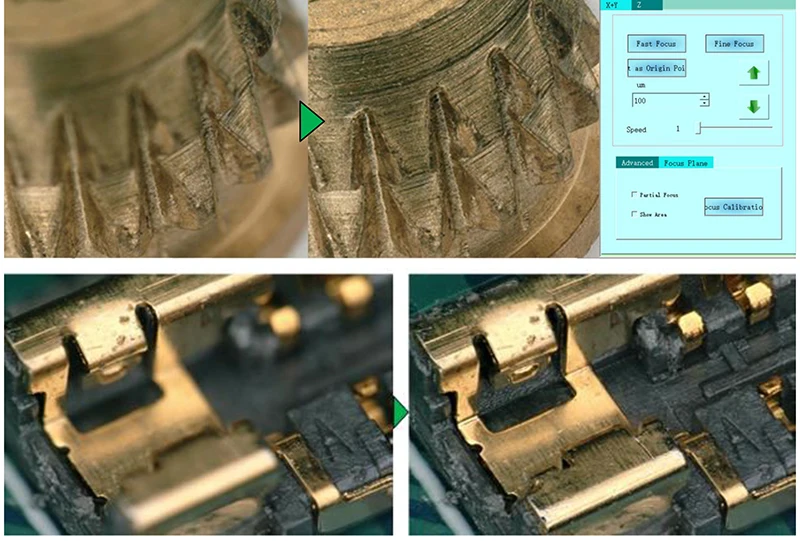

Auto Focus

One click autofocus, as quick as 0.3-2 seconds for each focus, focusing accuracy and speed are optional

Depth Fusion

The innovative design of high-quality depth synthesis can easily do 200~500 layers of super depth of field superposition and
fusion in a short period of time. The software makes intelligent judgment on abnormal high and low points, scans with full
coverage, and obtains full-frame clear focus pictures

Auto Edge Selection

When the measurement point manually selected by the mouse is deviated on the screen, the software can automatically detect the
edge of the target and automatically correct the measurement point to the edge to eliminate human error and improve the efficiency
of measurement range selection

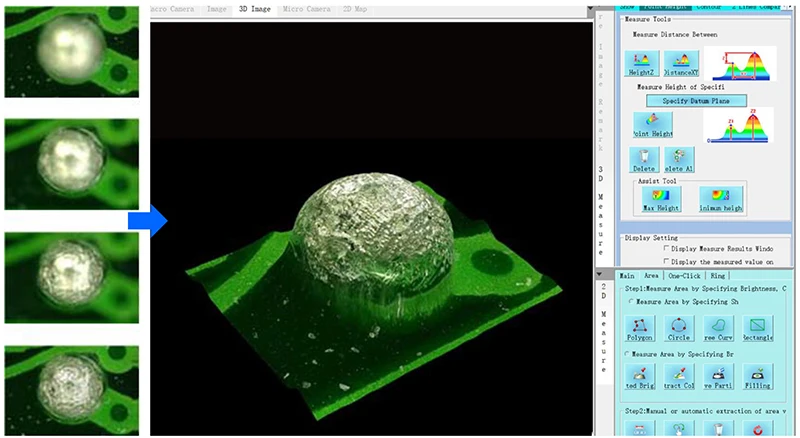

3D Stitching

3D stitching mode, which can automatically focus on uneven objects, take pictures at different heights, obtain a full-frame clear
2D image composed of all clearly focused images, and stitch all focused image together to form a 3D image, and retain all the 3D
measurement data of the observed object

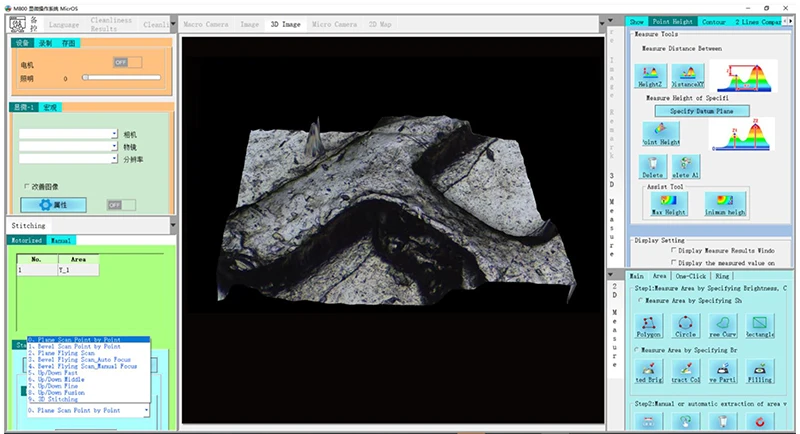

• 3D Stitching

3D Image View

The saved 3D image can be opened at any time, controlled by the mouse to rotate freely, zoom in and out, open the ruler, color
identification and other auxiliary tools, which is convenient to visually observe the 2D surface shape and 3D structure of the
object from any angle, and thoroughly and clearly understand the observed object

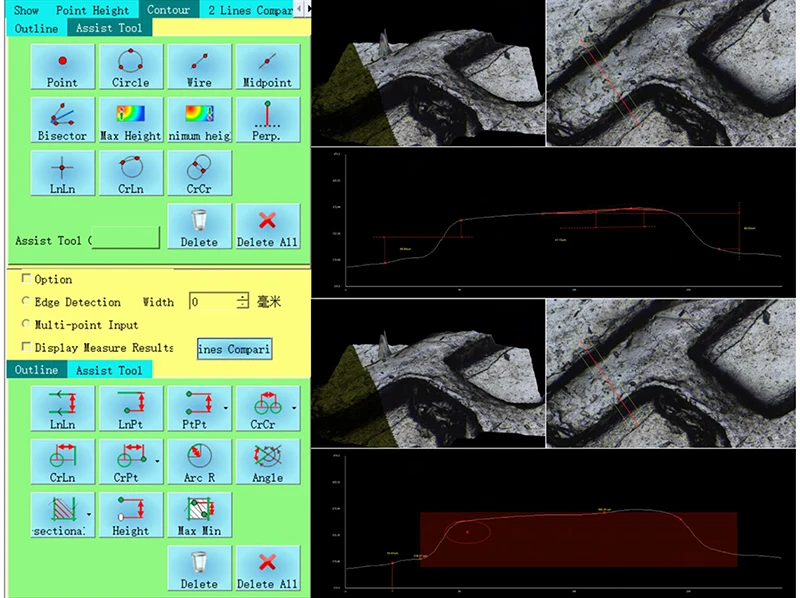

3D Measurement

The 3D image also saves all the three-dimensional measurement data of the observed object, and supports any measurement of the
observed object later, including the height, depth, length, roughness, convex area, concave area, convex volume, concave volume,
etc.

3D Image Comparision

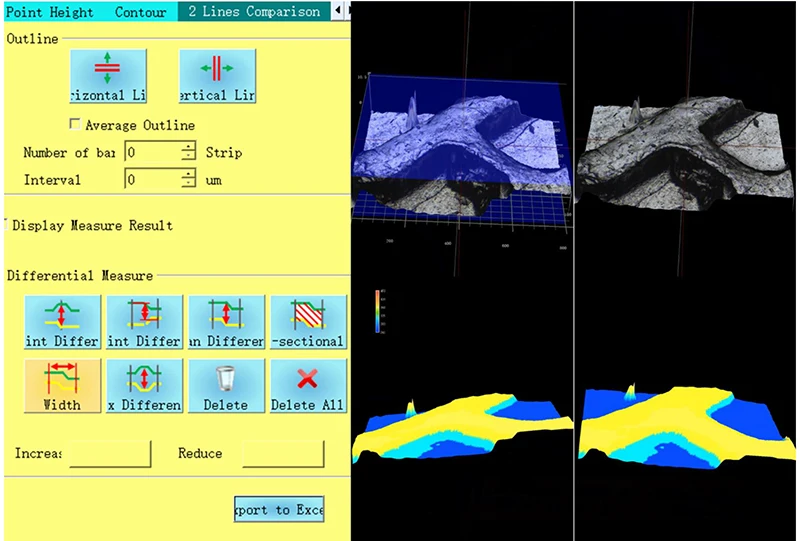

Two 3D images can be opened at the same time, synchronously rotated, zoomed in and out, compared and analyzed, and the comparison
results such as height difference and shape difference can be automatically displayed through color identification

Multi Files Comparison

Multiple files can be opened at once for cross-section, volume, area, flatness, roughness measurements, and more. Even if there
are multiple evaluation samples, analysis can be performed instantaneously under the same conditions. It is possible to see at a
glance where and what differences exist, such as changes in shape due to prototypes with different manufacturing conditions or
wear. Not only can measurement work be significantly reduced, but evaluation errors caused by deviations in measurement conditions
can also be prevented.。

HDR

Acquires multiple ultra-clear images using a single wavelength of light and images with different shutter speeds, and turns them
into 1 image with high grayscale data. Achieved unprecedented high-definition, high-contrast observation

DIC

The automatic turret of the six-hole objective lens, combined with the adjustment of the DIC prism, can make the height difference
of the objective lens surface produce obvious relief effect, greatly improve the contrast of the image, and facilitate the user to
analyze efficiently and accurately.

Combined with polarized light observation, DIC can reflect the smallest surface morphology differences as brightness differences,
and can display perfect images even for low-contrast, multi-phase samples and reflective materials.

Metallurgical Analysis

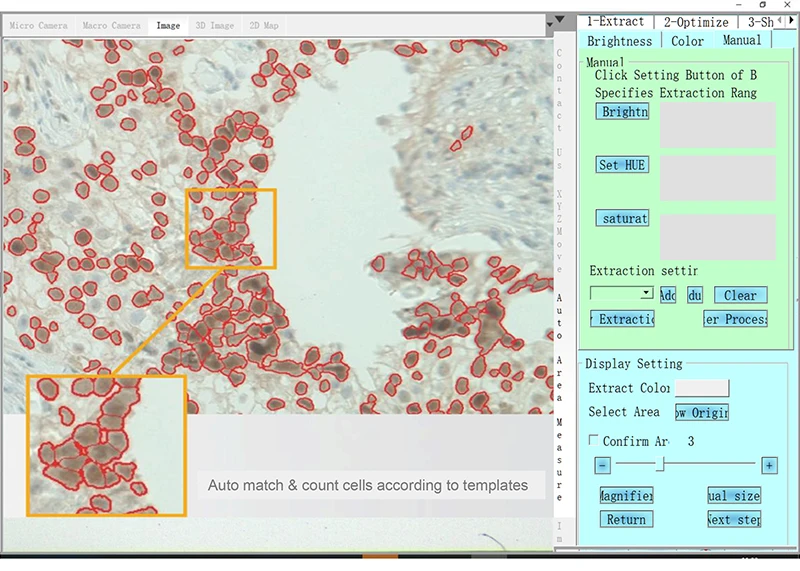

Using automatic image stitching, the image is analyzed through image enhancement, contrast adjustment, scratch processing, image
correction, multi-region image segmentation, morphological processing, image annotation, and layer merging processing methods. It
is easy to use and concise, and the measurement is accurate and reliable.

Grain Size Analysis

According to JIS standard G0551 or ASTM standard E1382, the measurement line can select [vertical line], [horizontal line],
[diagonal line], [multiple circles] to measure the crystals on test line.
