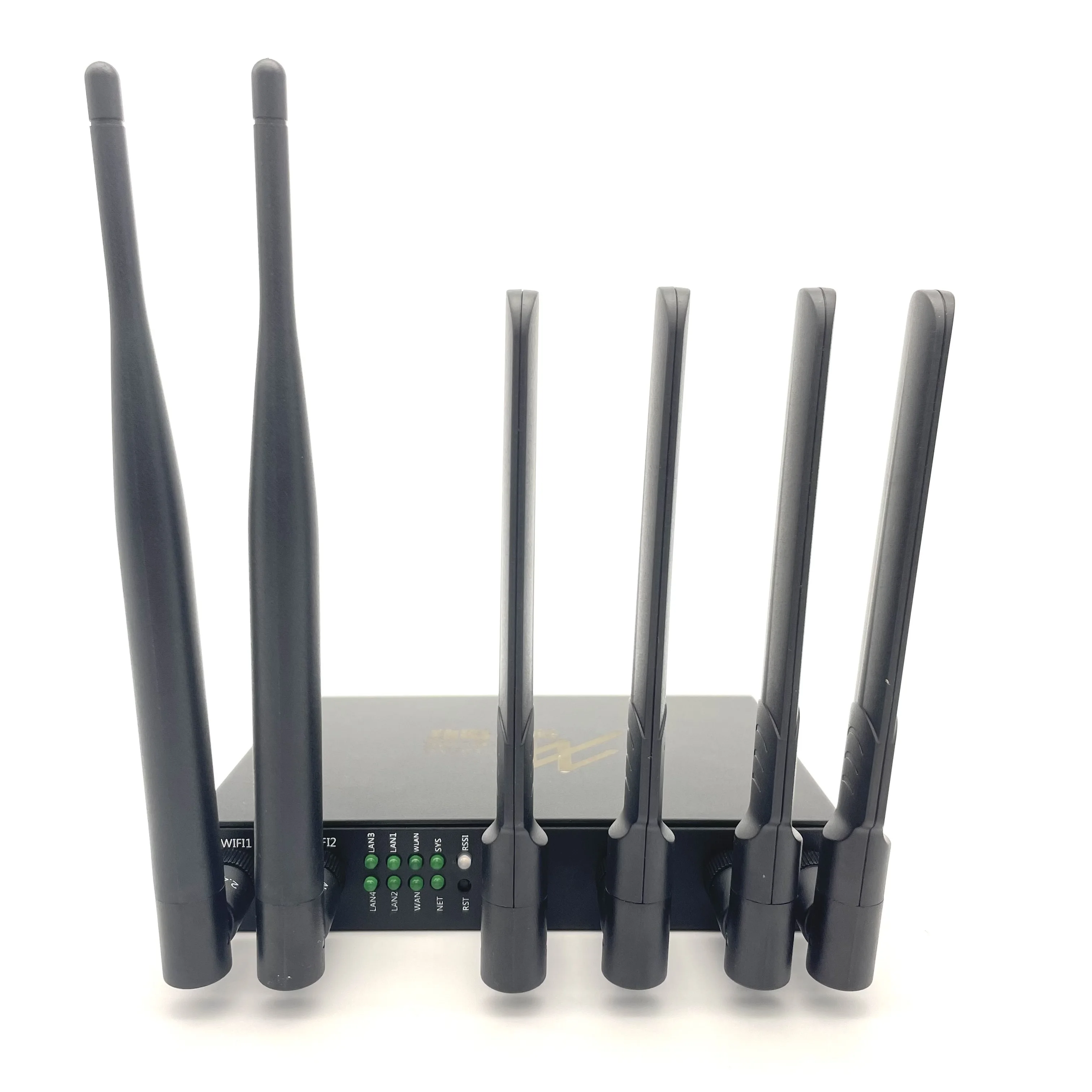

5G Industrial Wireless Router Support Dual SIM Card and 2.4G/5.8g Frequency WIFI router

5G Industrial Wireless Router Support Dual SIM Card and 2.4G/5.8g Frequency WIFI router

Category: >>>
Supplier: Shenzhen,Ex-link,Technology,Co.,Ltd

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

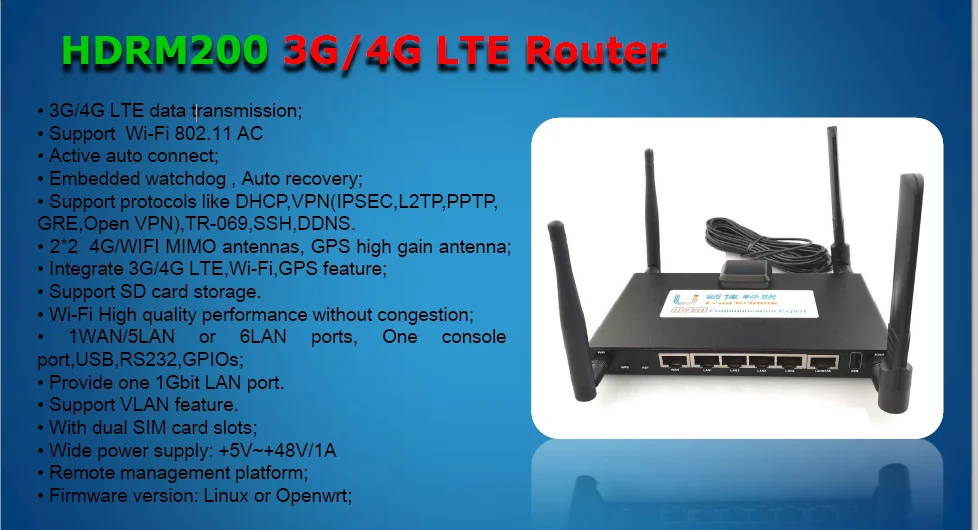

3G 4G 5G Industrial Wireless Router Support Dual SIM Card and 2.4G/5.8g Frequency WIFI router

HIGHLIGHT

• 3G/4G LTE data transmission;

• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2 4G/WIFI MIMO antenna;
• Integrate 3G/4G LTE,WIFI,GPS feature;
• One WAN,Five LAN(1LAN/1 Gbit LAN & 4 LAN/100Mbps) ports, Support VLAN,LAN Ethernet port.
• One console port, One USB port,RS232 or RS485 Interface,4 line GPIOs;
• SD data storage (Optional);
• With dual SIM card slot;
• Remote management platform;
• Supports wifi 802.11AC, 1.2Gbit
• Supports 50 WiFi users sharing
• Firmware version: Linux or Openwrt;

Frequency Bands:

Version C

LTE-FDD. B1,3,7,8 LTE-TDD.B38,39,40,41

WCDMA.900/2100MHz TDSCDMA. band A and band B

GSM.900/1800MHz

Version CE.

LTE-FDD. B1,B3,B8 LTE-TDD.B38,B39,B40,B41

WCDMA.900/2100MHz

CDMA 1X/EVDO BC0 TDSCDMA. B34,B39

GSM.900/1800MHz

Version E.

LTE-FDD. B1,3,7,8,20 LTE-TDD.B38,40

WCDMA.900/2100MHz GSM.900/1800MHz

Version A.

LTE-FDD. B2,4,5,17

WCDMA.850/1900MHz

Version SA.

LTE-FDD. B1/B3/B4/B5/B7/B8/B28

LTE-TDD B38/B40/B41

UMTS/HSDPA/HSPA+ B1/B2/B5/B8

GSM/GPRS/EDGE B2/B3/B5/B8

Version JC

LTE FDD. B1,B3,B8,B18,B19
LTE TDD. B41 UMTS. B1,B6,B8 GSM. 900/1800MHz

Version JE

LTE FDD. B1,B8 UMTS. B1,B8

GSM. 900/1800MHz

Data Rate
3G Router	WCDMA	DL 14.4Mbps, U--L 5.76Mbps
3G Router	EVDO	DL 3.1Mbps, U--L 1.8Mbps
4G Router	LTE FDD	DL 100Mbps~300Mbps, U--L 50Mbps
	LTE TDD	DL 50Mbps, U--L 25Mbps
	HSPA+	DL 42Mbps, U--L 5.76Mbps
	TD-SCDMA	DL 2.8Mbps, U--L 2.2Mbps
	GPRS	Max. 85.6Kbps(DL), Max. 85.6Kbps(U--L)

Storage memory	Support SD data storage
RF	High gain WIFI, 4G LTE, GPS antenna
Security Encryption	Support WEP,WPA,WPA2 encryption ways
Protocol	PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH,Open VPN,SNMP
Advertising push	Support portal protocol, User login interface jump
Data traffic management	Support Traffic monitoring and bandwidth limitation
LED Indicator	"SYS", "Net", "WAN", "LAN",RSSI
SIM/UIM	Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection
Key button	Reset, WPS
Standard Power	DC input: DC 12V/1A
Power Supply	DC input: DC 5~48V
Working current	2A (Max Current)
Operating Temperature	Temperature -40~+80ºC
Storage Temperature	Temperature -45~+85ºC
Environment humidty	95%
Case	Black steel case
Size	125mm105mm25mm
Weight	225g

Main Features

1). Industrial designing, including wide temperature range, wide voltage Range and ESD, making it stable and reliable;
2). Provide 1 WAN/5 LAN/RS232/RS485/USB/GPIOs communication interface.
3). Support global frequency bands. Support dual SIM card load balance.Support GPS location.
4). Support SD card storage
5). Support Linux or Openwrt

Certifications

CE, Rohs FCC certifications are on going
