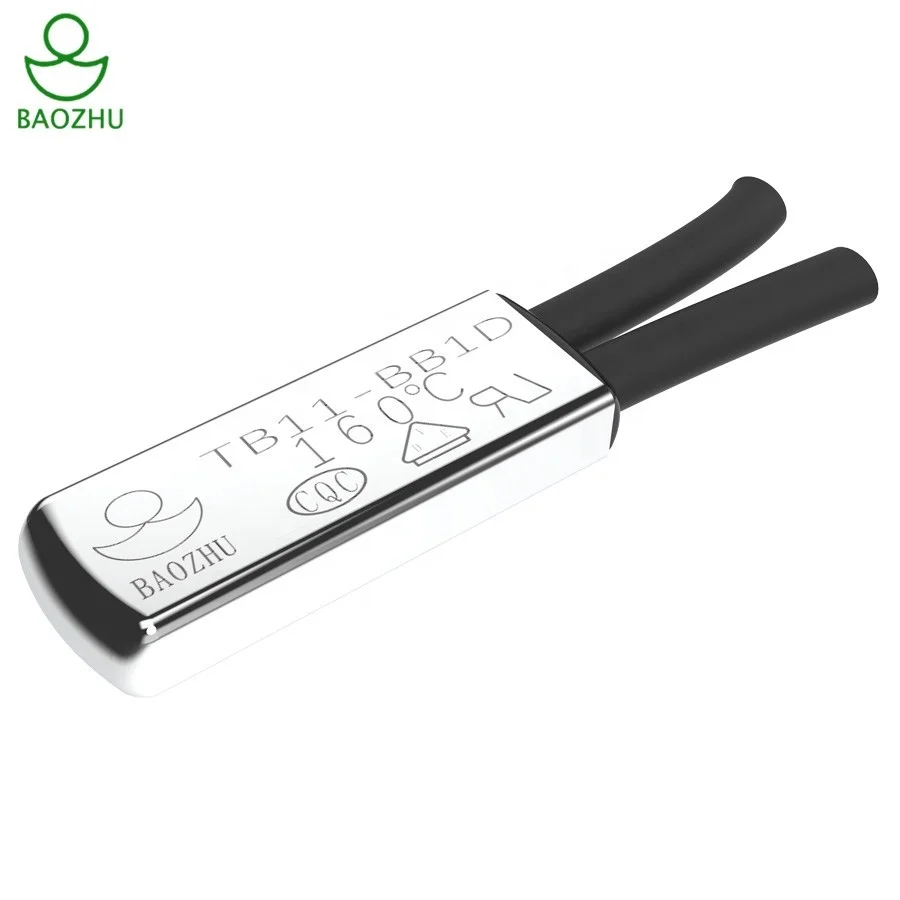

delay reset thermal protector
- Category: >>>
- Supplier: Yangzhou Baozhu Electric Appliance Co. Ltd.
Share on (1600609948540):
Product Overview
Description
Product Description
1. Usage: TB11 series high-power motor thermal protector can be divided into two types: automatic reset and delayed reset. It has high reliability and repeatability, high temperature control accuracy, temperature sensitivity, long life, no creep, compact structure, compact shape. Installation mode is diversified and simple, increases self-sustaining function, and reduces the risk of sudden restart of rotating equipment such as mixer due to automatic reset. Widely used in batteries, lighting, transformers, high-power power supply, fire cables, medical equipment, wining gate motor, mixer motor, meat grinder, fan motor, motor with higher safety requirements, electric heating and other fields.
2. Operating temperature tolerance:±3℃ , ±5℃ , ±8℃
3.Reset temperature tolerance:±10℃ , ±15℃
Product Name | TB11 series thermal protector |
Lead wire | AWG18# 3135 |
Remarks | Can customized according to customer requirements |
Nickel sheet size | 20*4、20*3、18*4、18*3 |

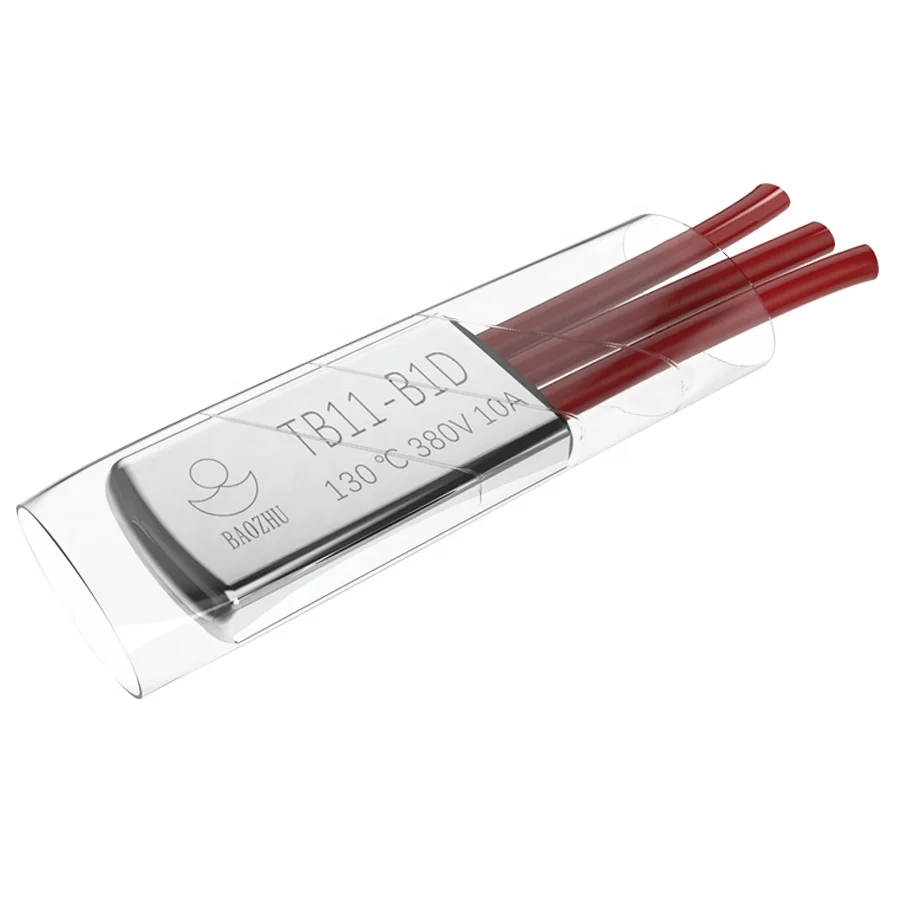

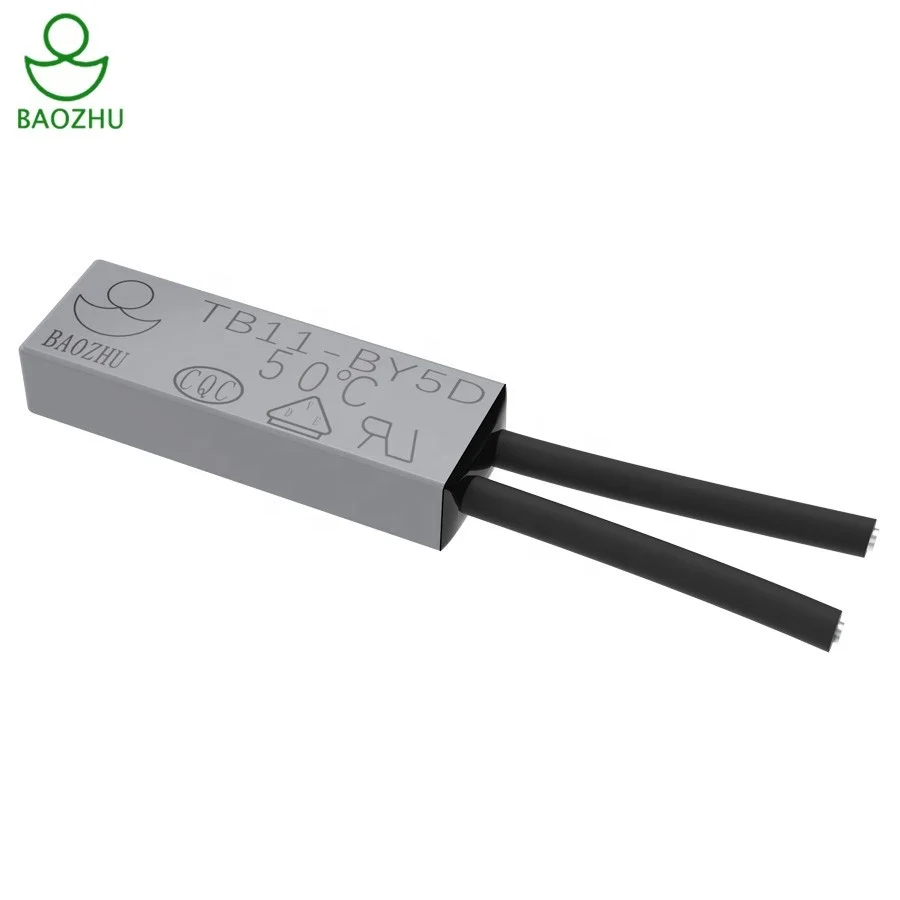

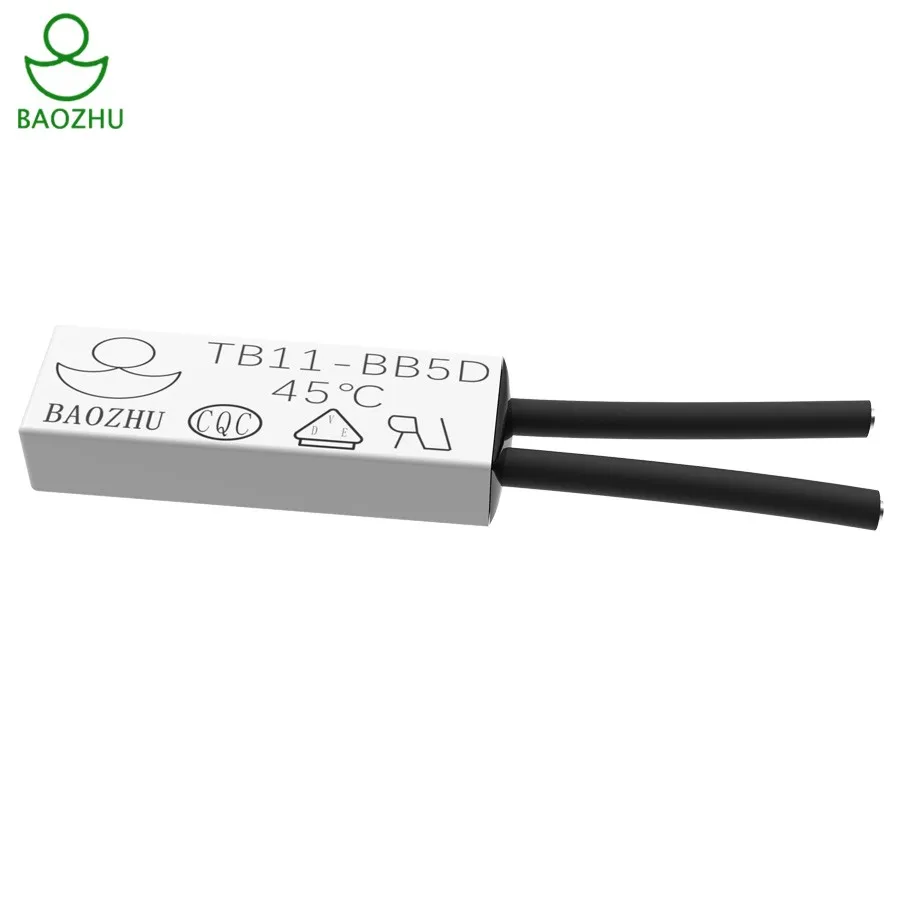

Products Show

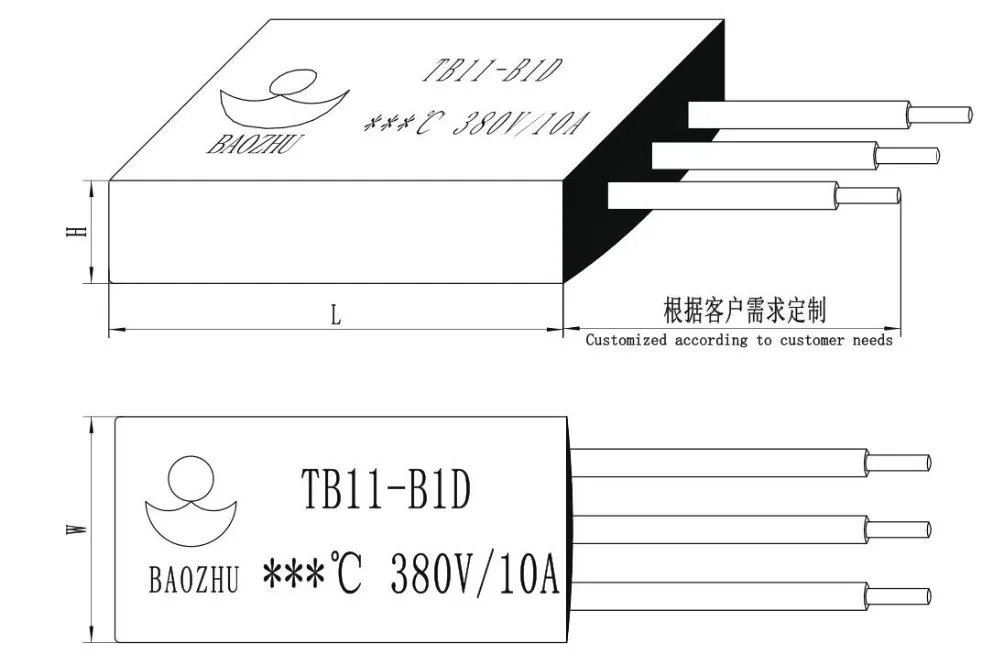

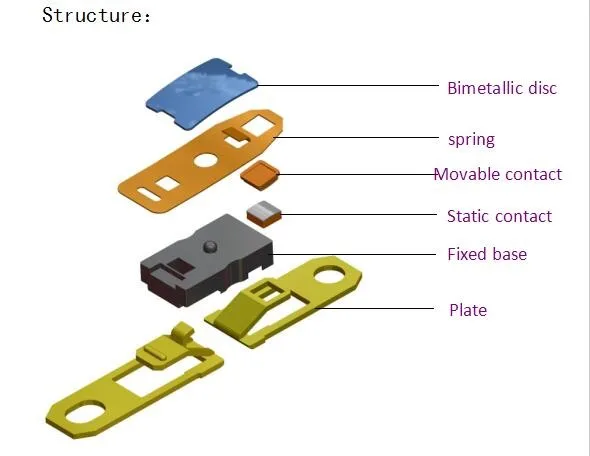

Appearance and structure：

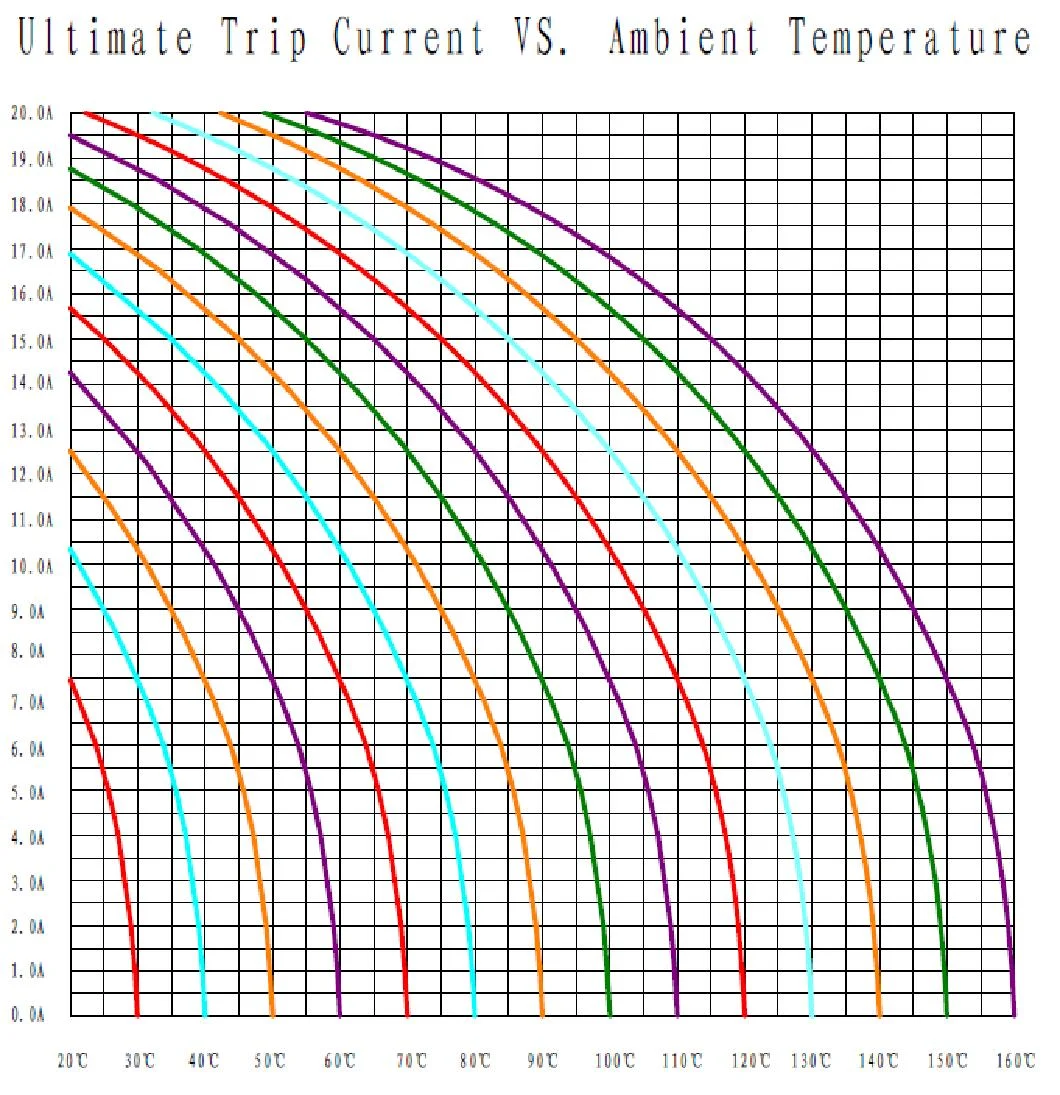

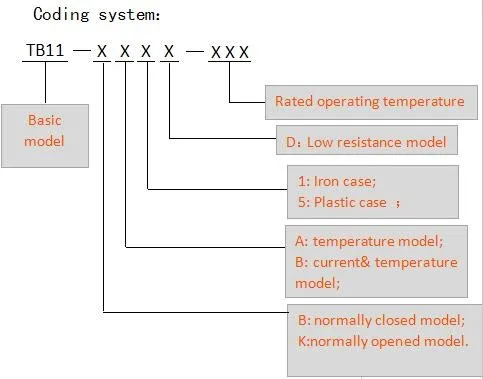

Code system： Temperature-current curve：

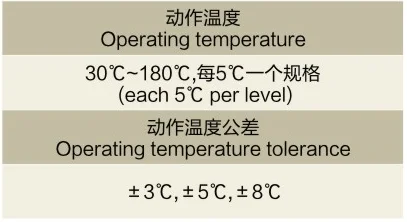

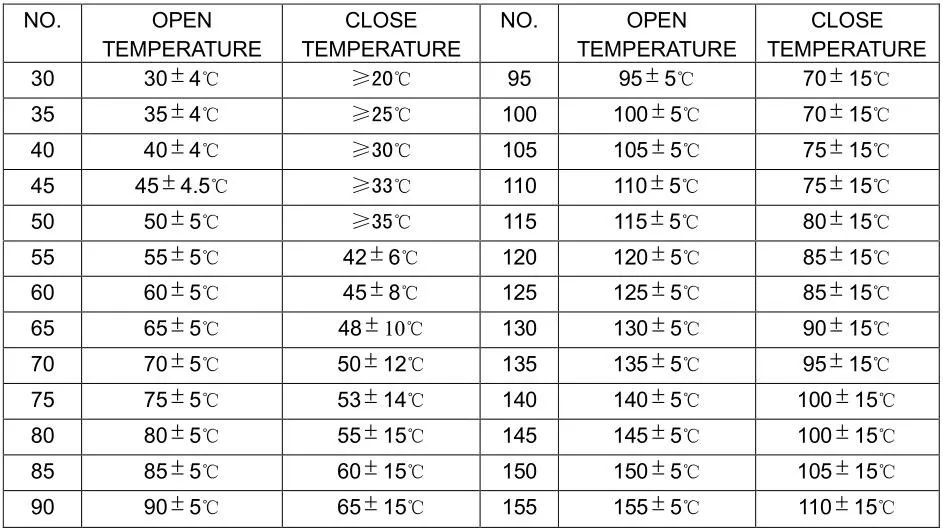

Temperature Range and Tolerance：

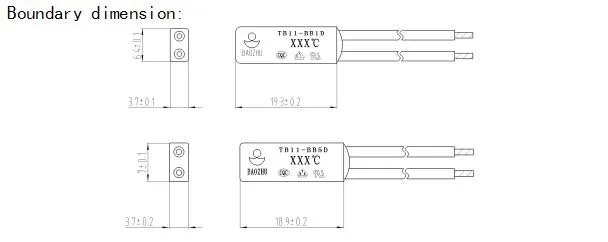

Size:
Installation notes:
Installation with printed face up, non-printed face close to solid heater surface.
Installation of the print face upward and the main direction should not be perpendicular to the axis of the heating body.
Certifications:
Certification authority | Certificate No. | ||||||
UL | E305764 | ||||||
VDE | 40041338 | ||||||
TUV | R50425548 | R50425605 | |||||
CQC | CQC12002086117 | CQC19002226310 | CQC19002226892 | ||||
CB | CN43082 | ||||||
ISO9001 | 00120Q34918R5M/3200 | 0105Q1274ROS/3200 | |||||
Our Service
Free sample
Our company can provide 10 free samles for your testing.
Our Company
Factory
Headquarters
Workshop
Our Workshop
Chengnan Branch
Jinghe branch
Warehouse
Our Warehouse
Equipmen
Our Part equipment
Packing & Delivery
Samples Packing Details : File pocket
Order Packing Details :
1000pcs in one plastic bag
5000pcs in one export carton(26*18*22cm)
10000pcs in one export carton (carton size:32*26*22cm)
Delivery Details : 7-15 days
Decide delivery time according to order quantity and requirement.
Our Certifications
Certificates of our products include CE, CQC, ROHS, UL, VDE, etc.
Please contact me if you need relevant certificates.
