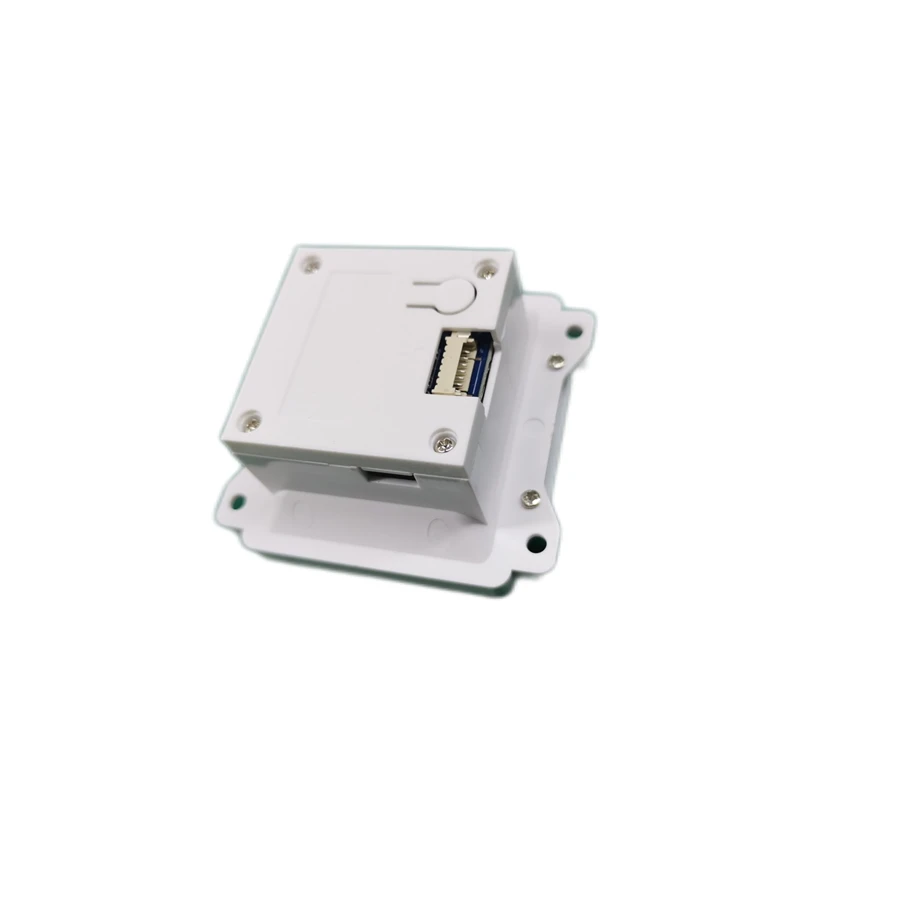

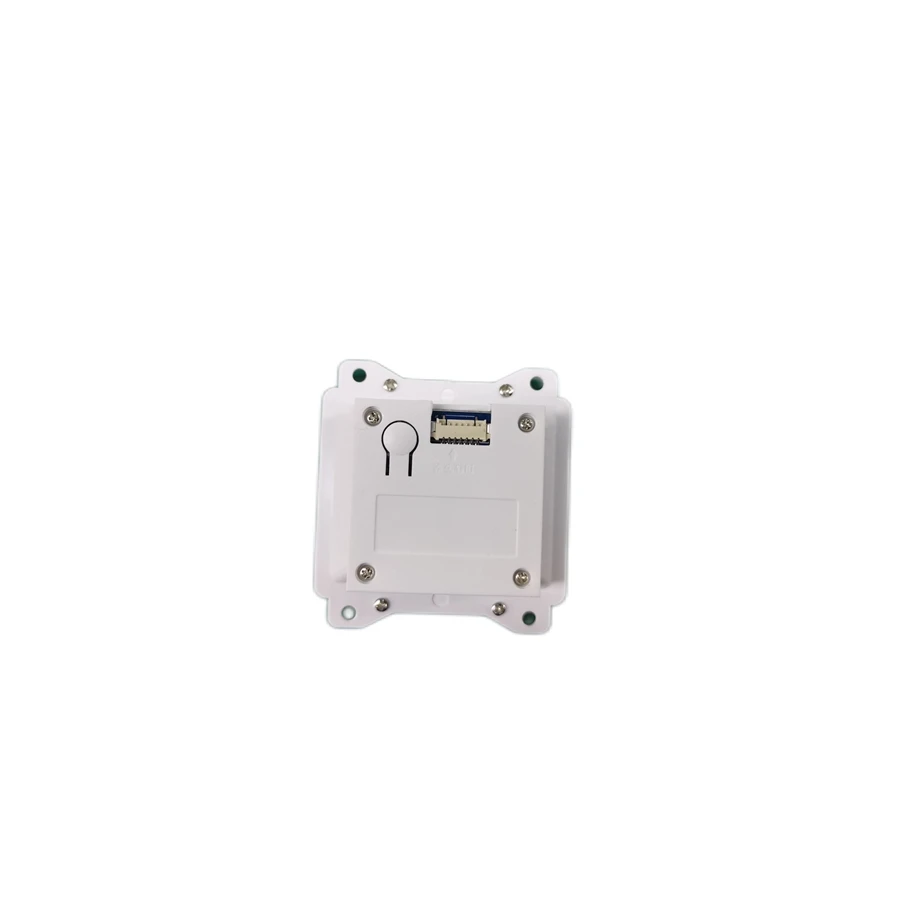

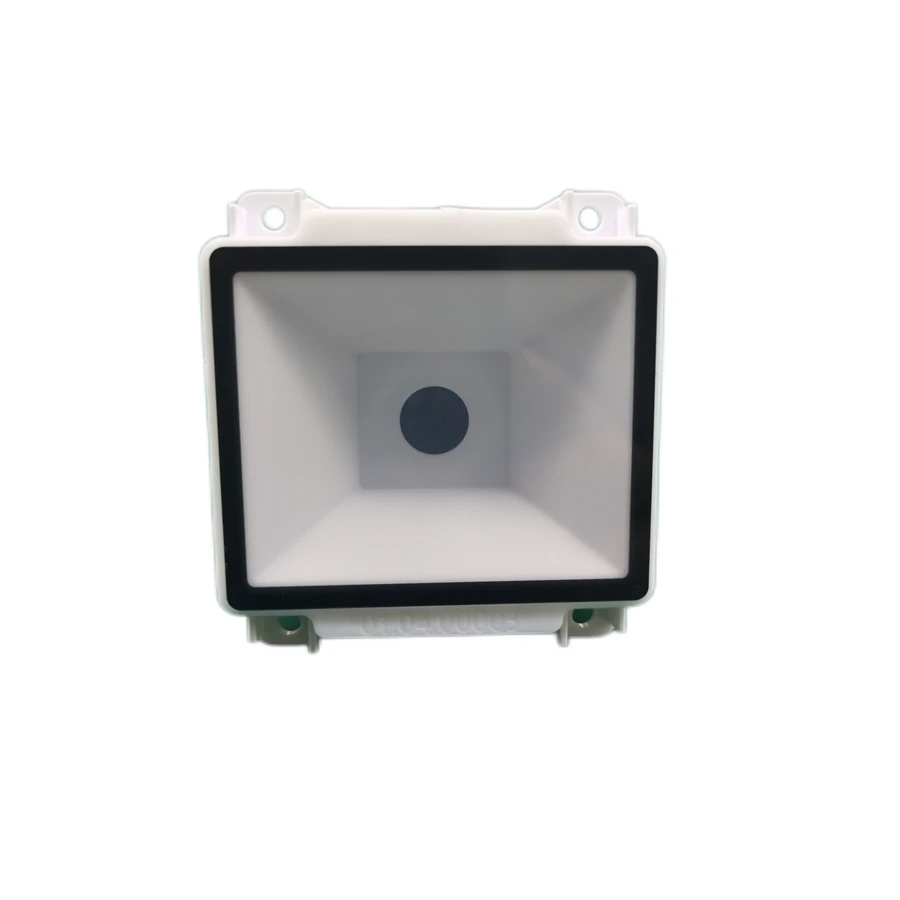

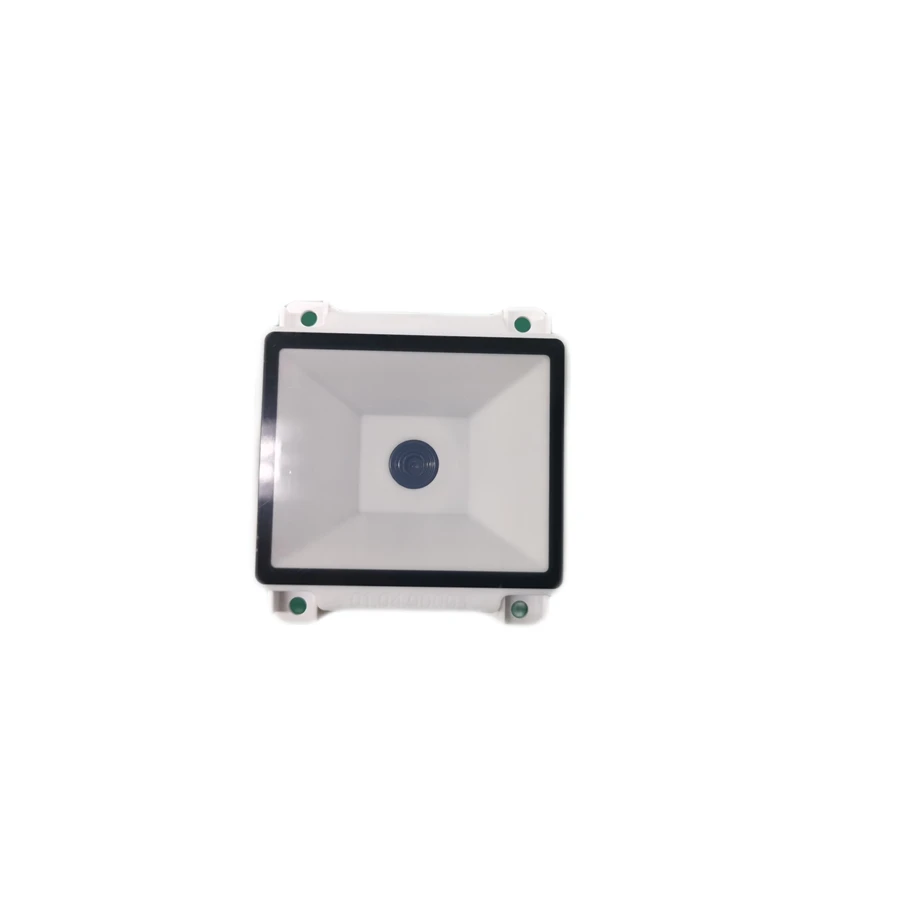

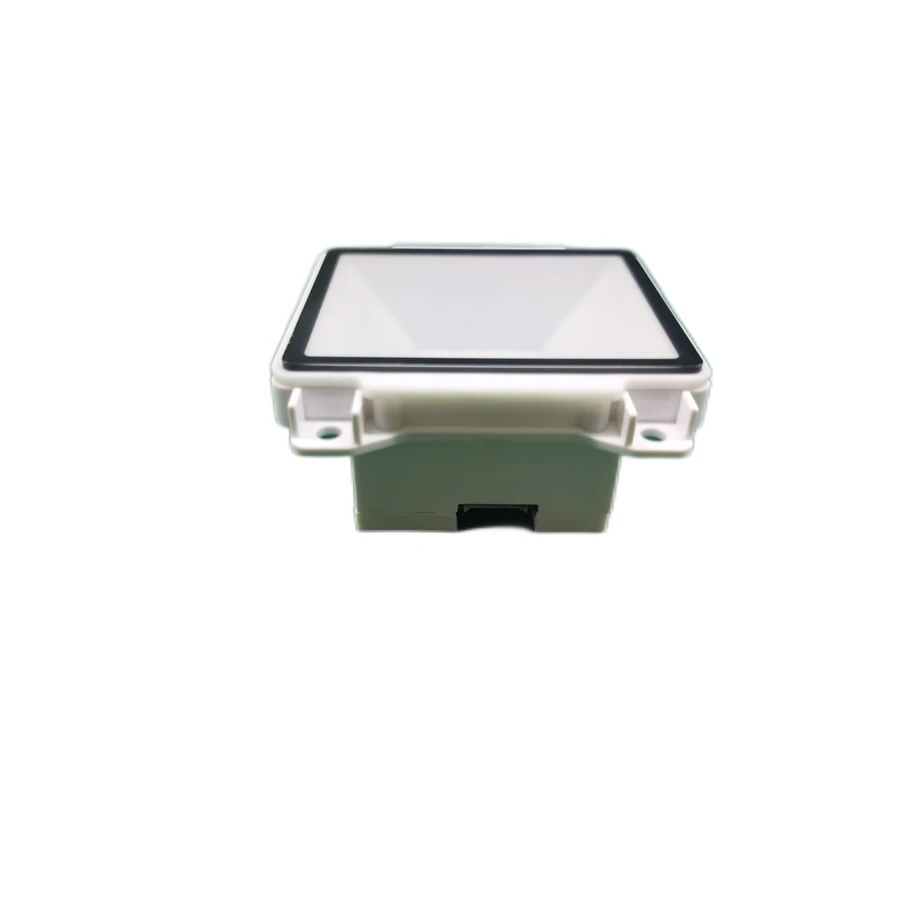

Factory Cheap 640*480 IC Card Read 2d Fixed Mount Courier Supermarket Barcode Scanner
- Category: >>>
- Supplier: Suzhou Dewo Smart System Co. Ltd.
Share on (1600609968675):
Product Overview
Description
Products Description
Specification
Rcognization type | Cmos | |||
Resolution | 300 thousand | |||
Size | 65*61*33mm | |||
Reading Codes | 1D | UPC/EAN with supplementals,Bookland EAN,ISSN,UCC Coupon Extended Code,Code 128,GS1-128,ISBT 128,Code 39,Code 39 Full ASCII,Trioptic Code 39,Code 32,Code 93, Code 11,Matrix 2 of 5,interleaved 2 of 5,Discrete 2 of 5,Codabar,MSI,Chinese 2 of 5,GSI DataBar Variants,Korean 3 of 5,ISBT Concat and so on | ||
2D | PDF417,MicroPDF417,Composite Codes,TLC-39,Data Matrix,Maxicode,QR code,MicroQR,Aztec and so on. | |||
Reading Accuracy | 5 mil Code 39 : Near(mm):10mm Far(mm):90mm 5 mil UPCA: Near(mm):10mm Far(mm):110mm 5 mil PDF417: Near(mm):12mm Far(mm):40mm 8 mil Data Matrix: Near(mm):11mm Far(mm):38mm 8 mil QR code: Near(mm):10mm Far(mm):40mm 10mil Code 39 : Near(mm):10mm Far(mm):150mm 10mil UPCA: Near(mm):15mm Far(mm):120mm 1D Code 39code :5mil 2D DM,QR code :8mil | |||
Port supported | USB:HID Keyboard(default model), COM Port Emulation Interfaces Supported RS232:Standard | |||
Light source | LED (630nm ± 10nm) | |||
Scan angle | Rotation | 360°@ 0°Pitch and 0° Skew | ||
Left right | ±65° @ 0°Roll and 0° Pitch | |||
Lean | ±65°@ 0°Roll and 0° Skew | |||
Printing Contrast | ≥ 25% | |||
Weight | 20g(USB cable +63g) | |||
Charactics | ||||
Motion Tolerance | ≤1.8W | |||
Working Voltage | DC 5V | |||
Electricity | Max | 360mA | ||
working | 220mA | |||
Await | 5mAO | |||
Envirnment Request | ||||
Working Tem | -20°C - +60°C | |||
Storage Tem | -40°C - +70°C | |||
Humidity | 5% - 95%(non-condensing) | |||
Light Immunity | 0 ~ 100,000 lux (9,290 foot-candles) | |||
Drop tests | Withstands multiple 1.8m(6ft) drops to concrete | |||
International Certification | ||||
Electrical Safety | UL60950-1 2nd ed,CSA C22.2No.60950-1 2nd ed,EN60950-1/IEC60950-1 2nd ed. | |||
LED Safety | IEC/EN60825-1:2001,IEC/EN62471:2006 | |||
EMI/RFI | FCC Part 15 Class B,ICES-003 Class B,EN55022 Class B,EN55024 | |||
Environmental | Compliant with ROHS diective 2002/95/EEC | |||
Spare parts | ||||
Data lines | RS-232 | RS-232 connecting the data with the mainframe machine | ||
USB | USB line, connecting data with main machine | |||
Handle stand | Hold the scanner to scan automatically | |||
Power adapter | 5V power adapter,offer power to scanner and data lines. Output:DC5V,1.5A; Input:AC100~240V,50~60Hz | |||
Application
Company Profile
DEWO is an IoT solution service provider with identification and intelligent hardware as the core.
Since its establishment, DEWO has invested about 10% of its annual sales in research and development, and has core leading advantages in image recognition, embedded systems and SAAS cloud solutions. Its products cover barcode recognition, vein recognition, and intelligent temperature measurement terminals. , self-service equipment solutions, and new retail overall solutions in four major areas, serving thousands of domestic hospitals and medical equipment companies. Nearly 10 new products are launched every year, constantly leading the definition of new standards for the quality and efficiency of intelligent hardware. In 2016, DEWO passed the certification of "National Intellectual Property Standards Implementing Enterprise".
DEWO insists on providing customers with high-quality products, and the products have successively obtained CE/FCC/ROHS and other related product certifications. DEWO has a manufacturing base with a total area of more than 10,000 square meters in Suzhou. The manufacturing base is managed through intelligent control to visualize and standardize the management of each link. manufacturing base
There is a perfect quality management system, so that every step of the production process has strict control standards and traceable management.
DEWO has always been focusing on the expansion of the global market. All products have been exported to North America, Europe, Asia, Africa and other regions. It has established branches in the United States, Spain and Japan, and has established long-term partnerships with global agents. More than 20 provincial capital offices have been established in China to provide customers with efficient technical services.
DEWO's mission is to "popularize high-end technology and continue to create greater value for customers", DEWO's vision is to "become the core force for building the Internet of Everything", make identification and display smarter, and perfectly balance performance and price. Digital products Apply to every corner of the world.
Since its establishment, DEWO has invested about 10% of its annual sales in research and development, and has core leading advantages in image recognition, embedded systems and SAAS cloud solutions. Its products cover barcode recognition, vein recognition, and intelligent temperature measurement terminals. , self-service equipment solutions, and new retail overall solutions in four major areas, serving thousands of domestic hospitals and medical equipment companies. Nearly 10 new products are launched every year, constantly leading the definition of new standards for the quality and efficiency of intelligent hardware. In 2016, DEWO passed the certification of "National Intellectual Property Standards Implementing Enterprise".
DEWO insists on providing customers with high-quality products, and the products have successively obtained CE/FCC/ROHS and other related product certifications. DEWO has a manufacturing base with a total area of more than 10,000 square meters in Suzhou. The manufacturing base is managed through intelligent control to visualize and standardize the management of each link. manufacturing base
There is a perfect quality management system, so that every step of the production process has strict control standards and traceable management.
DEWO has always been focusing on the expansion of the global market. All products have been exported to North America, Europe, Asia, Africa and other regions. It has established branches in the United States, Spain and Japan, and has established long-term partnerships with global agents. More than 20 provincial capital offices have been established in China to provide customers with efficient technical services.
DEWO's mission is to "popularize high-end technology and continue to create greater value for customers", DEWO's vision is to "become the core force for building the Internet of Everything", make identification and display smarter, and perfectly balance performance and price. Digital products Apply to every corner of the world.
Our Advantages
Product Packaging
Exhibition
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2013,sell to North America(18.00%),South America(15.00%),Western Europe(15.00%),Africa(12.00%),Eastern Europe(9.00%),Southern Europe(8.00%),Central America(5.00%),South Asia(5.00%),Southeast Asia(5.00%),Mid East(2.00%),Northern Europe(2.00%),Oceania(2.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Barcode Scanners,Face recognition access control,POS System,Android mainboard,control board& magentic locks for lockers
4. Why should you buy from us not from other suppliers?
Ever since its inception, Dewo has been committed to the R&D and manufacture of automatic recognition products and has become one of the innovative leaders in the two-dimensional code automatic recognition and machine vision fields.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
We are based in Jiangsu, China, start from 2013,sell to North America(18.00%),South America(15.00%),Western Europe(15.00%),Africa(12.00%),Eastern Europe(9.00%),Southern Europe(8.00%),Central America(5.00%),South Asia(5.00%),Southeast Asia(5.00%),Mid East(2.00%),Northern Europe(2.00%),Oceania(2.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Barcode Scanners,Face recognition access control,POS System,Android mainboard,control board& magentic locks for lockers
4. Why should you buy from us not from other suppliers?
Ever since its inception, Dewo has been committed to the R&D and manufacture of automatic recognition products and has become one of the innovative leaders in the two-dimensional code automatic recognition and machine vision fields.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
