stabilization enhanced satellite gps tracker navigation driving recorder antenna for car marine
- Category: >>>
- Supplier: Shenzhen Bojia Communication Equipment Co. Ltd.
Share on (1600610036265):
Product Overview
Description
HOT CATEGORY
Products Description
Part Name SPEC |
Antenna Dielectric Ceramics |
PCB FR4 |
Shielding Tinplate |
RF Cable RG174 Attenua tion: -1.2dB/m |

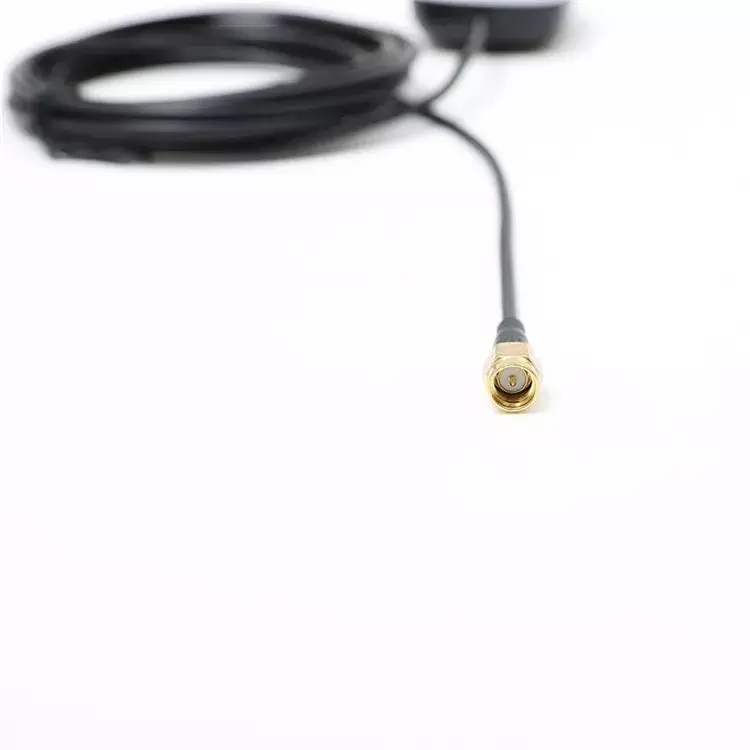

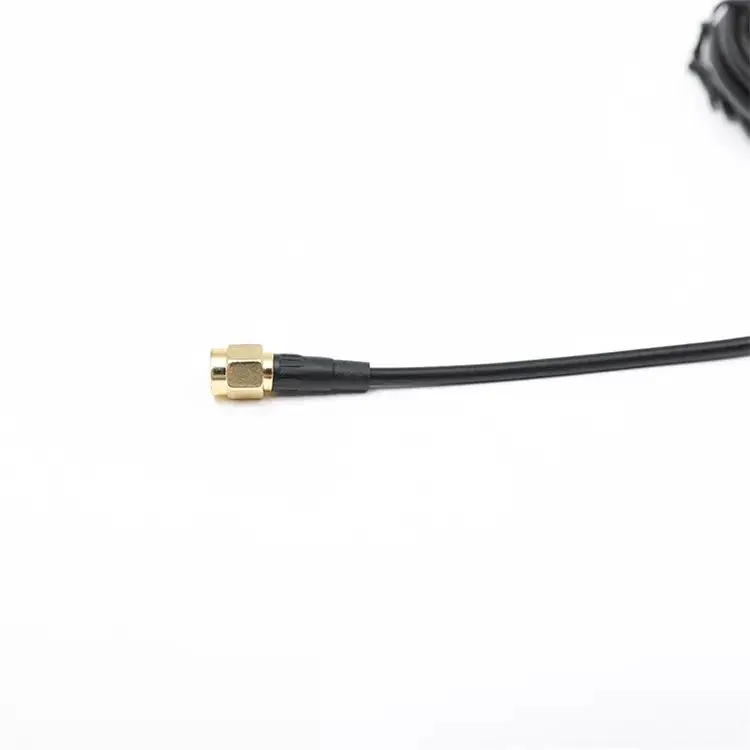

RF Connector SMA-C-J1.5-2 Gold |
LNA, FILTER XW2659A; SAW filter |
Thickness MAX |
Working Temp -40℃~+80℃ |
Storage Temp -45℃~+85℃ |
Vibration Sine sweep 1g(0-p) |
International Protection IPX-6 |
Antenna model BD2-03 (25*25*4) |
Frequency Range 1561MHz±2MHz～1575MHz±2MHz |
V.S.W.R ≤2.0 |
Band Width 24 MHz |
Impendence 50Ω |
Gain 3.5dBic Based on 25×25mm ground plane |
Polarization RHCP |
Frequency Range 1561MHz±2MHz～1575MHz±2MHz |
DC Voltage 3～5V |
Gain (Typical) 18.5dB |
INput VSWR (Typical) <2.0 |
Noise Figure (Typical) ≤1.5 |
DC current (Typical) 7～14mA |
Part Name SPEC |
Frequency Range 1561MHz±2MHz～1575MHz±2MHz |
Output VSWR ≤2.0 |
Gain 28±1dB |
Impendence 50Ω |
The magnet size 15*0.9 |
Company Profile
SHENZHEN BOJIA COMMUNICATION EQUIPMENT CO.,LTD.
Shenzhen Bojia Communication Equipment Co., Ltd. is a professional antenna manufacturer engaged in the research and development,design, manufacture, sales and service of RF coaxial connectors and mobile communication antennas. The company has a group of high-quality employees, with a factory area of 4,000 square meters and nearly 200 employees, of which 15% are technical personnel and 6% are senior management personnel. Ability. The company has fully introduced ISO9001:2008 and ISO/TS16949:2009 quality management systems, and has successively formed strong alliances with well-known domestic and foreign enterprises and institutes for product development and design. The main products cover: 1. Vehicle GPS navigation antenna, vehicle positioning antenna (Beidou antenna), GSM antenna series, smart wearable, tablet computer, wireless meter reading and building monitoring antenna. 2. Antenna components, cable components (jumpers). 3. SMA, SMB, SMC, SSMB, N, TNC, BNC and other series of RF connectors produced according to international standards. The company adheres to the service tenet of "quality first, customer first, reputation first" and the quality policy of "people-oriented, customer first, quality first, high-quality service, integrity-based, and win-win development", and insists on strengthening internal management. , respect and cultivate talents, and continuously improve the cohesion and centripetal force of the enterprise. With strict management, high-quality products, reasonable prices, fast delivery, and high-quality service, we are deeply favored by our customers. Join hands to create, work tenaciously, and devote ourselves to opening up new fields of the global communication industry in the new century!
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a factory,with three different factories producing finished products,casings,and hardware.
Q2: When can you ship?
A2: It depends on the order quality and whether we have stock.Delivery time is usually 5-15 days.
Q3: What is your payment term?
A3: 50% payment is due when the order is placed and 50% payment is due when the product is ready to ship.
Q4: How do we guarantee the quality?
A4:Strictly control incoming material inspection.add multiple inspection processes in the production process. and
increase the number of inspection processes in the production process.
Always pre-production samples before,always final inspection before shipment,certified by ISOTS16949,RoHS,CE,etc.
Q5:How is the quality of your products?
A5: All our products have strict QC process and will be 100% tested before shipment,our antenna engineer and
production have more than 10 years experience
Q6: Can you customize the antenna?
A6: Of course! We have a professional R&D team. Antennas can be customized to serve different purposes.OEM
and ODM.
A1: We are a factory,with three different factories producing finished products,casings,and hardware.
Q2: When can you ship?
A2: It depends on the order quality and whether we have stock.Delivery time is usually 5-15 days.
Q3: What is your payment term?
A3: 50% payment is due when the order is placed and 50% payment is due when the product is ready to ship.
Q4: How do we guarantee the quality?
A4:Strictly control incoming material inspection.add multiple inspection processes in the production process. and
increase the number of inspection processes in the production process.
Always pre-production samples before,always final inspection before shipment,certified by ISOTS16949,RoHS,CE,etc.
Q5:How is the quality of your products?
A5: All our products have strict QC process and will be 100% tested before shipment,our antenna engineer and
production have more than 10 years experience
Q6: Can you customize the antenna?
A6: Of course! We have a professional R&D team. Antennas can be customized to serve different purposes.OEM
and ODM.
