High Power Outdoor Led street Lamp Aluminum IP65 Waterproof 60w Smd Led Street Light
High Power Outdoor Led street Lamp Aluminum IP65 Waterproof 60w Smd Led Street Light
High Power Outdoor Led street Lamp Aluminum IP65 Waterproof 60w Smd Led Street Light
High Power Outdoor Led street Lamp Aluminum IP65 Waterproof 60w Smd Led Street Light
High Power Outdoor Led street Lamp Aluminum IP65 Waterproof 60w Smd Led Street Light
High Power Outdoor Led street Lamp Aluminum IP65 Waterproof 60w Smd Led Street Light
High Power Outdoor Led street Lamp Aluminum IP65 Waterproof 60w Smd Led Street Light

High Power Outdoor Led street Lamp Aluminum IP65 Waterproof 60w Smd Led Street Light

Share on (1600610075427):


Price:$123.00 - $145.00

Quantity:


Product Overview

Description


High Power Outdoor Led street Lamp Aluminum IP65 Waterproof 60w Smd Led Street Light



































































































































































Product CodeJD-1065AJD-1065BJD-1065CJD-1065DJD-1065E
LED Current (mA)50mA 5050/100mA 303044mA 5050/88mA 303039mA 5050/72mA 303044mA 5050/89mA 303042mA 5050/78mA 3030
LED Quantity24pcs 5050/48pcs 303036pcs 5050/72pcs 303054pcs 5050/108pcs 303054pcs 5050/108pcs 303072pcs 5050/144pcs 3030
Rate Power30W40W50W60W70W
Color Temperature6500/4000/3000K6500/4000/3000K6500/4000/3000K6500/4000/3000K6500/4000/3000K
Luminary EER155lm/w(5050)
140lm/w(3030)		155lm/w(5050)
140lm/w(3030)		155lm/w(5050)
140lm/w(3030)		155lm/w(5050)
140lm/w(3030)		160lm/w(5050)
145lm/w(3030)
Input VoltageAC100-277VAC100-277VAC100-277VAC100-277VAC100-277V
Frequency Range50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz
Color TemperatureRA75RA75RA75RA75RA75
Temperature of working condition -40℃  -  50℃-40℃  -  50℃-40℃  -  50℃-40℃  -  50℃-40℃  -  50℃
humidity of working condition20%-90%20%-90%20%-90%20%-90%20%-90%
LED life time70000h70000h70000h70000h70000h
Protestion GradeIP66IP66IP66IP66IP66
Installation Pipe DiaΦ48/Φ60mmΦ48/Φ60mmΦ48/Φ60mmΦ48/Φ60mmΦ48/Φ60mm
Installation Height3-5m3-5m3-5m3-5m5-10m
Net Weight4.3kg4.4kg4.5kg4.6kg7Kg
Gross Weight5.3kg5.4kg5.5kg5.6kg8kg

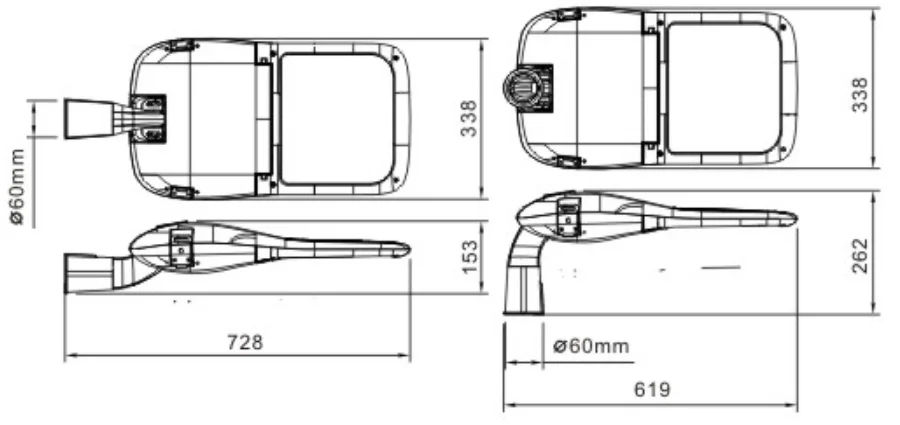

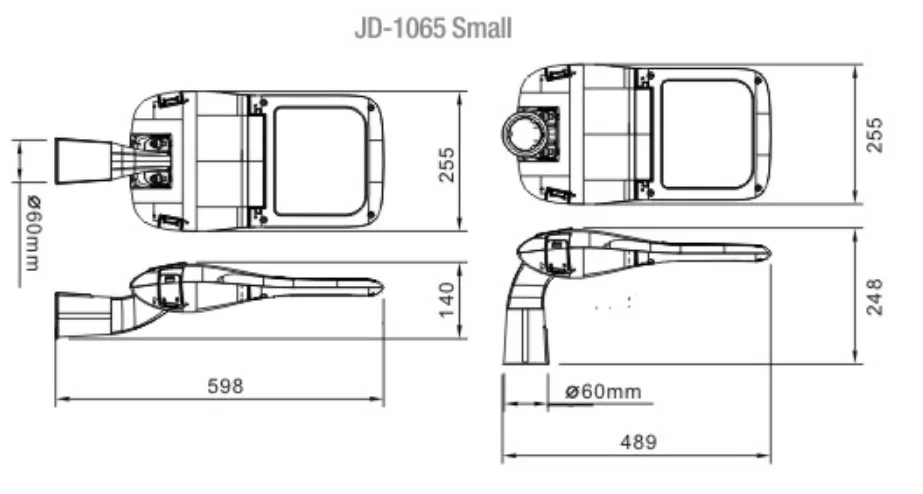

Product Size598x255x140mm598x255x140mm598x255x140mm598x255x140mm728*338*153mm
Packing Size655*295*190mm655*295*190mm655*295*190mm655*295*190mm780*385*188mm


















































































































































































Product CodeJD-1065FJD-1065GJD-1065HJD-1065IJD-1065JJD-1065K
LED Current (mA)42mA 5050/84mA 303050mA 5050/100mA 303050mA 5050/100mA 303053mA 5050/106mA 303053mA 5050/103mA 303059mA 5050/118mA 3030
LED Quantity96pcs 5050/192pcs 303096pcs 5050/192pcs 3030120pcs 5050/240pcs 3030150pcs 5050/300pcs 3030180pcs 5050/360pcs 3030204pcs 5050/408pcs 3030
Rate Power100W120W150W200W240W300W
Color Temperature6500/4000/3000K6500/4000/3000K6500/4000/3000K6500/4000/3000K6500/4000/3000K6500/4000/3000K
Luminary EER160lm/w(5050)
145lm/w(3030)		160lm/w(5050)
145lm/w(3030)		160lm/w(5050)
145lm/w(3030)		160lm/w(5050)
145lm/w(3030)		160lm/w(5050)
145lm/w(3030)		160lm/w(5050)
145lm/w(3030)
Input VoltageAC100-277VAC100-277VAC100-277VAC100-277VAC100-277VAC100-277V
Frequency Range50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz
Color TemperatureRA75RA75RA75RA75RA75RA75
Temperature of working condition -40℃  -  50℃-40℃  -  50℃-40℃  -  50℃-40℃  -  50℃-40℃  -  50℃-40℃  -  50℃
humidity of working condition20%-90%20%-90%20%-90%20%-90%20%-90%20%-90%
LED life time70000h70000h70000h70000h70000h70000h
Protestion GradeIP66IP66IP66IP66IP66IP66
Installation Pipe DiaΦ48/Φ60mmΦ48/Φ60mm Φ60/Φ76mm Φ60/Φ76mm Φ60/Φ76mm Φ60/Φ76mm
Installation Height5-10m5-10m10-15m10-15m10-15m10-15m
Net Weight7.2kg7.4kg13KG13.5KG13.5KG14KG
Gross Weight8.2kg8.4kg14KG14.5KG14.5KG15KG
Product Size728*338*153mm728*338*153mm1015*395*1961015*395*1961015*395*1961015*395*196
Packing Size780*385*188mm780*385*188mm1078*437*2381078*437*2381078*437*2381078*437*238







1-10652-1065_013-1065_034-1065dimension_015-1065dimension_036-1065detail
























Product Description









































Company Information























FAQ


FAQ


Q1. What about the lead time?


A: Sample needs 5-7 days, mass production time needs 15-20 days for order quantity more than.








Q2. Can I have a sample order for led light?


A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.





Q3. What about Payment?


A: Bank Transfer (TT), Paypal, Western Union, Trade assurance; 30% the amount should be paid before  producing, the balance 70% of the payment should be paid before shipping.





Q4. How to proceed an order for led light?


A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production and delivery.





Q5. Is it OK to print my logo on led light product?


A: Usually it is not available, it has the limitation for MOQ. And customers need to confirm the design firstly on our sample.





Q6. How do you ship the goods and how long does it take to arrive?


A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
