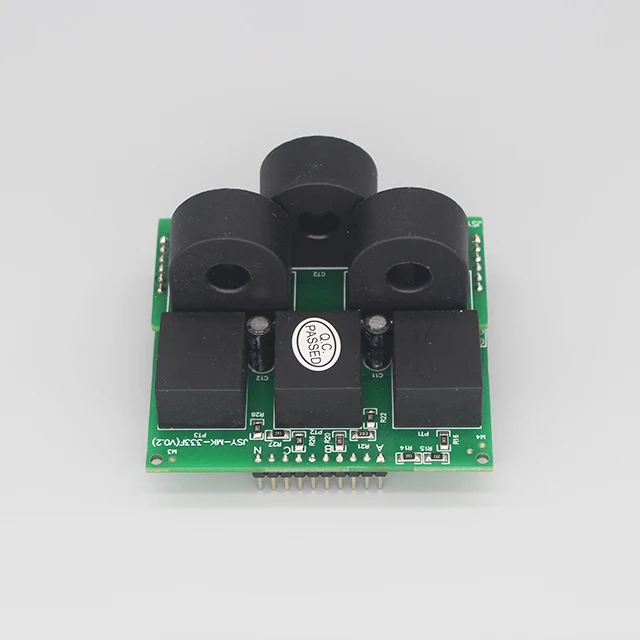

Current metering Collects voltage, current, and power modules
- Category: Energy Meters >>>
- Supplier: Shenzhen,Jsy,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Specification
product name | JSY-MK-193 2-way mutual inductance energy metering module |
Voltage range | 100V, 220V, etc. optional |
Current range | 5A, 50A, 100A, etc. optional; external open-ended current transformer models are optional |
measurement accuracy | Voltage, current, power: ±1.0%; active power level 1 |
input resistance | Voltage channel>1KΩ/V, current channel ≤100mΩ |
Overload capacity | 1.2 times range is sustainable; instantaneous (<20ms) current is 5 times, voltage 1.2 times range is not damaged |
Power supply | DC 12V power supply, typical power consumption ≤15mA |
Interface Type | RS 485 communication interface |
Protocol | MODBUS-RTU protocol |
Communication rate | The baud rate of the RS-485 communication interface can be set to 1200, 2400, 4800, 9600bps; the baud rate is fixed at 9600bps; |
Data Format | Software can set "n,8,1", "e,8,1", "o,8,1", "n,8,2" |
Operating temperature | Working temperature: -20- +70℃; storage temperature: -40- +85℃ |
Temperature drift | ≤100ppm/℃ |
Relative humidity | 5-95%, no condensation (at 40℃) |
Product Size | 108*71.50*25.7mm |
Installation method | PCB welding, the module plane size is 108*71.5mm |
FAQ
A. On time delivery:
We will execute your order into our carefully organized production plan to ensure that you deliver on time.
Production report before packing your order.
Shipment notifications and photos will be sent to you as soon as your order is shipped.
B. After-sales service:
We attach great importance to your feedback upon receipt of the goods.
We offer a 12-month warranty upon arrival of the goods.
We promise to use all parts for life.
We will actively respond to your complaint within 48 hours.
C. Professional Sales:
We value every inquiry sent to us to ensure a fast and competitive quotation.
We cooperate with our clients in bidding.Provide all necessary files.
We are a sales team with all the technical support of an engineer team.
