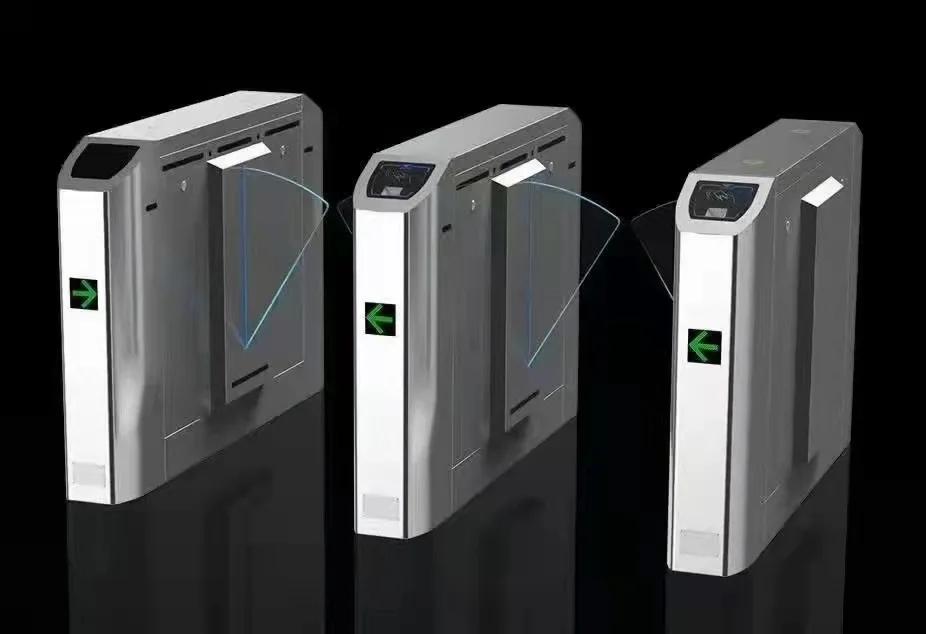

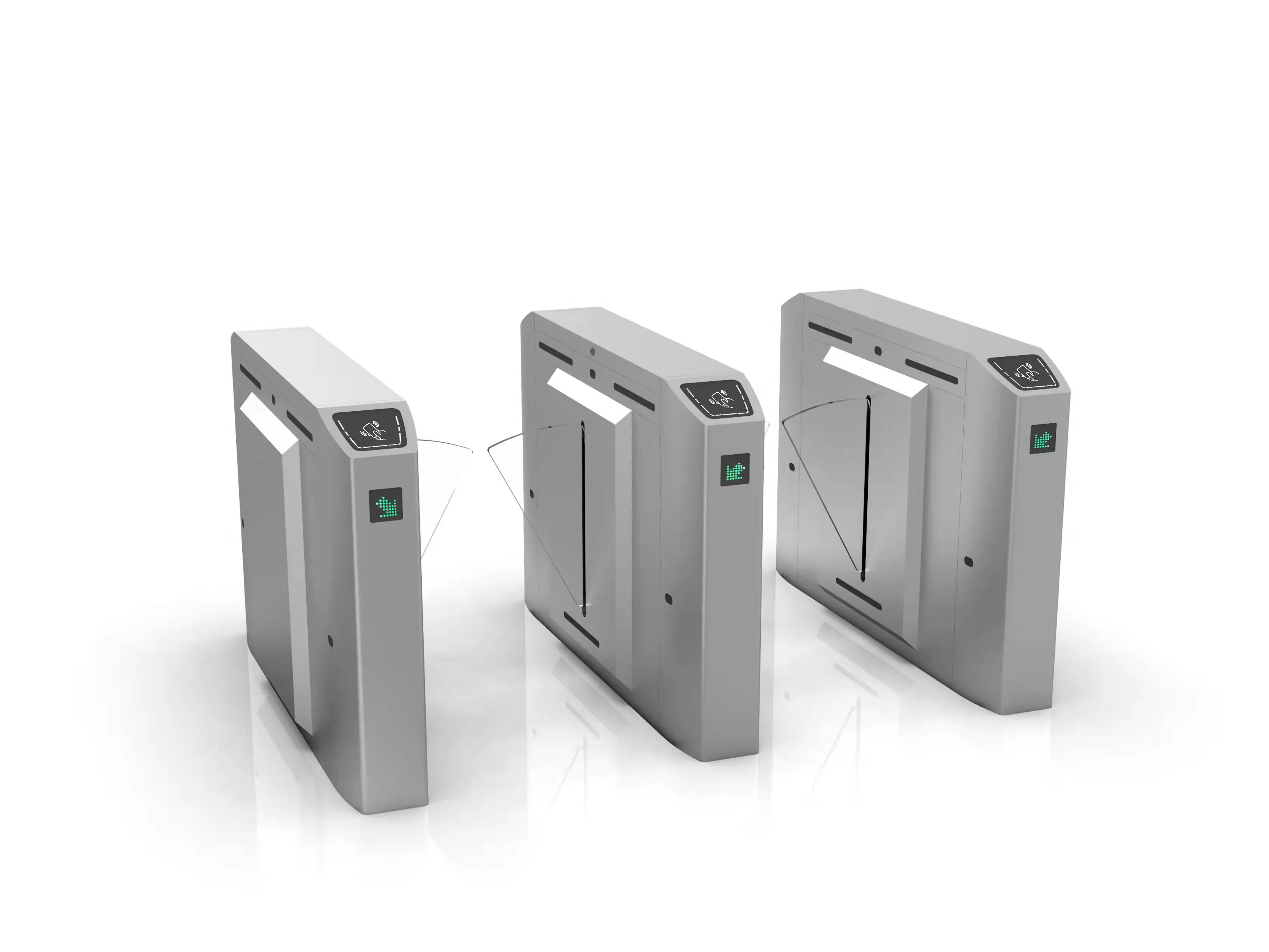

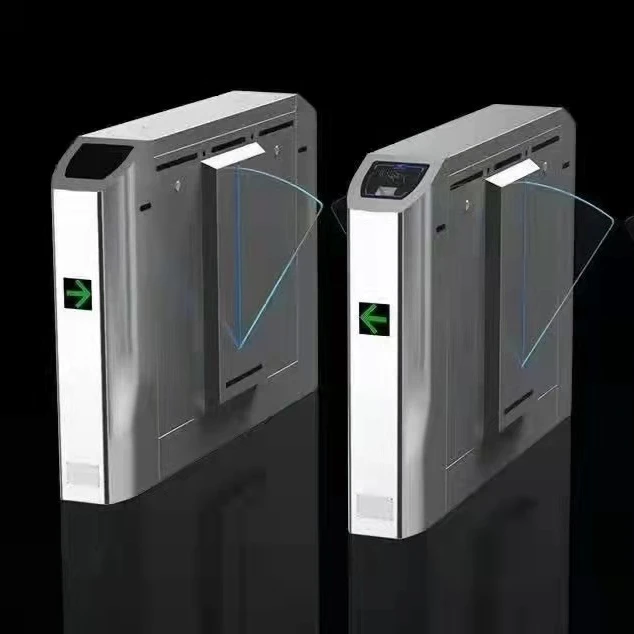

Factory Supply Attractive Price Double Opener Automatic Gate Swing

Product Parameter

1. Compatible with IC/ID, magnetic card, barcode card, anti-static and other control equipment;
2. The brake lever runs smoothly, with low noise and quick and reliable unlocking;
3. With power failure emergency function, the power failure gate is automatically opened;
4. Protection grade: IPX4;
5. Infrared anti-pinch;
6. Door opening and closing delay;
7. Illegal break-in to the police;
8. Anti-reverse intrusion.

(1) Features:
1: Turn on the power, the system will enter the working state after 3 seconds.
2: It can be connected to the control signal or button or remote control output by any control device to realize one-way and two-way control.
3: Automatic reset function: After swinging 90 degrees and detecting the passage of people and objects, it will automatically reset, or if the system does not pass within a specified time (multiple delays can be adjusted), the system will automatically cancel the permission for this pass and return to the original position.

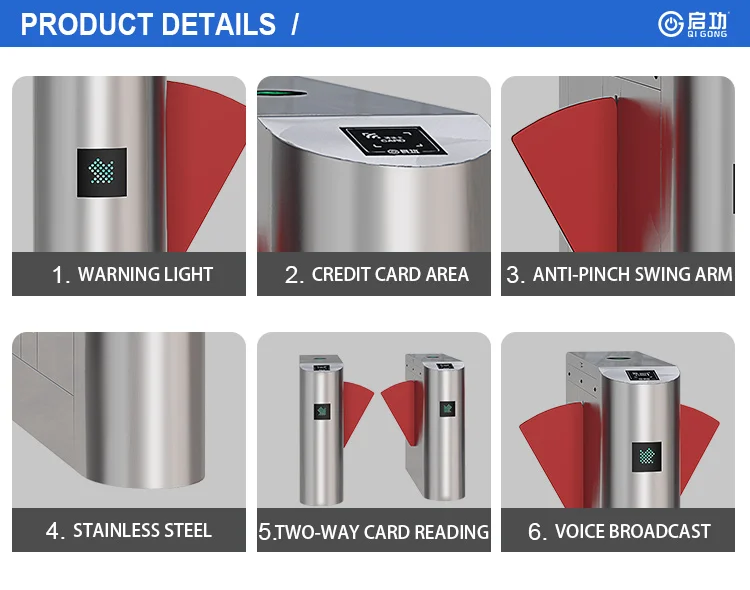

4: Lighting indication: high-brightness LED light traffic indication, to guide the passage.
5: Fire input: It can be connected with the fire alarm signal to realize the constant opening of the gate without electricity.
6: Alarm prompt function: When illegal passage or gate flushing, an alarm prompt will be automatically issued.
7: Adjustable speed: The speed of opening and closing of the flaps can be adjusted in multiple stages, and the user can set it according to actual needs.
8: The main control board receives the signal from the card reader and the infrared sensor, and after comprehensive processing, sends an effective control signal to the direction indicator and the motor, so that the direction indicator sign turns into a green arrow pass sign, and the gate sends out a setting Voice, the main control board controls the operation of the motor, the limit switch controls the rotation angle of the motor, and the gate opens to allow pedestrians to pass.
9: Mechanical characteristics: infrared/mechanical double anti-pinch function, when the retractable baffle (wing) is blocked in the process of resetting, the motor will automatically stop working within a specified time, and an alarm signal will be issued at the same time.
10: Automatic protection function: when the external force prevents the normal movement of the swing arm, and the external force is continuous, the system will automatically detect and automatically protect after 20 seconds
and go to sleep. The gate will automatically return to normal when the next legal signal is input.
11: Anti-shock function, when no signal to open the gate is received, the telescopic baffle (wing) is automatically locked;
12 : Unattended: the flaps are automatically normally open when power is off, and automatically reset when power is on (blocking the passage).
(2), technical parameters
1. Gate composition: chassis, movement, control board and power supply
2. Turning of the turnstile: one-way / two-way
3. Movement driving mode: DC brush motor
4. Opening time: 0.5 seconds
5. Power input: AC220V ± 10%, 50Hz ± 4% automatically convert to gate operating voltage DC24V, DC12V
6. Input interface: dry contact signal, 12V level or 12V pulse signal with pulse width ≥100ms
7. Communication interface: Rs485 (distance ≤1200 meters), TCP/IP (optional)
8. Baffle material: acrylic or stainless steel
9. Infrared sensor: standard 3 pairs (can be added)
10. Working temperature: -10℃~60℃, relative humidity 5%~95%, no condensation
11. External equipment: IC card reader, ID card reader, code scanning module, face module, fingerprint module. (External equipment needs to be customized)
12. Working environment: indoor, outdoor
13. Service life: more than 5 million times of continuous opening and closing
(3) Chassis features:
Material: 304 brushed stainless steel
Cover thickness: 1.5mm
Box thickness: 1.2mm

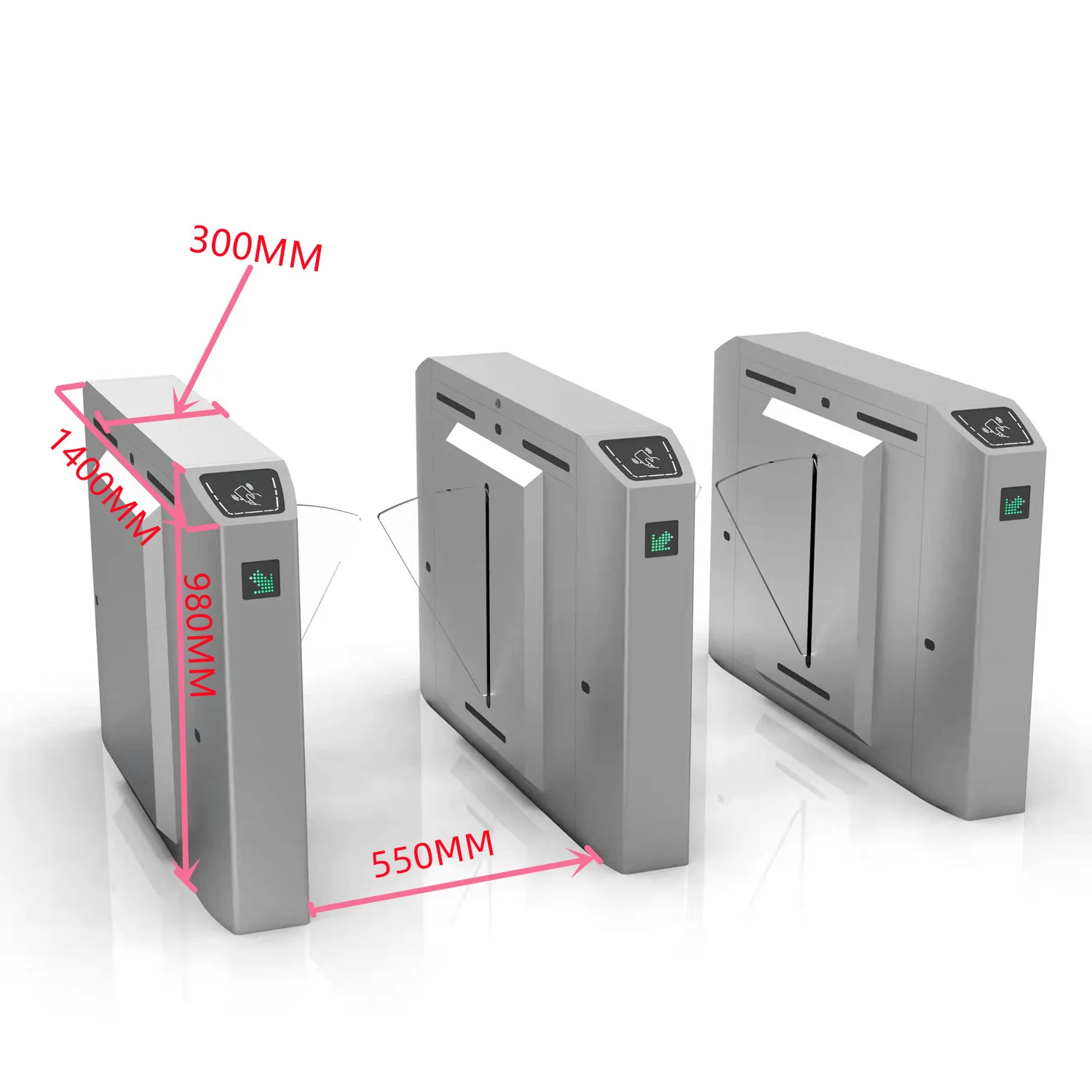

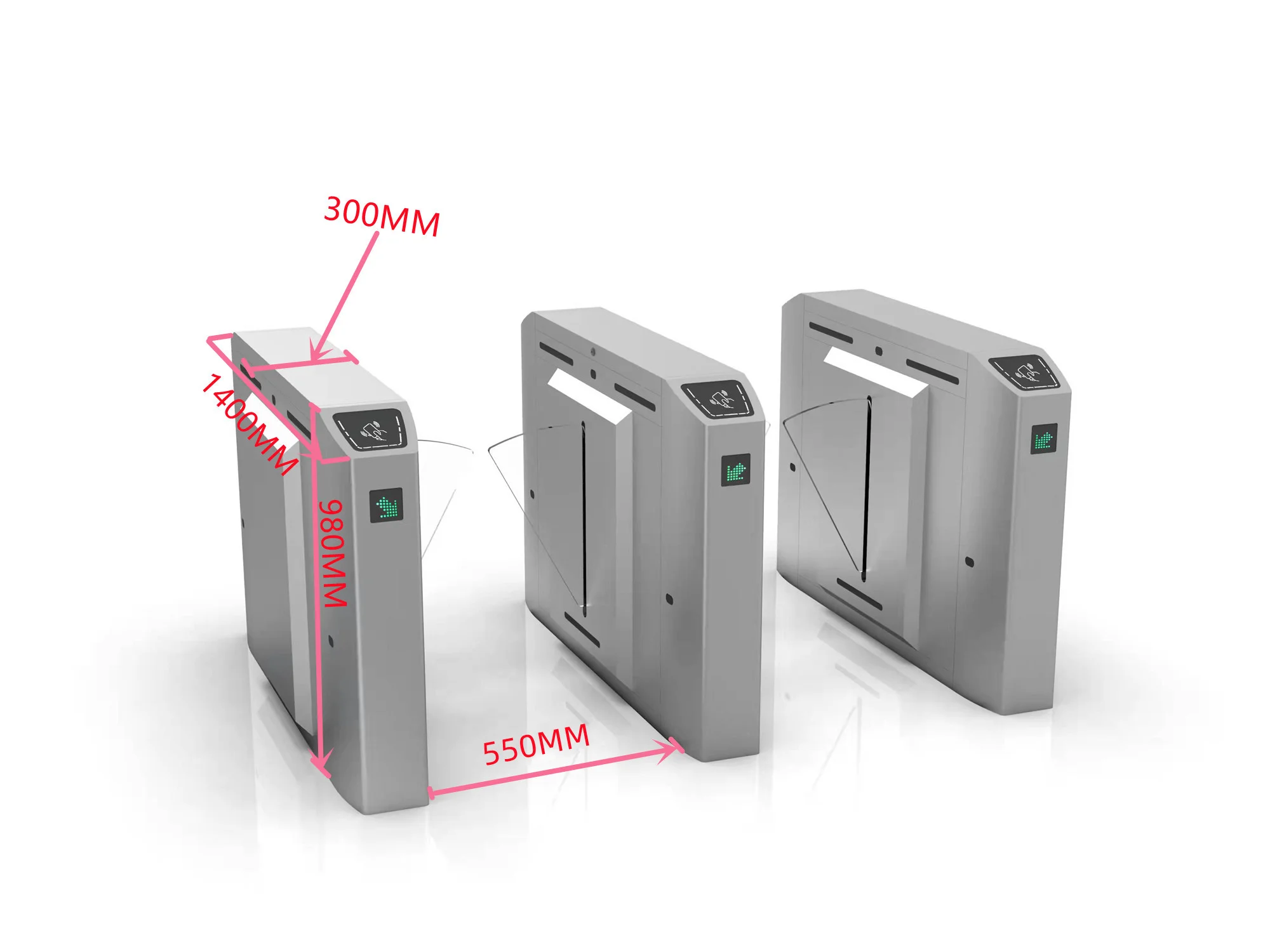

External dimension: 1400*300*980mm
Channel width: 550mm;
The use of detachable terminals is convenient for construction and maintenance; the chassis is formed by bending stainless steel, with simple lines and exquisite workmanship.
