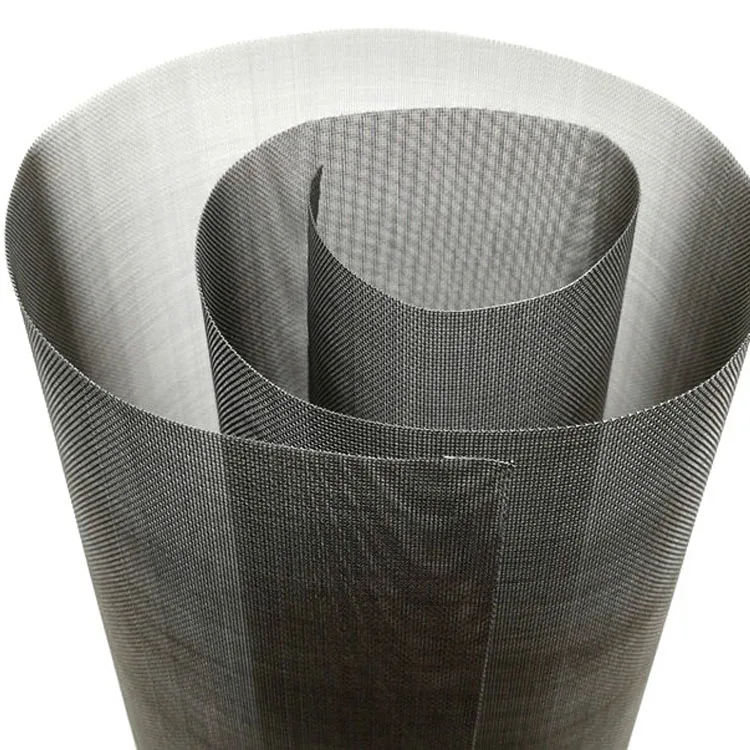

5 10 20 40 60 80 mesh FeCrAl electro thermal alloy mesh for heating equipment
- Category: >>>
- Supplier: Anping Tianhao Wire Mesh Products Co. Ltd.
Share on (1600610535331):
Product Overview
Description
5 10 20 40 60 80 mesh FeCrAl electro thermal alloy mesh for heating equipment

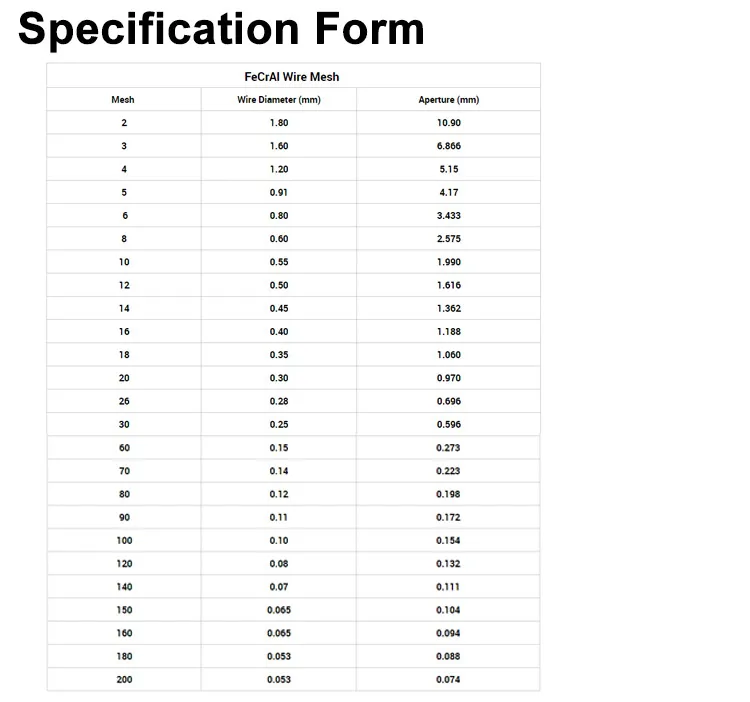

Specification
Product Name | 5 10 20 40 60 80 mesh FeCrAl electro thermal alloy mesh for heating equipment | ||||||
Material | 1Cr13Al4， 0Cr23Al5， 0Cr25Al5 | ||||||
Mesh Counts | 2-200 mesh | ||||||
Wire Diameter | 0.02-2 mm and can be customized | ||||||
Weave Type | Plain weave, dutch weave, twill weave, crimped | ||||||
Features | * Heating resistance. * Oxidation resistance. * Sulfur resistance. * Anti-carburizing. * High surface load. * Long lasting and durable. * Low temperature coefficient of resistance. | ||||||
Max Working Temperature | * 1Cr13Al4 - 950 ℃ * 1Cr21Al4 - 1100 ℃ * 0Cr21Al6 - 1250 ℃ * 0Cr23Al5 - 1250 ℃ * 0Cr25Al5 - 1250 ℃ * 0Cr21Al6Nb - 1350 ℃ * 0Cr27Al7Mo2 - 1400 ℃ | ||||||

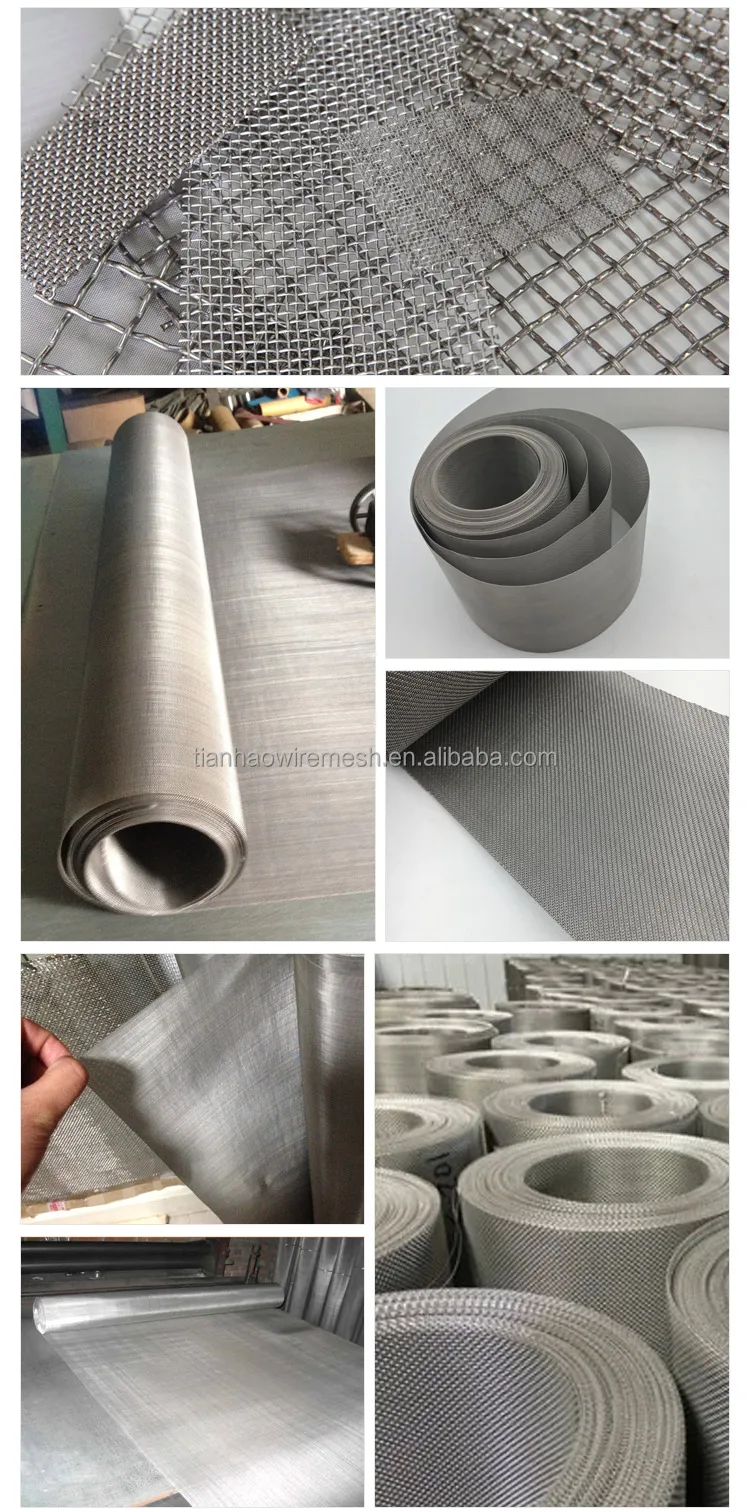

Products Details
Applications
* The FeCrAl woven wire mesh is mainly used as the drying and heating equipment in metallurgy, colliery, dyeing, food factory, hospital, high density board factory and cardboard.* The FeCrAl woven wire mesh is an ideal heating resistance material in the industry electric furnace, household appliances, gas burners and infrared device.
* There are still FeCrAl expanded heaters and FeCrAl perforated heaters.
* FeCrAl is also used in these place:
Gas burners,
Catalysts
Electronic engineering
Heat processing E-cigarette atomizers
Furnace curtains Furnace Filters
FeCrAl woven wire used in infrared burner
FeCrAl woven wire used in the gas burner
FeCrAl expanded metal mesh used
in the household heater
FeCrAl perforated metal mesh used
in the household heater
Packing&Shipping
Customer&Exhibition

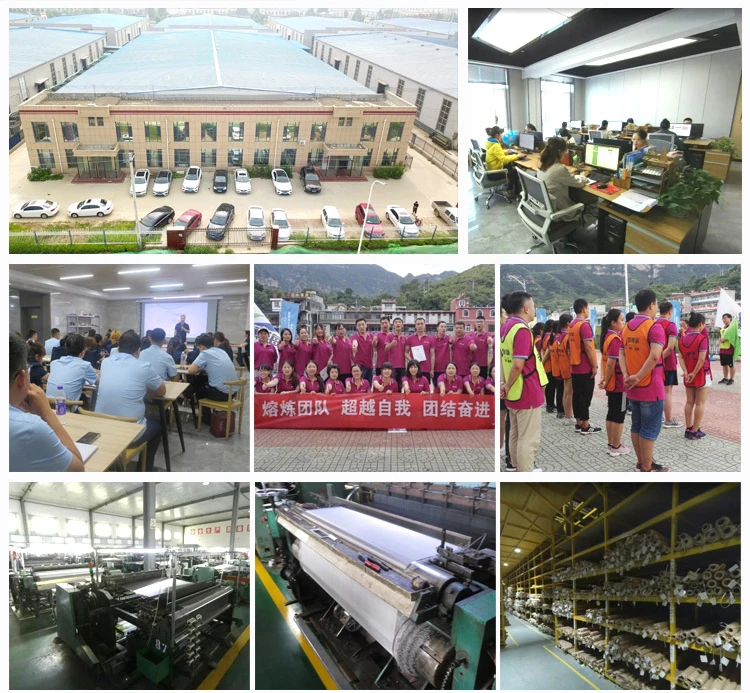

Company Profile
