Products Description


Round Lifting Magnet
Round lifting magnet is normally used to the scrap transportation continuously throughout of the day. It is used in metal working plants to hoist and transport steel parts, forgings, casting, plates, booms, channels, angles, rods and bars. It is efficient devices for saving the time and labors. It is relieve the burdensome work from attaching and securing lifting supports from the traditional handling tools for the operators.


Products features


- Patented heat insulation technique, well heating release
- Advanced insulation workmanship
- Protective plate of coil adopts non-magnetic rolling high-manganese steel with high wear resistance and impact resistance, and strengthened wear resistance and impact resistance of bottom surface.
- Optional battery backup to ensure safety
- High quality and performance, long service life

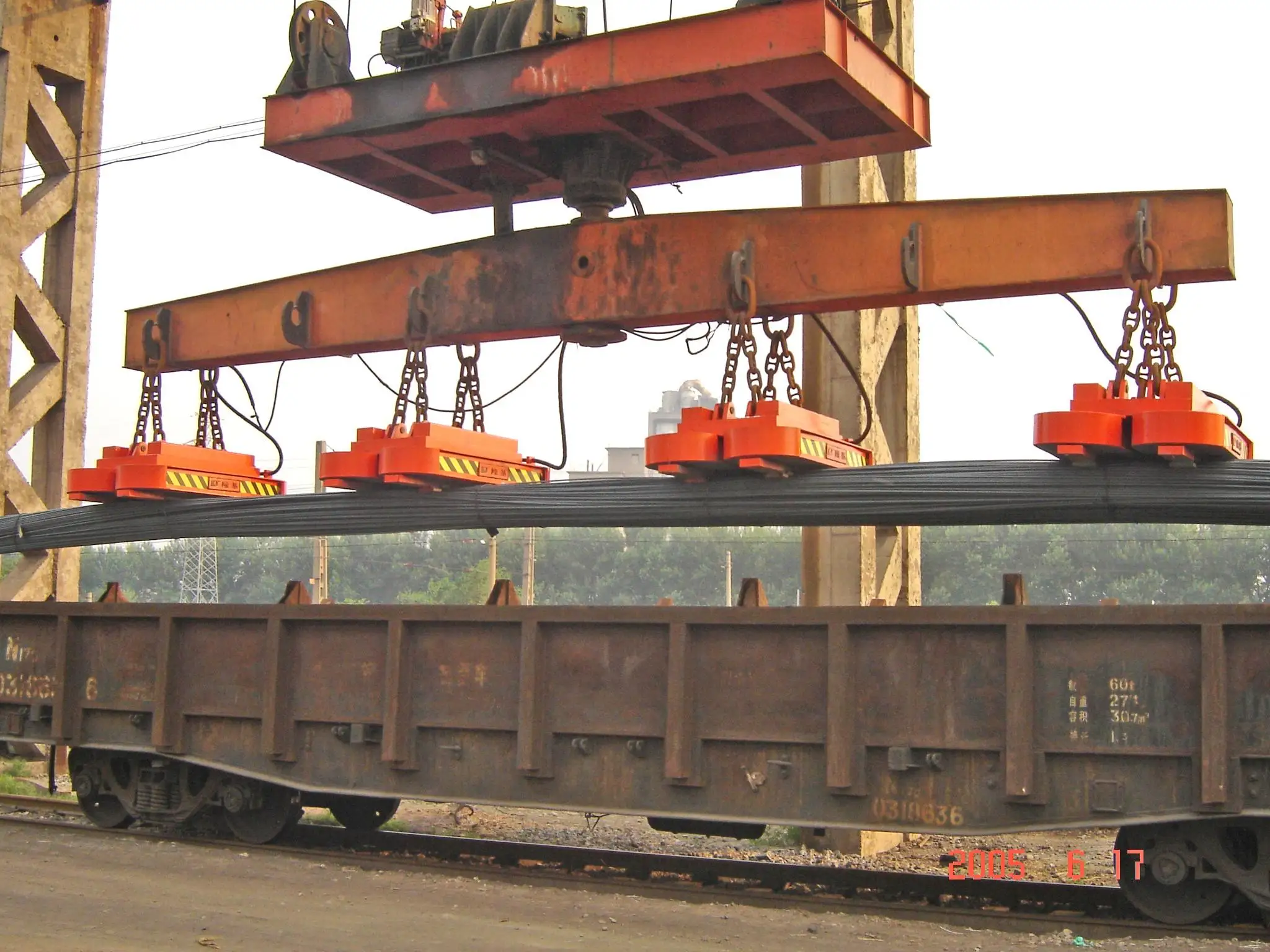

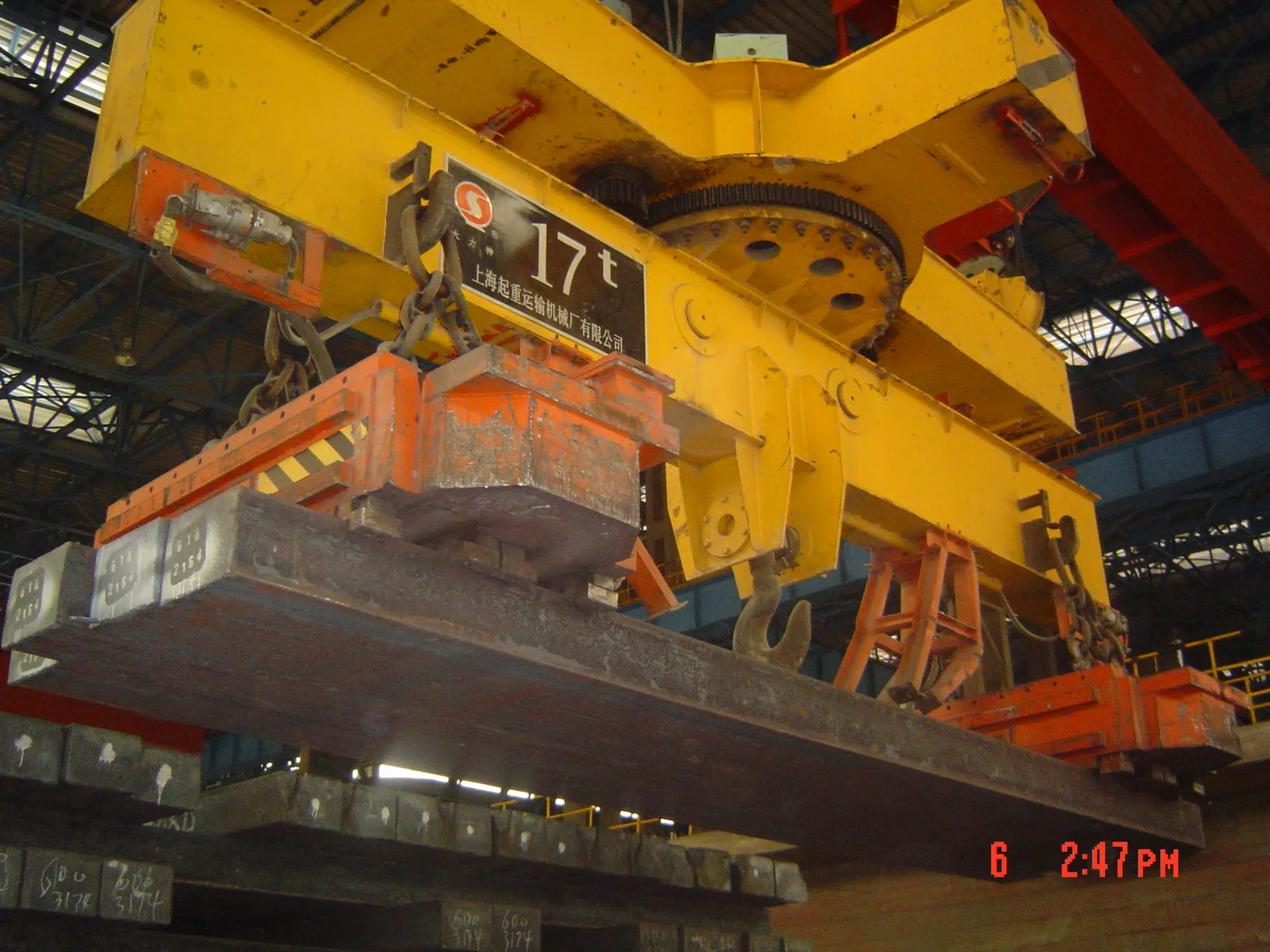

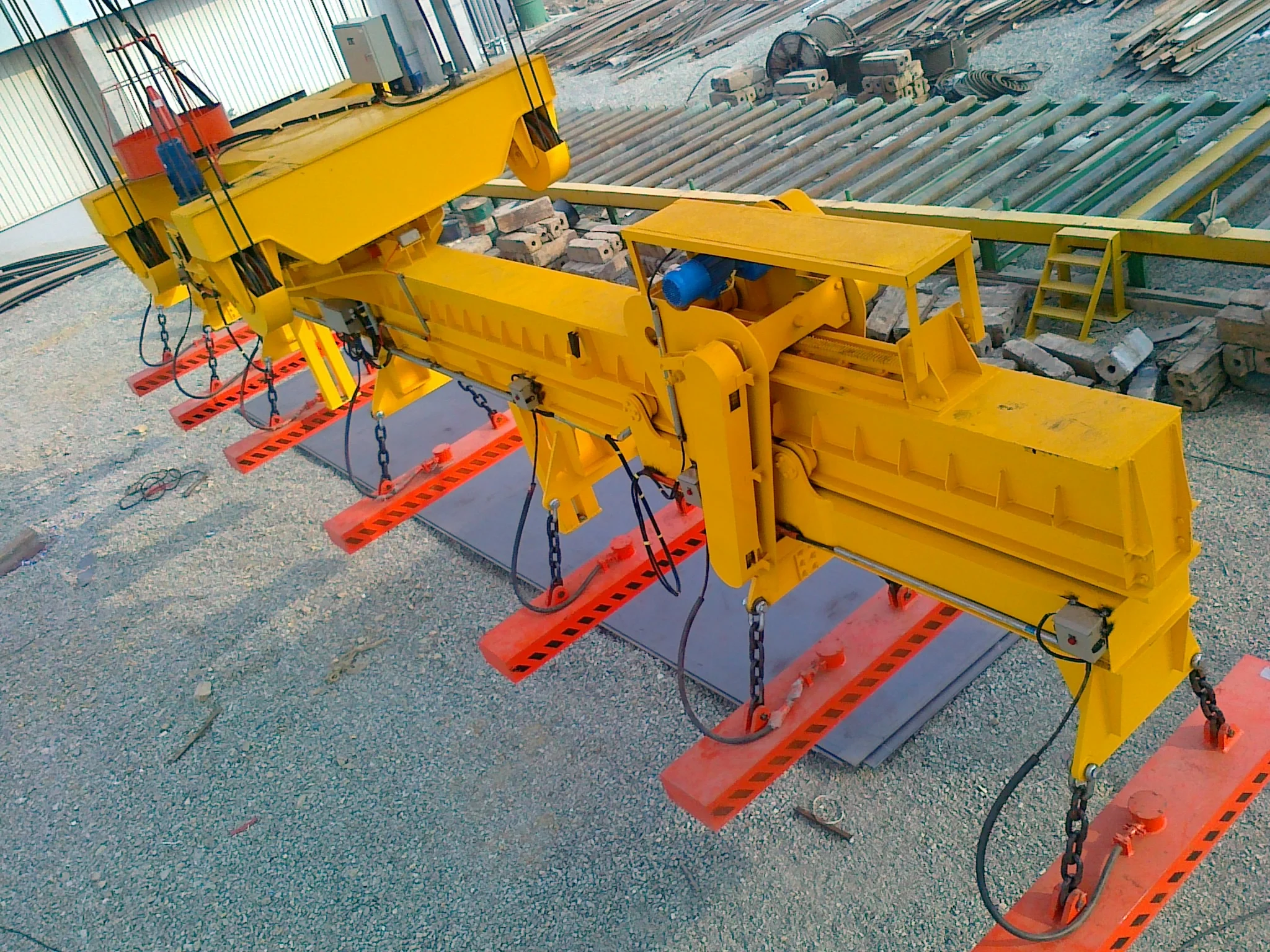

- A quantity of circular lifting magnets working in group specially for lifting steel plates.

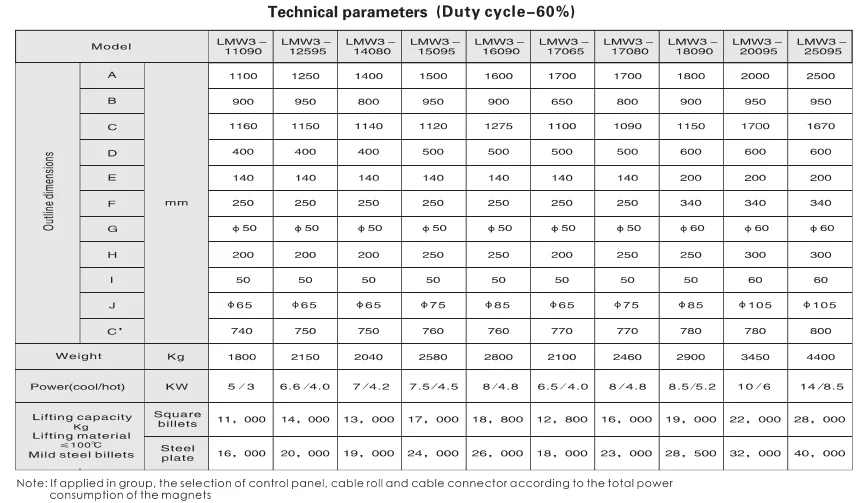

Product Paramenters


Model
Weight kg
Power（cool/hot）kw
Lifting capacity kg
（square billets）
Lifting capacity kg
（Steel plate）
LMW3-11090
1800
5/3
11,000
16,000
LMW3-12595
2150
6.6/4.0
14,000
20,000
LMW3-14080
2040
7/4.2
13,000
19,000
LMW3-15095
2580
7.5/4.5
17,000
24,000
LMW3-16090
2800
8/4.8
18,800
26,000
LMW3-17065
2100
6.5/4.0
12,800
18,000
LMW3-17080
2460
8/4.8
16,000
23,000
LMW3-18090
2900
8.5/5.2
19,000
28,500
LMW3-20095
3450
10/6
22,000
32,000
LMW3-25095
4400
14/8.5
28,000
40,000






Applications
