Male R/A Type RG179 RG6 Cable BNC Crimp Connector
- Category: Terminals >>>
- Supplier: Renhao,Weiye,Technology,(wuhan),Co.,Ltd.
Share on:
Product Overview
Description
Welcome to Renhotec Group Ltd! Our Slogan is Make Connection Easier……
Products Description

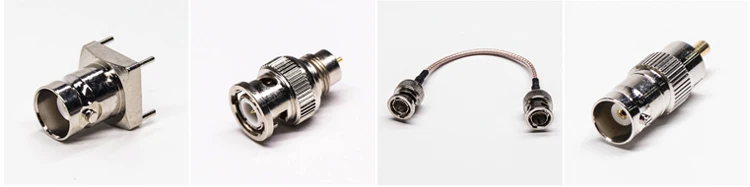

BNC PCB / Panel Type | BNC Cable Type | BNC Cable Assembly | BNC Adapter |
The BNC connector (initialism of Bayonet Neill–Concelman) is a miniature quick connect/disconnect radio frequency connector used for coaxial cable.
BNC connectors are most commonly made in 50 and 75 ohm versions, matched for use with cables of the same characteristic impedance.
BNC connectors are most commonly made in 50 and 75 ohm versions, matched for use with cables of the same characteristic impedance.
Features:
-Bayonet coupling mechanism provides positive, quick mating and un-mating
-50 and 75 ohm impedance designs allow customers to match system requirements
-Connectors are available for military, industrial and commercial applications
-Designs available for many common BNC coaxial cable types
-50 and 75 ohm impedance designs allow customers to match system requirements
-Connectors are available for military, industrial and commercial applications
-Designs available for many common BNC coaxial cable types
Gender | Plug / Socket |
Orientation | Straight / Right Angle |
Impedence | 50Ω,75Ω |
Frequency | 0-4HZ |
Voltage Rating | 500 Volts RMS Max Continuous |
VSWR | 1500 VRMS Max |

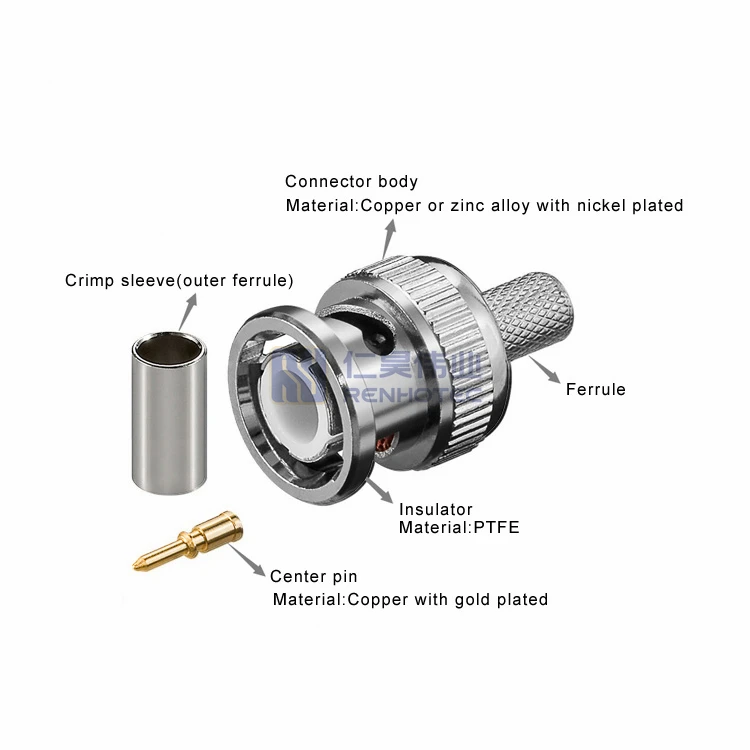

Body Material | Brass / Alloy Zinc / Gold Plated / Nickel Plated |
Insulators | Teflon |
Contact Pin | Brass / Gold Plated |
Nut | Brass / Nickel Plated |
Ferrule | Copper / Nickel Plated |
Temperature Range | -65°C to +165°C |
Durability (matings) | ≥ 500 (cycles) |

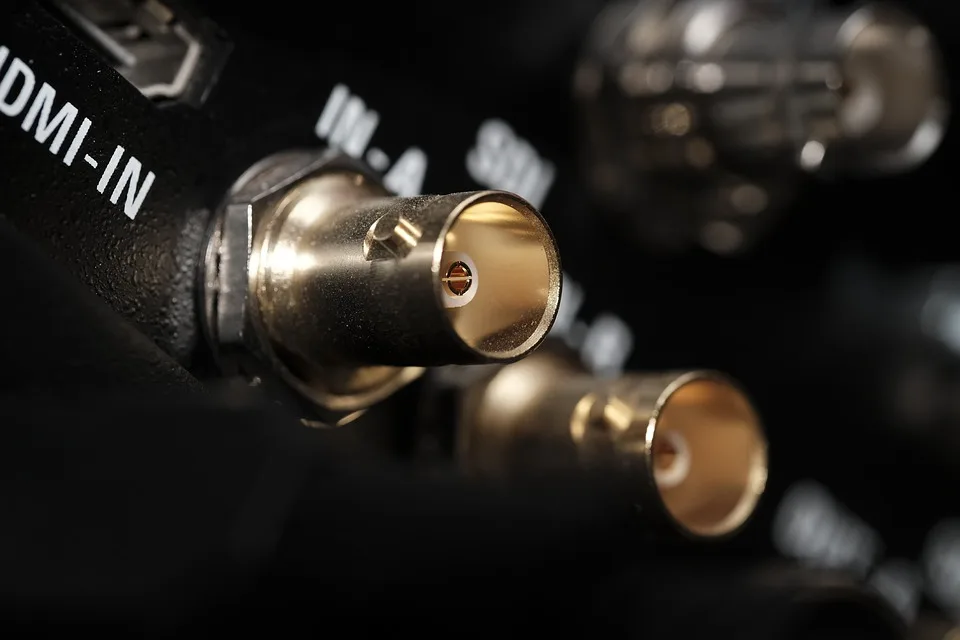

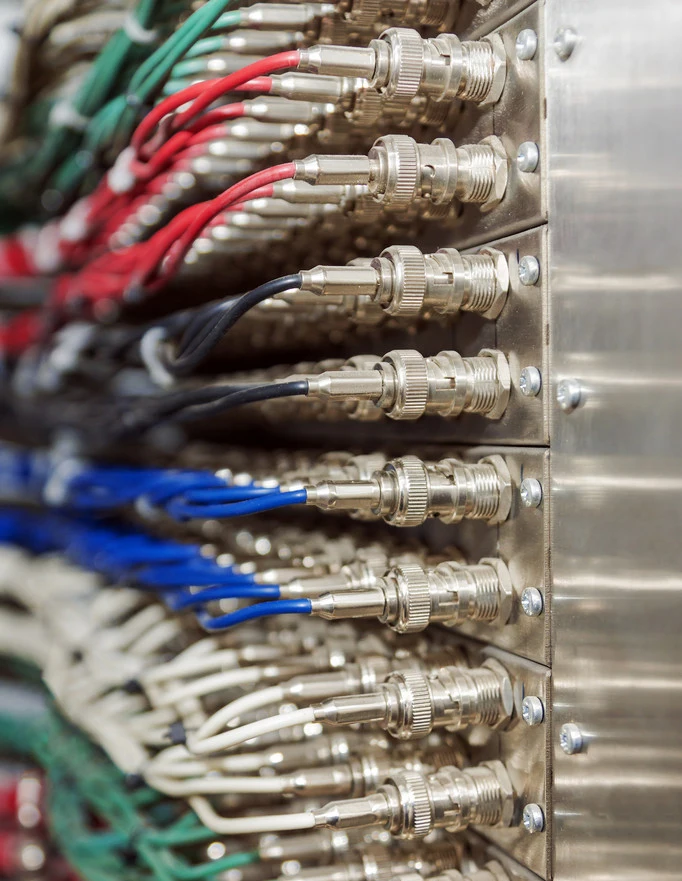

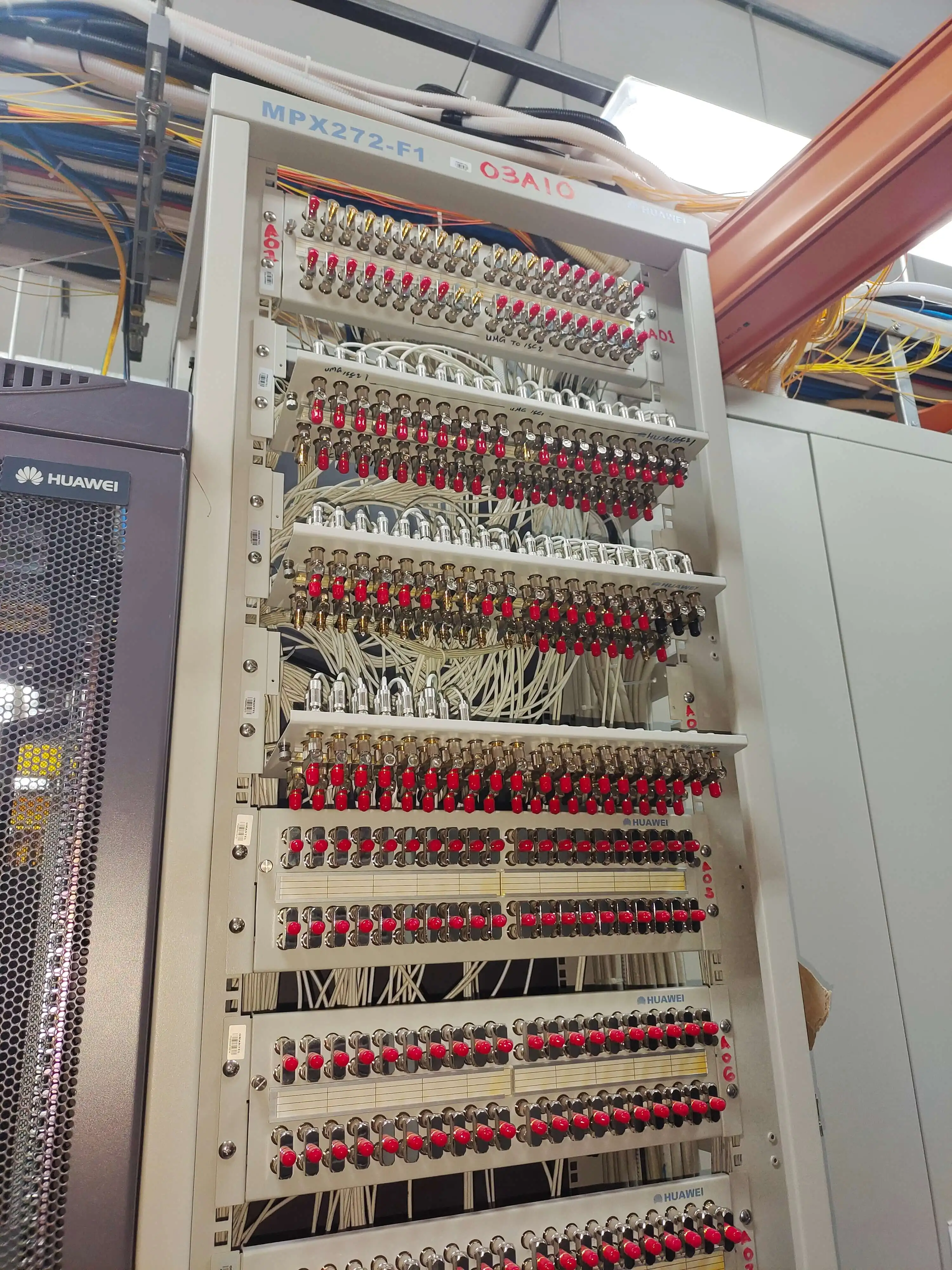

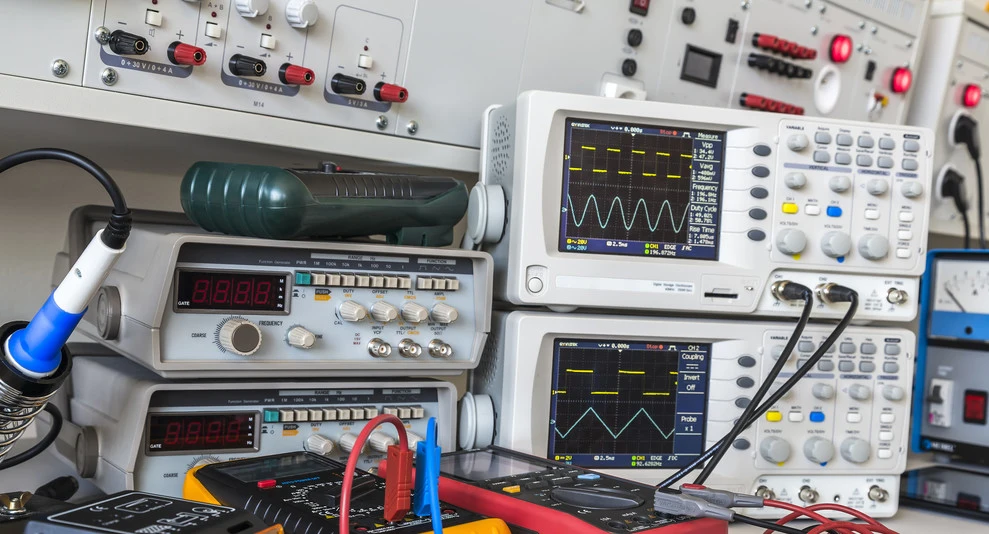

Industry Application
Company Profile
Renhao Weiye Technology (Wuhan) Co., Ltd.
RENHOTEC is a full-service leading global supplier of a wide variety of standard and custom RF coaxial connectors, cable assemblies and unique solutions for today’s cutting edge applications.
RENHOTEC is fully committed to meeting the needs of our customers, we offer a wide range of RF connector interface types and are able to produce custom products for specific applications.
Our team is always focused on designing, developing and taking pride in custom innovative solutions to meet our customers' needs.
- Acquired ISO9001, ISO14001, QC080000 and TS16949 certification.
- All items are in line with EU ROHS and REACH environmental requirements.
- Markets supported include military, automotive, medical, instrumentation, telecom and wireless etc.
Production Process
Mould Design
Precision Zinc Alloy, Aluminum Alloy and plastic mold design
Die Casting & Injection
Alloy die casting and plastic injection molding production
Metal Lathe Processing
Metal parts drilling, tapping and lathe processing
Assembly Line
Automated, semi-automatic connector production line
Inspection Equipment
Test electrical, mechanical and environmental performance
Why Choose Us
Professional engineer team help you with drawing design and provide you suggestions based on your special electrical and environmental performance requirements.
Technology Improvement
Establish and optimize the process of the production line. Continuous improvement to make sure the targeted quality and yield achieved and maintain
.
With professional inspection center to test the electrical, mechanical and environmental performance and ensure the high quality.
FAQ
Q :How can I get a sample to check your quality?
A : Free sample is available.
Q :What is your term of delivery?
A : Usually, we use EXW. As well, FOB, CIF and DDP are all available. Others can be netotiatable.
Q :When can I get the price?
A : All the quotaitons can be handled within 6-12 hours.
Q: Could you accept custom products?
A: Yes, Any custom design can be offered.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order. Normally, it is about 20-25 days for qty around 50K.
A : Free sample is available.
Q :What is your term of delivery?
A : Usually, we use EXW. As well, FOB, CIF and DDP are all available. Others can be netotiatable.
Q :When can I get the price?
A : All the quotaitons can be handled within 6-12 hours.
Q: Could you accept custom products?
A: Yes, Any custom design can be offered.
Q :What about the lead time for the mass production?
A :Honestly, it depends on the order quantity and the season you place the order. Normally, it is about 20-25 days for qty around 50K.
