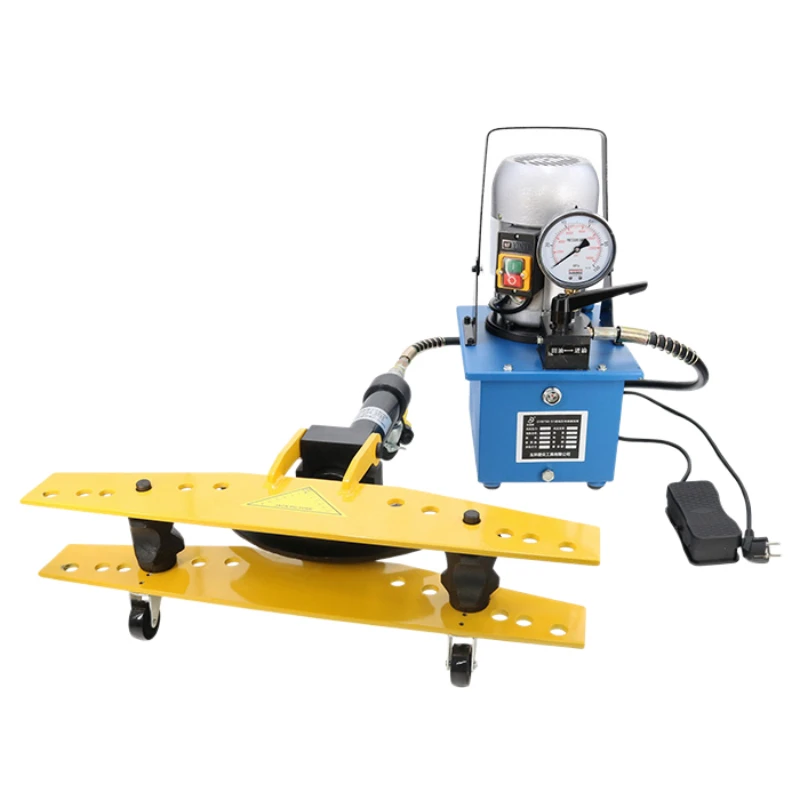

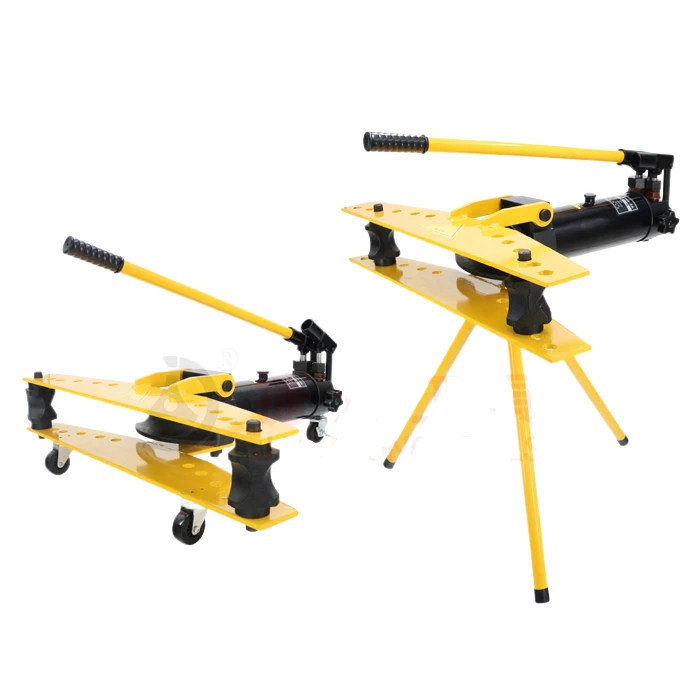

Separate type electro hydraulic pipe bender for bending steel pipe matched with double acting hydraulic cylinder
- Category: >>>
- Supplier: Henan Geyu Machinery Manufacturing Co. Ltd.
Share on (1600610675552):
Product Overview
Description
Describing & Application
| Modelr | SWG-1 | SWG-2 | SWG-3 | SWG-4 | SWG-5 |
| pressure | 10T | 16T | 18T | 21T | 21T |
| working stroke | 170mm | 250mm | 320mm | 420mm | 420mm |
| thickness of pipe | 2-3.5mm | 2.75-5mm | 2.75-6mm | 2.75-6mm | 2.75-6mm |
| texture of material | nodular cast iron | nodular cast iron | nodular cast iron | nodular cast iron | nodular cast iron |
| Weight | 20kg | 48kg | 98kg | 137kg | 186kg |

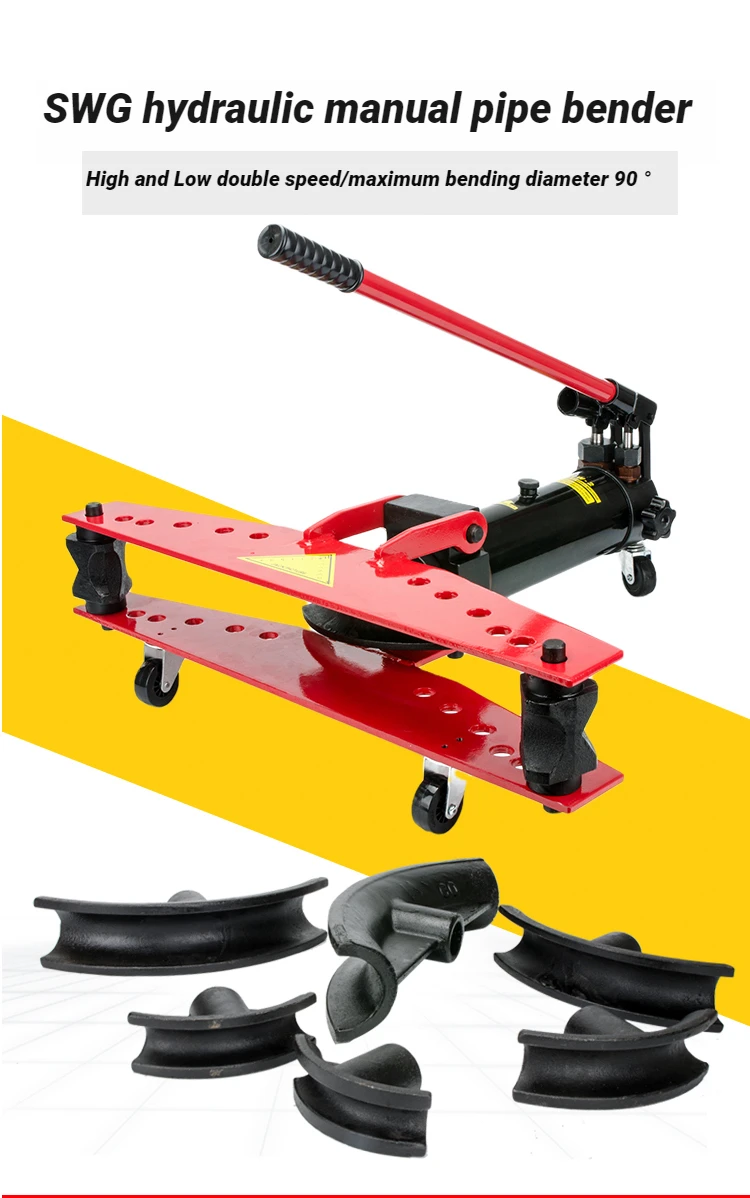

| Sizeofstangard dies | SWG-1 | 13mm/16mm/19mm/22mm/28mm/34mm(six) | |||
| SWG-2 | 22mm/28mm/34mm/42mm/48mm/60mm(six) | ||||
| SWG-3 | 22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm(eight) | ||||
| SWG-4 | 22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm/108mm(nine) | ||||
| SWG-5 | 22mm/28mm/34mm/42mm/48mm/60mm/75.5mm/89mm/108mm/114mm(ten) | ||||
| The outer diameter of the die corresponds to the size and wall thickness | |||
| Model diameter | Nominal diameter | Min Wall-thickness | Specification name |
| φ10mm | DN6 | 2mm | 1/8" |
| φ13mm | DN8 | 2mm | 1/4" |
| φ16mm | DN10 | 2mm | 5/16" |
| φ19mm | DN15 | 2.5mm | 3/8" |
| φ22mm | DN15 | 2.75mm | 1/2" |
| φ25mm | DN20 | 2.75mm | 3/4" |
| φ28mm | DN20 | 2.75mm | 3/4" |
| φ34mm | DN25 | 3.25mm | 1" |
| φ42mm | DN32 | 3.25mm | 1-1/4" |
| φ48mm | DN40 | 3.5mm | 1-1/2" |
| φ60mm | DN50 | 3.5mm | 2" |
| φ75.5mm | DN65 | 3.75mm | 2-1/2" |
| φ89mm | DN80 | 4mm | 3" |
| φ108mm | DN100 | 4.5mm | 4" |
| φ114mm | DN100 | 5mm | 5" |
If there is no corresponding mold, you can select a slightly larger mold size (for example, 32mm,34mm) and check it according to the corresponding mold size. Check whether the wall thickness is suitable (wall thickness with big 0.5 or small 0.5) suitable for international general A series British tube and domestic use B series metric tube | |||

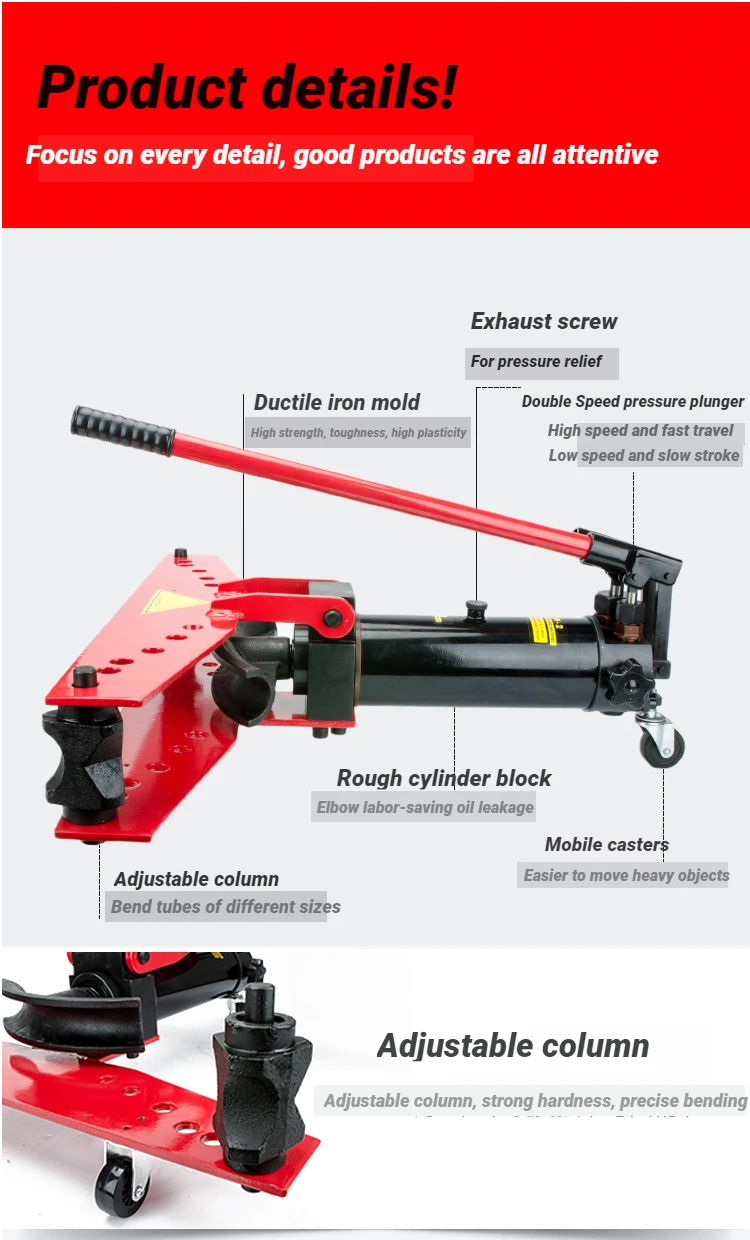

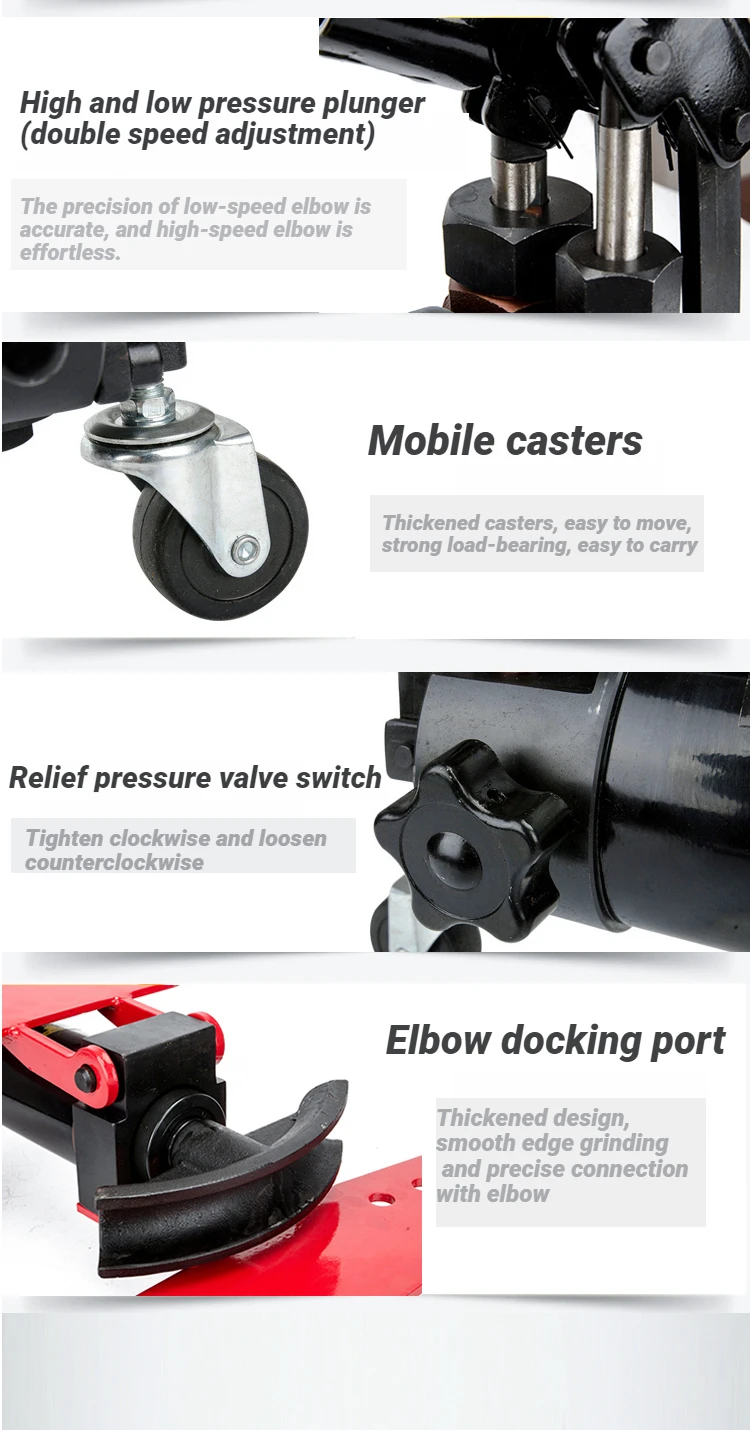

Product details

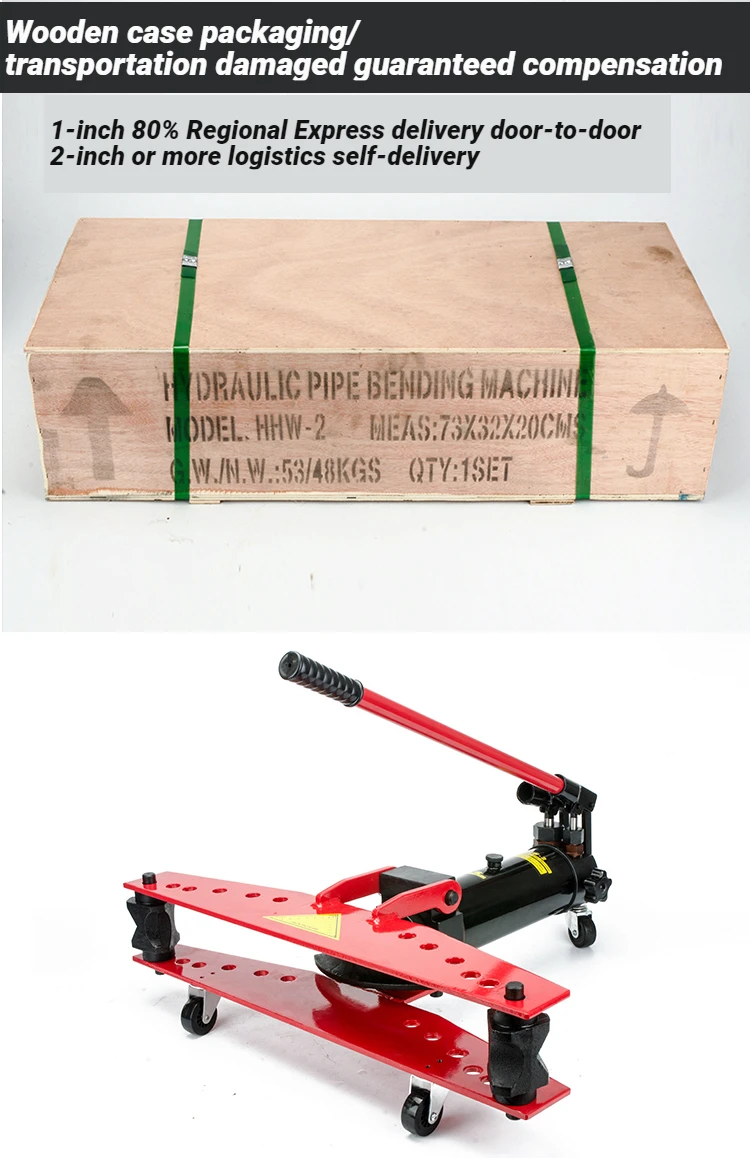

Parking & Shipping
 |
| The outer diameter of the die corresponds to the size and wall thickness | |||||
| Modelr | SWG-1 | SWG-2 | SWG-3 | SWG-4 | SWG-5 |
| Size(mm) | 660X350X200 | 730x350x200 | 800x350x250 | 890*400*280 | 980*400*320 |
| Weight | 20kg | 48kg | 98kg | 137kg | 186kg |
WHY CHOOSE US
| ||
  | ||
FAQ
| Q1: | Are you trading company or manufacturer? |
| A1: | We have no agent or dealers, so the price that we provided is factory price. About quality guarantee:The price that we provided is the lowest price,we have no profit to support over sea service. If there is some question with your machine, we will adopt DHL, express new parts to you in 3 days,and our technologist will guide you or your technologist how to repair it. We provide parts for free in 12 months, not include the freight fee. |
| Q2: | XXX company's price is cheaper than you, I want the cheap one. |
| A2: | Quality is more important than price. They will not sale the machine with no profit. Excessive low price means inferior parts and unconcernedly assemble. Our parts all purchased by our professional buyer, they have plenty experience to choose good parts in good price. The education background of our workers are junior college or higher than this, plenty of assemble experience. We have professional quality inspector, before our machine out of our factory, we test every achine strictly. |
| Q3: | Is there any risk to order your products? |
| A3: | Do not worry. We joined the Alibaba Trade Assurance. It ensures the financial security, product quality and on-time shipment.You can place the order by trade assurance, and the deposit will given to Alibaba. If we don’t delivery products on time, thedeposit will return to you. |
| Q4: | How to guarantee we get the goods smoothly after they pay? |
| A4: | We have plenty of experience, we have professional transport company and ship company that established long term cooperate relationship with us. We ask best freight fee for our customer. Any problem please feel free to contact us, we provide 7*24 hours service, we are glad to provide our service any time. |
| Q5: | How long should I wait till I receive my product? |
| A5: | If you purchase small machine and need it hurry, we can contact DHL for you. It can be send to you in 3 days. Large machine we use container for customer AS SOON AS POSSIBLE. |
