Product Overview
Description

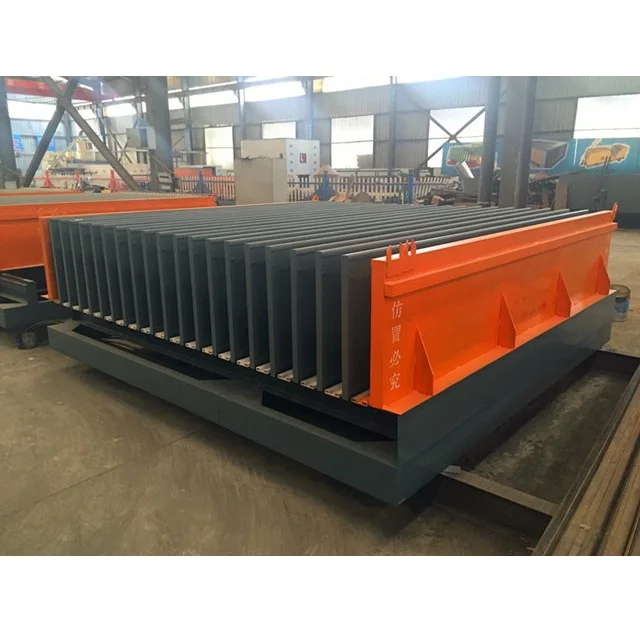

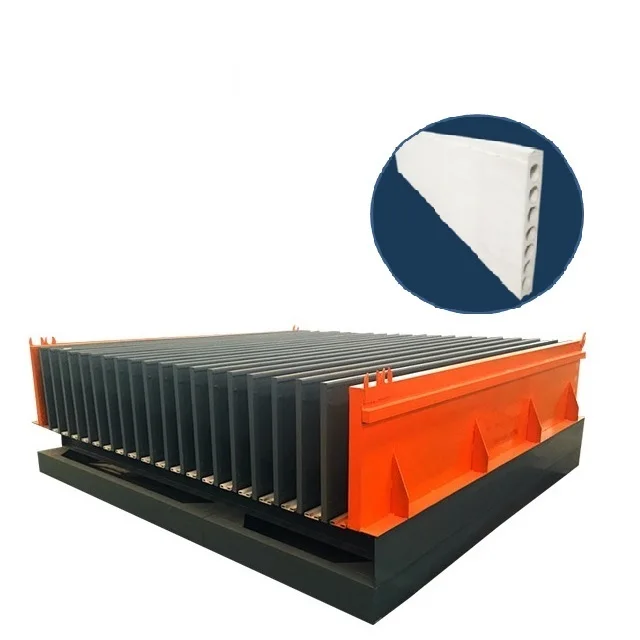

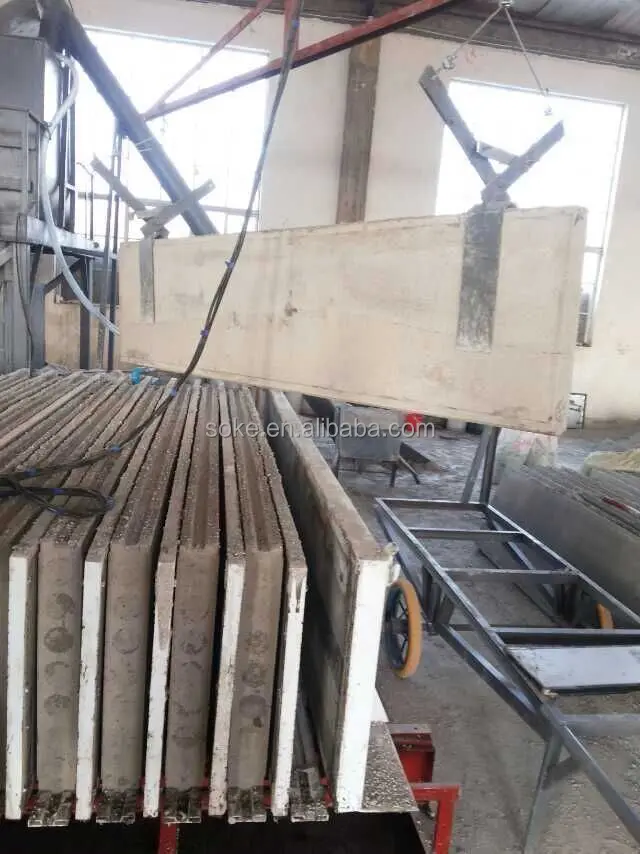

EPS concrete sandwich wall panel machine
What kind of wall panels can be produced?
The EPS concrete sandwich wall panels battery mould machine can produce EPS sandwich wall panel, solid wall panel, GRC wall panel, precast concrete exterior wall panels, precast concrete interior wall panels, fence panel, foam concrete wall panel, CLC wall panel,precast hollow core wall panels with insulation, precast hollow core wall panels etc. which is smooth surface, lightweight and non-deforming after installation, It is a new-type non-loading bearing material with good fire prevention, moisture proof,good sound insulation, heat insulation used as partition wall panel and exterior wall panel.

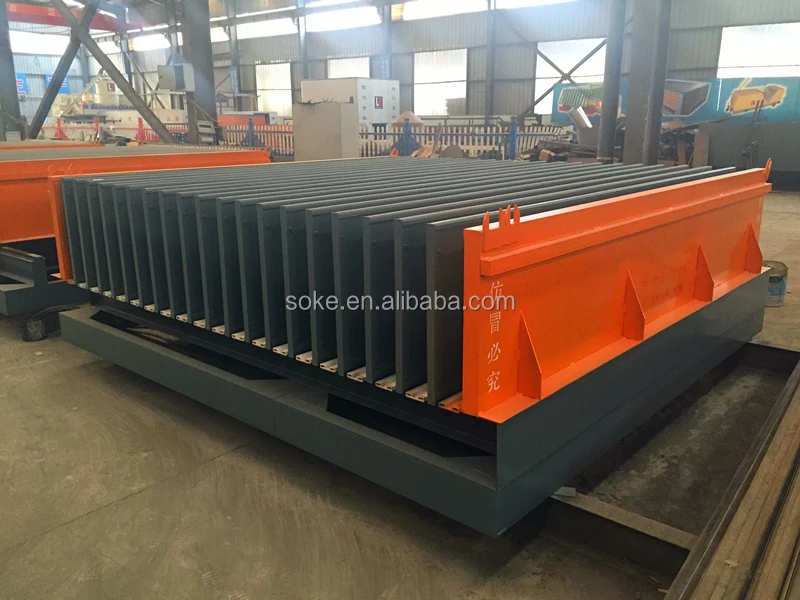

EPS concrete sandwich wall panel machine description
1. The EPS concrete sandwich wall panel machine using hydraulic opening and closing system.
2. Simple operation and high efficiency, low labor intensity.
3. The wall panel machine can also be equipped with vibrator system for thick mortar
4. The wall panel machine using Q235 steel, thickness 6-8mm, it will be welded on Horizontal worktable with pressing system to leveling tolerance ≤ The leveling tolerance after all the Q235 steel plates after assembling will be ≤3mm
5. The bottom steel plate for tongue,The aluminum part with plastic coating for tongue profile to guarantee the precision of tongue. The aluminum part will be fixed on 6mm steel plates.
6. Mound layer for top groove, The aluminum part with plastic coating for tongue profile to guarantee the precision of top groove
2. Simple operation and high efficiency, low labor intensity.
3. The wall panel machine can also be equipped with vibrator system for thick mortar
4. The wall panel machine using Q235 steel, thickness 6-8mm, it will be welded on Horizontal worktable with pressing system to leveling tolerance ≤ The leveling tolerance after all the Q235 steel plates after assembling will be ≤3mm
5. The bottom steel plate for tongue,The aluminum part with plastic coating for tongue profile to guarantee the precision of tongue. The aluminum part will be fixed on 6mm steel plates.
6. Mound layer for top groove, The aluminum part with plastic coating for tongue profile to guarantee the precision of top groove
EPS concrete sandwich wall panel machine specification
Name | EPS concrete sandwich wall panel machine |
Production capacity | 20pcs wall panels per mould (90mm thick) |
Hydraulic power | 4 KW |
Hydraulic pressure | 5 Mpa |
Product width | 600mm/610mm(customized) |
Steel plates leveling tolerance | ≤1mm |
Product length | Max.lenth from 2.5m-4m(customized) |

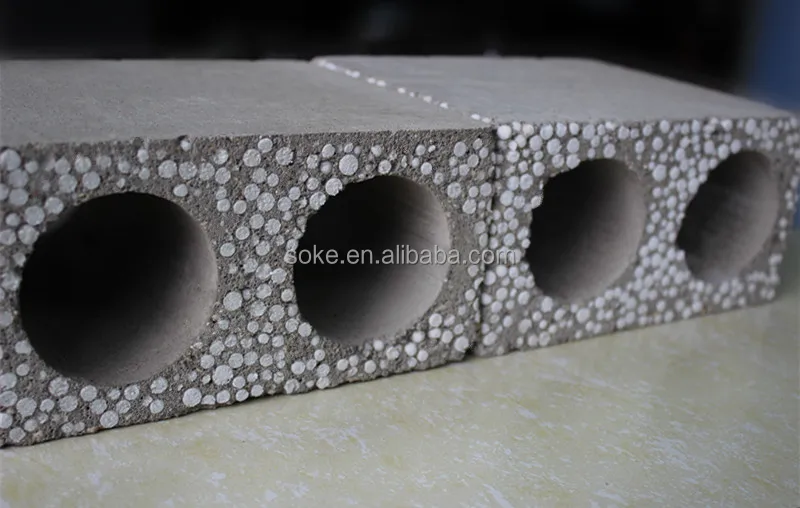

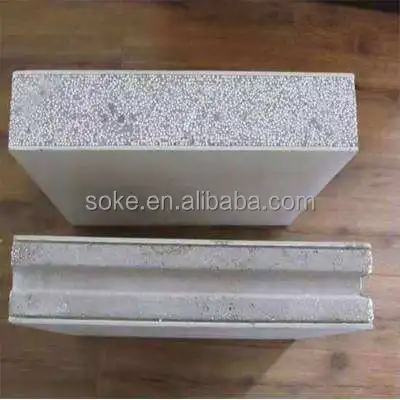

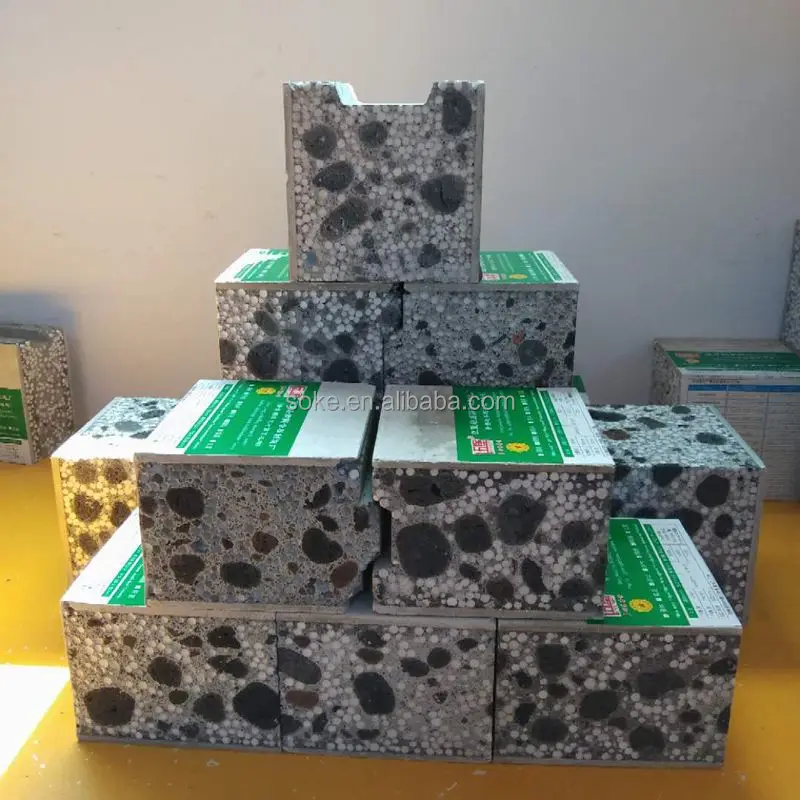

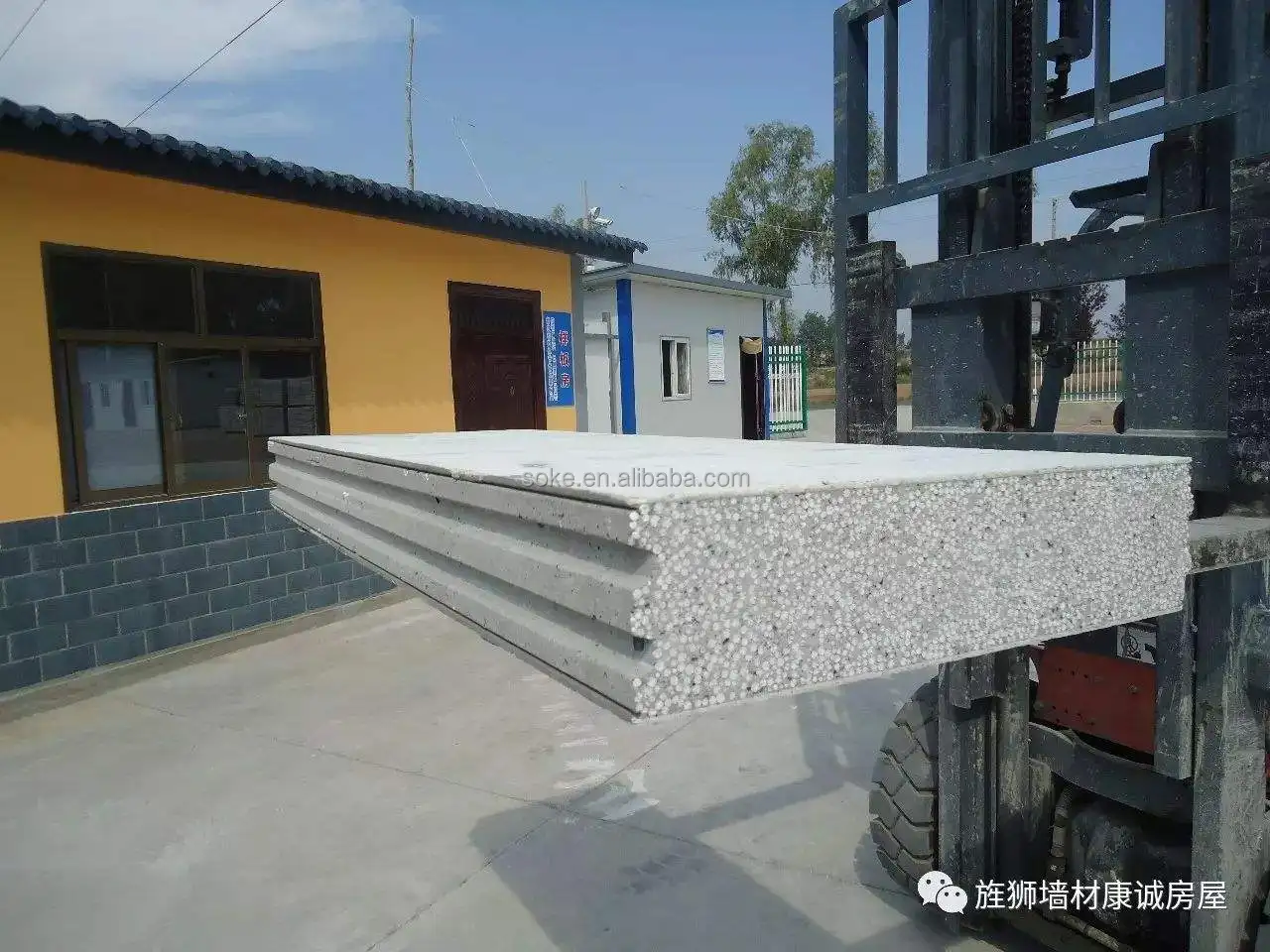

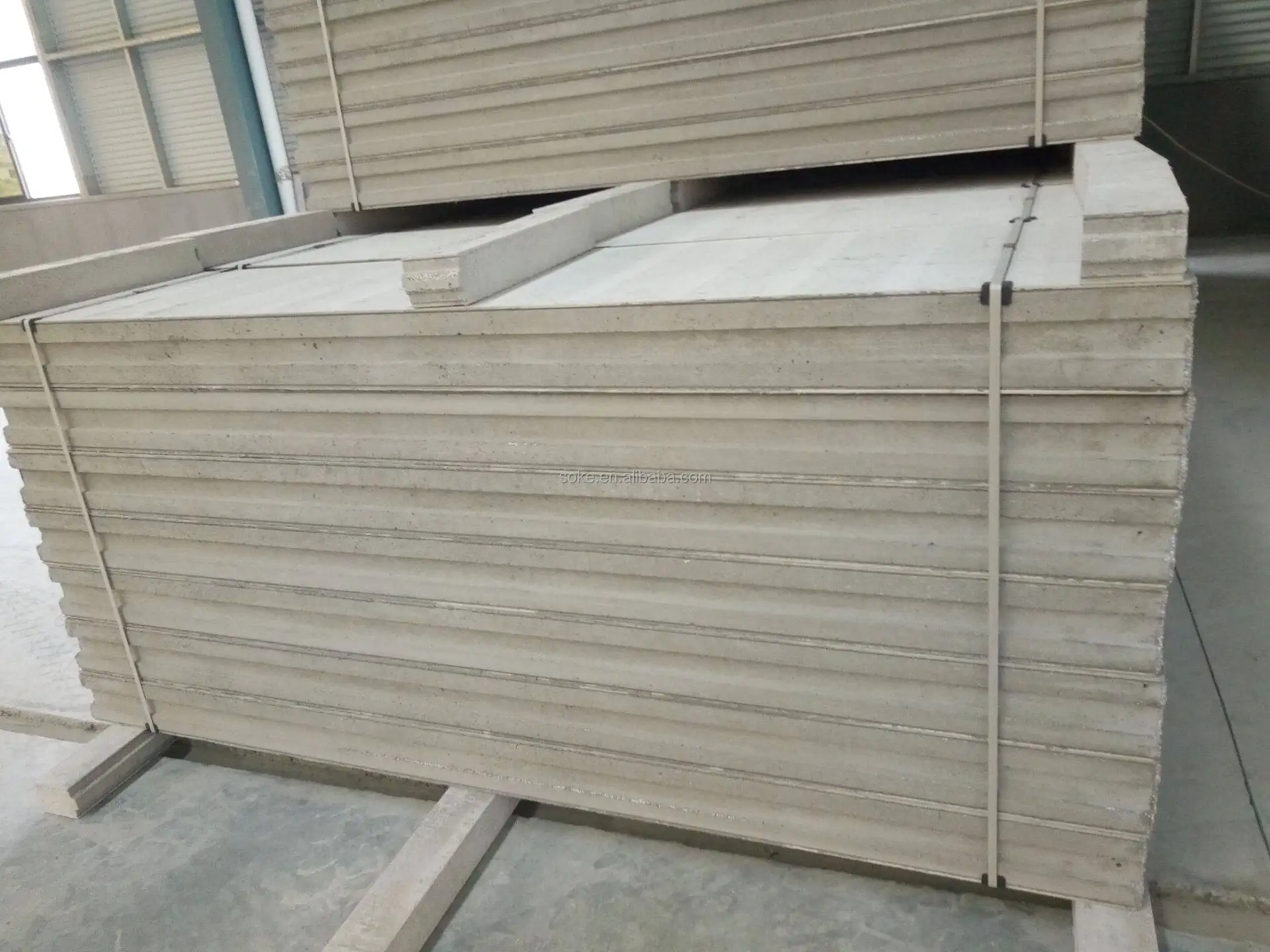

Feature of EPS concrete sandwich wall panels
Feature of lightweight wall panel
1. Light weight: Its density is only 45-60 kg/m2 , and the weight of 75mm thick wall panel is 35kg/m2, which is only 1/7 of that of brick walls, 1/3 of that of aerated concrete, and 1/8 of that of 120mm thick masonry wall with plastering on both sides.
2. Fire proofness: It can endure fire at 1000 degrees for over 4 hours, without producing any toxic gas. Its incombustibility meets a rating of thestate standard.
3. Sound Insulation: It has outstanding sound absorption and insulation capacity. The sound insulation capacity of a 90mm thick board is 42dB, which is far higher than that of other masonry walls, and meet the national requirement of sound insulation for residential houses.

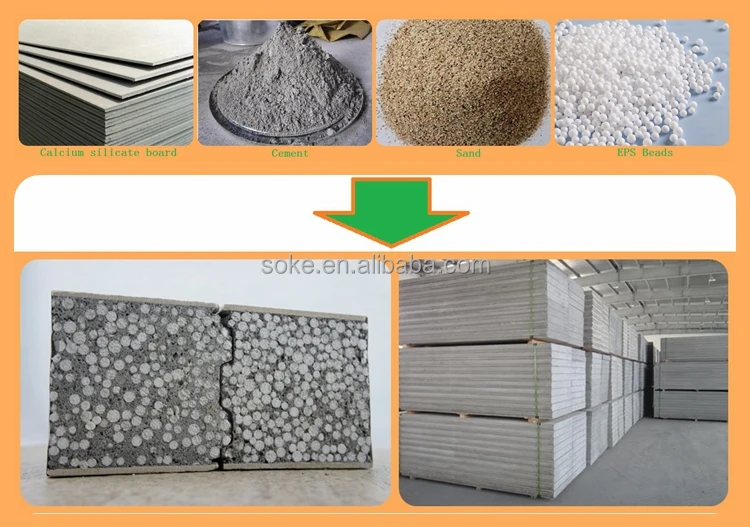

4. Thermal Insulation & Heat Insulation: Nowadays, the construction industry attaches great importance to energy-saving property of buildings. Ionic strip-type wall panel is made of pure natural vermiculite, quartz flour of high purity, inorganic fiber and plant fiber. In addition, the internal alveolate structure also contributes to its remarkable thermal insulation & heat insulation property.
5. Better earthquake resistance and overall stability: Assembled into a whole structure, wall panel has an impact resistant capacity which is 1.5 times as high as that of normal masonry walls. The earthquake resistance is tens of times higher than normal masonry walls, meeting the requirement for buildings to resist earthquake of up to 8 degrees.
6. Easy installation: The wall panel can be grooved freely, nailed directly or embedded with expansion bolts to hang heavy things, like A/C; The single-point hanging strength is over 45kg; In addition, the wall panel has a flat and smooth surface, which is compatible with tiles and wall paper as the finish.
2. Fire proofness: It can endure fire at 1000 degrees for over 4 hours, without producing any toxic gas. Its incombustibility meets a rating of thestate standard.
3. Sound Insulation: It has outstanding sound absorption and insulation capacity. The sound insulation capacity of a 90mm thick board is 42dB, which is far higher than that of other masonry walls, and meet the national requirement of sound insulation for residential houses.
4. Thermal Insulation & Heat Insulation: Nowadays, the construction industry attaches great importance to energy-saving property of buildings. Ionic strip-type wall panel is made of pure natural vermiculite, quartz flour of high purity, inorganic fiber and plant fiber. In addition, the internal alveolate structure also contributes to its remarkable thermal insulation & heat insulation property.
5. Better earthquake resistance and overall stability: Assembled into a whole structure, wall panel has an impact resistant capacity which is 1.5 times as high as that of normal masonry walls. The earthquake resistance is tens of times higher than normal masonry walls, meeting the requirement for buildings to resist earthquake of up to 8 degrees.
6. Easy installation: The wall panel can be grooved freely, nailed directly or embedded with expansion bolts to hang heavy things, like A/C; The single-point hanging strength is over 45kg; In addition, the wall panel has a flat and smooth surface, which is compatible with tiles and wall paper as the finish.

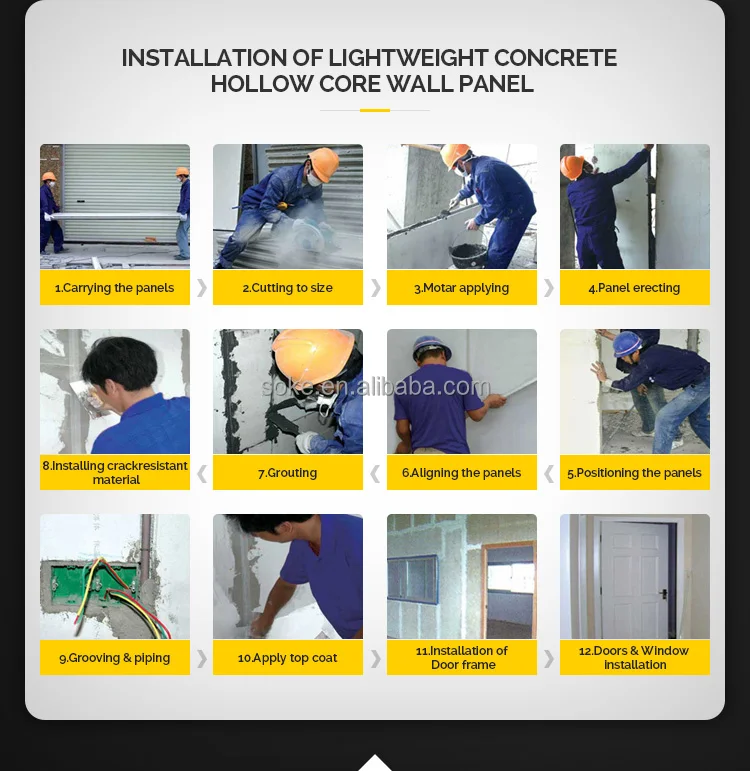

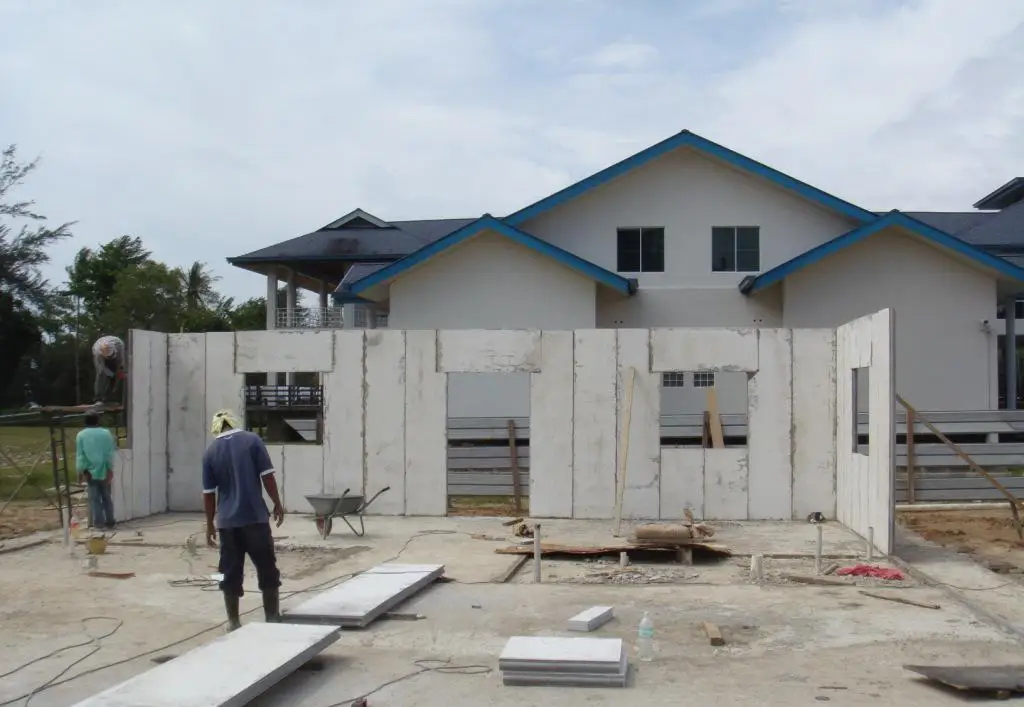

Installation Instructions

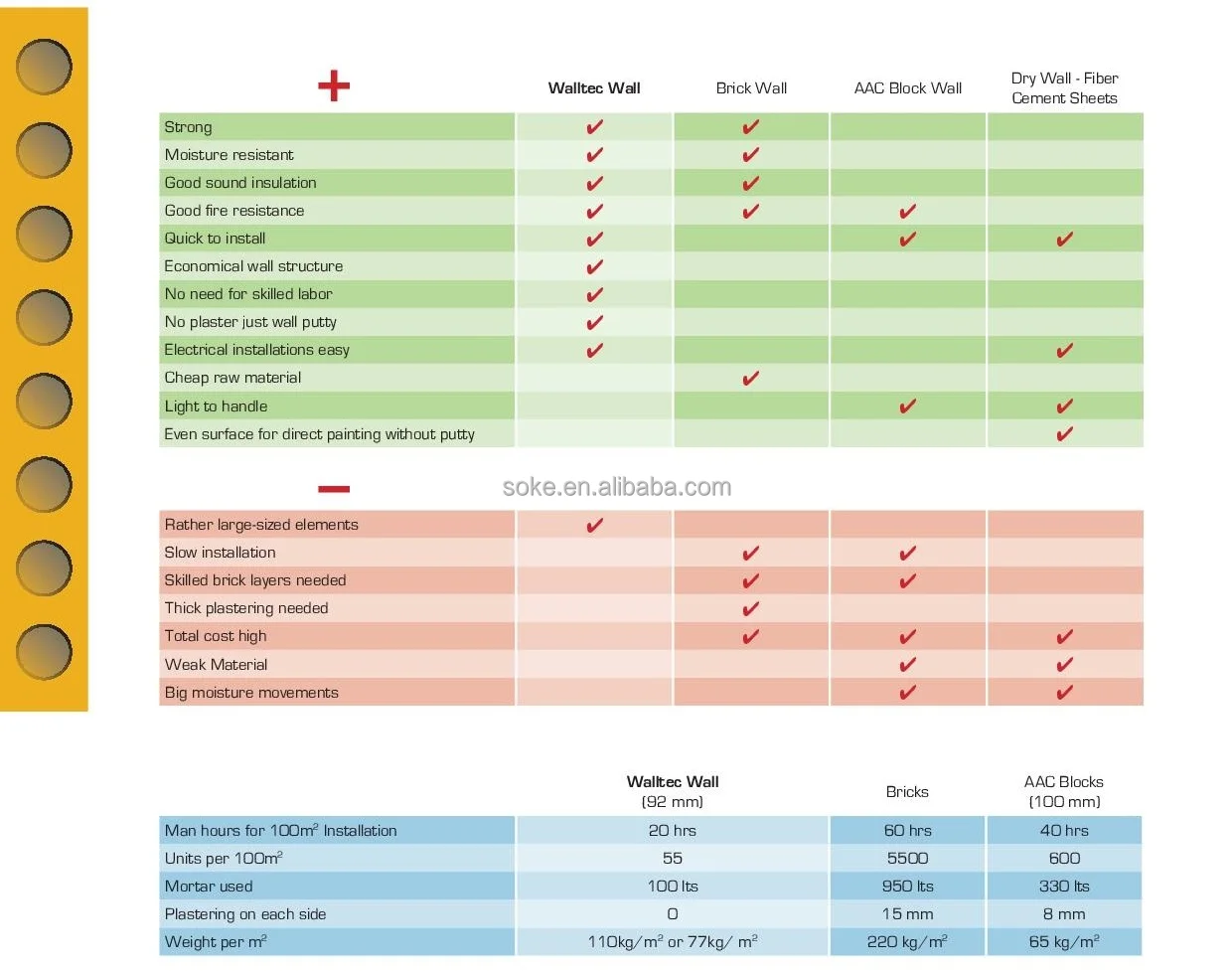

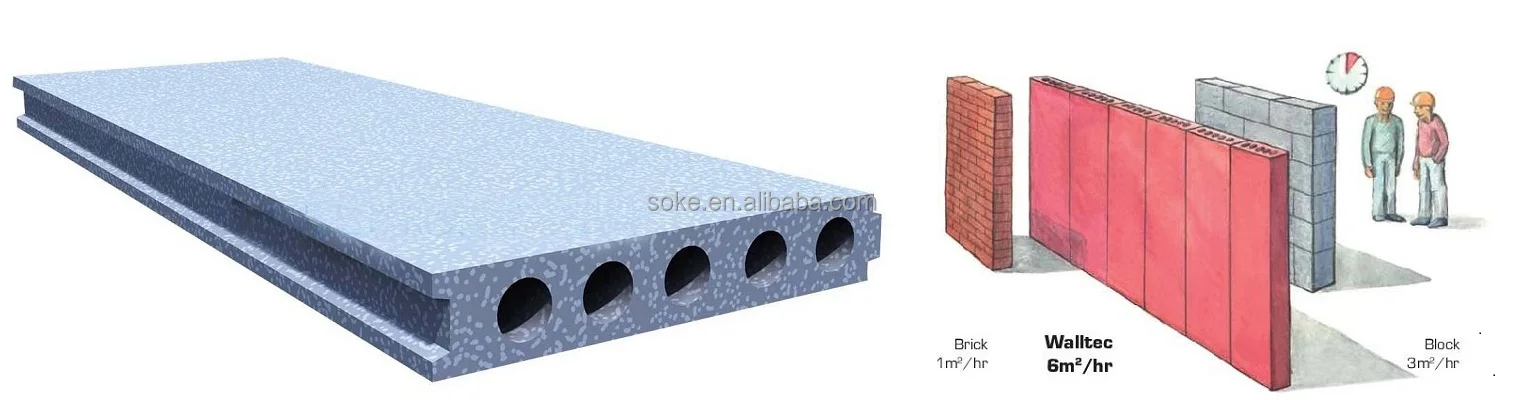

Advanatage of using lightweight concrete wall panel for wall construction
The speed of construction and labor-saving: 3 workers can build a wall of 15m2 in 1 hour.
Saving of mortar: the mortar needed for works is just 20-25% compared to using traditional brick and 40-50% compared to using AAC of CLC blocks.
Easy of installation: electric and communication cables, pipelines can be installed much easier, cheaper and faster.
Lower construction costs: the final cost to build 1m2 of a wall by SOKE concrete panels is 40-50% lower compared to clay bricks wall or 70-75% lower compared to AAC/CLC blocks wall. This brings an enormous saving and profit to the investor (not to mention the cost savings from early completion of the project and about 30% reduction of the foundation cost thanks to the light weight of the wall).
Energy savings: SOKE lightweight wall panels are suitable for high-rise buildings construction. It helps to save energy bill by reducing the cost of air conditioning, heating due to great heat & sound insulations.
Saving of mortar: the mortar needed for works is just 20-25% compared to using traditional brick and 40-50% compared to using AAC of CLC blocks.
Easy of installation: electric and communication cables, pipelines can be installed much easier, cheaper and faster.
Lower construction costs: the final cost to build 1m2 of a wall by SOKE concrete panels is 40-50% lower compared to clay bricks wall or 70-75% lower compared to AAC/CLC blocks wall. This brings an enormous saving and profit to the investor (not to mention the cost savings from early completion of the project and about 30% reduction of the foundation cost thanks to the light weight of the wall).
Energy savings: SOKE lightweight wall panels are suitable for high-rise buildings construction. It helps to save energy bill by reducing the cost of air conditioning, heating due to great heat & sound insulations.

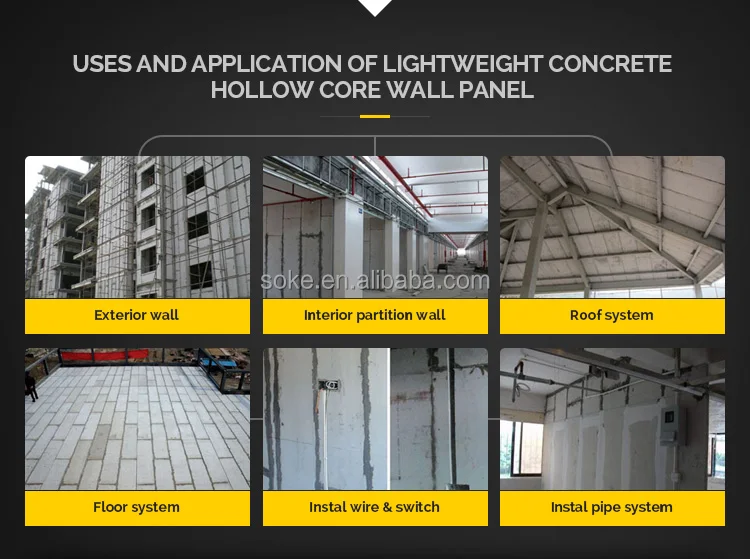

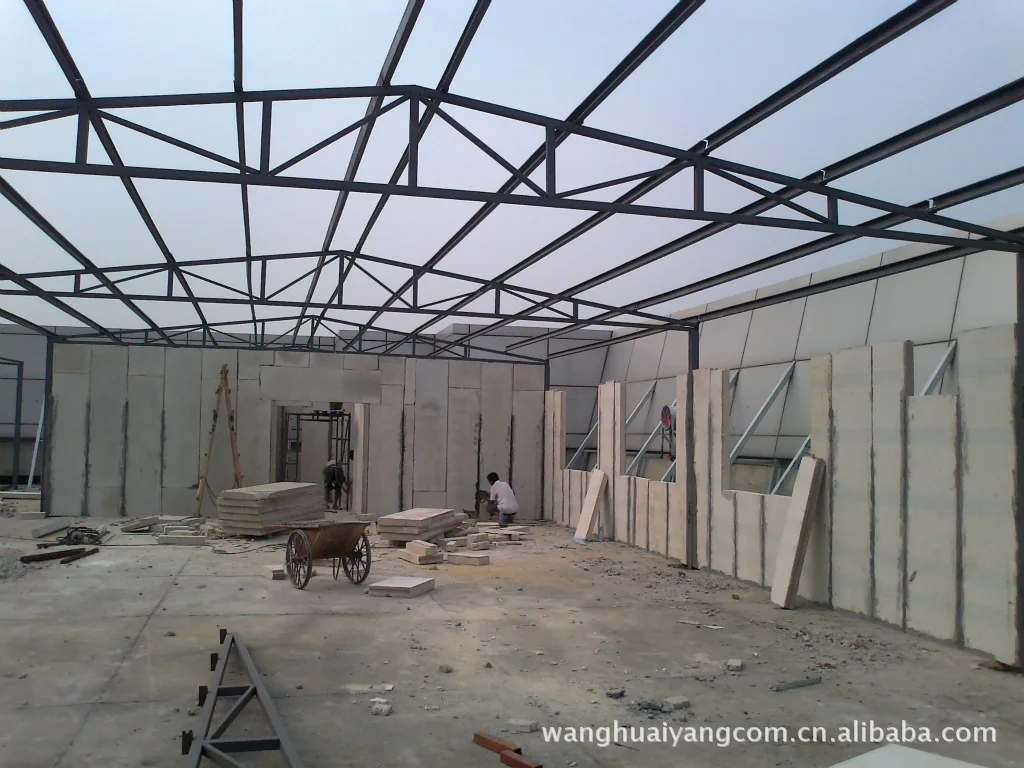

Uses and application of lightweight concrete wall panels
Our services
* The technical supporting all the time 7x24hours
* One year warranty for whole machine
* Free quick wear parts
* Free training to end-users and online training
* Low charge continue maintenance
* One year warranty for whole machine
* Free quick wear parts
* Free training to end-users and online training
* Low charge continue maintenance
