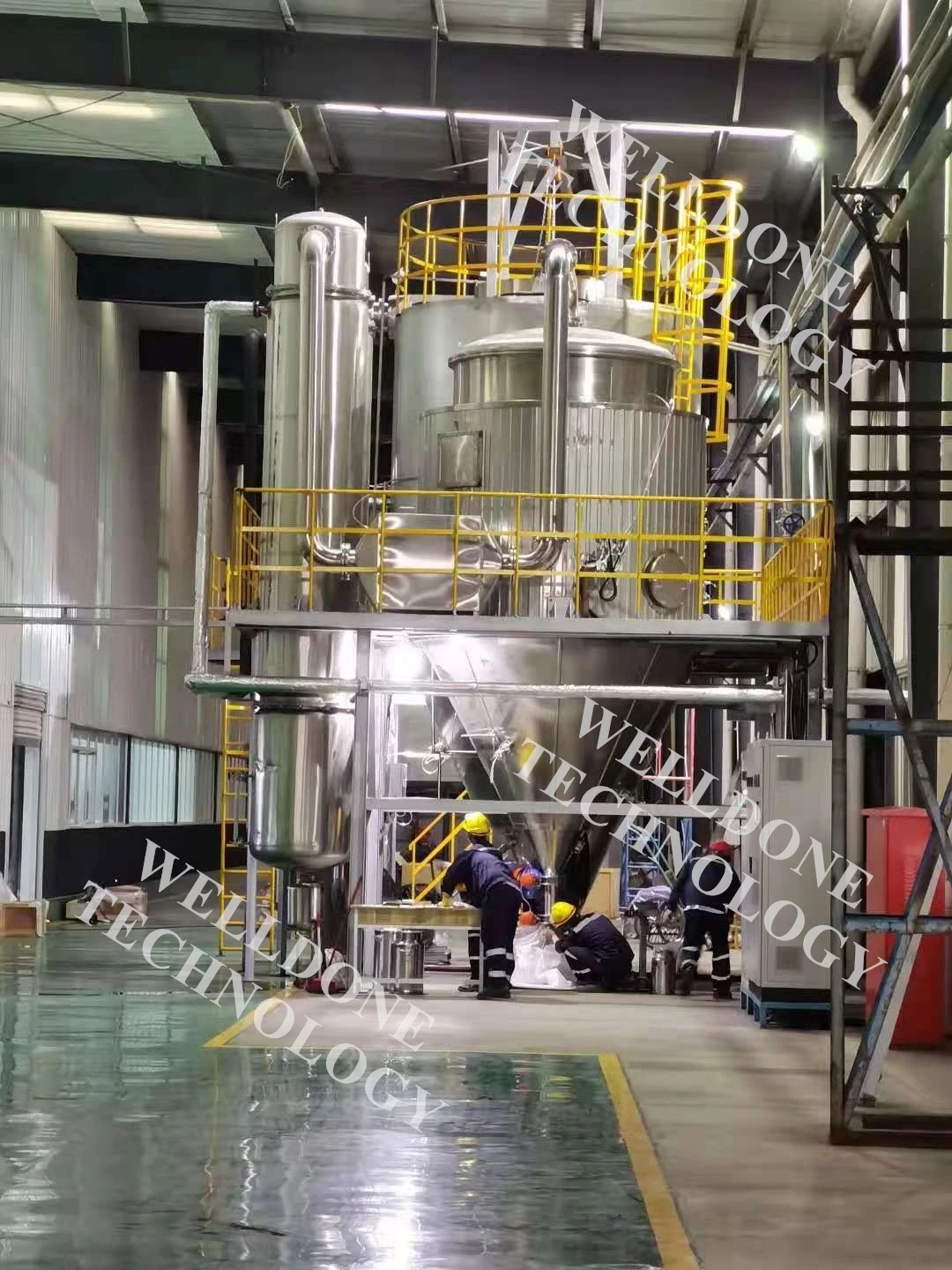

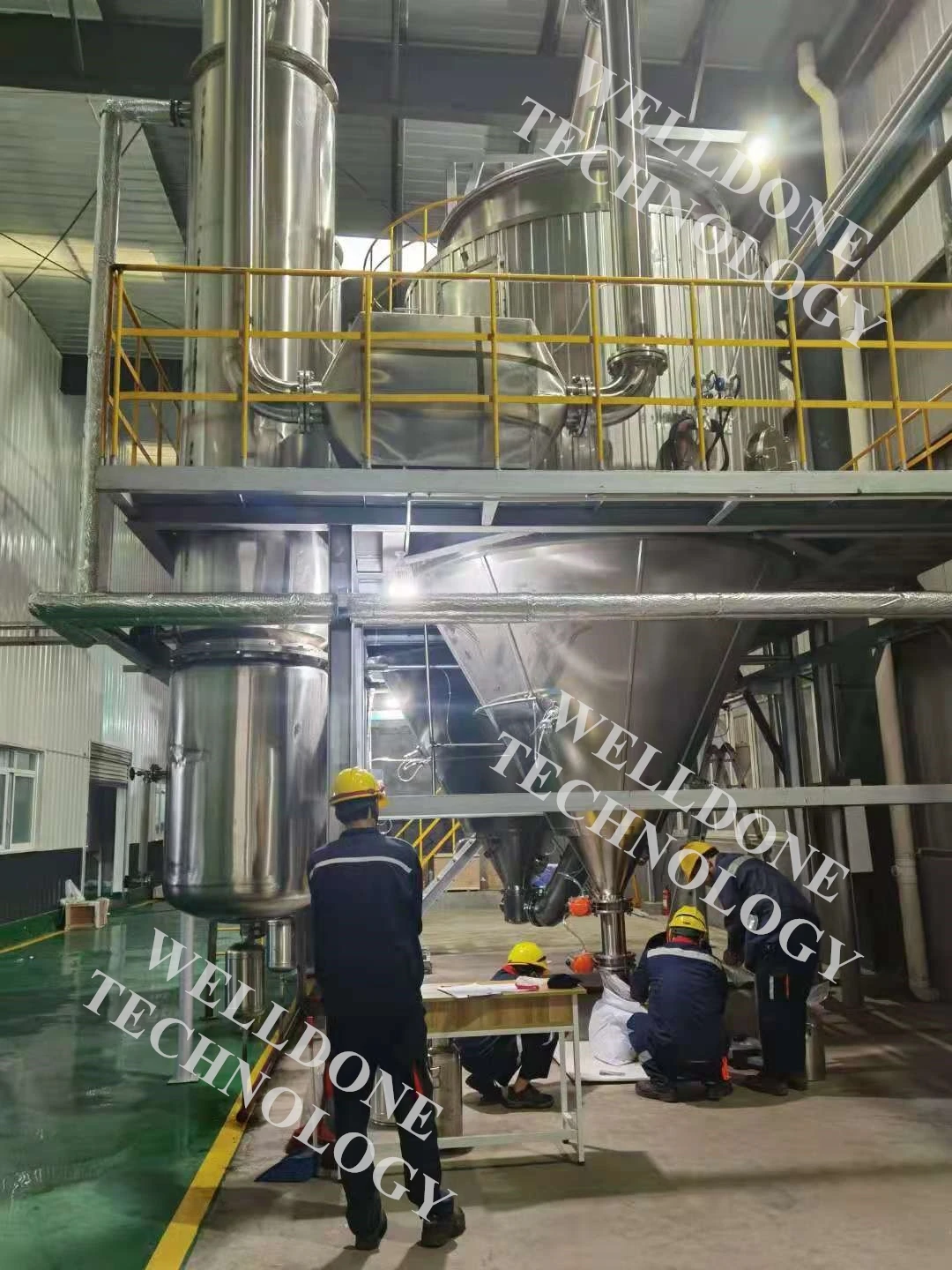

Spray Dryer for Food Flavoring / Food Flavor / Seasoning (Energy Saving, Customized Design)
- Category: >>>
- Supplier: Changzhou Welldone Machinery Technology Co. Ltd.
Share on (1600610692057):
Product Overview
Description
Description
Technical Advantages of Spray Dryer for Food Flavoring / Food Flavor / Seasoning (Energy Saving, Customized Design)
1. Energy Saving: Compared against original design, our spray dryer could save 20-30% Energy
2. Special Drying & Granulating Integrated Design: make it available to produce porous structure granules in one step, saves occupied space and process truble
3. Sanitary Design: There has fully automatically controlled CIP system for thorough cleaning, inner chamber is mirror polished, whole design has no dead zone
4. Special design for high viscous, heat sensitive raw material liquid
5. Highly Automation Control, and remote control (by mobile or laptop) is available
2. Special Drying & Granulating Integrated Design: make it available to produce porous structure granules in one step, saves occupied space and process truble
3. Sanitary Design: There has fully automatically controlled CIP system for thorough cleaning, inner chamber is mirror polished, whole design has no dead zone
4. Special design for high viscous, heat sensitive raw material liquid
5. Highly Automation Control, and remote control (by mobile or laptop) is available
Features of Spray Dryer for Food Flavoring / Food Flavor / Seasoning (Energy Saving, Customized Design)
--1.High speed drying. After liquid raw material being sprayed, its' surface area will be increased greatly. With higher drying
efficiency, 95%-98% of water could be evaporated in a few seconds. Drying time is very short, it is suitable for heat sensitive raw material
--2.Product comes from spray dryer has very good uniformity, solubility, fluidity and purity.
--3.The production procedures are simple, the operation and control are easy. Liquid with the moisture contents ranges 40-60% (for some special materials, the moisture content is available at 90%) can be dried into the powder in one time. There is no need for grinding or sieving after spray drying, this simplifies operation procedures and improves product purity. Product size, bulk density, moisture content is adjustable in certain ranges.
efficiency, 95%-98% of water could be evaporated in a few seconds. Drying time is very short, it is suitable for heat sensitive raw material
--2.Product comes from spray dryer has very good uniformity, solubility, fluidity and purity.
--3.The production procedures are simple, the operation and control are easy. Liquid with the moisture contents ranges 40-60% (for some special materials, the moisture content is available at 90%) can be dried into the powder in one time. There is no need for grinding or sieving after spray drying, this simplifies operation procedures and improves product purity. Product size, bulk density, moisture content is adjustable in certain ranges.
Principle of Spray Dryer for Food Flavoring / Food Flavor / Seasoning (Energy Saving, Customized Design)
Hot air enters into dryer in spiral form under the function of air distributor after being filtered and heated. By passing through high-speed rotary atomizer on top of tower, the liquid raw material will be sprayed into the extremely fine mist beads. Through the very short time of contacting with hot air, the liquid can be dried into final solid powder products. The final products will be discharged continuously from the bottom of drying tower and from cyclone separator. Waste tail air will be discharged from exhaust fan.

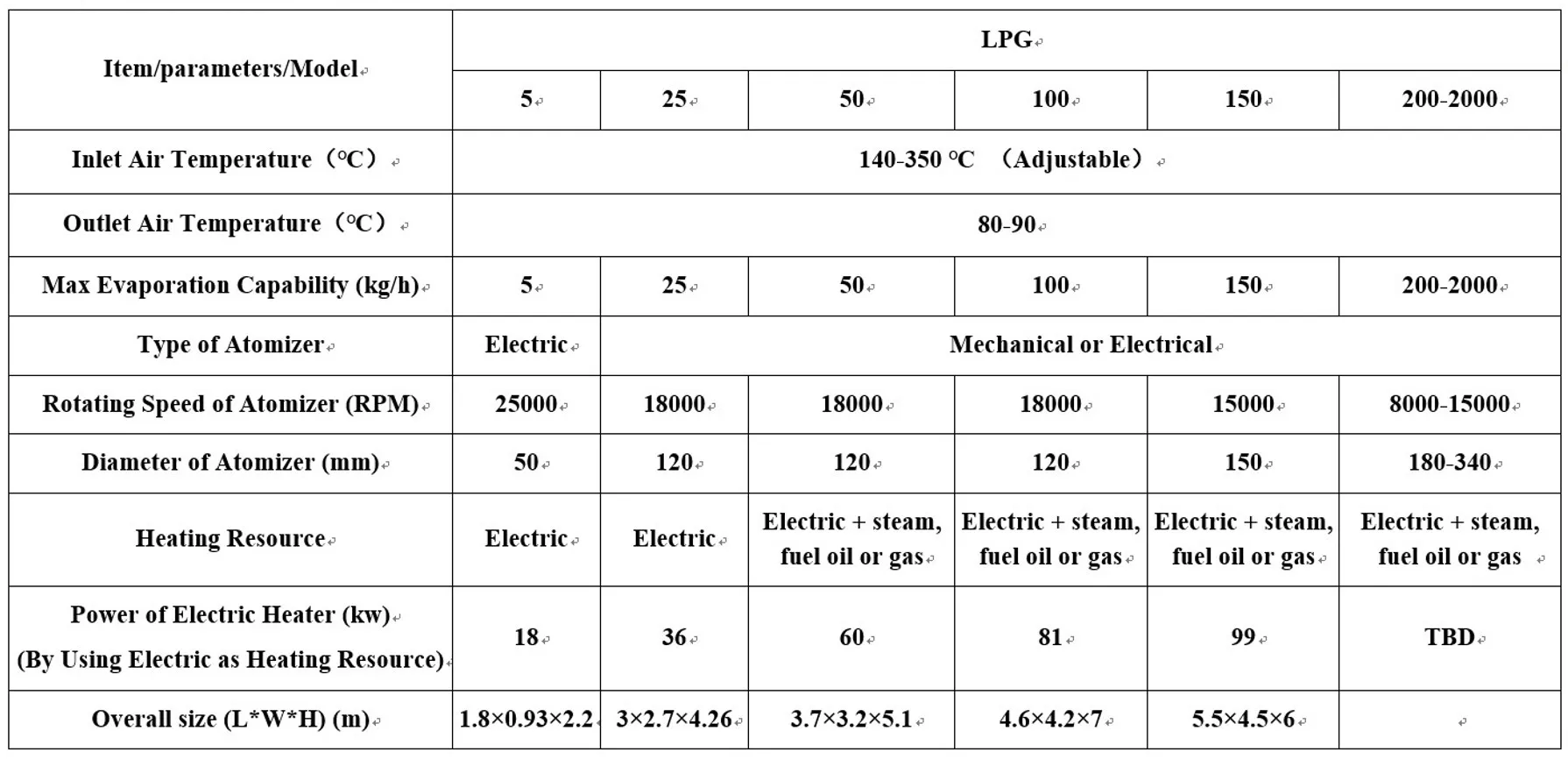

Technical Parmeter

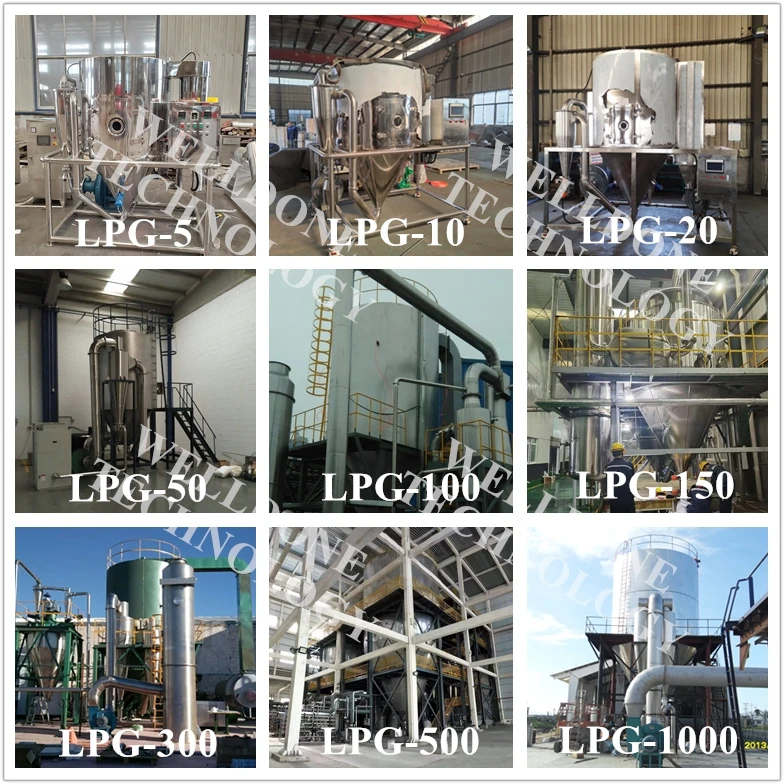

Picture of products
Specification
item | value |
Type | Spray Drying Equipment |
Application | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
Condition | New |
Place of Origin | China |
Jiangsu | |
Brand Name | WELLDONE |
Voltage | 220V-480V (TBD) |
Power | 2.2KW-255KW |
Dimension(L*W*H) | D-1*2m-----D-12*30m |
Key Selling Points | Competitive Price |
Warranty | 2 years |
Weight (KG) | 2000 |
Applicable Industries | Manufacturing Plant |
Showroom Location | None |
Marketing Type | Hot Product 2019 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 2 years |
Core Components | Bearing, Pump, Motor |
Material | SUS304, SUS316L |
Weight | 250KGS-40000KGS |
Heating Source | Steam/Electric/Gas/Diesel |
Construction Material | SUS304/SUS316L/Titanium |
Evaporation Capacity | 1.5L-5000L |
Application | Liquid |
Drying Temperature | 150-300℃ |
Way to Discharge | Manual/ Pneumatic / Electrical |
Drying Efficiency | 50% |
After-sales Service Provided | Field installation, commissioning and training |
Local Service Location | None |

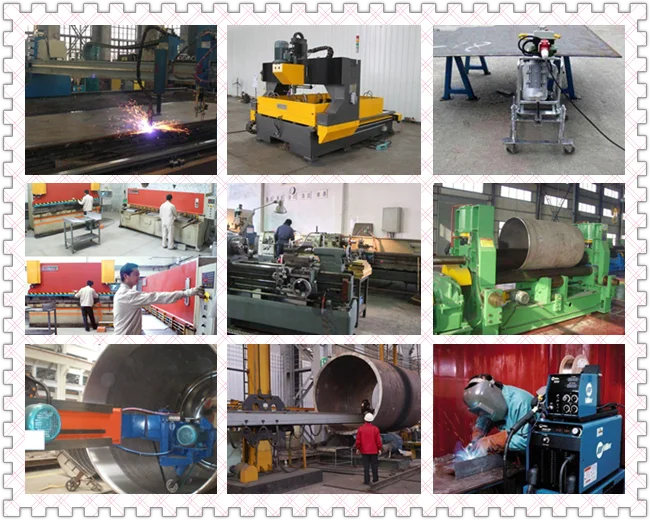

Company Profile
Changzhou Welldone Machinery Technology Co., Ltd is a professional dryers and granulators supplier based on real manufacturing factory which established in 2011. We are able to provide customized design based on different raw material. By working with senior engineers, Welldone Technology is also engaged in dryers technical researching & package solution integrating work.
Free trial and wet material study are available for our customers.Welldone Technology has skilled and experienced after sales service team who can reach customers in short notice for providing professional installation, commissioning and training services
Our machines are energy saving, environmental friendly, and high cost efficient. With good quality control, our typical users are across 50 countries all around the world such as USA, Canada, Spain, Singapore, New Zealand, Brazil, Japan, Korea, Indonesia, Malaysia, Vietnam etc.
Welldone Technology is your reliable supplier in drying and granulating field!
Free trial and wet material study are available for our customers.Welldone Technology has skilled and experienced after sales service team who can reach customers in short notice for providing professional installation, commissioning and training services
Our machines are energy saving, environmental friendly, and high cost efficient. With good quality control, our typical users are across 50 countries all around the world such as USA, Canada, Spain, Singapore, New Zealand, Brazil, Japan, Korea, Indonesia, Malaysia, Vietnam etc.
Welldone Technology is your reliable supplier in drying and granulating field!

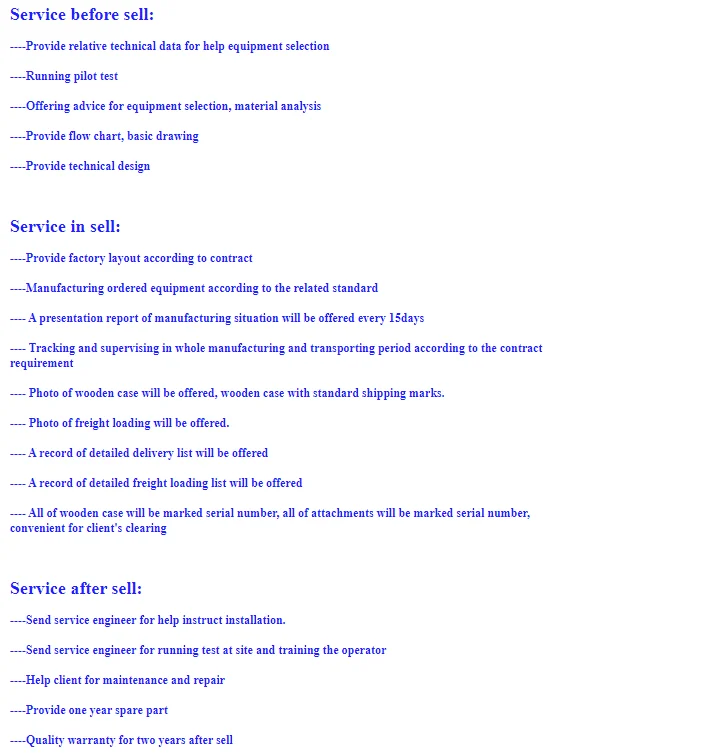

Our Service
item | value |
Type | Spray Drying Equipment |
Application | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
Condition | New |
Place of Origin | China |
Jiangsu | |
Brand Name | WELLDONE |
Voltage | 220V-480V (TBD) |
Power | 2.2KW-255KW |
Dimension(L*W*H) | D-1*2m-----D-12*30m |
Key Selling Points | Competitive Price |
Warranty | 2 years |
Weight (KG) | 2000 |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory |
Showroom Location | None |
Marketing Type | Hot Product 2019 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 2 years |
Core Components | Pump, Motor, PLC |
Evaporation Capacity(kg/h) | 200 |
Heating Method | Gas Heating |
Material | SUS304, SUS316L |
Weight | 250KGS-40000KGS |
Heating Source | Steam/Electric/Gas/Diesel |
Construction Material | SUS304/SUS316L/Titanium |
Evaporation Capacity | 1.5L-5000L |
Application | 150-300℃ |
Way to Discharge | Touch Screen / Remote / Button |
Special Design | Corrosive / Explosive / Wall Adhesive |
After-sales Service Provided | Field installation, commissioning |
After Warranty Service | Online support |
Certification | CE, ISO9001:2008 |
