flanged outlet tapping saddle tee clamp di ductile iron pipe fittings universal range stainless steel strap saddle clamp

Share on (1600610706622):


Price:

Quantity:


Product Overview

Description



Product Description




Specification

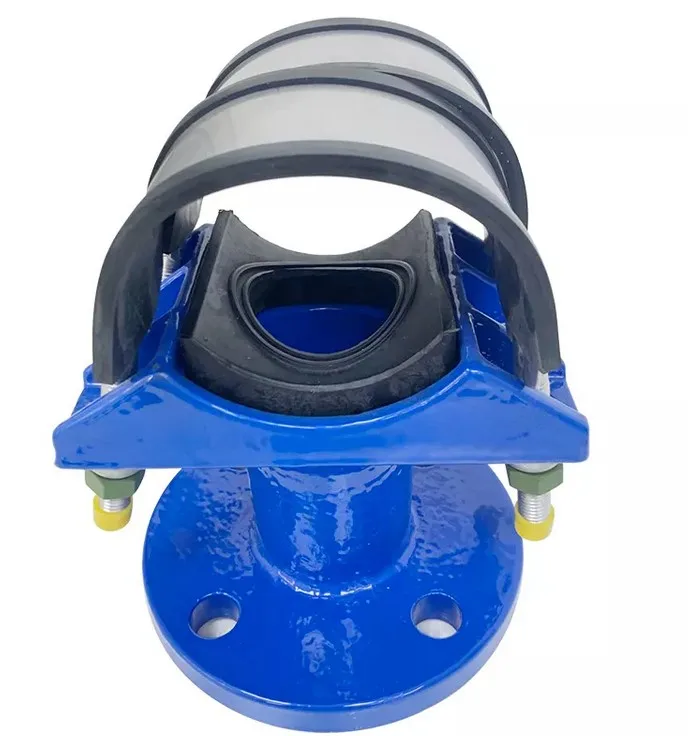

ductile iron tapping saddle clamp with PN10/16 flange outlet
Stainless Steel Strap Saddle with Flanged Outlet is designed for hot tapping for the bigger diameter branch pipeline connection by flange, can be connected with flanged valves,fittings mainly used on water works.
High compatibility, can be used as branching excuses for PVC pipe, the connection mode is simple and easy to install, they also can meet the requirement of branch interfaces for new and old pipes.

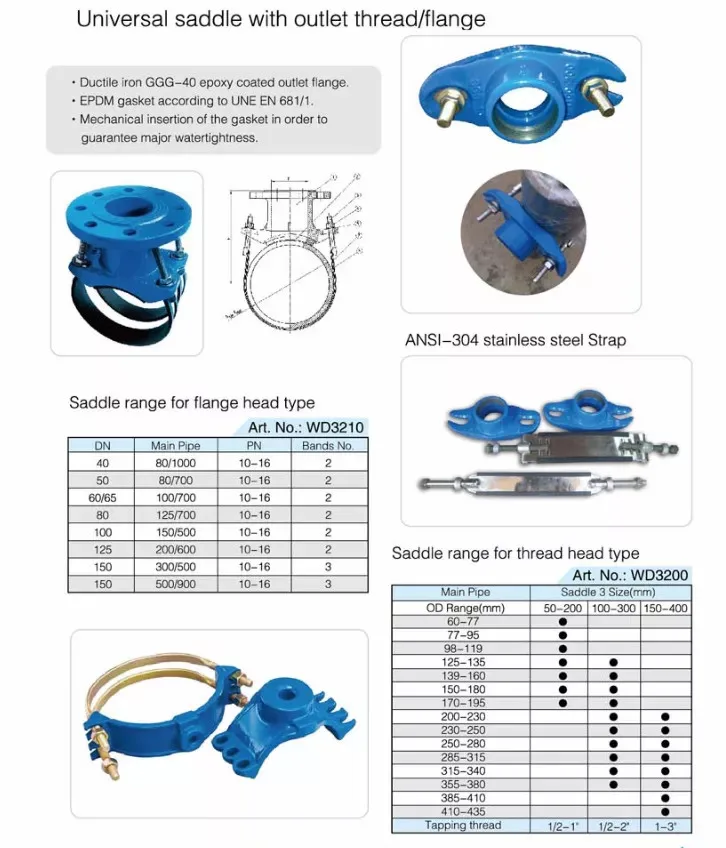

Size ranges:
pipe sizes from DN40-DN1000, universal wide range,can be used on different types and diameters Pipes.
flange outlet sizes from DN40 to DN100 on PN10/16
Materials:
Body -Ductile Iron GGG50/40; Strap/Band-Stainless steel wraped by EPDM;
Gasket- EPDM according to EN681-1
Bolt &Nut: Stainless steel A2-70
Coating : Fusion boned epoxy more than 250 micron/

Working pressure: PN10/PN16,
Suitable for portable water, neutral liquids and sewage.
working temperature: 10℃ to +70℃,
Wars approved.
Application: Construction, water supply and drainage, refrigeration, sanitation.








Our Advantages


Service advantages
1. OEM service
2. 2 year product warranty
3. Quick reaction in 1 hours

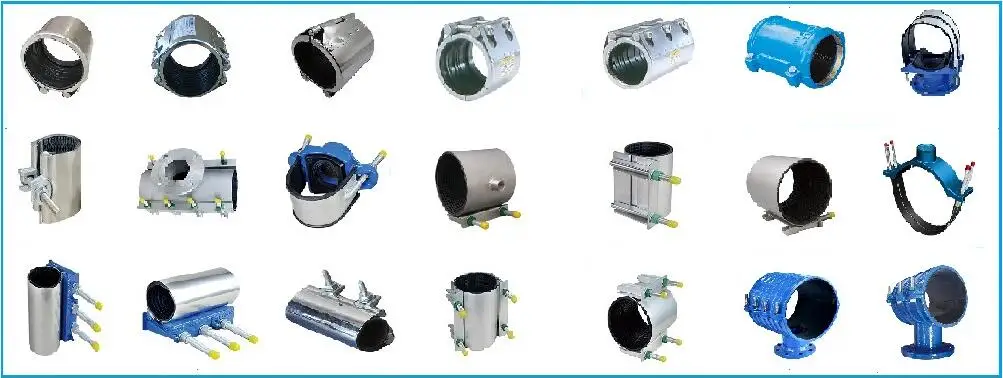

4. one stop solution for water supply networks:

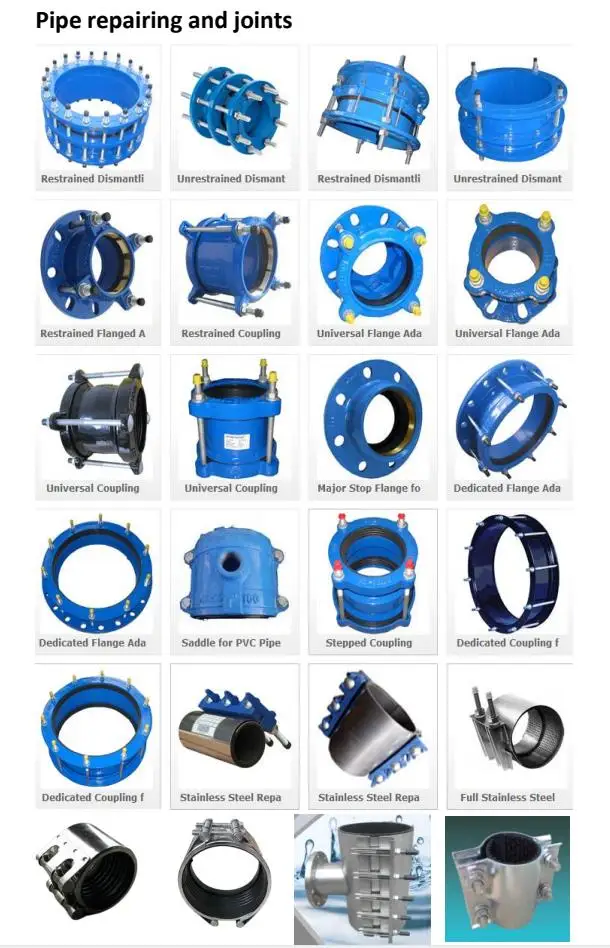

--ductile iron pipe joints(universal range coupling and flange adaptor; dedicated coupling and flange adaptor; restrained coupling and flange adaptor; gibault; dismanting joints; rubber expansion joints; Tapping saddle clamps; repair coupling clamps; )
-ductile iron valves(gate-butterfly-check-air-hydraulic control- filter-ball )


Packing & Delivery




Bubble bag wrapped each item,then put into the plywood case, standard case size 1.1*1.1*1.1m, one 20GP container can load 20 cases. Other package requirements available upon requirement.




Exhibition




Company Profile




With 25+ years production experience on cast iron valves and 10+ years export experience on water pipelines, Shijiazhuang Yanquan I/E Trade company is the independent international trade department of our factory, Besides supplying our own main products-butterfly valves,check valves,gate valves,Y strainer,etc, we also can provide other pipe fittings like flange adaptor,couplng,dismantling jont,rubber expansion joint, repair clamps,DI flanged/socket di fittings,water meters,flanges,grooved fittings,manhole covers,etc, through our 50+ partner factories to provide you one stop solution for pipeline systems with favourable prices and good quality.

Our clients are from Spain, Italy, France, Russia, USA, Brazil, Mexican, Saudi,Egypt,Dubai,Iraq,Algeria,Mozambique,Morocco, South Africa, Thailand, Vietnam, Philippine, Malaysia, Australia, and so on.

For quality, donot need to worry, before delivery, we will inspect the goods twices. TUV, BV, SGS, and other third party inspection are also available. We have ISO ,CE certificate, accept OEM, ODM. And can produce customized products and supply design service. Normal and standard products, MOQ can be just 1PCS.

We also offer: 1.FORM E/CERTIFICATE OF ORIGIN 2. NICE MATERIAL 3.Inspeciton report 4.Technical DATA SHEET, DRAWING 5. T/T, L/C PAYMENT 6. TRADE ASSURANCE ORDER 7. 18 months quality warranty
What is business for us? It is sharing, not just to earn money. We hope together with you to meet more better us.


Certifications




FAQ


1. SAMPLES ISSUE\t\t\t\t
A) Sample charge: depends on the specific items, if sample cost was small, can give free samples,but you need to cover the delivery charge.\t\t\t\t
if the sample cost is big, please afford the sample cost and express fee, and we will defund the cost from the future mass production orders.\t\t\t\t
B)Sample time: if they are in stock, can send in 3 days.\t\t\t\t
\t\t\t\t
2.Who you are? \t\t\t\t
We are a group company with one valve manufacturer and one trading company.Our factory establised in 1995,mainly produce ductile cast iron butterfly valve,check valves, gate valves\t\t\t\t
Y strainers,control valves,etc ,professionally export over 28 years,having own foundry,machining,20000M2 floor area and ISO certified.In order to provide one stop solution for pipeline system,\t\t\t\t
the trading company also sell di pipe joints,repair clamps,steel pipe fittings, flanges, manhole covers, water meters,pipes,etc from 50+ partner factories to supply quality products and favourable price.\t\t\t\t
\t\t\t\t
3. Company advantages: \t\t\t\t
A) Professional:20+ years production experience and 10+ years export experience on the whole pipe system,Strong products are butterfly valves,gate valves with the most low possible prices\t\t\t\t
B) OEM/ODM : acceptable\t\t\t\t
C) super service: Sincerely treat every customer and provide quick reaction,patient and considerate service like the friend. \t\t\t\t
D) Good quality: we have good quality control system and team.\t\t\t\t
\t\t\t\t

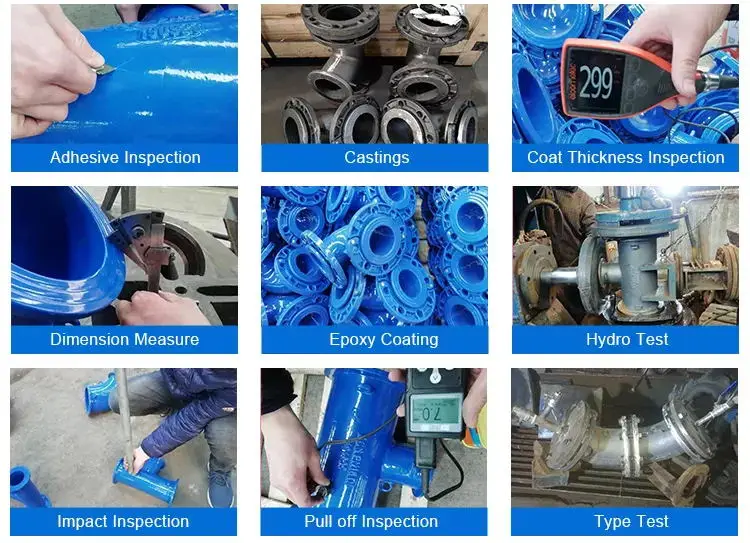

4. How is your Quality Control? \t\t\t\t
1) Products are with certified by ISO,CE,WRAS.\t\t\t\t
2) 100% Inspection before shipment, send you the cargo pictures with details include marking, packing, testing to you together with a Test Report\t\t\t\t
3 ) 18 months quality Guarantee\t\t\t\t
4) Any third party Inspection is acceptable. SGS. TUV. etc\t\t\t\t
5) Free replacement or refund for defective products\t\t\t\t
\t\t\t\t
5.Please talk about your trade terms: \t\t\t\t
1) Payment term: for mass production order: 30% TT in advance,balance before shipment under FOB or BL copy under CFR. \t\t\t
2) Lead time: normally within a month after deposit received,for cast iron valves, the regular items and sizes are in stock,can ship in 15days.\t\t\t\t
3) Loading port: Tianjin /Qingdao /Ningbo /SHanghai,depending on the ordered goods\t\t\t\t
4) Discounts: We offer discounts for big quantity.\t
