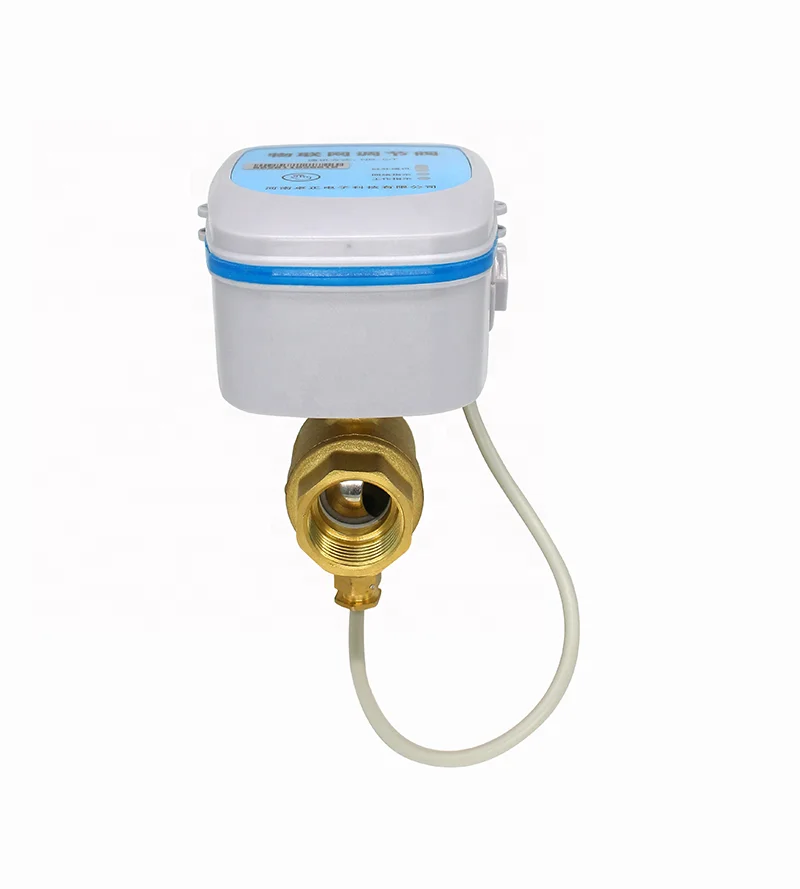

Remote close /open smart ball valve with Lora/ NB-IoT communication


Communication  mode
NB-IoT/LoRa/LoRaWAN/M-BUS/RS485
Model
DN15/DN20/DN25
Type of valve
ball valve
Working voltage
2.7-3.6V  /12-24V
Working condition
≈4.5N.M(±0.5N.M)
Quiescent current
<11uA
Main function
On off, opening degree is adjustable
Battery life
more than 6 years
Protection grade
IP68


Product Description


Brife introduciton of OEM LoRaWAN NB IoT smart gate valve wifi

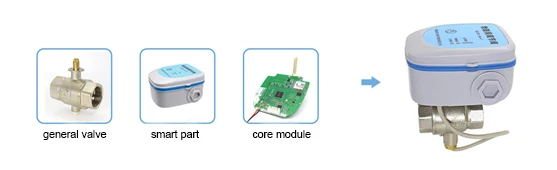

1. The smart gate valve is to install a wireless remote transmission device on the general valve based on NB-IOT / Lora /LoRawan wireless data transmission and reception.
2. The wireless remote intelligent control valve can realize automatic maintenance. It adopts wireless connection with the acquisition equipment.
3. It does not need construction wiring and professional maintenance. It is simple and convenient to install and use.
It can achieve remote automatic control and connect with the charging system to realize remote payment management.




Functions of OEM LoRaWAN NB IoT smart gate valve wifi

1. Wireless wake-up
It can realize remote wireless wake-up and respond to the processing instructions of the upper computer. The sampling period, upload period and heating start and end date can be set remotely.
2. Flexible setting of valve opening
The automatic remote on-off valve function can be realized by combining prepayment and post payment, and the valve opening can be fully opened and closed or controlled according to gear 0-100%.
3. In place detection
In place detection has the function of switch in place detection. When the normally open contact is in place and closed, the valve switch is in place and the valve operation can be stopped immediately.
4. Valve fault detection(alarm)
Valve fault detection automatically determines whether the valve limit switch works normally. At the same time, even if the limit switch fails, the valve can still be opened and closed normally. If the valve state is abnormal, there will be an alarm prompt in the background.
5. Automatic washing valve
Automatic valve washing function, the valve automatically opens and closes the valve once a month to prevent the valve from locking.
6. Flexible setting of information collection
Collect water inlet and return temperature, battery voltage, valve angle and other information according to the set cycle. The collection cycle can be set: 10 ~ 60 minutes.
7. Key wake up
It supports key wake-up. The valve will communicate with the server once and read instructions from the message server no matter in the daytime or whether it is in the heating period.
8. Real time monitoring
It can monitor various operation states of the valve in real time, including valve opening, inlet and return water temperature, battery voltage, wake-up type, wake-up time, operation state, equipment state and other information.

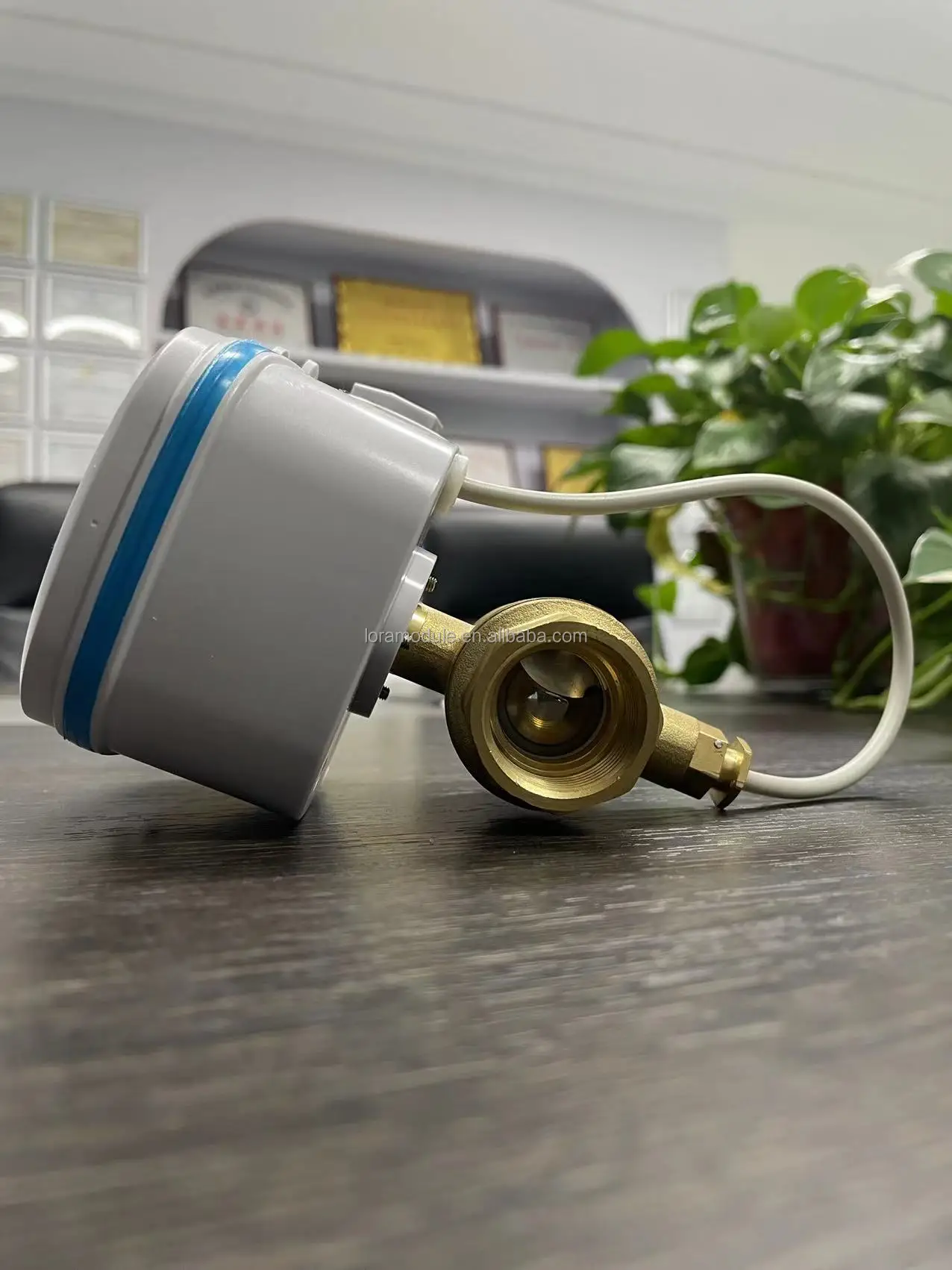

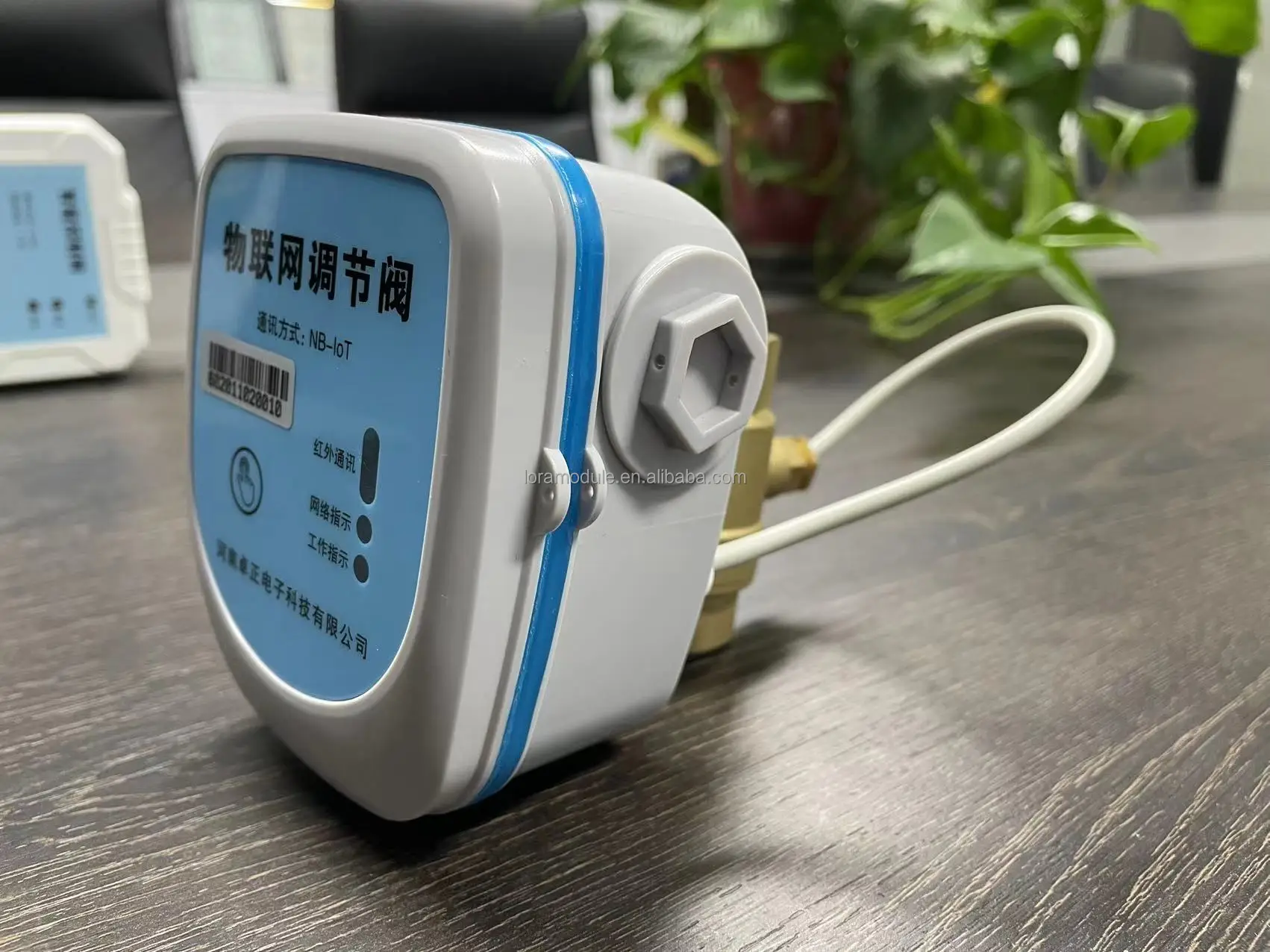

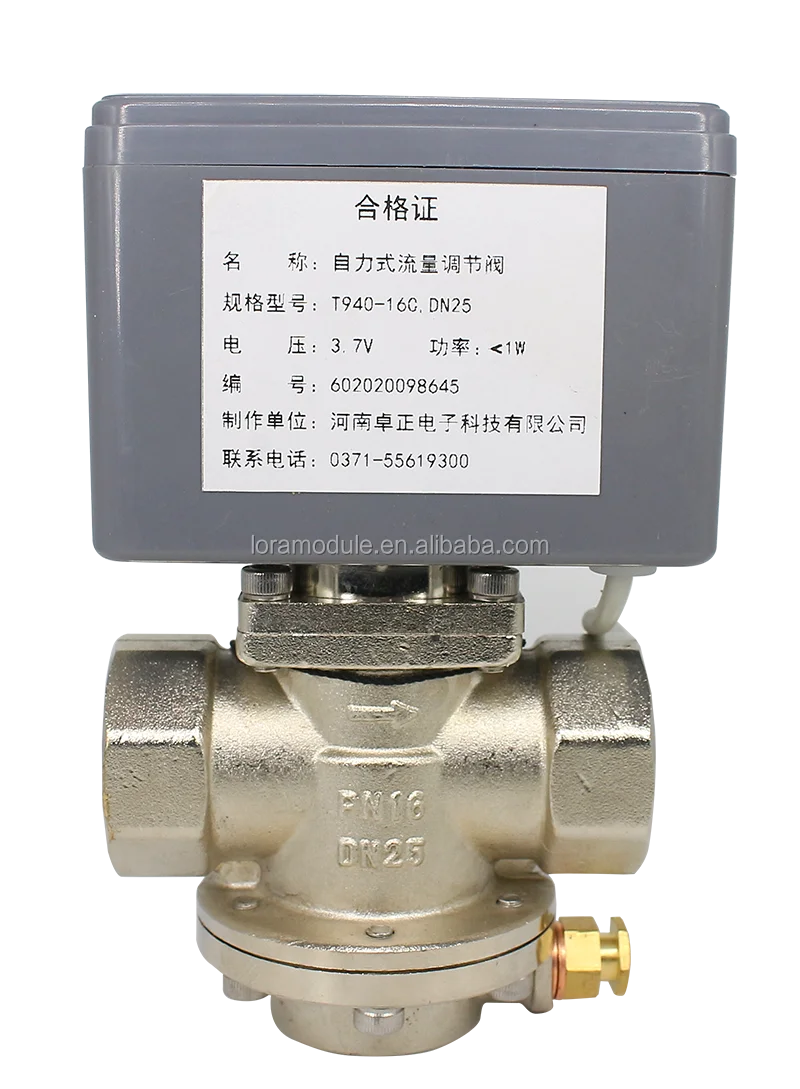

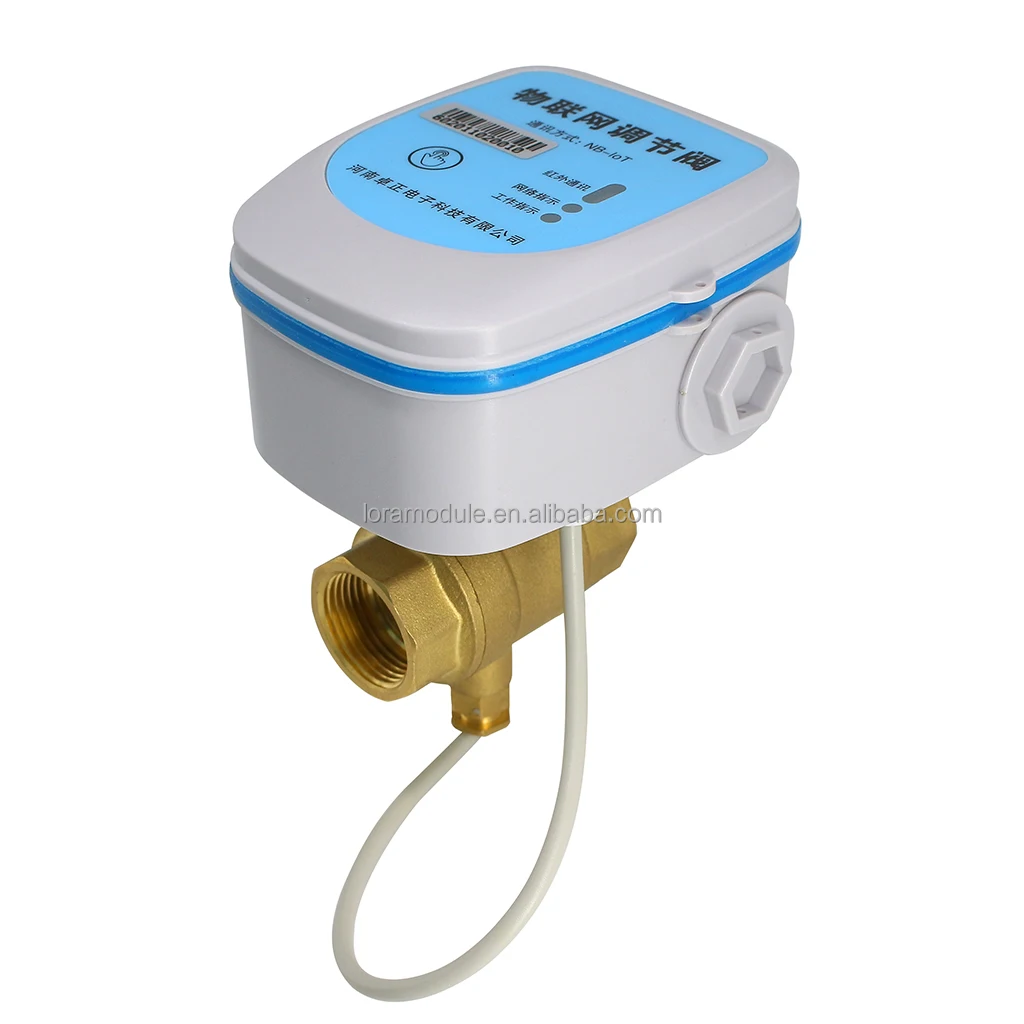

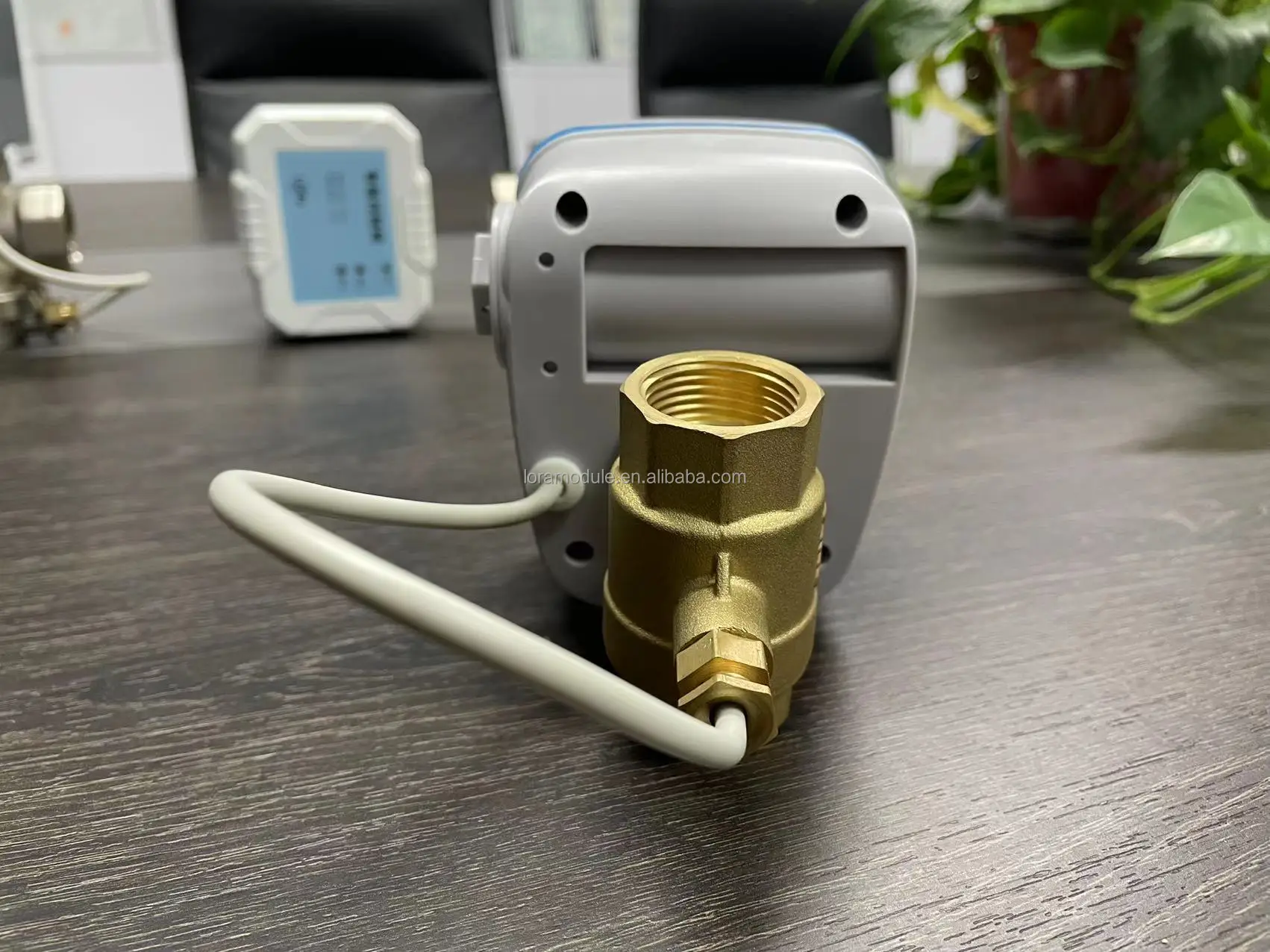

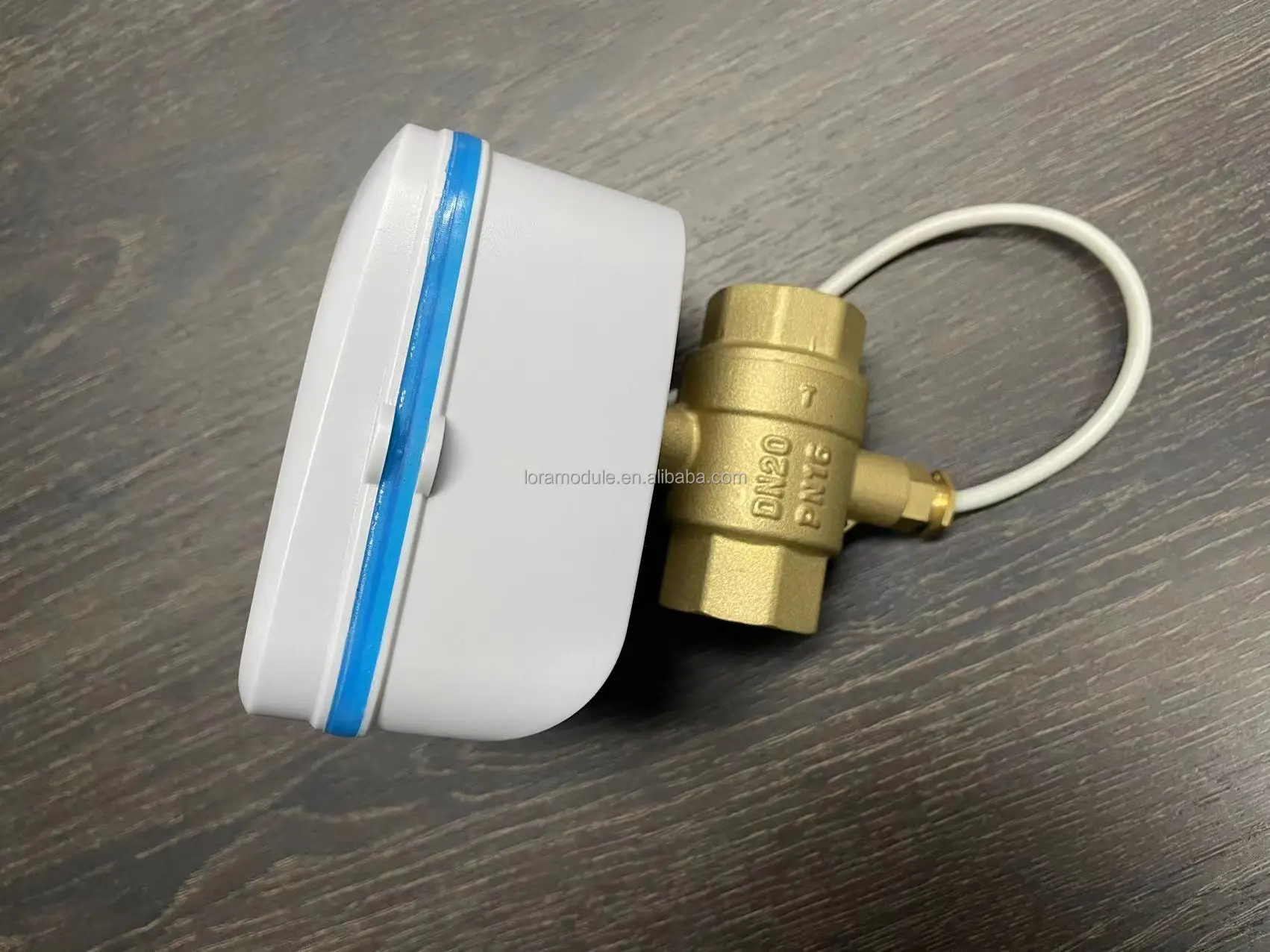

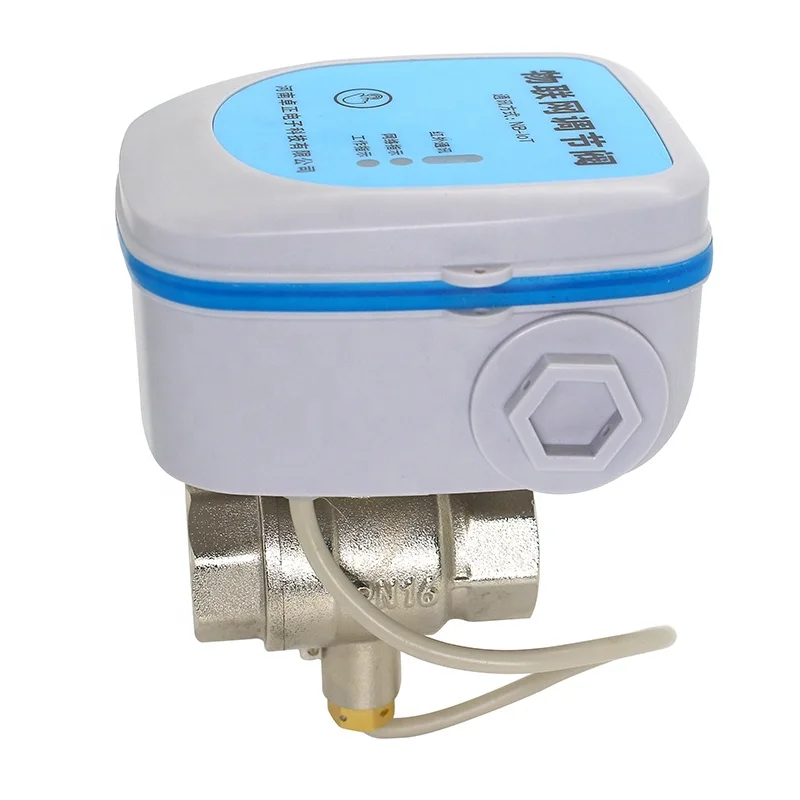

More pictures of OEM LoRaWAN NB IoT smart gate valve wifi
