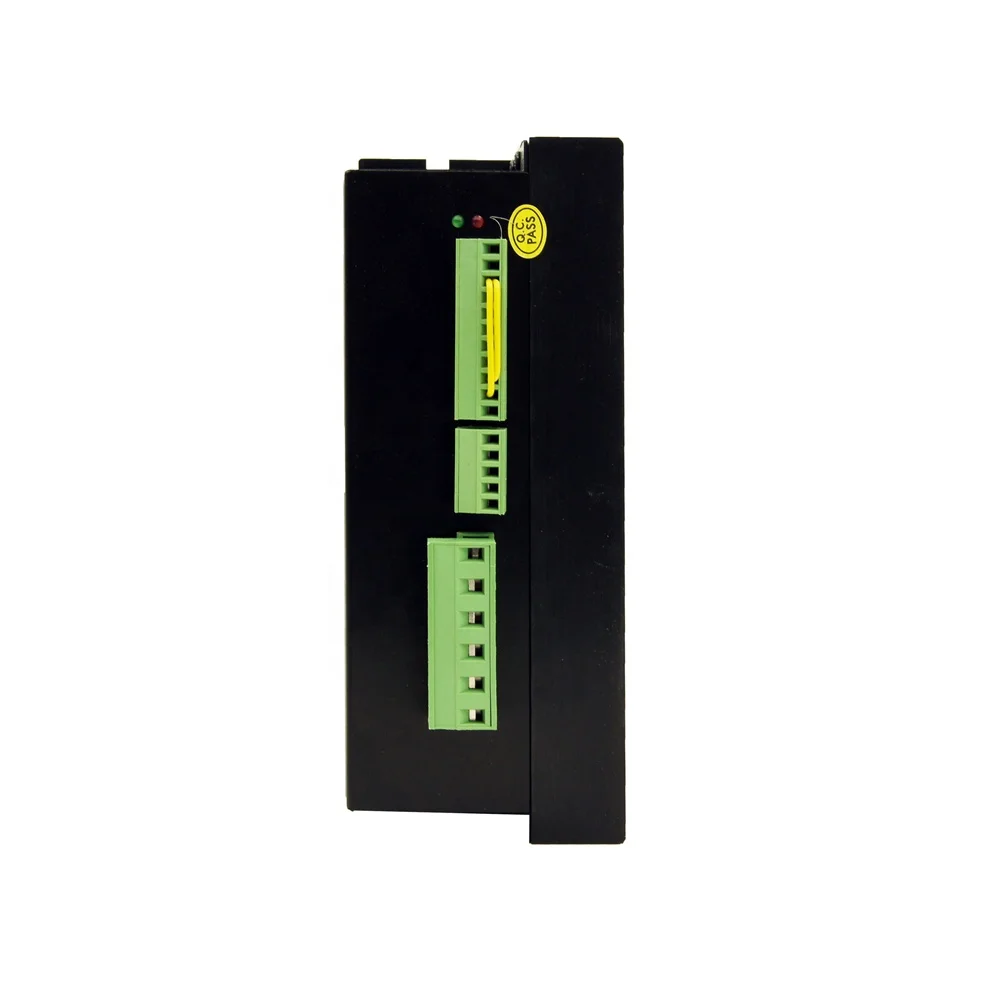

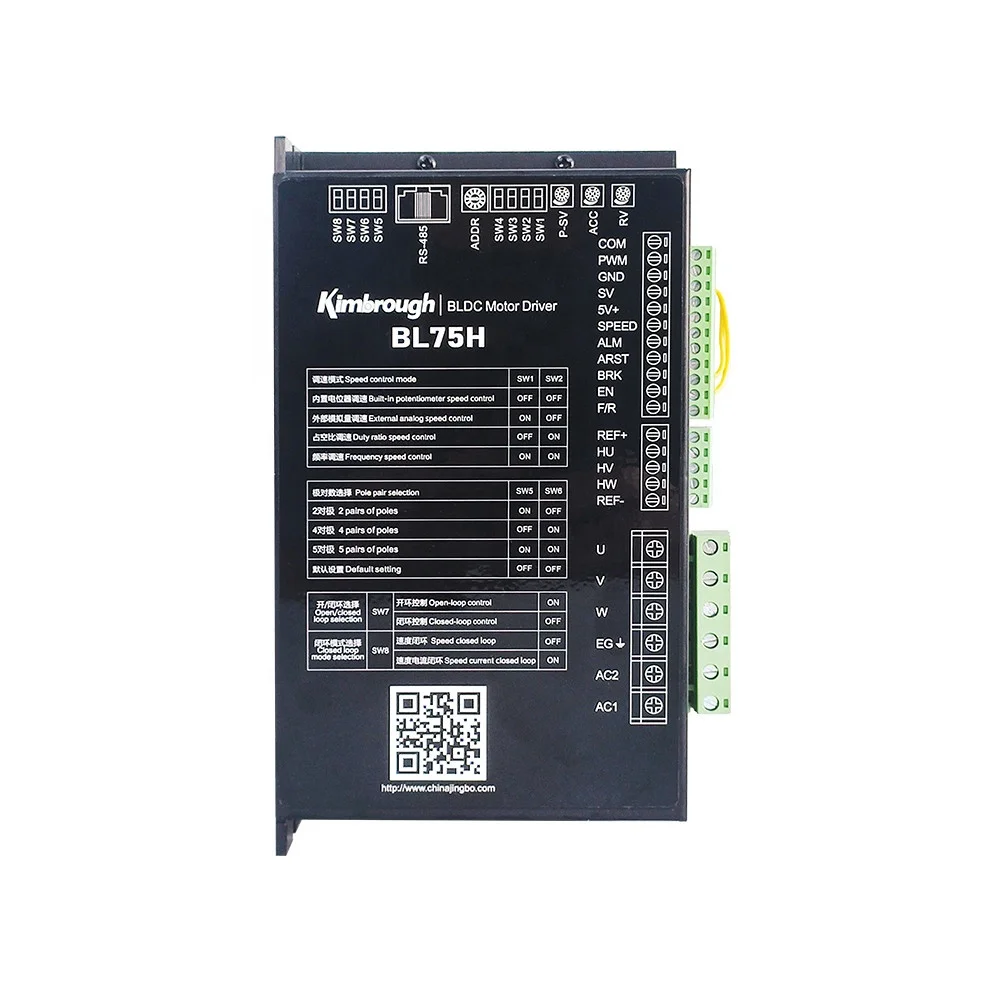

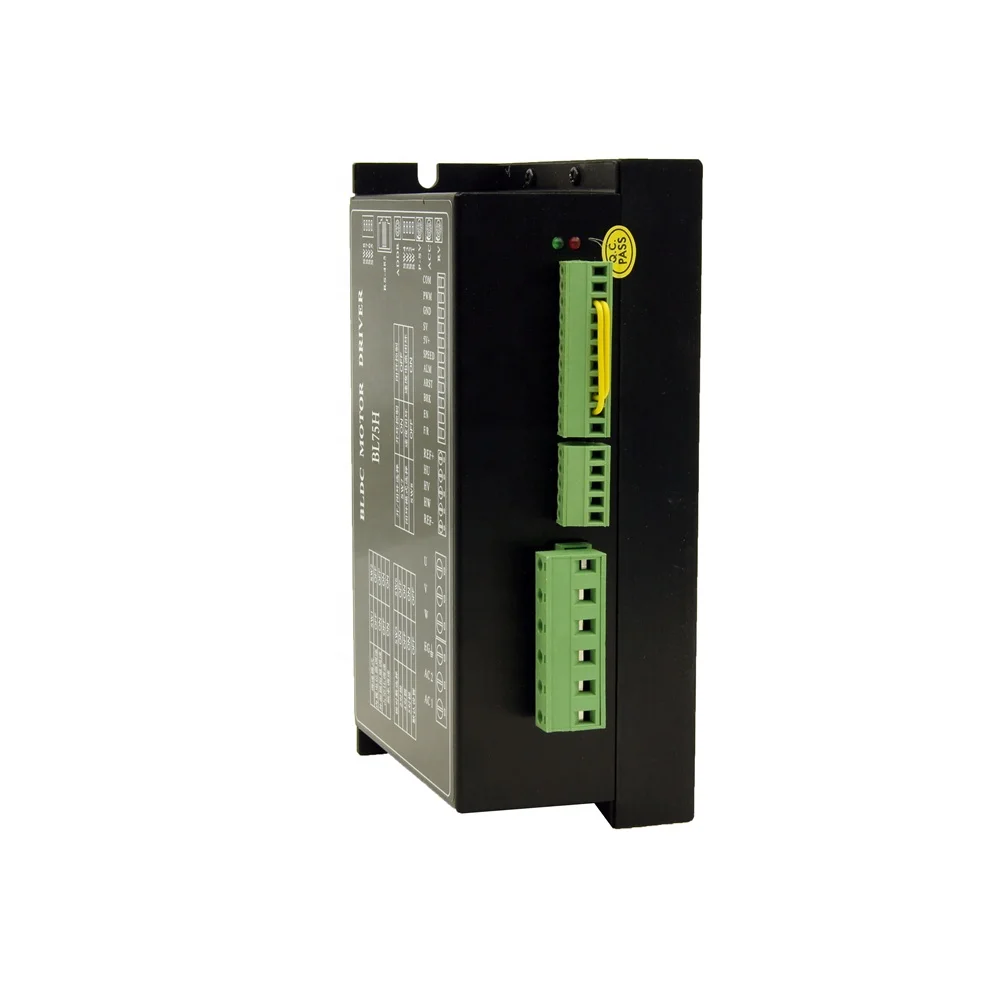

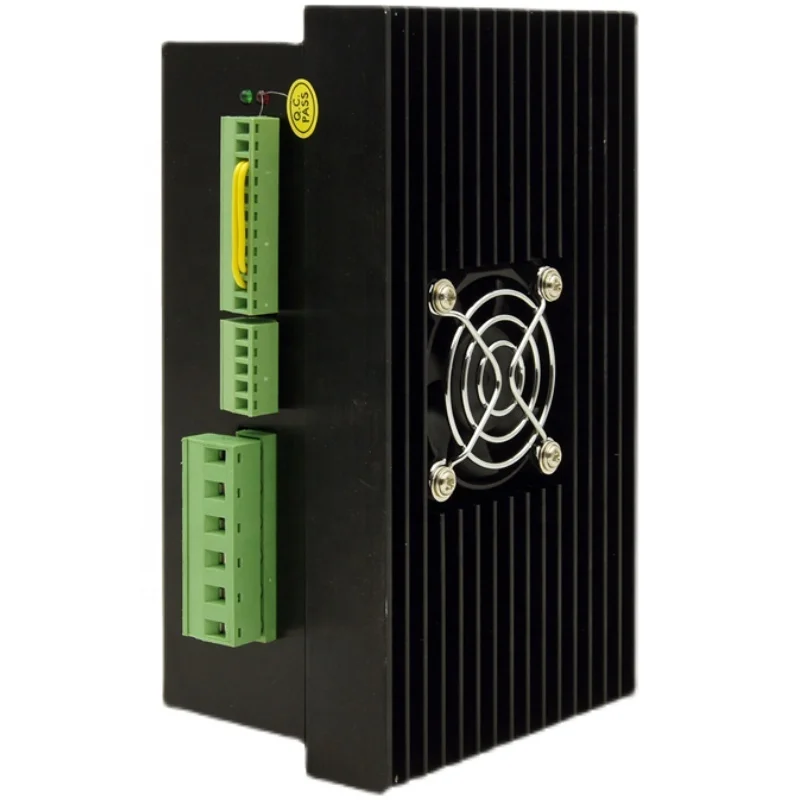

BLDC driver with high power 310V DC or 220VAC input voltage Brushless DC motor driver 750W
- Category: >>>
- Supplier: Shenzhen Jingbo Mechanical & Electrical Co. Ltd.
Share on (1600610760249):
Product Overview
Description
If you need more details of the driver, please give us your email address and we will email you it.
Model | Voltage | Matched motor power | Rated Current | Peak Current | Weight | Dimension |
BL07 | 12-30VDC | <70W | 3A | 6A | 130g | 96*56.5*21mm |
BL12 | 12-30VDC | <120W | 8A | 16A | 170g | 96*60*24.5mm |
BL30 | 12-56VDC | <300W | 15A | 35A | 340g | 143*80*33mm |
BL40 | 24-60VDC | <400W | 15A | 35A | 340g | 143*80*33mm |
BL75 | 18-52VDC | <750W | 25A | 45A | 600g | 151*97.5*52mm |
BL35H | 220VAC/310VDC | <350W | 2A | 4A | 650g | 151*97.5*52mm |
BL75H | 220VAC/310VDC | <750W | 4A | 8A | 850g | 170*97*65mm |
Features
1. Acceleration and deceleration time setting
2. Motor pole number selection
3. Double closed loop control of current and speed
4. Maximum current output setting
5. Various alarm indications
6. Built-in potentiometer RV speed control
7. External potentiometer speed control
8. External analog signal speed control
9. Pulse frequency speed control
10. PWM speed control
Electrical indexes
Driver Parameters | Minimum value | Rated value | Maximum value |
Output current(A) | - | 4 | 8 |
Input voltage (VAC) | 180 | 220 | 265 |
Hall drive current(mA) | 12 | - | - |
Hall signal voltage(V) | - | - | 5 |
Applicable motor speed(RPM) | 0 | - | 20000 |
Environmental indexes
Environmental factors | Environmental indexes |
Use occasion | No dust, oil stain and corrosive gas |
Operating temperature | 10℃ ~ 50℃ |
Environment humidity | 90%RH (no condensation) |
Vibration | 5.7m/S2 Max |
Storage temperature | 0℃~50℃ |
Cooling mode | Natural cooling or forced cooling |

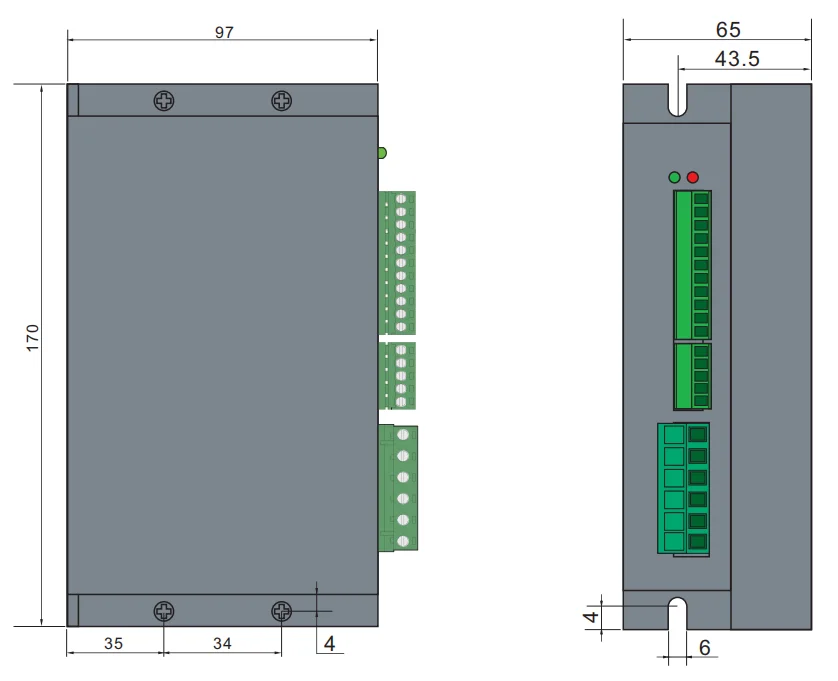

Dimension unit:mm

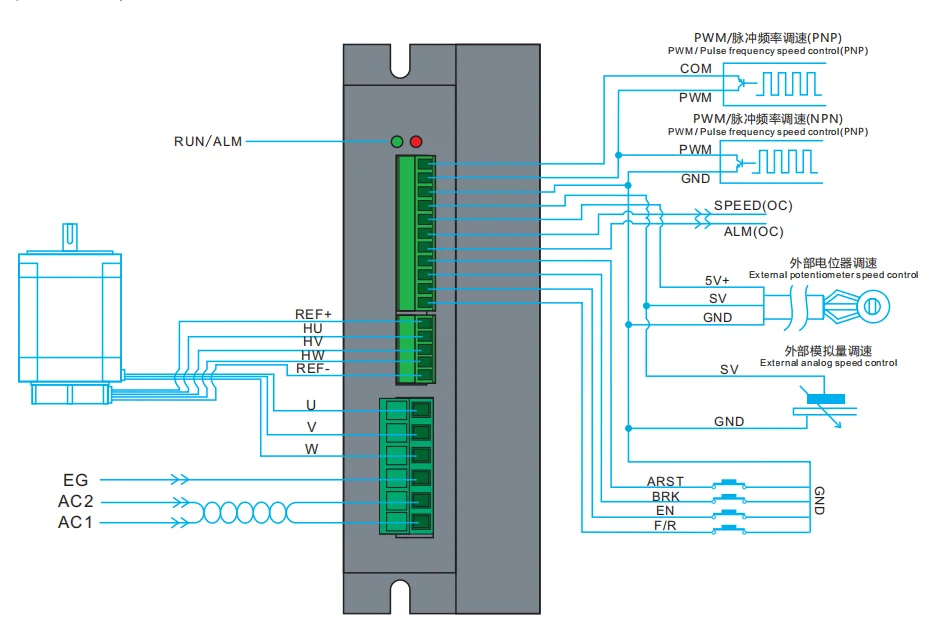

Driver interface and motor connection
