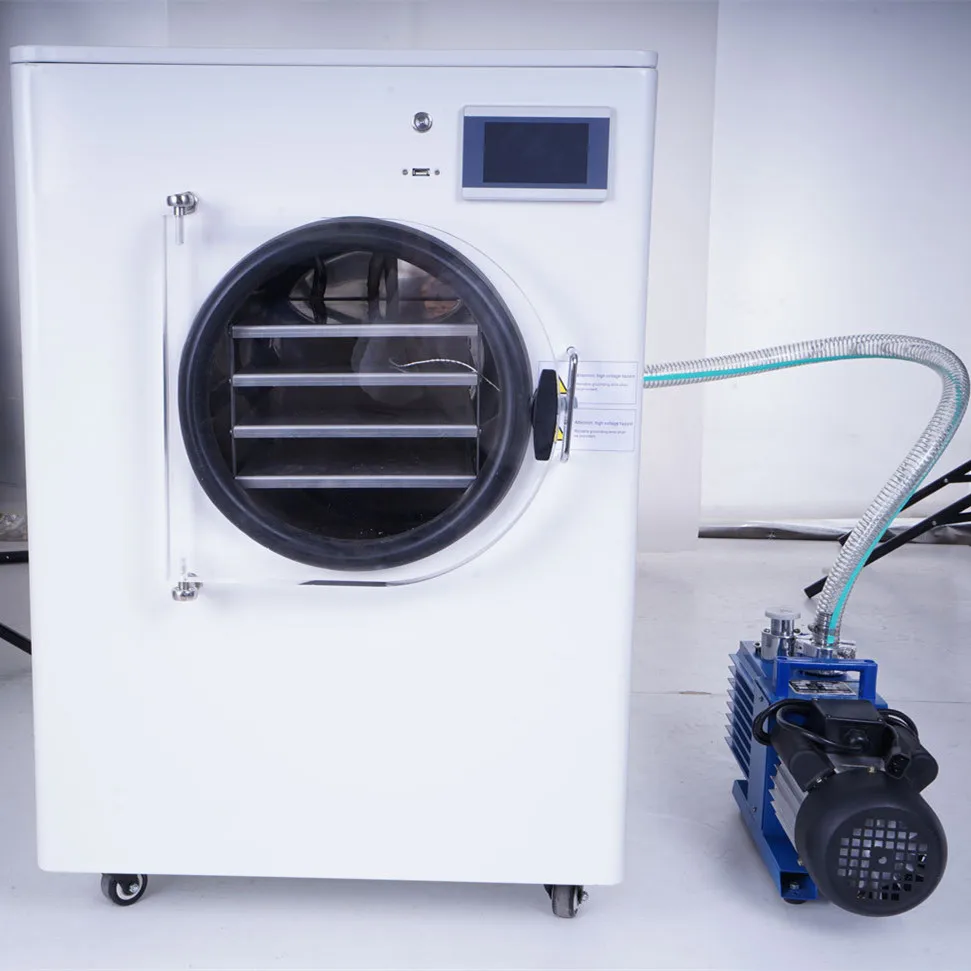

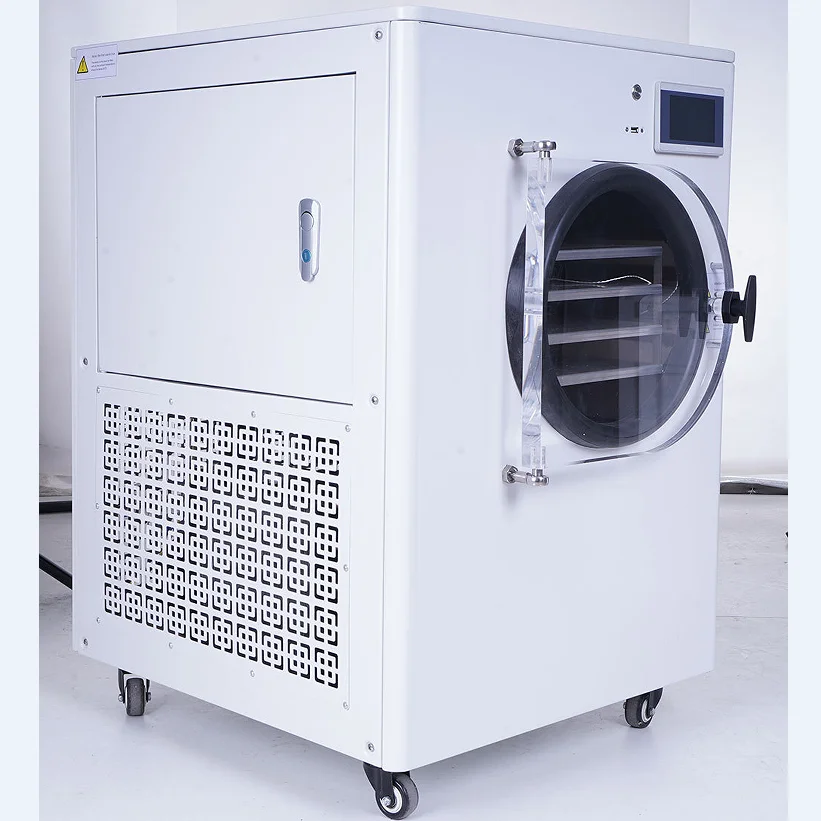

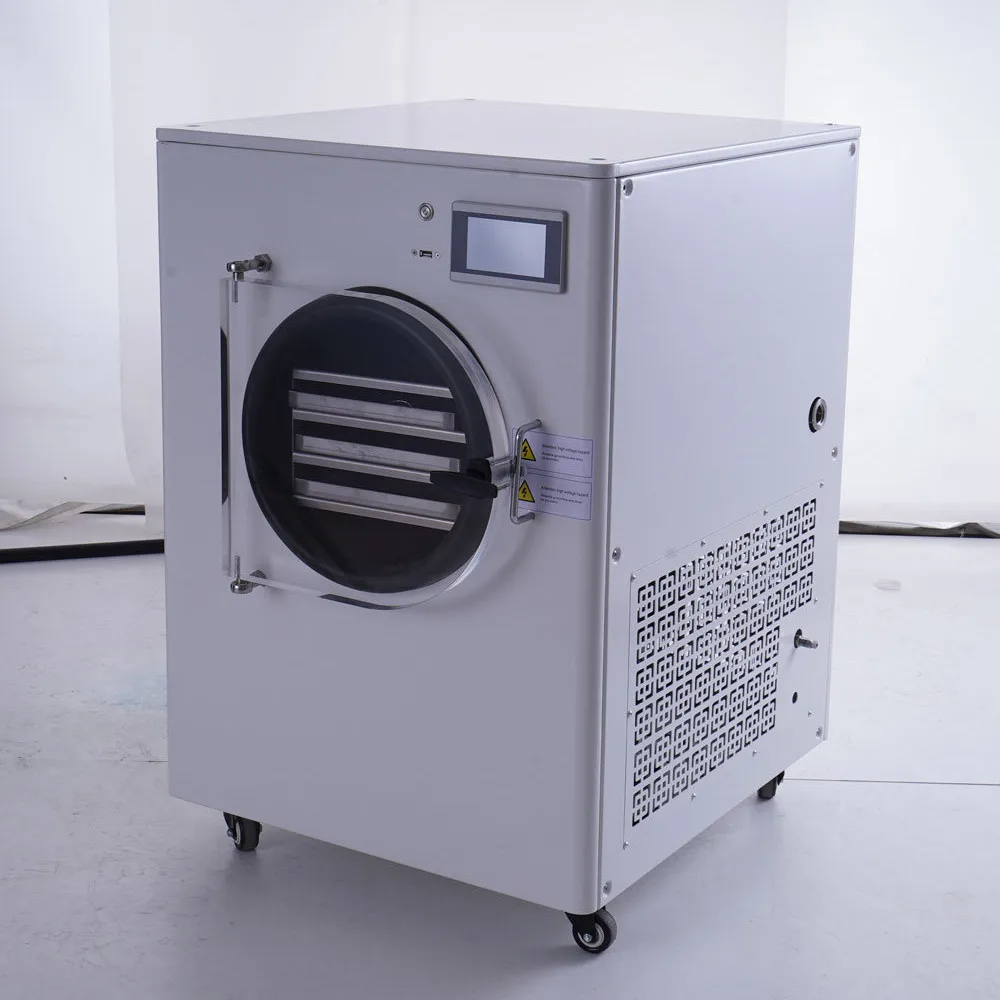

Buy Excellent Quality Home Use Food Flower Plant Mini Lyophilization Freeze Dryer Machine With Stoppering
- Category: >>>
- Supplier: Henan Niefanchun Trading Co. Ltd.
Share on (1600610761472):
Product Overview
Description
Products Description
The small freeze dryer simplifies the tedious operation of the traditional laboratory freeze dryer, prevents the contamination of the material, and accelerates the moisture sublimation of the material. This series of models has programmable functions of heating and temperature control, and can view the freeze-drying curve, which is convenient for users to observe the freeze-drying process of materials.
Features
●The machine is cooled by a SCOPE (Danfoss) compressor, with rapid cooling and low cold trap temperature.
●LCD screen control system, easy to operate and powerful.
●The door of the drying chamber is made of colorless and transparent plexiglass, the sample is clear and intuitive, and the whole process of freeze-drying can be observed.
●The connection between the vacuum pump and the host adopts the international standard KF quick connector, which is simple and reliable.
●The machine has stable performance, easy operation and low noise.
●LCD screen control system, easy to operate and powerful.
●The door of the drying chamber is made of colorless and transparent plexiglass, the sample is clear and intuitive, and the whole process of freeze-drying can be observed.
●The connection between the vacuum pump and the host adopts the international standard KF quick connector, which is simple and reliable.
●The machine has stable performance, easy operation and low noise.

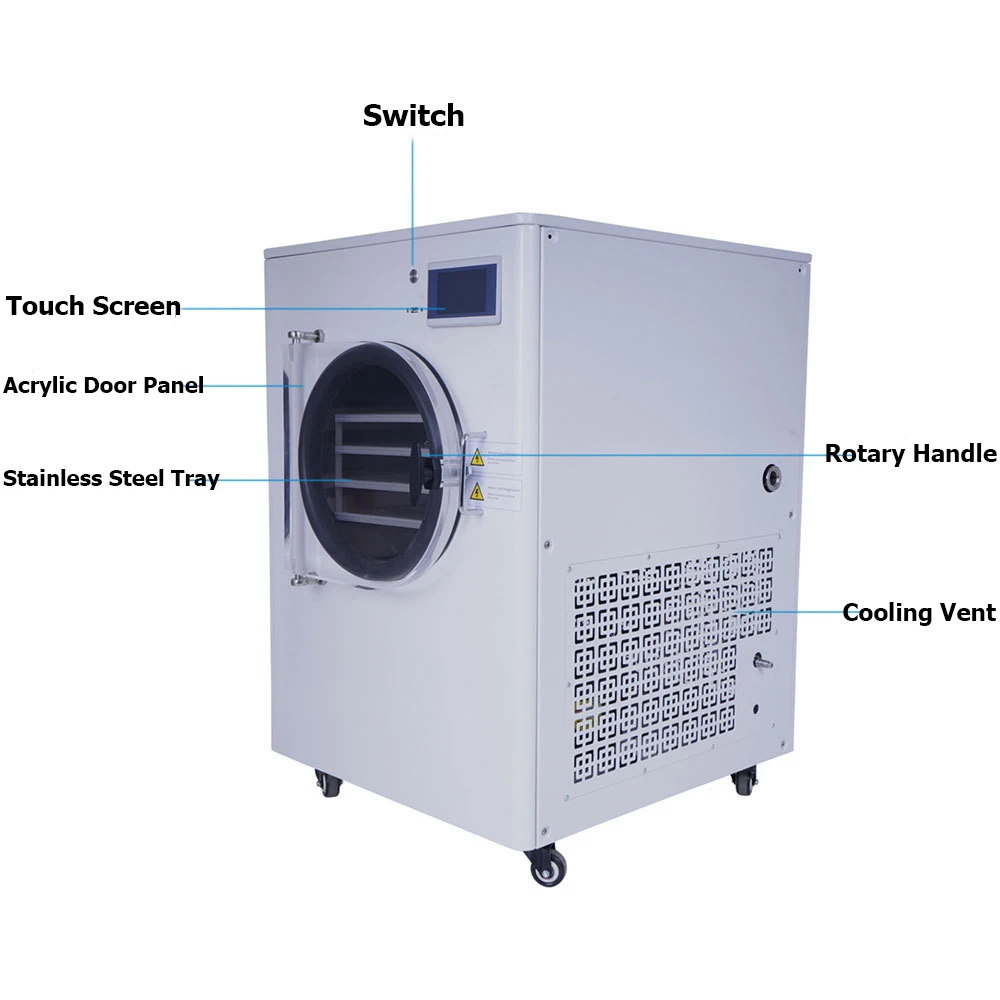

Product Structure
Product Characters
Model | HFD-1 | HFD-4 | HFD-6 | ||
Freeze-dried area | 0.1㎡ | 0.4㎡ | 0.6㎡ | ||
Cold trap temperature | -40℃ | ||||
Ultimate vacuum | 15Pa | ||||
Processing capacity (KG/batch) | 1~2 | 4~6 | 6~8 | ||
Layer spacing (mm) | 45 | 45 | 50 | ||
Power supply | 220V/50Hz | ||||
Power (W) | 750W | 1100W | 2300W | ||
Weight(Kg) | 50 | 80 | 120 | ||
Material tray quantity | 4 | 4 | 4 | ||
Material tray size | 140*278mm | 200*450mm | 330*440mm | ||
Dimensions (mm) | 400*550*700 | 510*700*850 | 710*800*1060 | ||
Temperature control range | -35~60℃ | ||||
Water capture capacity | 3Kg/24h | 6Kg/24h | 10Kg/24h | ||
Electronic control system | Display the freeze-drying curve and temperature curve of the partition in real time. Intelligent temperature control | ||||
Defrost | One-touch defrost function | ||||
Product features

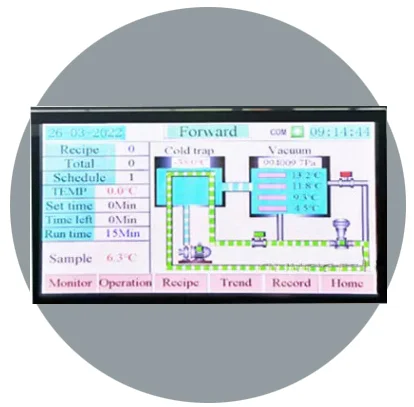

① LCD TOUCH SCREEN
Simple operation
Sensitive response
Powerful function
Support curve saving and adjustment
Easy to operate and use
The whole is made of stainless steel,which meets food standards,safe,
hygienic and durable
hygienic and durable

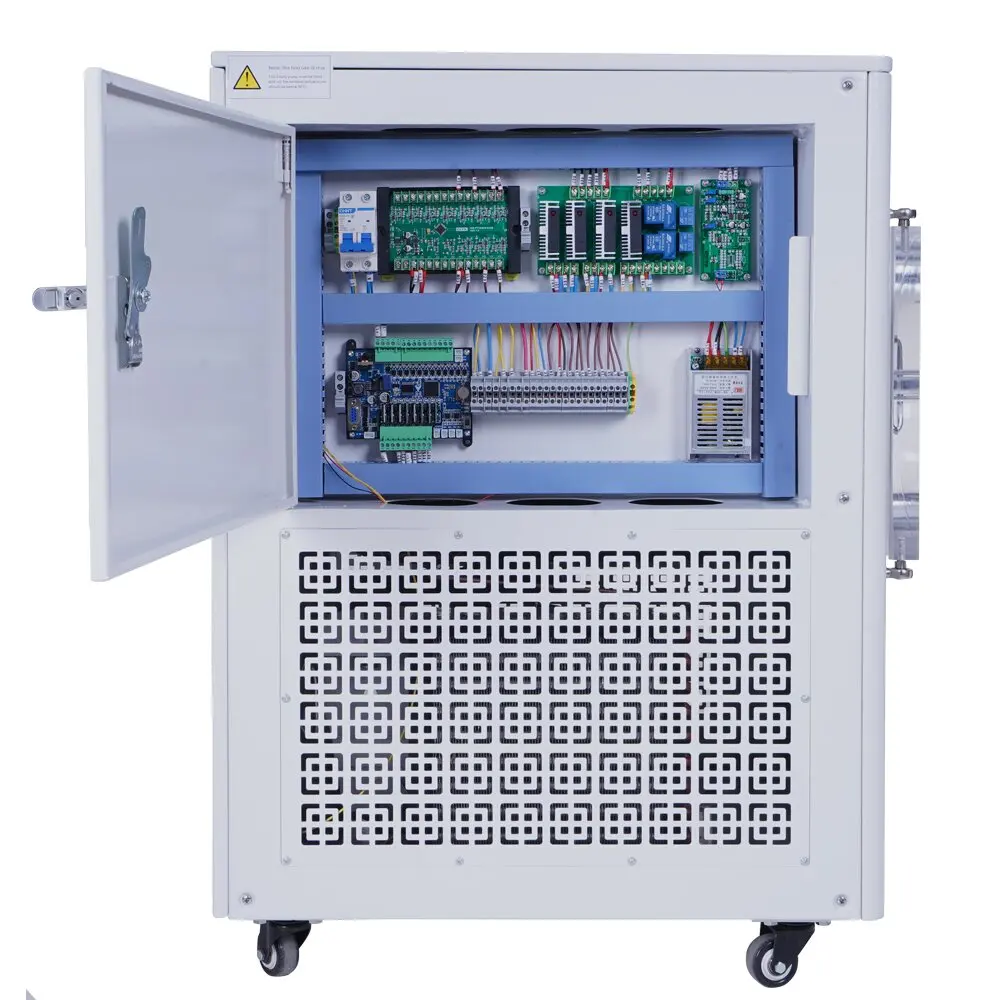

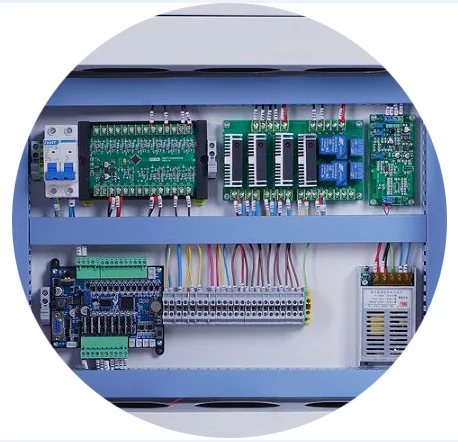

PLC control,reasonable and standard wiring,overload and leakage protection functions,diversified regulation,
highfreeze-drying efficiency,energy saving and power saving

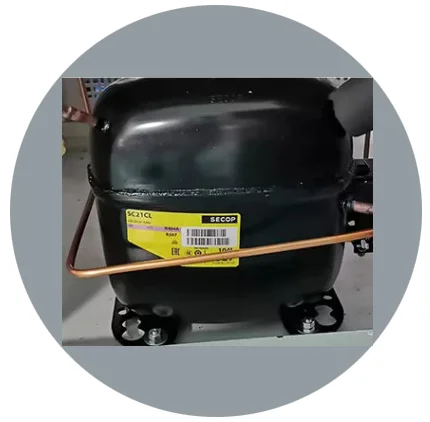

④REFRIGERATION SYSTEM
It adopts high-quality energy-saving compressor and has multiple protection functions:high-pressure protection,low-pressure protection,oil pressure difference protection,etc.to ensure the stable operation of the unit

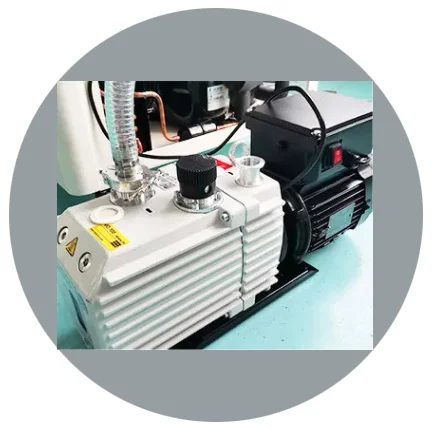

⑤VACUUM SYSTEM
The dual system design of pre pumping
and maintenance is adopted to ensure
the stability and durability of the
system,improve the evacuation rate,
and the limit vacuum is ≤ 15Pa
and maintenance is adopted to ensure
the stability and durability of the
system,improve the evacuation rate,
and the limit vacuum is ≤ 15Pa

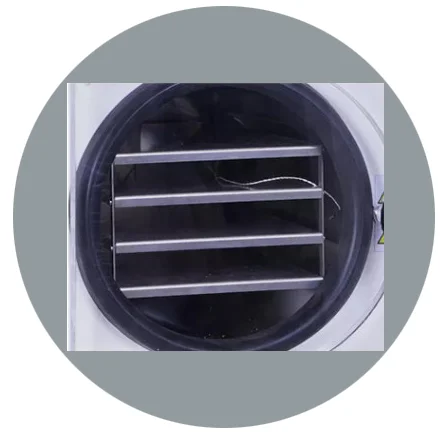

The mirror surface of the warehouse body is polished without dead angle. The warehouse body,plate layer and hose have been tested in multiple processes to ensure no leakage of plate layer. The refrigeration is controlled by PLC,and the temperature control accuracy is ≤±1℃

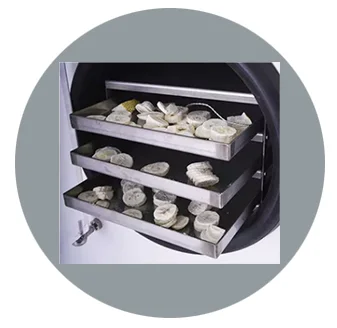

Freeze-drying process display
Step 1
Cleaning and tidying up
Step 2
Slice or Dice
Step 3

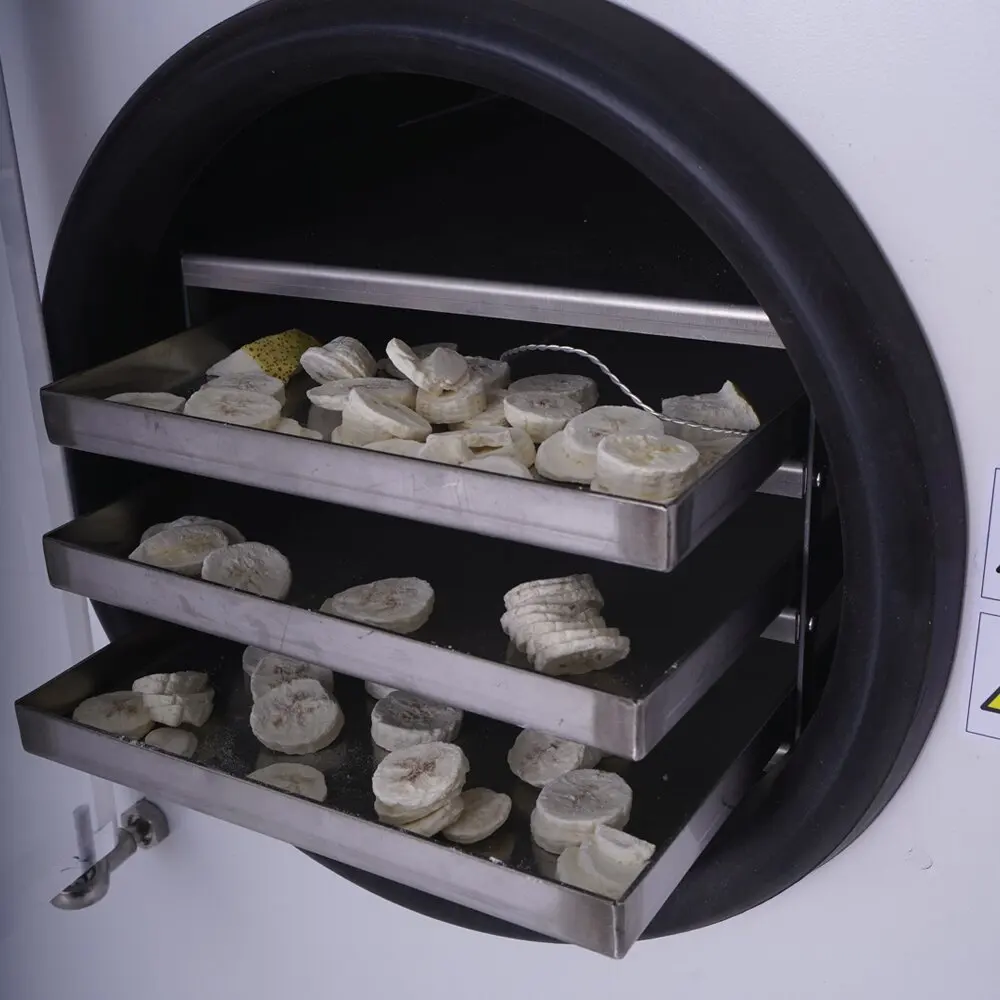

Place it flat on the material tray, and then put it into the freeze-drying room
Step 4
Set up the freeze-drying process and intelligently control the operation of the equipment
Step 5
Wait for the program to end, and take out the
sealed package
Factory Display

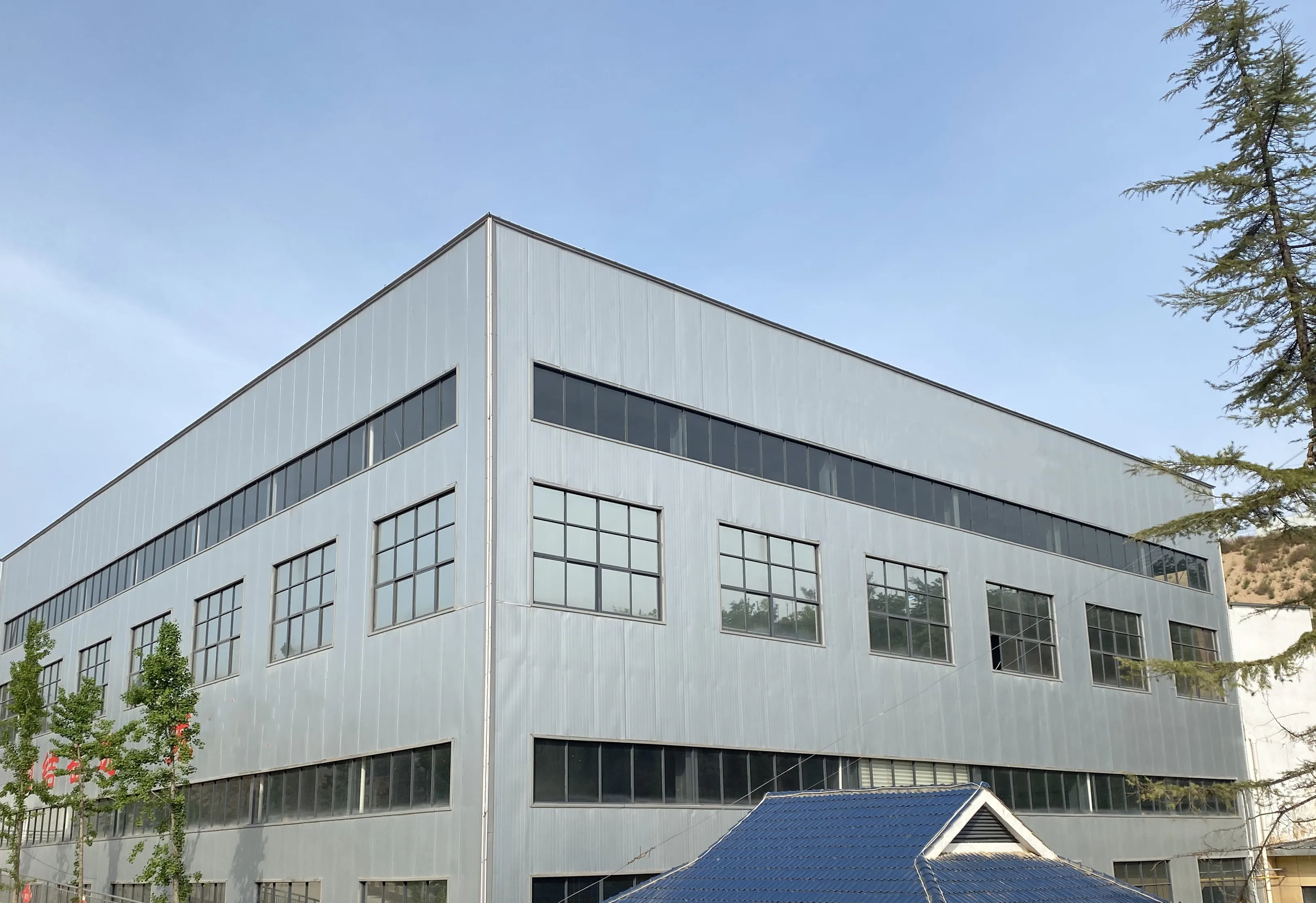

Factory Appearance
Henan Nie Fanchun Trading Co., Ltd. is a professional manufacturer focusing on the development, production and sales of teaching instruments. It mainly produces organic synthesis devices, series of glass reactors, high and low circulation devices, circulating water-type multi-purpose vacuum pumps, refrigeration units, glass instrument airflow dryers, low temperature Coolant circulating pump, high temperature oil bath, microwave chemical reactor, rotary evaporator, glass constant temperature water bath, vacuum drying oven, heating magnetic stirrer and other types of teaching instruments.
Packaging & Delivery
Packaging Details
The packaging of the product is strictly controlled, and the export wooden box is used to avoid fumigation. The case is fitted with snap fasteners for easy unpacking. There is a sponge in the box to avoid damage to the product due to collision.
