Automatic glass bottle white wine bottling industry seal packaging machines equipment
- Category: >>>
- Supplier: Shandong Rybo Machine Co. Ltd.
Share on (1600610872016):
Product Overview
Description
Product Description

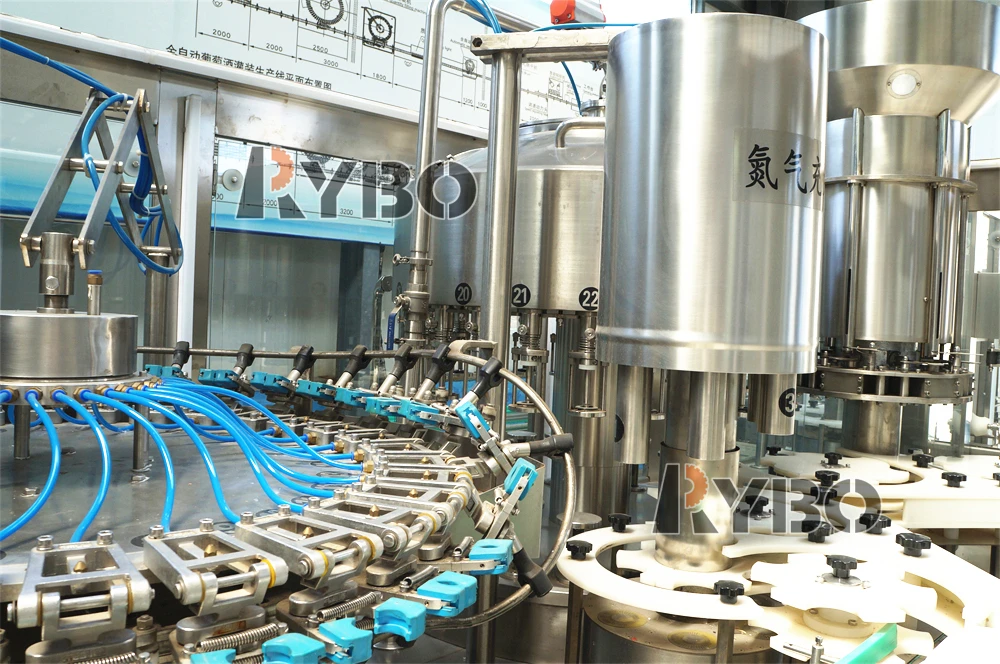

Automatic Bottle Red Wine Rinsing Filling Corking Machine
This equipment is an all-in-one machine that combines a reverse bottle washing machine, a negative pressure filling machine and a corking machine, which can simultaneously complete the bottle washing, filling and corking work. It can be used for filling non-gas liquids, such as wine, red wine, fruit juice, mineral water and soy sauce, vinegar, etc. Different types of machines can be customized according to the customer's bottle type and required output.
Features
1. Compact structure, saving installation space.
2. Shorten the time before sealing to prevent wine oxidation. Fully enclosed to ensure that the product is not contaminated.
3. Using a single motor to provide power, universal shaft transmission, and variable frequency speed regulation, it not only ensures the synchronization of each equipment operation, is easy to operate, but also makes the equipment run smoothly and automatically.
4. Each part of the equipment is equipped with an overload protection device. If the bottle is stuck, it can automatically stop to prevent equipment damage.
5. For bottles of different heights, the machine is equipped with an electric lifting system, which can be completed by clicking the button, saving time and effort.
2. Shorten the time before sealing to prevent wine oxidation. Fully enclosed to ensure that the product is not contaminated.
3. Using a single motor to provide power, universal shaft transmission, and variable frequency speed regulation, it not only ensures the synchronization of each equipment operation, is easy to operate, but also makes the equipment run smoothly and automatically.
4. Each part of the equipment is equipped with an overload protection device. If the bottle is stuck, it can automatically stop to prevent equipment damage.
5. For bottles of different heights, the machine is equipped with an electric lifting system, which can be completed by clicking the button, saving time and effort.
Specification
Model | Capacity (b/h) | Heads of Rinsing | Heads of Filling | Heads of Corking | Applicable bottle | Total Power (KW) | Size (mm) |
GDP16-12-1 | 2000 | 16 | 12 | 1 | φ= 60-100mm H= 220-350mm | 3 | 3000*1600*2200 |

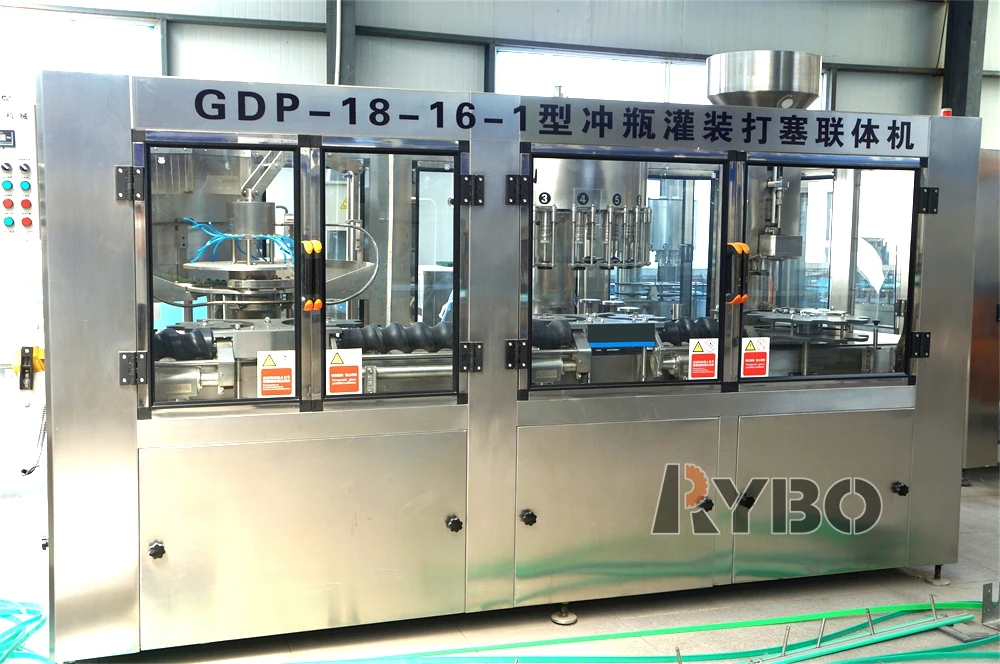

GDP18-16-1 | 3000 | 18 | 16 | 1 | 3 | 3300*1600*2200 | |
GDP24-24-4 | 5000 | 24 | 24 | 4 | 5.5 | 3800*1600*2200 | |
GDP30-30-6 | 6000 | 30 | 30 | 6 | 7 | 3850*1850*2400 | |
………………. |

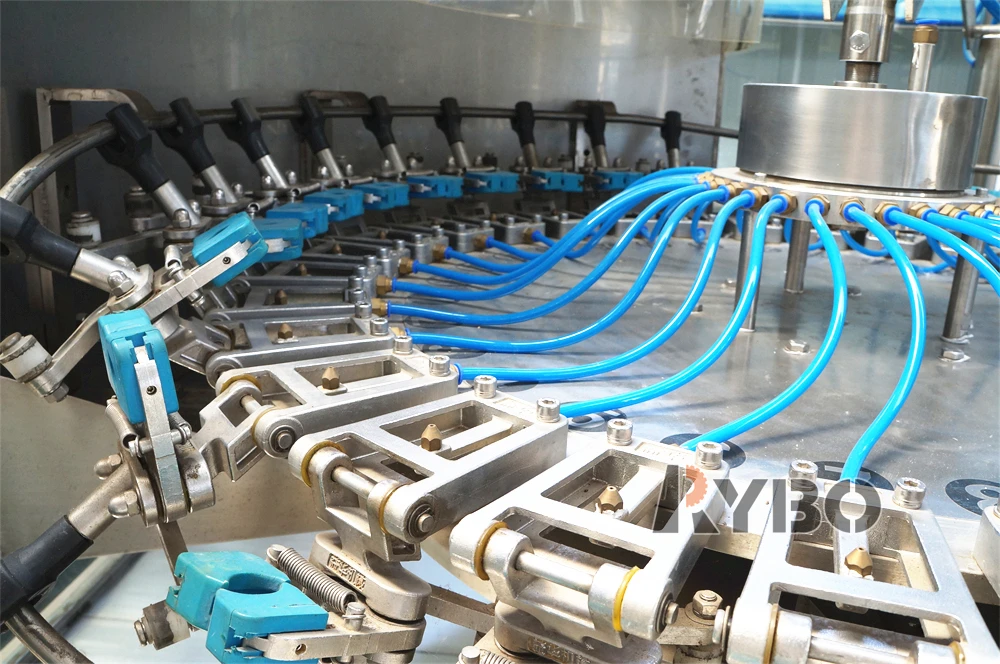

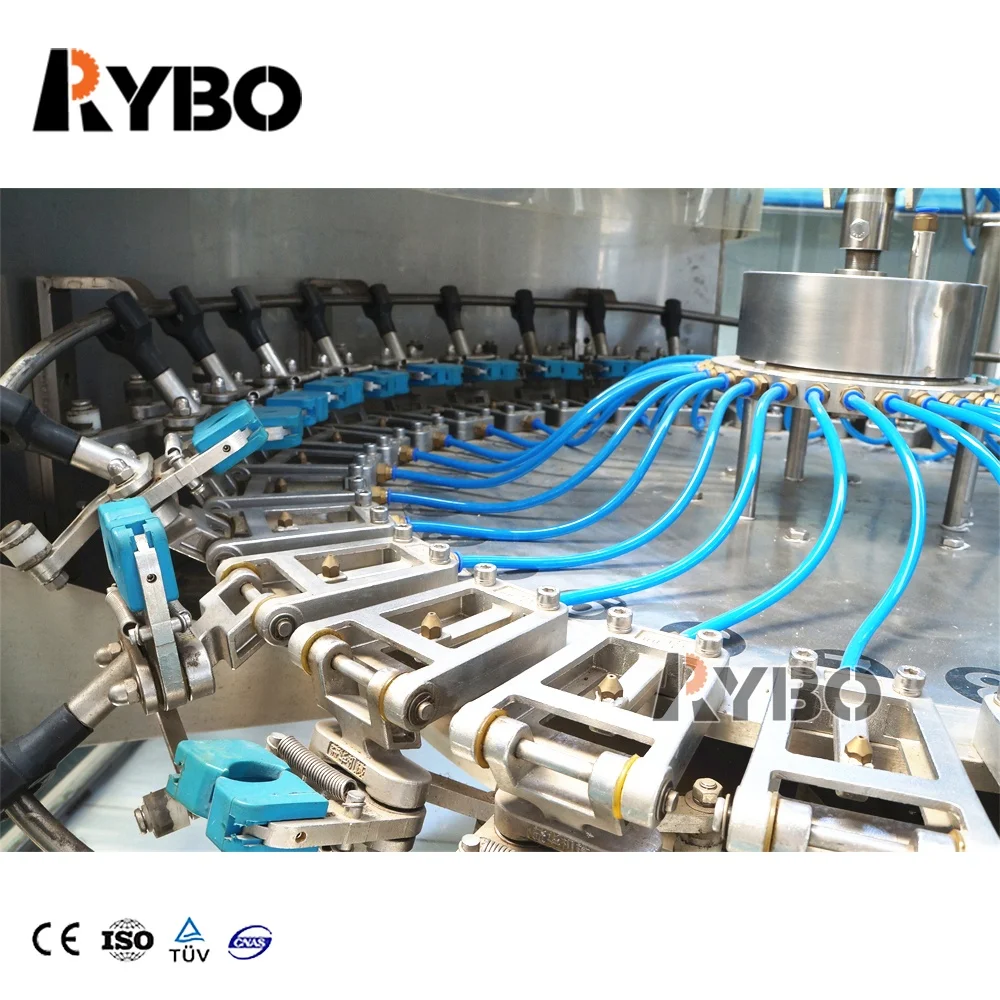

Rinsing Part
1. Strong elastic gripper, grip the bottle stably without breaking the bottle.
2. The continuous tracking type flushing has high efficiency and stable and reliable flushing effect.
3. No bottle, no flushing, more water saving.
4. Accurate positioning, slightly high pressure flushing, flushing more cleanly.
2. The continuous tracking type flushing has high efficiency and stable and reliable flushing effect.
3. No bottle, no flushing, more water saving.
4. Accurate positioning, slightly high pressure flushing, flushing more cleanly.

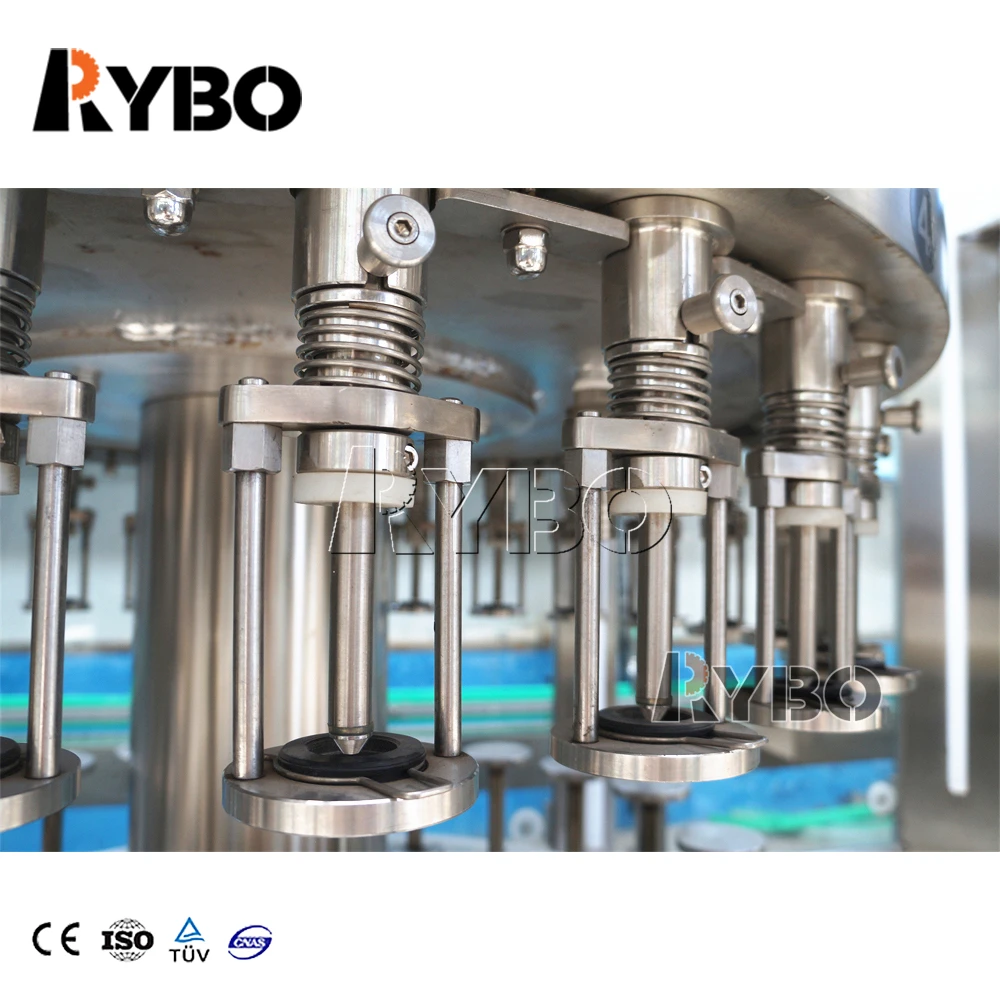

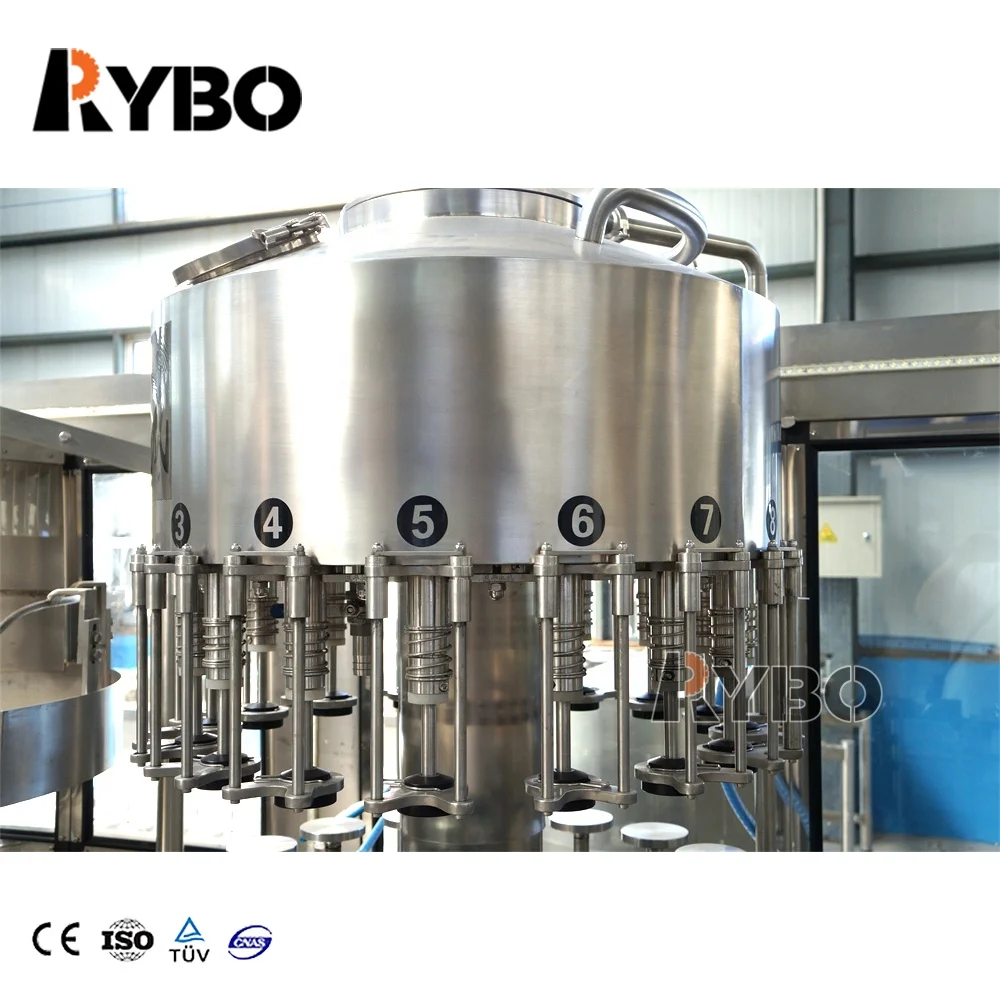

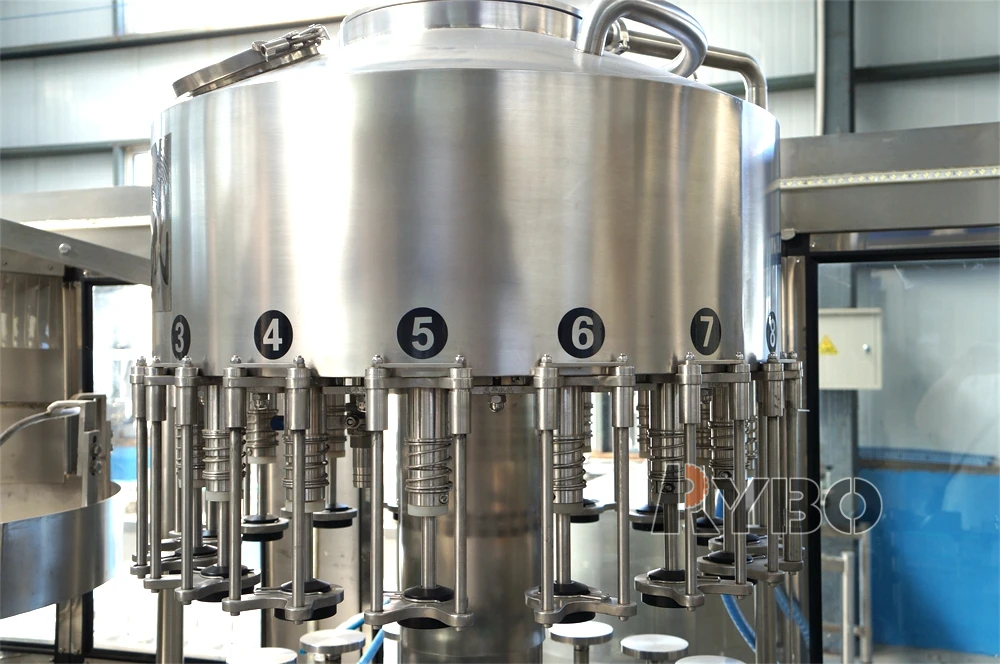

Filling Part
1. Vacuum negative pressure filling, accurate filling to ensure same liquid level.
2. The elastic bottle holder is adopted, the bottle height error is automatically adapted, soft start, soft brake, no rigid impact, and no bottle damage to the machine.
3. Umbrella-shaped filling, flowing down along the inner wall of the bottle, preventing splash and eliminating foam.
4. Mechanical seal, vacuum suction, no dripping, and reduce the oxidation of wine.
2. The elastic bottle holder is adopted, the bottle height error is automatically adapted, soft start, soft brake, no rigid impact, and no bottle damage to the machine.
3. Umbrella-shaped filling, flowing down along the inner wall of the bottle, preventing splash and eliminating foam.
4. Mechanical seal, vacuum suction, no dripping, and reduce the oxidation of wine.

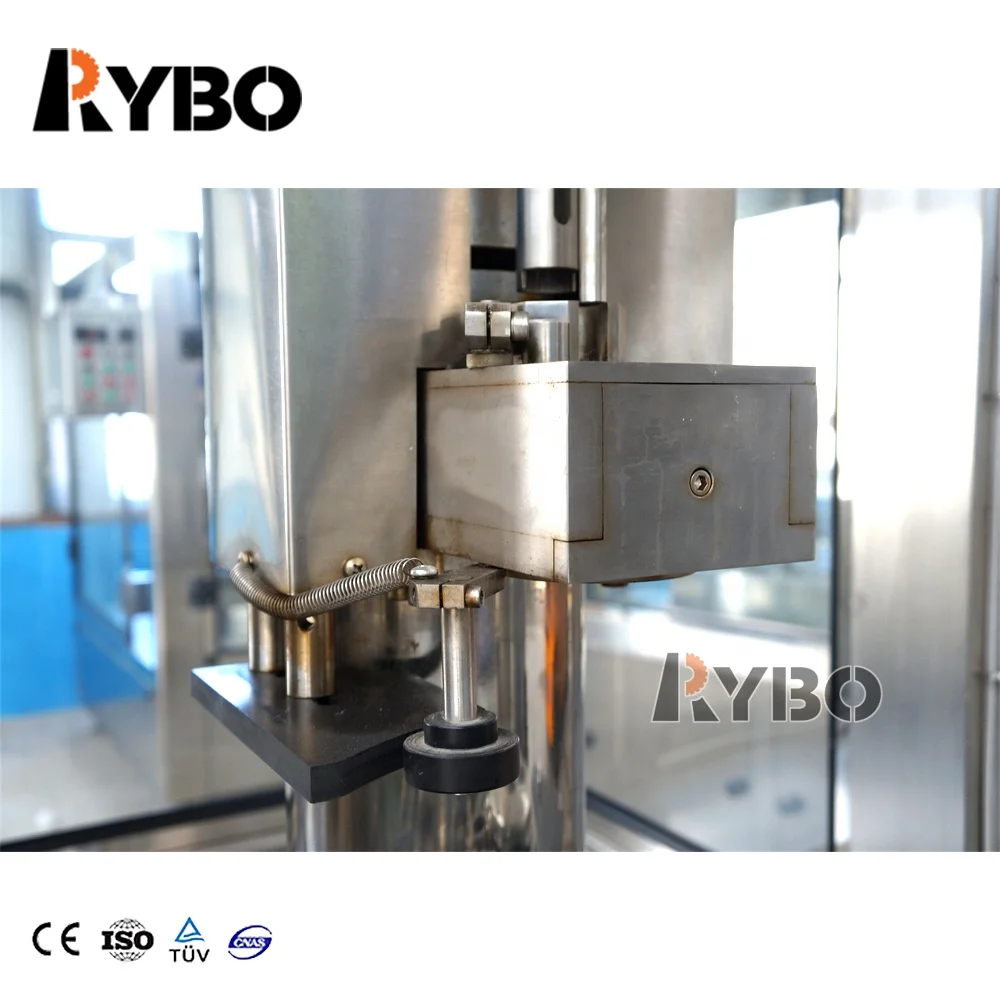

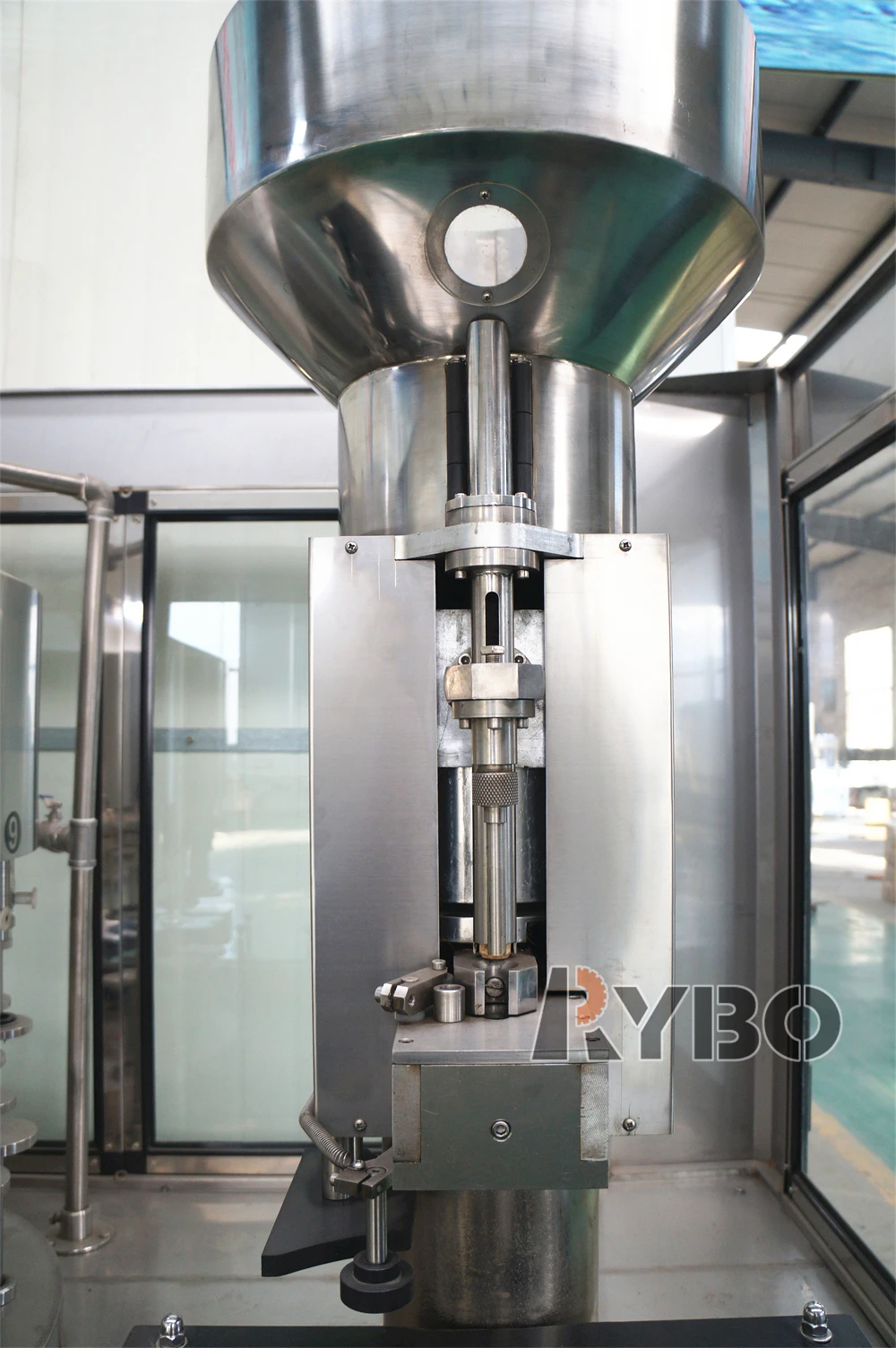

Corking Part
1. The process of bottle feeding and corking has elasticity and overload protection to prevent bottle breakage and damage to the machine.
2. Precise corking device, the main action is completed by the cam, the corking is stable and reliable.
3. No bottle, no corking, reduce cork waste.
2. Precise corking device, the main action is completed by the cam, the corking is stable and reliable.
3. No bottle, no corking, reduce cork waste.

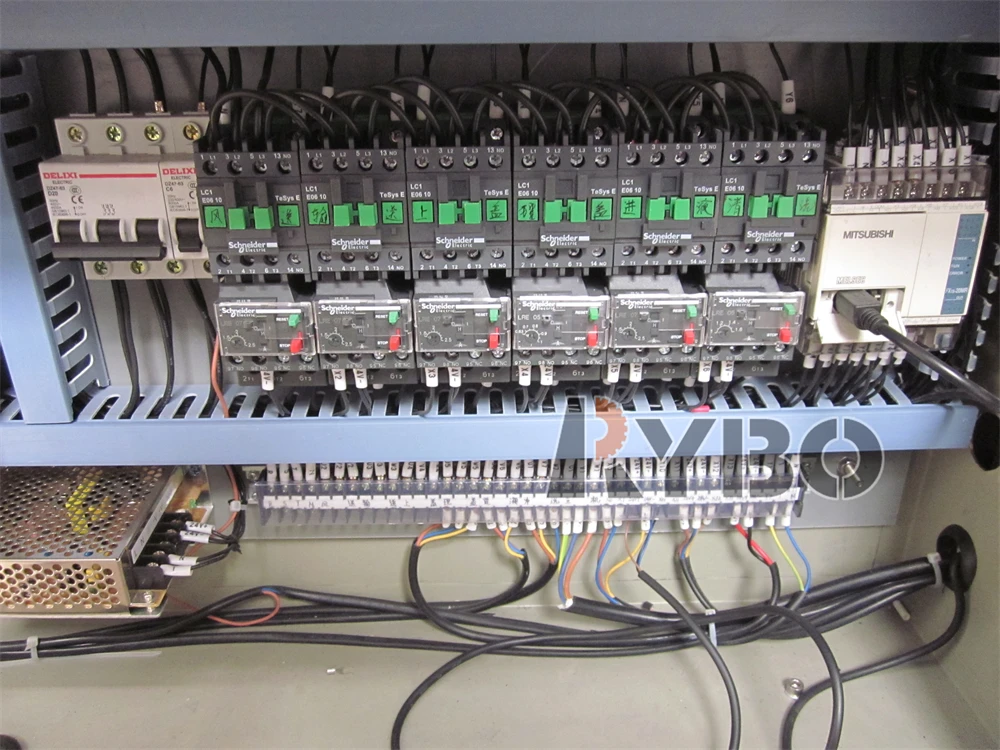

Electric Part
We are all equipped with world famous brand electrical appliances like:
Xinjie Touch Screen
Mitsubishi Inverter
Schneider AC Contactor
Delixi Switch
Xinjie Touch Screen
Mitsubishi Inverter
Schneider AC Contactor
Delixi Switch
etc

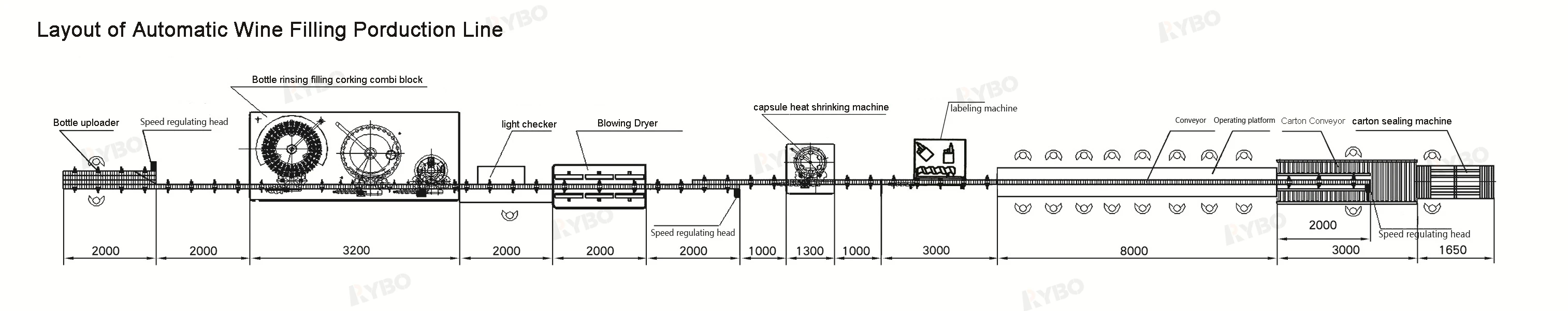

The Complete Line
We Can Supply Turnkey Project From A to Z

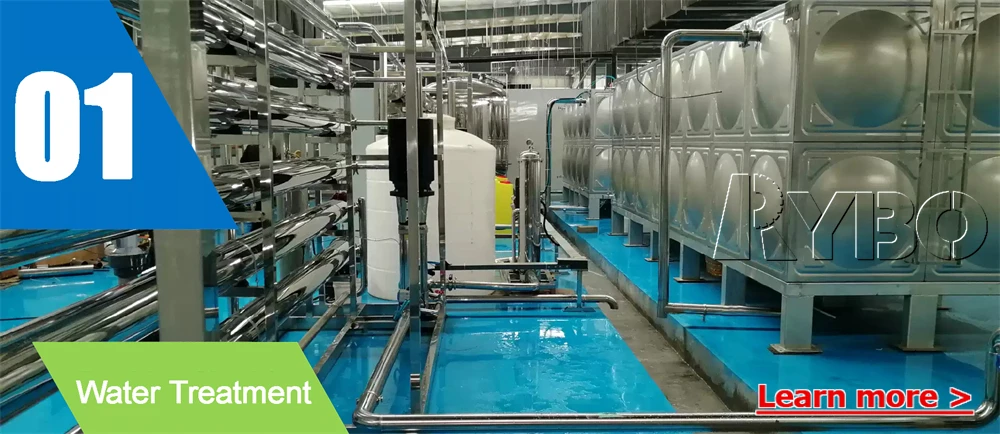

Water Treatment System
According to customer's water source analysis report and the final water quality required, we will give customer reasonable suggestions to choose the suitable water treatment system. Help to reduce machine cost and material consumption.

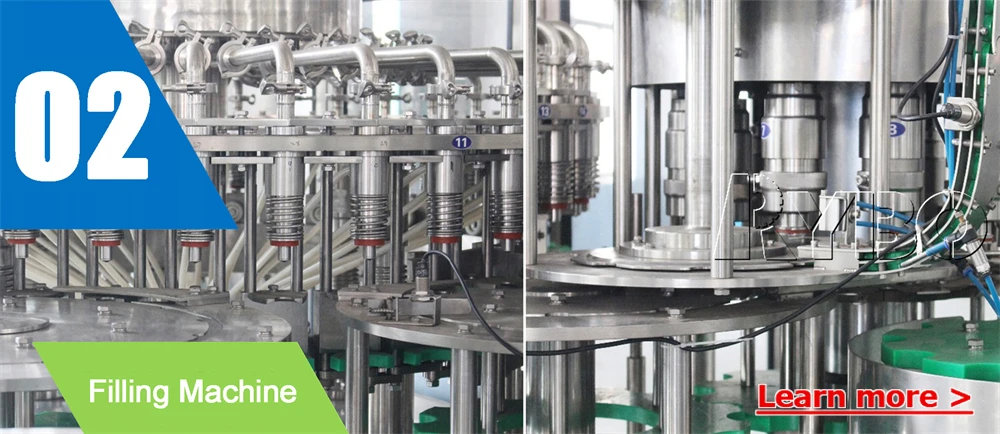

Bottle Wine Rinsing Filling Capping Machine
According to the customer's bottle shape and size, output capacity requirements and the layout of the plant, it is recommended that customers have different machine models, monoblock machine or sperated machines.

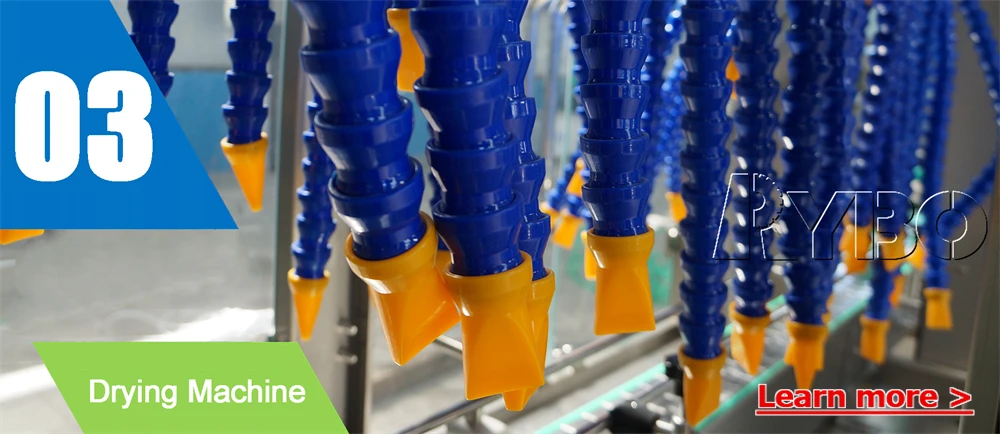

Bottle Dryer
The drying machine is mainly used for drying bottles before labeling. It adopts super fan, which has stronger wind power and more energy saving. The energy consumption is only 1/2 of the ordinary fan. The spider hand air supply channel is easier to adjust the angle, so that there is no dead angle in 360 degrees of drying, and the drying is better.

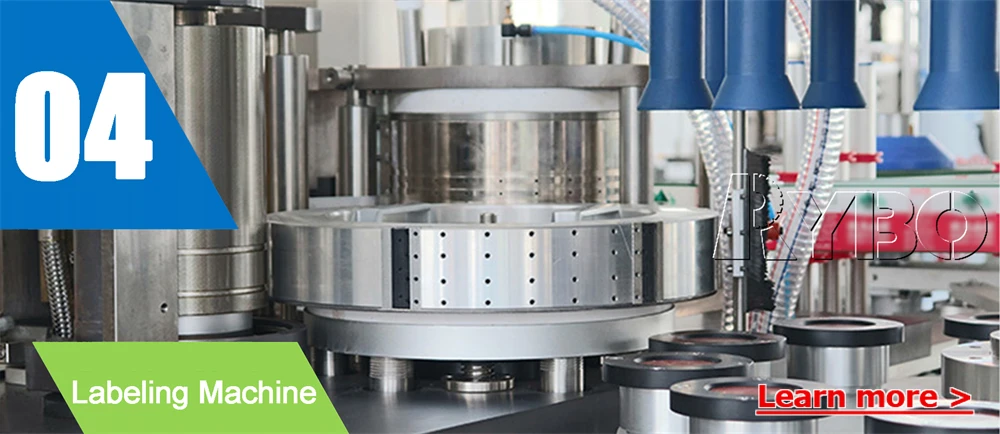

Bottle Labeling Machine
According to customer request and market demand, we provide the better solution for the label typies, We have various kinds of options like PVC sleeve label ,BOPP hot glue label, Adhesive stick label, Cold glue paper label. Then we choose different labeling machine according to your labels type.
Coding Machine
In the food and beverage industry, coding is very important and strict, it can show the expiration date of the product. We are able to offer different options, inkjet coders and laser coders.
Inkjet coder is more economical, but have consumables in the later. The price of laser coding machine is higher, but it is more convenient and clean, and it is convenient for later maintenance.

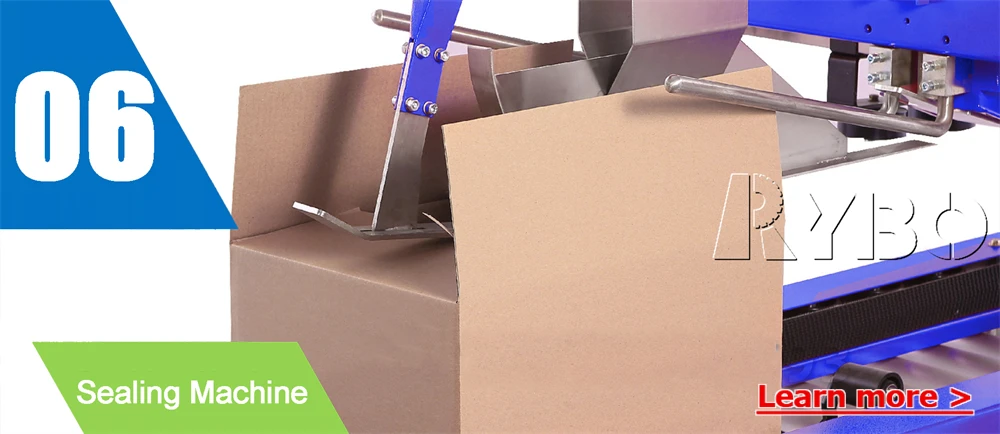

Carton Sealing Machine
The carton sealing machine can automatically complete the folding and sealing process, which is simple and convenient, and saves a lot of labor. Can be adapted to different size cartons.

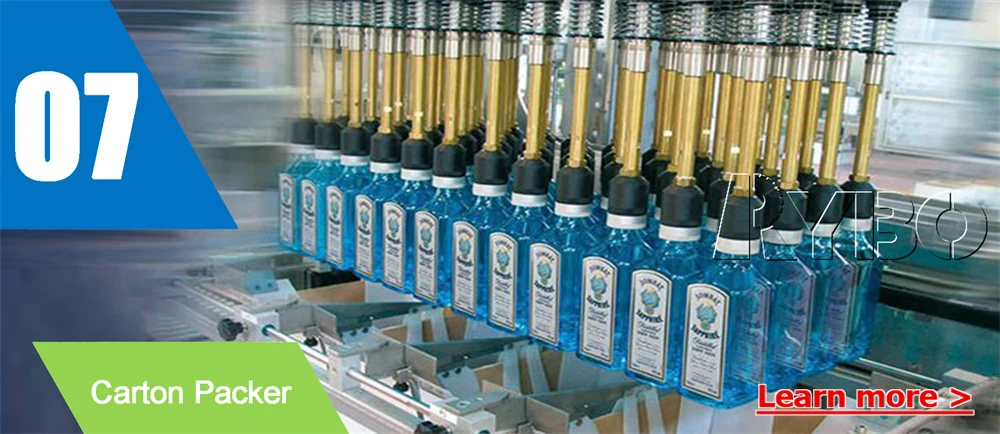

Carton Packer
If the budget is sufficient, the output is high, and local labor is expensive, you can consider buying a packing machine, which can automatically pack various containers (bottles, cans) into cartons.

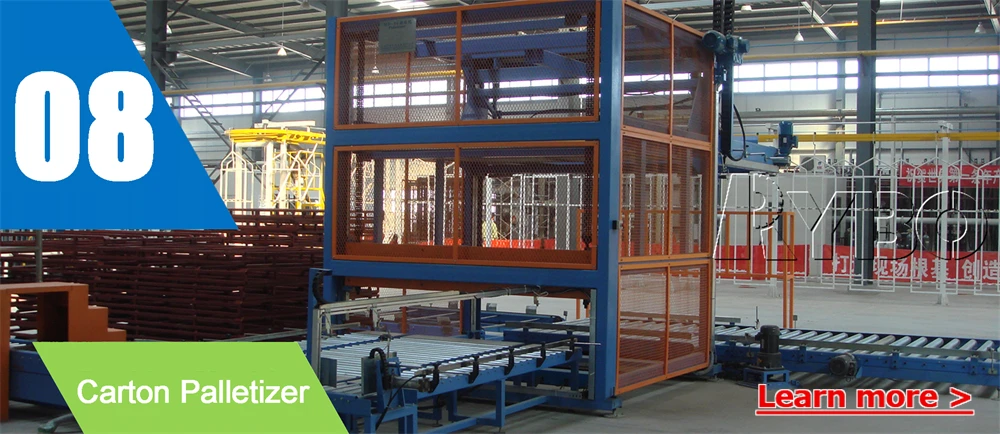

Carton Palletizer
If the budget is sufficient, the output is high, and the local labor is expensive, you can consider buying a carton palletizer.
The palletizer can automatically stack the products and wait for them to be transferred to the warehouse with a forklift.
You can choose between gantry palletizers and robotic palletizers.
Gantry Palletizer
Robotic Palletizer
Company Profile
Shandong Rybo Machine Co., Ltd. established in 2011, is a professional manufacturer and supplier of water treatment, liquid filling and packaging machinery, has more than 10 years professional experience in this area.
Rely on advanced production technology and rich professional knowledge. we are committed to the development, production and sales of a variety of liqud filling and packing machine such as water, beverage, wine, oil Daily chemical products.
And we strive to provide customers from all over the world the most professional, economical solutions and the most intimate and complete services.Our machines have been exported to more than 40 countries and get lots of good reviews
Our Advantages
1. We have more than 10 years of experience in the design and development of liquid packaging machinery.
2. We have standardized workshop and we have numerous advanced CNC production equipment, which ensures our products are beautiful and precise
3. We have an engineer R&D team of more than 10 people, a professional sales team of more than 10 people and an after-sales team of more than 20 people, who can guarantee our machines high quality and reply our customer to solve problems within 12 hours.
4. We have passed ISO 9001 and CE certification.
5. We have established a set of efficient and rigorous manufacturing process and quality control system, cooperated with high-end digital machine tools introduced from advanced countries in the world, relying on ERP system, MES system and DNC system, from raw material preparation to precision parts. Processing, welding, sheet metal fabrication, equipment assembly and debugging are all under the control of professional technicians in Rybo.
6. 95% of the production processes of parts manufacturing are completed in Rybo, and there is no need for outsourcing processing. The manufacturing cycle has strong flexibility and can respond to customers’ urgent needs at any time.
3. We have an engineer R&D team of more than 10 people, a professional sales team of more than 10 people and an after-sales team of more than 20 people, who can guarantee our machines high quality and reply our customer to solve problems within 12 hours.
4. We have passed ISO 9001 and CE certification.
5. We have established a set of efficient and rigorous manufacturing process and quality control system, cooperated with high-end digital machine tools introduced from advanced countries in the world, relying on ERP system, MES system and DNC system, from raw material preparation to precision parts. Processing, welding, sheet metal fabrication, equipment assembly and debugging are all under the control of professional technicians in Rybo.
6. 95% of the production processes of parts manufacturing are completed in Rybo, and there is no need for outsourcing processing. The manufacturing cycle has strong flexibility and can respond to customers’ urgent needs at any time.
Our Service
Bottle Design
We can design bottles shape for you, you just need show us bottles' sample you like in the market and tell us your idea.
Label Design
We can design bottle labels for you, you just need show us sample you like and tell us you idea.
Machine Layout
We can make the proper layout for you according to your workshop dimension
Machine Installation
We will send our engineer to your place to install and debug machines for you when machines reached.
Packing & Delivery
Exporting Standard Wooden Box
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q For a new starter, how can you help me start and run a water or beverage bottling plant?
A We can help you do the bottle design, label design and choose the suitable labeling and package type according to your local market. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install the machines, train your staff how to operate, maintain the machines.
Q How can I know the quality of your machines before I order?
A We have established a set of efficient and rigorous manufacturing process and quality control system, cooperated with high-end digital machine tools introduced from advanced countries in the world, relying on ERP system, MES system and DNC system, from raw material preparation to precision parts. Processing, welding, sheet metal fabrication, equipment assembly and debugging are all under the control of professional technicians in Rybo.You are also very welcome to visit our company in China to see the machine running in our factory.
Q How can we check our machines if we order the machines from you?
A We will test all the machines based on very rigorous standards before shipment and you can come to inspect the machines or we can take videos for you.
Q How can I install and debug the machines?
A If the machine is small and simple to install, you can do it by yourself. We will supply guiding pictures and vedios for helping. If the machine is big and complex, we can send our engineer to your place to install the machine. you should pay the round air tickets and salary. and you should arrange the accommodation for them during the trip.
A We can help you do the bottle design, label design and choose the suitable labeling and package type according to your local market. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install the machines, train your staff how to operate, maintain the machines.
Q What is the guarantee or warranty of your machines?
A We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.
A We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.
Q How can I know the quality of your machines before I order?
A We have established a set of efficient and rigorous manufacturing process and quality control system, cooperated with high-end digital machine tools introduced from advanced countries in the world, relying on ERP system, MES system and DNC system, from raw material preparation to precision parts. Processing, welding, sheet metal fabrication, equipment assembly and debugging are all under the control of professional technicians in Rybo.You are also very welcome to visit our company in China to see the machine running in our factory.
Q How can we check our machines if we order the machines from you?
A We will test all the machines based on very rigorous standards before shipment and you can come to inspect the machines or we can take videos for you.
Q How can I install and debug the machines?
A If the machine is small and simple to install, you can do it by yourself. We will supply guiding pictures and vedios for helping. If the machine is big and complex, we can send our engineer to your place to install the machine. you should pay the round air tickets and salary. and you should arrange the accommodation for them during the trip.
