High Quality Good Price Winch Manufacture Construction Winch 10 Ton 20 Ton 50 Ton Hydraul Winch

Product Overview

Description

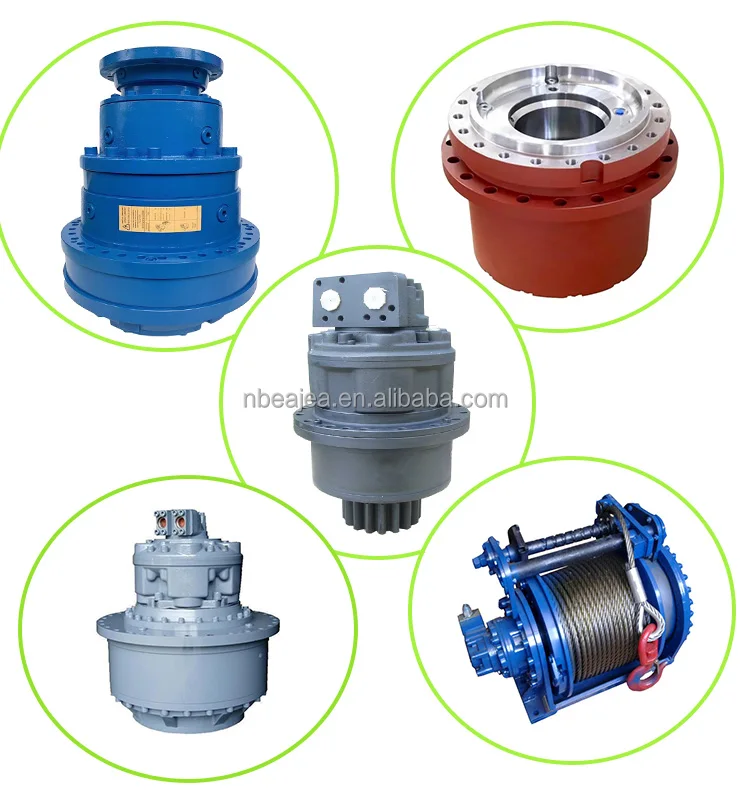

Our Main Products: Hydraul Winch

High Quality Good Price Winch Manufacture Construction Winch 10 Ton 20 Ton 50 Ton Hydraul Winch



Hydraul Winch adopts our company's professional technology, and is composed of various integrated valve blocks, hydraulic motors, Z-type brakes, planetary reducers, reels, frames and clutches composed of high-pressure shuttle valves with one-way balance valves and control brakes. It is composed of components, and the user only needs to equip the pump station and the pump. Because the winch has its own valve group, it not only simplifies the hydraulic system but also improves the working reliability of the transmission device. In addition, it also has the characteristics of high starting and working efficiency, high power, low energy consumption, low noise, beautiful appearance, compact structure and good economy. This product can be widely used in construction engineering, petroleum, geological exploration, ship deck machinery and other equipment.

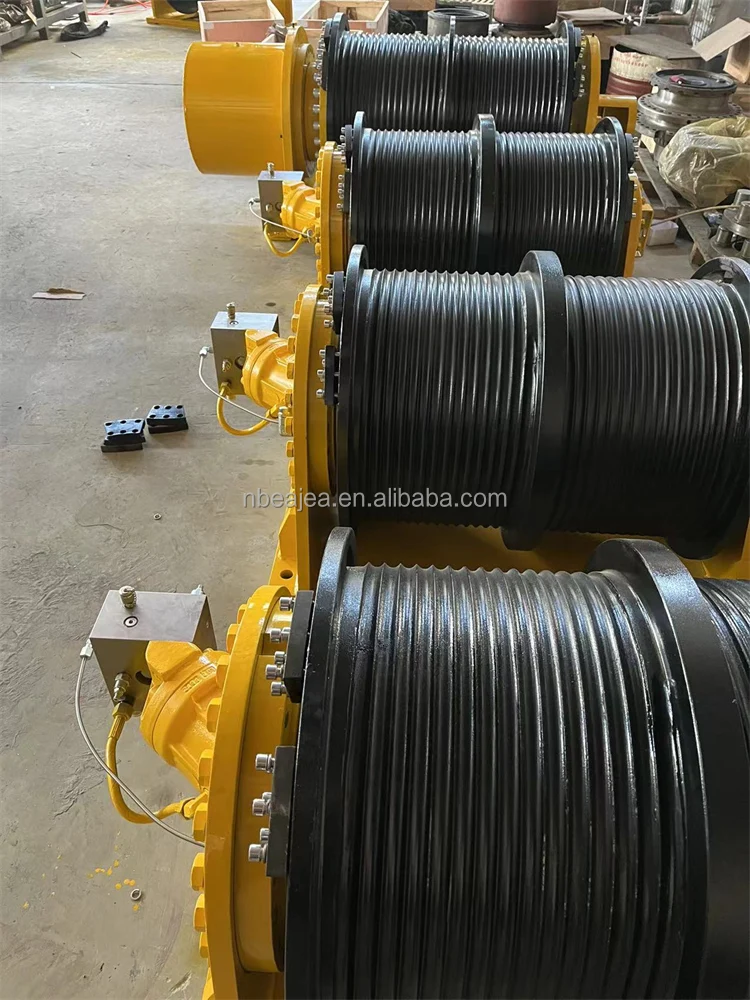

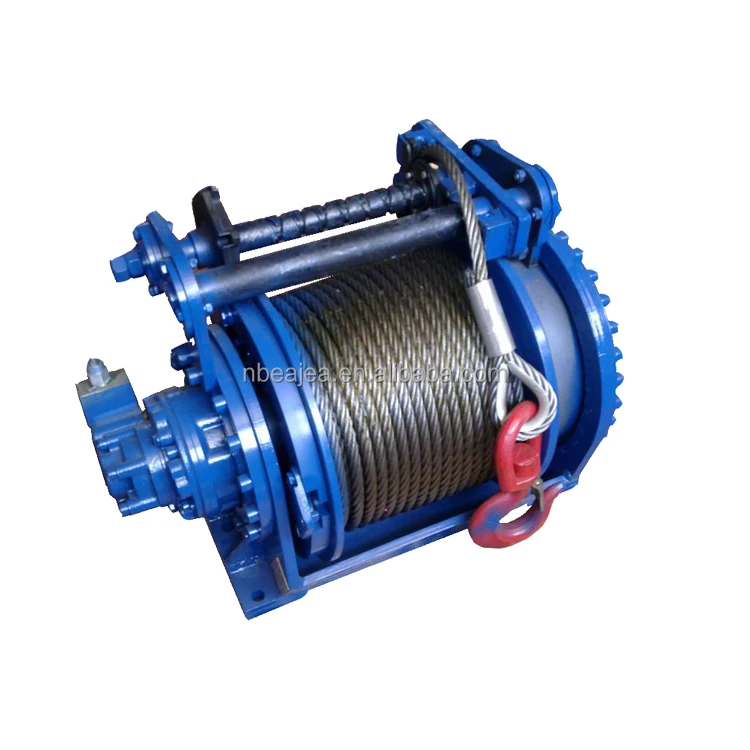

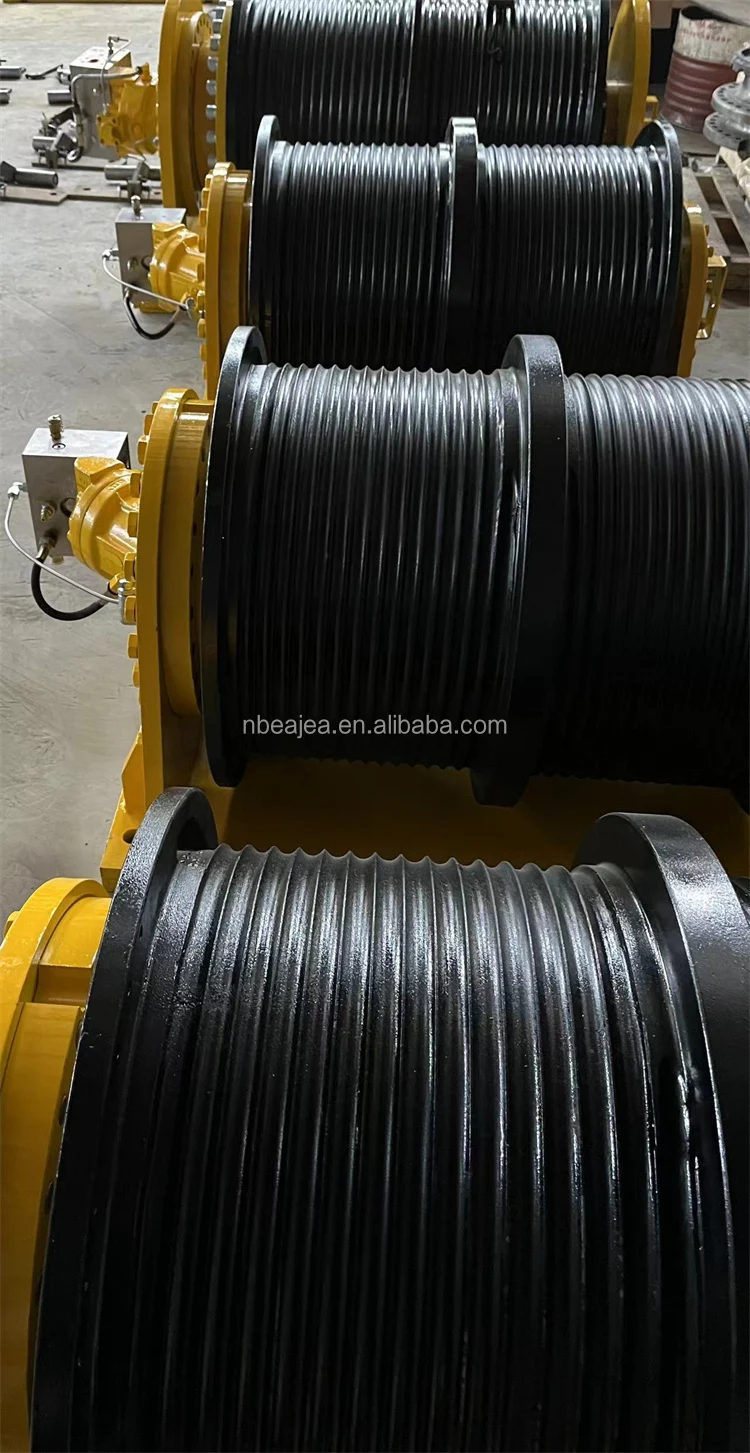

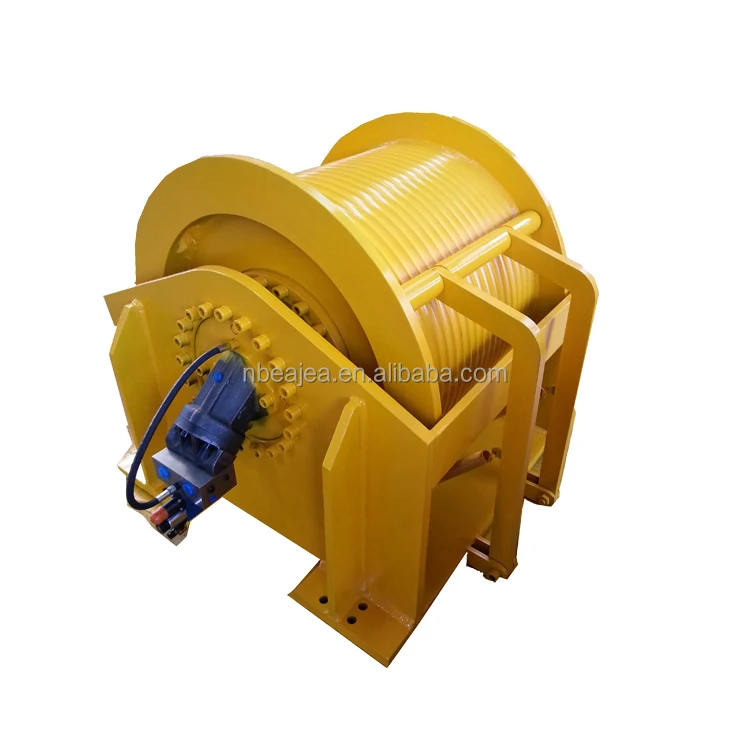

Detail Photos :







 Technical parameters:



Model	Layer	Pull force KN	Rope speed m/min	Rope Capacity    m	Total displacement ml/r	Difference of working pressures   Mpa	Steel wire diameter  m	Hydraulic motor	Ratio
EW20-100.14-ZP	1	20	75	29	1195	20	14	A2F45/6.1W-VZL10	26.5
	2	15	82	60
	3	12	90	95
EW30-100.14-ZP	1	30	53	29	2095	20	14	A2F56/6.1W-VZL10	37.4
	2	25	60	60
	3	20	67	95
EW40-165.16-ZP	1	40	31	50	4368	20	16	A2FE56/6.1W-VZL10	77.9
	2	34	34	105
	3	28	38	165
EW50-165.16-ZP	1	50	31	50	6464	20	16	A2FE63/6.1W-VZL10	102.6
	2	43	34	105
	3	35	38	165
EW60-110.20-ZP	1	60	35	36	8000	20	20	A2FE80/6.1W-VAL10	100
	2	50	40	76
	3	40	46	113
EW80-110.20-ZP	1	80	29	36	10530	20	20	A2FE90/6.1W-VAL10	116.6
	2	70	34	76
	3	60	40	113
EW100-100.26-ZP	1	100	37	29	11342	22	26	A2FE107/6.1W-VZL10	106
	2	85	41	62
	3	72	46	100
EW120-100.26-ZP	1	120	27	29	17487	22	26	A2FE125/6.1W-VZL10	139.9
	2	105	30	62
	3	95	34	100
EW150-150.30-ZP	1	150	32	45	23984	25	30	A2FE160/6.1W-VAL10	149.9
	2	130	35	95
	3	110	40	150
EW180-150.30-ZP	1	180	27	45	29680	25	30	A2FE160/6.1W-VAL10	185.5
	2	160	31	95
	3	130	35	150
EW200-135.36-ZP	1	200	31	40	31302	25	36	A2FE180/6.1W-VAL10	173.9
	2	170	34	85
	3	140	38	135
EW250-135.36-ZP	1	250	26	40	38700	25	36	A2FE180/6.1W-VAL10	215
	2	230	29	85
	3	200	33	135

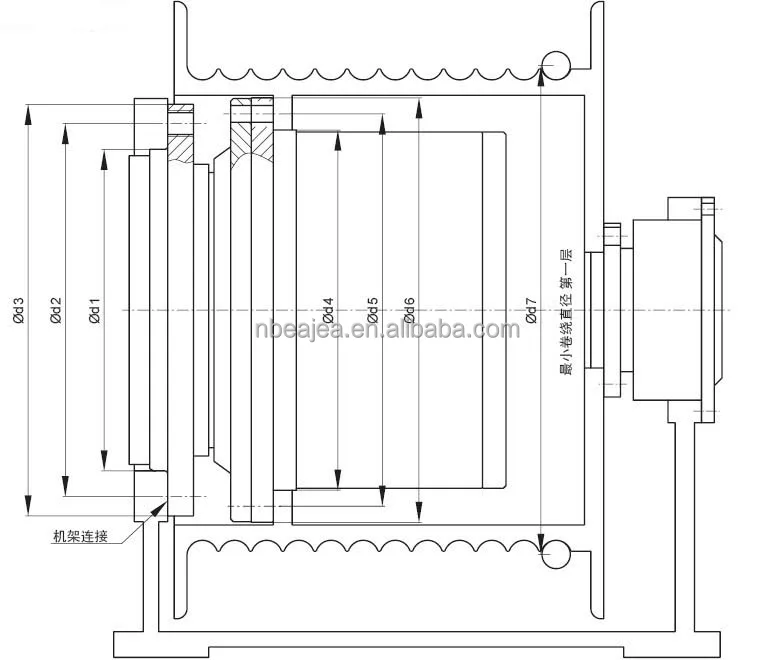

 Outline drawing







Our Factory :

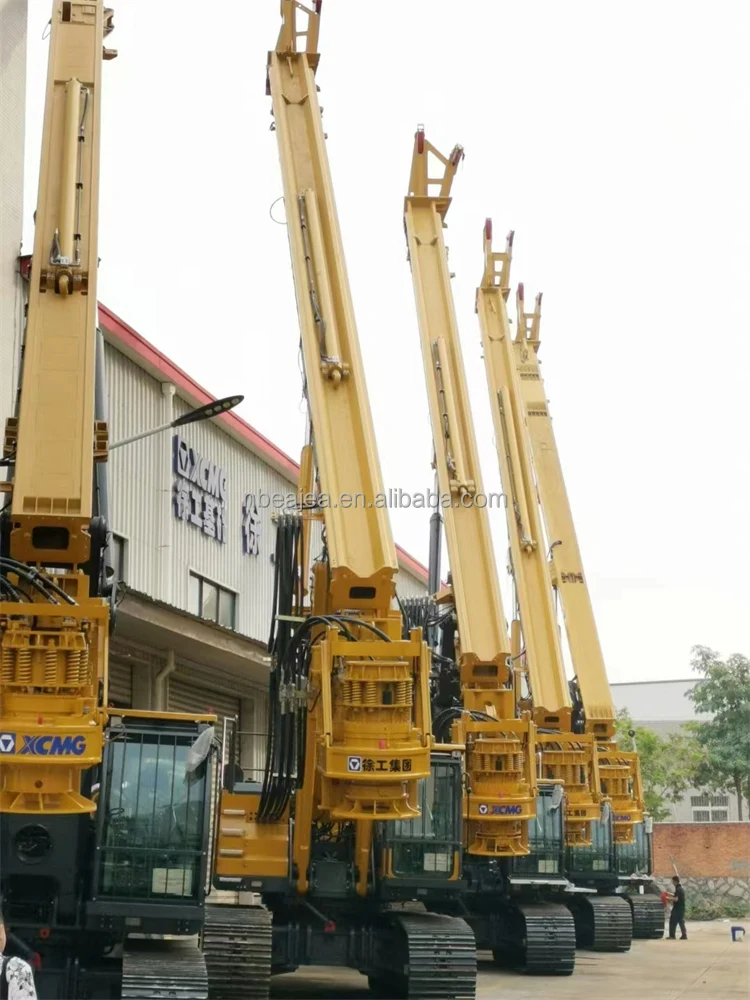

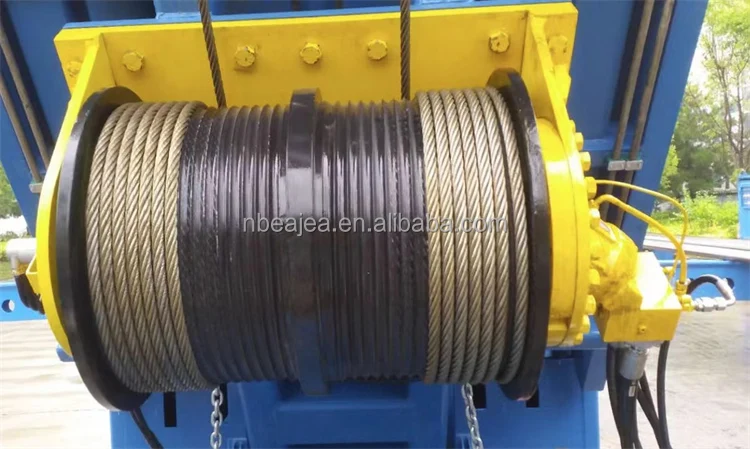

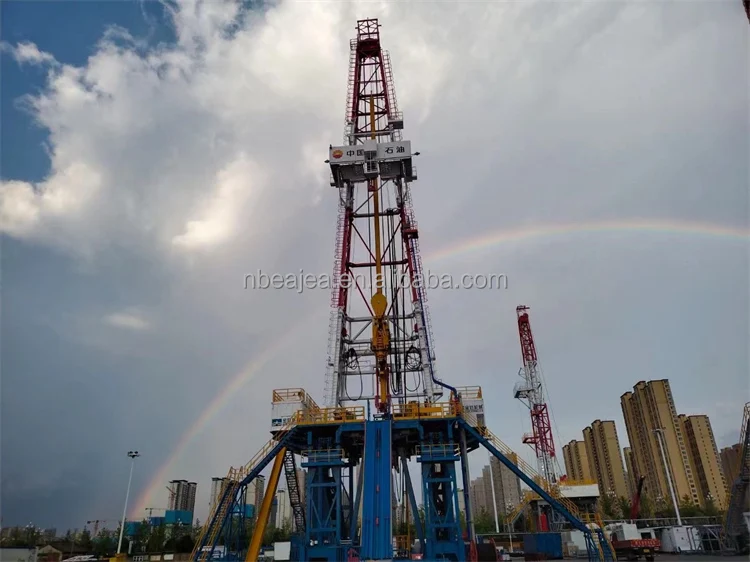

Construction Industry Winch Application:
