Cnc wire diamond fiber laser pipe bevel electronica tube cut metal carbon aluminum laser machine sale
- Category: >>>
- Supplier: Wuxi Cylion Technology Co. Ltd.
Share on (1600611368928):
Product Overview
Description

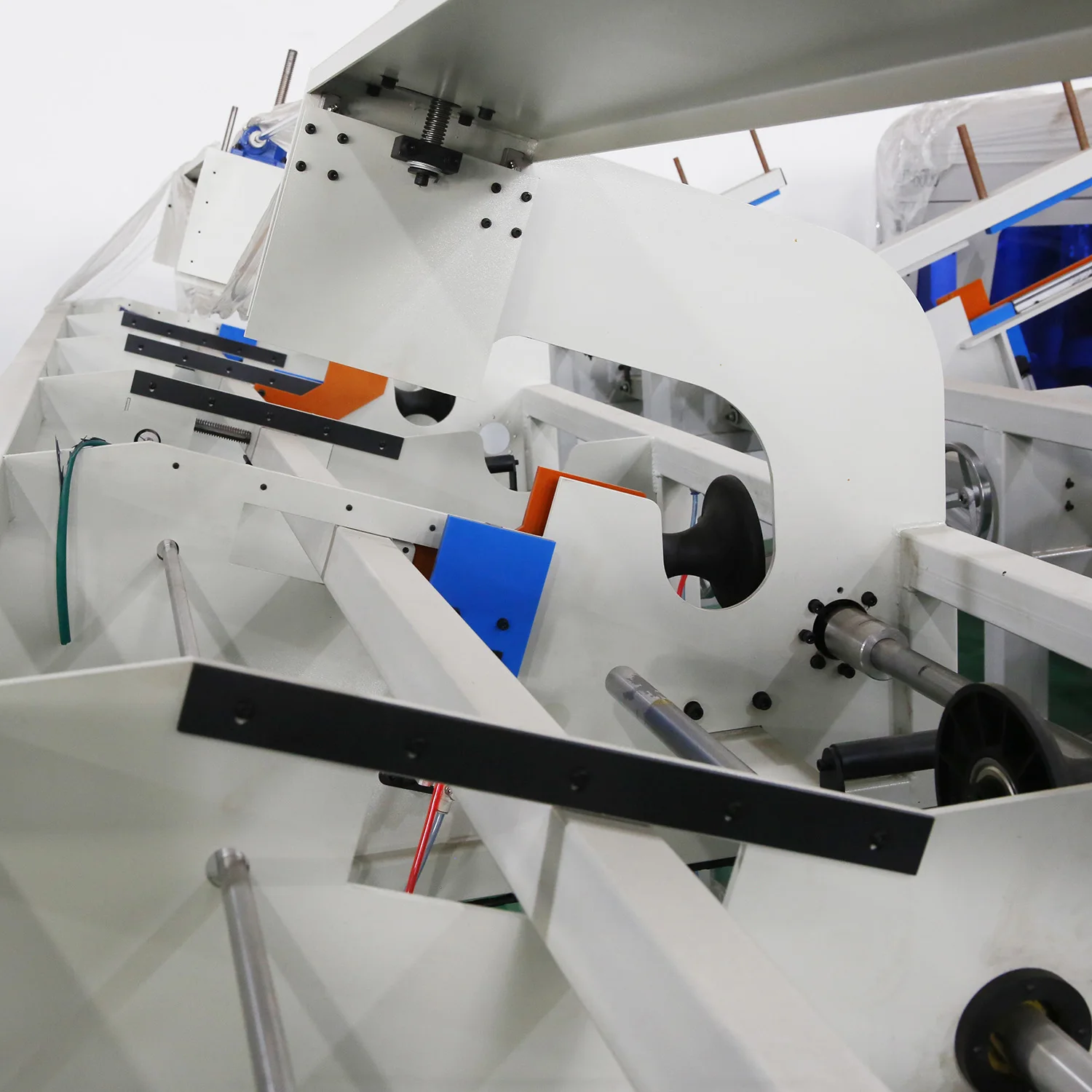

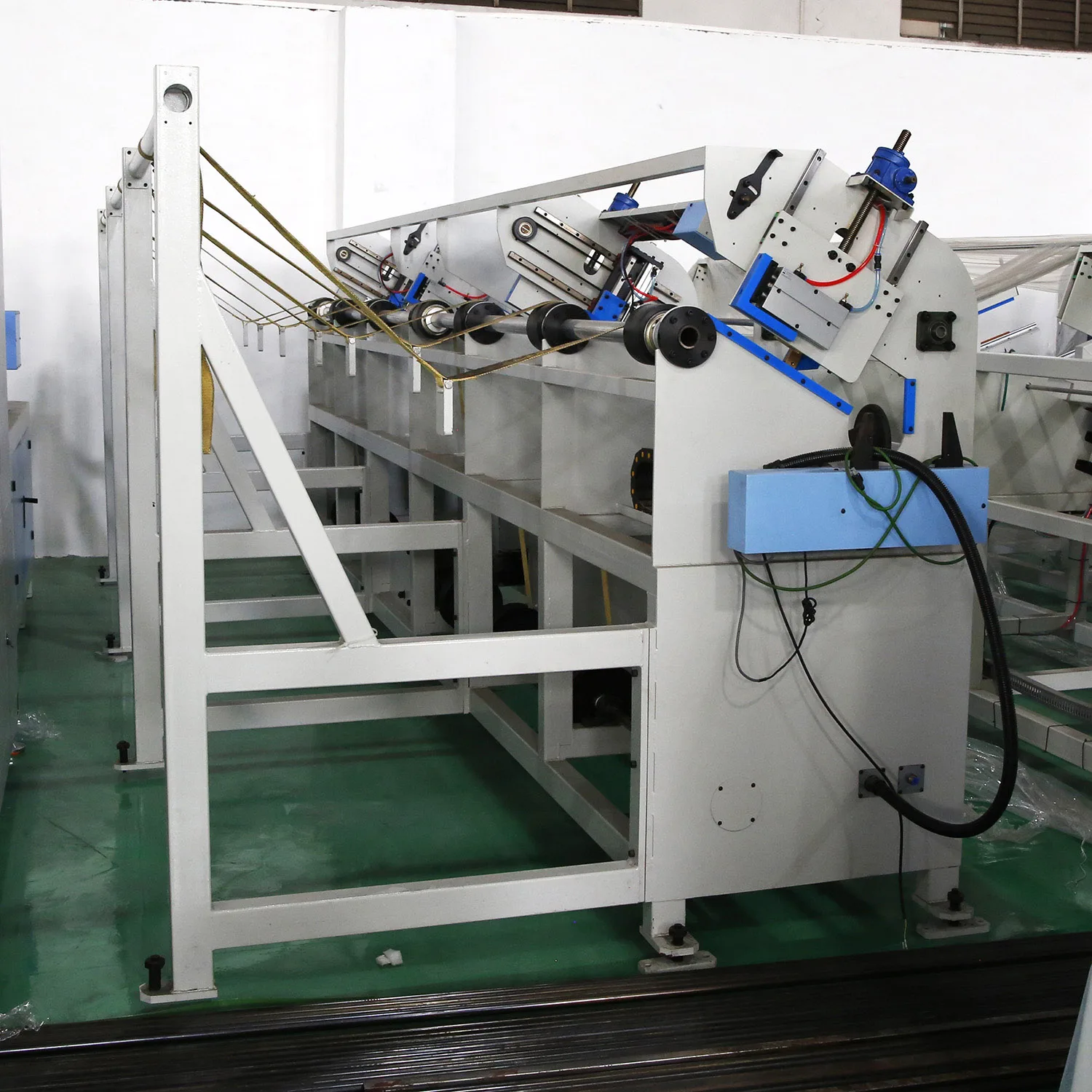

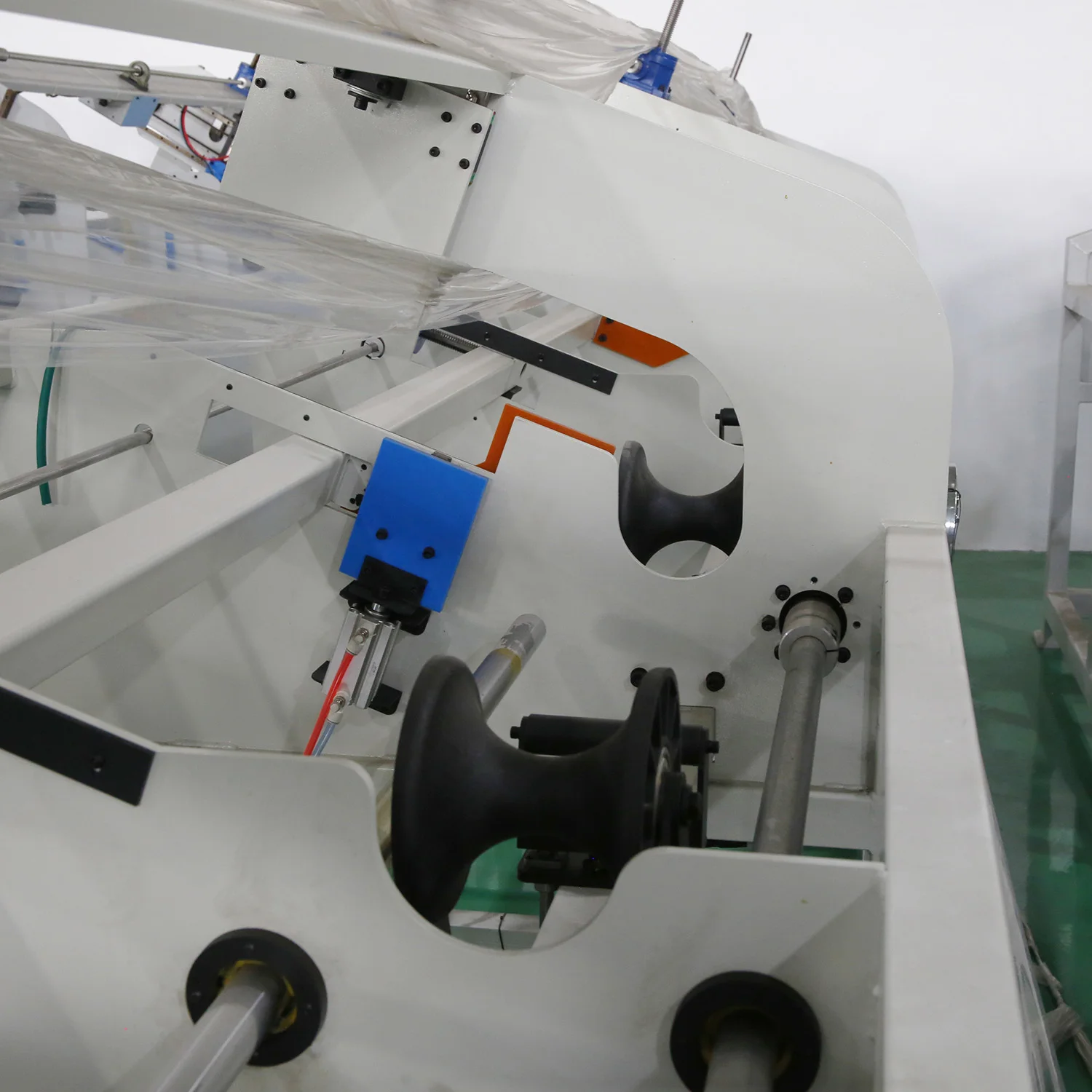

Real shots of the machine

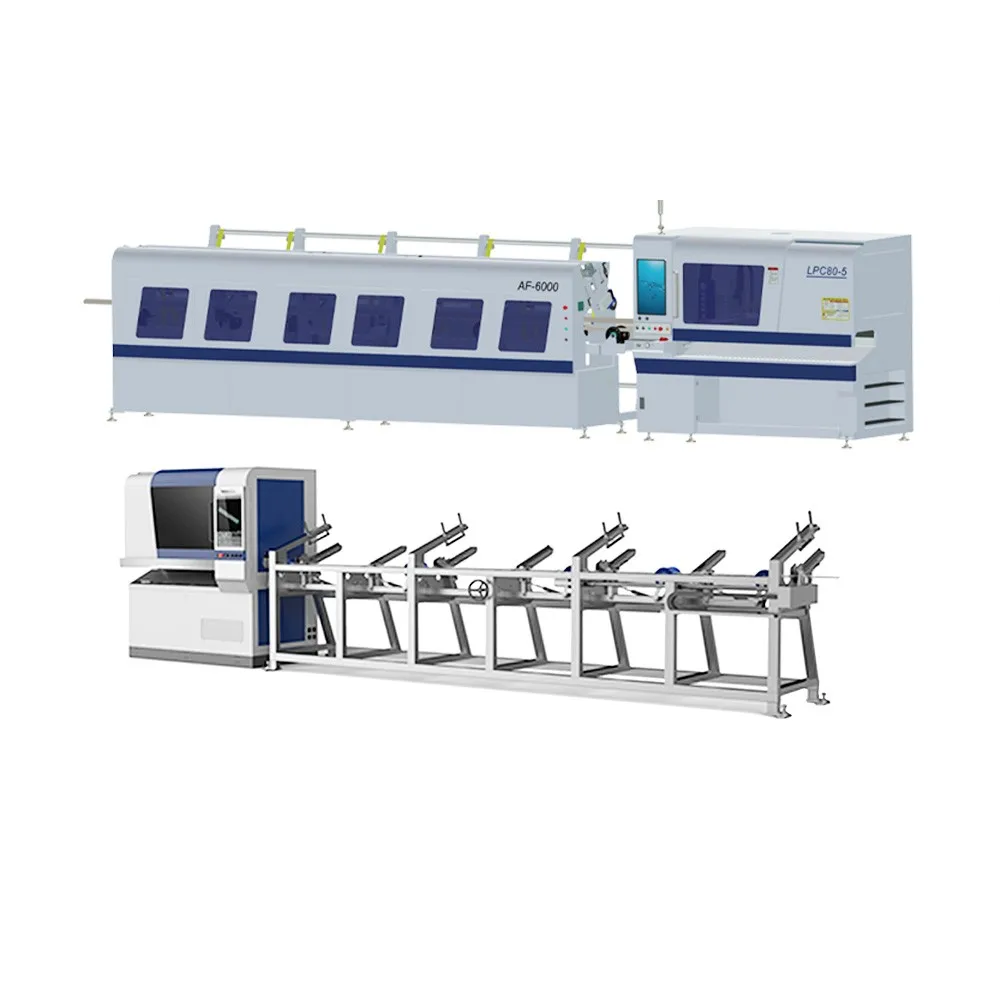

Five-axis automatic high-speed laser pipe cutting machine
1000W 1500W 2000W 3000W
Five-axis automatic high-speed laser pipe cutting machine is also called tube laser cutting machine,which is used for cutting round tube,square tube and other metal tube. Pipe processing range 6000mm* φ6~115mm. SFive-axis automatic high-speed laser pipe cutting machine is equipped with fiber laser device, laser power from 1000W to 3000W.
item | parameters | ||
1 | Laser wavelength | 1070nm | |
2 | Laser source power | 1000W~3000W | |
3 | Complete consumption | 19KW | |
4 | Pipe diamater | φ6-φ85/φ6-φ115 | |
5 | ｘ、ｙ、ｚ axis position accuracy： | ≤±0.05mm | |
6 | ｘ、ｙ、ｚ axis repeat position accuracy | ≤±0.02mm | |
7 | Min cutting kerf | 0.15mm | |
8 | Acceleration | 2G | |
9 | Auto feeding time | 2S | |
10 | Machine weight | 2T | |

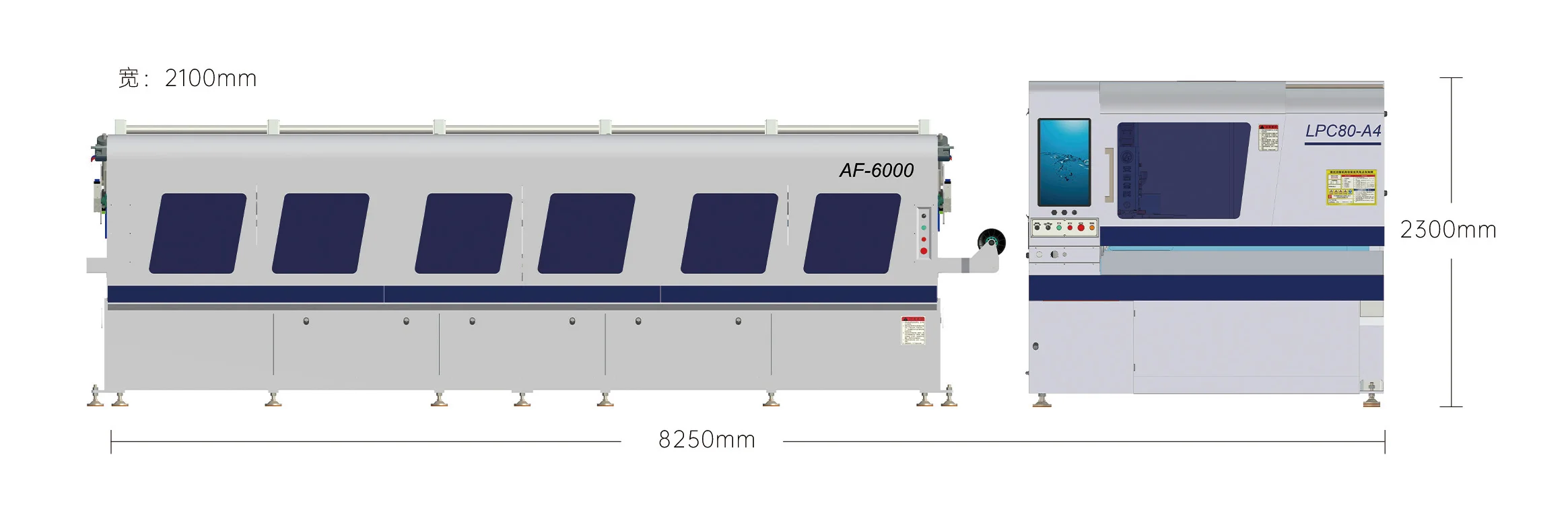

11 | Machine size | 8500*1800*1800mm | |
12 | Power supply | 380V/50Hz | |
Application field
Metal cutting, die cutting board processing, electrical switch manufacturing, aerospace, food machinery, textile machinery,construction machinery, locomotive manufacturing, agricultural and forestry machinery, elevator manufacturing, special automobiles, household appliance manufacturing, tool processing, IT manufacturing, petroleum machinery manufacturing, Food machinery, metal material surface treatment, decorative advertising, laser external processing services and other machinery manufacturing and processing industries.

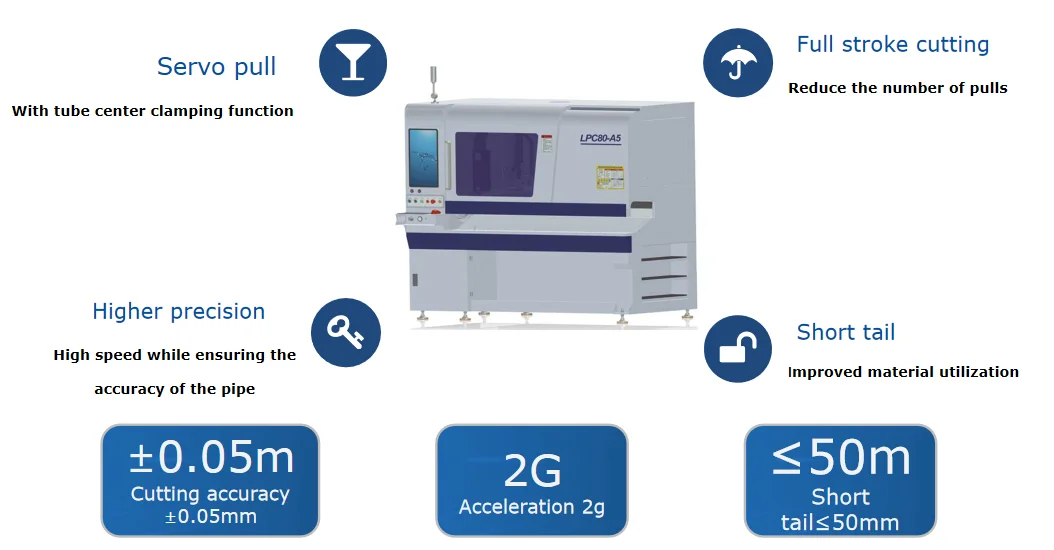

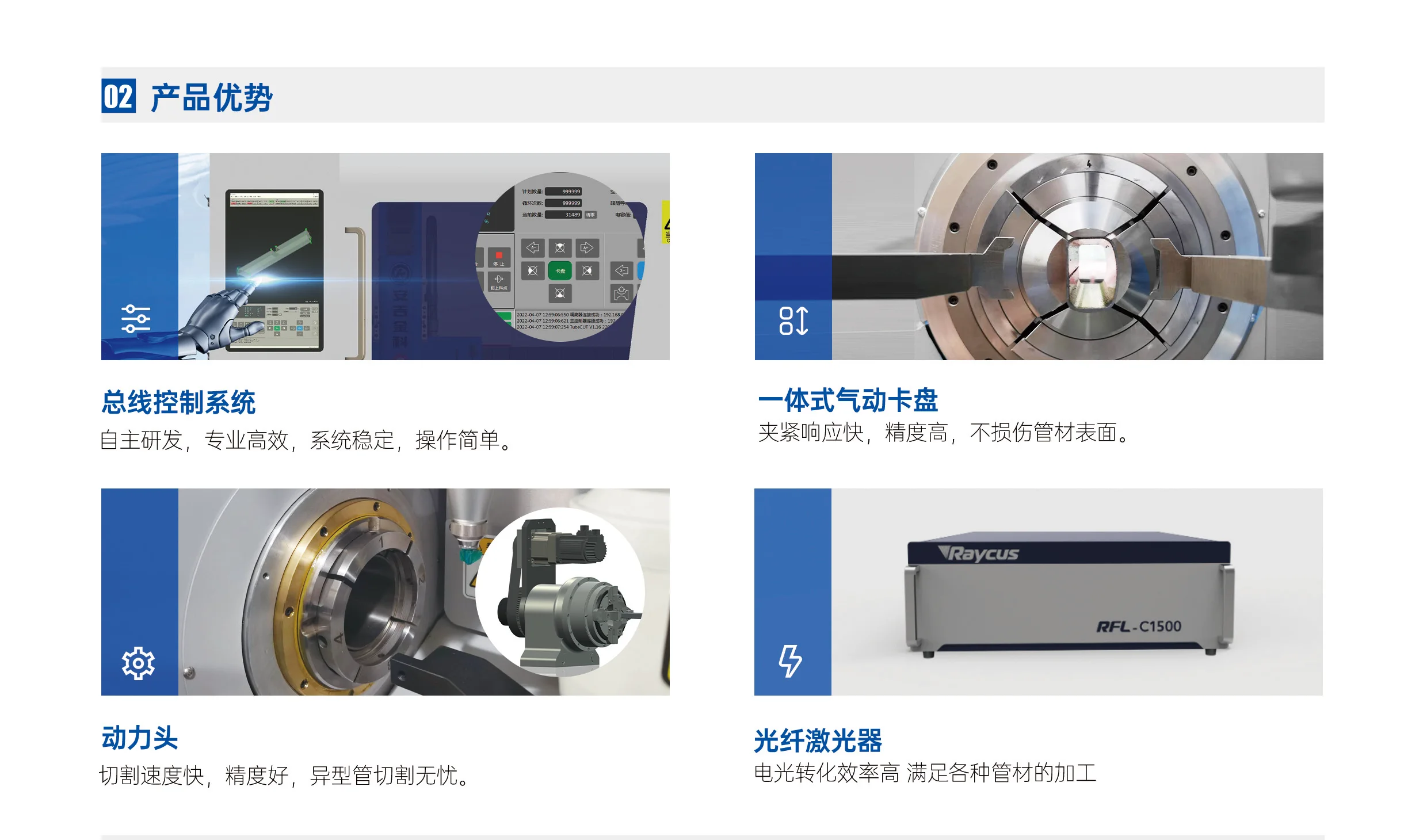

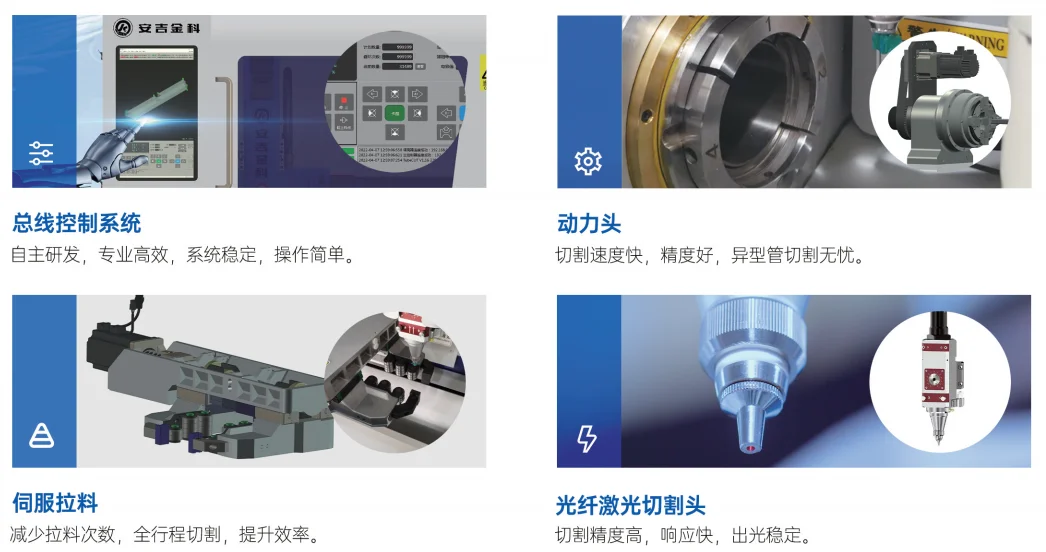

Product Advantages
Independent research and development, professional and efficient, stable system, simple operation
Power chuck
Fast cutting speed, good precision, worry-free cutting of special-shaped pipes
Servo pull
Reduce the number of pulling materials, full stroke cutting, improve efficiency.

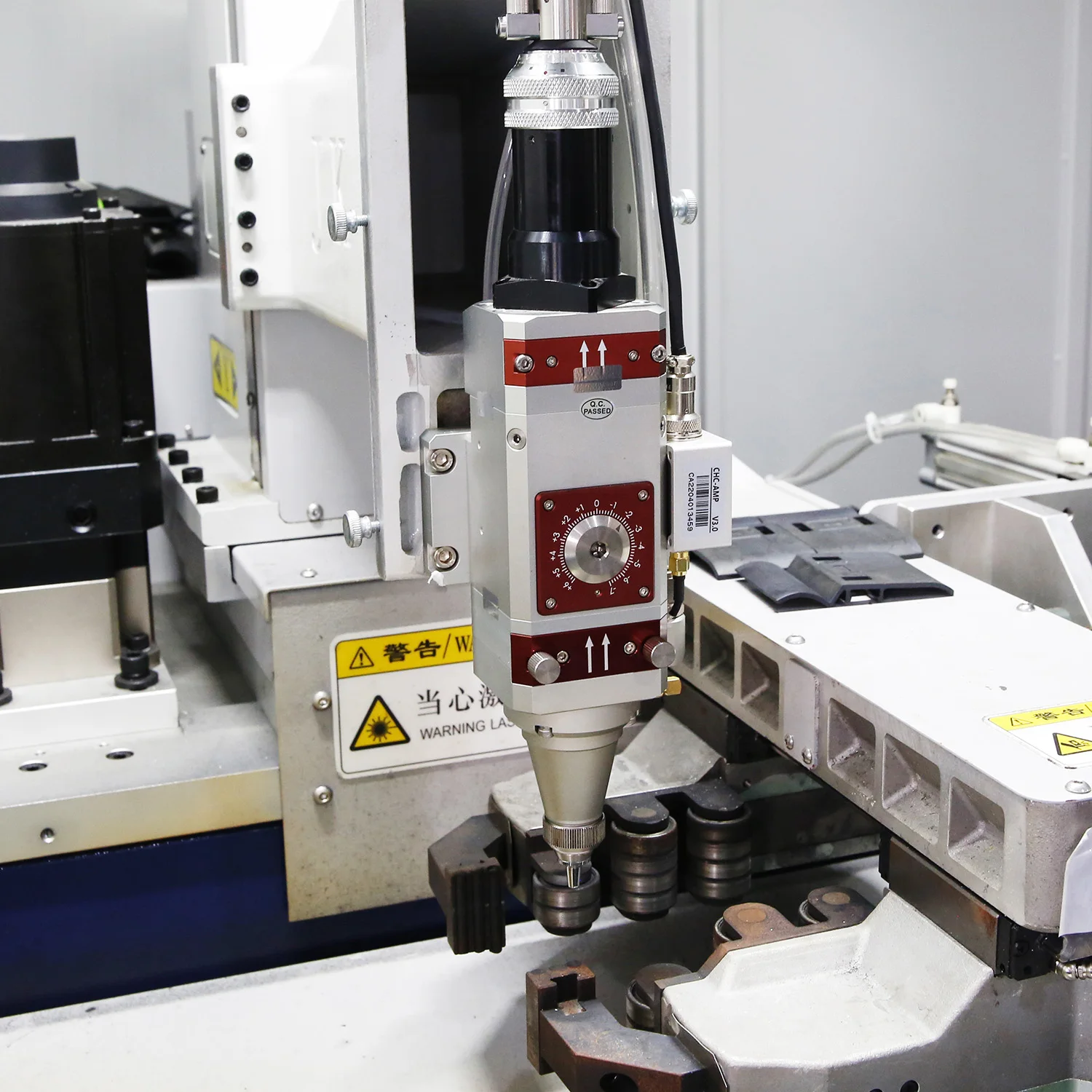

Fiber laser cutting head
High cutting precision, fast response, stable light output.
Easy to operate, intelligent and efficient
After importing the model, automatically adjust the width of the trough, the height of the center of the pipe, the height of the drag wheel, and the position of the stopper.
High precision

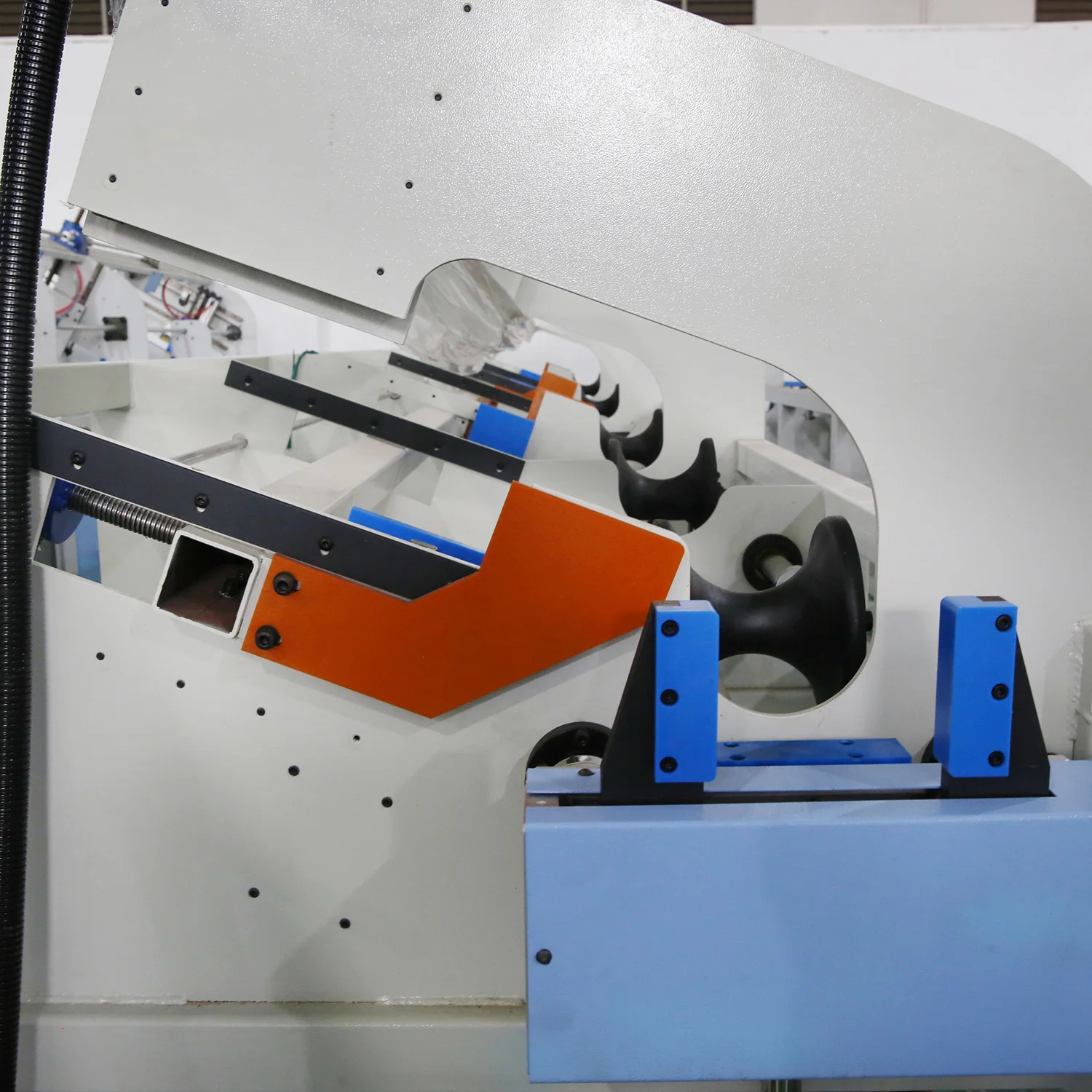

Follow-up support
Follow-up support
The follow-up material feeding is unobstructed to ensure the cutting accuracy of the pipe
Automatic recognition function
With displacement sensor detection, automatically measure the width after clamping, adjust the feeding direction

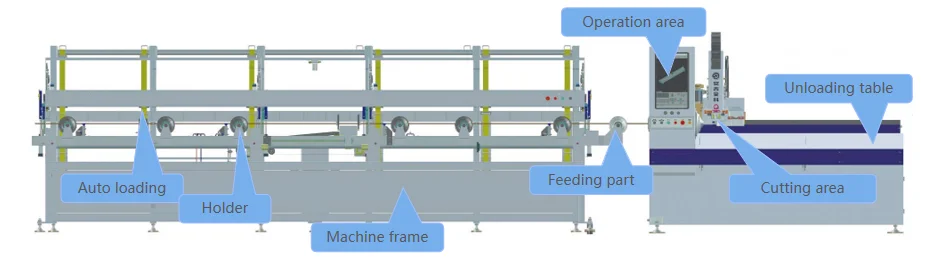

☆Machine operation process:
① Put the pipes into the storage area, the feeding machine adopts an automatic arrangement method, and the pipes in the storage area are automatically sent to the discharge area by the transmission mechanism in turn.
② The limit device in the discharge area will ensure the orderly discharge of the pipes, and the handwheel device is required to adjust the limit height to change the pipe diameter.
③ The pipe is automatically fed into the cutting area through the feeding mechanism for automatic cutting.
④ The cut sample is automatically slid into the bottom trolley through the unloading table to complete the cutting.
③ The pipe is automatically fed into the cutting area through the feeding mechanism for automatic cutting.
④ The cut sample is automatically slid into the bottom trolley through the unloading table to complete the cutting.

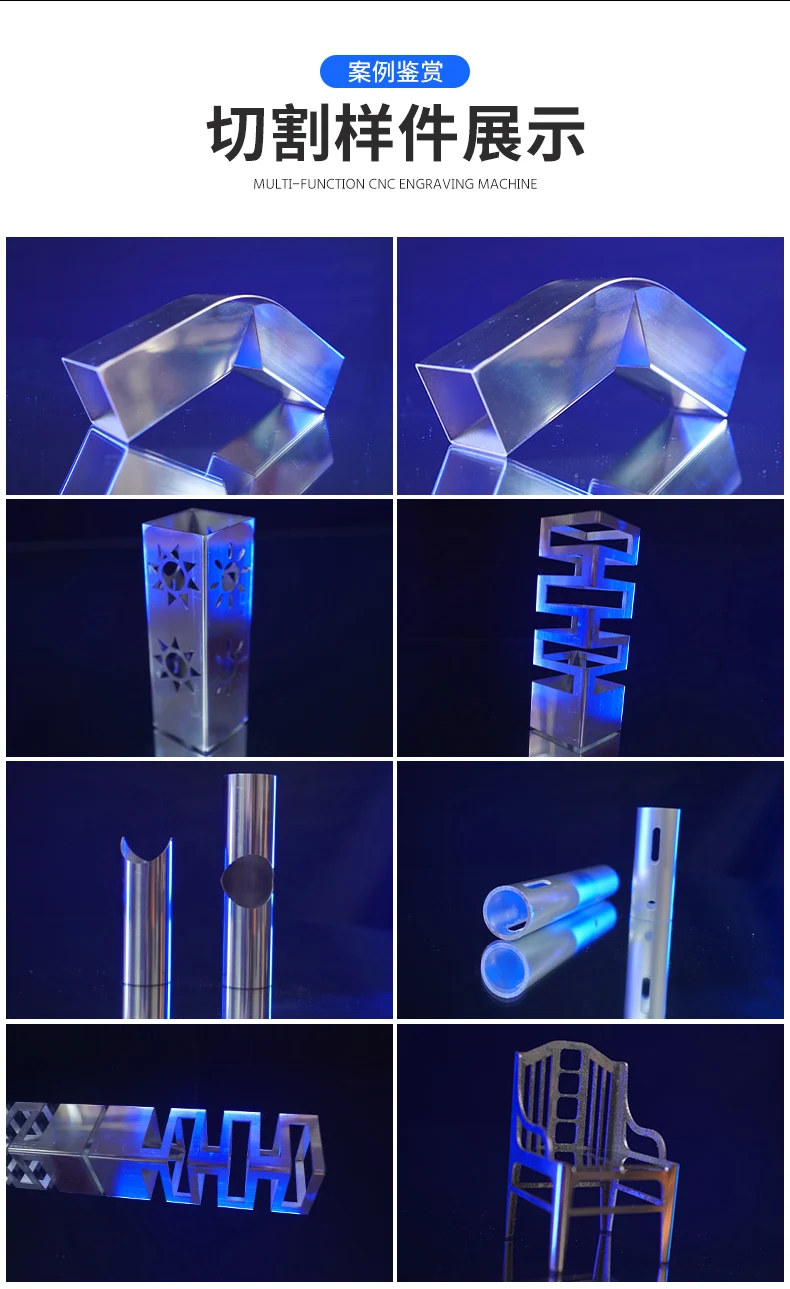

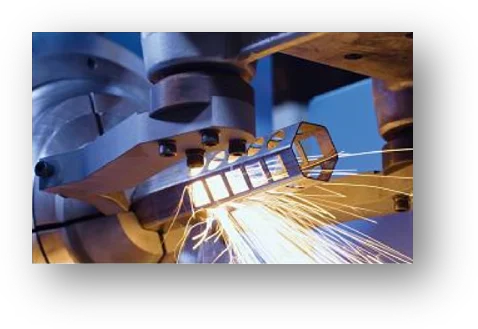

Sample

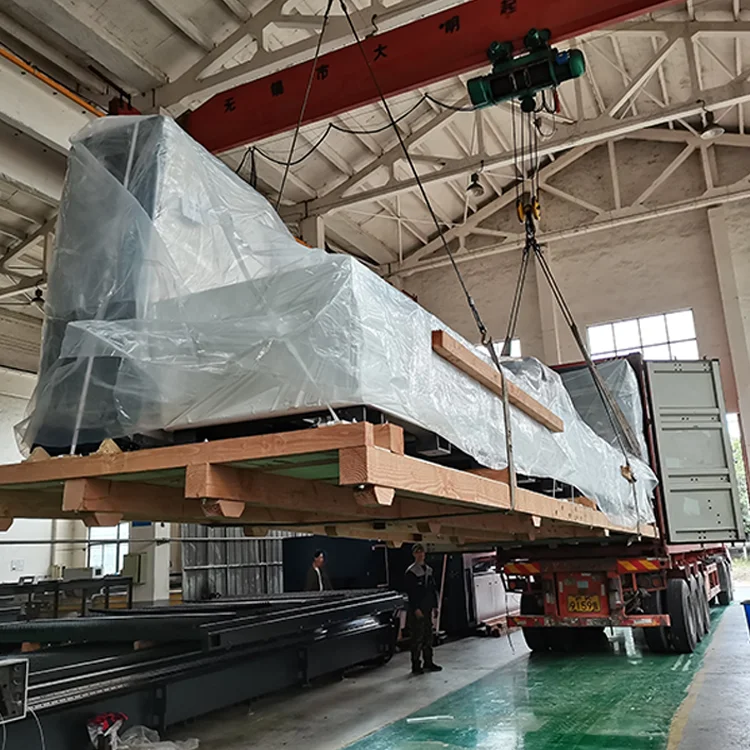

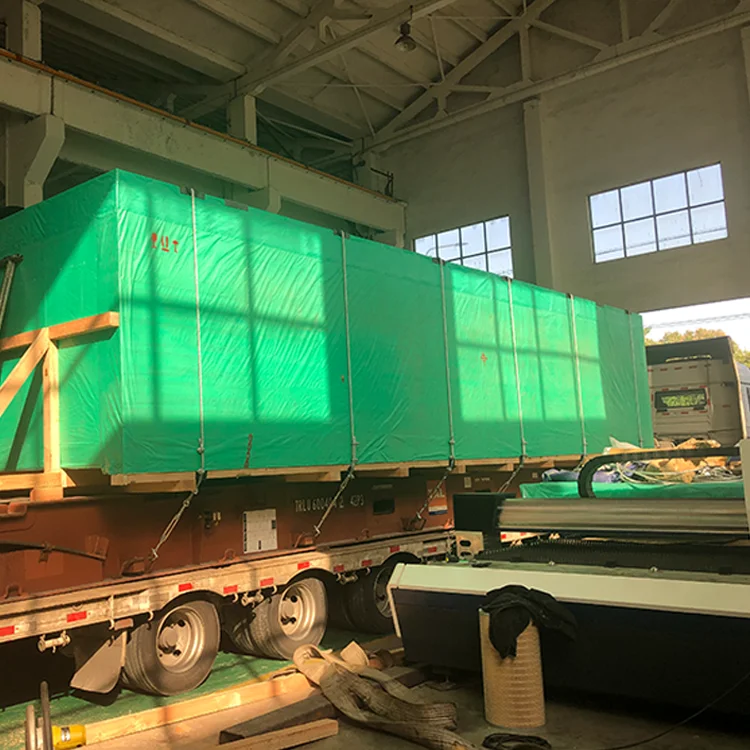

Packing
Exhibition Information
Company Profile
Wuxi Cylion Technologu Co., Ltd is a branch of Qiaolian group,responsible for R&D advanced industrial technologu for Qiaolian group long-term growth,and promoting CNC equipment and parts produced bu Qiaolian group companies on oversea market.Qiaolian group companies are engaged in steel production line,steel fabrication equipments like CNC machining centre,lathe,Plasma,laser cutting&welding machines,CNC control systems and parts design,production and service.
Welcome to visit our factories in Wuxi.
Qiaolian Laser has won praise from overseas customers for its high-quality products and intimate service. We are serving more than 150 countries and regions on six continents.
If you are interested in this machine,Pls contact with us in any time,Thank you!
Welcome to visit our factories in Wuxi.
Qiaolian Laser has won praise from overseas customers for its high-quality products and intimate service. We are serving more than 150 countries and regions on six continents.
If you are interested in this machine,Pls contact with us in any time,Thank you!
FAQ
Q1: Can you produce the machine faster ?
As we need the machine urgently, High level machine is not simply assemble parts together and deliver it to customer. We don’t dofast production. Long-termmachine stability depends on strict quality control. Inspection and testing work needs enough time ifyou wish to get long-time stable work machine. We mainly rely on old customers recommend our machines to others to expandbusiness. The machines we produced are best advertisement for us.
Q2: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions andsuggestions.
Q3:How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?What kind of materials mainly?Cutting/engraving, Max thickness for cutting?How big working area you need?
Q4: When I got this machine, but I don’t know how to use it. What should I do?
We will send an English manual with the equipment, and arrange a colleague to connect and install it with you alone. If you haveany questions, we can also arrange for a maintenance person to come to commission and install it.
Q5: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life longafter-sales service. So any doubts, just let us know, we will give you solutions.
Q6:How can I get some samples?
We are honored to offer you samples.
As we need the machine urgently, High level machine is not simply assemble parts together and deliver it to customer. We don’t dofast production. Long-termmachine stability depends on strict quality control. Inspection and testing work needs enough time ifyou wish to get long-time stable work machine. We mainly rely on old customers recommend our machines to others to expandbusiness. The machines we produced are best advertisement for us.
Q2: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions andsuggestions.
Q3:How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?What kind of materials mainly?Cutting/engraving, Max thickness for cutting?How big working area you need?
Q4: When I got this machine, but I don’t know how to use it. What should I do?
We will send an English manual with the equipment, and arrange a colleague to connect and install it with you alone. If you haveany questions, we can also arrange for a maintenance person to come to commission and install it.
Q5: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life longafter-sales service. So any doubts, just let us know, we will give you solutions.
Q6:How can I get some samples?
We are honored to offer you samples.
