Plastic Powder Granules Dosing Mixer Masterbatch Gravimetric Batch Blender

Product Overview

Description

Sanzhong 2020 NEW gravimetric blender continuous working high capacity for nonwoven industry



Sanzhong Gravimetric blending units guarantee accuracy and consistency of the blend.



More than 10 years experiences, especially for nonwoven industry.



Scope of application



For the extruding online processes with multi, proportional and high precise of materials like pellets, sheets, regrinds or powder in plastics industry.

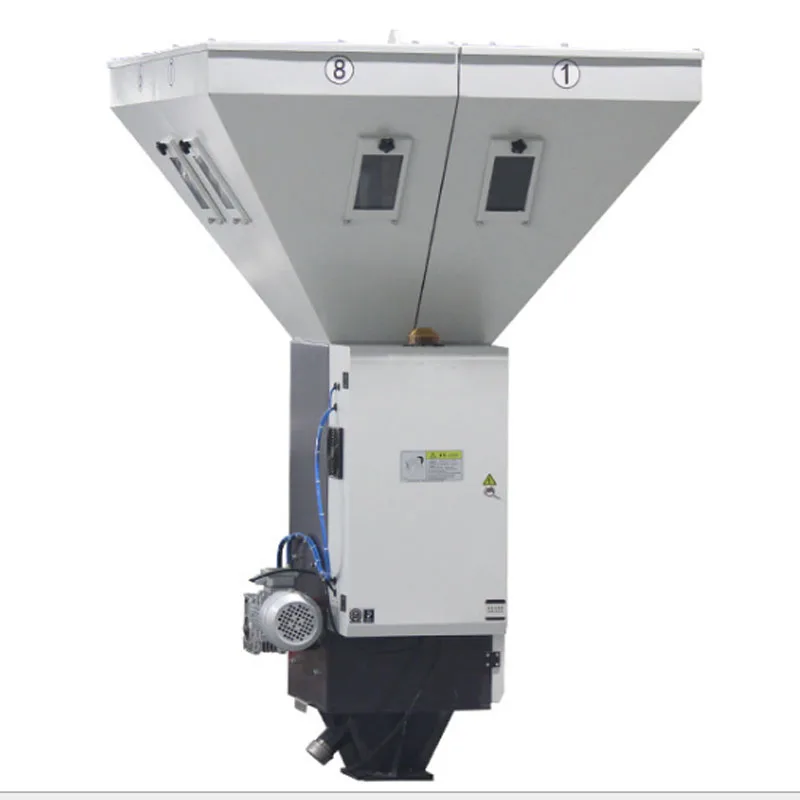

Gravimetric dosing and blending unit for direct installation on the inlet flange of a plastics processing machine or on floor stand. The unit can dose and blend up to 4 components by standard and can be tailored for 6 components or more. Material blending with high accuracy and repeatability, specifically designed for injection moulding/blow moulding machines and extruders with an throughput from 50kg/h to 3000kg/hr. Actual metered and weighed amounts are constantly checked against the pre-selected set values by a modern PLC based control. This guarantees an exceptionally high recipe accuracy (±0.1~±0.3%) by continuous self-optimization



Dosing range: main component 5 - 100%, Dosing range: additive 0.5 - 10% - Power supply 1PH/230V 50HZ for CGB50 – CGB400, 3PH400V50HZ for CGB600 - CGB3000.





Specifications:



Model	Number of ingredients	Average throughput (kg/h)	Batch Capacity (kg)	Main material ratio (%)	Additive ratio (%)	Main material hopper (L)
CGB-600	4(5/6)	400	4.5	5~100	0.5~10	50
Model	Additive hopper (L)	Mixing chamber (L)	Power supply (V/Hz)	Total power (kW)	Compressed air (kgf/cm2)	Max. noise level (dB)
CGB-600	50	20	3Φ400/50	0.4	6~8	<75



    Remarks:

   1. The standard machine is not suitable for powder material.

   2. The capacity is tested based on continuous running of the machine with material density of 0.8, dia. 3-4mm.

   3. 5 or 6 components machine can be particularly made on request.

   4. We reserve the right to change specifications without prior notice.
