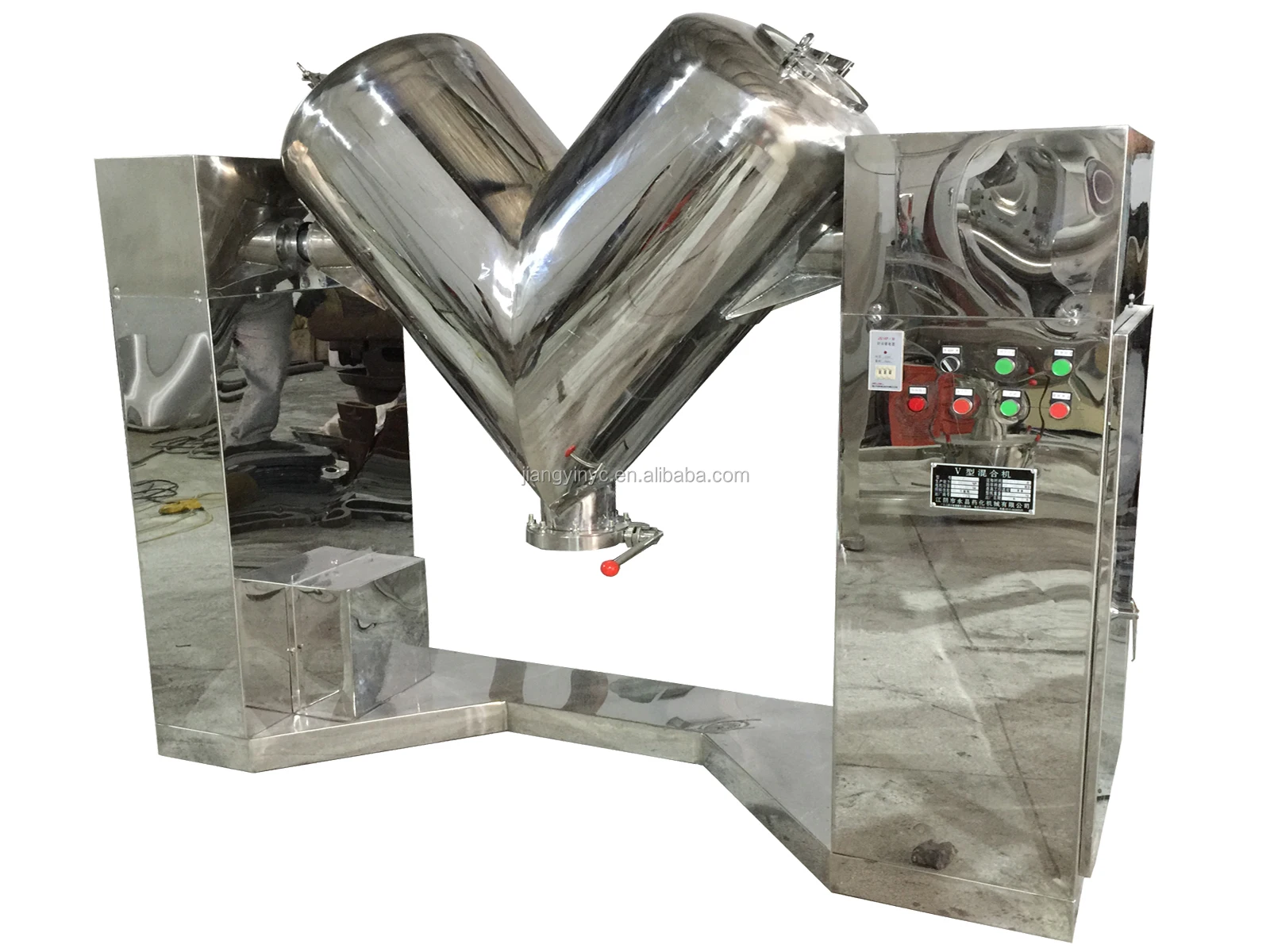

Chemical Industry High Efficiency V Type Copper Dry Powder Mixer/Milk Powder Shape Mixing Equipment 1000L 500kg
Chemical Industry High Efficiency V-Type Copper Dry Powder Mixer/Milk Powder Shape Mixing Equipment 1000L 500kg
Chemical Industry High Efficiency V-Type Copper Dry Powder Mixer/Milk Powder Shape Mixing Equipment 1000L 500kg
Chemical Industry High Efficiency V-Type Copper Dry Powder Mixer/Milk Powder Shape Mixing Equipment 1000L 500kg
Chemical Industry High Efficiency V-Type Copper Dry Powder Mixer/Milk Powder Shape Mixing Equipment 1000L 500kg
Chemical Industry High Efficiency V-Type Copper Dry Powder Mixer/Milk Powder Shape Mixing Equipment 1000L 500kg
Chemical Industry High Efficiency V-Type Copper Dry Powder Mixer/Milk Powder Shape Mixing Equipment 1000L 500kg

Chemical Industry High Efficiency V Type Copper Dry Powder Mixer/Milk Powder Shape Mixing Equipment 1000L 500kg

Share on (1600611374812):


Price:$5,300.00 - $5,600.00

Quantity:


Product Overview

Description



Products Description


Product Application

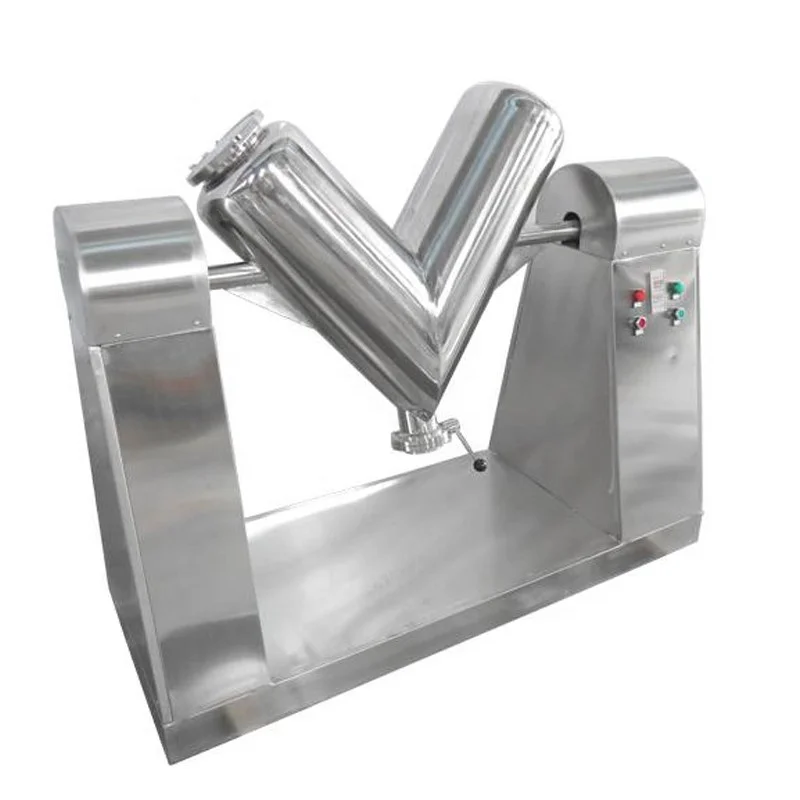

GHJ-V type mixer is used for mixing dry granules and powder in lines of food,pharmacy or otherindustries.
It can mix dry powder, cosmetic powder...etc




Type
Total volume （m³）
Mixing time（mim）
Drum rotate speed(r/mim)
Power(kw)
Overall size（mm）
Weight
180
0.18
4-8
12
1.1
1980*650*1600
280kg
300
0.3
6-10
12
1.1
2050*710*1700
300kg
500
0.5
6-10
12
2.2
2370*1000*1850
550kg
1000
1.0
6-10
10
4
2900*1350*2450
700kg
1500
2.0
6-10
10
5.5
3055*1650*2980
900kg
2000
2.0
6-10
10
7.5
3340*1650*2980
1200kg
2500
2.5
6-10
8
7.5
3820*1900*3480
1500kg
3000
3.0
6-10
8
11
4690*2200*4000
2000kg
4000
4.0
6-10
8
15
4950*2200*4230
2500kg

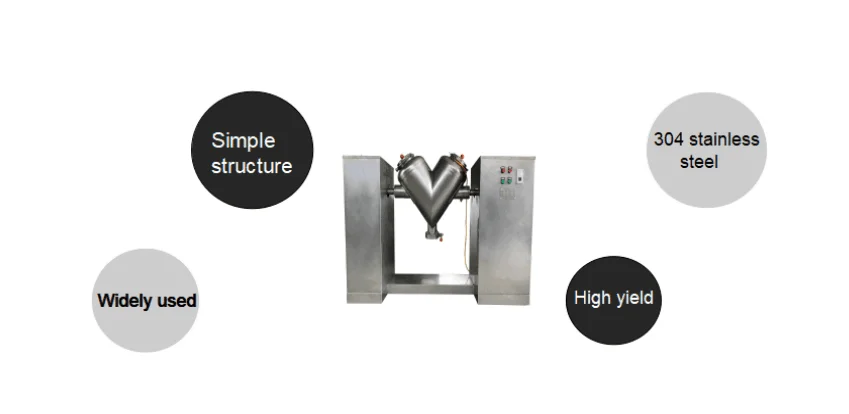

Main Features

1) High mixing efficiency.
2)Free of dead corner.
3) even mixing.
4) Safty bar is added.

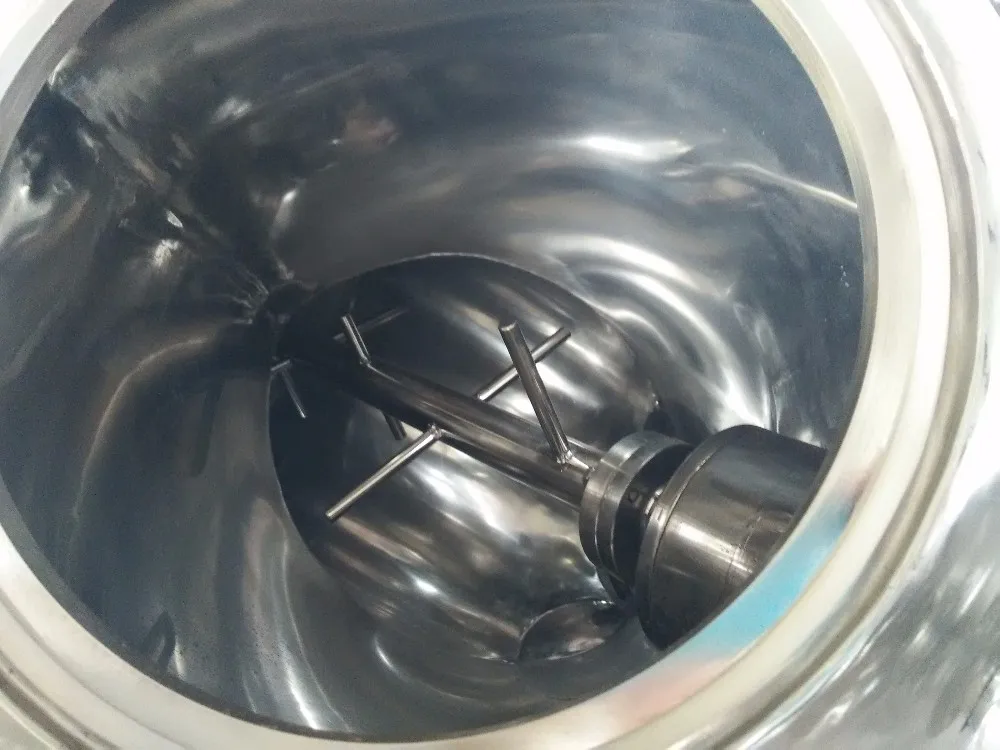

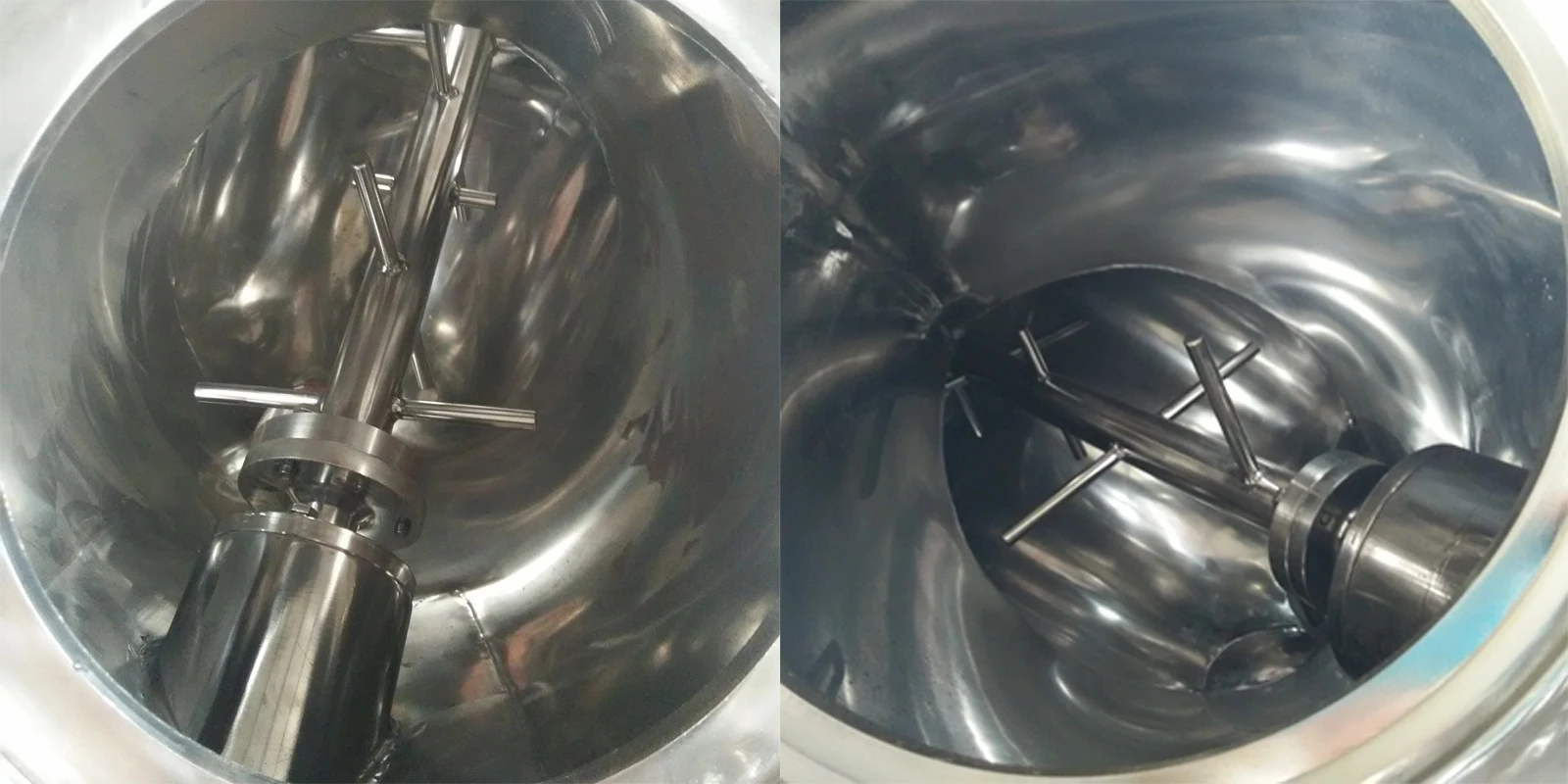

5) Forced agitator be added.


Main Application

V series gravity diffusion type mixer is my company according to the foreign advanced technology, combined with my company the production experience carefully developed by. Widely used in pharmaceutical, food, chemical industry, building materials industry, coating, condiment of industries such as powder mix the raw materials.


Working Principle

V type cylinder in the drive shaft driving to rotate around the center for the rotary motion, one of the material also with V type two tilt cylinder for gravity diffusion movement, when V type cylinder (bottom) the joint of the rotation is located in position, and when V type cylinder is located in the joint of the rotating position, together in the bottom of the material be shunted to the two inclined the cylinder body, make each inclined cylinder materials and the mouth can be connected to another inclined in the cylinder. With the constantly rotating cylinder, the location of the changes, V type cylinder material being repeatedly dislocation, translation, and the diffusion, so as to realize the mixture evenly

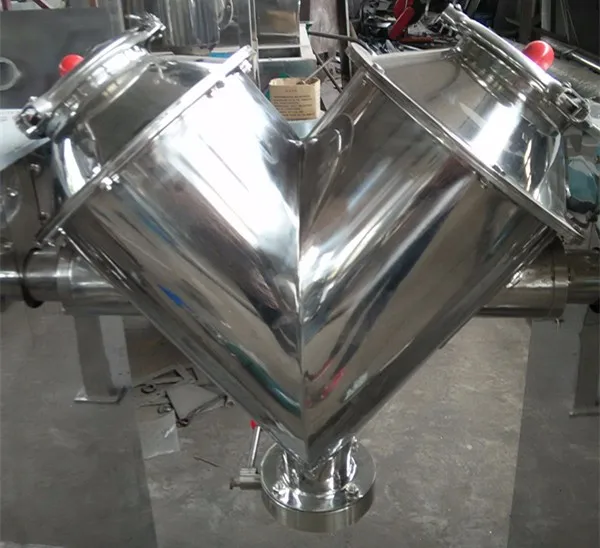

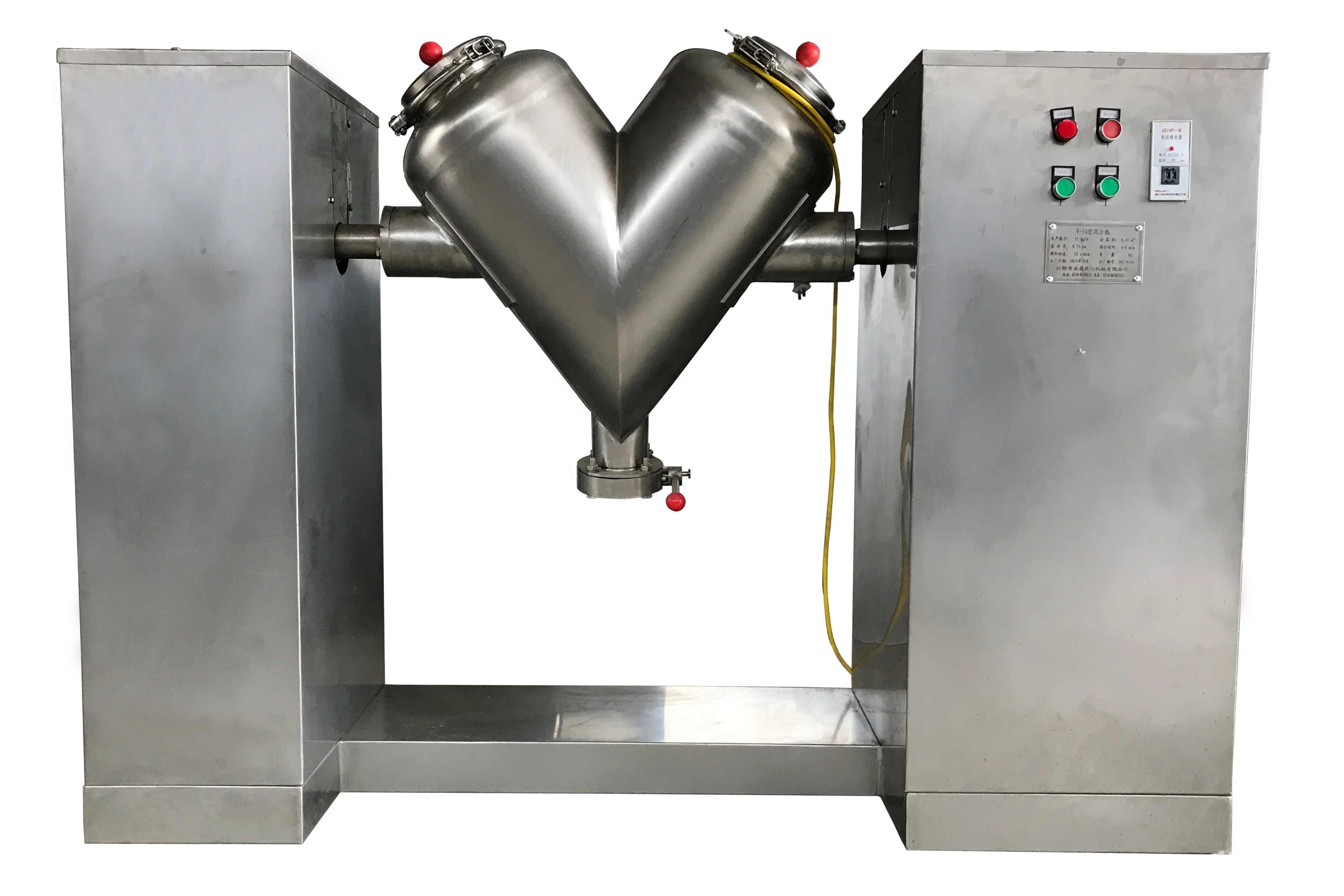

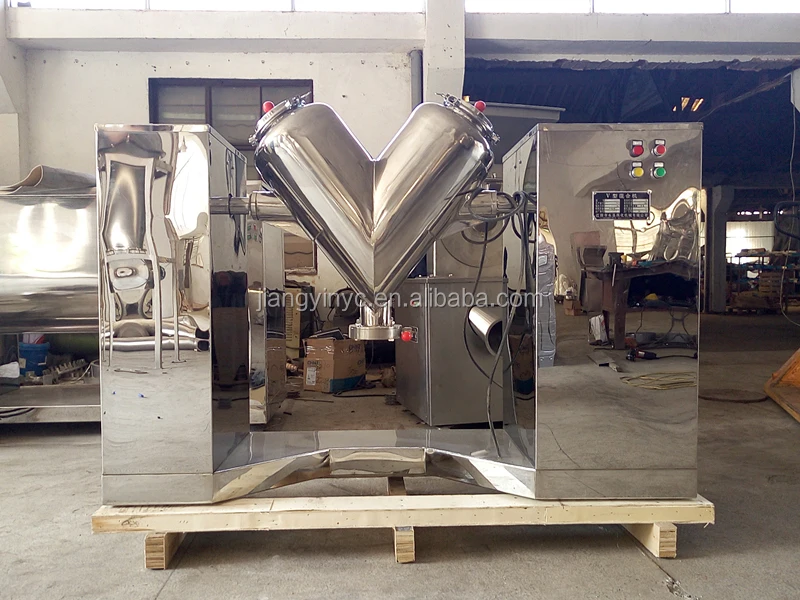

Details Images

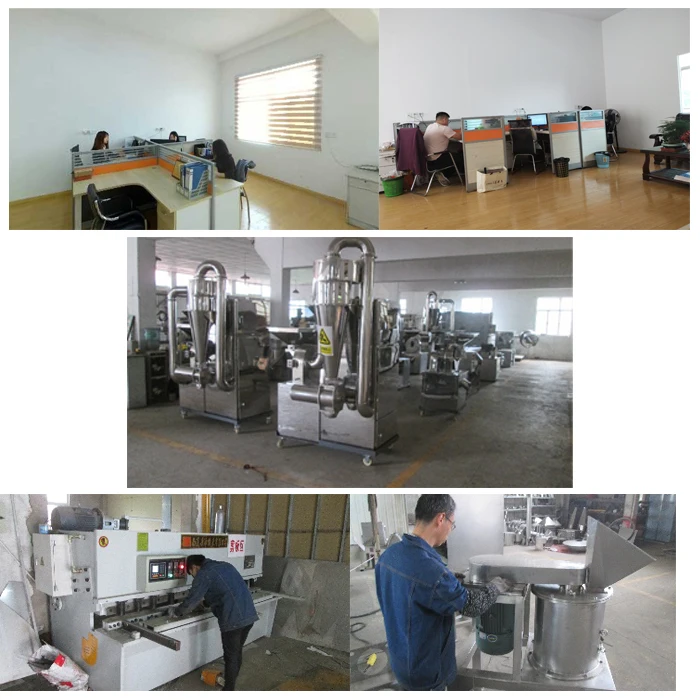

Company Profile








Company Profile
Jiangyin Yongchang Medicine Machinery Co., Ltd was established in 2003, combining R&D, production, foreign trade and professional service of pharmaceutical machinery as an original manufacturer.Following sincerity, striving to be remarkable is our management concept.We have acquired great reputation in the machinery producing and marketing field, well favoured by customers. Our company has strong production capacity and sells durable and high-quality machine. And leading in peer products while we tracking the new development and technology. Our products seriously
comply with the international quality system, ISO and CE. Throughout year's development, we can assure 100% good quality and has been valued one of the ten most potentical enterpreneur among pharmaceitical field. Products include five series machine for pharmaceutical , foodstuff, and industrial fields, such as grinder, mixer, pulverizer, sieve screener, granulator, conveyer,vacuum dryer etc.
Welcome friends from all over the world to consult, negotiate and order all series machinery, it's our pleasure to provide
complete and considerate service for you.

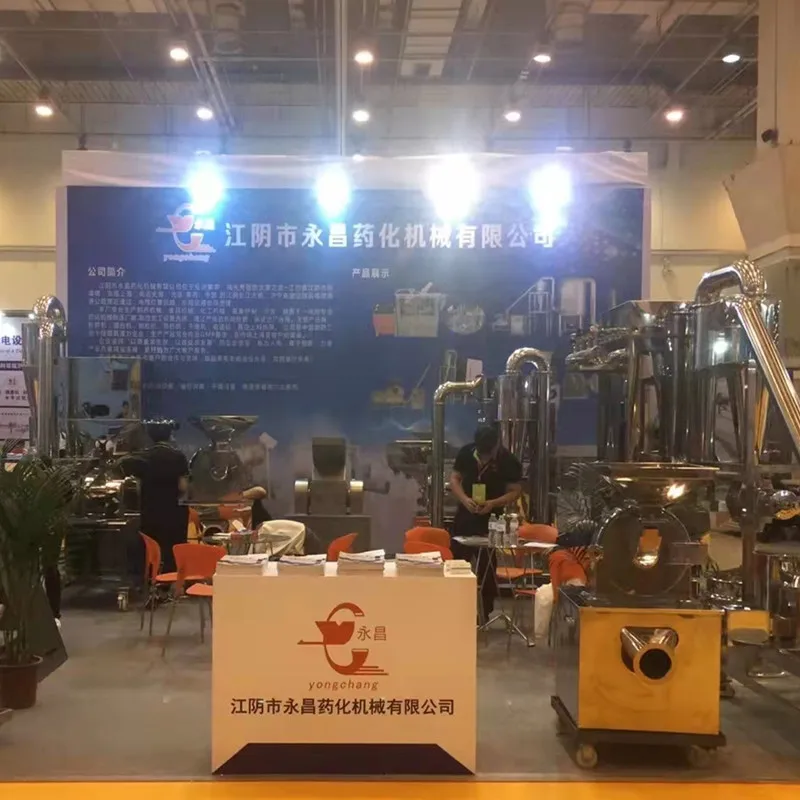

Exhibition






Packaging&Shipping






FAQ


1.You are a manufacturing company or trading company?
---We are original factory specializing in manufacturing pharmaceutical machinery more than 14 years.
2.What quote do you offer?
---FOB , CIF, CFR, EXW, and others.
3.How pay?
---T/T, L/C, Western Union, Paypal, etc.
4.How transport?
---By sea.
5.What is the quality of your products guarantee? -
--We have passed ISO and CE, engineers available to service machinery overseas.
6.Do you have after-sales service?
---Certainly, you can contact us at any time.
