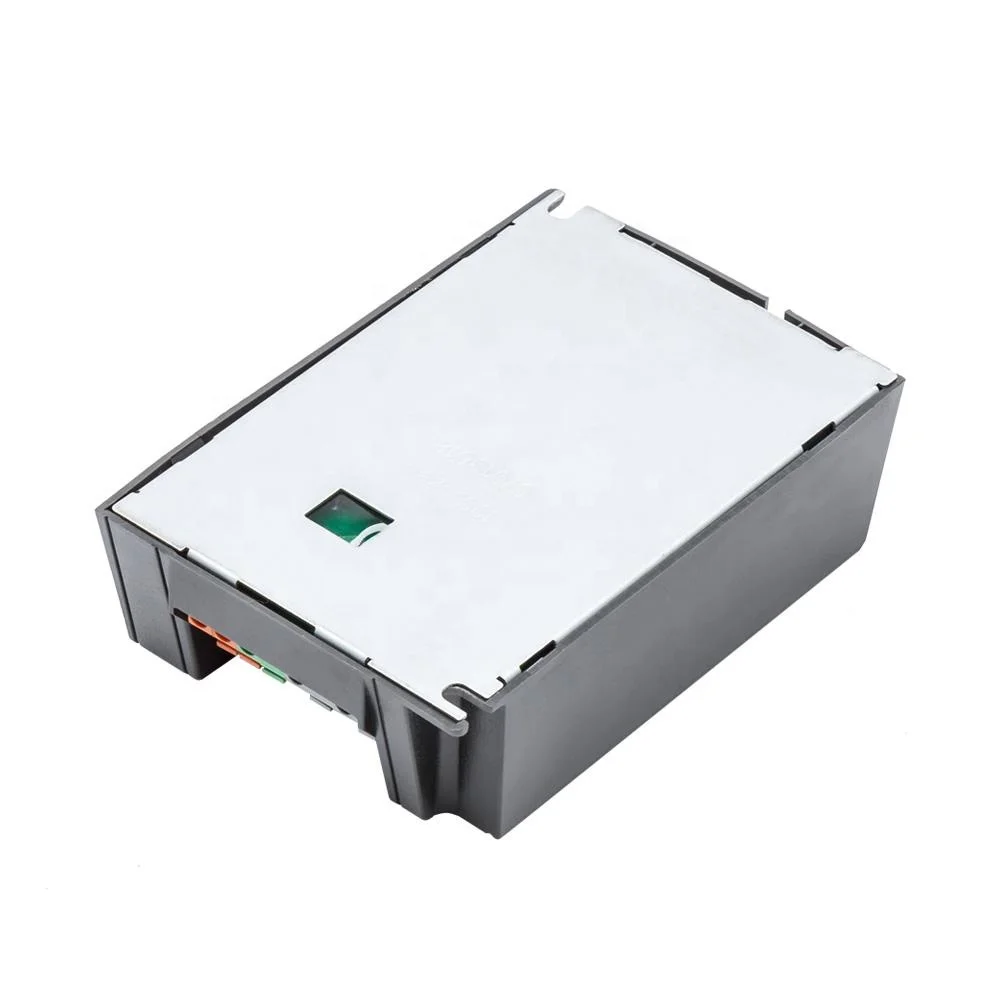

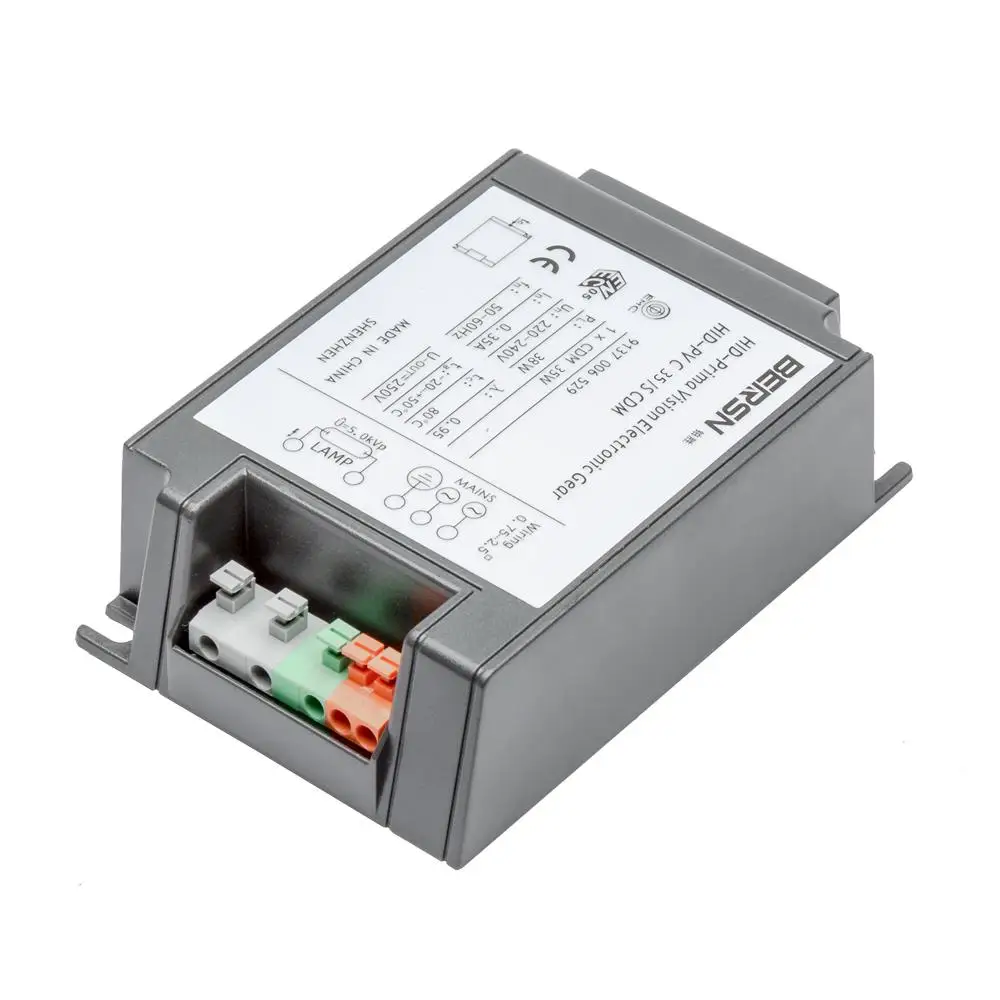

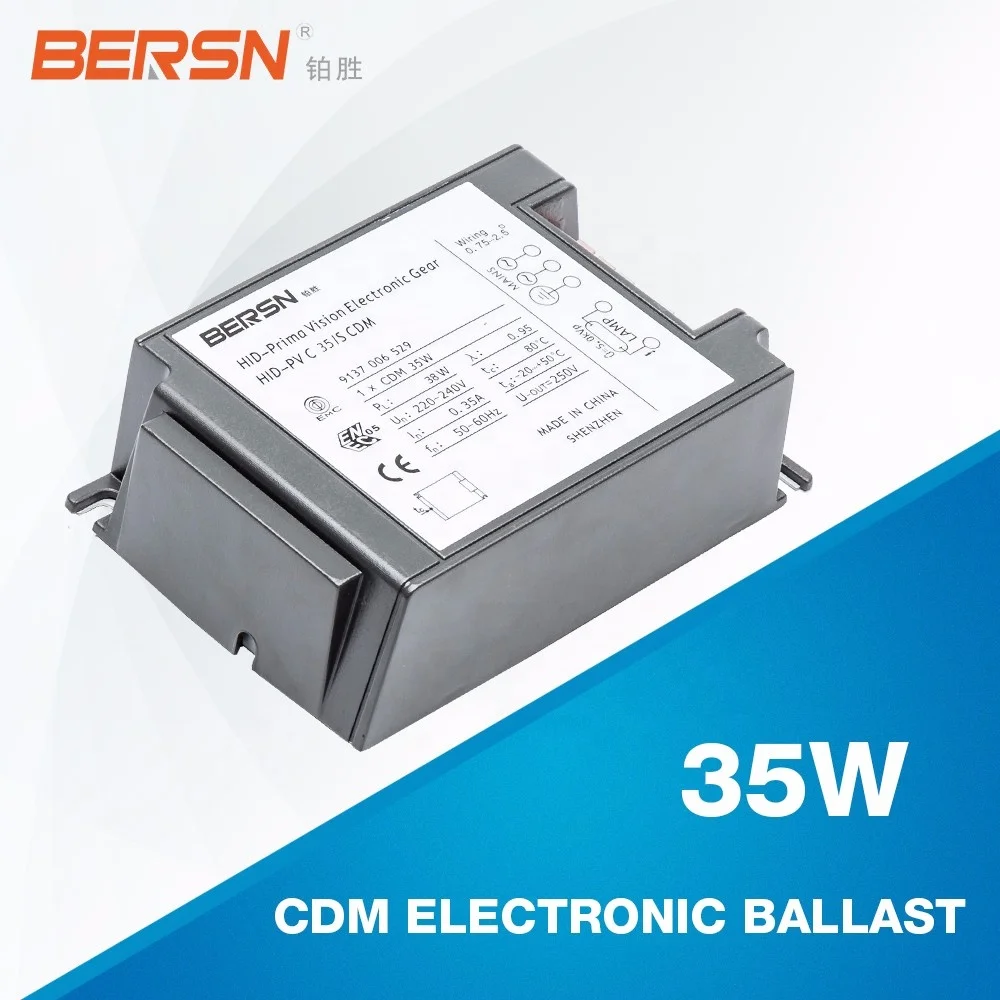

35W Metal Halide Lamp Electronic Ballast 220V/35W Metal halide lamp (CDM) electronic ballast
- Category: >>>
- Supplier: Shenzhen Bersn Opto-Electronics Co. Ltd.
Share on (1600611396928):
Product Overview
Description
35W Metal Halide Lamp Electronic Ballast 220V/35W Metal halide lamp (CDM) electronic ballast
Specifications
35w cdm metal halide lamp electronic ballast
- 1.Energy saving , environmental
- 2.Safety:EN61347-2-12
- 3.CE,RoHs,CCC,CQC
Product Description
Advantages of 35w cdm metal halide lamp electronic ballast
- 1.Specific operating frequency, eliminating light flash, comfortable lighting effect.
- 2.Have the light end-of-life protection function, over temperature/voltage/load, short circuit protection function etc.
- 3.Wide range operating voltage, can up to 160-260v max.
- 4. The life span is up to 40,000 hours.
- 5.Easy wire connection, convenient installation.
Application
Main decoration, Mall and retails, indoor public area, hall and office, high bay, indoor theatre and stage.
Welcome to inquire 35w 70w 150w 250w 210w 315w cmh metal halide lamp electronic ballast
Installation Technical Parameters:
- Rated power supply voltage:220v-240v
- Performance voltage:+6%..-10% 198-254v
- Safe Voltage:180-264v
- Frequency:50/60Hz
- Operating Frequency(typical):140Hz
- Starting Voltage:3-5KV
- The space from any charged (metal) components to the earthing(grade)or test
- Grade and creepage distance :over 5mm
- Leak Current: every ballast less 0.7Ma
- Load capacity:Max. 120Pf
- Vibration Resistance:10-500Hz,5G 12mins/period,72 mins for X,Y,Z axis each

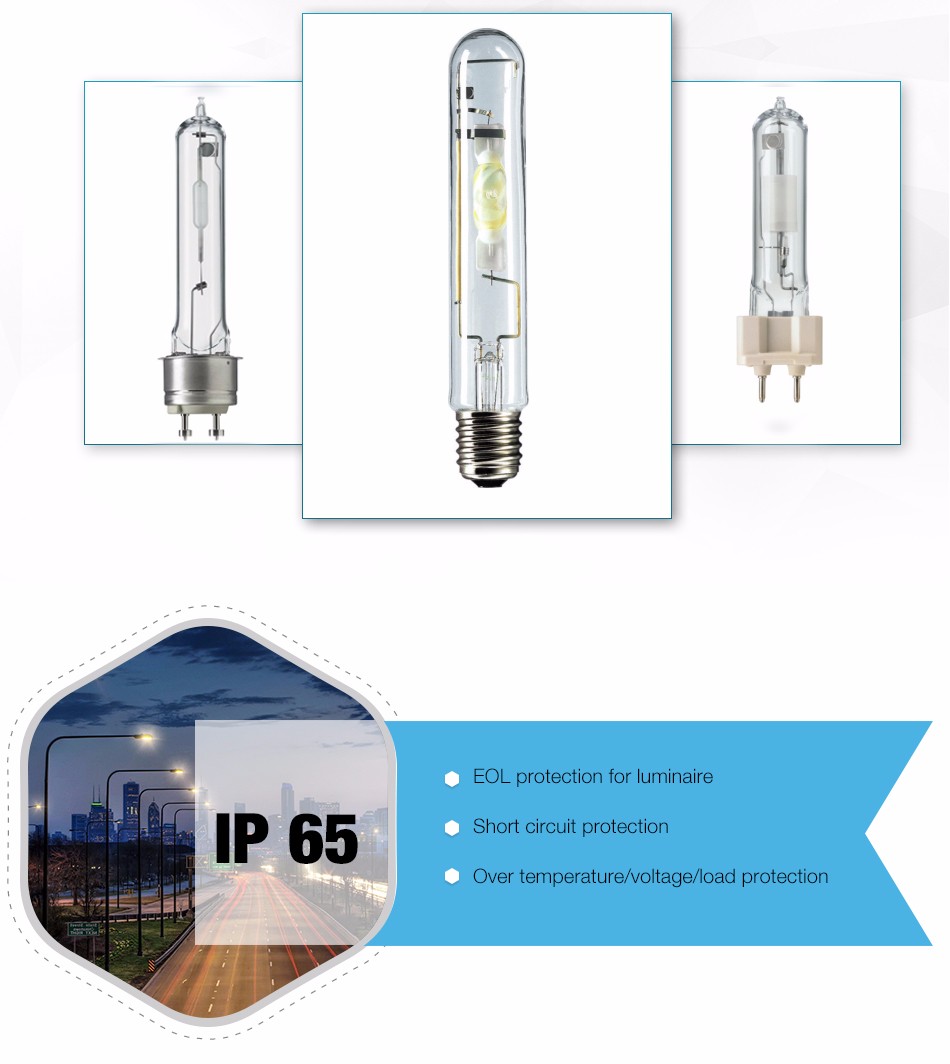

IP Rating
- EOL prorection for luminaire
- Short circuit protection
- Over temperature protection
Notes:
- 1.In the case of a three-phase power supply,do not disconnect the neutral wire; otherwise the circuit may be damaged.
- 2.Ballast could withstand the 3 times voltage drop (over 10ms,then should turn off and restart the power supply, to reset the ballast.
- 3.To achieve the appropriate electromagnetic compatibililty, the internel circuit of lighting devices should be short circuit as far as possible; the power line should not in flat with the line of luminaires.
- 4.Overheating fixtures automatically start, the fixture could be used 20mins at most.
- 5.Could not operate 24 hours all day.

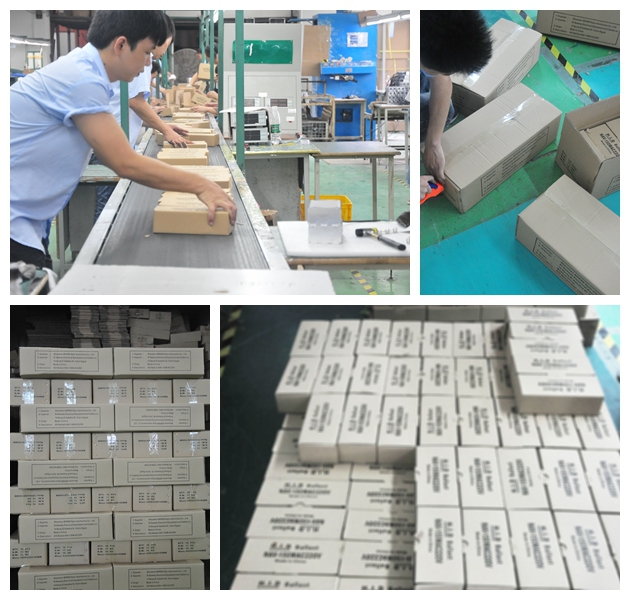

Packaging & Shipping
- 1.Payment terms:T/T, 30% deposit, 70% before shippment
- 2.Packaging details: Standard export packing, or according to your requirements
- 3.Transportation: By Express( DHL/UPS/TNT/Fedex ),air or sea.Freight paid by buyer
- 4.Delivery time: 7-15 working days after receiving the deposit (Based on order quantity)
Facility
Cerfitication
Our Services
Welcome to contact us for more information,good quality,best service are our enterprise tenet.
Company Information
FAQ
Q1. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2.Do you have any MOQ limit for order?
A: Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4.Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to electronic ballast
