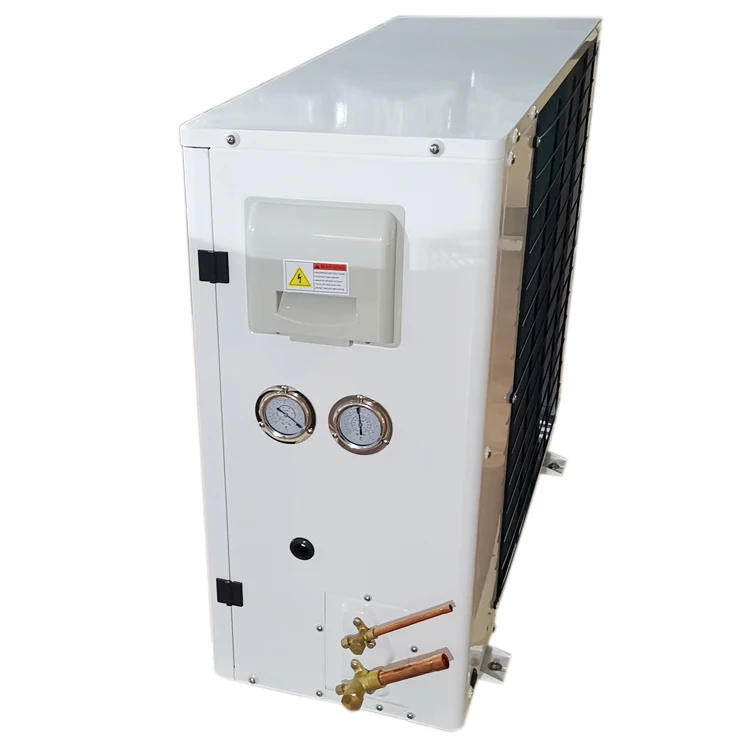

3.5HP ZF11KQE TFD Low temperature cold room copeland scroll compressor air cooled condensing unit

Product Overview

Description

Features

* Compact and sophisticated outlook

* Fully assembled and ready to be installed to save on assembly and applied cost

* Wide operating range

   - LT from -40℃ to -20℃ evaporating temperature

  - Used for lLT cold room application

  - Reduce inventory for distributors and contractors

*  Best-in-class scroll compressor efficiency and reliability

   - Up to 30% annual electrical savings from COP improvement as compared with reciprocating systems.

   - 70% fewer moving parts than reciprocating compressor

   - Superior liquid handling

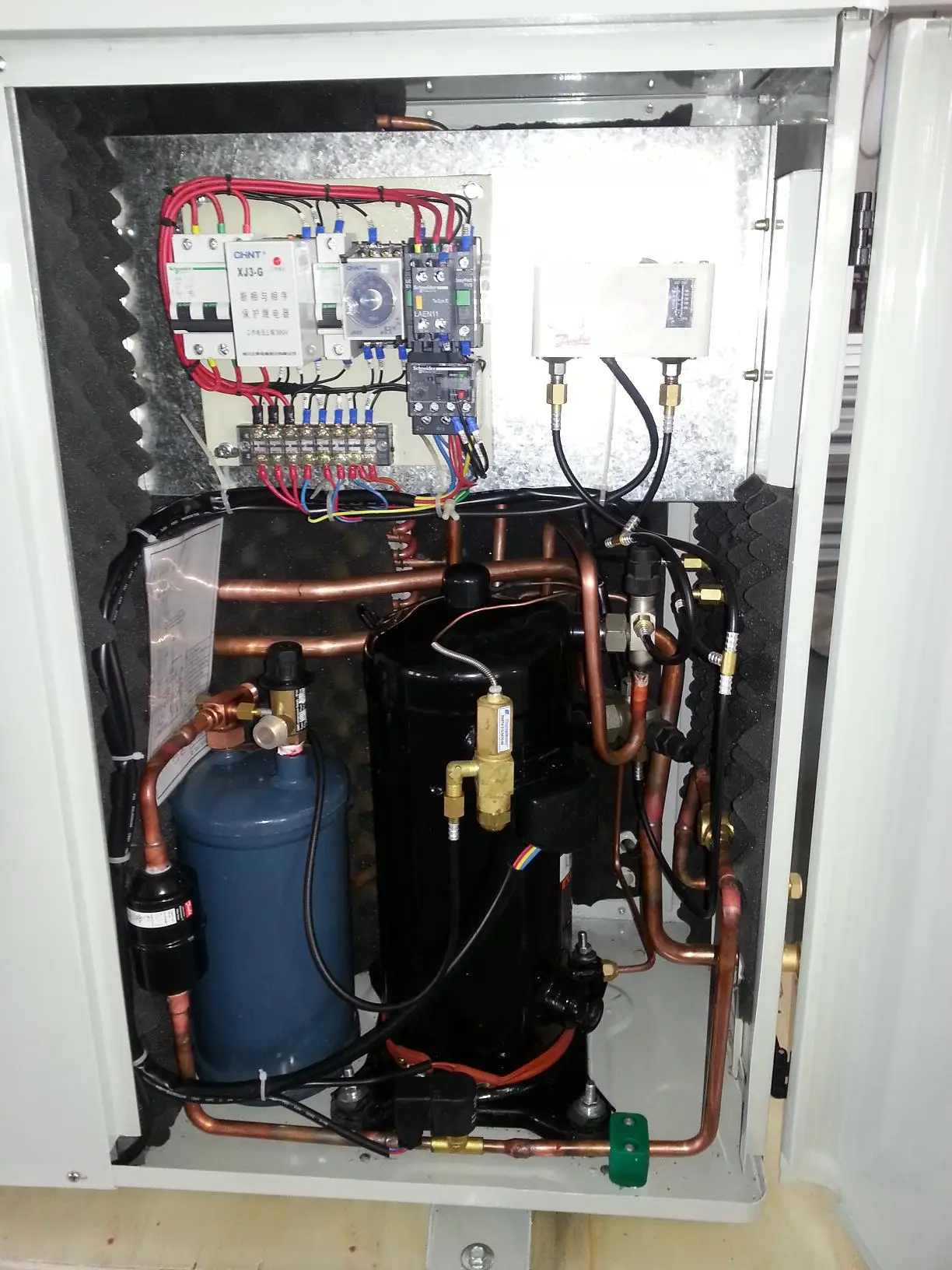

*  With Liquid injection control

*  Suit for R404a and R407F refrigerant.

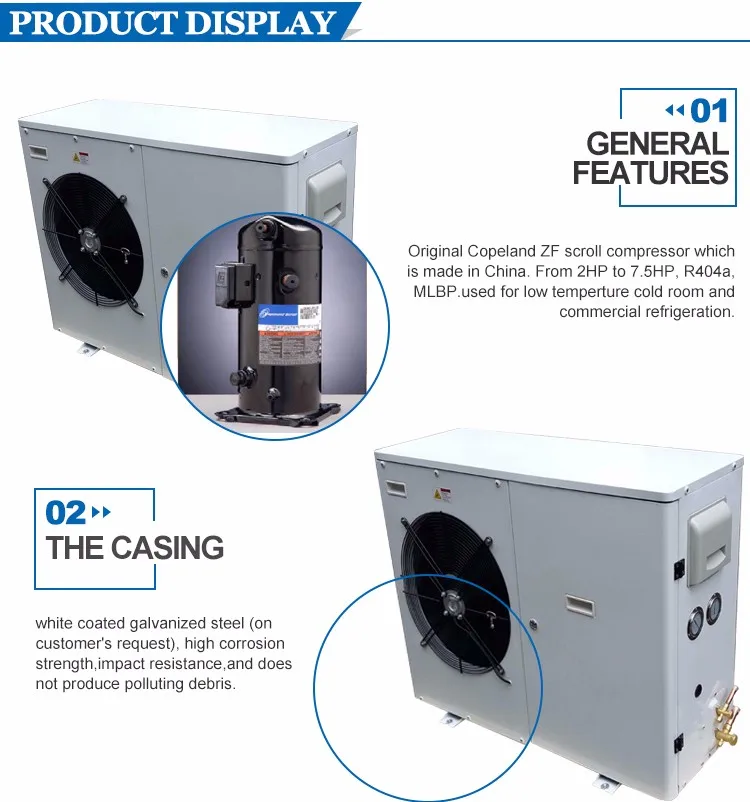

Copeland ZF scroll compressor for low temperature

Open type                     R404a,R407F

Nominal data

Model	HP	Compressor	Voltage	Cooling capacity(W) at R404a					Axial Fans	Dimensions			Noisy	Connection
				Evaporating temperature(°C)
			(V-Ph-Hz)	-40	-35	-30	-25	-20	N°x Diameter	L	W	H	10m(db)	Inlet	Outlet
LKPG200S	2	ZF06KQE-TFD	380-3-50	960	1230	1520	1850	2230	1 x 450	1120	450	840	42	3/4"	3/8"
LKPG250S	2.5	ZF08KQE-TFD	380-3-50	1180	1500	1860	2280	2770	1 x 450	1120	450	840	42	3/4"	3/8"
LKPG300S	3	ZF09KQE-TFD	380-3-50	1320	1670	2070	2530	3050	1 x 450	1120	450	840	42	3/4"	3/8"
LKPG350S	3.5	ZF11KQE-TFD	380-3-50	1650	2100	2590	3150	3800	1 x 450	1120	450	840	42	3/4"	3/8"
LKPG400S	4	ZF13KQE-TFD	380-3-50	1930	2380	2930	3600	4390	1 x 450	1120	450	840	43	7/8"	1/2"
LKPG500S	5	ZF15KQE-TFD	380-3-50	2310	2900	3610	4450	5400	2 x 450	1120	450	1240	43	7/8"	1/2"
LKPG600S	6	ZF18KQE-TFD	380-3-50	2820	3550	4400	5400	6550	2 x 450	1120	450	1240	43	7/8"	1/2"
LKPG750S	7.5	ZF25KQE-TFD	380-3-50	3610	4410	5460	6740	8220	2 x 450	1120	450	1240	43	7/8"	1/2"
TEST CONDITION: Condensing Temperature: 50°C
