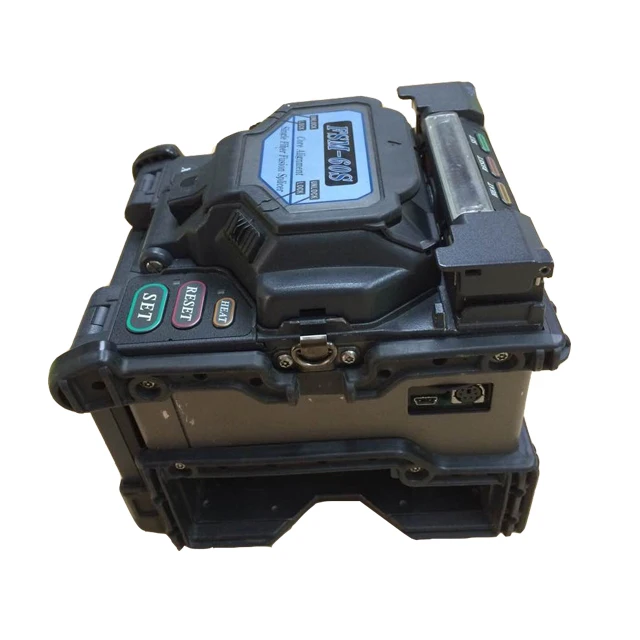

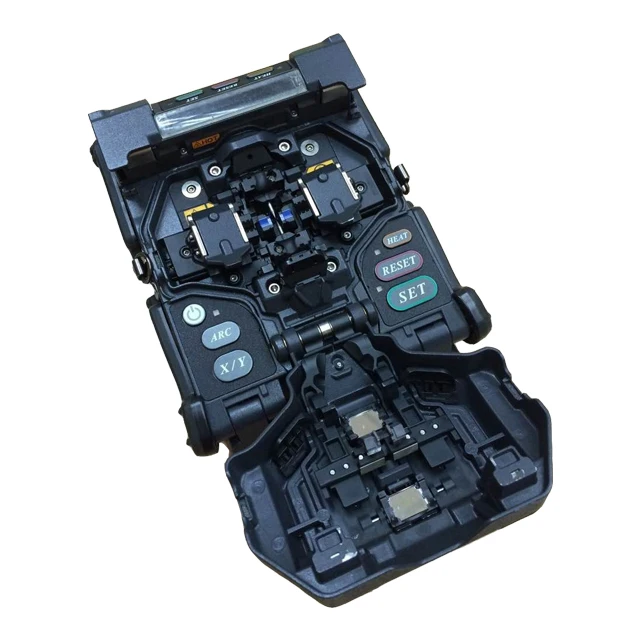

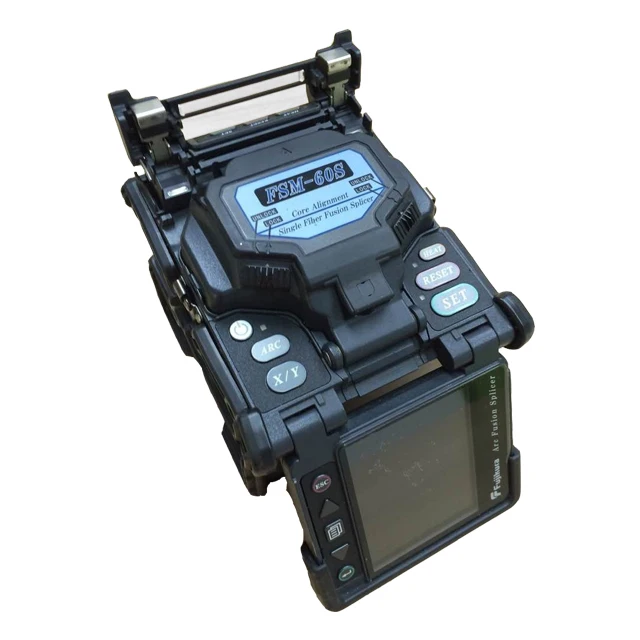

Japan Fiber Optic Splicing Machine FSM 60S Core to core alignment Fusion Splicer manufacturer supply
- Category: >>>
- Supplier: Shenzhen Starfire Technology Ltd.
Share on (1600611458576):
Product Overview
Description
Japan Fiber Optic Splicing Machine FSM-60S Core to core alignment Fusion Splicer manufacturer supply
Contact Information:
Lily Liu
WhatsApp/ Skype: +86 17665495297
Product Description
Features
■Core to core alignment by PAS （Profile Alignment System）technology
■Environmental resistant features.
■World's most compact and lightest of its class.
■Arc calibration-free system.
■4.1" TFT color LCD monitor.
■Dual directional operation system.
■Long life battery.
■Fiber holder option.
■Software upgrade via Internet.
■Detachable work table （attached to carrying case）
Specification
Applicable type of fibers | SM（ITU-T G.652）, MM（ITU-T G.651）, DS（ITU -T G.653）, NZDS（ITU-T G.655） and other single mode fibers including ITU-T G.657 fibers. |
Fiber count | Single |
Applicable fiber dimensions | Cladding diameter : 80 to 150μm. Coating diameter : 100 to 1000μm |
Fiber setting and cleaved length | Sheathe clamp A （standard）: For coating dia. up to 250μm（8 to 16mm cleave）, coating dia. of over 250μm（16 mm cleave） Sheathe clamp B （option） : For coating dia. up to 1000μm（8 to 16mm cleave） Sheathe clamp D （option） : For 900μm dia. loose tube fiber（8 to 16mm cleave） Fiber holder （option） : FH-60-250, FH-60-900 and FH-60-LT900 （10mm cleave） |
Splicing modes | Total 100 modes |
Typical splice loss | 0.02dB with SM, 0.01dB with MM, 0.04dB with DS and 0.04dB with NZDS. （Measured by cut-back method relevant to ITU-T standard） |
Return loss | >>60dB |
Splicing time | Typical 9sec. with SM FAST, 10sec. with SM AUTO and 13sec with AUTO modes with standard SM（ITU-T G.652） |
Splice loss estimate | Available |
Attenuation splice function | Intentional high splice loss of 0.1dB to 15dB （0.1dB step） can be made for an in-line fixed attenuator |
Tube heater / heating time | Built-in tube heater with 30 heating modes. / Typical 30sec with Fujikura FP-03 |
Applicable protection sleeve | 60mm, 40mm and FPS01 series |
Storage of splice result | The last 2000 results to be stored in the internal memory |
Tension test | 1.96 to 2.25N |
Operating condition | 0 to 5,000m above sea level, 0 to 95%RH and -10 to 50 degC and up to 15m/s wind velocity, respectively |
Storage condition | 0 to 95%RH and -40 to 80 degC respectively. Battery : -20 to 30 degC for long term |
Dimensions | 136W×161D×143H [mm] excluding rubber foot |
Weight | 2.3kg with AC adaptor ADC-13, 2.7kg with battery BTR-08 |
Viewing method and display | Two CMOS cameras and 4.1” color LCD monitor |
Fiber view and magnification | X / Y （300X magnification), or both X and Y simultaneously （187X magnification） |
Power supply | Applicable voltage from 100 to 240V AC or 10 to 15V DC with ADC-13. 13.2V DC with BTR-08 |
No.of splice cycles with battery | Typical 160 cycles （splice / tube heat） with BTR-08 |
Electrode life | 2500 arc-discharges |
Terminals | USB 1.1 （Mini-B type） connector for PC communication. 6-pin Mini-DIN connector for HJS-02, HJS-03 or SH-8C power supply. |

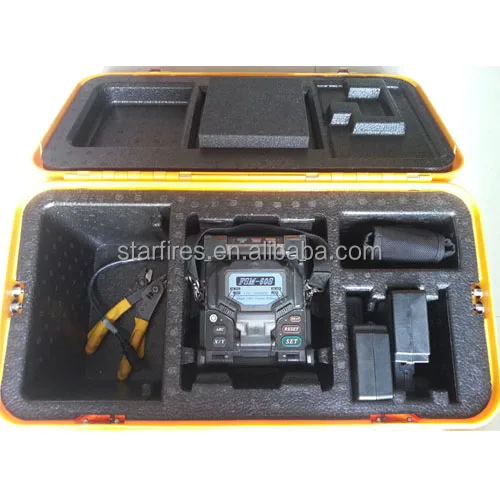

Packing & Delivery
STANDARD PACKAGE | ||||
Description | Model No | Q'ty | ||
Arc Fusion Splicer | FSM-60S With CLAMP-S60A, ELCT2-20A and WPM-08 | 1pc | ||
AC adapter / battery charger | ADC-13 | 1pc | ||
AC power cord | ACC-XX | 1pc | ||
Spare electrodes | ELCT2-20A | 1pc | ||
USB cable | USB-01 | 1pc | ||
Quick reference guide | M-60S/18S-E | 1pc | ||
Video instruction manual | V-60S-E | 1pc | ||
Warnings and Cautions | W-60-E | 1pc | ||
J plate | JP-05 | 1pc | ||
Carrying case | CC-24-60S | 1pc | ||
