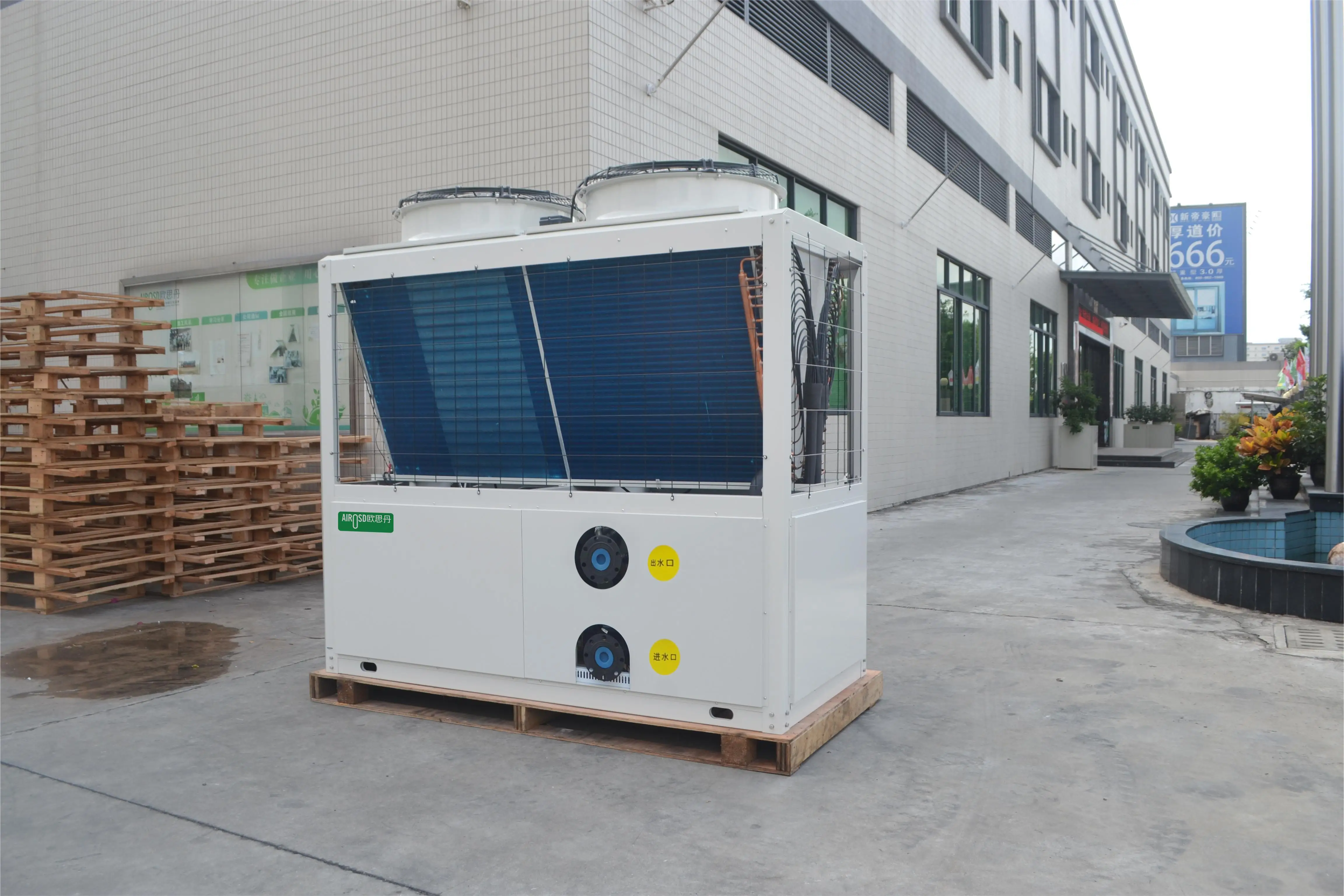

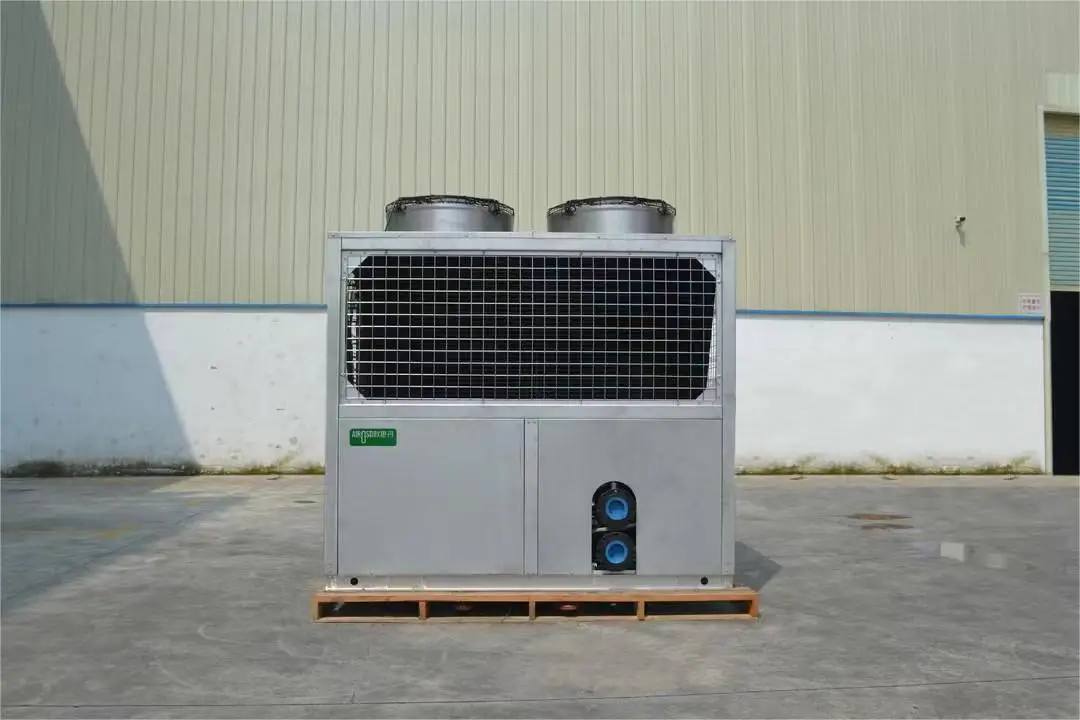

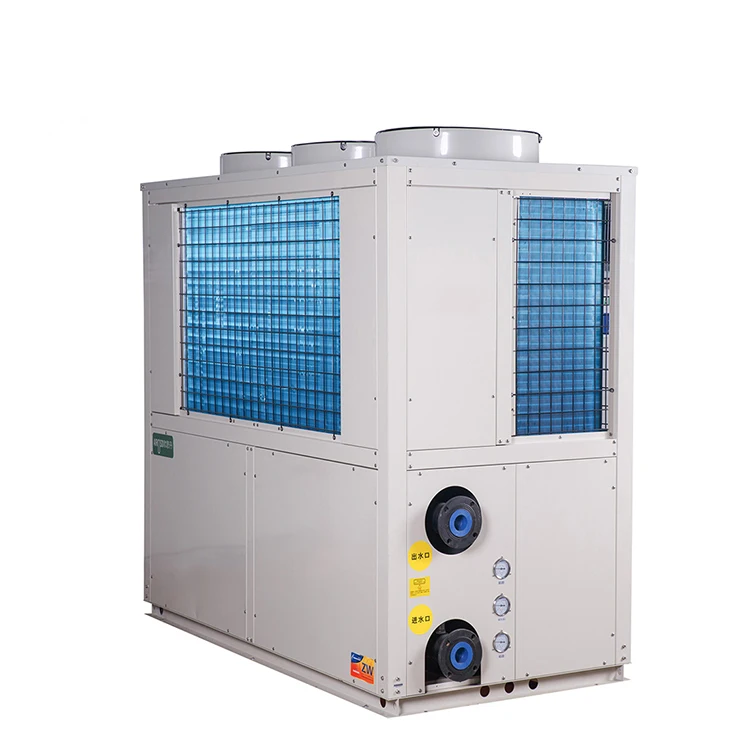

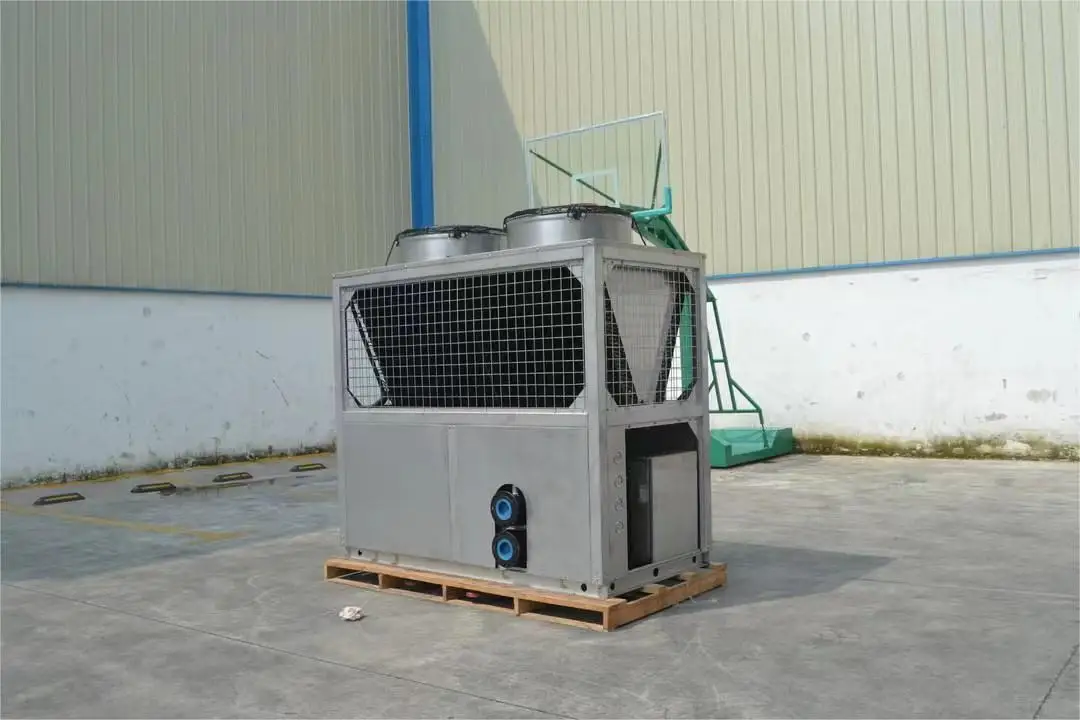

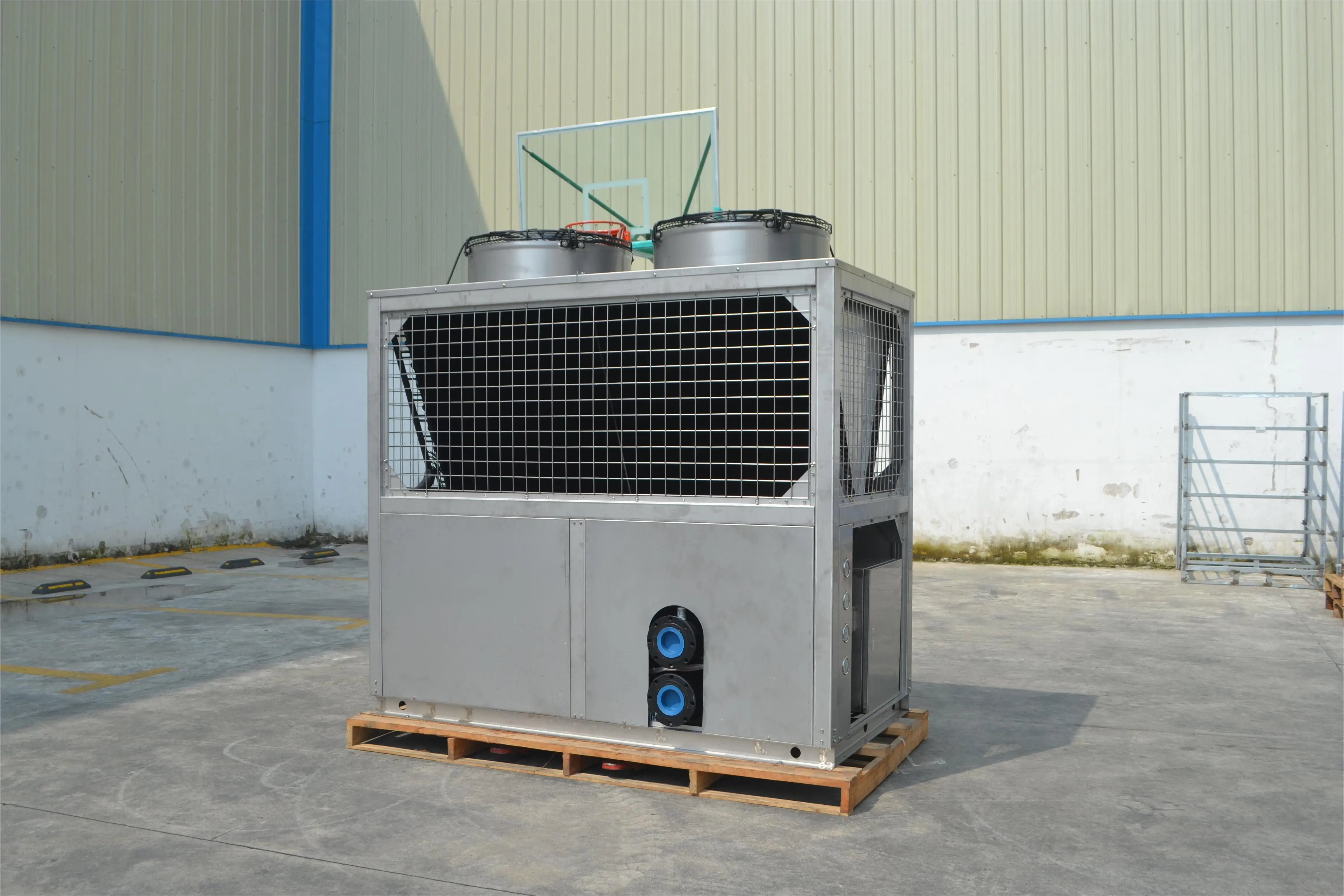

Commercial 90KW stainless steel shell Pool Heat Pump For Marine Fish Culture Pool Titanium Tube Heat Exchanger
- Category: >>>
- Supplier: Foshan Airosd Thermal Technology Co. Ltd.
Share on (1600611462617):
Product Overview
Description

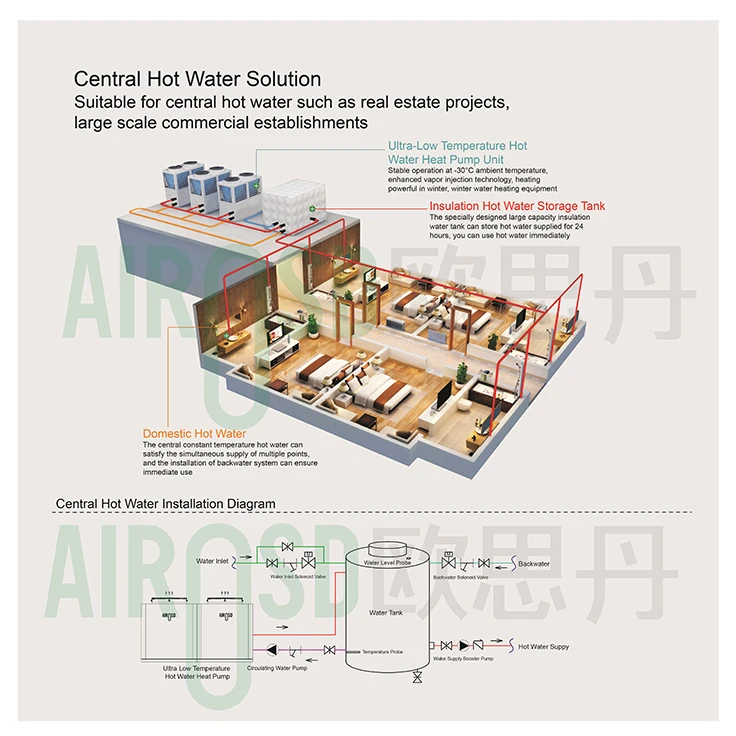

This commercial hot water heat pump is the best solution for hot water supply of commercial project, and can work with advantages of high safety, stability, much convenience, energy saving, and environment friendly, which assures 24 hours comfortable hot water using. It is widely used in hot water project of school, hotel, hospital, supper market and other large building, which needs large water volume supply.
Main Features
1) Copeland scroll compressor, quiet and high efficiency.
2) High efficiency heat exchanger.
3) Intelligent EE valve, excellent efficiency at different ambient temp.
4) Schneider electrical components.
5) Intelligent controlling system.
6) Easy installation and LCD operation.
7) Automatically defrosting.
Optional: R410a, R22, R407c refrigerant is available.
Commercial hot water heat pump series | |||
Model | KFXR-070UCII | ||
Heating mode | Circulating | ||
Ambient temp.range | -15~+43℃ | ||
Rated heating capacity | 70KW | ||
COP | 4.1W/W | ||
Rated input power | 17KW | ||
Max. Running Current | 45A | ||
Power supply | 380V 3N~50Hz | ||
IP Code | IPX4 | ||
Safety function | High and low pressure protection, Overload protection, Temperature protection, Power phase sequence protection, etc. | ||
Refrigerant type/weight | R407C/7.5*2kg | ||
Compressor QTY | 2 PCS | ||
Compressor type | Scroll | ||
Max. outlet water temperature | 60℃ | ||
Water side heat exchanger type | High efficiency tank | ||
Air side heat exchanger type | Finned heat exchanger | ||
Circulating waterpipe nozzle | DN100 (inch) | ||
Outlet nozzle | DN100 (inch) | ||
Circulating water flow | 12.04 m³/h | ||
Air out type | Top discharge | ||
Fan motor QTY | 2 PCS | ||
Noise | 69 dB(A) | ||
machine dimension (width × depth × high) | 2100×1100×2000(mm) | ||
Packing dimension (width×depth×high) | 2140×1200×2040 (mm) | ||
Net weight | 700KG | ||
Gross weight | 750KG | ||
Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are a manufacturer of R&D and production heat pumps which is located in Foshan city, Guangdong province of china. We can provide different kinds of heat pumps as you need, such as EVI inverter heat pump, DC inverter heat pump and swimming pool heat pump ect.. We also can provide OEM/ODM services.
Q: How long is the product lifespan?
A: In general, with proper maintenance, its lifespan can last up to more than 15 years.
Q: If the temperature drops below zero, will the air source heat pump still work?
A: Yes, AIROSD Air Source heat pumps with EVI technology can operate high efficiently when the temperature downs to -30°C.
Q: What is the benefits of air source heat pumps?
A: One Bill : Air source heat pump runs on electricity, so there's no need to pay for gas, oil or solid fuels to heat your house. You eliminate the standing charge for mains gas supply, delivery charge for oil and solid fuel, etc. .
Save space : Air source heat pump system is compact, and requires no storage space for fuel.
Energy Saving : Air source heat pump can make energy saving up to 75% than traditional electrical water heater.
