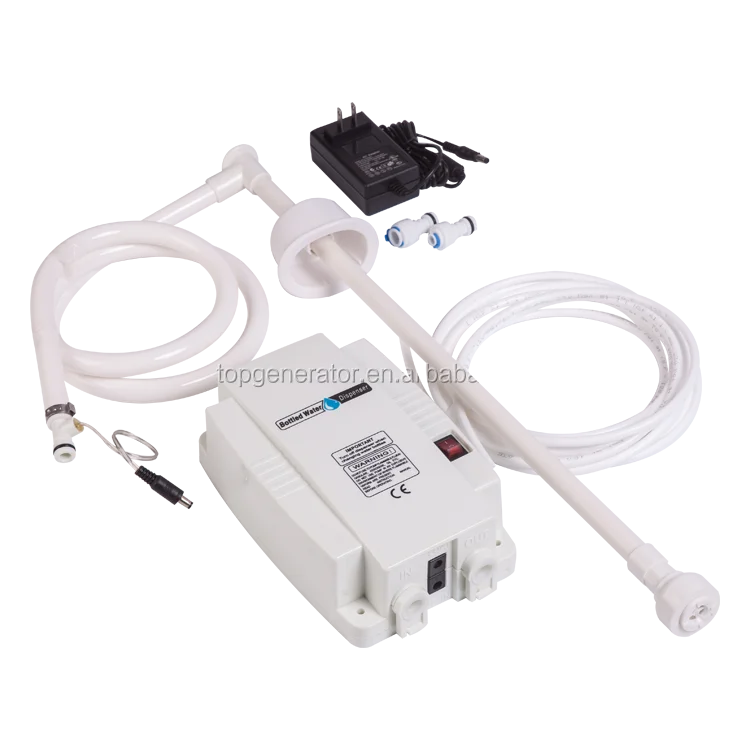

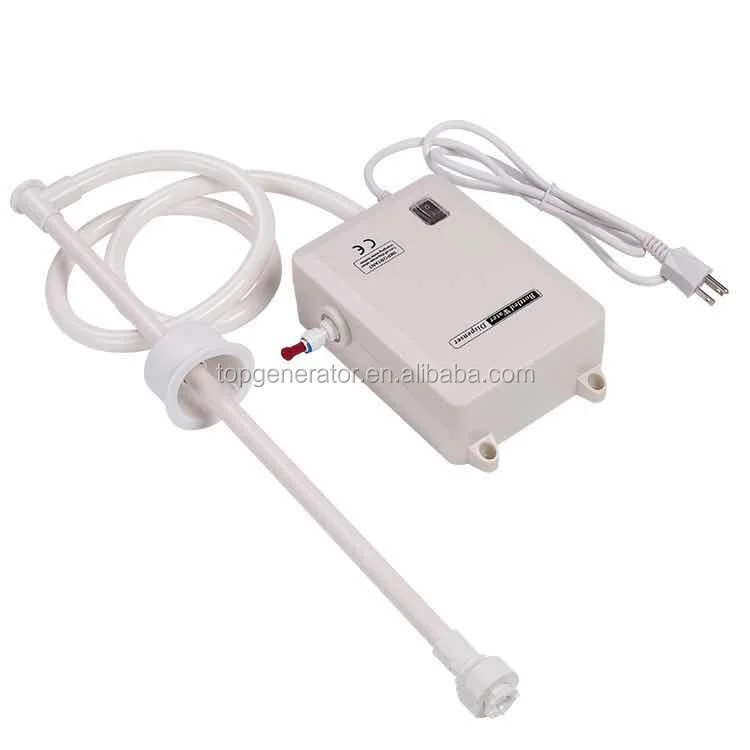

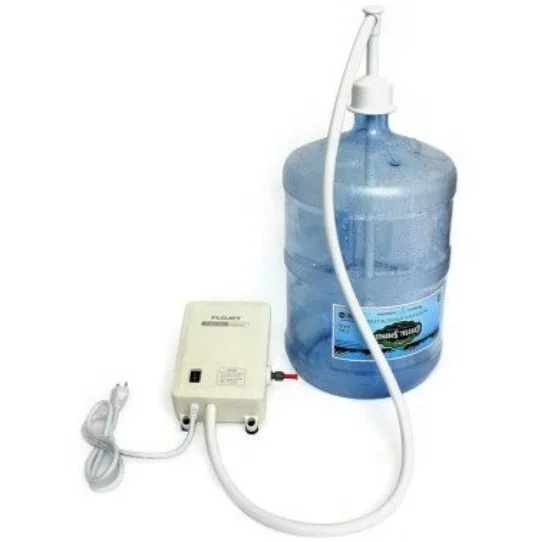

220V BW2000 electric bottled water distribution system pump for 5 gallon bottled water dispenser pump
- Category: >>>
- Supplier: Fujian Top Industrial Co. Ltd
Share on (1600611473901):
Product Overview
Description
We are verified Alibaba Supplier, approved by S G S

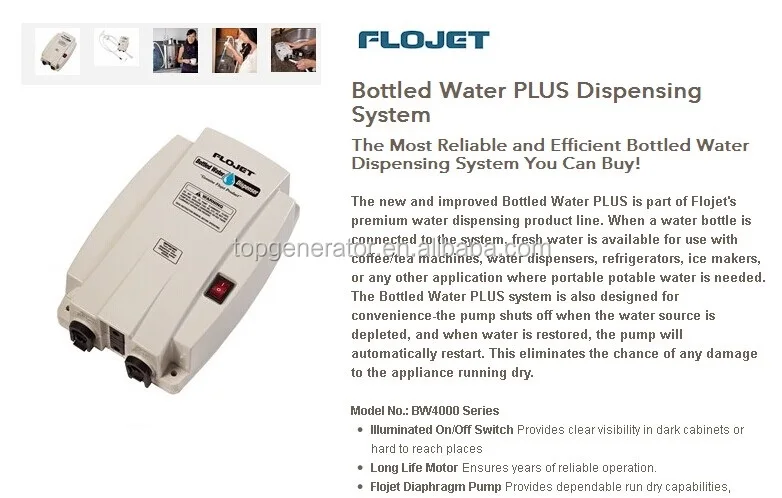

Liquid bottle dispenser is ideal for mobile locations or home users who can't or don't want to direct plumb. The Bottled Water Dispensing System will deliver the water under pressure to an individual drinking water faucet, the water inlet of a refrigerator for the ice-maker and chilled drinking water tap, and to certain commercial coffee / tea brewers.
*IIIuminated On/Off Switch:
Provides clear visibility in dark cabinets or hard to reach places
*Long life Motor: Ensure years of reliable operation
*Fojet Diaphragm Pump:
Provides dependable run dry capabilities,extending the life of the pump
*Quick Disconnect Port:
Allows for easy wand replacement in seconds
*Quiet Operation:
Equipped with noise dampening rubber feet to minimize noise pollution
*Thermal Protection:
Prevents overheating,protecting the pump and control box from damage
Provides clear visibility in dark cabinets or hard to reach places
*Long life Motor: Ensure years of reliable operation
*Fojet Diaphragm Pump:
Provides dependable run dry capabilities,extending the life of the pump
*Quick Disconnect Port:
Allows for easy wand replacement in seconds
*Quiet Operation:
Equipped with noise dampening rubber feet to minimize noise pollution
*Thermal Protection:
Prevents overheating,protecting the pump and control box from damage
*New Ergonomic T-Shaped Wand Handle:
Allows for ease of installation and removal of wand from bottle
When a water bottle is connected to the system,fresh water is available for use with coffee/tea machines,water
dispensers,refrigerators,ice makers,or any other application where portable water is needed.
Allows for ease of installation and removal of wand from bottle
When a water bottle is connected to the system,fresh water is available for use with coffee/tea machines,water
dispensers,refrigerators,ice makers,or any other application where portable water is needed.

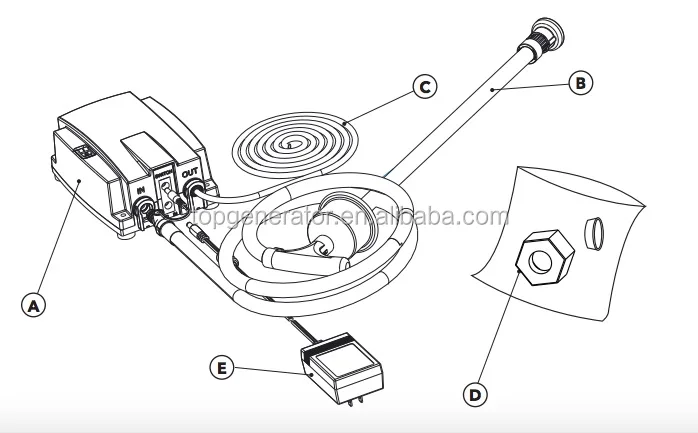

Using method
1.Mount the system in a convenient location with access to power and space for the bottled water.
2.Install the suction tube into the water bottle
3.Insert the outlet tubing(20' provided) into the connector
4.Route the tubing to your refrigerator,brewer,or tap
5.Plug in the dispensing system
6.Press the switch on,and it's ready to use
et
2.Install the suction tube into the water bottle
3.Insert the outlet tubing(20' provided) into the connector
4.Route the tubing to your refrigerator,brewer,or tap
5.Plug in the dispensing system
6.Press the switch on,and it's ready to use
et
1.Easiest way to connect this to your filtration kit/espresso machine
2.Float switch for auto shut-off when bottle is empty
2.Float switch for auto shut-off when bottle is empty
3.Built-in check valve to prevent back flow
4.Universal seal cap fits most water containers
5.Includes 6m discharge hose
6.Easy installed
5.Includes 6m discharge hose
6.Easy installed

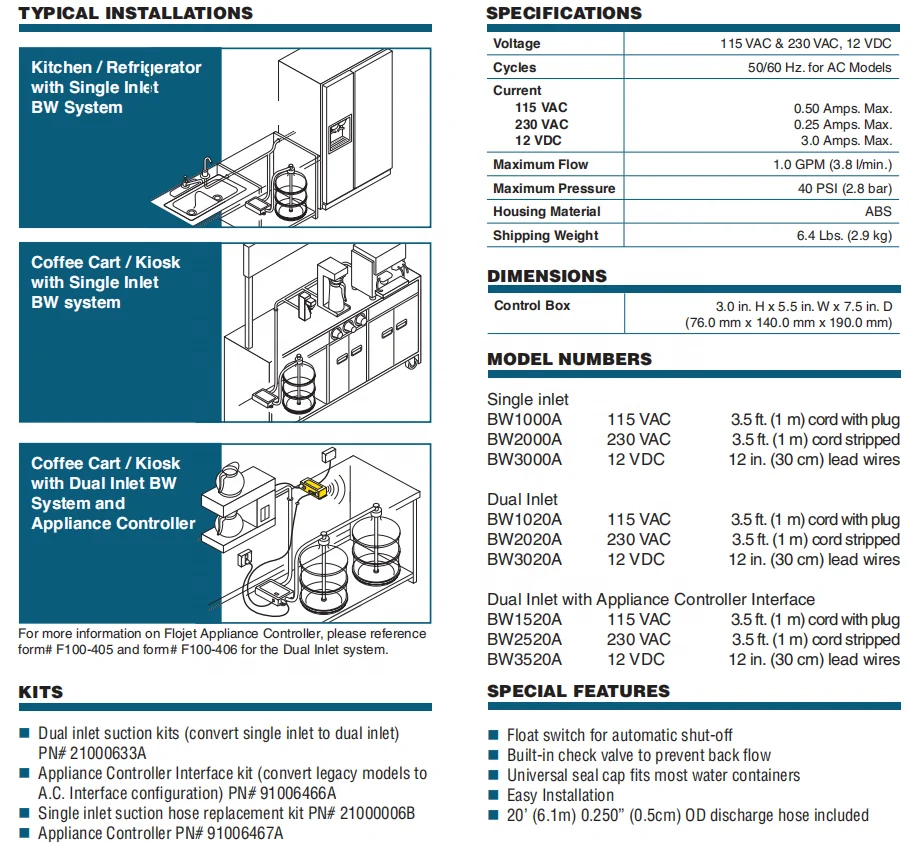

Drinking water dispenser pump technical data:
Model | Volts(V) AC/DC | Max Flow Gpm(Lpm) | Pressure(Psi) | Max Amps(A) | Standard |
BW1000A | 110-127 AC | 1 (3.8) | 40 | 0.5 | 6 feet coard with plug |
BW2000A | 210-240 AC | 1(3.8) | 40 | 0.25 | 6 feet coard with plug |
BW2020A | 210-240 AC | 1(3.8) | 40 | 0.25 | 6 feet coard with plug |
BW3000A | 12 DC | 1 (3.8) | 40 | 3 | 12 inch lead wires |
BW4000A | 110-127 AC | 1 (3.8) | 40 | 0.5 | 6 feet coard,suction wand and hose&plug assembly |
BW4003A | 210-240 AC | 1 (3.8) | 40 | 0.25 | 6 feet coard,suction wand and hose&plug assembly |
