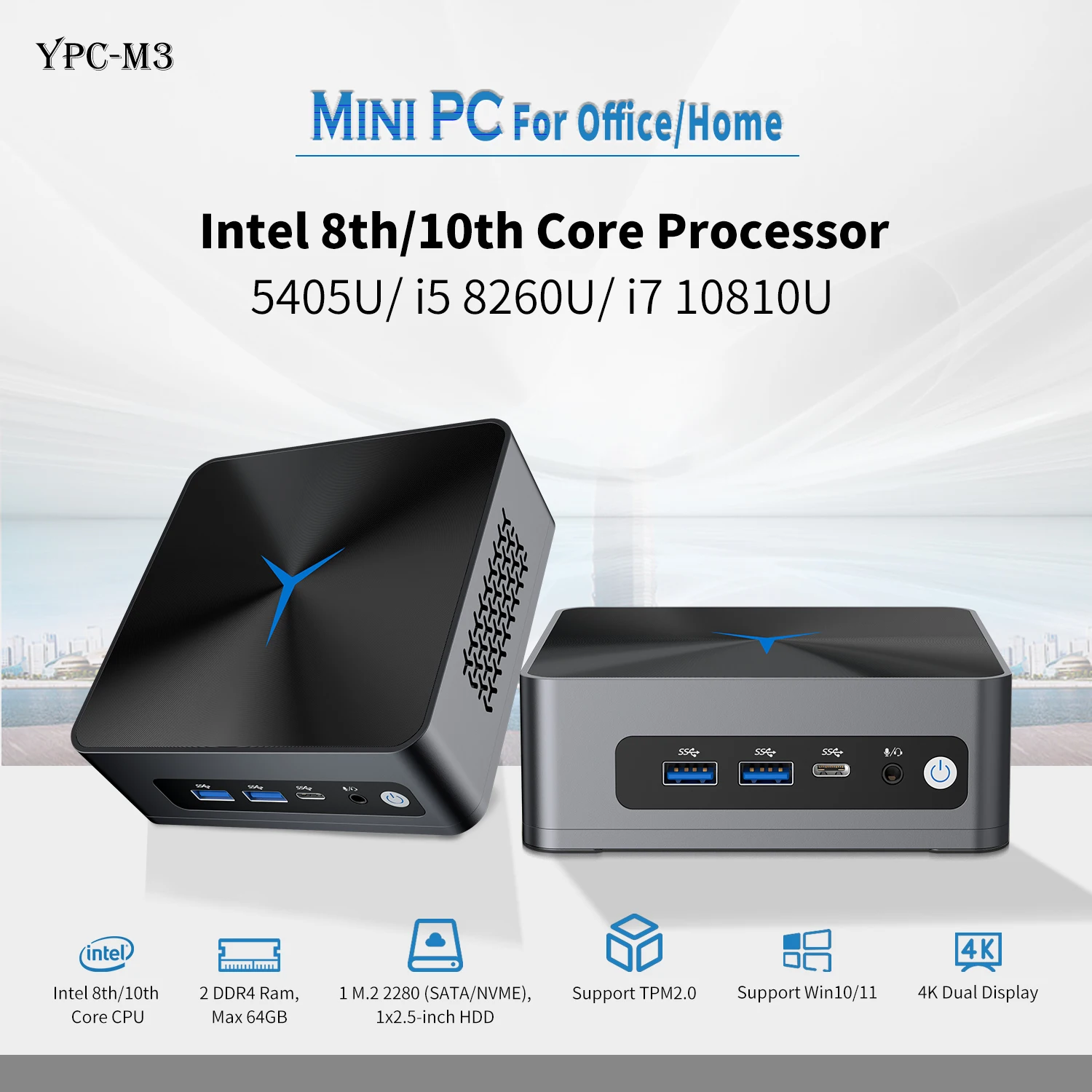

Model | YPC-M3 Mini PC |
Lastest Price | |
PC Case Color | Dark Grey |
Processor | Intel Pentium 5405U(Dual core quad threads,2.3GHz ) |
Processor | Intel Core i5 8260U (4 core 8 threads, 1.6GHz, Max turbo 3.9GHz) |
Intel Core i7 10810U (6 core 12 threads, 1.1GHz, Max turbo 4.9GHz) | |
RAM | 2*DDR4 2133/2400/2666 SODIMM RAM slot,Max 64 GB |
BIOS | AMI EFI BIOS |
Display Chip | Intel(R) UHD Graphics 620 -8th |
Intel UHD Graphics 610-10th | |
Front I/O | 1x Power Switch, 1x Audio (Support Mic and Speaker at the same time), 1 Type-C (USB signal), 2 USB3.0 |
Rear I/O | 2xUSB3.0, 1xIntel i225-V 2.5G LAN 1xDC, 1xDP 1xHD |
Expansion Slot | 1*M.2 2280 M-Key slot(Support SATA and NVME protocol) |
1 M.2 2230 E-Key slot (Support WIFI,BT) | |
Network | 1xIntel i225-V 2.5G 100/1000M/2500M Ethernet |
Storage | 1xM.2 2280 slot, 1x2.5” SSD/HDD |
Power Supply | DC 12V Input |
Work Temp | 0℃ ~ +40℃(Commercial HDD),Surface air flow |
Work Humidity | 5% ~ 95% non-condensing |
Dimension | 125 * 113.5 * 42 mm |
Net Weight | 0.34 kg |
Application | Business Office, HD Video Playback, Electronic Education etc. |
