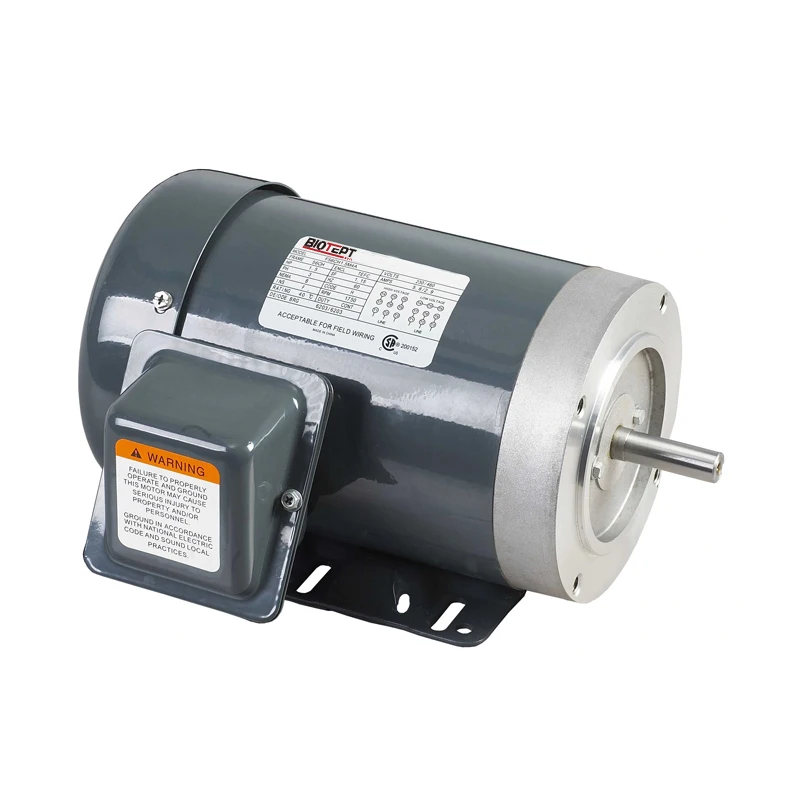

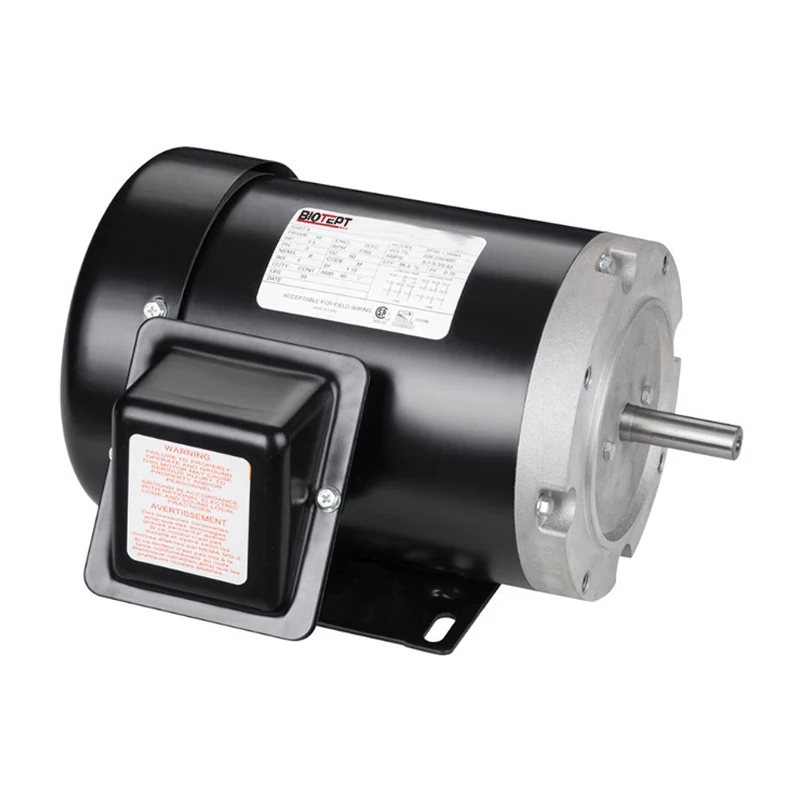

hydraulic pumps and NEMA 56C design B TEFC IP44 1hp Premium efficiency AC motors
- Category: >>>
- Supplier: Ningbo Biote Mechanical Electrical Co. Ltd
Share on (1600611483704):
Product Overview
Description

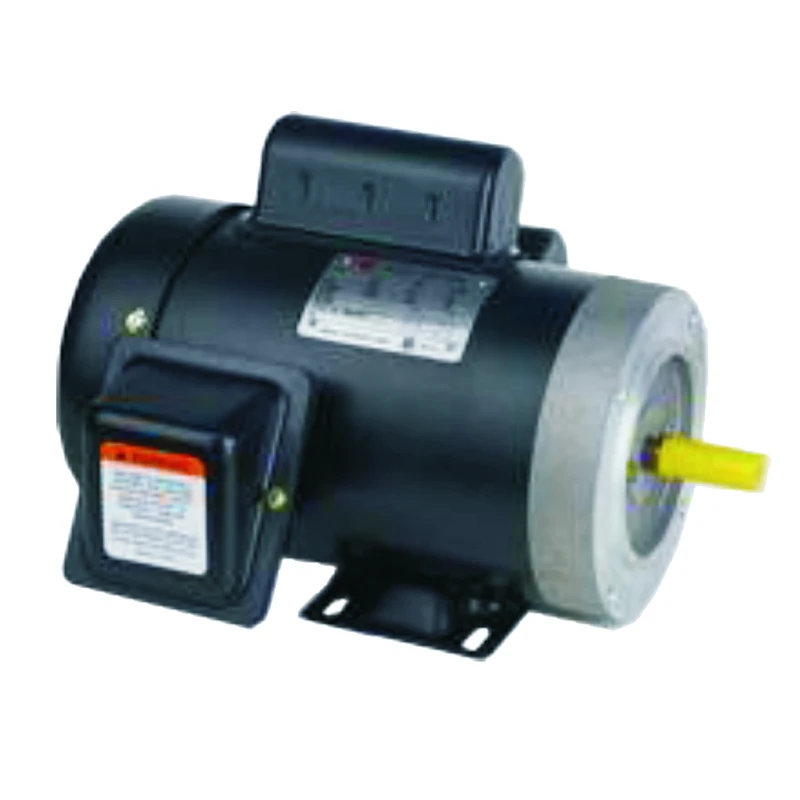

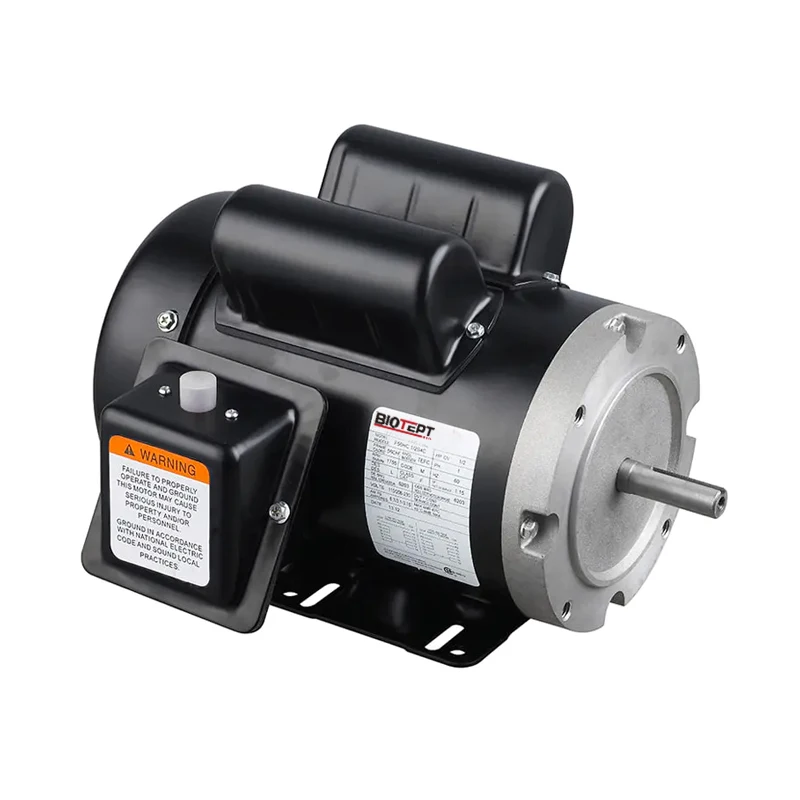

56C， 56HC TEFC Single phase motor for hydraulic pump motor
Steel Housing: The compressor duty motor is made of high-quality steel material. The firm and solid material can protect the engine well, and the smooth appearance is easy to clean; it includes the mounting bracket, and the bracket structure is stable and easy to use.
High Speed Cooling Fan: Big fan at one end cools the motor in hours' running, even in dusty or damp environments, reducing energy costs or overheads, reducing the running temperature, increasing winding lifetimes.
Multiple Application: The electric motors are commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields. For instance, the matching of water pumps, agricultural machinery, etc.
Features
HP: 1HP-3HP
Pole: 2P,4P
Frame: 56C, 56HC
Rolled Steel housing
NEMA design: B
Service Factor: 1.15
Insulation ClasS: F
Enclosure: TEFC
Protection Class: IP44
CSA&CUS certifiled
High Speed Cooling Fan: Big fan at one end cools the motor in hours' running, even in dusty or damp environments, reducing energy costs or overheads, reducing the running temperature, increasing winding lifetimes.
Multiple Application: The electric motors are commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields. For instance, the matching of water pumps, agricultural machinery, etc.
Features
HP: 1HP-3HP
Pole: 2P,4P
Frame: 56C, 56HC
Rolled Steel housing
NEMA design: B
Service Factor: 1.15
Insulation ClasS: F
Enclosure: TEFC
Protection Class: IP44
CSA&CUS certifiled
HP | RPM | NEMA FRAME | MODEL | Volts | ENCL. | Full Load AMPS | WGT. LBS. |
1 | 3600 | 56C | F56C1S2C | 115/230 | TEFC | 8.3/4.4 | 30 |
1 | 1800 | 56C | F56C1S4C | 115/230 | TEFC | 9.2/4.7 | 38 |
2 | 3600 | 56C | F56C2S2C | 115/230 | TEFC | 16.5/8.4 | 44 |
2 | 1800 | 56C | F56C2S4C | 115/230 | TEFC | 16.5/8.3 | 47 |
3 | 3600 | 56C | F56C3S2C | 230 | TEFC | 13 | 60 |
1 | 1800 | 56C | F56C1M4A | 230/460 | TEFC | 3.4/1.7 | 33 |
1 | 1800 | 56C | F56C1M4D | 575 | TEFC | 1.4 | 33 |
1.5 | 1800 | 56C | F56C1.5M4A | 230/460 | TEFC | 5.2/2.6 | 37 |
1.5 | 1800 | 56C | F56C1.5M4D | 575 | TEFC | 2 | 37 |
2 | 1800 | 56C | F56C2M4A | 230/460 | TEFC | 6.0/3.0 | 40 |
2 | 1800 | 56C | F56C2M4D | 575 | TEFC | 2.5 | 40 |
2 | 3600 | 56C | F56C2M2D | 575 | TEFC | 2.1 | 34 |
3 | 1800 | 56HC | F56HC3M4A | 230/460 | TEFC | 9.0/4.5 | 47 |
3 | 1800 | 56HC | F56HC3M4D | 575 | TEFC | 3.6 | 47 |
Hydraulic motors use a hydraulic power source to create mechanical energy to run winches, conveyors, balers, process equipment, mixer and agitator drives, and other industrial, agricultural, and process equipment. Gear motors, sometimes called low-speed, high-torque motors, have fixed displacement to provide constant torque and output motion.
FEATURES AT A GLANCE
Totally enclosed motors are suitable for use in humid environments or dusty, contaminated atmospheres. UL Recognized and CSA Certified* AC electric motors feature heavy gauge steel frame and base and high-quality ball bearings.
1 HP 115/208-230 Volt AC Hydraulic Power Unit, The motor runs extremely quiet and is kept completely covered from dust, dirt, falling debris and even high humidity. It has a smaller tank to accompany its nema Single phase motor.

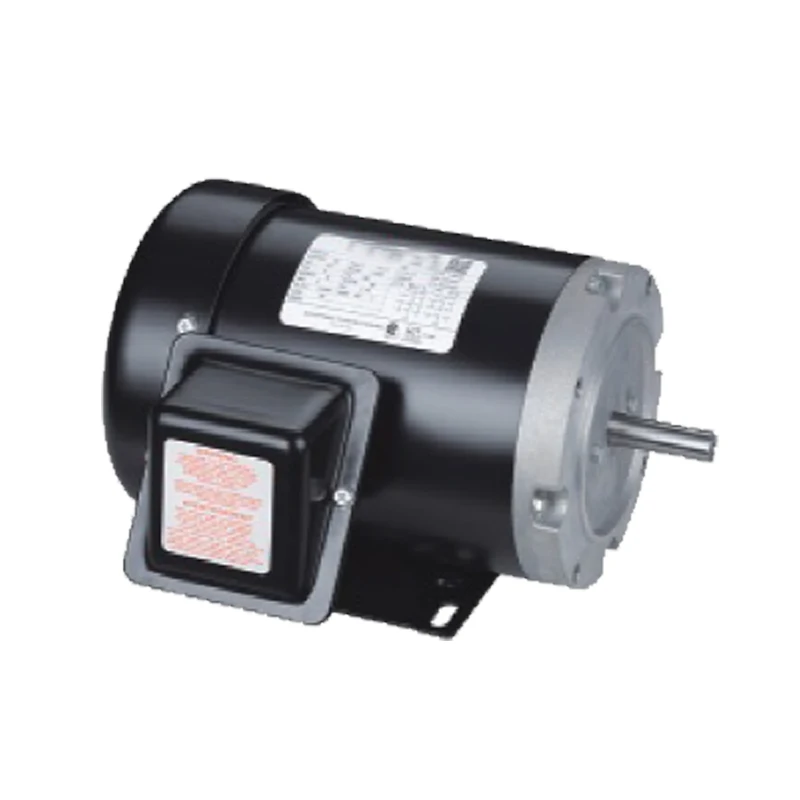

1HP, 1.5HP, 2HP, 3HP by 56C and 56HC frame. three phase AC motor TEFC for hydraulic pump motor, high IP44-protection class and silver-plated contacts meet tough demands for a long service life, auto lift and your power unit.

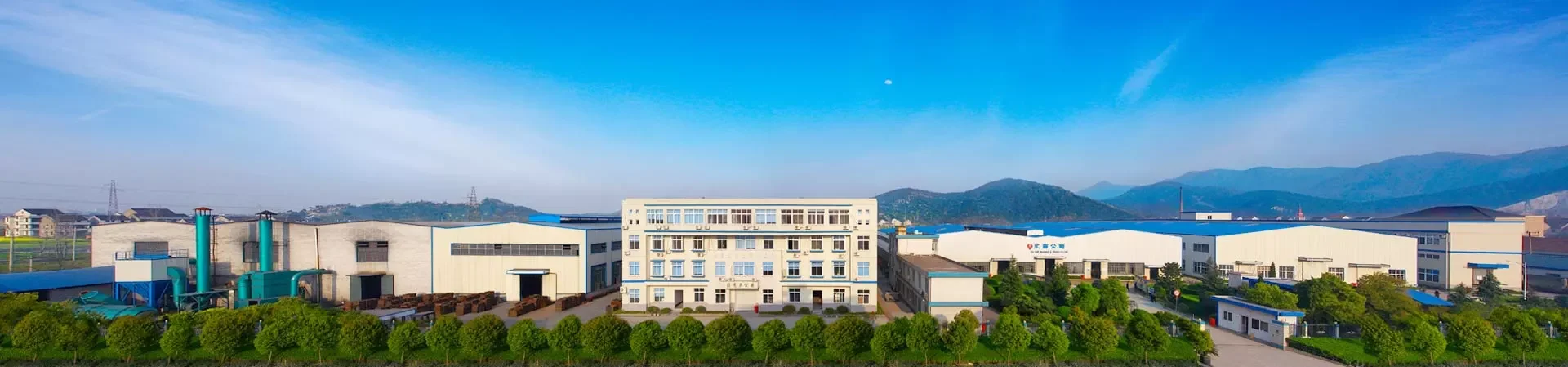

Company Information

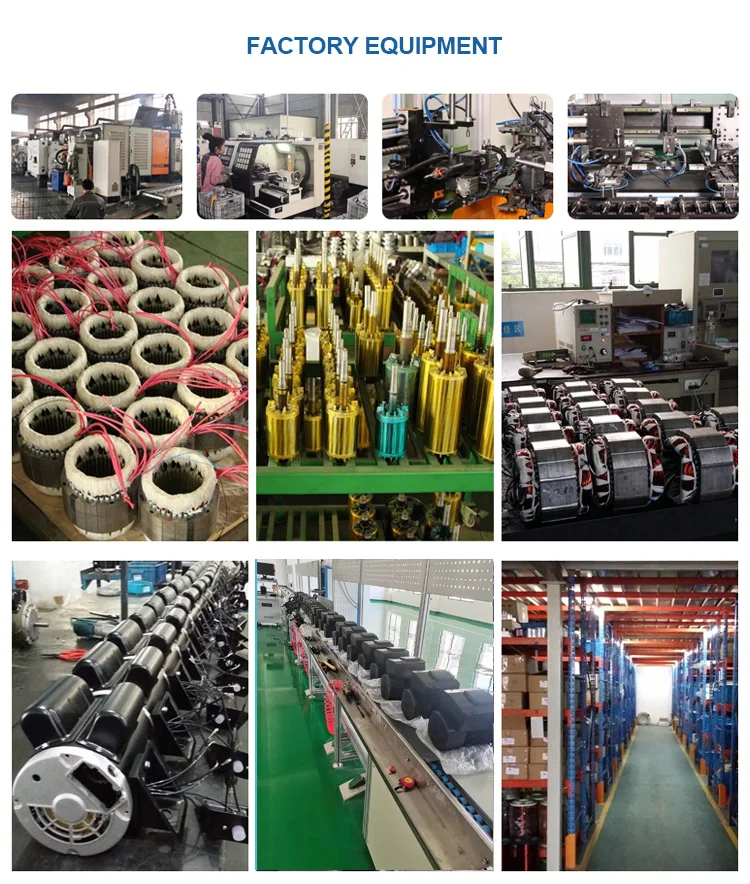

Our company was founded in 2007, and possesses advanced production equipment and automated assembly lines. Our main products include AC motors, DC motors and other accessories, electronic components, plastic product materials, and hardware products. We have more than 50 Professional and technical personnel of various projects, have strong motor design and production & processing capacity.
Our annual production of motor is 250,000 units, and of motors is 200,000 sets, under a reliable quality guarantee system.Our sophisticated products are praised by the majority of domestic and overseas customers, enjoying a good reputation.
"Quality first, customer first" is our purpose. We sincerely welcome friends from all over the world to cooperate with us andbuild a better future together!
Our annual production of motor is 250,000 units, and of motors is 200,000 sets, under a reliable quality guarantee system.Our sophisticated products are praised by the majority of domestic and overseas customers, enjoying a good reputation.
"Quality first, customer first" is our purpose. We sincerely welcome friends from all over the world to cooperate with us andbuild a better future together!
FAQ
Q1: What kind motors you can provide?

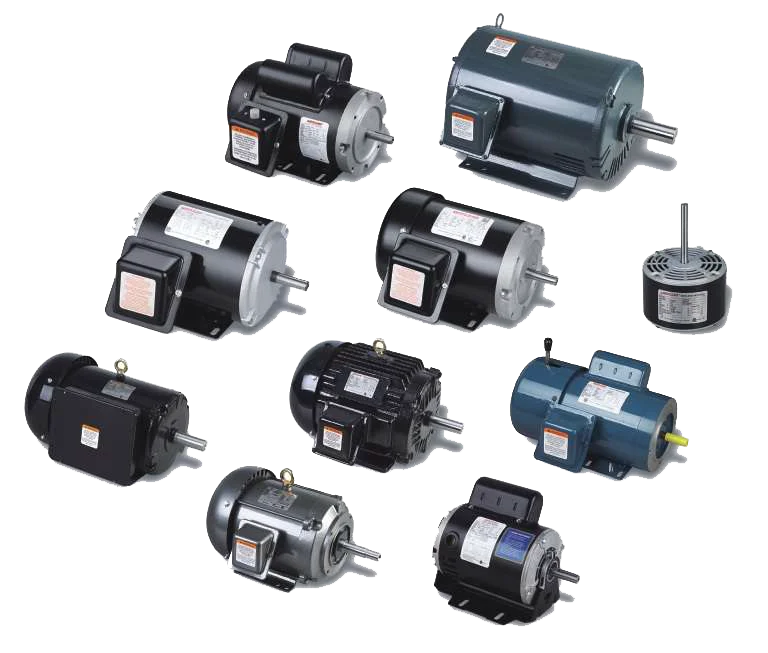

A1: Our main products are NEMA standard and IEC standard motors, Pool pump motor, Compressor motor. General purpose motor. SPA Pump motor. Air blower motor, clean water pump motor. PM AC Motor, Stainless steel motor and so on
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style. after batch oder. we will refund this differentce
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, type etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.
Q4: Can you OEM for us?
A4: Yes, OEM is available. Package, label, power plug can be customized. we have our own design team and mold developing department.
Q5: Do you have any certifications?
A5: We have North America certificates
Q6:How about your delivery time?
A6: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
A1: Our main products are NEMA standard and IEC standard motors, Pool pump motor, Compressor motor. General purpose motor. SPA Pump motor. Air blower motor, clean water pump motor. PM AC Motor, Stainless steel motor and so on
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style. after batch oder. we will refund this differentce
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, type etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.
Q4: Can you OEM for us?
A4: Yes, OEM is available. Package, label, power plug can be customized. we have our own design team and mold developing department.
Q5: Do you have any certifications?
A5: We have North America certificates
Q6:How about your delivery time?
A6: Usually the leading time is 30-45 days. If the products you ordered is in stock, they might be shipped immediately. You'd better contact us to check if it is available in our warehouse.
