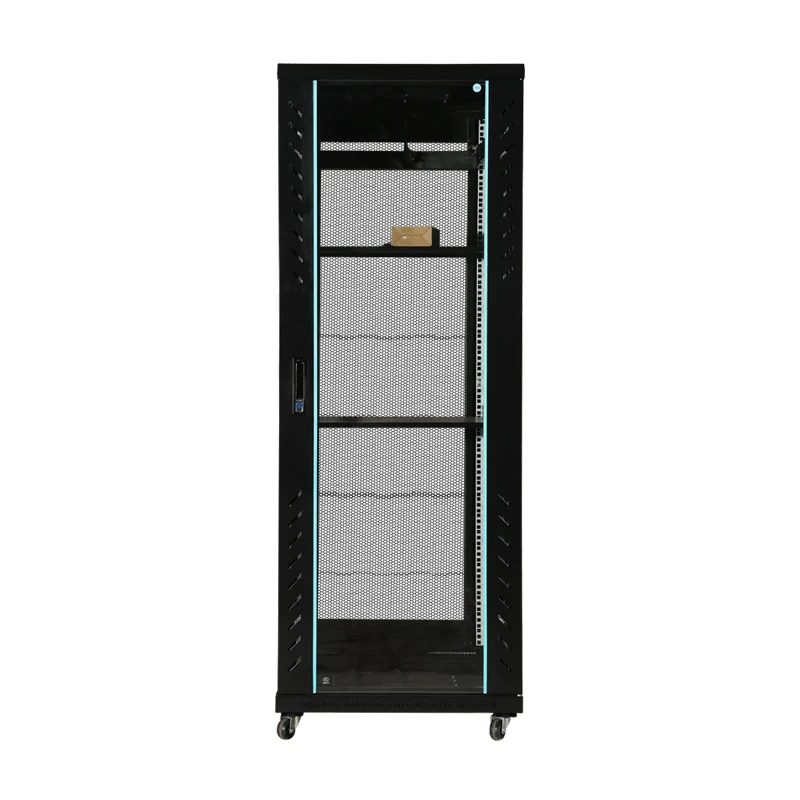

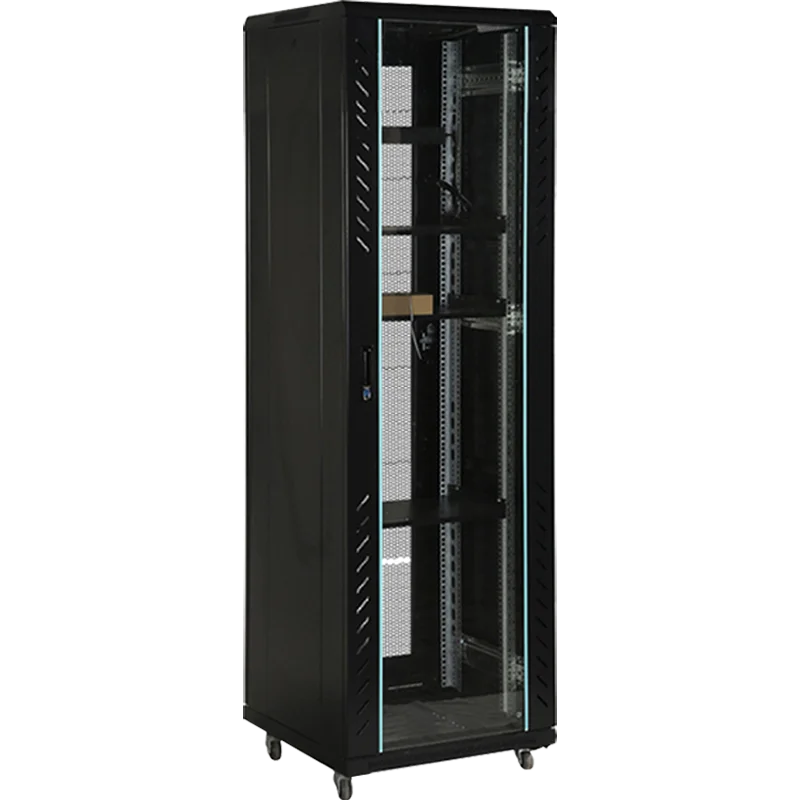

Data Rack 19 Inch 37u Ddf Network Server Cabinet Data Entry Outdoor Network Cabinets
- Category: >>>
- Supplier: Hebei Huateng Yizhou Electrical Equipment Co. Ltd.
Share on (1600611488339):
Product Overview
Description
Basic information | ||||||||
1) standard | Conforms to ANSI/EIARS-310-D, DIN41491; PART1, iec297-2, DIN41494; PART7, GB/ t3047.2-92 standard Compatible with metric ETSI and 19" The international standard | |||||||
2) material | Galvanized installation profile, SPCC cold rolled steel | |||||||
3) the thickness of the | Mounting profile: 1.5mm, others: 0.9mm | |||||||
4) Surface finish | Degreasing,Picking,Phosphating,Powder coating | |||||||
5) protection | Mounting profile:0.8-2.0mm,others:1.0mm | |||||||
6) color | RAL9004(Black) | |||||||
Rack Cabinet Features | ||||||||
1) Zinc Plated mounting profile 2) Secure,firm and reliable 3) Easy to maintain equipment 4) Two Packing Ways: Assembly packing to save labour cost, ready to resell or use Disassembly packing to save space and transport cost, easy to assemble 5) Various optional accessories: PDU, fan, shelf, bracket, cable tray, etc.. 6) Certification: ISO 9001:2000 7) OEM/ODM service available | ||||||||

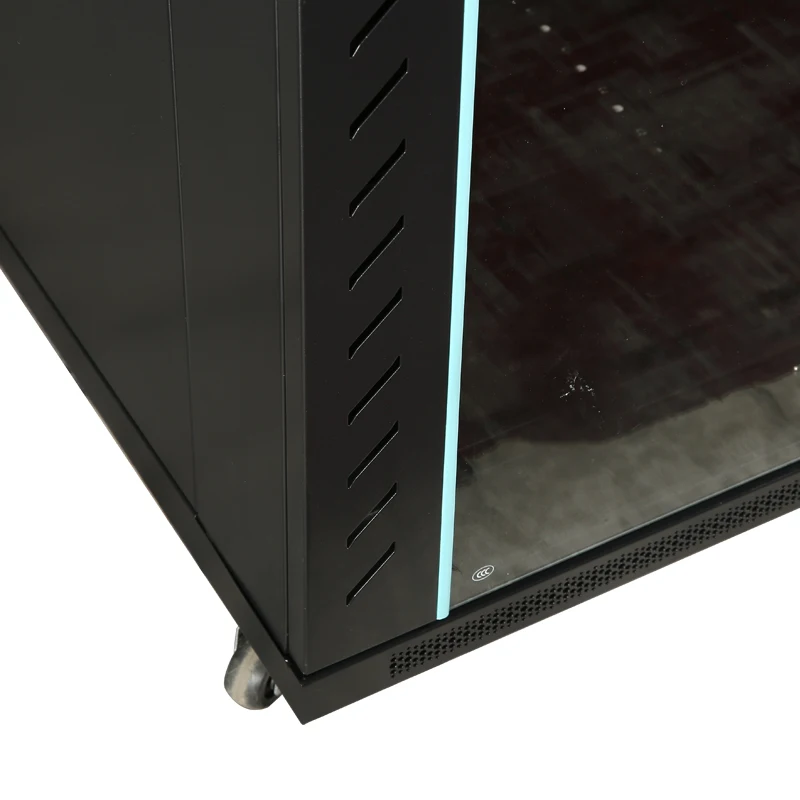

Details Images
Main Component | ||||||||||||
No. | Component Name | Quantity | Unit | Material Specification | Surface Finish | Note | ||||||
1 | Top cover | 1 | Pc | SPCC cold rolled steel T0.8 | Power coated | -- | ||||||
2 | Fan unit | 1 | Set | SPCC cold rolled steel T1.0 | Power coated | -- | ||||||
3 | Steel frame | 2 | Pc | SPCC cold rolled steel T0.8 | Power coated | -- | ||||||
4 | Tempered front door | 1 | Pc | Tempered glass 5mm，SPCC cold rolled steel T1.2 | Power coated | Single open | ||||||
5 | Hexagonal mesh rear door | 1 | Pc | SPCC cold rolled steel T0.8 | Power coated | Single open | ||||||
6 | Bottom panel | 1 | Pc | SPCC cold rolled steel T0.8 | Power coated | -- | ||||||
7 | Mounting angle | 6 | Pc | SPCC cold rolled steel T1.0（only for 600mm depth）and T1.2（other depth） | Galvanization | 4pcs for below 32U high | ||||||

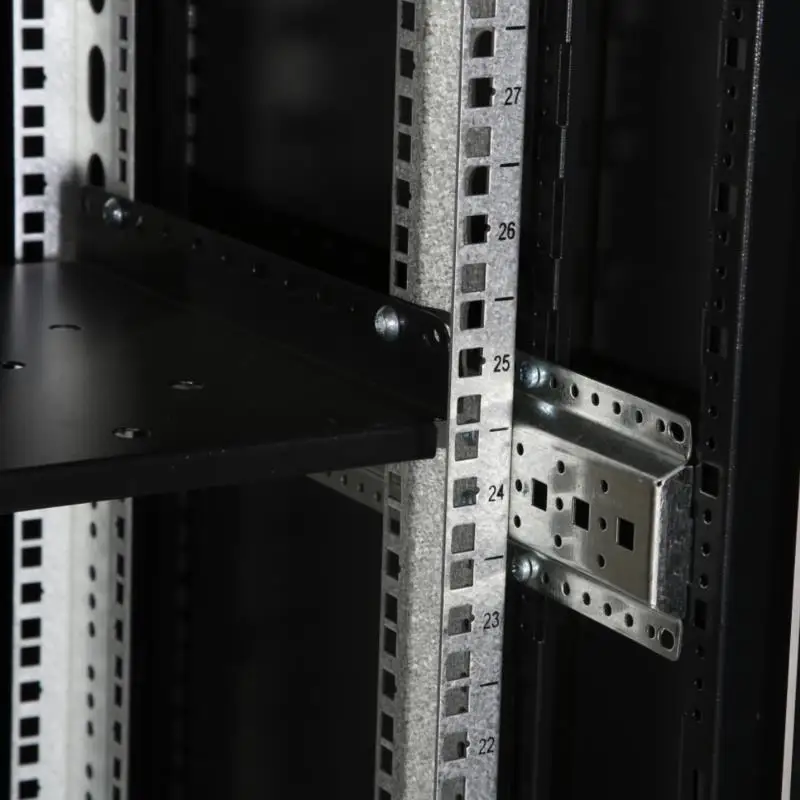

8 | Mounting profile | 4 | Pc | SPCC cold rolled steel T1.8 | Galvanization | -- | ||||||
9 | Side panel | 2 | Pc | SPCC cold rolled steel T0.8 | Power coated | -- | ||||||
10 | Tray | 1-3 | Pc | SPCC cold rolled steel T1.0 | Power coated | 1pcs for 18U-22U；2pcs for 32-37U；3pcs for 42U | ||||||
11 | Handle lock for front door | 1 | Pc | Steel | Galvanization | With 2 keys | ||||||
12 | Little round lock for rear door | 1 | Pc | Steel | Galvanization | With 2 keys | ||||||
13 | Castor | 4 | Pc | Steel | Galvanization | -- | ||||||
14 | M10 adjustable feet | 4 | Pc | Steel | Galvanization | -- | ||||||
15 | M6 B-head screw and M6 square nut | 20 | Pc | Steel | Color zinc coated | -- | ||||||
16 | Allen wrench | 1 | Pc | Steel | Black | -- | ||||||
One-stop Solution
More Specification | ||||||||||
Model No. | Capacity (U) | Width * Depth (mm) | Model No. | Capacity (U) | Width * Depth (mm) | |||||
TC.6618 | 18 | 600*600 | TC.6637 | 37 | 600*600 | |||||
TC.6818 | 600*800 | TC.6837 | 600*800 | |||||||
TC.6918 | 600*900 | TC.6937 | 600*900 | |||||||
TC.6018 | 600*1000 | TC.6037 | 600*1000 | |||||||
TC.6622 | 22 | 600*600 | TC.6642 | 42 | 600*600 | |||||
TC.6822 | 600*800 | TC.6842 | 600*800 | |||||||
TC.6922 | 600*900 | TC.6942 | 600*900 | |||||||
TC.6022 | 600*1000 | TC.6042 | 600*1000 | |||||||
TC.6632 | 32 | 600*600 | ||||||||
TC.6832 | 600*800 | |||||||||
TC.6932 | 600*900 | |||||||||
TC.6032 | 600*1000 | |||||||||

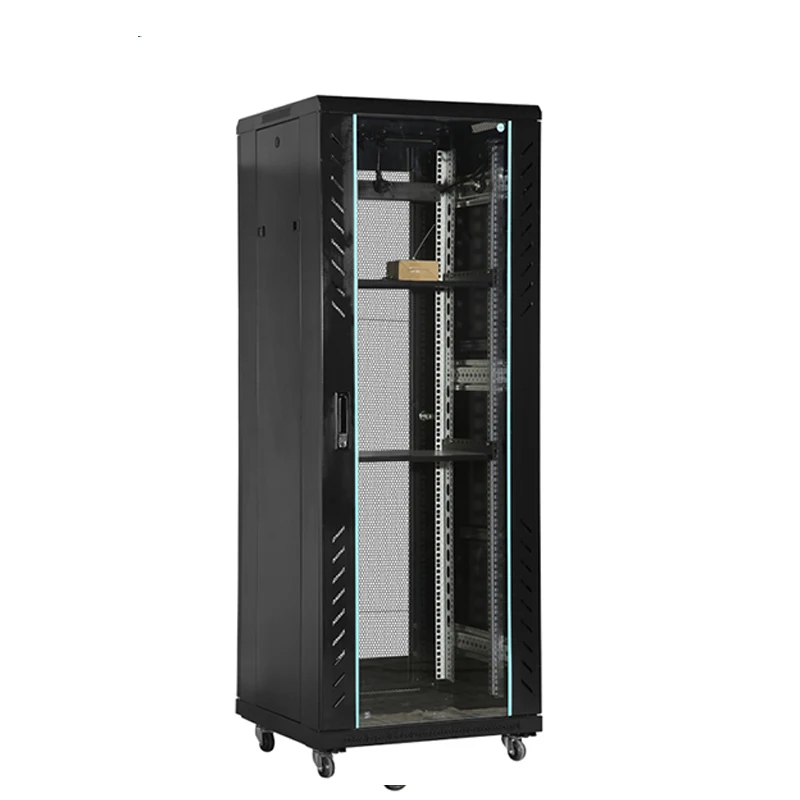

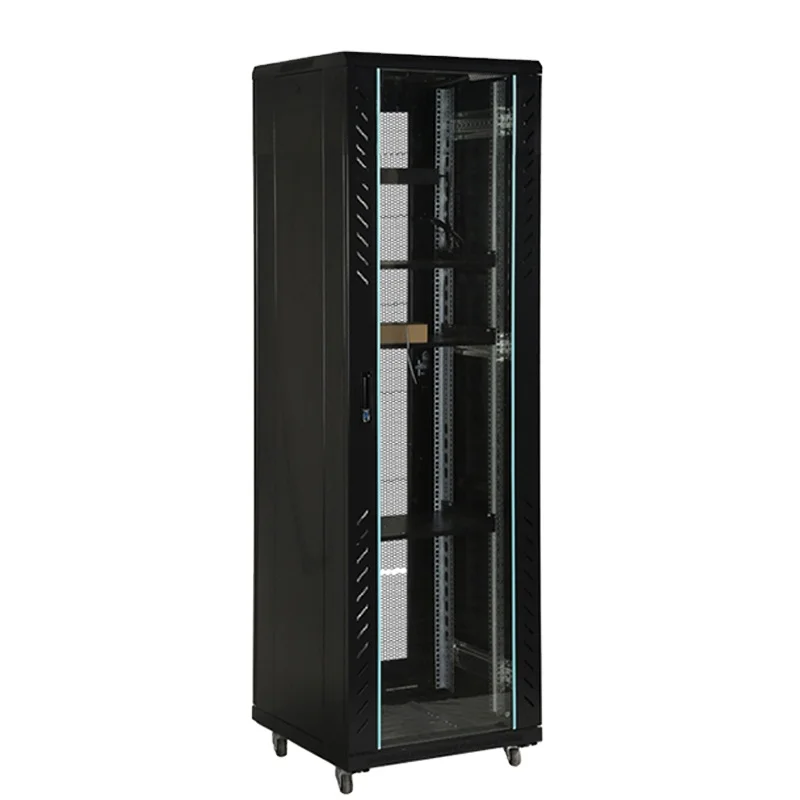

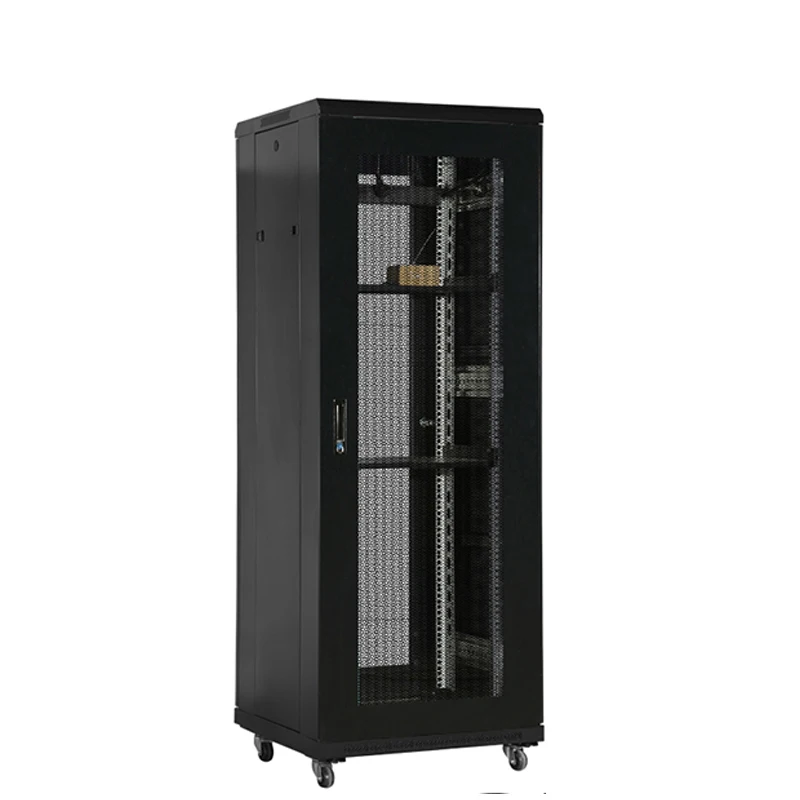

Glass Door Mesh Door
Company Profile
Packing & Delivery
FAQ
Q: How can you make sure your quality control?
A: We have passed the quality certification, and there are quality inspectors,
which are produced in strict accordance with international standards.
which are produced in strict accordance with international standards.
Q: How about your design ability? Do you offer OEM service?
A: We have our own design department, and have offer design service for thousands of cooperative partner. OEM accept and offer confidentiality agreement "business secret contract"for your design safe.
Q: Can We get samples for your products?
A: Yes, samples are available, but for some items, sample cost need to be charged, which can be returned after your formal order.
4. why should you buy from us not from other suppliers?
The company has more than 20 years of design and development experience, with advanced manufacturing technology and processing machinery, has a professional design and development team, in 29 provinces, 31 sales outlets with distribution service outlets.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
A: We have our own design department, and have offer design service for thousands of cooperative partner. OEM accept and offer confidentiality agreement "business secret contract"for your design safe.
Q: Can We get samples for your products?
A: Yes, samples are available, but for some items, sample cost need to be charged, which can be returned after your formal order.
4. why should you buy from us not from other suppliers?
The company has more than 20 years of design and development experience, with advanced manufacturing technology and processing machinery, has a professional design and development team, in 29 provinces, 31 sales outlets with distribution service outlets.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
