CUAV C RTK 9P Positioning Module High Precision GPS RTK GNSS Pixhawk Sky unit set
- Category: >>>
- Supplier: CUAV Tech Inc. Ltd.
Share on (1600611498928):
Product Overview
Description
Product Description

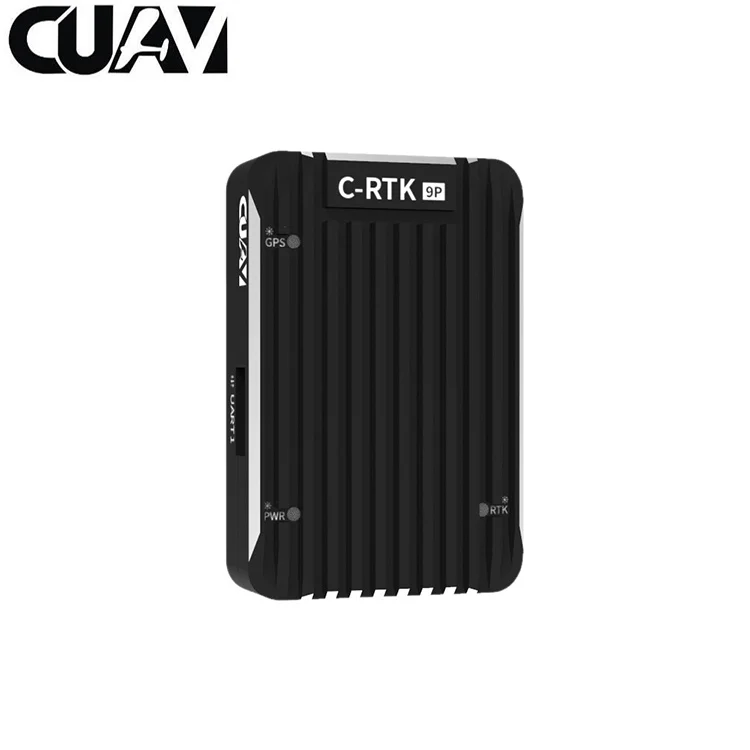

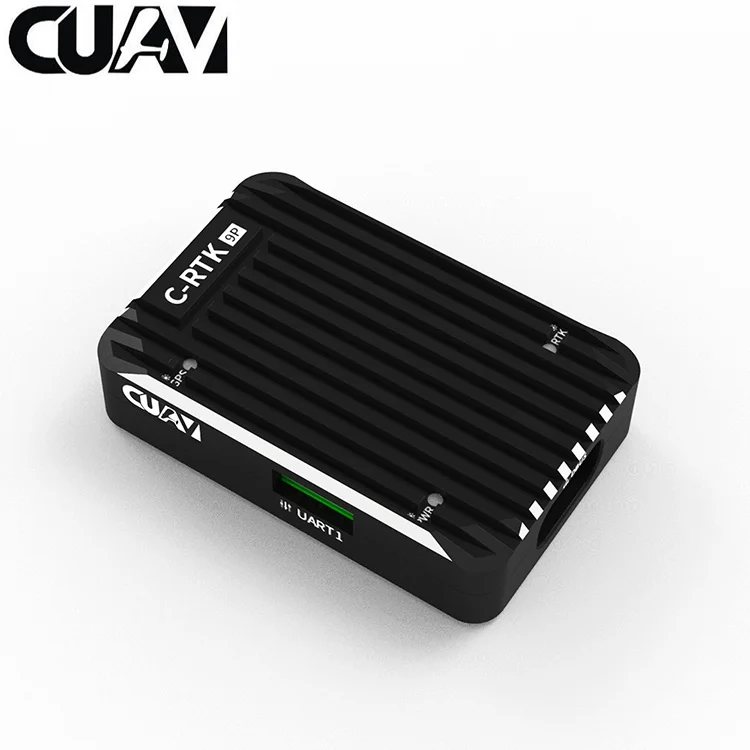

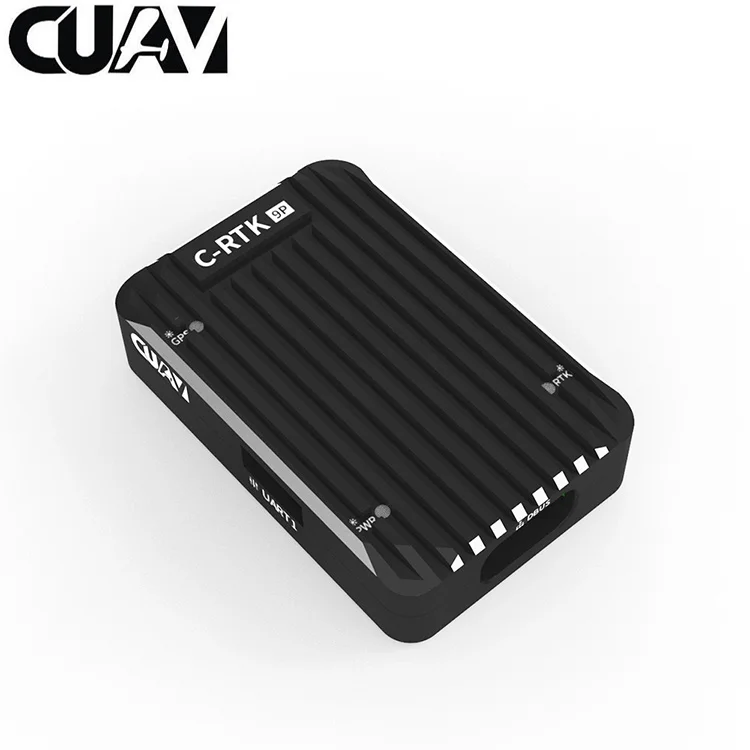

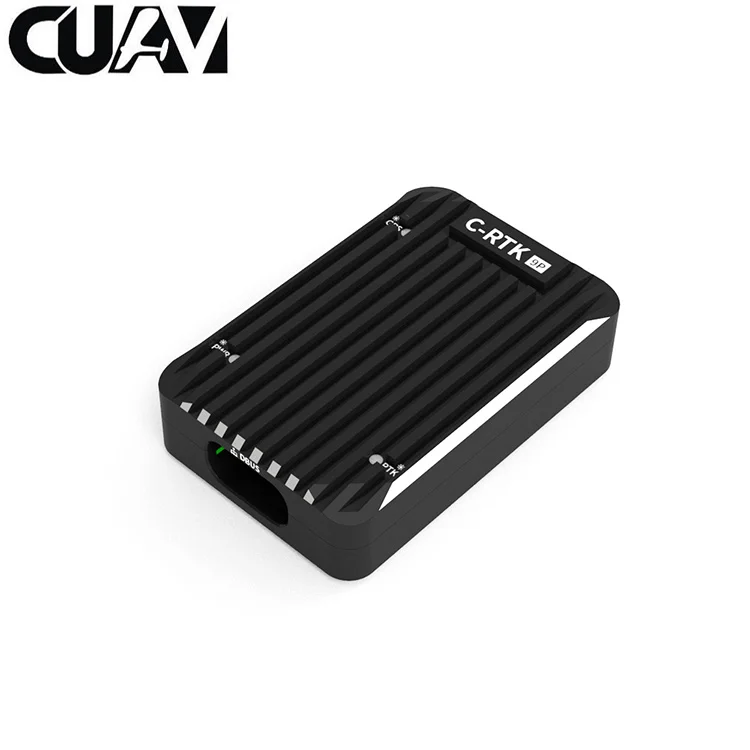

CUAV C-RTK 9P Positioning Module High Precision GPS RTK GNSS Pixhawk Sky unit set
Tool Supplies | Assembly Category |
Upgrade Parts/Accessories | GPS |
RC Parts & Accs | Servo Accessories |
Size | 32*48*12mm |
Product Paramenters
Title goes here.
| Prd | |
|---|---|
| Satellite receiver type | 184 channel Ubox F9P |
| Navigation satellite system | Beidou, Galileo, GLONASS, GPS / QZSS |
| Satellite frequency band | GPS L1C/A L2C, GLONASS L1OF L2OF, GALILEO E1B/C E5b, BDS B1I B2I, QZSS L1C/A L2C |
| Navigation refresh rate | RTK up to 20 Hz |
| Positioning accuracy | RTK 0.01M+1ppm CEP |
| Convergence time | RTK is less than 10s |
| Capture satellite | Cold start 24s |
| Auxiliary start 2s | |
| Capture again 1s | |
| Sensitivity | Tracking and navigation –167 dBm |
| Cold start –148 dBm | |
| Hot Start –157 dBm | |
| Reacquisition –160 dBm | |
| Anti-jamming | Active CW detection and removal Onboard band pass flter |
| Anti-spoofng | Advanced anti-spoofng algorithms |
| Interfaces | |
| Serial interfaces | UART x2 |
| USB | 1 |
| Antenna | Multi-satellite and multi-frequency antenna |
| Timepulse | Confgurable: 0.25 Hz to 10 MHz |
| Protocols | NMEA、UBX binary、RTCM version 3.3 |
| working enviorment | |
| Voltage | 5V |
| Temperature | –20 °C to +85 °C |
| Size | |
| Size | 31.5mmX48mmX12mm |
| Weight | 21g |
Packing & Delivery
Company Profile
Since its establishment in 2012, we have accumulated rich achievements and experience in the development and production of UAV system modules and applications for 8 years. We have launched 4 UAV applications and launched 10 flight controller and 9 telemetries, 6 positioning system modules, 3 voltage and current modules, etc., product positioning includes entry-to-industry applications, enough to meet the needs of diverse users.
Certifications
FAQ
1. who are we?
We are based in Guangdong, China, start from 2015,sell to Eastern Asia(35.00%),North America(5.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(5.00%),Oceania(5.00%),Mid East(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Flight controller,Autopilot,GPS,Telemetry,Remote controller
4. why should you buy from us not from other suppliers?
8 years of industry accumulation
Since its establishment in 2012, we have accumulated rich achievements and experience in the development and production of UAV system modules and applications for 8 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 2015,sell to Eastern Asia(35.00%),North America(5.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(5.00%),Oceania(5.00%),Mid East(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Flight controller,Autopilot,GPS,Telemetry,Remote controller
4. why should you buy from us not from other suppliers?
8 years of industry accumulation
Since its establishment in 2012, we have accumulated rich achievements and experience in the development and production of UAV system modules and applications for 8 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
