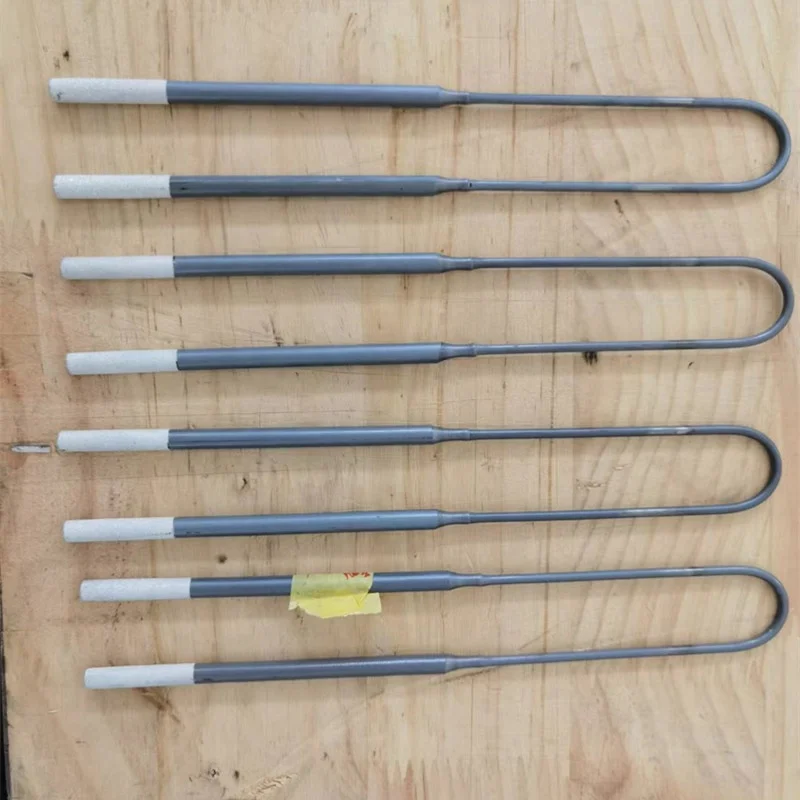

1800 lab electric atmosphere furnace heater MoSi2 heating element suppliers

Product Overview

Description

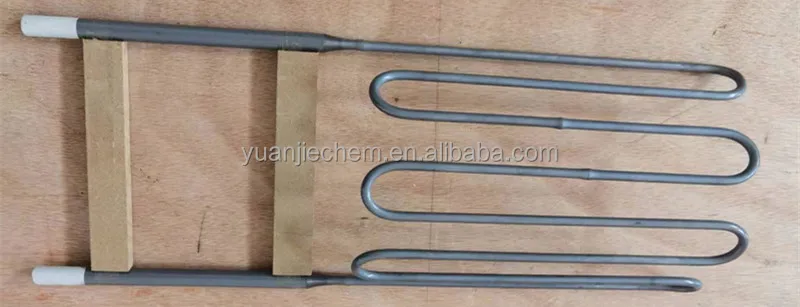

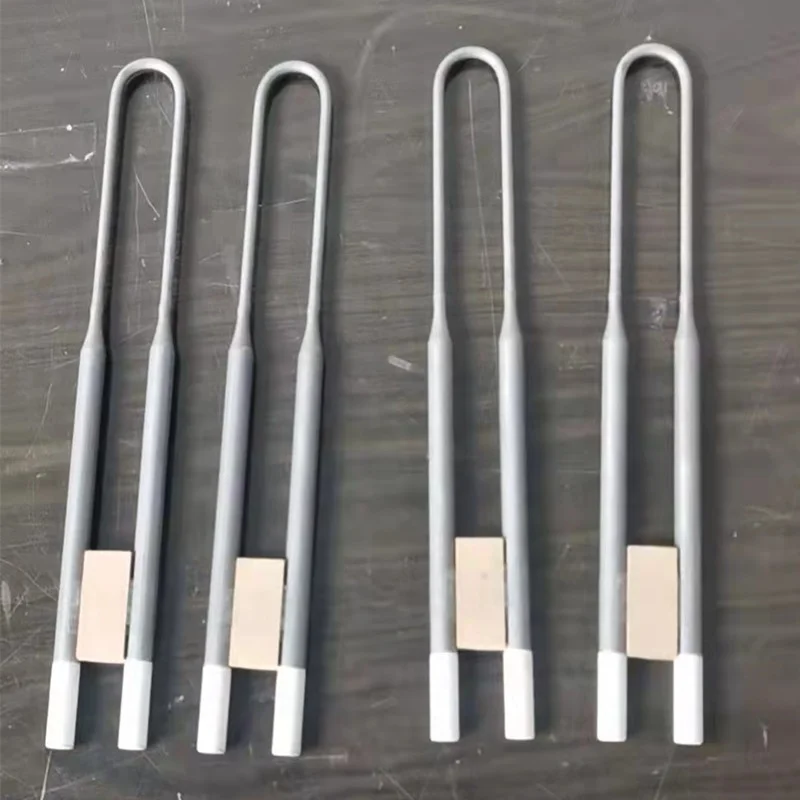

 MoSi2 heating element









What is the usage of the mosi2 heating elements?

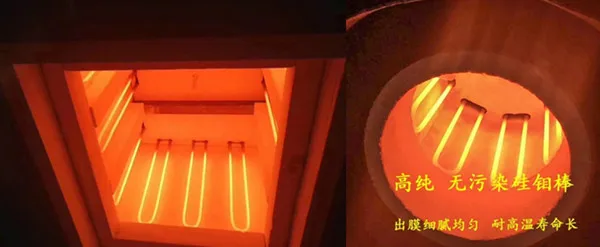

 Furnace Heating Element
1. High temperature for various electric furnaces.
2. Long life combined with ease of replacing failed elements
3. Can be used continuously or intermittently
4. New and old elements can be connected in series
5. High power concentration may be applied







What is the type of the mosi2 heating elements?

 1700C 1800C 1850C 1900C



MoSi2 Heater Advantages:

A. It has anti- oxidation and automatic repair

B. function and can be used continually in oxidative atmosphere.

C. We are using thermal processing in shape,which maintains a very good high-temperature tenacity and plasticity of the basic materials.

D. the cold and hot end welding aspect, it uses special joint technology to take shape.

E. The product has high density that greatly improves the conductivity of the product.

F. good surface quality, high mechanical strength and toughness.

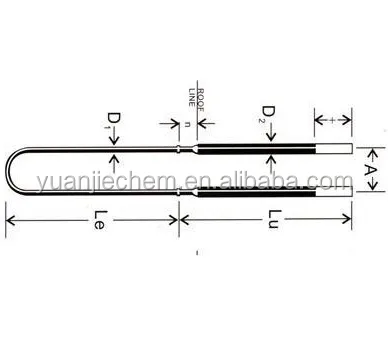

What is the type of the size heating elements?



d = the diameter of hot zone
c = the diameter of cold zone
Le = the length of hot zone
Lu = the length of cold zone
A = the distance between two terminals

Standard Size for Electric MoSi2 Heater:
M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24

M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24



Hot zone dia,mm (d)	Cold zone dia,mm,(c)	Hot zone length,mm (Le)	Cold Zone length,mm(Lu)	A,mm
3	6	80 to 300	80 to 500	25
4	9	80 to 350	80 to 500	25
6	12	80 to 800	80 to 1000	25 to 60
7	12	80 to 800	80 to 1000	25 to 60
9	18	100 to 1200	100 to 2500	40 to 80
12	24	100 to 1500	100 to 1500	40 to 100

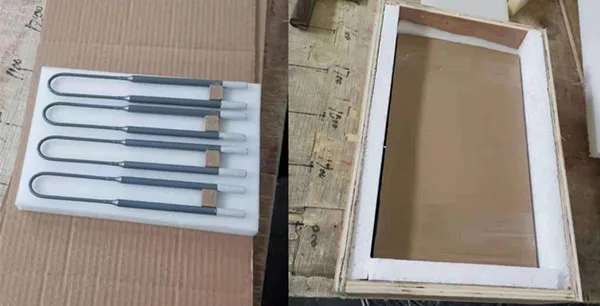

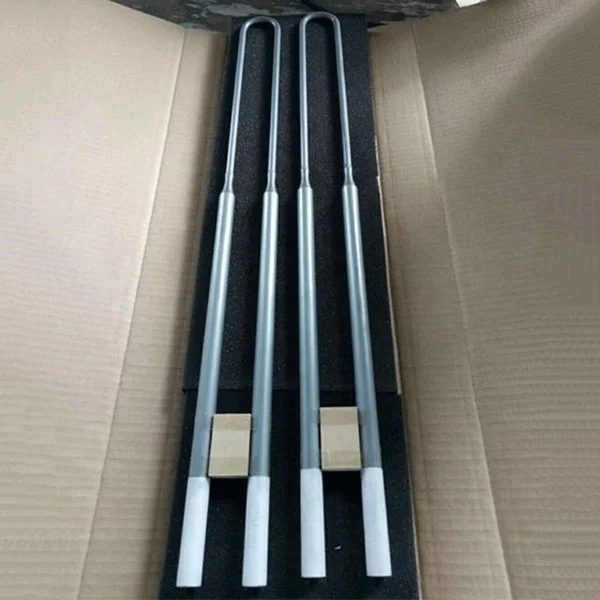

What is the packing of the size heating elements?

 Foam+carton+wooden box, very strong enough for shipping.
