Product Overview
Description
Products Description
SINOWELL feed silo is made of 275g/㎡hot-dip galvanized sheet and all screws are made of 8.8-level high-strength hot-dip galvanized bolts, which are corrosion-resistant, anti-oxidation, high-temperature resistance, high strength, long service life,and can withstand a strong storm. Mainly used to store dry powder or granular compound feed.

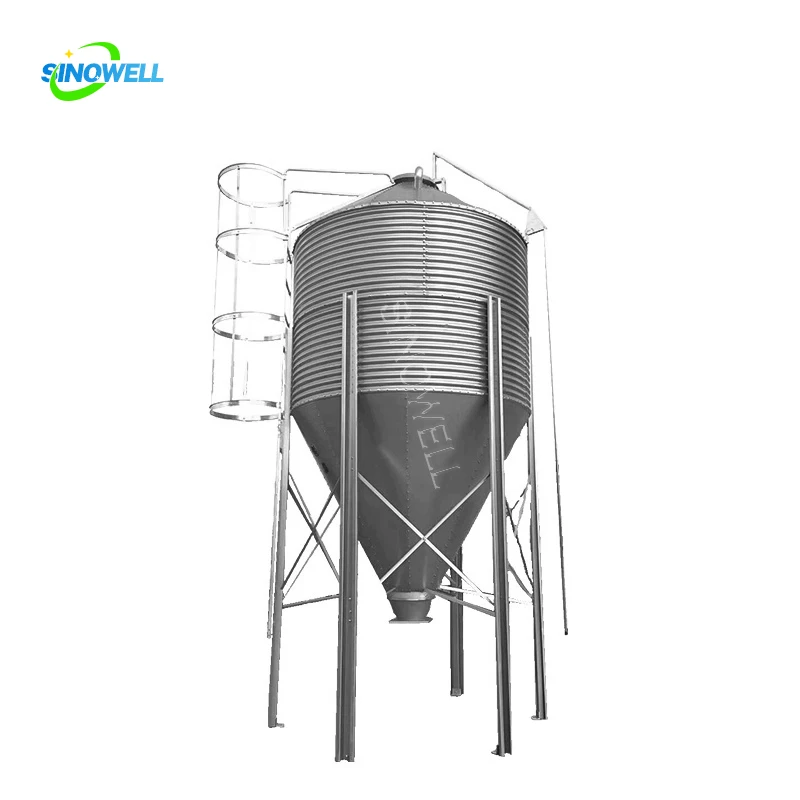

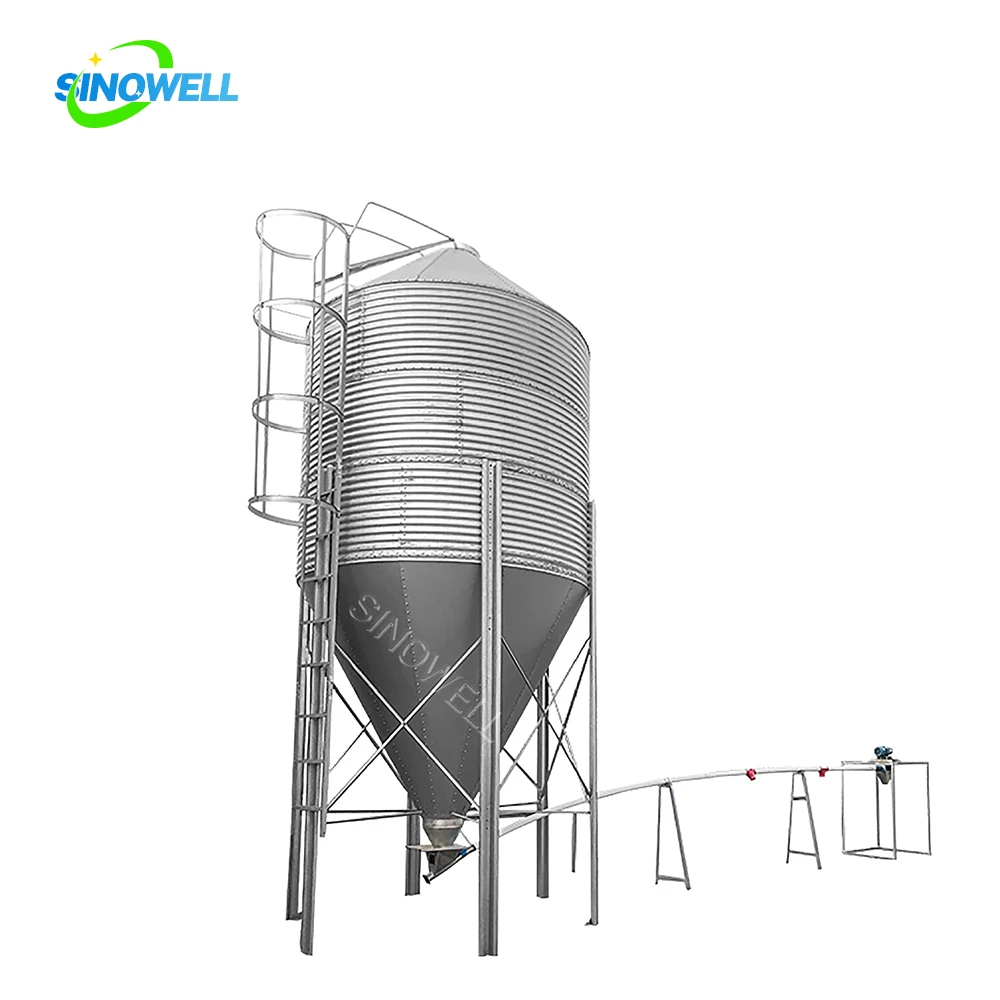

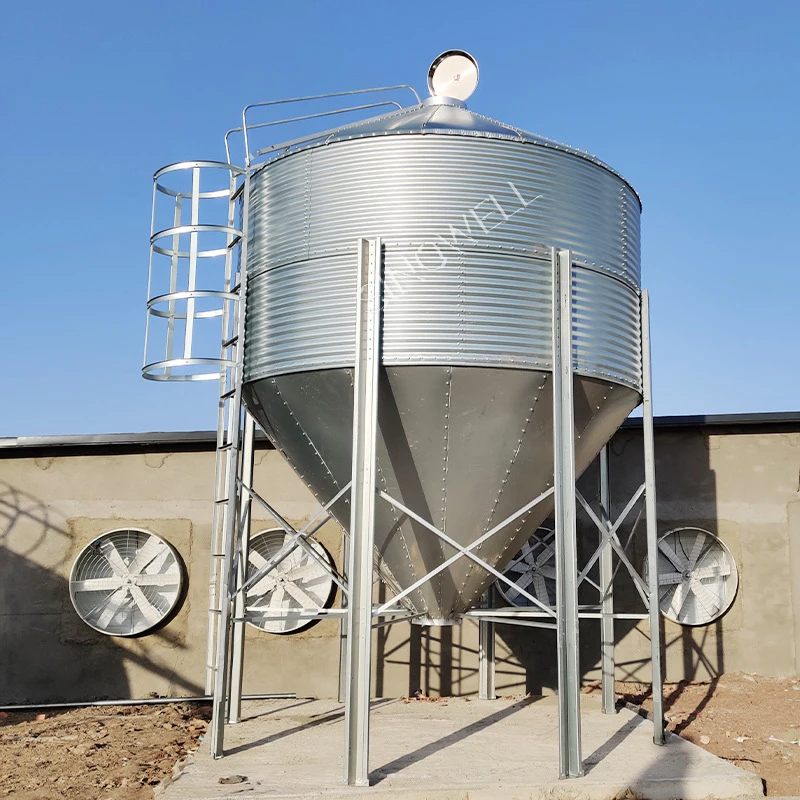

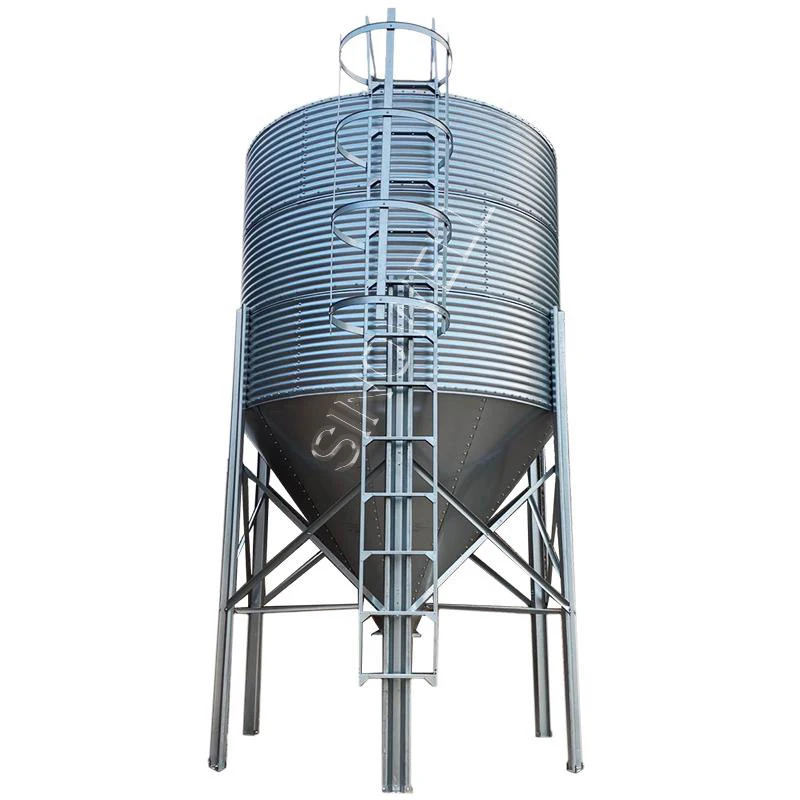

The feed silo is mainly composed of silo body, silo cover, mounting ladder, and silo legs etc. All parts are produced in strict
accordance with drawing design by using advanced laser equipment and precision molds, and then undergo strict quality inspections to make each component more standard, more precise in size, and more convenient to install to ensure easy assembly and use.
accordance with drawing design by using advanced laser equipment and precision molds, and then undergo strict quality inspections to make each component more standard, more precise in size, and more convenient to install to ensure easy assembly and use.
Product Paramenters
Model | Diameter(mm) | Capacity(t) | Capacity(m³） | Silo Height(m) | Layers | Legs |
SW-1800-1 | 1800 | 2.5 | 3.9 | 3418 | 1 | 4 |
SW-1800-2 | 1800 | 3.9 | 6.0 | 4231 | 2 | 4 |
SW-1800-3 | 1800 | 5.3 | 8.1 | 5042 | 3 | 4 |
SW-1800-4 | 1800 | 6.6 | 10.2 | 5853 | 4 | 4 |
SW-1800-5 | 1800 | 7.9 | 12.3 | 6664 | 5 | 4 |
SW-1800-1(Plus) | 1800 | 2.5 | 3.9 | 3820 | 1 | 4 |
SW-1800-2(Plus) | 1800 | 3.9 | 6.0 | 4633 | 2 | 4 |
SW-1800-3(Plus) | 1800 | 5.3 | 8.1 | 5446 | 3 | 4 |
SW-1800-4(Plus) | 1800 | 6.6 | 10.2 | 6256 | 4 | 4 |
SW-2750-2 | 2750 | 10.3 | 15.8 | 5294 | 2 | 6 |
SW-2750-3 | 2750 | 13.4 | 20.6 | 6109 | 3 | 6 |
SW-2750-4 | 2750 | 16.5 | 25.4 | 6918 | 3 | 6 |
SW-2750-5 | 2750 | 19.6 | 30.2 | 7731 | 4 | 6 |
SW-3200-2 | 3200 | 15.0 | 23.1 | 5809 | 2 | 6 |
SW-3200-3 | 3200 | 19.3 | 29.7 | 6622 | 3 | 6 |
SW-3200-4 | 3200 | 23.6 | 36.3 | 7435 | 4 | 6 |
SW-3200-5 | 3200 | 27.9 | 42.9 | 8248 | 5 | 6 |
Product advantages
-->Long service life with 5-year warranty.
-->Durable construction and reliable support.
-->Superior weather resistant features.
-->Fully accessible bin lid.
-->Remote feed management options.
--> Wide selection of value added accessories.
-->Durable construction and reliable support.
-->Superior weather resistant features.
-->Fully accessible bin lid.
-->Remote feed management options.
--> Wide selection of value added accessories.
Detailed Description

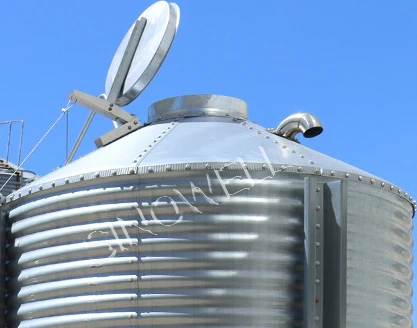

Feed Inlet & Inlet Cover
1.Enlarged the top feed inlet for easy full of feed.
2. The movable silo cover is made of 275g/㎡ hot-dip galvanized sheet after one-time stretching.
2. The movable silo cover is made of 275g/㎡ hot-dip galvanized sheet after one-time stretching.
3. The specially designed automatic
elastic torsion spring control structure and the limit plate enable workers to open and close the cover freely on the ground,which is safe and convenient.
4. The cover fittings are all made of 304 stainless steel, high strength, no fracture, no rust.
4. The cover fittings are all made of 304 stainless steel, high strength, no fracture, no rust.
Air Duct
The roof sheet has an air duct, which can balance the air pressure inside and outside the silo, discharge various gases and heat,ensure smooth feeding and keep the silo inside clean.
Keywords: 200 ton cement silos for sale grain-silo-for-sale 80ton steel-silo-used-for-sale ccell silo feeder silo silo tubes seed silo spiral silo silo industrial russia silo silo kits silo home silo mixing round silo silo 10t silo metalico 18t silo silos 200t silo acero day silo silo accessories silo paddy chicken silo silo coffee 500tons silo silo 5t 1000kg silo silo roof malt silo china silo 300t silo silo 40ton
Silo Ring Sheets
1. The corrugated structure of the silo ring sheets can reduce the condensation inside the silo and reduce the moisture, prevent the mold growth and feed condensation ,which improves feed quality.
2. The inner wall of the silo is smooth, feeding smoothly, avoiding feed accumulation.
2. The inner wall of the silo is smooth, feeding smoothly, avoiding feed accumulation.
3. Sealing glue is added between the ring
sheets to prevent water from entering the silo and avoid moldy feed.
sheets to prevent water from entering the silo and avoid moldy feed.
Keywords: silo gsi tangki silo silo panel vigan silo concete silo silo top feed hopper silo vertical storage silo water storage silo

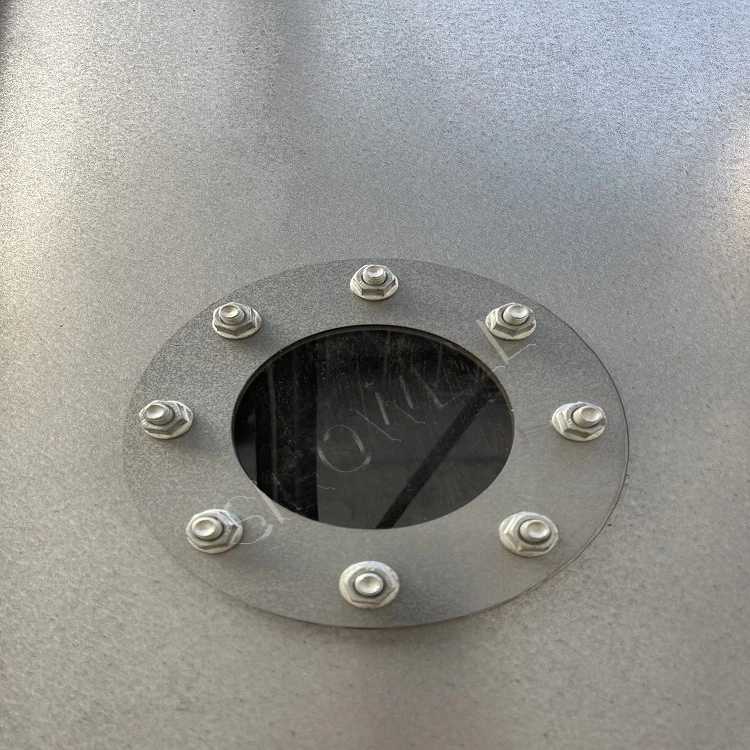

Observation Window
1. Transparent observation windows are respectively provided on the silo ring and the silo hopper.
2.The windows are made of plastic injection molding, with strong pressure resistance and good light transmittance, making it easy to check the storage status.
Keywords: pellet silos prices steel silo house silo corrugated sheet maize flour silo silos de maiz 200 ton silo multi grain silo plastic
pellet silo 300 tons silo weifang feed silo grain silo uganda silo fill equipment corn silo price silo for cement silos for pvc
pellet silo 300 tons silo weifang feed silo grain silo uganda silo fill equipment corn silo price silo for cement silos for pvc

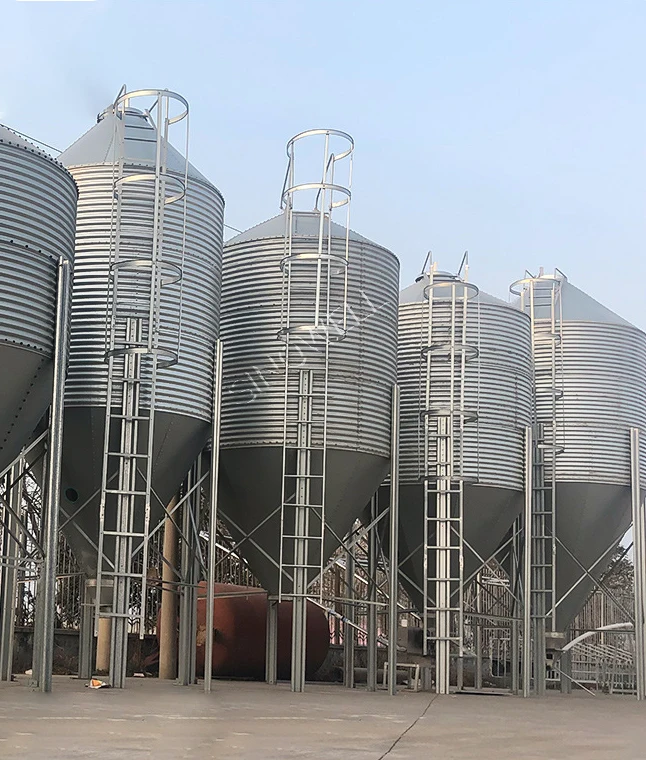

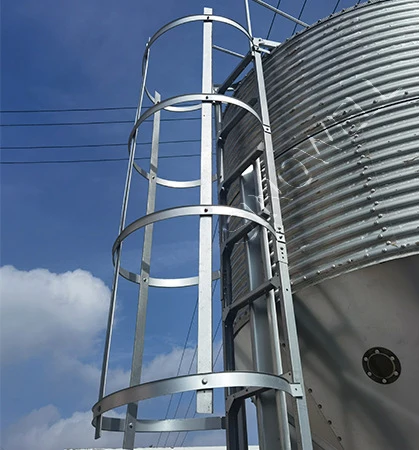

Ladder&Security Cage
1. The mounting ladder is molded from a whole piece of hot-dip galvanized steel plate with anti-skid design, which is firm and non-slip, good stability and convenient installation.
2. At the same time, it is equipped with a security cage, which is safe and
reliable, and is convenient for observing the feed level and maintaining the silo.
reliable, and is convenient for observing the feed level and maintaining the silo.
Keywords: steel feed silo agrieso feed silo silo cleaning system silo storage grain metal grain silo flour silo systems silo 60 t 500kg grano silo aerator for silo 5t feed silo hot selling silo silos in nigeria wheat silo bag silo de grano

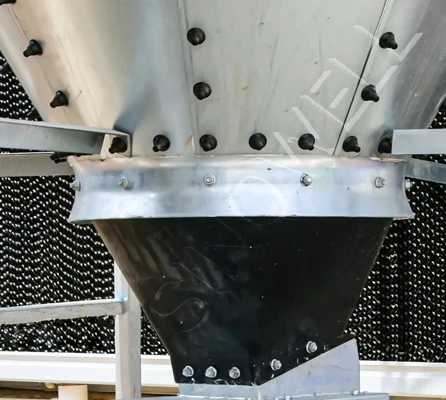

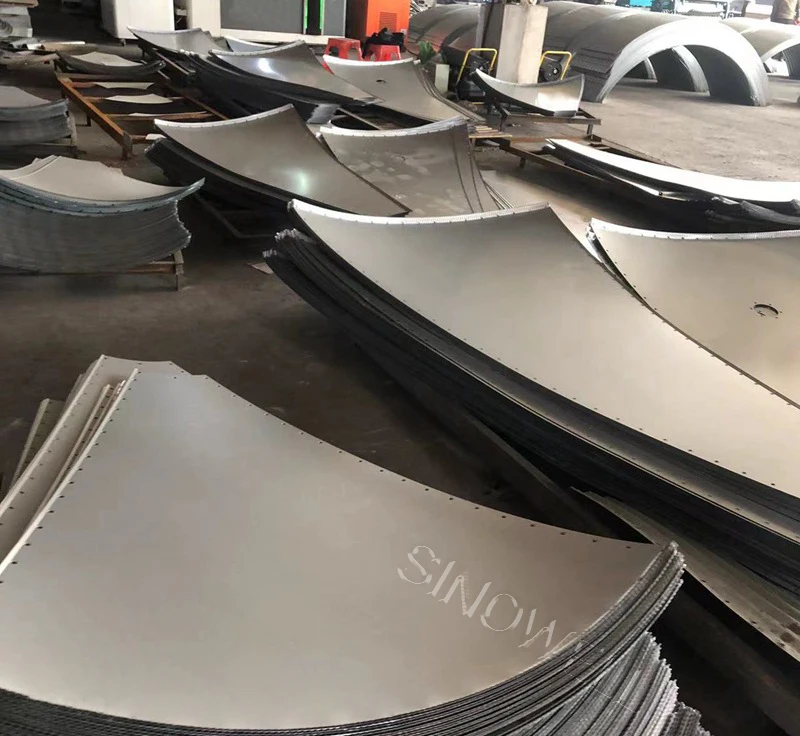

8.8 Grade Bolts
The hopper sheets are fixed by 8.8 grade high-strength hot-dip galvanized bolts, and the exposed bolt part is equipped with a
specially designed rubber nut, which is beautiful and does not rust.
specially designed rubber nut, which is beautiful and does not rust.
Keywords: 5 ton silo steel silo tank grains mobiles silos grain silo 6t flat feed silo plastic storage silo grai storage silos barley malt
silos seed storage silo silo spare parts storage flexible silo silo for polypropylene steel grain silo barley storage silo 600 ton silo chicken house silo silo grain auger silo for pet 150ton cereal silo cocoa bean silo
silos seed storage silo silo spare parts storage flexible silo silo for polypropylene steel grain silo barley storage silo 600 ton silo chicken house silo silo grain auger silo for pet 150ton cereal silo cocoa bean silo

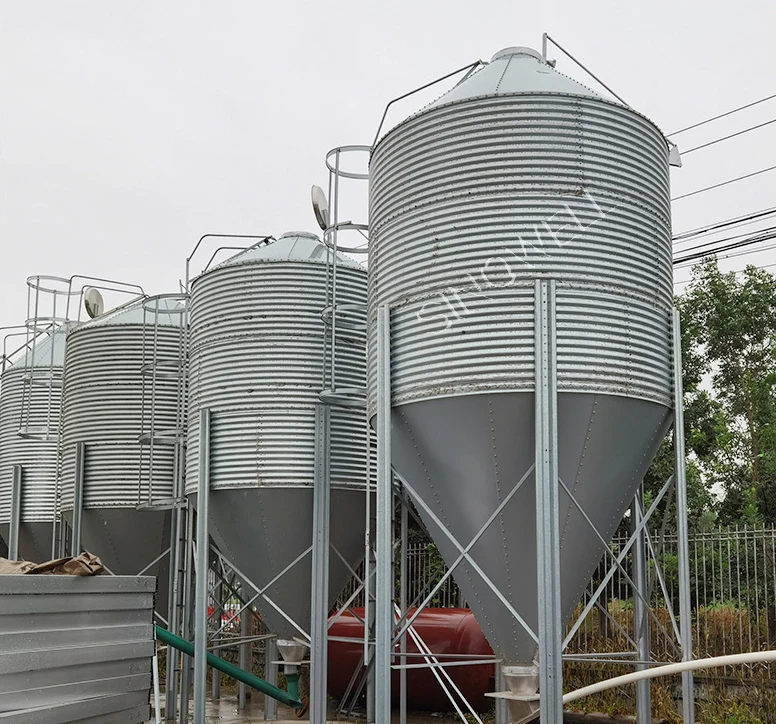

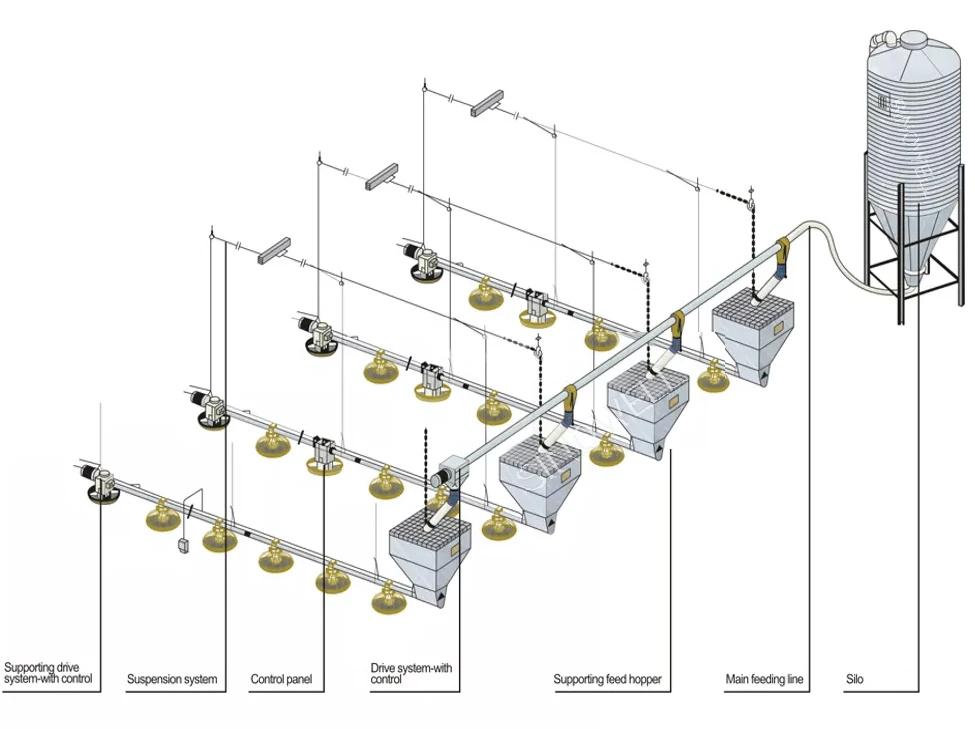

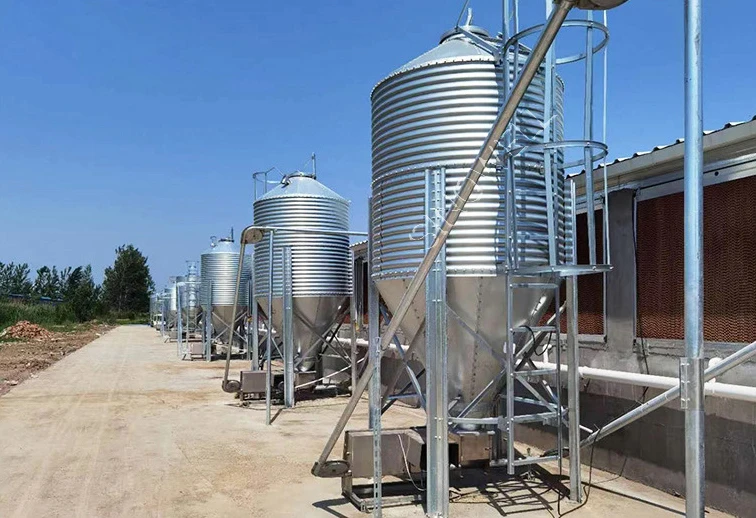

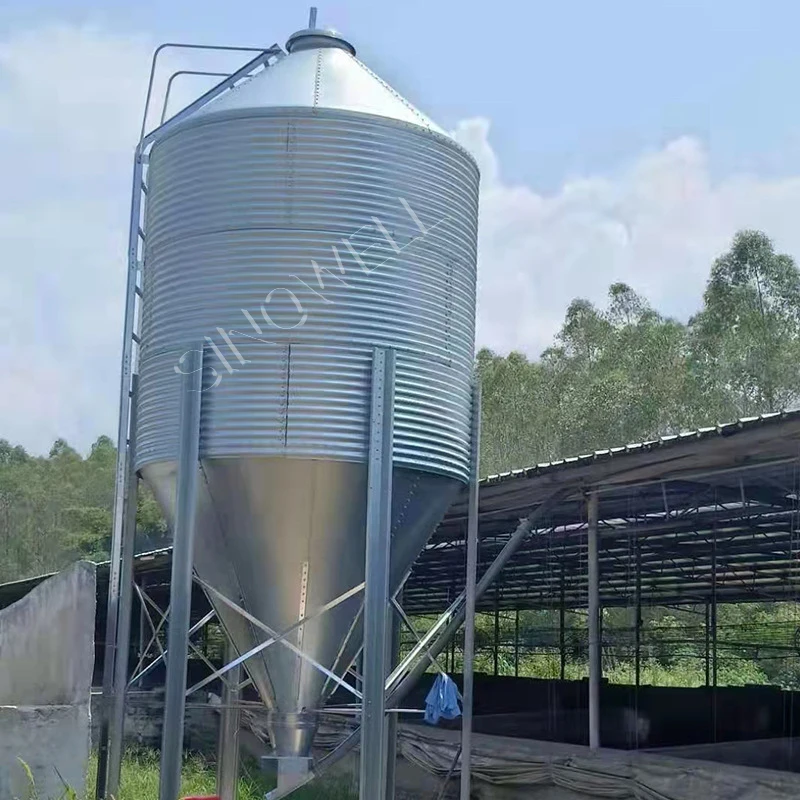

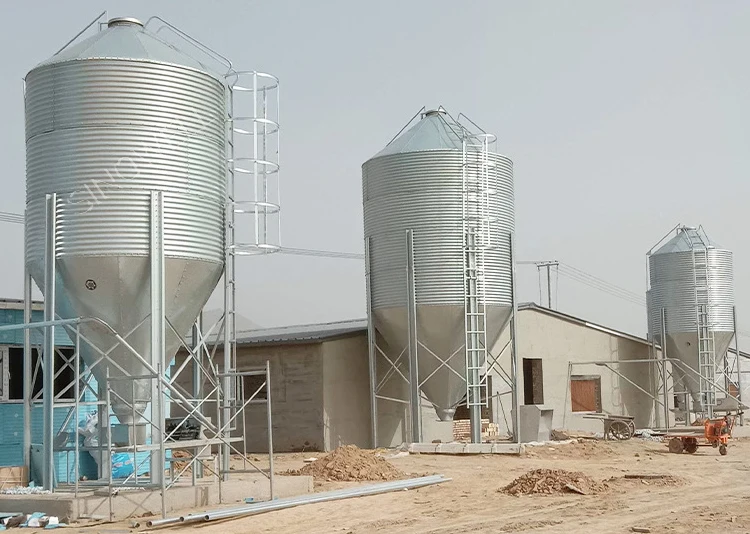

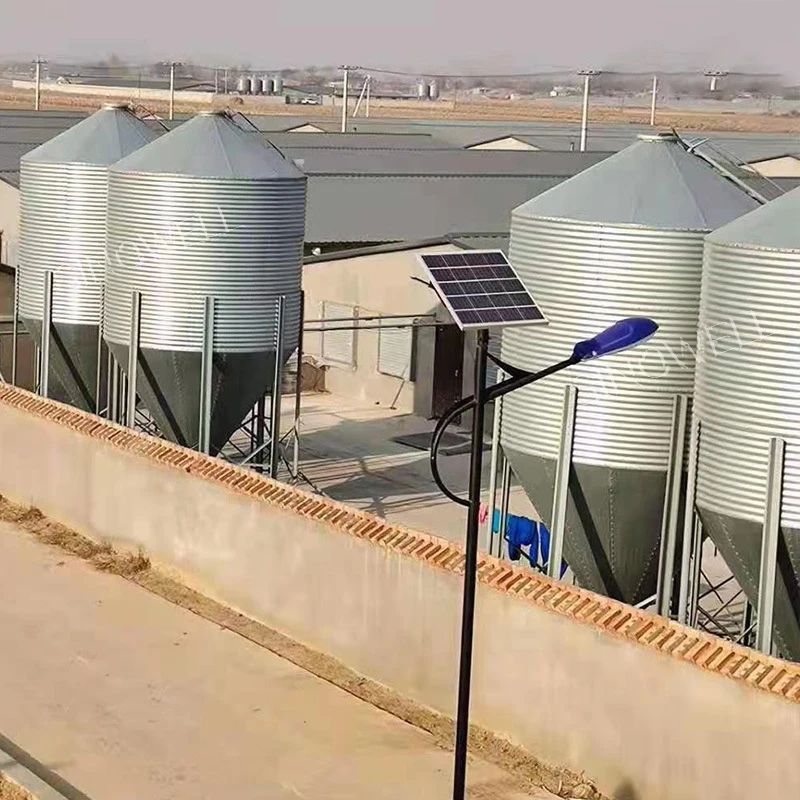

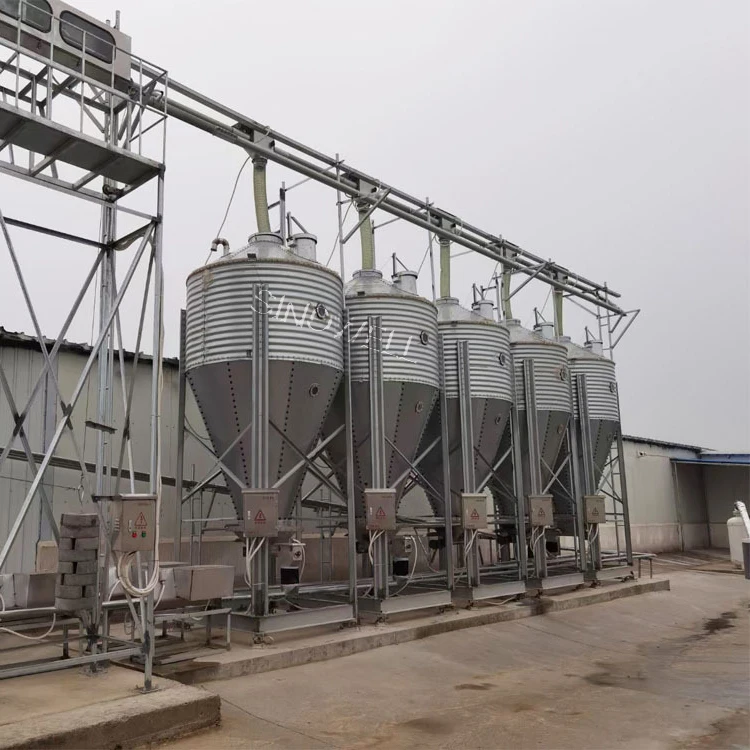

Application
Keywords: silos 500 tonne storage silos 3500 tons 500 ton silo tank feed silo for poultry soybean storage silo bin grain silos and dryers stainless steel silo 100tonn bolsa plastica para silo poultry small feed silo mobile silo grain storage grain storage steel silo grain silo stainless steel pneumatic conveying silo pump building silos for grain water storage steel silo chicken feed small silo silo storage 5000 ton 300 ton cement silo silo bags 50 kg auger for feed silo flow mixer beton silo
Company Introduction
SINOWELL is a professional company engaged in the design and research of air fluid mechanics and temperature control equipment.We have cooperated with famous universities at home and abroad for a long time and established a research institute integrating production,learning and research ,we devotes ourselve to the scientific and technological development of ventilation and cooling equipment,heating equipment and anomal husbandry machinery,adopts advanced CAD software technology to design new products,and continuously builds energy-saving,efficient and environmentally friendly products by signing foreign advanced technologies
Keywords: flour-silo-systems storage wheat bran storage silo grain silo with 3500t capacity tanque de almacenamiento de silos silo para arroz de almacenamiento silo de almacenamiento 10 toneladas small grain silos 15 ton capacity china 60 ton steel silo price 3000 ton steel grain storage silo metal chicken feed storage bin silo corrugated plate steel grain silo for sale 1000 ton wheat grain silo with price auto silo feeder drinker cooling pad heater steel grain hopper bottom silo in philippines hopper bottom maize steel silo used for sale silo small silo plastic pellet silos used grain silo machine silo
Certifications
Professional Trustworthy
The products of our company have been granted certificates such as CE,ISO,3C and our company has been passed the approved mark and test reports. We have authoritative and well-known brands ”SINOWELL".

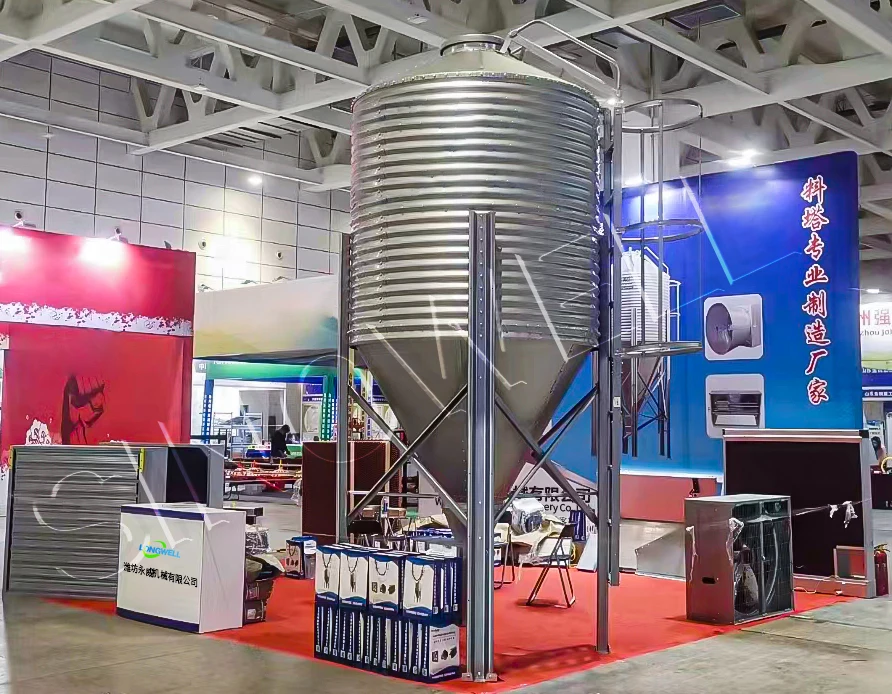

Exhibition

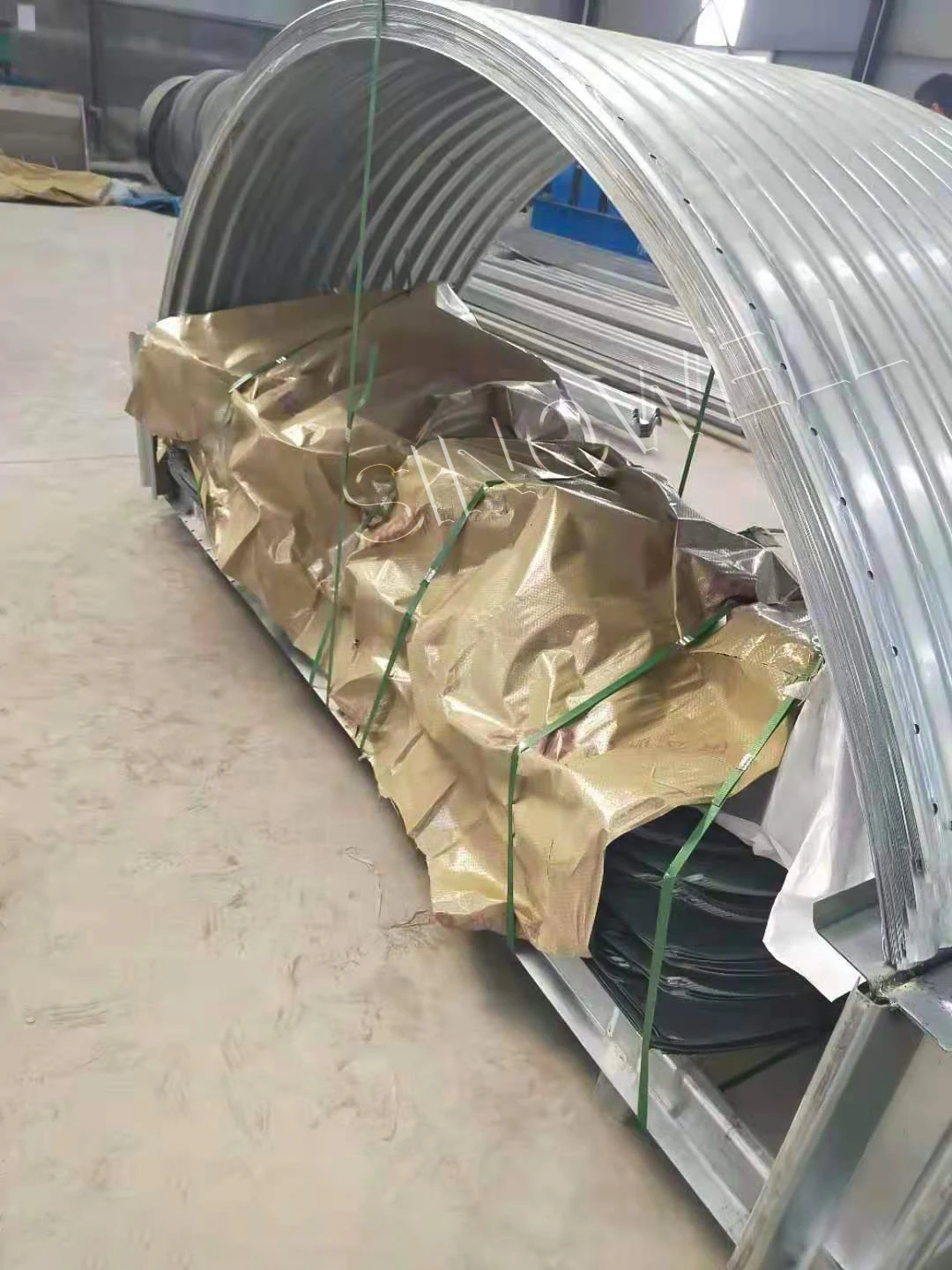

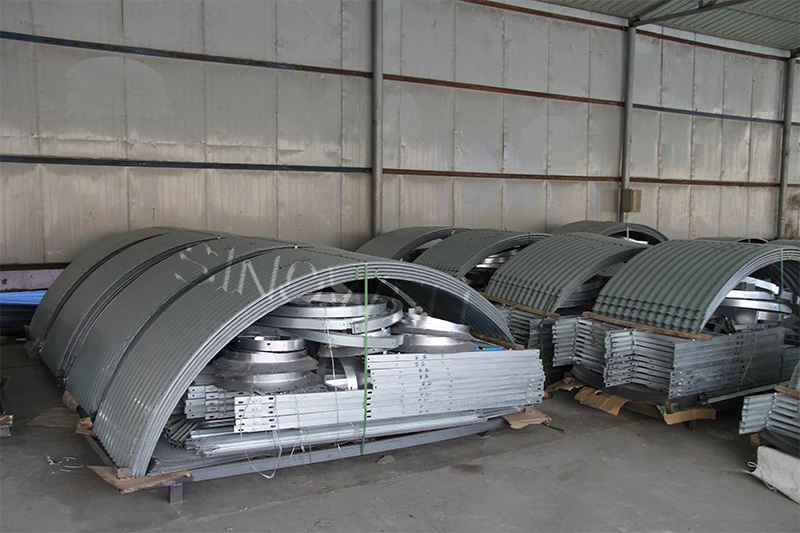

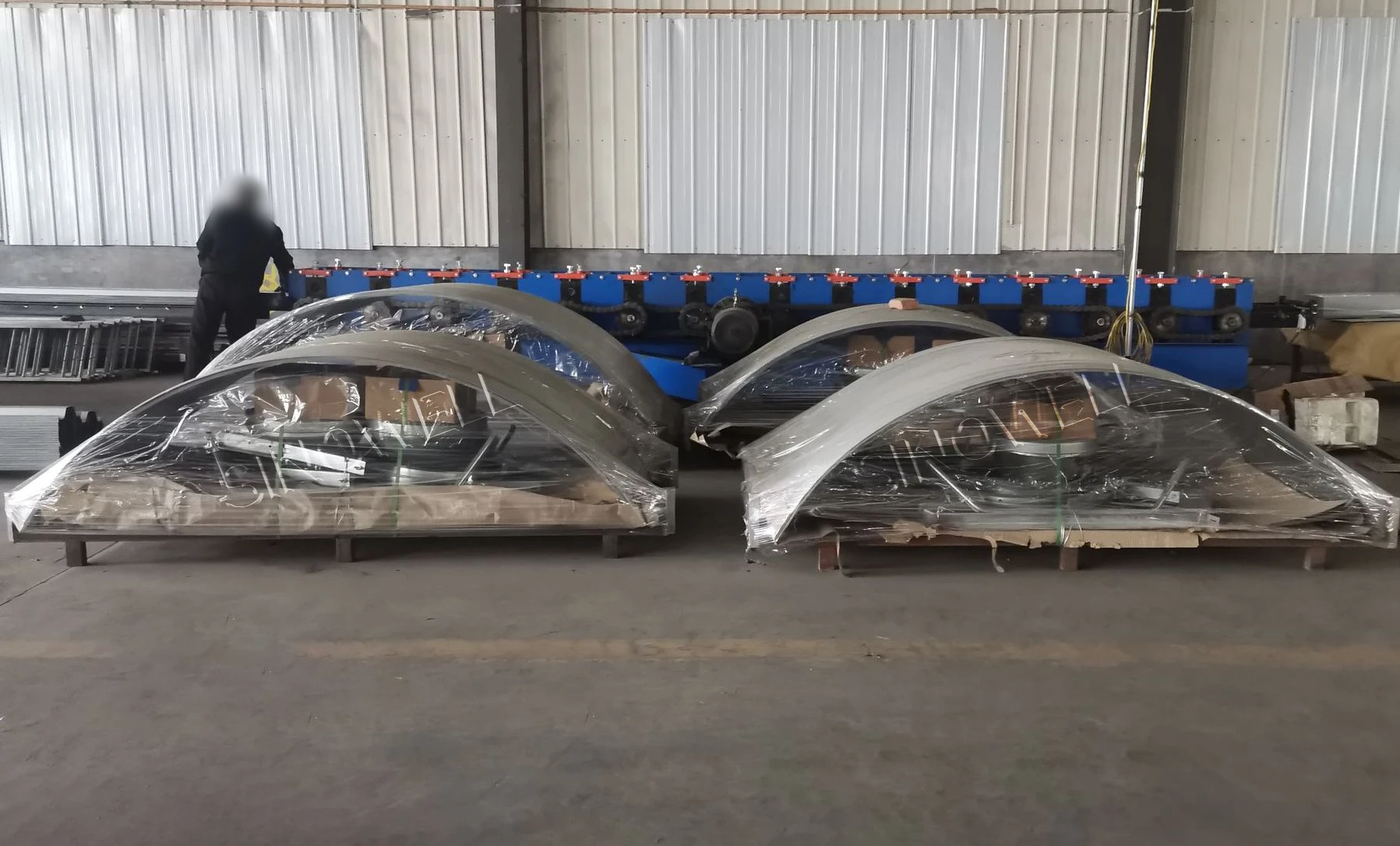

Payment and packaging
