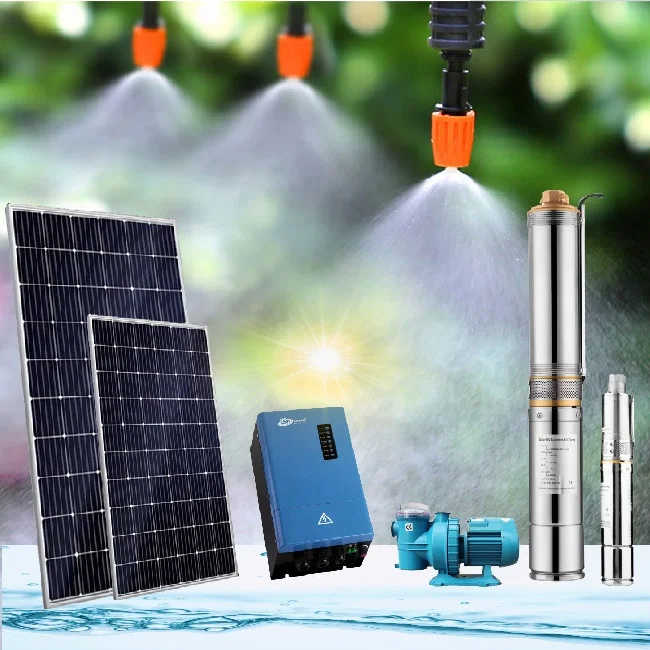

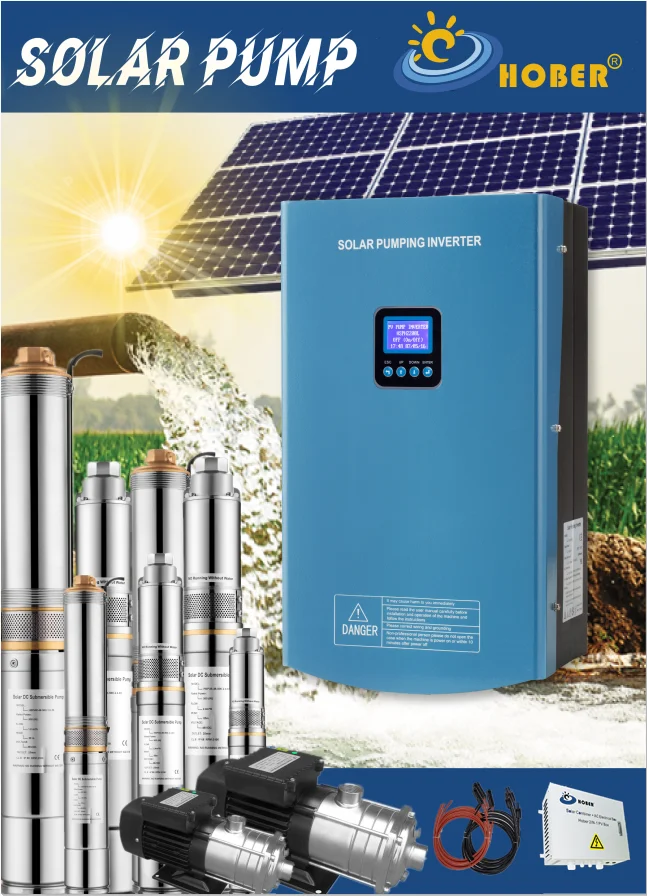

Factory direct solar dc pump complete borehole solar water submersible pumps 110v 1.5hp
- Category: >>>
- Supplier: Foshan Hober Electric Co. Ltd.
Share on (1600611526744):
Product Overview
Description
Products Description
Product detail:
1100w centrifugal solar pump:
Model: HBP4C-110-110-7.2-68
Outlet: 40mm 1”1/2G
Pump Diameter: 4 inch
Pump phase: 3phase
Pump voltage: 110v

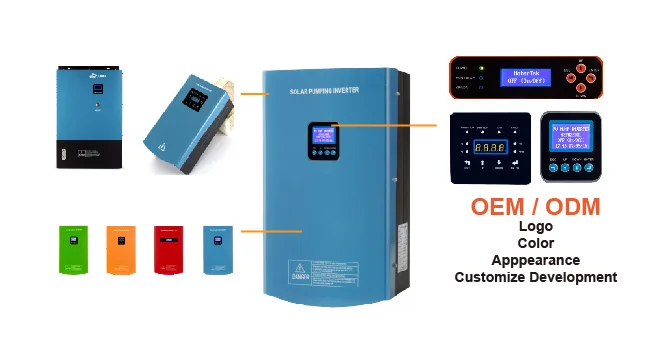

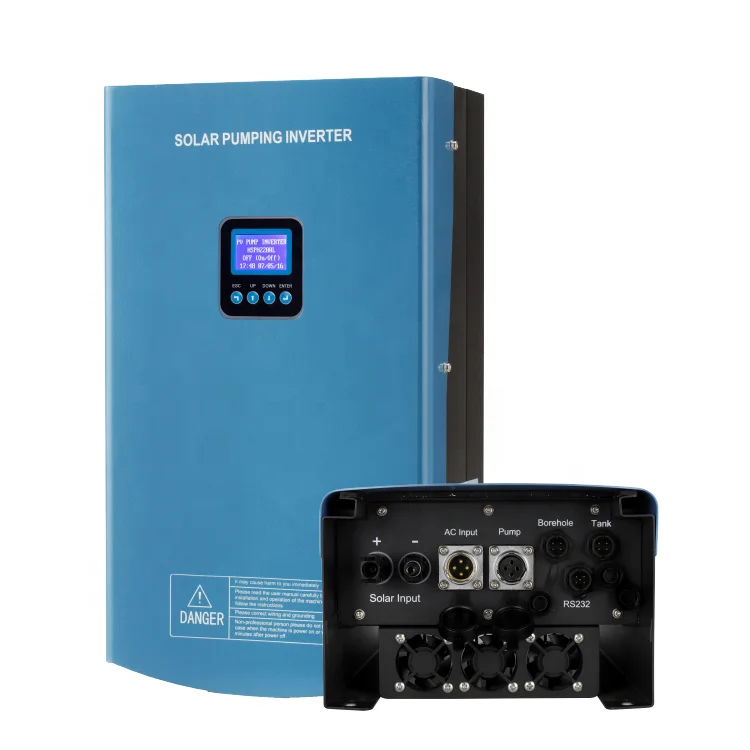

1100w solar pump controller: HBDC1100

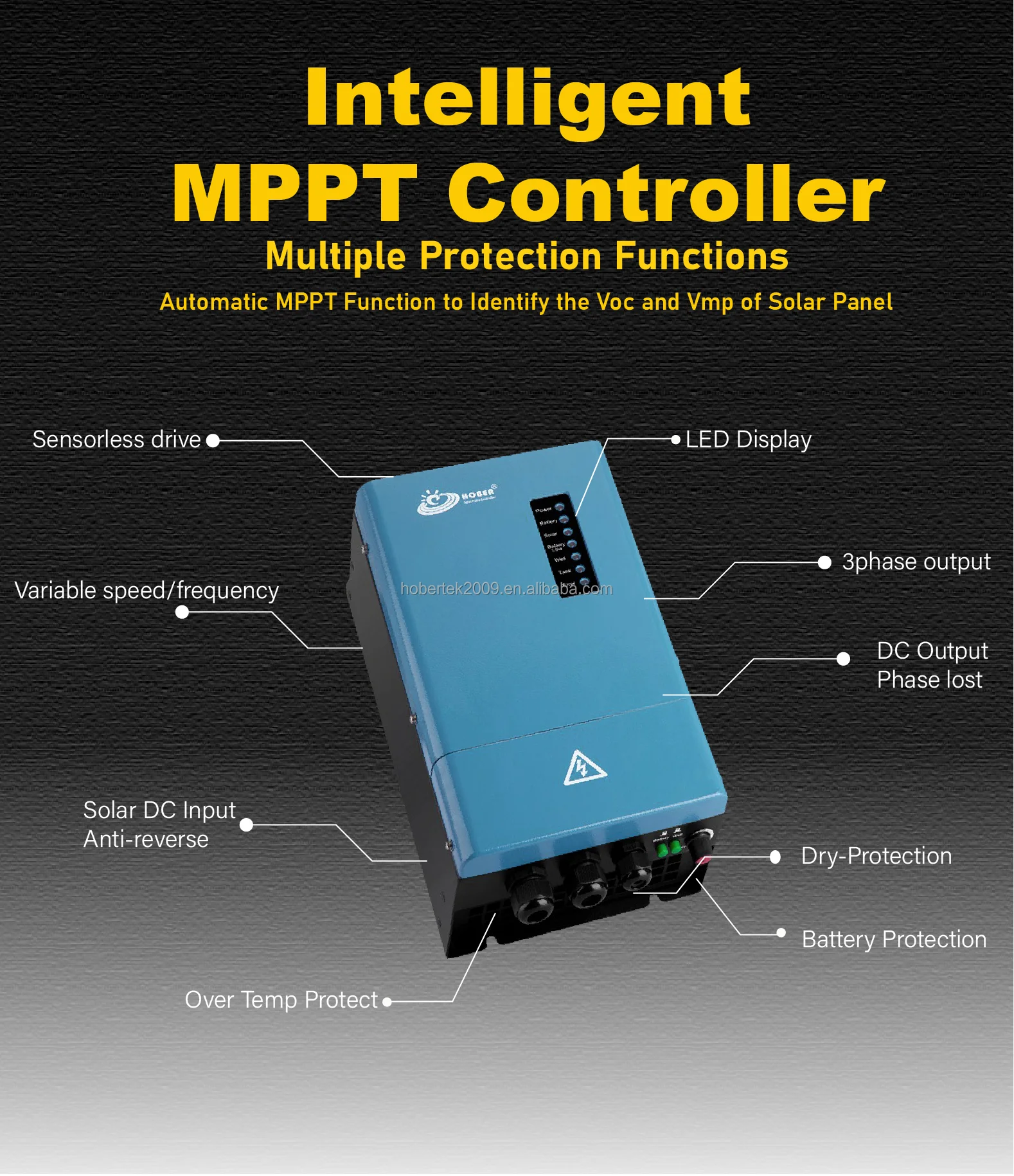

DC pump controller:
Solar or Battery Input.
Compatible Battery Mode 24/36/48V, 96V/110V
Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel.
Support Sensor less DC Motor 24/36/48V, 96V/110V

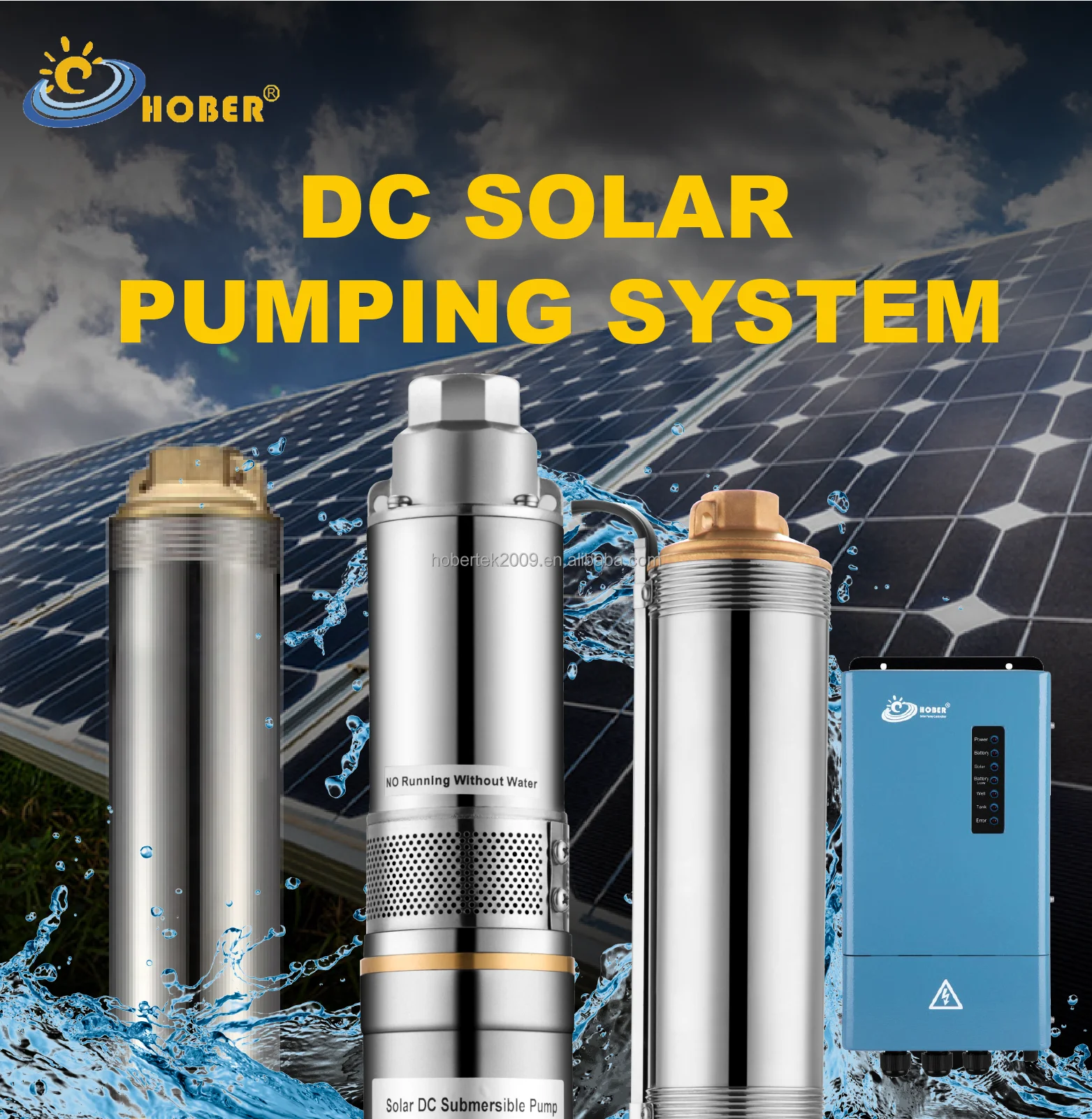

DC solar pump system=dc pump + controller
1100w centrifugal solar pump:
Model: HBP4C-110-110-7.2-68
Outlet: 40mm 1”1/2G
Pump Diameter: 4 inch
Pump phase: 3phase
Pump voltage: 110v
1100w solar pump controller: HBDC1100
DC pump controller:
Solar or Battery Input.
Compatible Battery Mode 24/36/48V, 96V/110V
Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel.
Support Sensor less DC Motor 24/36/48V, 96V/110V
Features:
1. Identify the Voc and Vmp of Solar Panel
2. Support battery input
3. Support Sensorless DC Motor 220V
4. Protection:
Solar DC Input Over-Voltage
Solar DC Input Over-Voltage
Solar DC Input Anti-reverse
Over Load
DC Output Phase lost
DC Output Short Circuit Over Temperature
Water Over Flow of Tank(By Sensor)
Water Over Flow of Tank(By Sensor)
Borehole Water Empty(By Sensor or software)
5. Variable Speed Drive

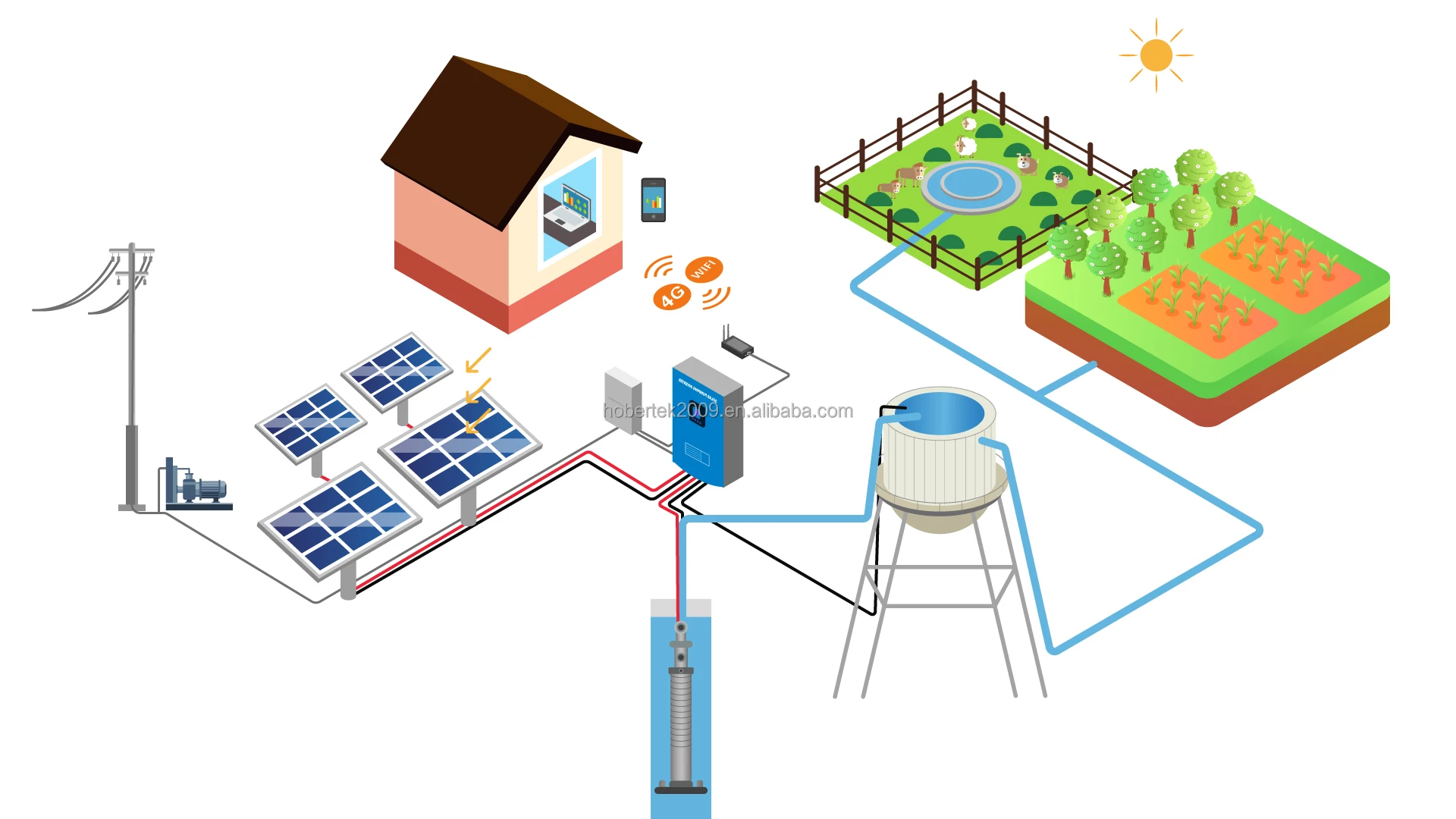

How the solar pump system work?
1.Solar panel:Use solar energy to convert electrical energy
2.controller: Identify the Voc and Vmp of Solar Panel
3.Pump: Pumping water from one place to another
4.Apply to Agricultural irrigation, Desert greening, Seawater irrigation,Grassland animal husbandry, Drought resistance, Swimming pools, Community water supply,Fish pond aeration etc.

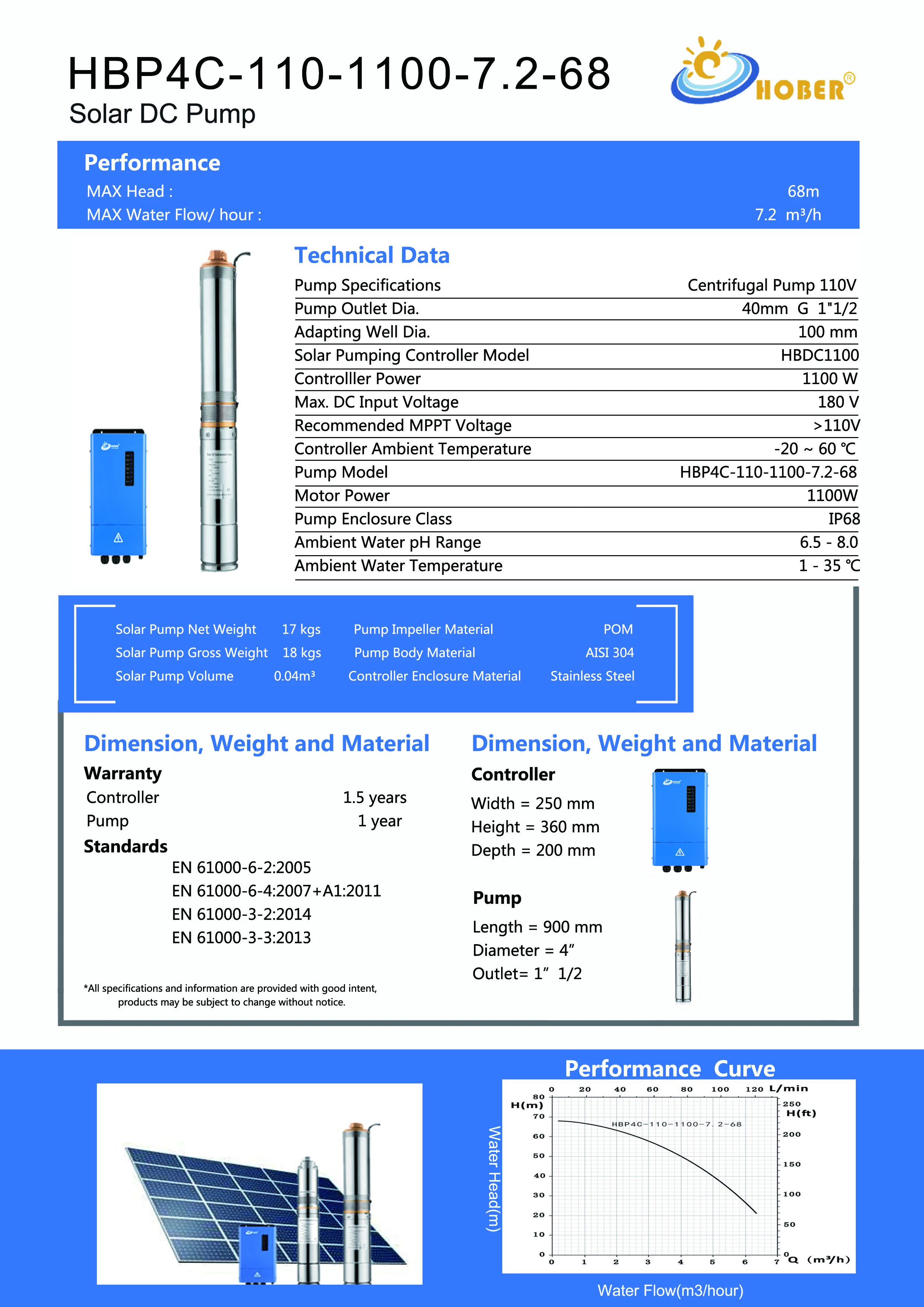

Pump Datasheet
DC brushless screw submersible solar pump

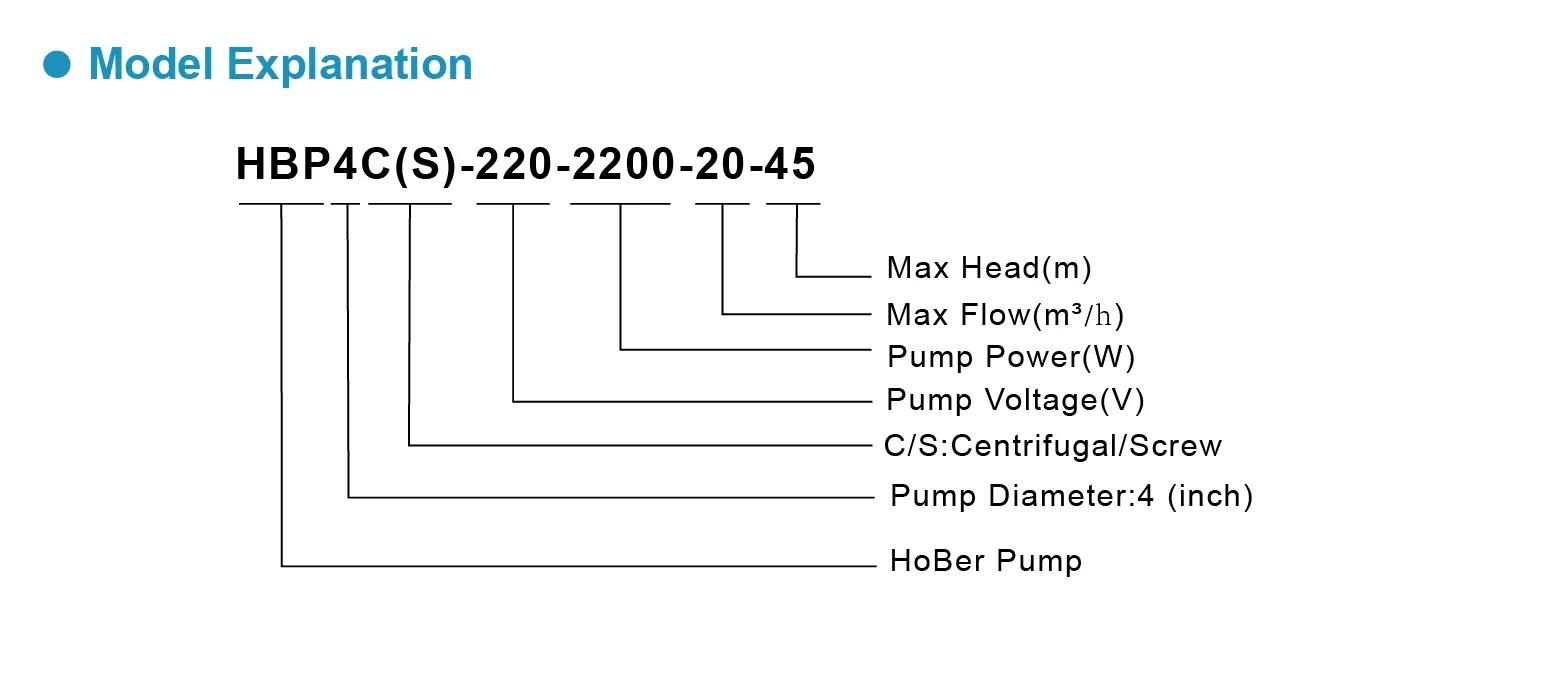

Model | Max Flow(m³/h) | Max Head(m) | Pump | Pump Dia(inch) | Outlet Dia(inch) | Pump Height(mm) | ||
Voltage(V) | Power(W) | |||||||
HBP3S-36-200-1.3-73 | 1.3 | 73 | 36 | 200 | 3 | G 1" 25mm | 600 | |
HBP3S-48-500-2.8-85 | 2.8 | 85 | 48 | 500 | 3 | 650 | ||
HBP4S-48-600-2.3-132 | 2.3 | 132 | 48 | 600 | 4 | 760 | ||
HBP4S-110-750-2.7-170 | 2.7 | 170 | 110 | 750 | 4 | 850 | ||
DC brushless centrifugal submersible solar pump
Model | Max Flow(m³/h) | Max Head(m) | Pump | Pump Dia(inch) | Outlet Dia(inch) | Pump Height(mm) | ||
Voltage(V) | Power(W) | |||||||
HBP4C-48-400-7.2-25 | 7.2 | 25 | 48 | 400 | 4 | G1 1/2" 40mm | 690 | |
HBP4C-48-600-3.2-69 | 3.2 | 69 | 48 | 600 | 4 | G 1" 25mm | 850 | |
HBP4C-110-1100-7.2-68 | 7.2 | 68 | 110 | 1100 | 4 | G1 1/2" 40mm | 900 | |
HBP4C-110-1500-8.4-70 | 8.4 | 70 | 110 | 1500 | 4 | 1000 | ||
HBP4C-110-1100-3.3-150 | 3.3 | 150 | 110 | 1100 | 4 | G1 1/4" 32mm | 1250 | |
HBP4C-110-1500-3.3-191 | 3.3 | 191 | 110 | 1500 | 4 | 1300 | ||
Hybrid DC brushless submersible solar pump
Model | Max Flow(m³/h) | Max Head(m) | Pump | Pump Dia(inch) | Outlet Dia(inch) | Pump Height(mm) | ||
Voltage(V) | Power(W) | |||||||
HBP4C-220-2200-5.4-120 | 5.4 | 120 | 220 | 2200 | 4 | G1 1/4" 32mm | 1130 | |
HBP4C-220-2200-6.5-80 | 6.5 | 80 | 220 | 2200 | 4 | G1 1/2" 40mm | 1070 | |
HBP4C-220-2200-7-127 | 7 | 127 | 220 | 2200 | 4 | 1358 | ||
HBP4C-220-2200-10-89 | 10 | 89 | 220 | 2200 | 4 | G2" 50mm | 1415 | |
HBP4C-220-2200-16-62 | 16 | 62 | 220 | 2200 | 4 | 1406 | ||
HBP4C-220-2200-20-45 | 20 | 45 | 220 | 2200 | 4 | 1202 | ||
Application
The Hober dc solar pump system apply to:
Widely apply to rivers ,boreholes ,dams, creeks and springs
Livestock watering ,domestic, cabins ,irrigation ,swimming pool
Livestock watering ,domestic, cabins ,irrigation ,swimming pool

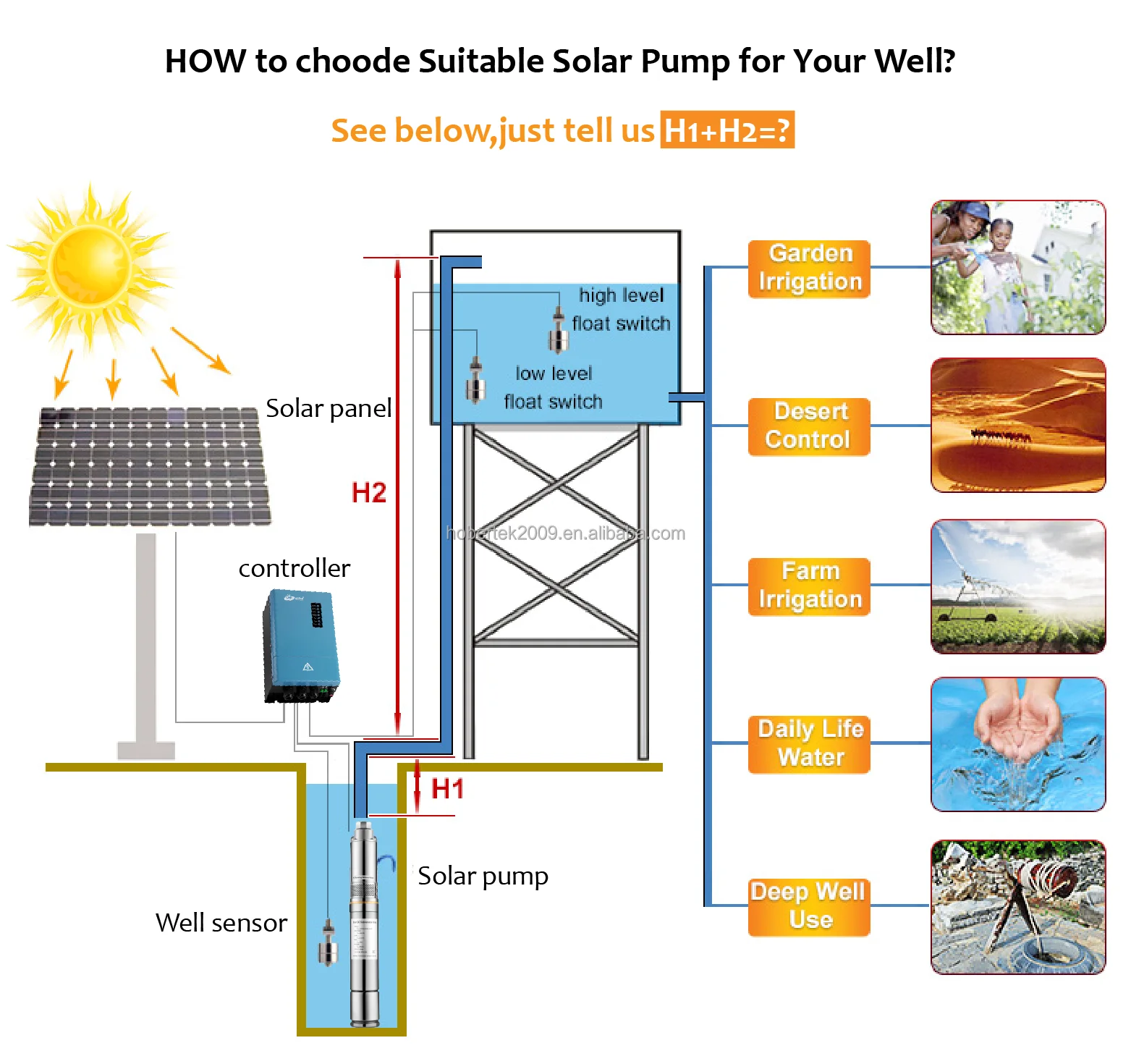

How to choose suitable solar pump for the well?
Please tell me the H1+H2
Projects

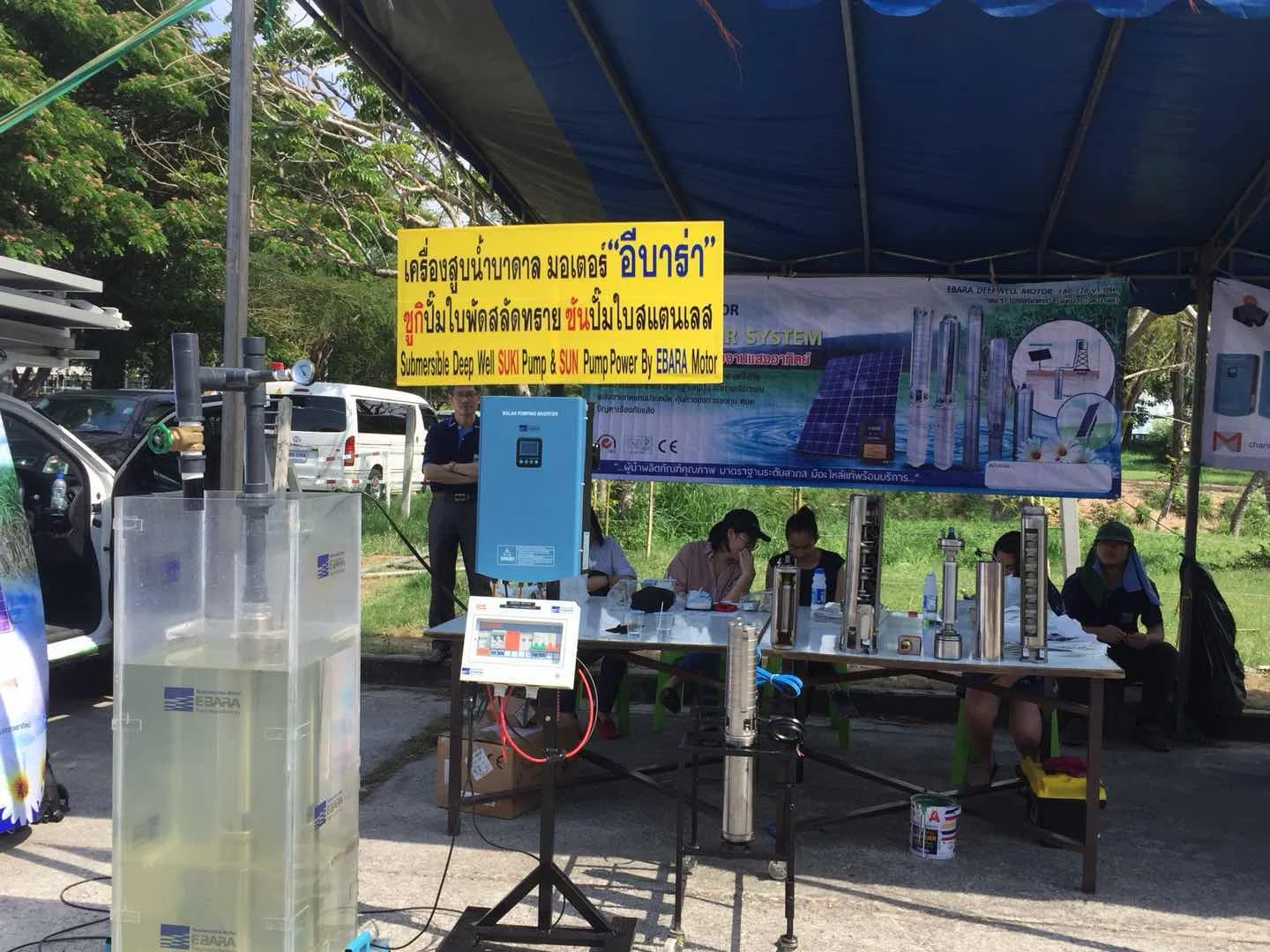

International Exhibition
Engineers on-site explaining product technology at the Egyptian exhibition
Customer field training
Engineer Zimbabwe conducts on-site training for customers
After-sales service
Engineers conduct on-site training for customers in Uganda

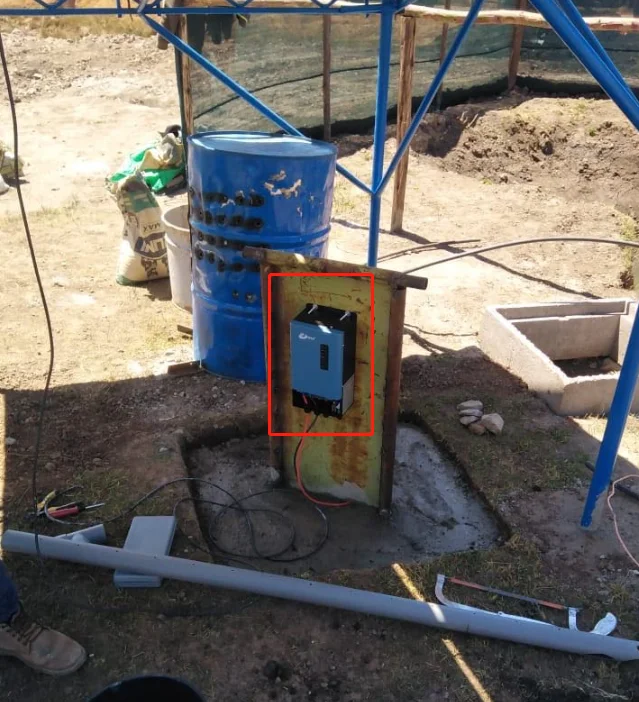

Field installation
Field installation
Facebook customer feedback
Wechat customer feedback

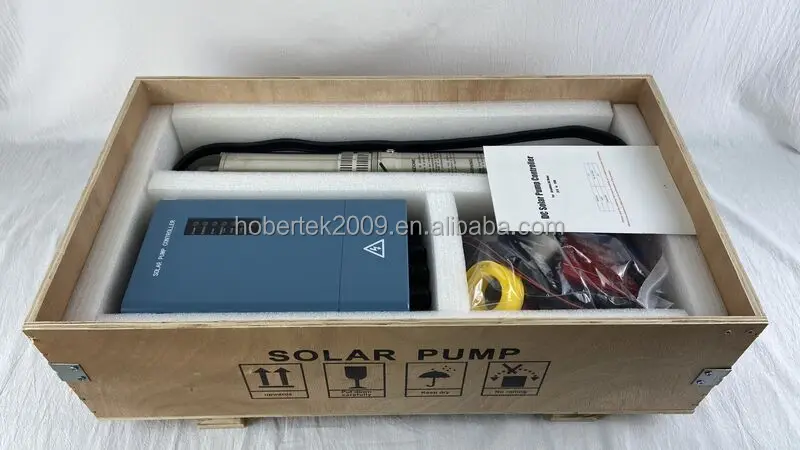

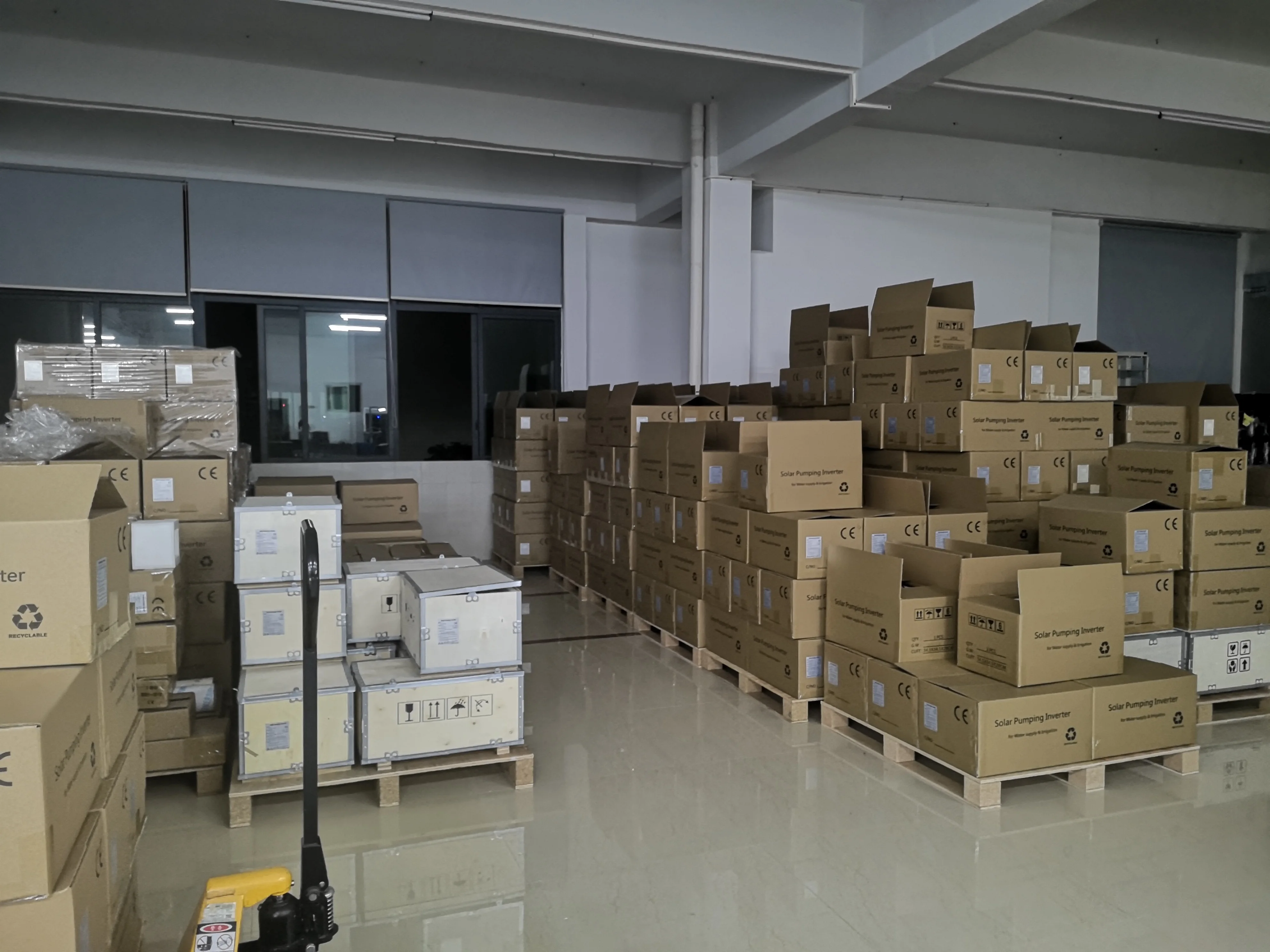

Packaging & Delivery

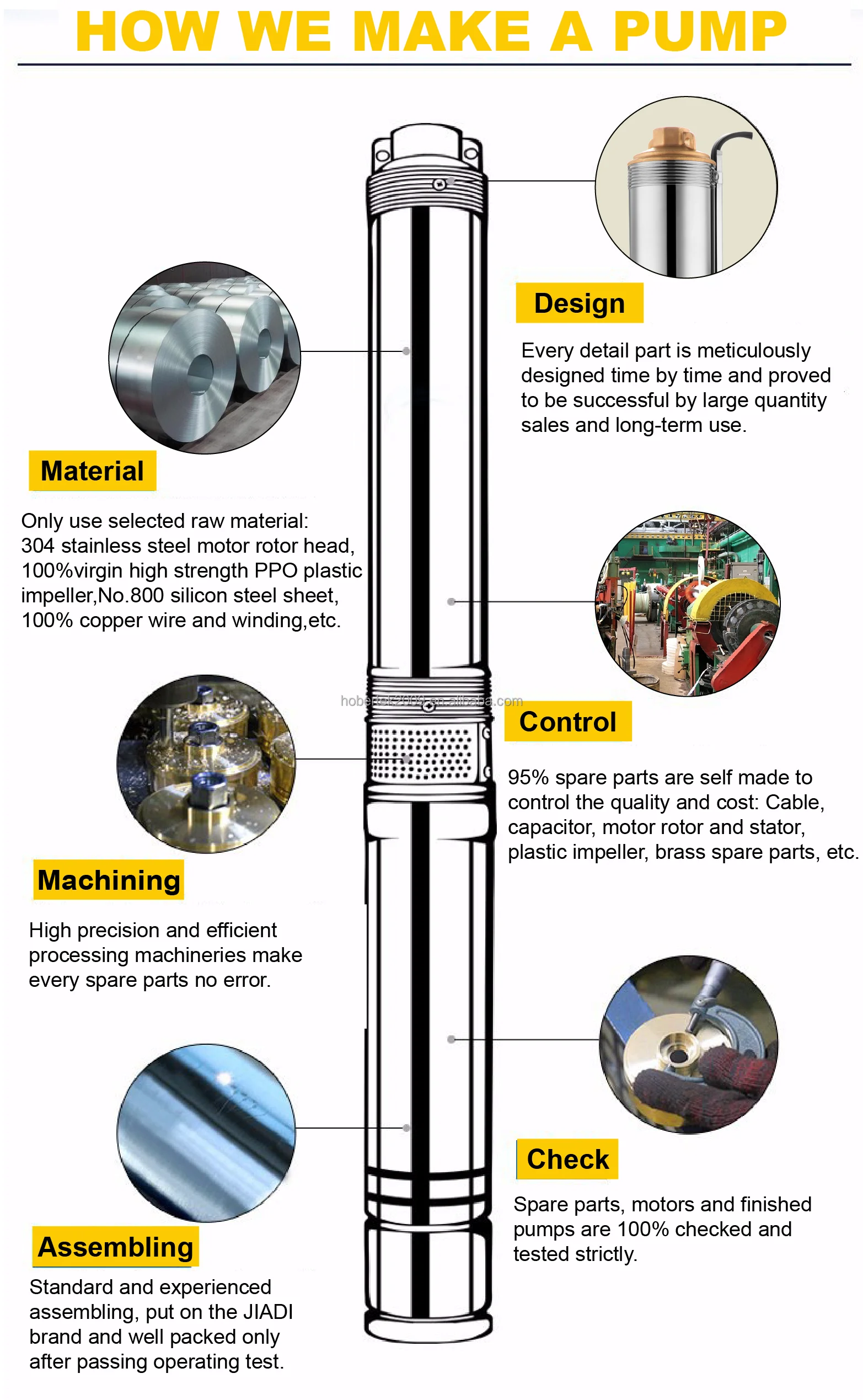

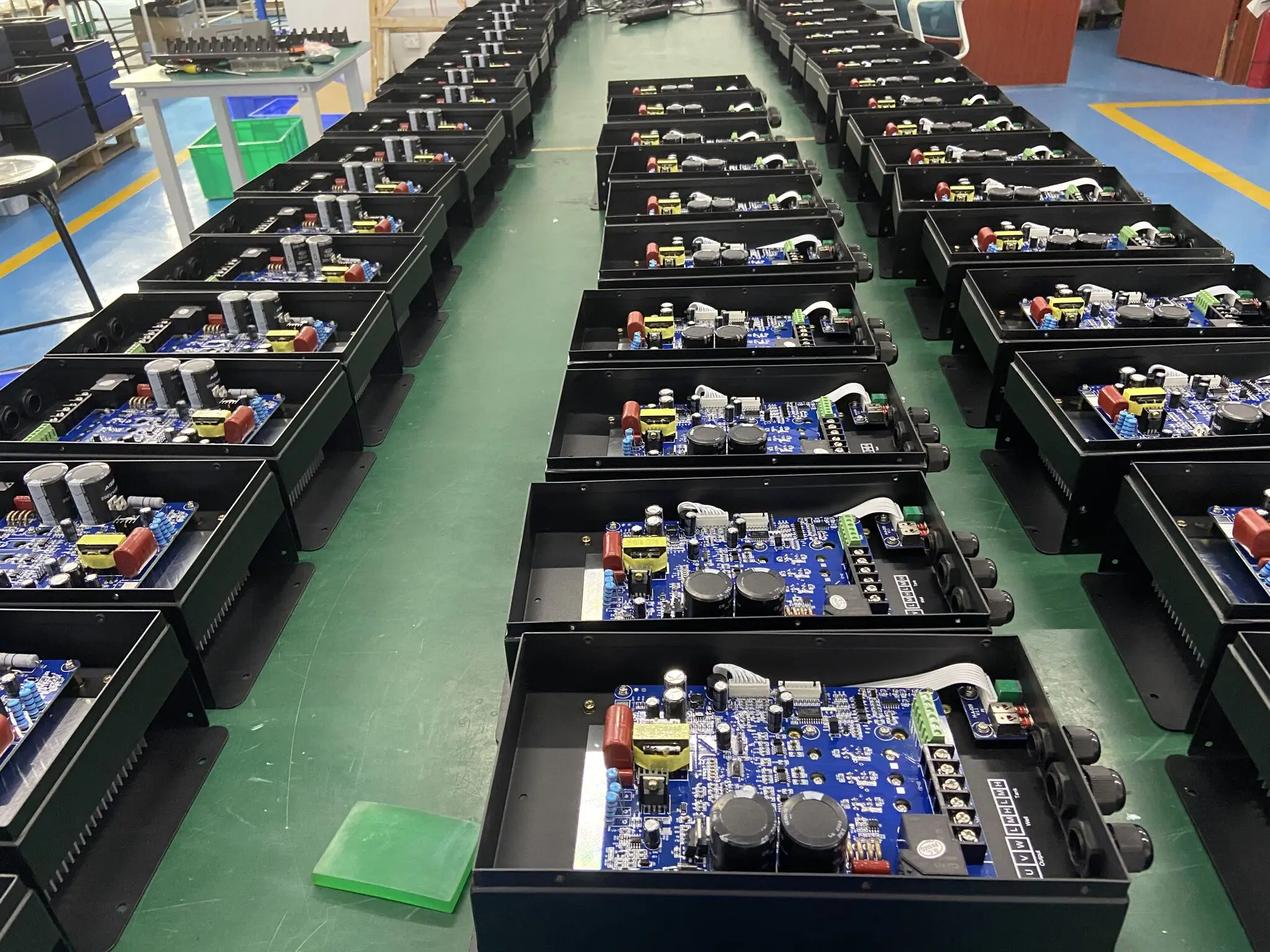

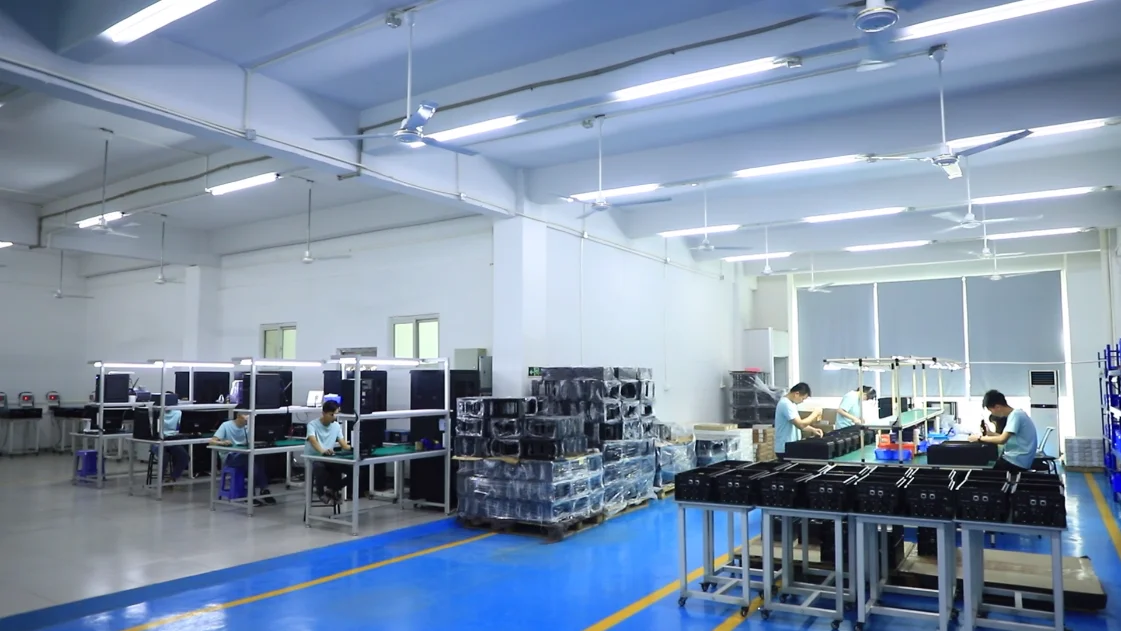

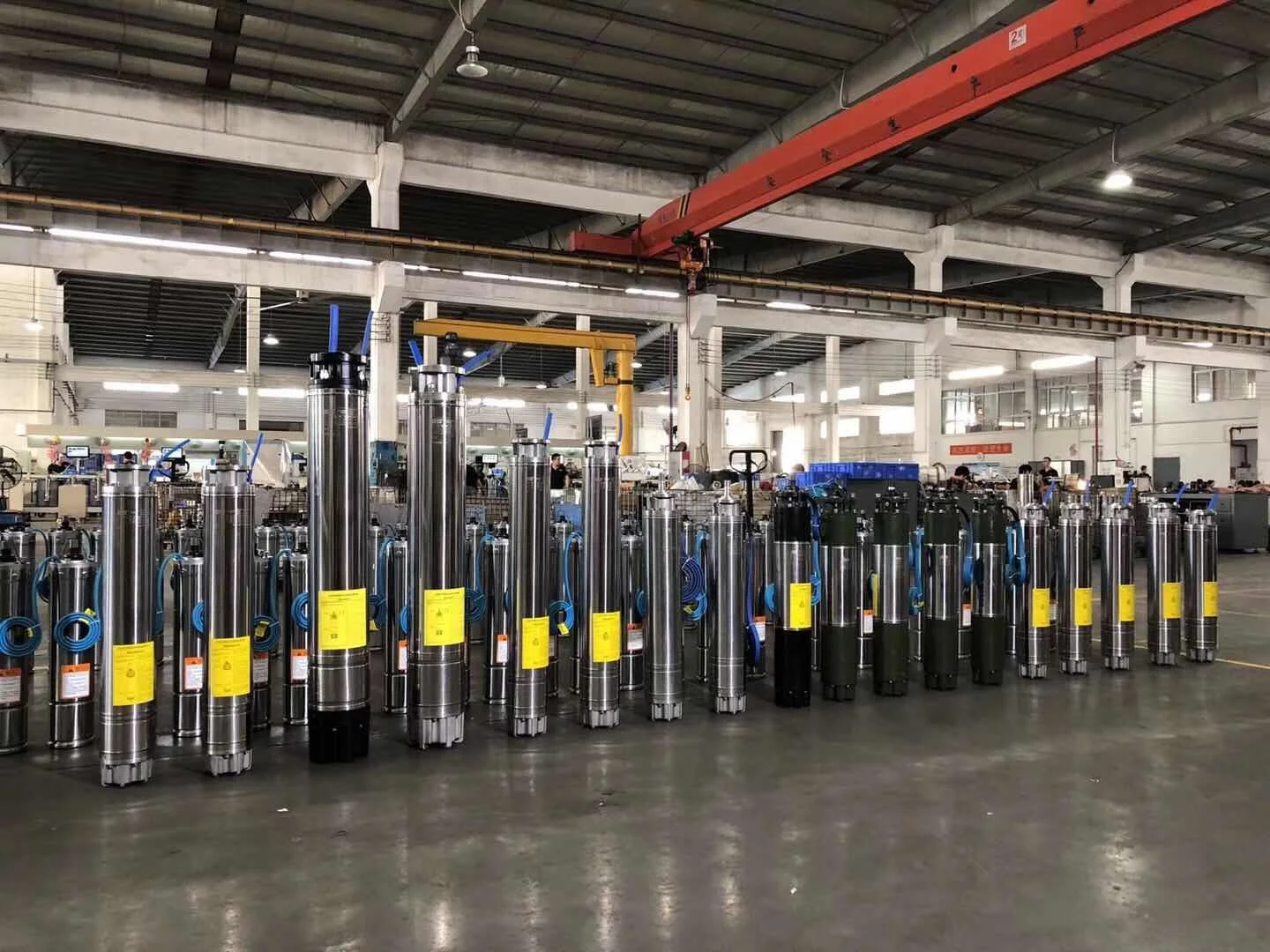

Manufacturing Technique
Company Profile
Who is Hober?
Founded in 2009, Hober is a manufacturer engaged in the solar photovoltaic industry, integrating R&D,production, sales, and
service, as well as a professional provider of overall solar system solutions. It's product line penetrated into Solar Water
Pumps, Solar Water Aeration System, Solar Purification System and other application fields.
service, as well as a professional provider of overall solar system solutions. It's product line penetrated into Solar Water
Pumps, Solar Water Aeration System, Solar Purification System and other application fields.
How is Hober？
Hober has a strong Research & Development and technical service team which focus on
innovation and make us be the leader of latest technology.
With a plant area of 3000 square meters, we are accumulatively authorized more than 10 patents, till 2020, we have sold and
installed 100,000 solar pumping systems all over the world.
innovation and make us be the leader of latest technology.
With a plant area of 3000 square meters, we are accumulatively authorized more than 10 patents, till 2020, we have sold and
installed 100,000 solar pumping systems all over the world.
FAQ
Q1: Are you trading company or manufacturer?
We are a professional manufacturer in China and we provide OEM service
Q2:What is the warranty of solar panel、solar pump inverter and others?
Standard warranty for solar panel 10 years, solar pump inverter 2 years, others 1 year.
Q3:What is your main market?
Our brands are well known in Africa, Middle East, Southeast Asia and South America.
Q4 : How about the delivery time?
3-5 days for sample order;7-15 days for bulk order.
Q5 : What's your payment terms for sample?
We accept T/T, Western Union, Paypal, Ali online payment...etc
We are a professional manufacturer in China and we provide OEM service
Q2:What is the warranty of solar panel、solar pump inverter and others?
Standard warranty for solar panel 10 years, solar pump inverter 2 years, others 1 year.
Q3:What is your main market?
Our brands are well known in Africa, Middle East, Southeast Asia and South America.
Q4 : How about the delivery time?
3-5 days for sample order;7-15 days for bulk order.
Q5 : What's your payment terms for sample?
We accept T/T, Western Union, Paypal, Ali online payment...etc
