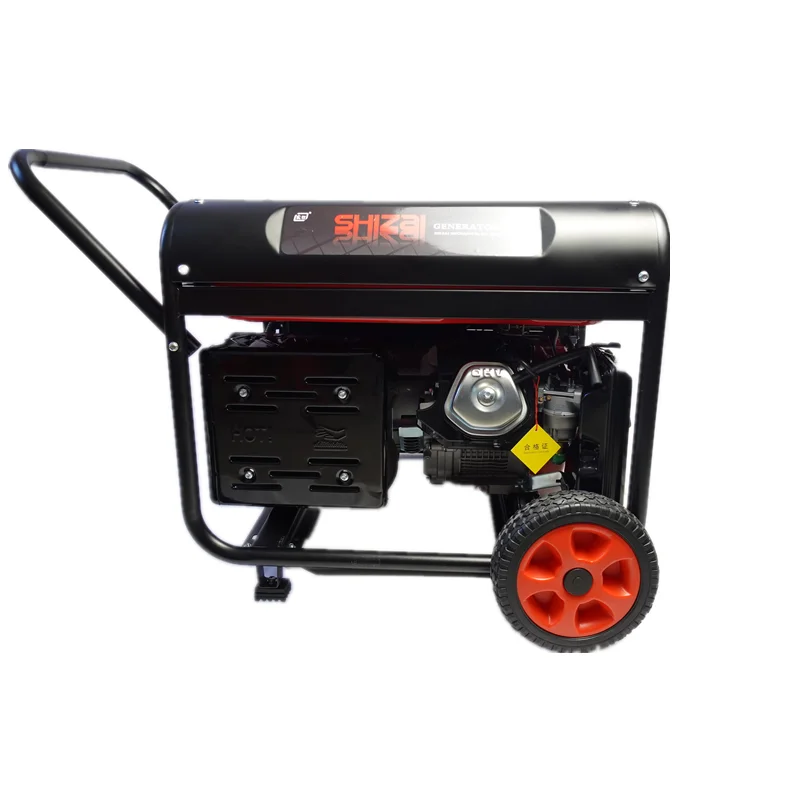

Portable Camping Gas 10 Kw Mini Gasoline Generator Recoil Electric Start
- Category: >>>
- Supplier: Nanchang Steady Manchinery Co. Ltd.
Share on (1600611550016):
Product Overview
Description
Product Overview
High Performance Silent Gasoline Generator
High performance silent gasoline generator with lower consumption. It is convenient for home and outdoor use in emergencies.
FEATURES AT A GLANCE
Product Features for Home and outdoor use gasoline generator
* Honda type gasoline engine
* 100% copper wire alternator
*Heavier and thicker pump casing
*Exquisite workmanship
*Use Steel disc carburetor
Right elevation
Left elevation

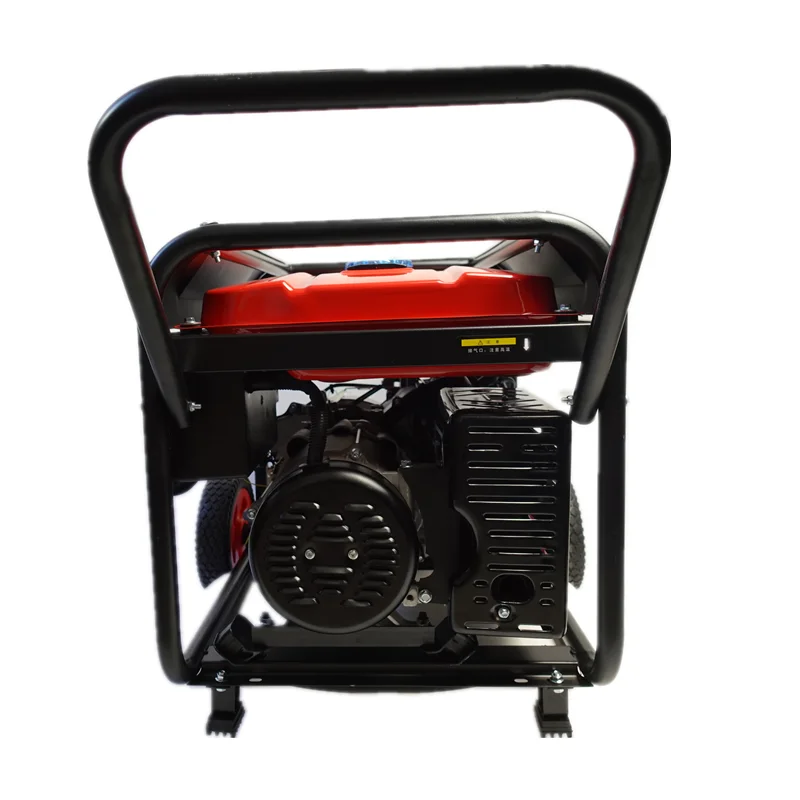

Rear elevation
PRODUCT SPECIFICATIONS
3800W-25000E Gasoline engine main technical specifications
Model | Rated voltage(V) | Rate current(A) | Max power(KW) | Rate powder(KW) |
3800 | 1P AC230 | 12.7 | 3.2 | 2.8 |
6500 | 1P AC120 1P AC230 3P AC380 | 23 | 5.5 | 5 |
7500 | 27 | 7 | 6.5 | |
10000 | 33 | 8.5 | 8 | |
12000 | 38 | 9.5 | 9 | |
13000 | 40 | 10 | 9.5 | |
15000E | 12 | 11 | ||
18000E | 16 | 15 | ||
25000E | 20 | 18 |
Portable Gasoline Generator China 3800W 3kw 170F engine generator technical parameter for your reference, for more information or items please contact us for inquiry.
Model | 12000W(1P), 12000S(3P) | |||
Rated powder(KW) | Rated voltage(V) | 1P AC230V, 3P AC380V | ||
Rated Power(kw) | 9 | |||
Max Power(kw) | 9.5 | |||
Engine | Engine Model | SZ192 | ||
Cooling System | Air cool | |||
Air Valve | OHV | |||
Lgnition System | CID | |||
Displacement(ml) | 459 | |||
Fuel Tank Capacity(L) | 26 | |||
Oil Alert System | YES | |||
Fuel Consumption(g/hp. hr) | 374 | |||
Start Mode | Recoil/Electric | |||

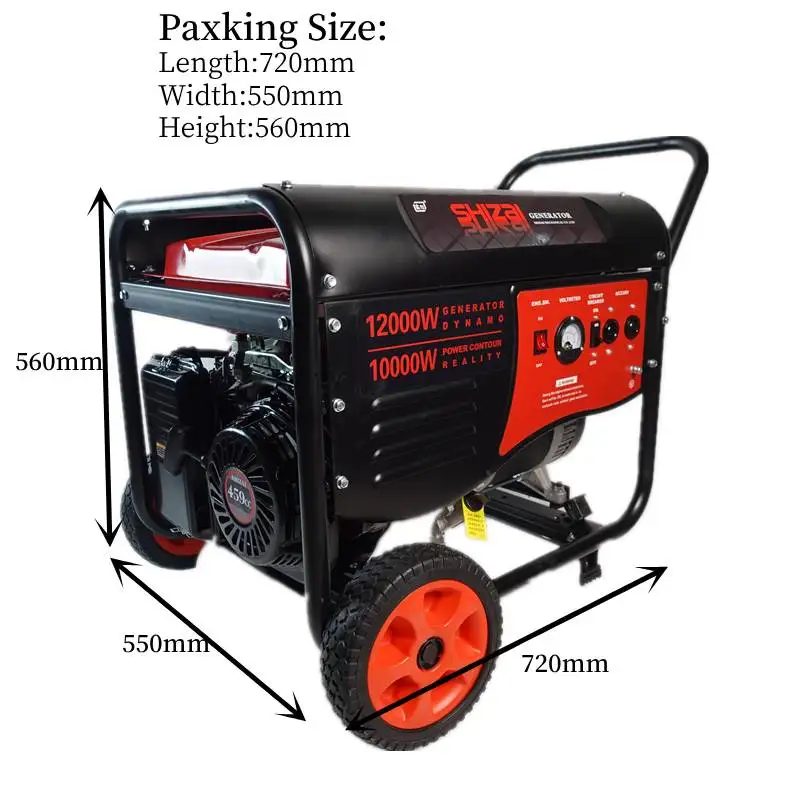

Complete machine | Length*Width*Height（mm） | 720*550*560 | ||
Weight(Kg) | 100 | |||
IP Grade | IP21 | |||
Insulation grade | F | |||
Our key accessories are the same suppliers as HONDA, All boxes, cylinder heads, connecting rods and aluminum parts are heat-treated | ||||
PRODUCT CONFIGURATION
Our Advantages
Buffer support frame to prevent motor damage
Adopt copper sheet carburetor (extended service life)
The material more heavier. After heat treatment, good heat resistance and longer life.
Recoil pull ring, 1.35/1.8M pull rope, start 13,000 times not broken
OHV Engine
Effective fuel consumption
Economic
Double-layer fan blades
better quality and better heat dissipation
MODERN WORKSHOPS
Exhibition
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1, Each set gasoline generator is packed in an export carton and then tied down with tie straps
2, Multiple pieces of generators are placed on pallets and wrapped with stretch film
3, Trucks are delivered to designated ports(Shanghai/Ningbo/Nanchang/Shenzhen ports) and loaded into containers
2, Multiple pieces of generators are placed on pallets and wrapped with stretch film
3, Trucks are delivered to designated ports(Shanghai/Ningbo/Nanchang/Shenzhen ports) and loaded into containers
Company Profile
Nanchang Steady machinery Co.,Ltd is a manufacturer specializing in the production of generators for 15 years. The company is located in Nanchang City, Jiangxi Province.
The company is committed to providing global customers with more efficient, high-quality and environmentally friendly generator products, including various types of gasoline generators, diesel generators, generator sets, portable generators, power generation welders, water pumps and agricultural machinery, etc.
We always adhere to the high standards and strict requirements of product quality. After years of continuous improvement, we have accumulated rich experience in generator products. The products are also deeply loved by domestic customers and exported to the Middle East, Southeast Asia, Africa, Europe and the United States, etc. more than 30 countries. The company has a strong professional and technical force, excellent sales and after-sales service team, to provide customers with professional and timely services at any time.
In the future work, we will continue to work hard to continuously reform and innovate and improve various work, to provide customers with energy-saving, environmental protection and fuel-saving generator sets, excellent brand products, preferential product prices and high-quality product services. If you have any needs, please feel free to contact us.
The company is committed to providing global customers with more efficient, high-quality and environmentally friendly generator products, including various types of gasoline generators, diesel generators, generator sets, portable generators, power generation welders, water pumps and agricultural machinery, etc.
We always adhere to the high standards and strict requirements of product quality. After years of continuous improvement, we have accumulated rich experience in generator products. The products are also deeply loved by domestic customers and exported to the Middle East, Southeast Asia, Africa, Europe and the United States, etc. more than 30 countries. The company has a strong professional and technical force, excellent sales and after-sales service team, to provide customers with professional and timely services at any time.
In the future work, we will continue to work hard to continuously reform and innovate and improve various work, to provide customers with energy-saving, environmental protection and fuel-saving generator sets, excellent brand products, preferential product prices and high-quality product services. If you have any needs, please feel free to contact us.
SALES AND SERVICE NETWORK
Certifications
FAQ
1: What is your MOQ of gasoline engine? How long is your processing time
for MOQ?
10 set. Within TWO working days or 48 hours.
2: Is the engine customized?
Yes. Engines can be customized according to customers design.
3: What is your company production capacity?
1000 sets per date
4: What is the delivery time?
7-20 days after advance payment.If the items which you purchase is in stock we can send them out immediately.
5: How long is your warranty?
1 year or 1000 hours warranty whichever comes first except the wearing and tearing parts.We suggest customers buy some wearing and tearing parts in each order.
6: What are your payment terms?
T/T 30% deposit, 70% balance .D/P for regular good reputation
customers. Paypal is accepted for one set, but please discuss us first.
7: Is it alright to make customer's own brand name?
Sure, as long as you authorize us to use your brand on your behalf.We have over 10 years OEM/ODM experience.
for MOQ?
10 set. Within TWO working days or 48 hours.
2: Is the engine customized?
Yes. Engines can be customized according to customers design.
3: What is your company production capacity?
1000 sets per date
4: What is the delivery time?
7-20 days after advance payment.If the items which you purchase is in stock we can send them out immediately.
5: How long is your warranty?
1 year or 1000 hours warranty whichever comes first except the wearing and tearing parts.We suggest customers buy some wearing and tearing parts in each order.
6: What are your payment terms?
T/T 30% deposit, 70% balance .D/P for regular good reputation
customers. Paypal is accepted for one set, but please discuss us first.
7: Is it alright to make customer's own brand name?
Sure, as long as you authorize us to use your brand on your behalf.We have over 10 years OEM/ODM experience.
8: How do I maintain my generator?
It should be done once per year or every 100 hours of run time. This includes six steps:
cleaning your unit, changing the oil, cleaning the air filter, running the unit monthly, charging the battery, and properly storing the unit.
cleaning your unit, changing the oil, cleaning the air filter, running the unit monthly, charging the battery, and properly storing the unit.
