D Output Shaft Micro Gearbox Reducer 5V DC Bipolar Stepping Motor with 4 wires

Product Overview

Description

D Output Shaft Micro Gearbox Reducer 5V DC Bipolar Stepping Motor with 4 wires

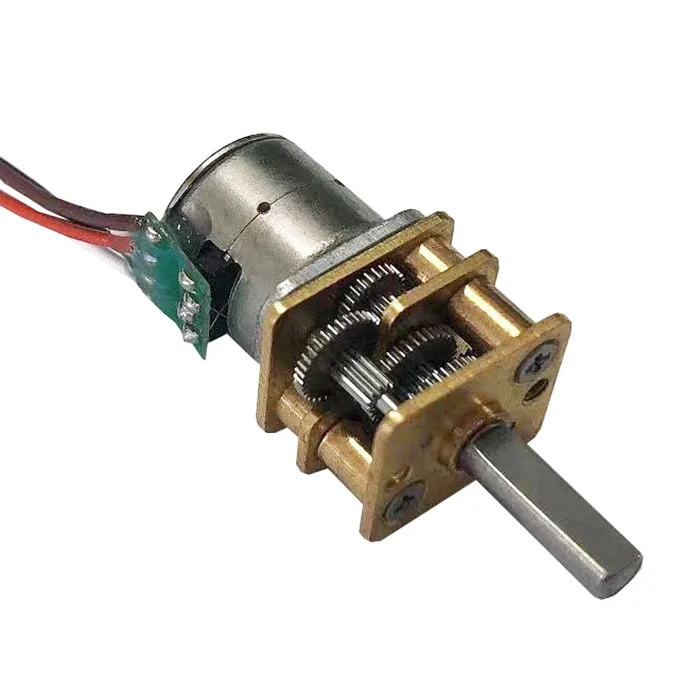

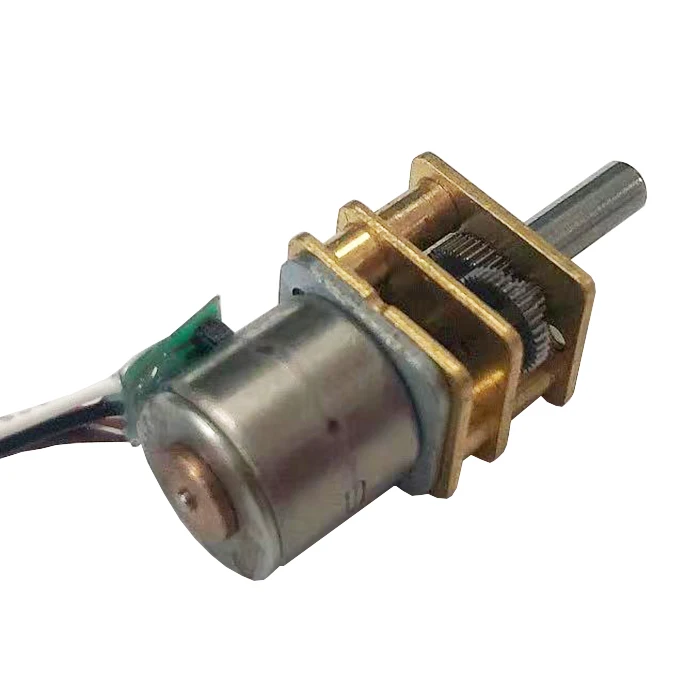

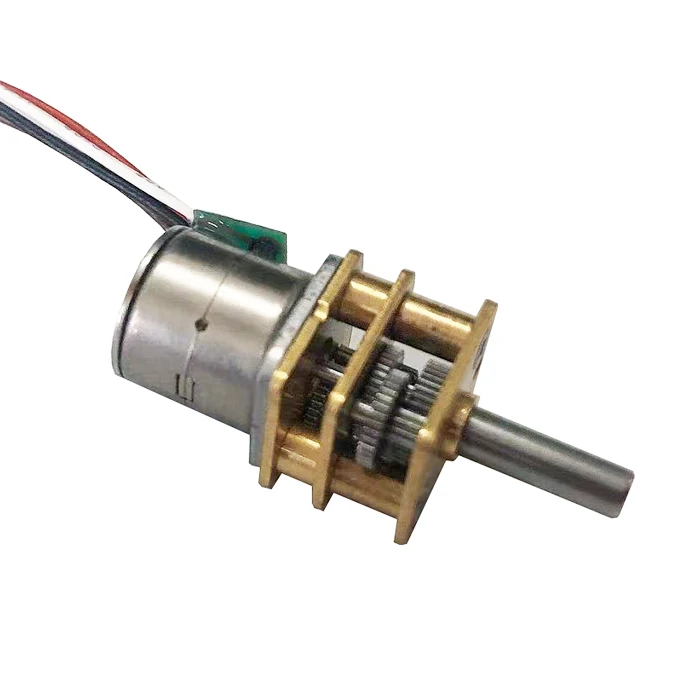

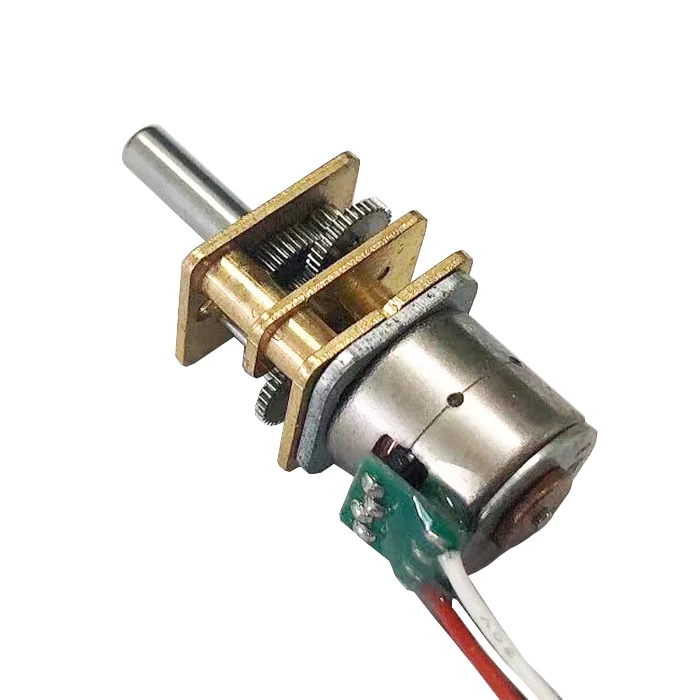

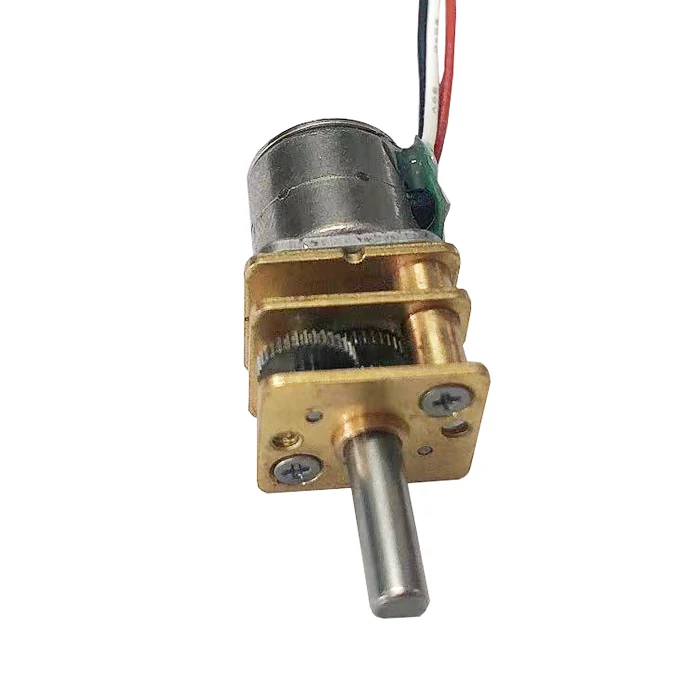

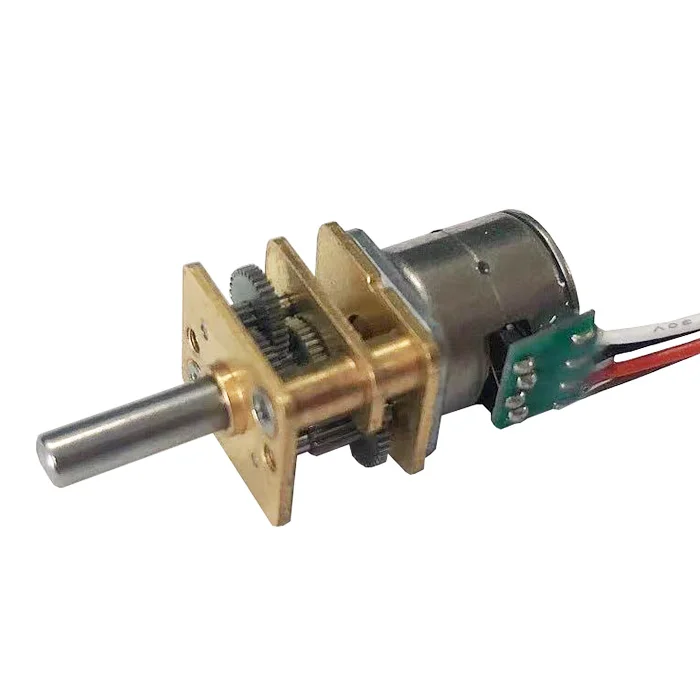

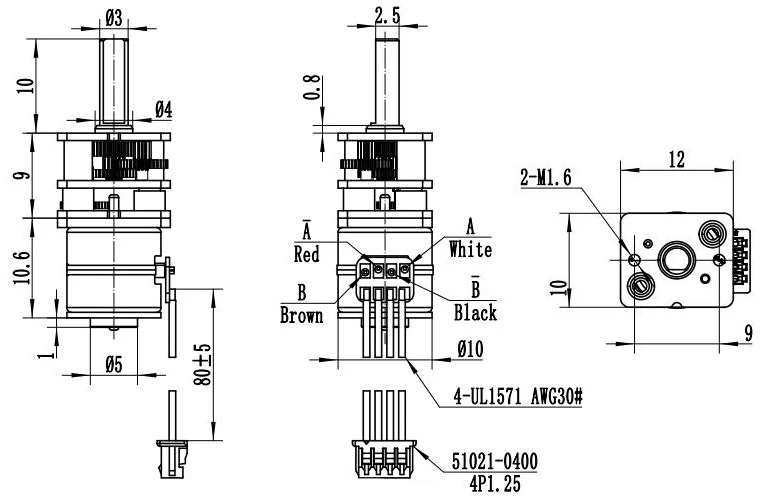

This is a 10mm diameter stepper motor attached with a GB12 gearbox(10*12mm).

We have different gear ratio for options, from 2:1 to 1000:1.

With bigger gear ratio, motor’s speed is slower and torque is bigger.

With smaller gear ratio, motor’s speed is faster and torque is smaller.

The gear ratio depends on customer’s requirement.

Before you order samples, please confirm gear ratio.



About motor, we have different coil resistance: 20Ω/40Ω

20Ω is motor suitable for 3.3V DC driving, and 40Ω is more suitable for 5V DC.



The output shaft is 3mm diameter, 2.5mm D-cut shaft.

This is our standard shaft type, we are able to change into lead screw or other shaft type, if D shaft does not fit your need.



Motor parameters:

Motor type	Bipolar stepper motor
Rated voltage	20Ω/40Ω
Step angle	18°/gear ratio
Phase No.	2 phases
Gearbox type	10*12mm GB12 gearbox
Output shaft type	3mm diameter D shaft
Shaft length	10mm



Gearbox parameters:



Gear ratio	2:1	5:1	10:1	15:1	20:1	30:1	36:1	50:1	63:1	67:1	89:1	100:1
Gear levels	2	2	2	3	3	3	4	4	4	4	4	4
Gear ratio	110:1	150:1	172:1	210:1	250:1	275:1	298:1	380:1	420:1	500:1	600:1	1000:1
Gear levels	5	5	5	5	5	5	5	5	5	7	7	7





Product display:













SHAFT TYPES:

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

• Round Type :DIA3mm. 4mm. 5mm


• D-cut   Type: DIA3-D2.5  DIA4-D3 etc


• Screw Type:  M3 M4 M5 Serial


• Trape  Type


• I-cut    Type:  DIA3-I2 DIA4-I3


• Other  Type:  Shaft with a hole etc

TYPE of FIXTURE COVER:

The regular models are shown in the figure, and the special sizes can be customized.



TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
