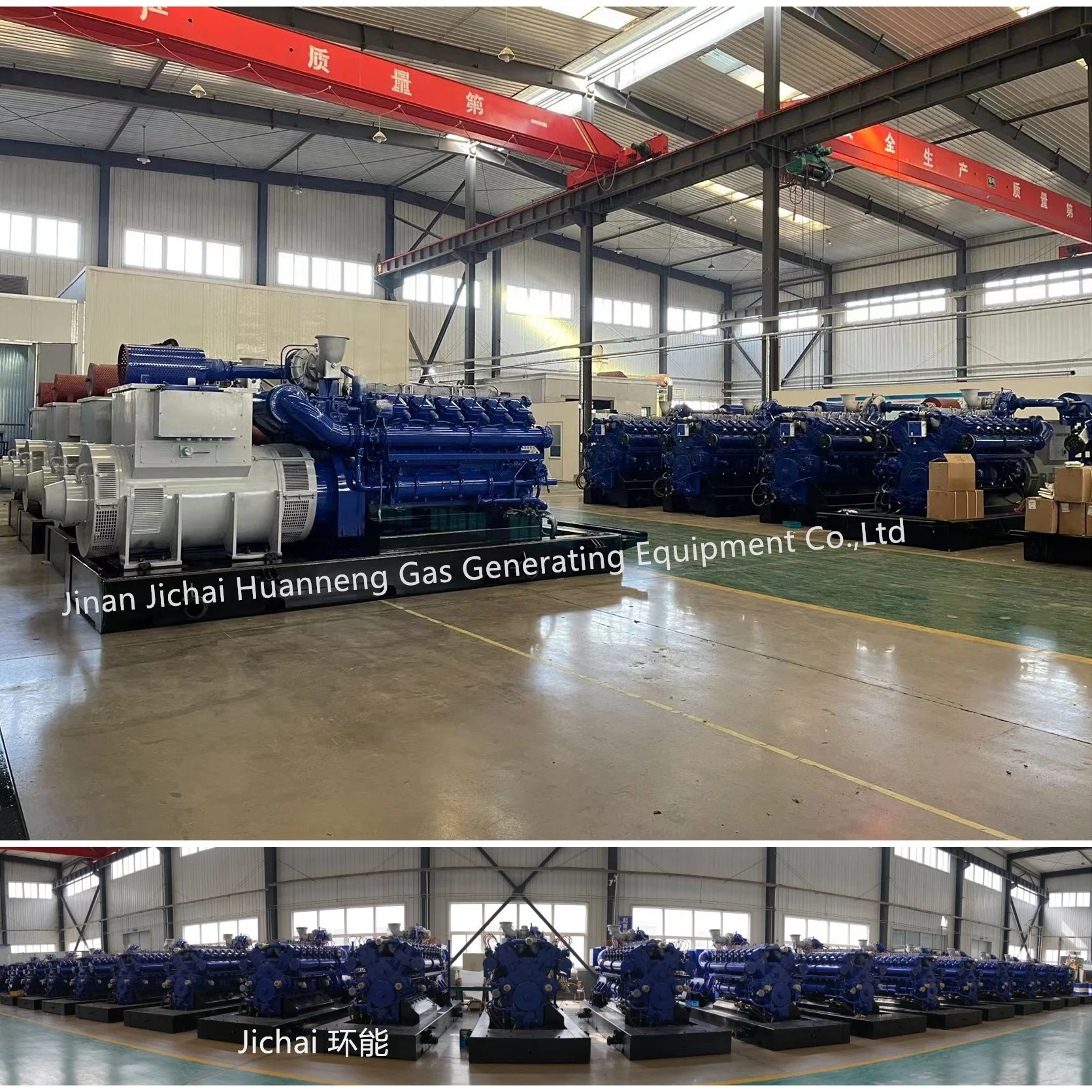

700GF T LNG CNG methane gas engine

Brief Introduction of Our Company

Jinan Jichai Huanneng Gas Generating Equipment Co., Ltd (JCHN) is a high-tech sales &service subsidiary company of Jinan Diesel Engine Co., Ltd. JCHN offers project consultation and design, integrated OEM, equipment export, and spare parts supply.
Our products have exported to more than 50 countries and regions. Sales & Service centers have been established in Kazakhstan, Indonesia, United Emirates, Colombia, and Nigeria respectively to radiate the whole market coverage.

Product Introduction

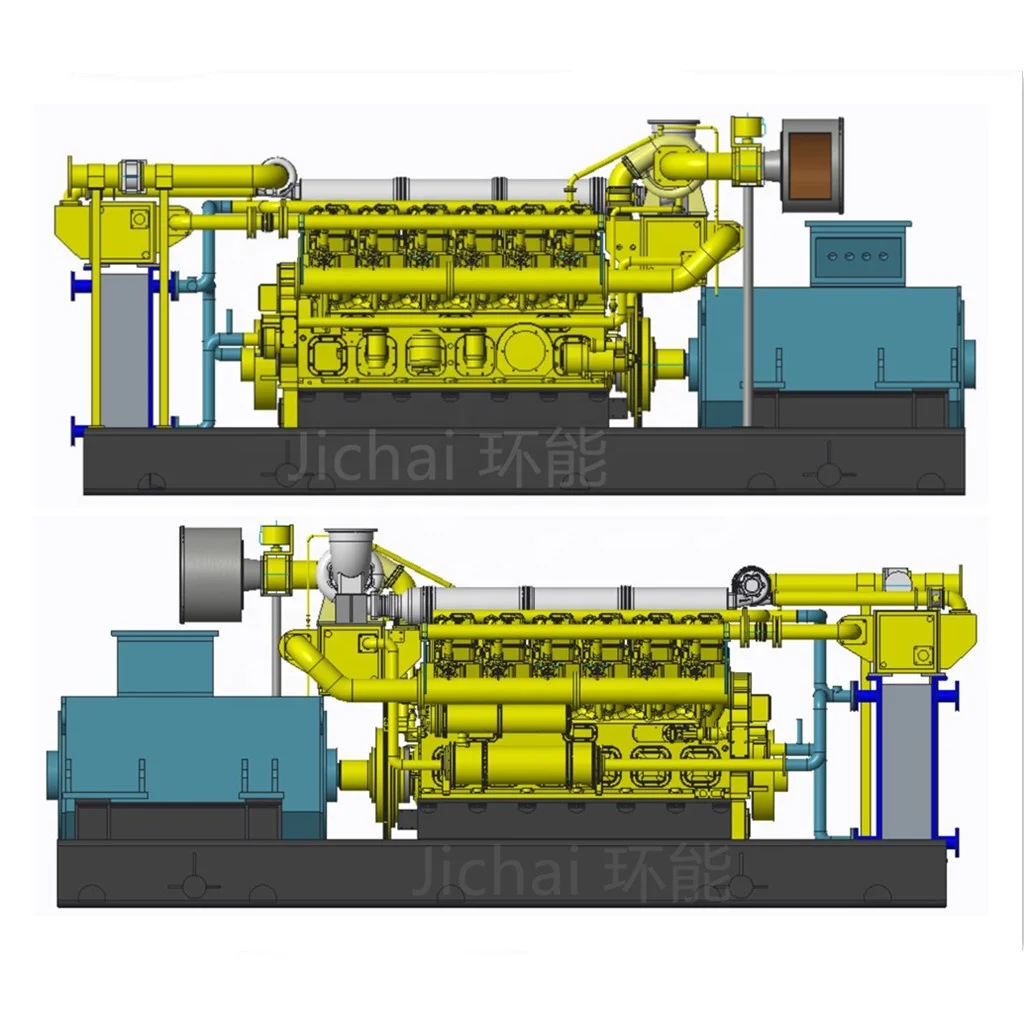

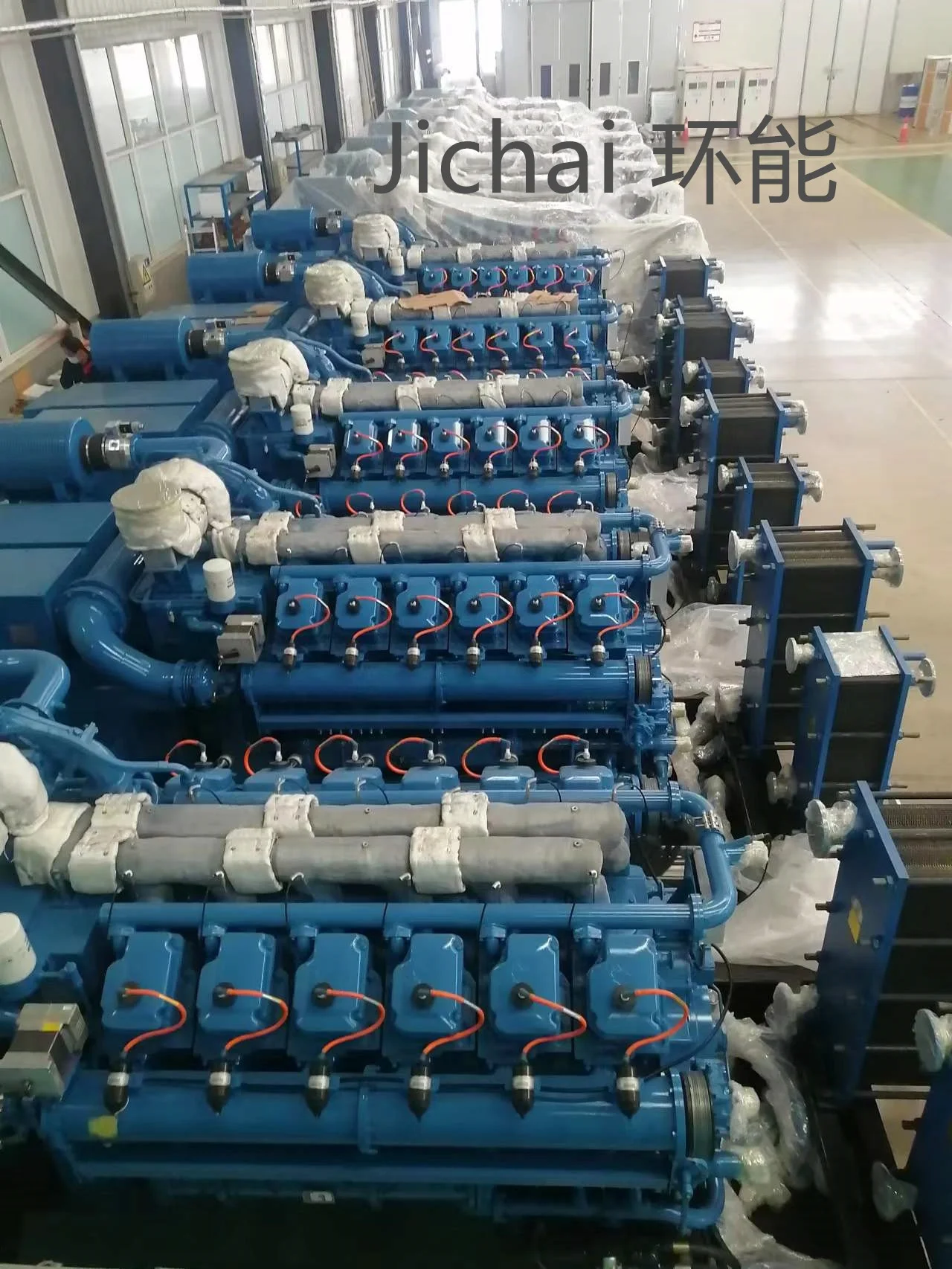

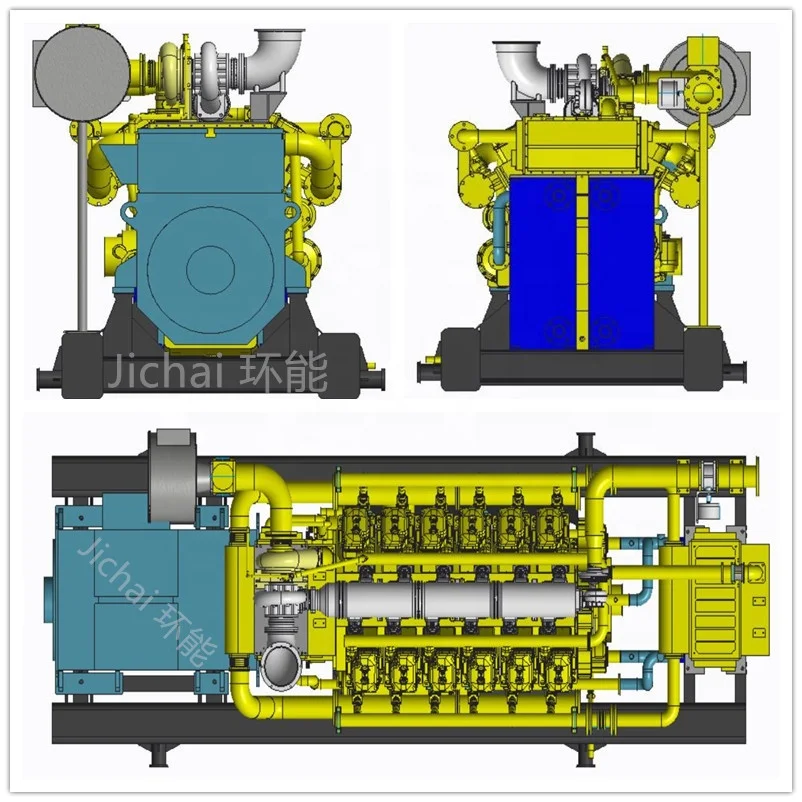

This natural gas generator adopts 12V190ZL  engine, which is one sort of highly intelligent, low heat consumption, high reliability, low emission, long lifetime 12V gas engine. 12V190ZL electrical control and external mix engine owns speed 1000r/min, single unit power 700kW.

Main Requirements

Gas
The quality requirements of Natural Gas are (1m distance before inlet valve):
--dewatered by drying process, no free water, crude oil and light oil
--pressure within 100~200kPa
--temperature within -20~40℃
--low heating value ≥30 MJ/m3 ;
--total sulfur ≤200mg/m3.
Note: The standard reference condition for gas volume is 100kPa at atmospheric pressure, 20℃ of ambient temperature, 30% relative humidity.

Lubrication oil and Cooling Water
Luboil consumption ratio ≤0.3g/kW·h;
Type & Grade: Mobil Pegus 705 or 15W40CD
High and low temperature circulation of engine need soften water. Cooling water should select clean water that has slight alkaline. Corrosive compound such like chloride, sulfate or sour could not be contained. The main norms as below:
Hardness 0.7~5.3me/L
Chloridion content <150mg/L
PH value 7~8.5

Environment
The natural gas generator set can operate stable, reliable, continuously with the condition of ambient temperature -40℃~+40℃, relative humidity<90%(20℃), altitude ≤2000m.
The rated power can be output stable under the standard environment condition (atmospheric pressure: 100kPa. Ambient temperature: 25℃, relative humidity: 30%).

Machine Parts

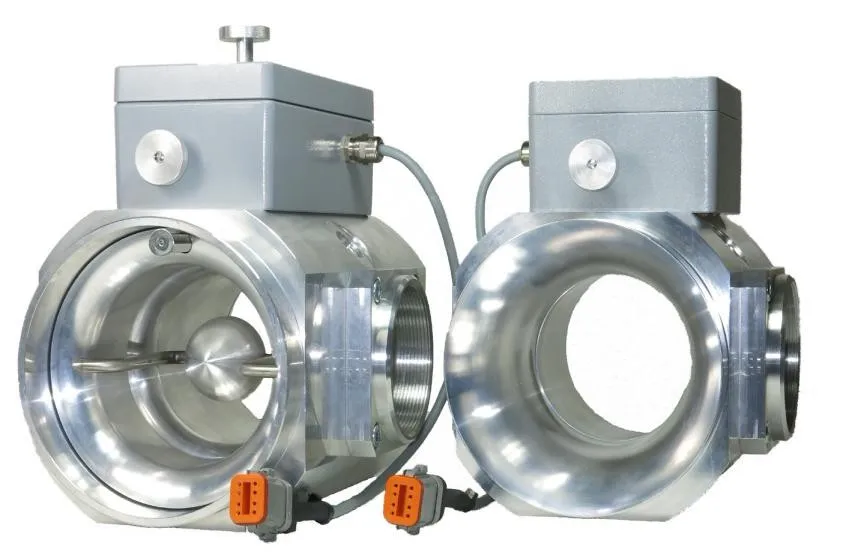

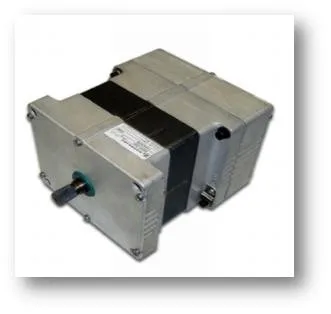

Name: SPEED GOVERNING control system

Brand: AMERICAN Woodward EGS

Original: USA

Electronic governing system: World make, auto speed governing of engine, stable and reliable performance. Meet the need of increase/decrease power.

Main Features

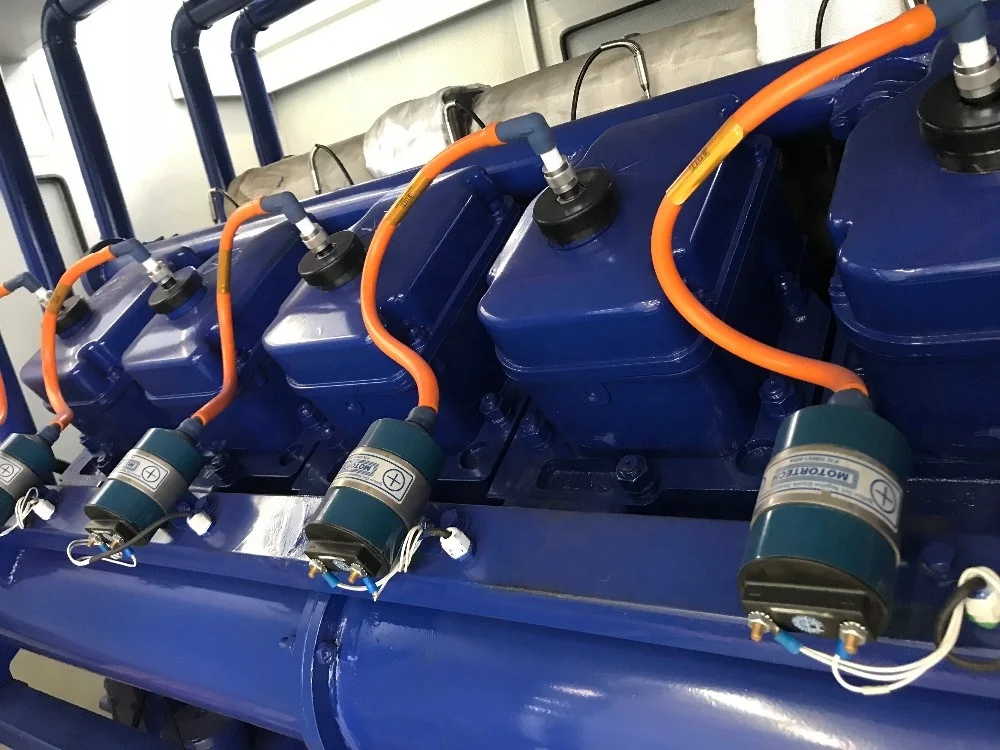

Name: IGINITION SYSTEM

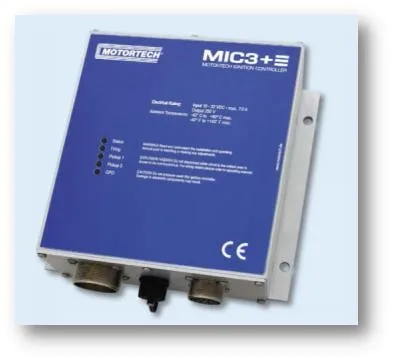

Brand: MOTORTECH intelligent MIC3+
Original: Germany
Digital Ignition Controller is controlled by micro programming, can provide energy needed by coil of gas engine and designed special for 4 stroke gas engine. Features: The ignition energy can be set separately for start stage and normal operation stage; Various Ignition timing adjusting function;
Shutdown engine when engine failure happens;
Safety and auxiliary function.

Machine Parts

Name: Master screen
Brand:Comap
Original: Czech Republic
Automated Operation
Botton start, automatic distribute load
Automatic adjust air-fuel ratio and power factor
Automatic synchronization
The main parts are top world make
with stable and reliable performance.

Main Features

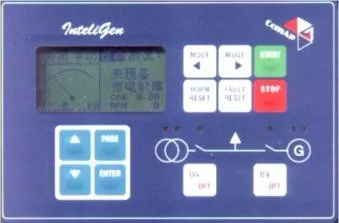

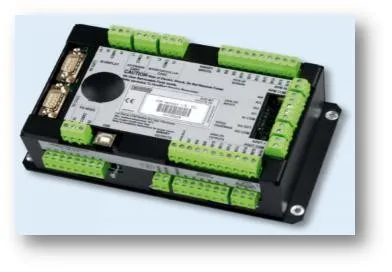

Name: Control module
Brand: IGNT
Original: Czech Republic

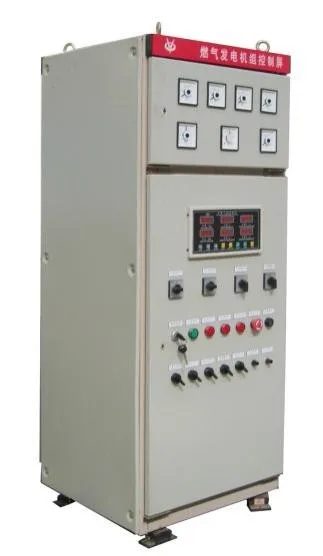

Control panel is equipped with controllers, kinds of display instruments, adjusting buttons, protection indication lamps, emergency shutdown buttons etc, to control and monitor working condition of the generator set. It is equipped with automatic synchronization IG-NT or IC-NT (according to customers demand) with the function of automatic synchronizing and load sharing.
