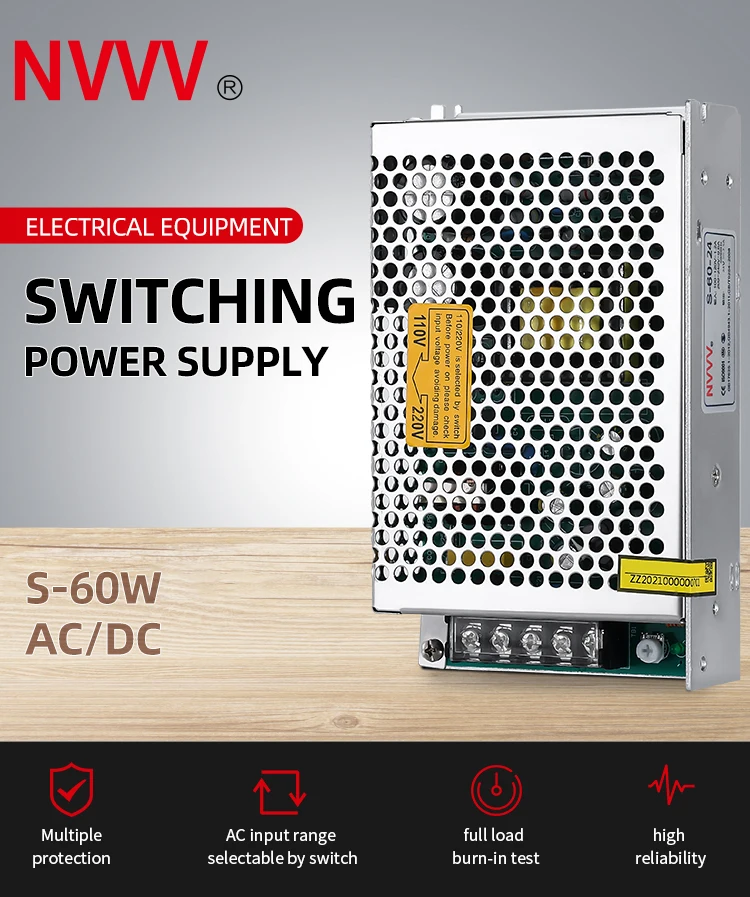

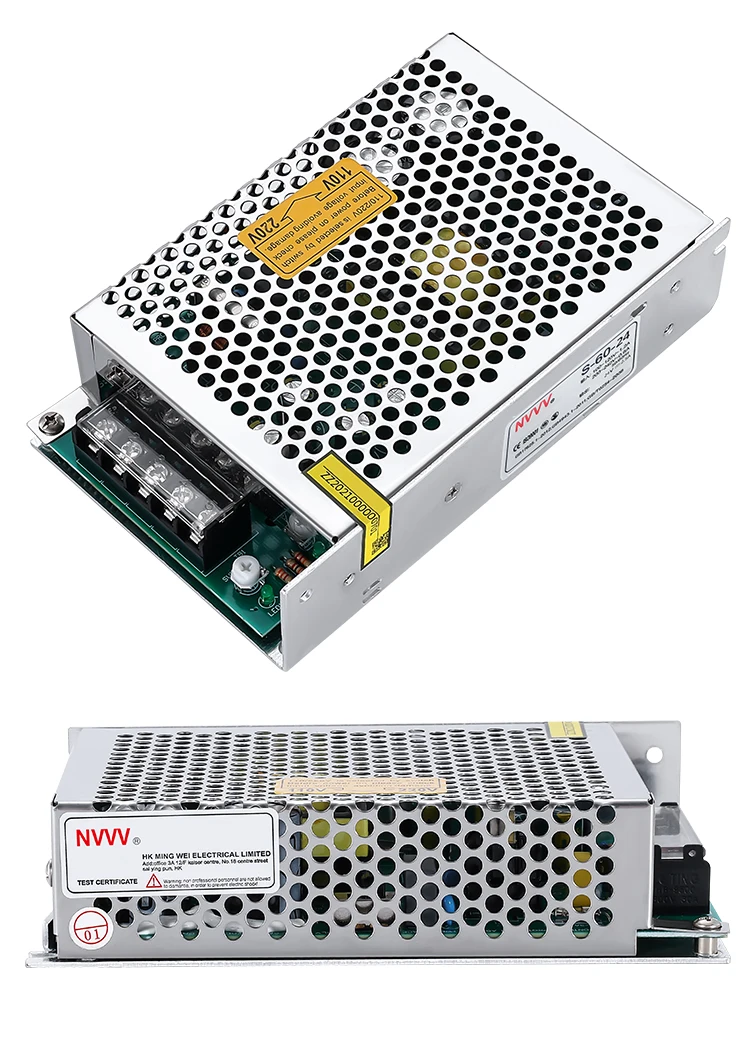

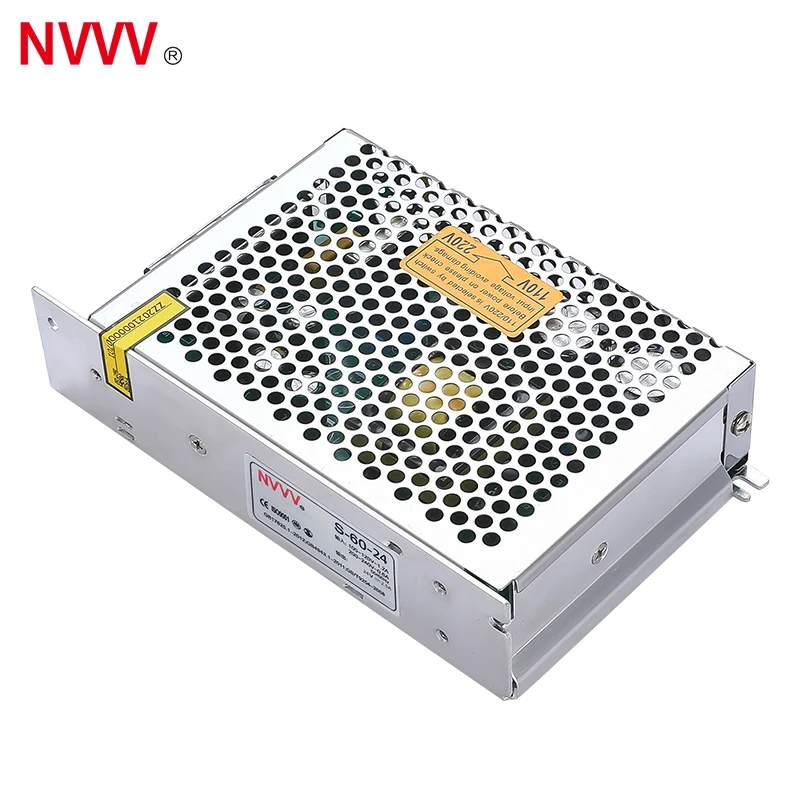

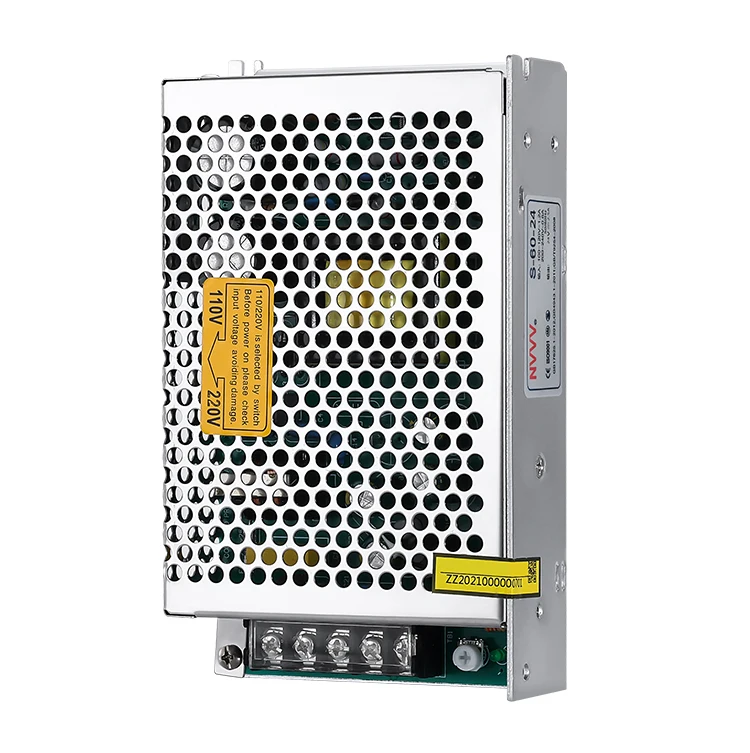

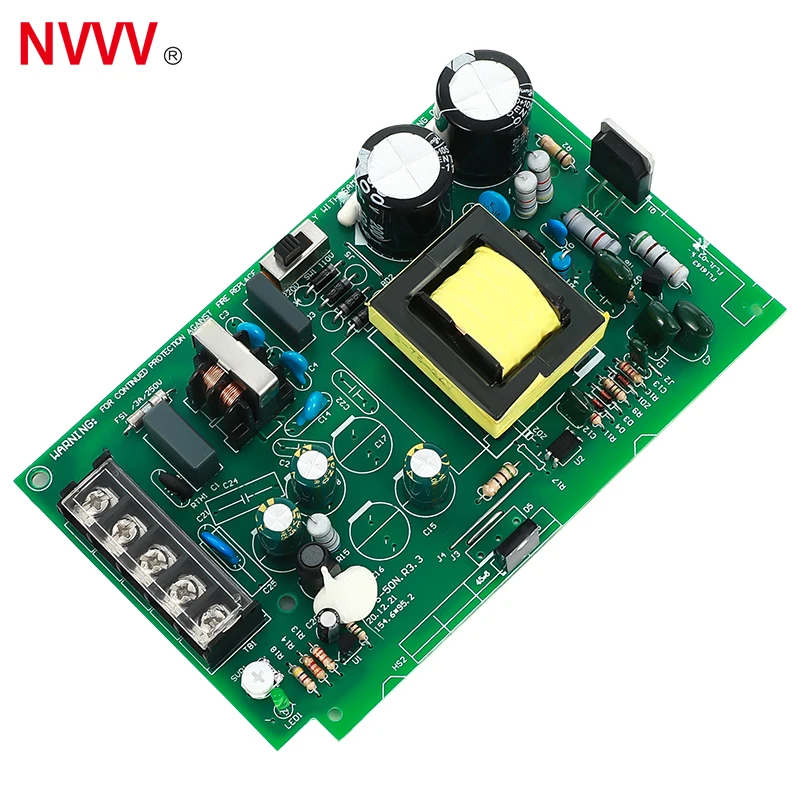

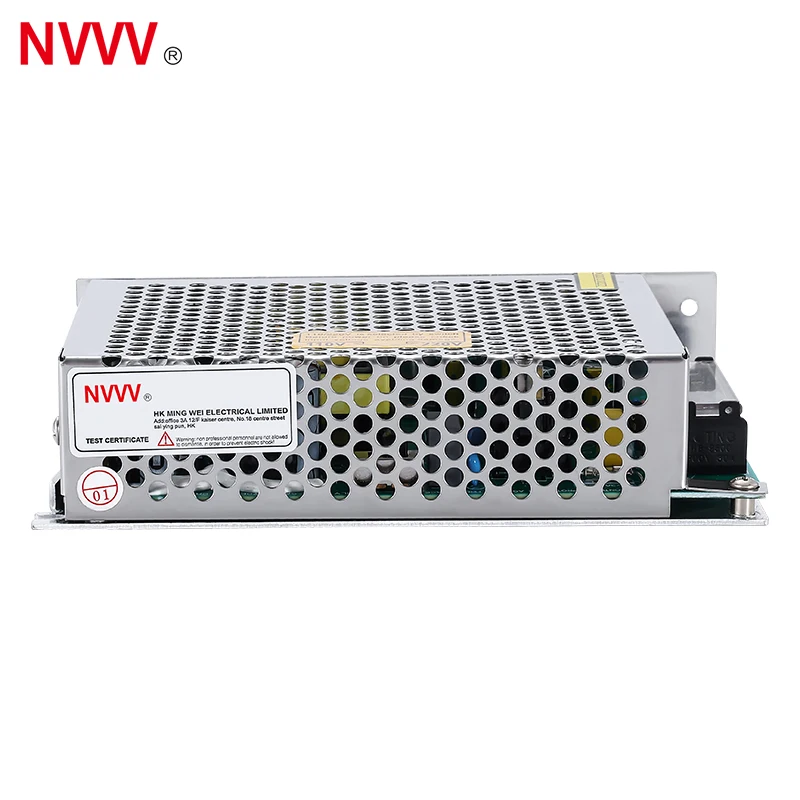

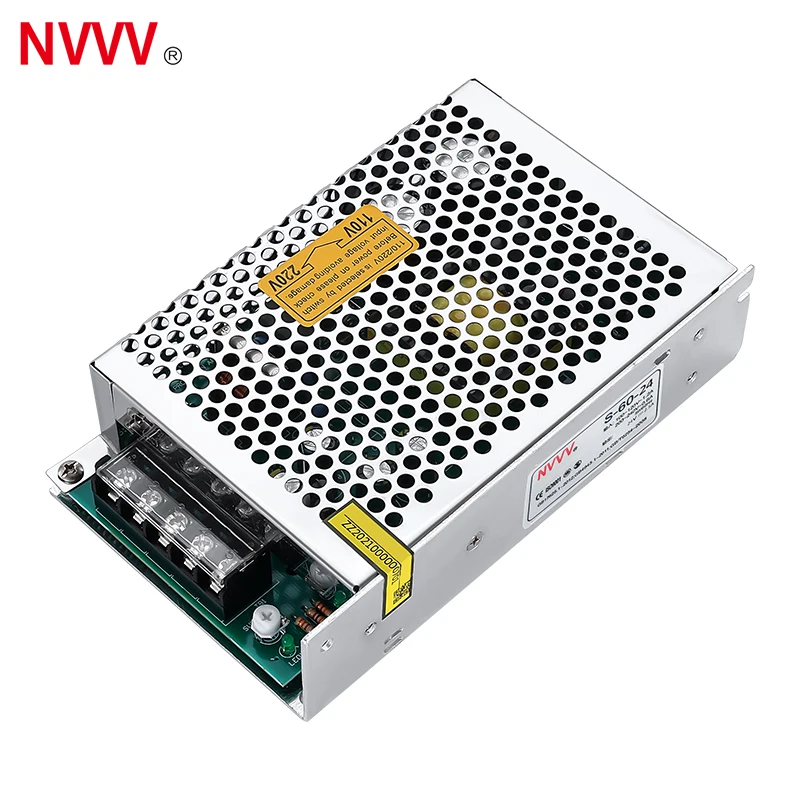

Nvvv S 60 24 блок питания СИД импульсный источник питания для камеры видеонаблюдения и светодиодной подсветкой
- Category: Industrial Power Supplies >>>
- Supplier: Zhejiang Junlin Electric Technology Co. Ltd.
Share on (1600611673366):
Product Overview

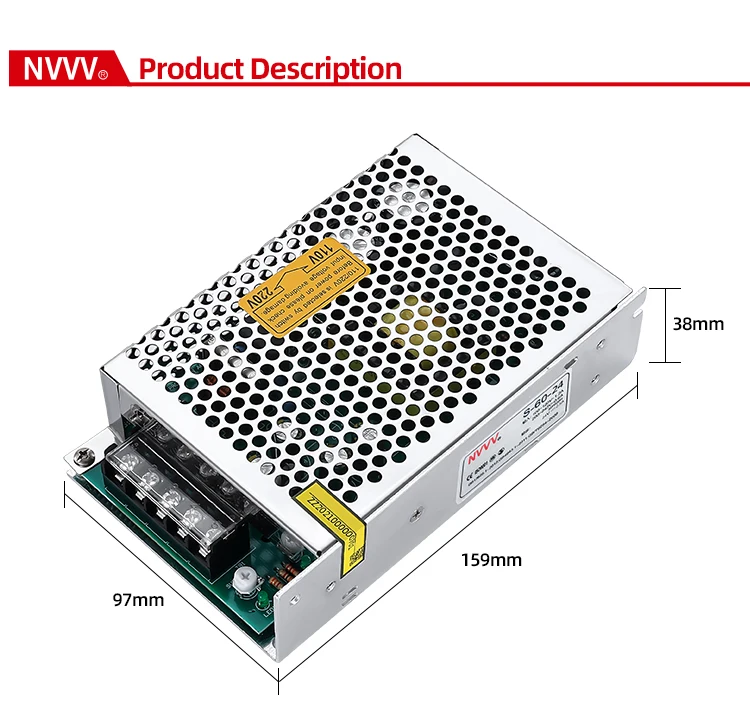

Description
Product Description
Specification
S-60 60W Switching Power Supply | ||||||||||
Project | Technical index | |||||||||
Output | DC voltage | 5V | 12V | 24V | 36V | |||||
Rated current | 10A | 5A | 2.5A | 1.7A | ||||||
Rated power | 50W | 60w | 60w | 61.2w | ||||||
Ripple and noise ① | ＜75mV | ＜120mV | ＜150mV | ＜240mV | ||||||
Voltage accuracy | ±2% | ±1% | ||||||||
Output voltage regulation range | ±10% | |||||||||
Load adjustment rate | ＜±1.5% | ＜±0.5% | ＜±0.5% | ＜±0.5% | ||||||
Linear adjustment rate | ＜±0.5% | |||||||||
Input | Voltage range | 90-265VAC 47Hz～63Hz (127VDC～370VDC) | ||||||||
Efficiency (typical) ② | ＞75% | ＞82% | ＞84% | ＞84% | ||||||
Working current | ＜0.75A 110VAC ＜0.35A 220VAC | |||||||||
Impulse current | 110VAC 18A， 220VAC 36A | |||||||||
Start, rise, hold time | 200ms、50ms、20ms ：220VAC | |||||||||

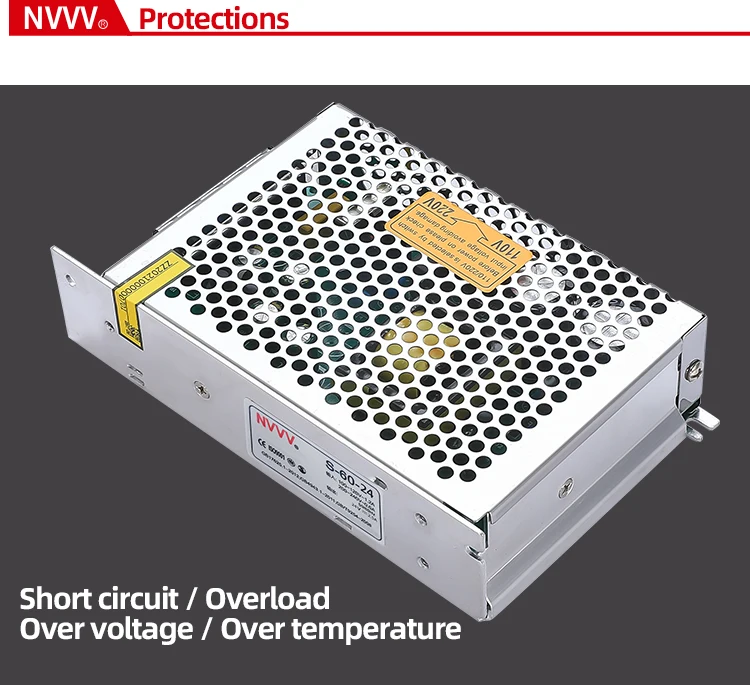

Protect | overload protection | ≥ 105% - 150% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again | ||||||||
Short circuit protection | +VODrop to undervoltage point to close output | |||||||||
Environmental Science | Working temperature and humidity | -10℃～+50℃；20%～90RH | ||||||||
Storage temperature and humidity | -20℃～+85℃；10%～95RH | |||||||||
Safety regulations | Withstand voltage | Input output: 1.5kVac input shell: 1.5kVac output shell: 0.5kvac for 1 minute | ||||||||
Leakage current | 5mA at 1.5kVac input-output | |||||||||
Leakage current | Input output at 220VAC < 1mA | |||||||||
Isolation resistance | Input output, input shell, output shell: 500VDC / 100M Ω | |||||||||
Company Profile
Our Team
Shipping&Delivery
FAQ
Q1:How many Voltage you can supply?
A: 12v , 24v , 48v ,50v , 60v , 110v(Depend on items).
A: 12v , 24v , 48v ,50v , 60v , 110v(Depend on items).
Q2：Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q3：Do you have any MOQ limited for the order?
A: Low MOQ, 1pc for sample checking is available.
A: Low MOQ, 1pc for sample checking is available.
Q4：How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or EMS. It usually takes 3-5 days to
arrive. Airline and sea shipping also optional.
A: We usually ship by DHL, UPS, FedEx or EMS. It usually takes 3-5 days to
arrive. Airline and sea shipping also optional.
Q5：Do you offer guarantee for the products?
A: Yes, we offer warranty to our products.
A: Yes, we offer warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less. Secondly, during the guarantee period,we will send new product with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Firstly, our products are produced in strict quality control system and the defective rate will be less. Secondly, during the guarantee period,we will send new product with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
