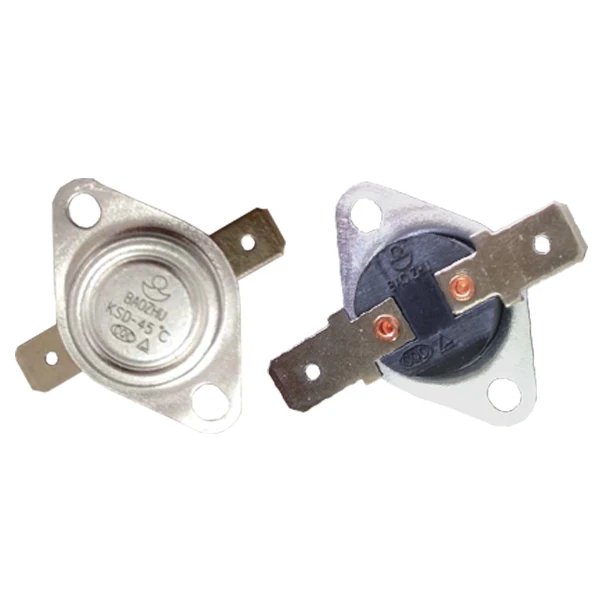

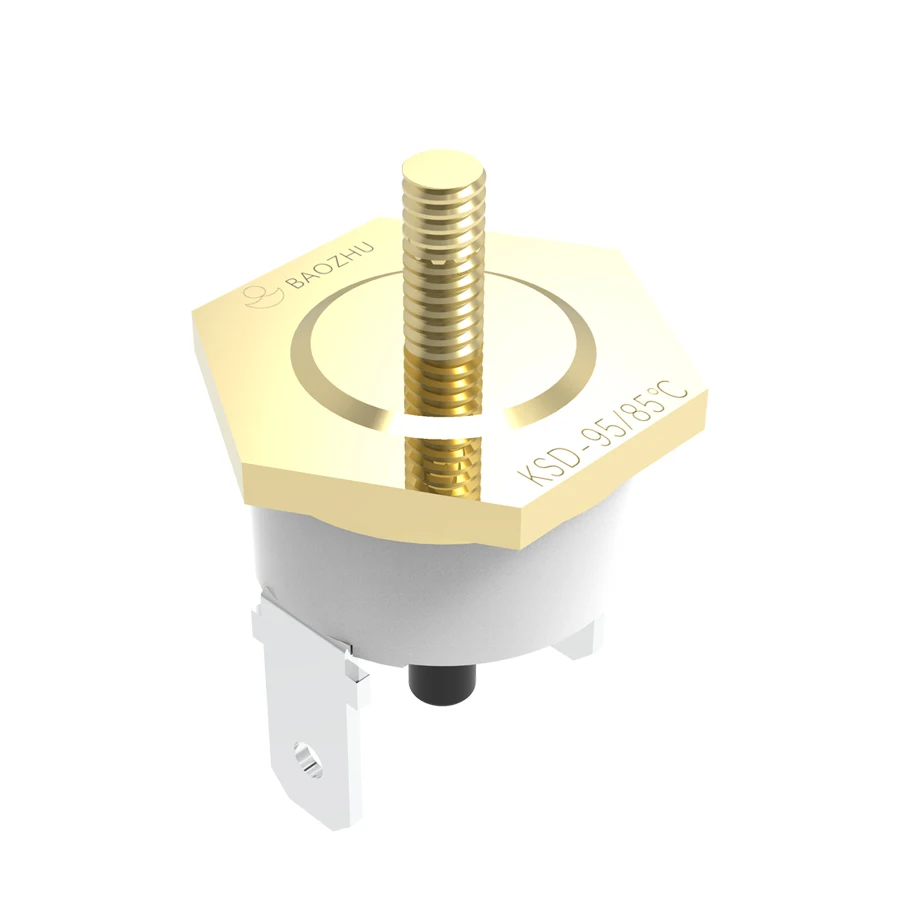

Electric oven parts KSD thermostat
- Category: >>>
- Supplier: Yangzhou Baozhu Electric Appliances Co. Ltd.
Share on (1600611692826):
Product Overview
Description
Product Description
1. Usage: KSD Button type is snap action and bimetallic thermostat. Bimetal trips off or on quickly to open or close the circuit when temperature reaches the prescribed value. Widely used in Electrical tools, motors, transformers, ballasts, coil and etc fileds.
2. Operating temperature tolerance: ±5℃
3.Reset temperature tolerance:±10℃ , ±15℃
Product Name | KSD button series thermal protector |
Lead wire | AWG20# 1332; AWG22# 3135 |
Remarks | Can customized according to customer requirements |

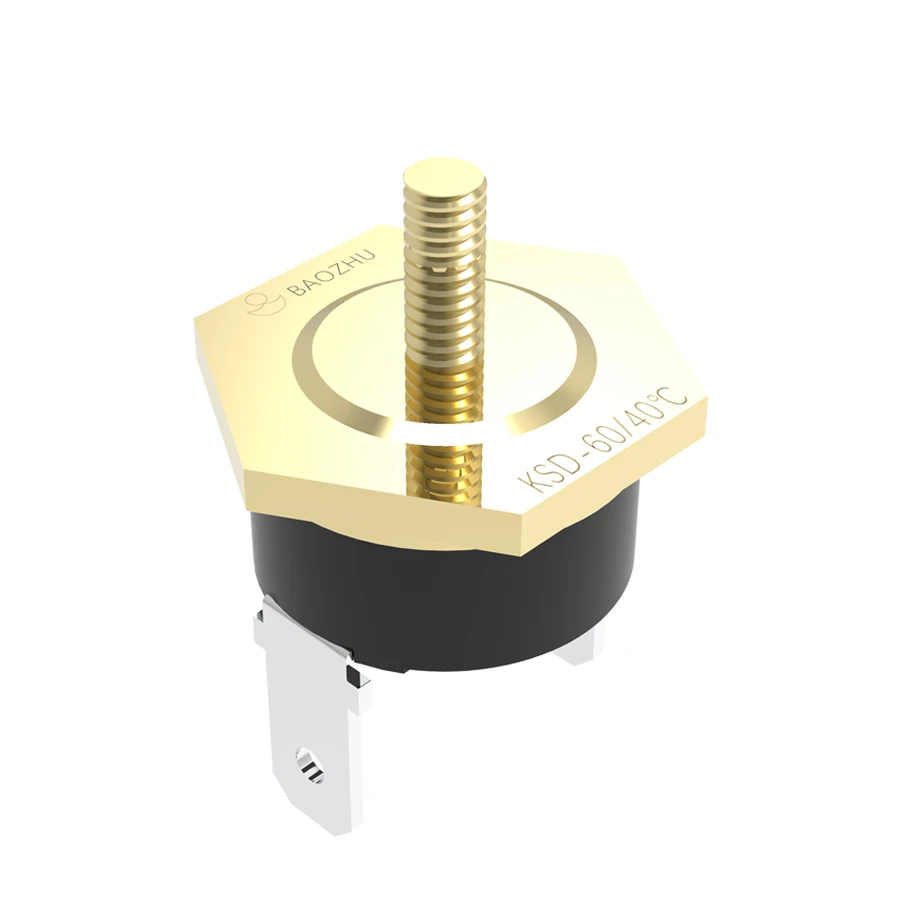

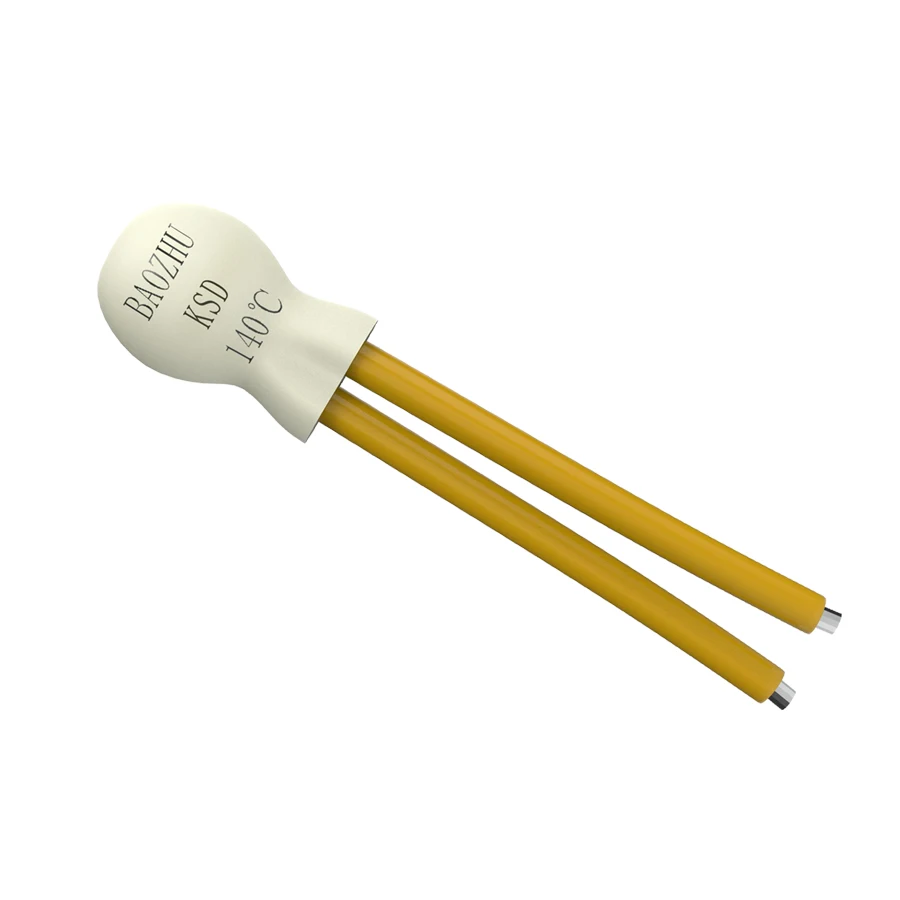

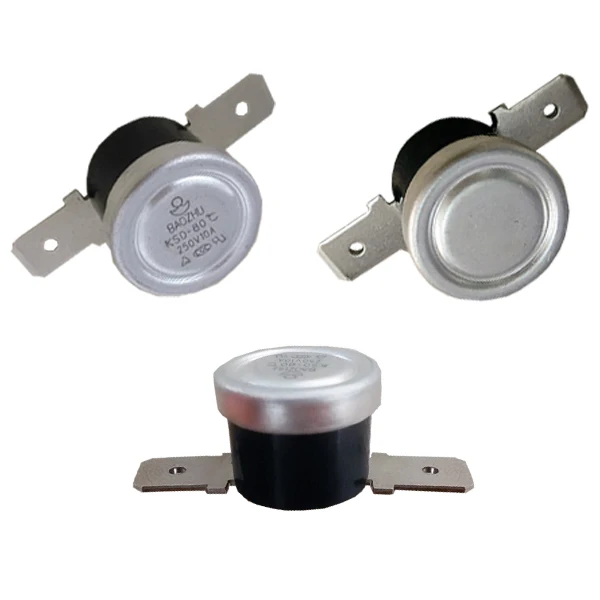

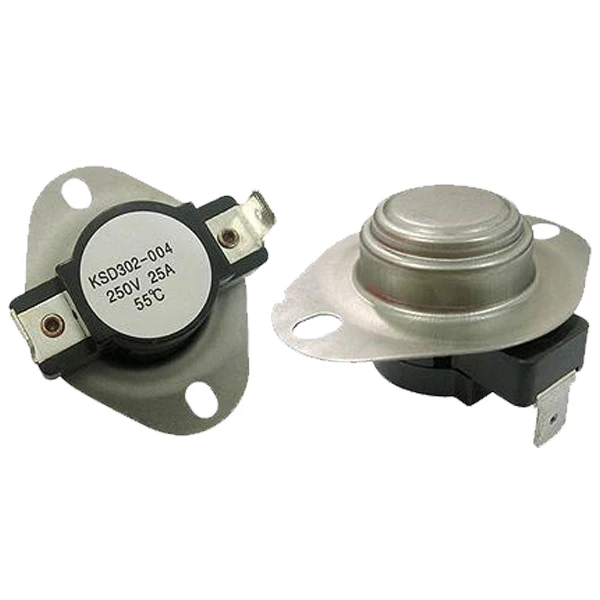

Products Show

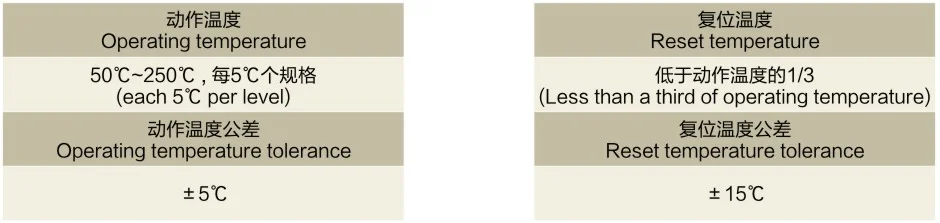

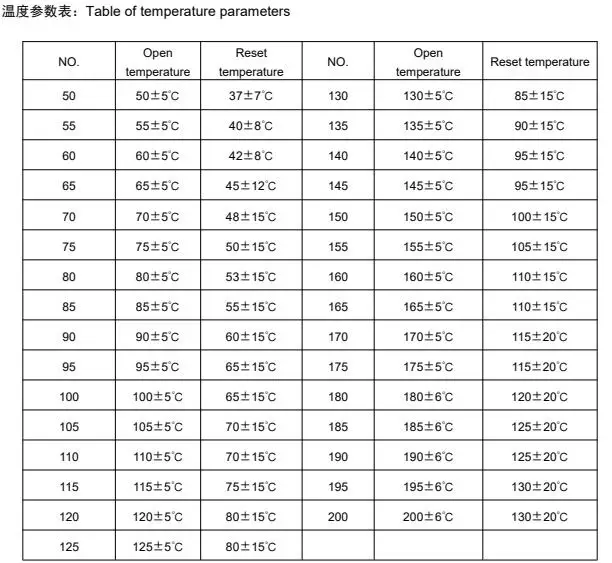

Temperature Range and Tolerance：

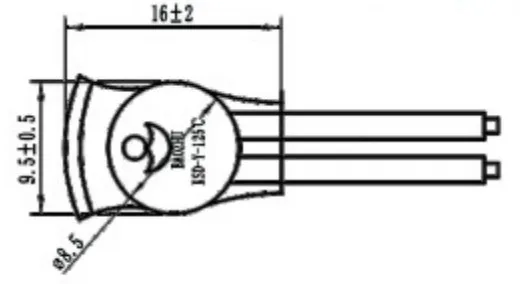

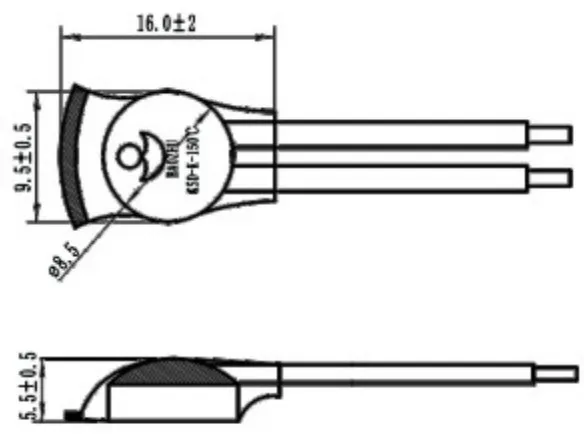

Size:
Installation notes:
Installation with printed face up, non-printed face close to solid heater surface.
Installation of the print face upward and the main direction should not be perpendicular to the axis of the heating body.
Certifications:
Certification authority | Certificate No. | ||||||
UL | E305764 | ||||||
TUV | R50515014 | ||||||
CQC | CQC21002308785 | CQC19002226310 | CQC19002226892 | ||||
CB | CN50847 | CN5785 | |||||
KC | ZU02062-14001B | ||||||
ISO9001 | 00120Q34918R5M/3200 | 0105Q1274ROS/3200 | |||||
Our Service
Free sample
Our company can provide 10 free samles for your testing.
Our Company
Factory
Headquarters
Workshop
Our Workshop
Chengnan Branch
Jinghe branch
Warehouse
Our Warehouse
Equipmen
Our Part equipment
Packing & Delivery
Samples Packing Details : File pocket
Order Packing Details :
1000pcs in one plastic bag
5000pcs in one export carton(26*18*22cm)
10000pcs in one export carton (carton size:32*26*22cm)
Delivery Details : 7-15 days
Decide delivery time according to order quantity and requirement.
Our Certifications
Certificates of our products include CE, CQC, ROHS, UL, VDE, etc.
Please contact me if you need relevant certificates.
Please contact me if you need relevant certificates.
