1325 1530 Woodworking multi process CNC Router Atc for Wooden Door Furniture Cabinet/ Wood 3d Caving/Engraving/Cutting Machine
- Category: >>>
- Supplier: Roctech,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
cabinet making machine 1325 automatic ATC CNC wood machine 1325 atc
Table Size | 1300×2500mm |
X,Y,Z Traveling | 1300x2500x250mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum and T-slot Combined |
Frame | Welded structure |

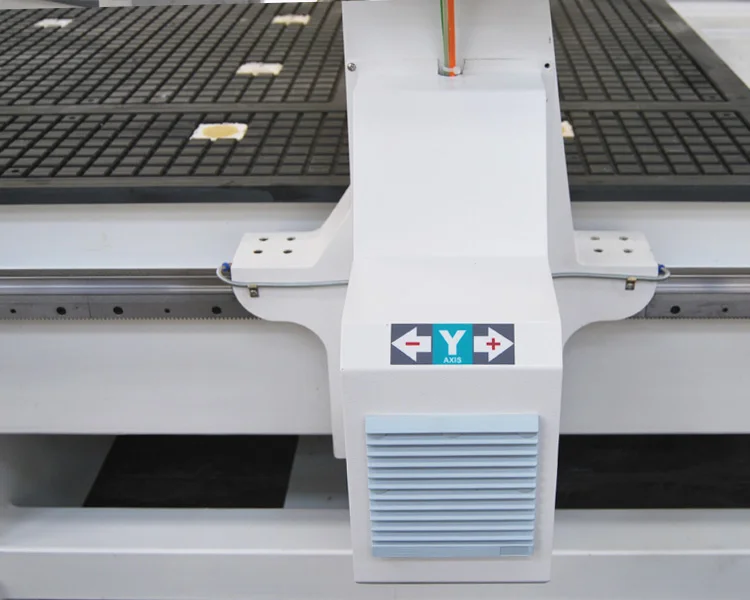

X, Y Structure | Rack and Pinion Drive |
Z Structure | Hiwin Linear Rails and Ball Screw |
Max. Power Consumption | (Without Spindle) 4.5kw |
Max. Rapid Travel Rate | 45000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Power | 9.6kw |
Spindle Speed | 0-24000RPM |
Drive Motors | Yaskawa Servo Motor |
Working Voltage | AC 380V/220V/50/60Hz,3PH |
Software Compatibility | Type3/ Artcam Software ,All CAD/CAM software |
Command Language | G Code |
Operating System | Syntec Control System |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER32 |
X,Y Resolution | <0.03mm |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
N.W. | 2200KG |
G.W. | 2500KG |
Product Size | 3300*1950*1700mm |
Packing Size | 3400*2200*2400mm |
Optional Parts | Dust Collector |
FAQ
1. Training and Use?
We will supply friendly English operation manual and installation. Customer is warmly welcomed to visit our factory for free
training. We can also send engineer to customer’s country to supply training.
2.Guarantee & After-sale Service?
We supply one year warranty under normal use and lifetime technical support.We can provide engineers overseas training.
3. Payment Terms?
T/T in advance and Alibaba Trade Assurance.
4. Documents after shipment?
We will send original documents to you by DHL, including Packing List, Commercial Invoice, Sales Confirmation, Bill of Lading, and
other certificates as required by customer.
We will supply friendly English operation manual and installation. Customer is warmly welcomed to visit our factory for free
training. We can also send engineer to customer’s country to supply training.
2.Guarantee & After-sale Service?
We supply one year warranty under normal use and lifetime technical support.We can provide engineers overseas training.
3. Payment Terms?
T/T in advance and Alibaba Trade Assurance.
4. Documents after shipment?
We will send original documents to you by DHL, including Packing List, Commercial Invoice, Sales Confirmation, Bill of Lading, and
other certificates as required by customer.
