Factory direct sale Din Rail MDR 40 series plastic case 12V 24V 48V DC Output Din Rail Power Supply

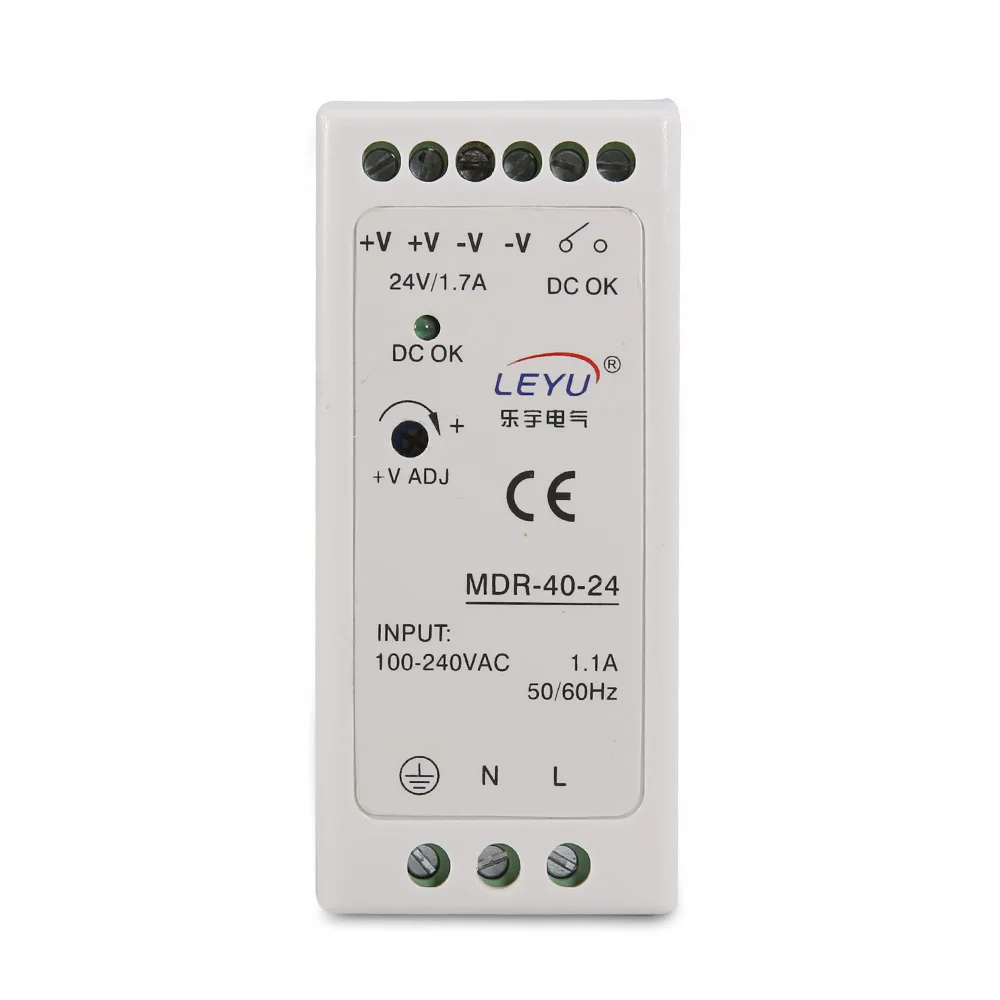

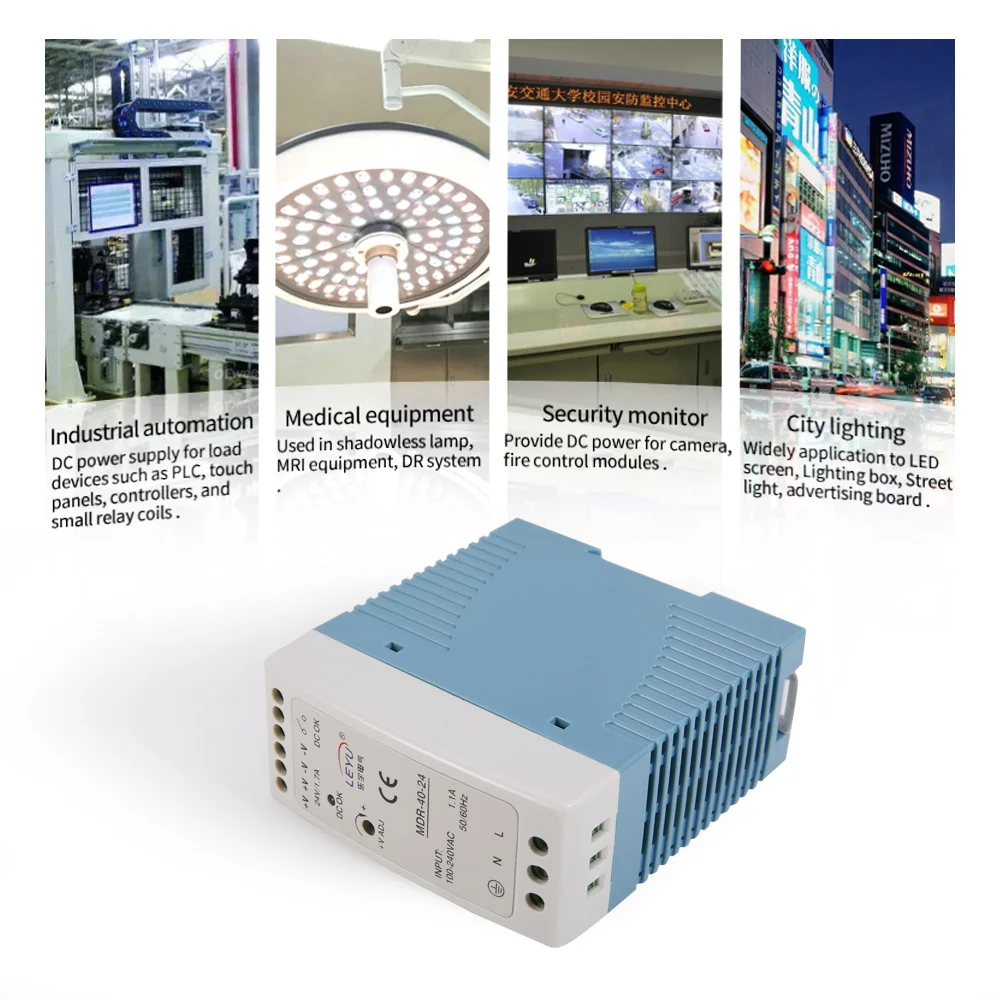

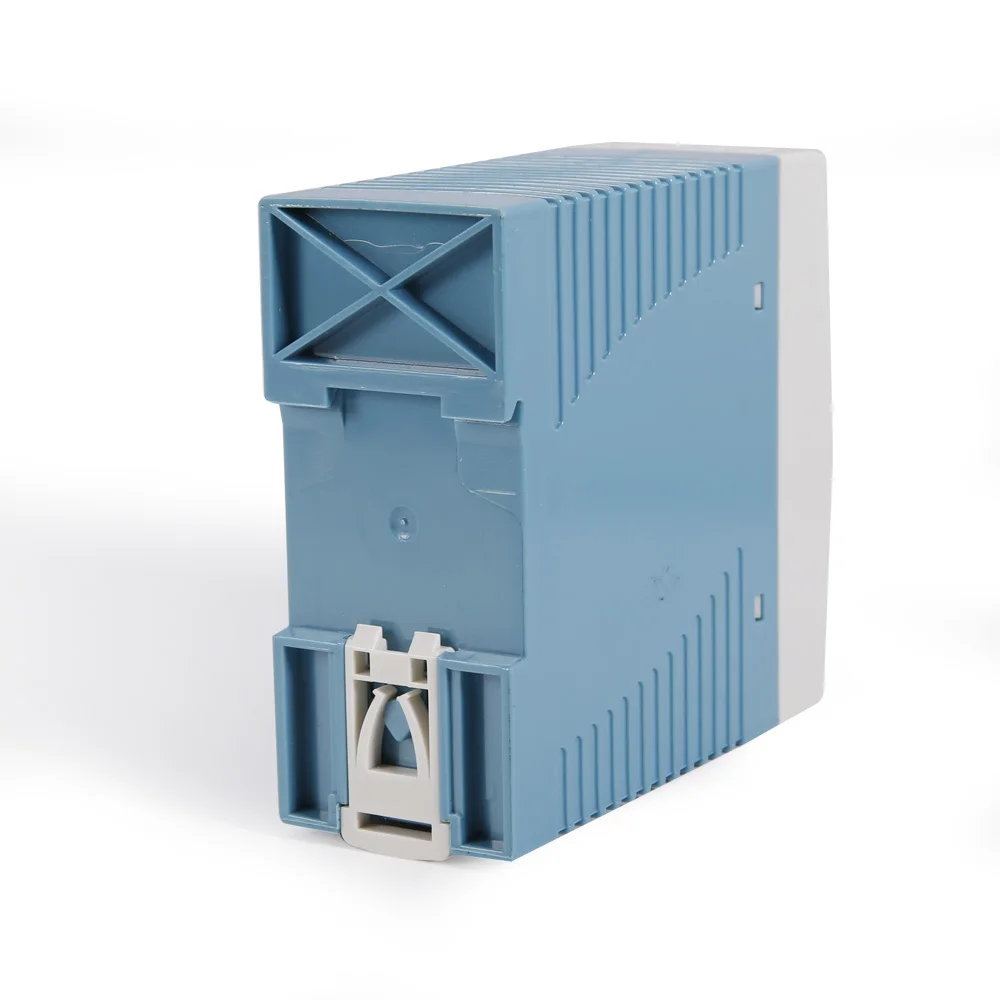

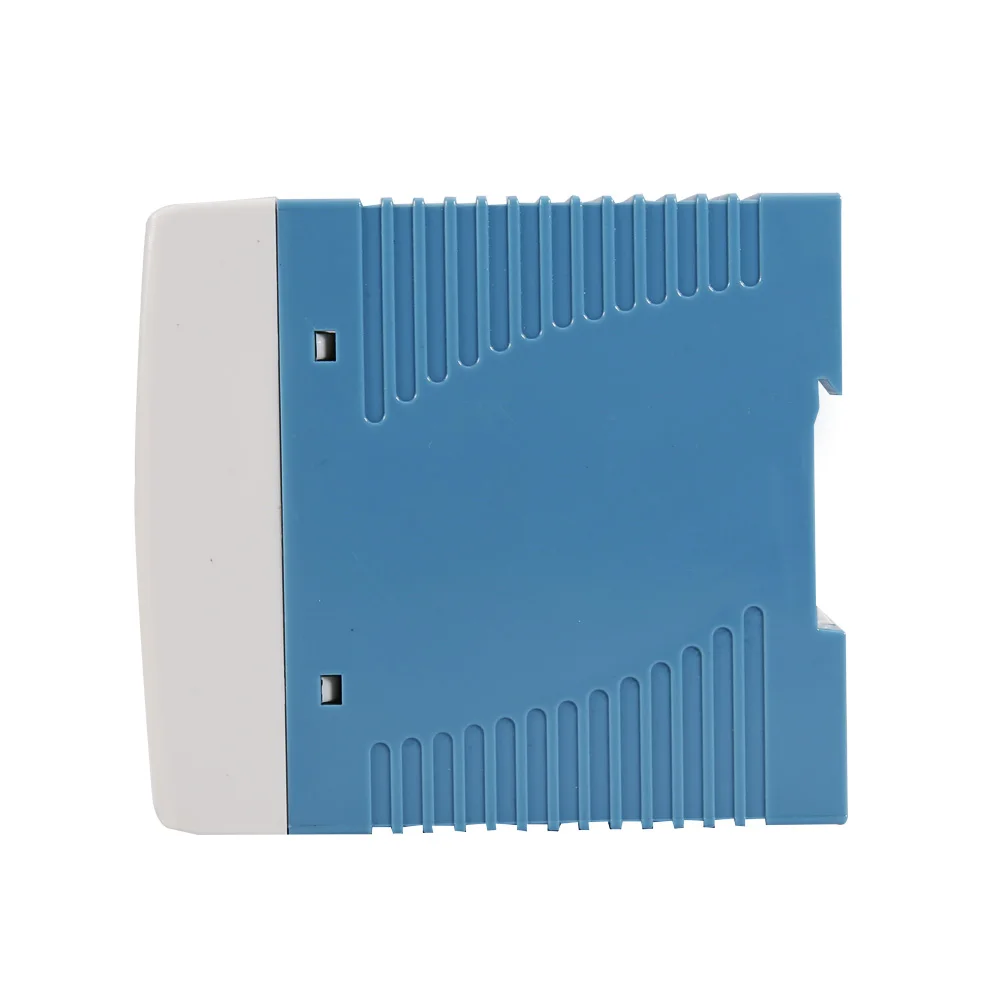

Factory direct sale Din Rail MDR-40 series plastic case 12V 24V 48V DC Output Din Rail Power Supply
Factory direct sale Din Rail MDR-40 series plastic case 12V 24V 48V DC Output Din Rail Power Supply
Factory direct sale Din Rail MDR-40 series plastic case 12V 24V 48V DC Output Din Rail Power Supply
Factory direct sale Din Rail MDR-40 series plastic case 12V 24V 48V DC Output Din Rail Power Supply
Factory direct sale Din Rail MDR-40 series plastic case 12V 24V 48V DC Output Din Rail Power Supply
Factory direct sale Din Rail MDR-40 series plastic case 12V 24V 48V DC Output Din Rail Power Supply

Factory direct sale Din Rail MDR 40 series plastic case 12V 24V 48V DC Output Din Rail Power Supply

Share on (1600611759938):


Price:$9.61 - $10.56

Quantity:


Product Overview

Description



Product Description




Specification


SPECIFICATIONS
Model
MDR-40-5
MDR-40-12
MDR-40-24
MDR-40-48
DC Voltage
5V
12V
24V
48V
Rated Current
6A
3.33A
1.7A
0.83A
Current Range
0-6A
0-3.33A
0-1.7A
0-0.83A
Rated Power
30W
40W
40.8W
39.8W
Ripple & Noise
80mVp-p
120mVp-p
150mVp-p
200mVp-p
Voltage Tolerance
±2%
±1%
±1%
±1%
Line regulation
±1.0%
±1.0%
±1.0%
±1.0%
Load regulation
±1.0%
±1.0%
±1.0%
±1.0%
Setup, Rise Time
500ms,30ms/230VAC 500ms,30ms/115VAC at full load
Voltage Range
85~264VAC 47~63Hz; 120~370VDC
AC Current
1.1A/115VAC 0.7A/ 230VAC
Efficiency
78%
86%
88%
88%
Inrush Current
Cold start 30A/115VAC 60A/230VAC
Leakage Current
<1mA/240VAC
Over Load
105% ~ 150% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
6.27-7.25V
15.6-18V
31.2-36V
57.6-64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Working Temp., Humidity
-20℃~+70℃; 20%~90% RH non-condensing
Storage Temp., Humidity
-40℃~+85℃; 10%~95%RH
Temp. Coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
Withstand Voltage
I/P-O/P: 3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-F/G: >100M Ohms / 500VDC/25℃/70% RH
Safety Standard
Design refer to UL508,TUV EN60950-1
EMC Standard
Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1，EN61204-3, heavy industry level,
criteria A
Dimension
40*90*100mm(W*H*D)
Weight
0.3Kg
Packing
42pcs/carton/13.6kg/0.82CUFT
Warranty
2 years

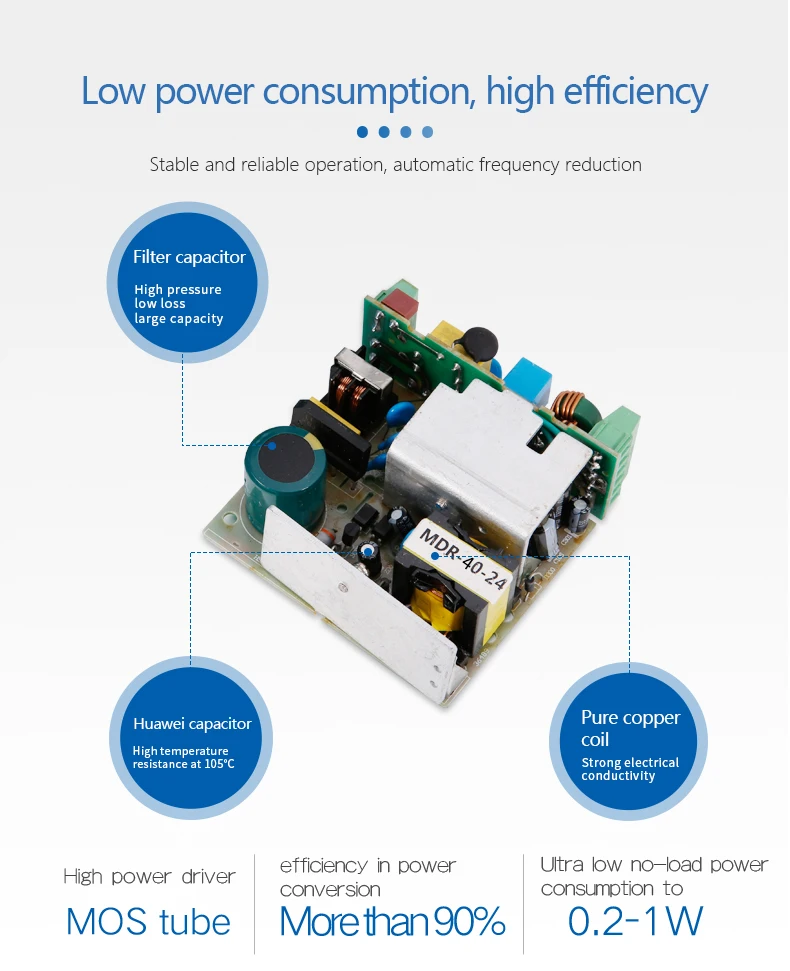

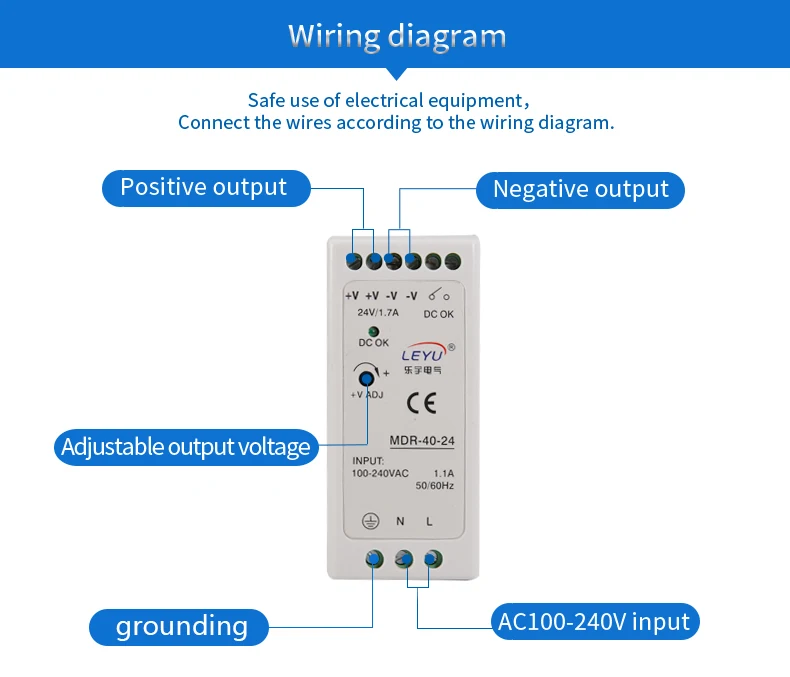

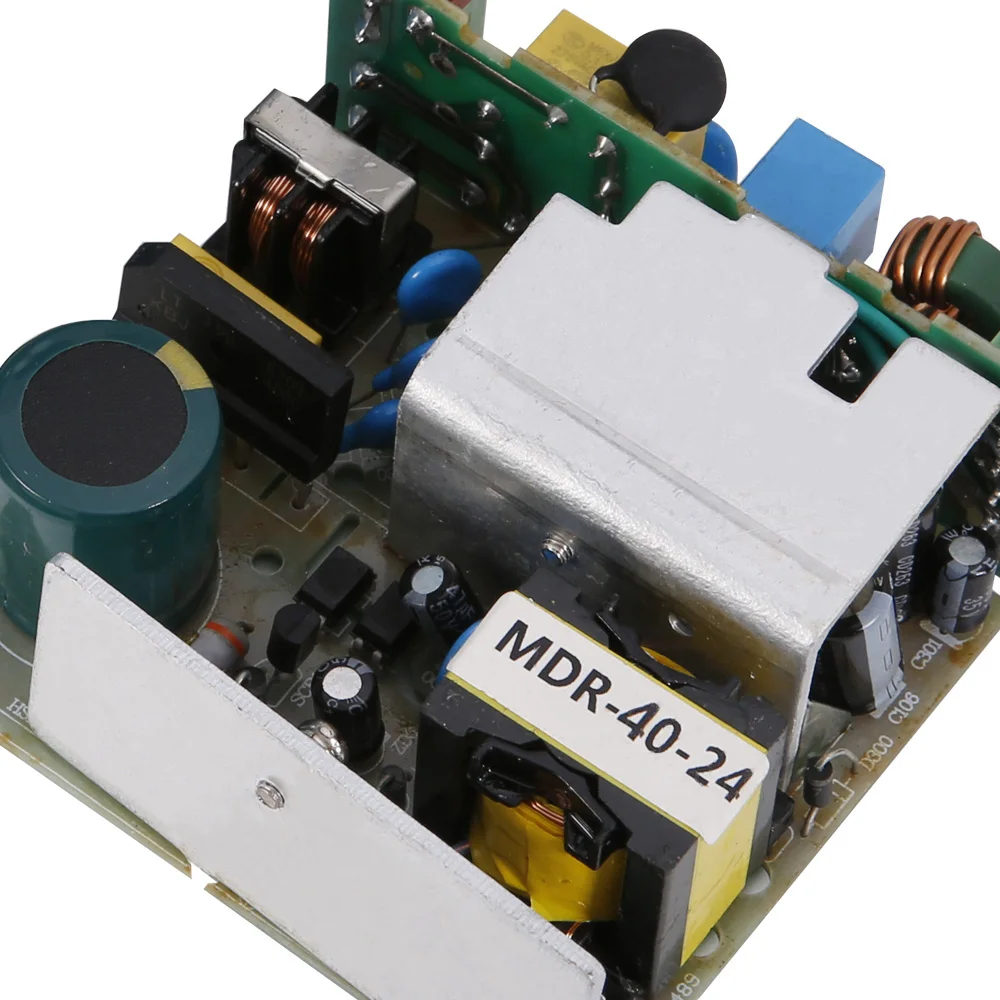

Details Images






Recommend Products


MDR-20
MDR-60
MDR-100



DR-75
DR-100
DR-120


Company Profile






Exhibition






Packing & Delivery




FAQ


1. who are we?
We are based in Zhejiang, China, start from 2007,sell to South America(19.00%),Eastern Europe(7.00%),Western Europe(31.00%),South Asia(16.00%),North America(10.00%),Australia(4.00%),Africa(13.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Switching power supply,Converter,Power inverter,Scrolling system

4. why should you buy from us not from other suppliers?
1. Low MOQ: It can meet your promotional business very well
2. OEM/ODM Accepted: We can produce any your design
3. Good Service: We treat clients as friend
4. Good Quality: We have strict quality control system. Good reputation in the market

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
