China Factory CNC Surface Lapping Grinding polishing Silicon Carbide Wafers Precision Single Side Polishing Machine
Product Description

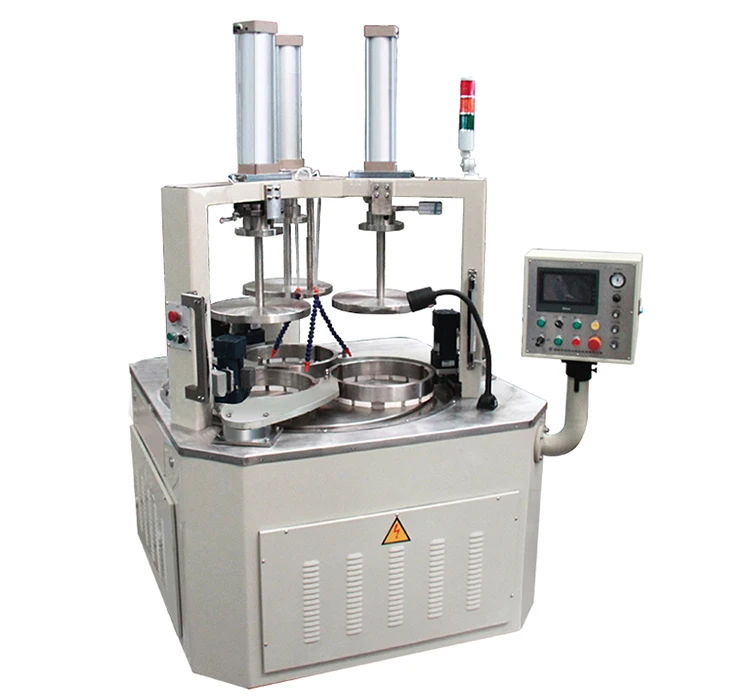

Single Surface Lapping Polishing Machine

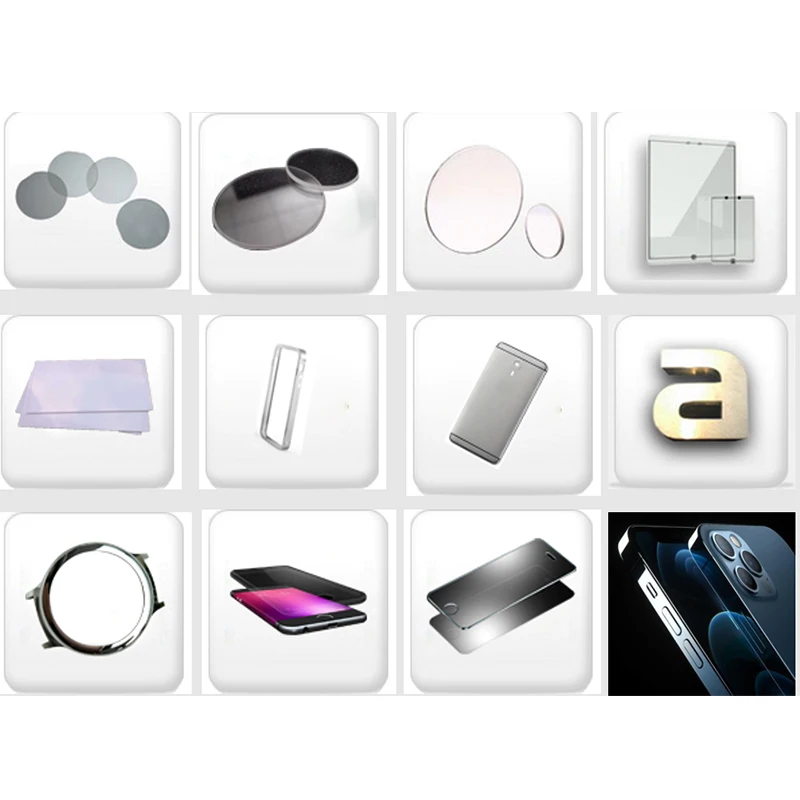

YH2M8192 is used for polishing/lapping single surface of metal parts, such as valve plate, wearing plate, rigid seal ring,cylinder piston ring and oil pump blade, etc.as well as processing thin and hard brittle non-metal components of silicon, germa-nium, quartz, glass, ceramic, sapphire, gallium arsenide, ferrite, lithium niobate etc. such as mobile phone, LCD panel, Tablet pc.
Specification

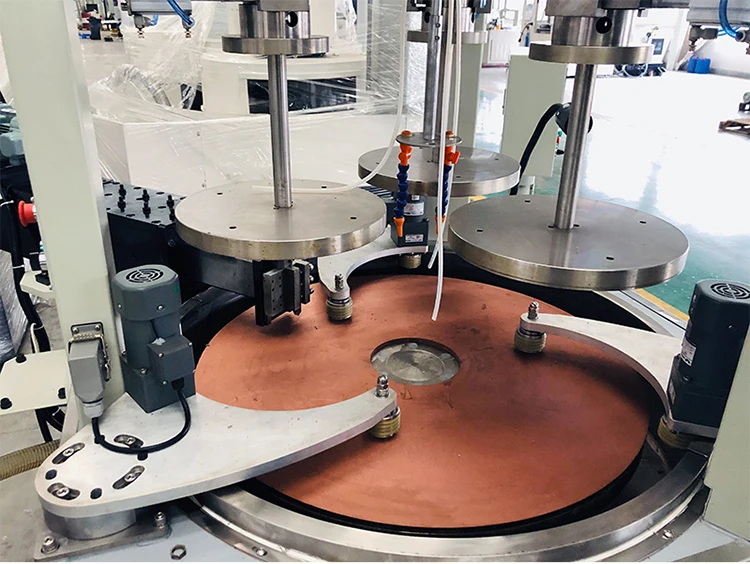

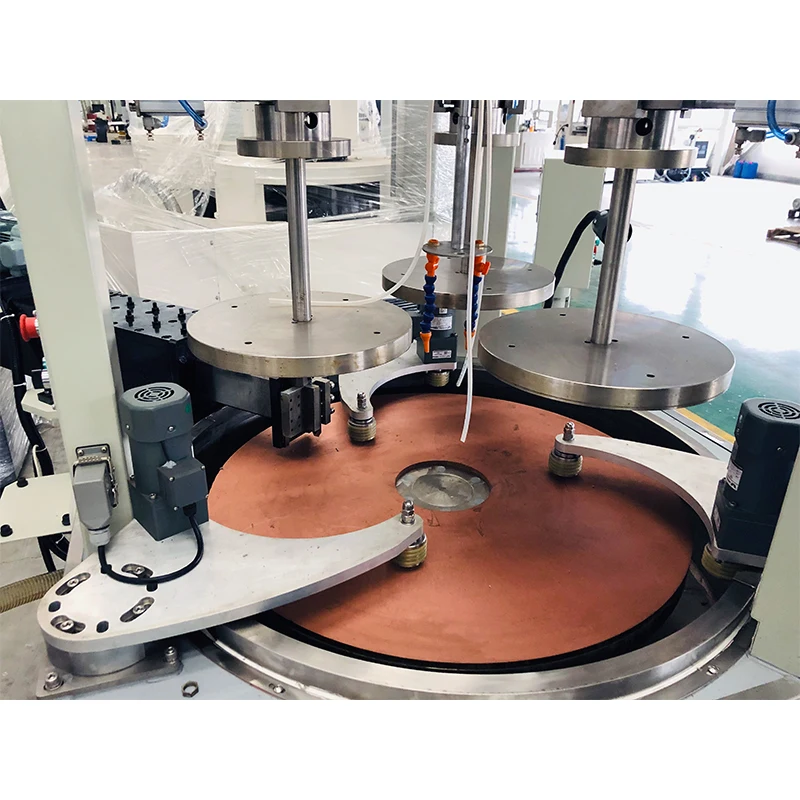

1.Water-cooled with three working stations.
2.Equipped with peristaltic pump.
3.This machine can exert pressure by weight and pressure plate's dead weight which can judge the pressure.
4.There is cooling water circulation system between the lapping plate and tray to ensure machine running reliable for a long time operation, and achieve the desired grinding (polishing ) effects.
5.The machine at work through the editing processing procedure in the man-machine interface,and then downloaded to the PLC. PLC will be run by the current downloaded program
6.PLC controlling, which it is flexible and reliable.
7.Touch screen, it is convenient to show alert information and state. Besides, the interface is friendly and the information is huge.
8.24V DC of control components, PLC is supplied by isolation transformer, external electric wave interference is lowered, and the safety of the machine is greatly raised.
Type Item | Unit | YH2M8192 |
Size of lapping plate(OD*T) | mm | Φ914×35 |
Size of operating ring(OD*ID*T) | mm | Φ410×Φ368×80(3pcs) |
Max size of work piece | mm | Φ300 |
Flatness precision of work piece | um | 0.005(Φ80)/0.008(Φ80) |
The roughness of work piece surface/polishing work piece | um | Ra0.15/Ra0.05 |
Rotational speed of lapping plate | rpm | 5~90 rpm(stepless regulating) |
Rotational speed of operating ring | rpm | 0~90 rpm(stepless regulating) |
Motor of plate | Power 7.5KW, Rated speed:1450rpm | |
Motor of operating ring | Power 90W, Rated speed:1440rpm | |
Pressurized cylinder(bore*stroke) | piece | Φ80×450(3pcs) |
Processing station qty | piece | 3 |
Overall dimension (L*W*H) | mm | 1570×1725×2250 |
Total weight | kg | 2000 |
Packaging & Shipping
1.Moisture-proof packaging+Wooden Box.
2.Special packing requirements available.
Company Information
Our R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers

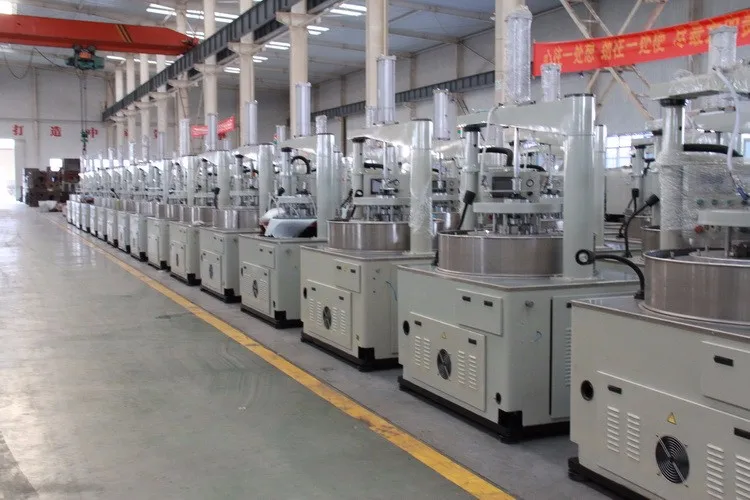

- The workshop and office area covers 20K Sqmeters.
- With over 270 staffs, including over 50 R&D technical engineers.
- Main products output more than 1000 sets per year.
Certifications
Our R & D team establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student,get 5—9 patents per year .
- has got 36 related patents
- A certificate of international standard products in 2005
- has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards
Foreigners Visiting
Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, Portugal, Russia, Kenya, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.
Customers

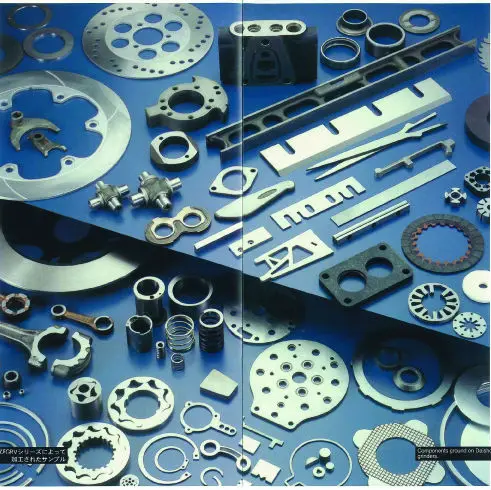

Our products are widely used in Automotive/3C IT Electronic/Military/ Aerospace/ Shipbuilding/Bearings/seals/ Household Appliances/ And other key areas of National Economy.
After-Sales Service
1.Guarantee period is one year. Within this period, the replaced parts will be offered free if has quality problem.
2.We could arrange engineers to user’s site for installation and final-acceptance according to customer’s requirements.
3. We will offer free the training for machine’s management /operation/maintenance to user’s related people.
Please feel free to contact us,we will reply within 24h!
